H23Y1 - Heated blanket/cushion Vevor - Free user manual and instructions

Product Type	Jade Stone Heating Pad / Heating Blanket
Brand	Vevor
Model	H23Y1
Heating Technology	Far Infrared
Surface Material	Jade Stone
Temperature Range	40°C to 70°C (103°F to 159°F)
Built-in Timer	Up to 240 minutes (4 hours), in 15-minute increments
Vibratory Massage Function	Yes, 3 intensity levels (duration: 20 minutes per cycle)
Power Supply	AC Adapter: input AC 100-240V 50/60Hz, output DC24V 1.5A (36W)
Included Accessories	Heating pad, digital controller, AC adapter, user manual
Recommended Use	Place the jade stones facing the body, use a protective layer (towel)
Cleaning Method	Wipe with a soft damp cloth and non-abrasive soap; do not immerse
Storage	Store in the provided carrying bag, in a cool dry place
Safety	Automatic shut-off after 4 hours; do not use on sensitive skin, avoid direct contact with stones
Standards and Certifications	Compliant with FCC Part 15, WEEE Directive 2012/19/EC, CE and UKCA marking
Electronic Warranty	Warranty certificate available at www.vevor.com/support
Languages of the Manual	French, English, German, Italian, Dutch, Polish, Swedish (downloadable)
Repairability	Do not disassemble; contact Vevor technical support for any malfunction

Frequently Asked Questions - H23Y1 Vevor

How to turn on and off the Vevor H23Y1 heating pad?

Press the ON/OFF button on the digital controller to turn the device on or off.

How to set the desired temperature?

Use the TEMP+ and TEMP- buttons to increase or decrease temperature by 1°C or 1°F increments. The range is from 40°C to 70°C (103°F to 159°F). The screen flashes to confirm the setting.

How to use the timer?

Press TIME+ or TIME- to set the operating time in 15-minute steps, up to 240 minutes. The timer automatically turns off at the end of the countdown.

How to activate the vibration massage function?

Press the VIBRATE button to cycle through the three vibration levels (1, 2, 3) or turn it off. Each cycle lasts 20 minutes.

How long does it take for the pad to heat up?

Allow 5 to 10 minutes for the far infrared energy of the jade stones to accumulate and the pad to reach the set temperature.

Can I use the pad directly on my skin?

No, for safety reasons, always place a protective layer (e.g., a small folded towel) between you and the jade stones. Heat effectively penetrates clothing.

How to clean the heating pad?

Unplug the device and let it cool. Wipe it with a slightly damp soft cloth and non-abrasive soap. Do not immerse, do not machine wash, and do not iron.

What are the important usage precautions?

Do not use on an infant, an unconscious or sleeping person, during pregnancy, diabetes, poor circulation, malignant tumor, or on injured skin. Do not cover the pad with a blanket or pillow to avoid overheating.

What to do if smoke or abnormal odor is emitted?

Immediately unplug the device from the power outlet and stop using it. Contact Vevor after-sales service via www.vevor.com/support.

Does the heating pad have a safety automatic shut-off?

Yes, if no timer is set, the device automatically turns off after 4 hours of continuous operation to prevent overheating.

USER MANUAL H23Y1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

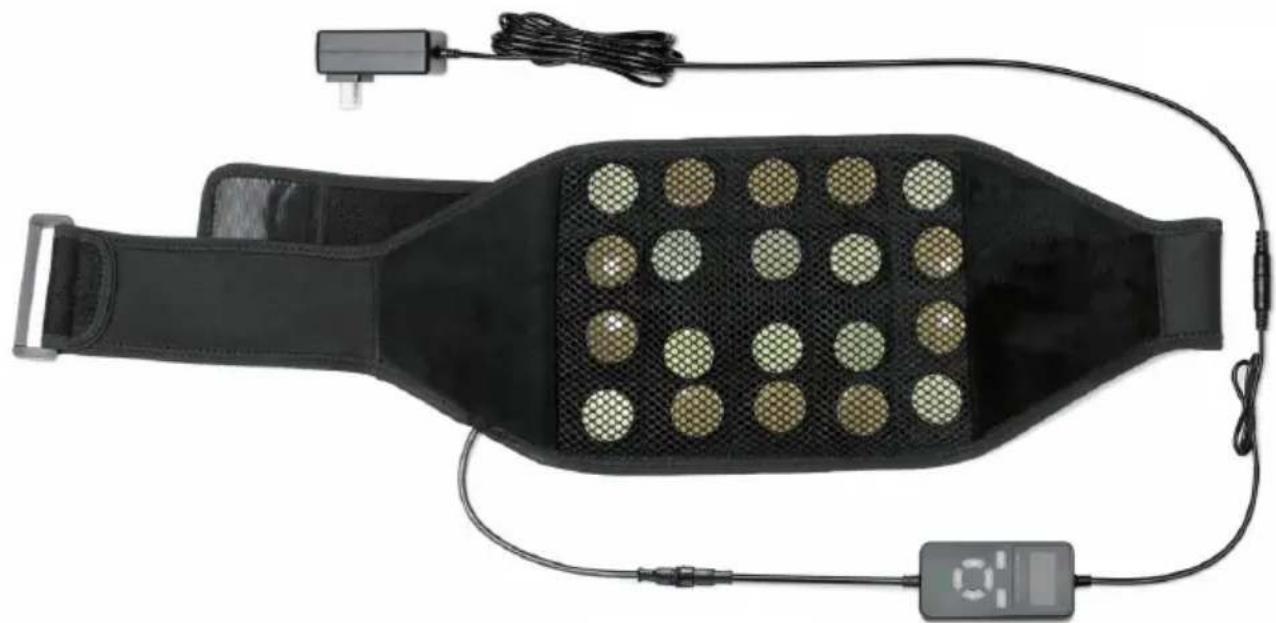

JADE STONE HEATING PAD

MODEL: H23Y1

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: H23Y1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal d waste, but must be taken to a collection point for re electrical and electronic devices
	Compliance is a EC & UK security certification.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. To ensure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use.

This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with codes. If you have any problems, please call us. Do not try to fix the problem yourself, or it will cause injury or property damage.

Please read ALL the instructions before using your machine.

1. Please check the product before each use. If you find that the product is damaged, please do not use it.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not immerse the appliance in water or any other liquid.
4. Do not disassemble the product.
5. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
6. Please start to use after the collect is fixed well.
7. Do not leave the product hanging over the edge of table or counter or into contact with any hot surfaces.
8. Do not place the product on or near hot air, electric burners or heaters.
9. Do not apply this unit to any other purposes than the indicated usage.
10. KEEP IT OUT OF CHILDREN'S REACH.
11. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
12. Please clean it regularly, at least once a month.
13. Do not cover the mat with a quilt or blanket or pillow and so on when mat.

Note: The quilt/blanket/pillow...may be burned when the heat of the mat is high.

1. Do not partially cover this pad to avoid partially overheating.
2. Do not use this pad on a latex/silicone/sponge bed mattress or sofa that is soft.
3. Do not use this pad together with other heating products.
4. Do not use while unconscious or while sleeping.
5. Do not use on an infant.
6. Do not use if you are pregnant or think you may be pregnant.
7. Do not use over any malignancy. Anyone with diabetes, poor blood circulation, or with disabilities should consult their physician before use.
8. Place pad directly where heat is desired.

Note: Burns can occur regardless of control setting. Check skin under pad frequently to avoid burning and blistering.

1. Do not use in any oxygen enriched environment or near equipment that stores or emits oxygen.
2. Do not fold pad and apply weight (do not fold sharply).
3. Do not use pins, nails, screws, or any other metallic means to fasten this pad in place.
4. Never pull the pad by the power supply cord or use the cord as a handle.
5. Carefully examine inner cover before each use, discard the pad if inner covering shows any signs of deterioration such as blistering or cracking.
6. If smoke is ever detected from this device, immediately remove the power from the outlet.
7. Do not use this pad with liniments, salves or ointments that contain heat producing ingredients, skin burns could result.
8. Use wherever hot applications are desirable for personal comfort, and whenever recommended by your physician for the relief or pain.
9. Keep your pad in its carrying bag or in a dry, cool place.
10. Do not hang pad by the power cord.
11. Do not use this pad in the presence of flammable mixture.
12. LIFE SAFETY WARNING: Do not use this product after drinking alcohol or taking other medications.
13. LIFE SAFETY WARNING: Pregnant women, skin diseases, heart diseases, hypertension, brain diseases, and other diseases should consult a doctor before using this product.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

CAUTION:

If you have any health concerns, do not hesitate to consult your doctor before using this product.

Never leave the appliance unattended under any circumstance. Never use this product directly on swollen or inflamed areas of skin.

Do not use this product if you suffer from a physical ailment that would limit or impair your ability to operate the controls. This unit should not be used by anyone without adult supervision.

LIFE SAFETY WARNING

The list below contains known conditions when the far infrared heating pad is not to be used or only to be used under the supervision of a physician. This list is not exhaustive. If you suffer from any serious condition that might be affected by use of the product, please consult with your physician before using the heating pad.

• Do not use directly over open wounds.
• Do not use directly over acute injuries.
• Do not use directly over face or genitals.
• Do not use if you are insensitive to heat, including paraplegic and quadriplegic, or have poor blood circulation that affects your ability to feel heat or cold sensations.
• Do not use if you are immobile or incapacitated or not able to remove the pad from your body.
• Do not use this product with infants or children under the age of 6. Children over the age of 14 should always use the pad under adult supervision. In the case of pregnancy, diabetes, hemophilia, malignancy or other serious conditions, consult with your physician before applying the heating pad.

BEFORE USING

Before using the appliance for the first time, peel off any promotional and packaging materials and check that the product is clean and dust-free. Please dispose of all plastic bags carefully and keep them away from children and pets. Check all components provided according to the list in this manual.

First, open the bag and confirm all components are included. Then perform the following:

Step 1: Connect the heating pad to the digital controller.

Step 2: Connect the Digital Controller to the AC-DC Adapter.

Step 3: Plug the Power Cord into the wall outlet.

The Heating Pad is now assembled.

Note: Before each use, it is necessary to check whether the product is in good condition and whether the connector links are reliable.

PRODUCT PARAMETERS

Model	H23Y1
Power adapter Input:	AC100-240V 50/60Hz
Power adapter Output:	DC24V 1.5A

Note: Please use the correct power source voltage.

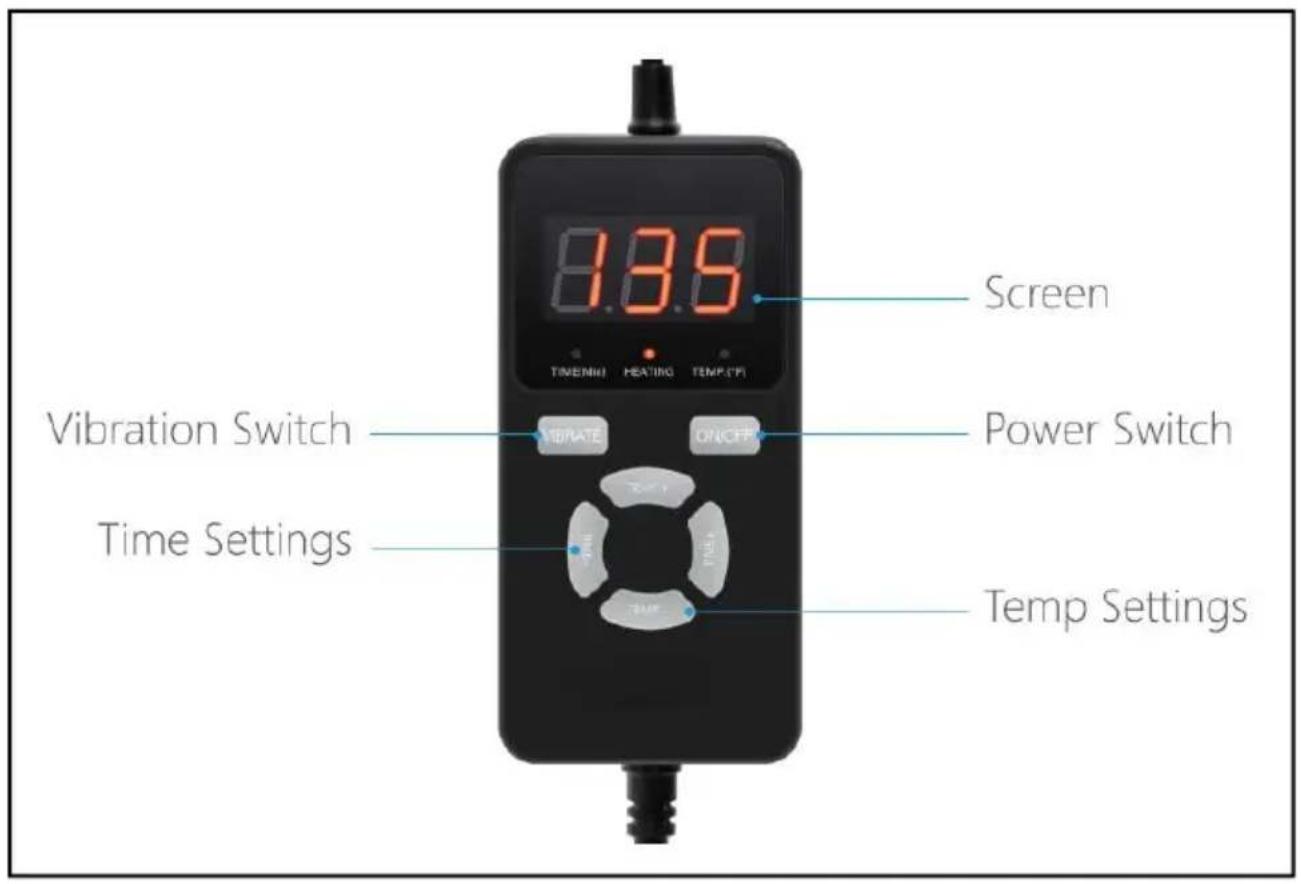

CONTROLLER INSTRUCTIONS

ON/OFF:

The digital controller allows you to turn the unit “ON” or “OFF” by simply pressing the ON/OFF button.

Vibration Massage:

The digital controller has a vibration massage function with three vibration levels: level 1, level 2, and level 3. By pressing the VIBRATE button, you can adjust the vibration from level 1 to level 3 or shut off the vibration. Each vibration session lasts as long as 20 minutes at a time. Press the VIBRATE button for the first time, the vibration level is level 1. Press the VIBRATE button for the second time, the vibration level is level 2. Press the VIBRATE button for the third time, the vibration level is level 3. Press it again, the vibration is shut off. To continue to use the vibration, press the VIBRATE button again, and it will work from level 1.

Heat:

The digital controller allows you to adjust the heat to a temperature that you are comfortable with. Simply press the (TEMP+) button to increase the temperature or press the (TEMP-) button to lower the temperature by 1°F or 1°C increments. The temperature range is 103°F~159°F (40°C~70°C).

When you press the TEMP+ or TEMP-, the TEMP. (°F or °C) light will turn on, then start blinking, and the screen will also blink four times showing the temperature you set. Then the screen returns to show the current temperature of the pad. If the HEATING light is on all the time, it means the digital controller is heating up in order to reach the temperature that you set. If the HEATING light is blinking, it means the current temperature of the pad is close to the temperature that you set, and the digital controller will slow down heating up. If the HEATING light is not on, it means the current temperature of the pad has already reached the temperature that you set, so the digital controller has stopped heating up. When the current temperature of the pad drops down to the temperature settings, the digital controller will heat up and the HEATING light will be on again.

Important Note: This Far Infrared Heating Pad works a little differently than standard coil heating pads. Please allow 5 to 10 minutes for the Far Infrared pad in the stones to build up and for the pad to heat up. Once you are ready, please adjust the temperature to your tolerance.

Timer:

The digital controller allows you to set the timer to automatically shut off. By pressing the (TIME+) or (TIME-) buttons, you can adjust the time by 15-minute increments. The timer can be set for as long as 240 minutes at a time. When the timer counts itself all the way down, it will automatically shut off. When you press the TIME+ or TIME-, the TIME (Min) light will turn on, then start blinking, and the screen will also blink four times showing the time you set. Then the screen returns to show the current temperature of the pad. If you do not adjust the timer, the unit will count up to 4 hours and shut itself off.

Important Note: Always unplug this device when not in use.

TIPS

1. After taking a shower, using this product will help the body relax more.
2. Before use, set the temperature to the lowest level and wait for the user to adapt to the temperature before adjusting to the desired temperature.
3. Before each use, make sure that all connections are tight and snug.
4. Before each use, plug the pad into the wall outlet; the use of a surge protector is recommended.
5. Before each use, make sure that all of the functions of the digital controller are working correctly.
6. It is suggested that you get in a comfortable position, either sitting or lying down.
7. It is suggested that you place a small towel (folded in half) as a protection between you and the stones. There will not be a loss of effectiveness if the heat has to travel through the protective layer or even your clothing.
8. In other words, the stones do not need to be touching your skin to be effective. For safety reasons, the stones should not be touching your skin directly.
9. Depending on the thickness of the protective layers, you will need to adjust the temperature to your tolerance level. The temperature should never be set hotter than you can comfortably tolerate.
10. The pad should be positioned directly over the affected area. You may lie on the pad, wrap the pad around the affected body part, or lay the pad on the body or body part. Remember to use a protective layer (e.g., a small towel) between you and the pad to keep it clean.
11. When using this pad, please have the jade stones facing your body.
12. There is no specific protocol for any individual using a heating pad. That being said, everyone responds differently to different modalities, and it is suggested that you limit the use of the pad to 20 minutes per session of continuous use for the first several weeks to see how you tolerate the heat. Once you have become comfortable with the use of the pad, you can begin to use it for longer durations of continuous use. Please note that the longer the duration, the lower the heat should be. Learning to adjust the heat to your tolerance will be key to achieving results.

CLEANING

1. Before cleaning, the product plug must be unplugged. Put the product in power-off state.
2. Use a soft and moist cloth for cleaning. Do not rinse directly with water.
3. Please keep accessories and products together.
4. Do not fold excessively during storage to avoid damaging internal wiring.
5. Do not submerge controller, converter, or pad in water.
6. Do not dry clean any part of the heating pad.
7. Do not use bleach or detergent as cleaning agents.
8. Do not use a wringer.
9. Do not put in microwave.
10. Do not put in washing machine or dryer.
11. Do not iron.
12. Do not use mothballs or repellent sprays of any kind.
13. Do not put any of the power cords into water.
14. Do not use unless the pad is completely dry.
15. Do not attempt to clean each individual jade stone.

5. Acceptable cleaning method

• Wipe the pad before the initial use and after each use.
• Use a gentle nonabrasive soap with a slightly moist towel.
• Let the heating pad dry completely before using.

6. Routine maintenance for safe performance

• Inspect the heating pad both before and after each use.
• Examine the surface of the heating pad for any sign of abnormal wear and tear, including blistering and cracking.
• Examine the power cord for cracks, blisters, frays, or exposed wires.

STORAGE

To store your heating pad, completely clean the unit, let it completely dry, and place the heating pad back into the supplied storage bag. Store the heating pad in a dry place away from any risk of damage while the pad is not in use.

Only transport the heating pad inside of the storage bag provided. Do not let the pad get wet or be exposed to any moisture.

• Do not hang the heating pad by the power cord.
• Do not bend or put any additional weight on the heating pad.
• Do not allow the power cord to be pinched.

UTK TECHNOLOGY SHENZHEN LIMITED

Address: 501, A1 Building, Yinlong Industrial Park, No.292, Shenshan Road, Longgang District, Shenzhen, Guangdong CN 518118

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

PRODUCT PARAMETERS

UTK TECHNOLOGY SHENZHEN LIMITED

C/O YH Consulting Limited Bureau 147,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

UTK TECHNOLOGY SHENZHEN LIMITED

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Address: 501, A1 Building, Yinlong Industrial Park, No.292, Shenshan Road

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

CONSULTING YH LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Casa Centurión, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

NEED HELP? CONTACT US!

UTK TECHNOLOGY SHENZHEN LIMITED

Address: 501, A1 Building, Yinlong Industrial Park, No.292, Shenshan Road

Longgang District, Shenzhen, Guangdong CN 518118

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai

200000 CN.

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

REP WIEL KIEJ BRYTANII

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

UTK TECHNOLOGY SHENZHEN LIMITED

Address: 501, A1 Building, Yinlong Industrial Park, No.292, Shenshan Road

Longgang District Shenzhen, Guangdong CN 518118

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai

200 000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

Australia

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
