USER MANUAL FT-1616 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC HEATED

FOOT WARMER

MODEL: FT-2220 FT-1616

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HEATED

FOOT WARMER

MODEL:FT-2220 FT-1616

Close-up of a person's legs standing on a dark textured surface with a white thermometer partially visible (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

	Do not fold or crease to use
	Do not dry clean
	Do not insert pins
	Do not wash
	Do not bleach
	Wash by hand
	Not to be used by very young children (0-3 years)
	This product is of protection class II. That means equipped with enhanced or double insulation.
	Indoor Use Only
	CORRECT DISPOSALThis product is subject to the provision of europea Directive 2012/19/EU. The symbol showing a whee crossed through indicates that the product requires separate refuse collection in the European Union. applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical an electronic devices.

Electrical Foot Warmer Heating Pad Instructions

Thank you for choosing the Foot Warmer. Our goal is to provide best products to enhance your life.

This is an electrical product. Please ensure you read and understand the instructions below before using your Foot Warmer. Failure to so may result in electrical shock or fire causing serious bodily injury WARNING!

RISK OF ELECTRICAL SHOCK

The product is designed specifically for humans.

WARNING: This is an electrical product. Please read all directions before use. Failure to do so may result in electrical shock or fir causing serious bodily injury.

1. Read all instructions before using this product.
2. FOR INDOOR USE ONLY

3. DO NOT use if any visible damage is apparent (cracks, tears or wires and heat element).

4. Must instantly turn off the Foot Warmer and Unplug when overhea charred flavor in use.

5. Serious heart patients, those that depend on a pace maker and p women should check with their doctor before use.
6. DO NOT use for unconscious and sensitive to heat people.
7. DO NOT make any modifications to switch button ,wires and heat element.
8. DO NOT use in sleeping; Do not put the Foot Warmer under in m or quilt when use.
9. DO NOT use cord as handle.
10. DO NOT puncture or use any sharp object to secure the Foot Wa
11. DO NOT use another electronic heating device in conjunction with Foot Warmer.
    12.DO NOT tuck the heaitng pad when use.
12. DO NOT Sit and lie on the Foot Warmer heating pad.
13. DO NOT Heap and Cover anything on the Foot Warmer when use
    15.DO NOT USE for Children.
14. Unplug when not in use.
    17.DO NOT USE WET.
15. DO NOT dry clean this Foot Warmer. Dry cleaning solvents may damage the wires.
16. DO NOT use bleach or cleaning fluids.
    20.DO NOT use a wringer.
    21.DO NOT iron your Foot Warmer.
17. DO NOT use mothballs or sprays of any kind.
18. DO NOT reconnect the heated product or use it until it is OMPLE dry.
    24.DO NOT use analgesic cream in combination with your Foot Warm
19. If the supply cord is damaged, it must be replaced by the man's service agent or similarly qualified persons in order to avoid a ha
20. This appliance can be used by children aged from 8 years and and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

Function

The fast heating technology provides you unmatched warmth and pain relief to cold feet, saving feet from poor circulation, arthritis and cold floors; Besides, it's perfect for treating sore muscles your back, shoulders, abdomen, legs, and arms; promote blood flow, or keep you warm.

6 Temperature Settings: LED controller adjusts heat easily with 6 temperature settings to accommodate your comfort level (40°C/104°F to 60°C/140°F).

TIMER:4 level settings ranging from 30\~120min,conserves energy and prevents burns caused by excessive heating.

6 HEAT SETTINGS:

Warm-temperature range ( 40^/104^ F)

Low-temperature range ( 45^/112^ F)

Medium Low -temperature range ( 48°C/119°F)

Medium–temperature range ( 52^/126^ F)

Medium High-temperature range ( 56 ^ C/133 ^ F)

High-temperature range (\~60°C/140°F)

Features

ON/OFF Push Switch; IC controller box with LED indication;

6 temperature levels to adjust(40°C/104°F to 60°C/140°F);

4 timer levels to adjust(30/60/90/120min.);

Single circuit provides consistent temperature;

Fuse inside of controller;

Hand and Machine Washable.

Foot Warmer Heating Pad Operation

1. Ensure the plug into a safety-tested electrical outlet.
2. Turn On: Push Up the Switch key to ON, the Foot Warmer into De Mode(1/2/3 heat Indicator LED ON, 60min Timer

Indicator LED ON).

Default Mode:

Heat level: Medium (3 level)—temperature range ( 48°C/119°F)

Timer level:60min to auto shut OFF.

1. Adjust Temperature (1\~6 levels):

In Default Mode, press the heat key to Adjust Temperature for suitable requirement, that heat LED indication will rages

corresponding Temperature level.

1. Timer:

In Default Mode, press the Timer key to Set the heat-up time, that time indication will rages corresponding Timer

levels(30/60/90/120min.).

The timer LED will also be shifted down one level in every 30min,W timer is out,all the LED will be off,and the Foot

Warmer will be shut off. In Timer Auto OFF Mode press Heat key or key back to Default Mode.

1. Turn Off: Push Down the Switch Key to OFF in any Modes

6, Clean: Turn off the Foot Warmer, Unplug Foot Warmer from the wa outlet. Remove the controller and Power unit. Foot

Warmer can be machine washed and must be dry before reassembling unit. Do not use cleaners of chemicals.

7, Storage: Turn off the Foot Warmer, dial out the Foot Warmer, Store pad in a dry ,safe, clean and cool place after

clean up.

KEEP SHIPPING PACKAGING for use in the event that your unit needs servicing.(If this unit is shipped without the original

packing, damage could occur and void the warranty).

PRE-OPERATING INSTRUCTIONSUCTIONS

When removing the unit from the packing case, check for any shippir damage. Please contact your shipper and dealer

immediately if the unit bears any sign of damage from mishandling.

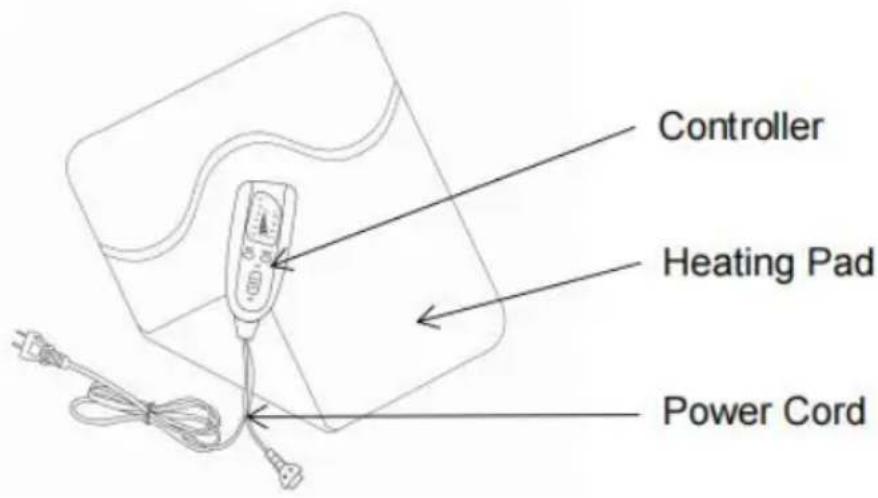

Controller Heating Pad Power Cord

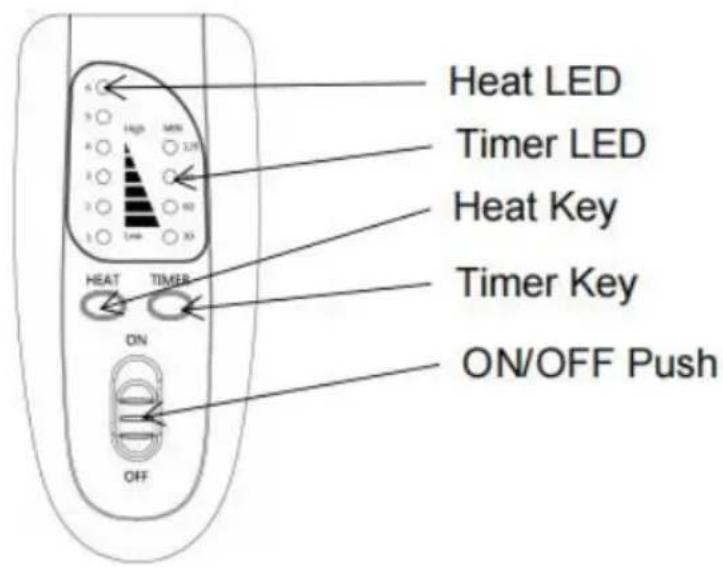

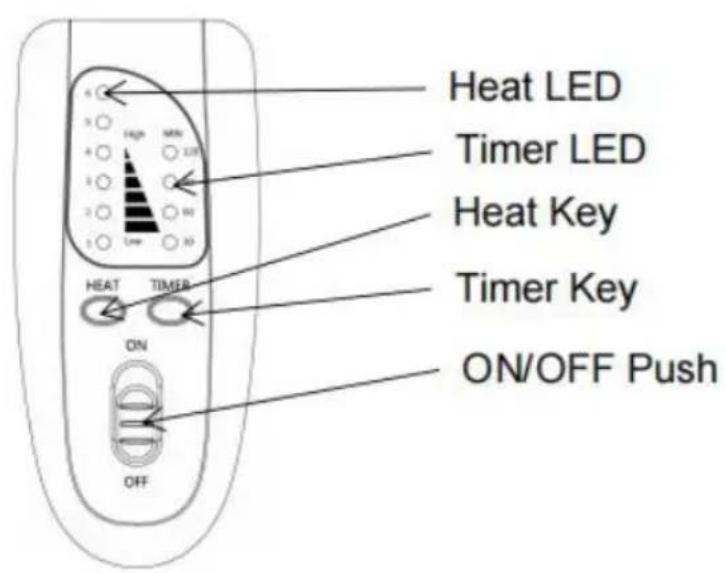

Heat LED Timer LED Heat Key Timer Key ON/OFF Push OFF

Contents

One Foot Warmer Heating pad, One controller box with Power Cord, Instructions

Limitations of Liability

1. Terms of usage is unconditional upon your acceptance, without change to the terms, conditions or notice listed herein.
2. Proper use including reviewing all safety precautions.
3. No prohibited or unlawful use. The products is intended for human only.

4. Our reserves the right to change the terms and conditions under this product is offered.

5. Buyer assumes all risks and liability from the use of this product. not liable for any damages arising from use or misuse of this product.

Specifications

Model name:	Foot Warmer Heating pad
Model No.:	FT-1616	FT-2220
Power:	56 Watts	56 Watts
Size:	39*38cm(15.4*15Inch)	54.5*48cm(21.5*19Inch)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
