FT-02A - Heated blanket/cushion Vevor - Free user manual and instructions

Product Type	Heating pad / foot warmer
Brand	Vevor
Model	FT-02A
Dimensions	31 x 22 x 15 cm
Power	58 W
Temperature range	40 °C to 60 °C
Temperature settings	6 levels
Timer	2, 4, 6 or 8 hours
Control	LED controller with on/off, temperature and timer buttons
Rapid heating function	Yes
Automatic shut-off	Yes
Safety fuse	Yes, integrated in the controller
Protection class	II (double insulation)
Usage	Indoor only
Cleaning	Machine washable and hand washable
Care	Do not bleach, do not dry clean, dry completely before reuse
Included accessories	Controller with power cord
Users	Adults (not recommended for children under 8 without supervision)
Applications	Cold feet, muscle pain, arthritis, blood circulation

Frequently Asked Questions - FT-02A Vevor

How to turn on the Vevor FT-02A heating pad?

Press the On/Off button on the controller. The default mode activates (heat level 3, timer 4 hours).

How to adjust the temperature?

Press the heat button to cycle through 6 levels (40°C to 60°C). The LED indicates the selected level.

How to set the timer?

Press the Timer button to choose 2, 4, 6 or 8 hours. The LED indicates the duration. The device turns off automatically at the end.

Can I use the heating pad while sleeping?

No, it is forbidden to use the device while sleeping due to the risk of burns or overheating.

How to clean the FT-02A heating pad?

Unplug and remove the controller. The pad is machine washable (gentle cycle, cold water) or hand washable. Do not bleach, do not dry clean. Dry completely before reuse.

Can I use the heating pad with sensitive individuals?

People with heart conditions, pregnant women, or those sensitive to heat should consult a doctor before use. Do not use on unconscious persons.

What to do if the heating pad smells burnt?

Turn off immediately and unplug. If the smell persists or damage is visible, stop use and contact Vevor support.

Is the heating pad safe for children?

The device should not be used by children under 8 without supervision. Do not use on very young children (0-3 years).

Can I fold the heating pad during use?

No, do not fold or crease the pad during use. This could damage the heating elements.

What to do in case of tear or exposed wire?

Do not use the device if it has cracks, tears, or exposed wires. Contact the manufacturer for repair or replacement.

USER MANUAL FT-02A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

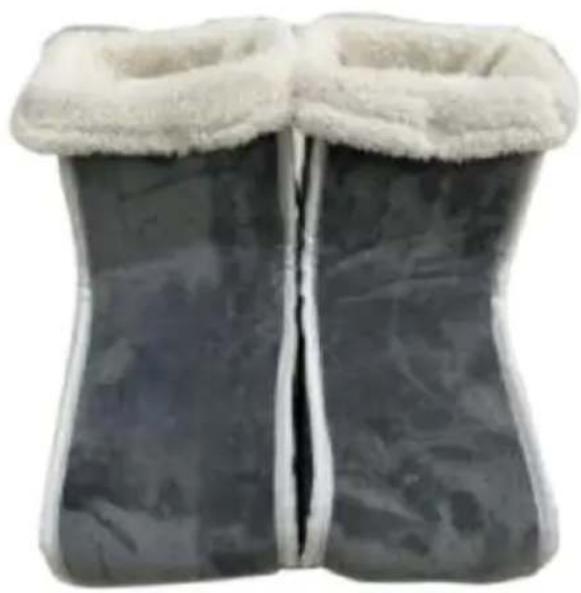

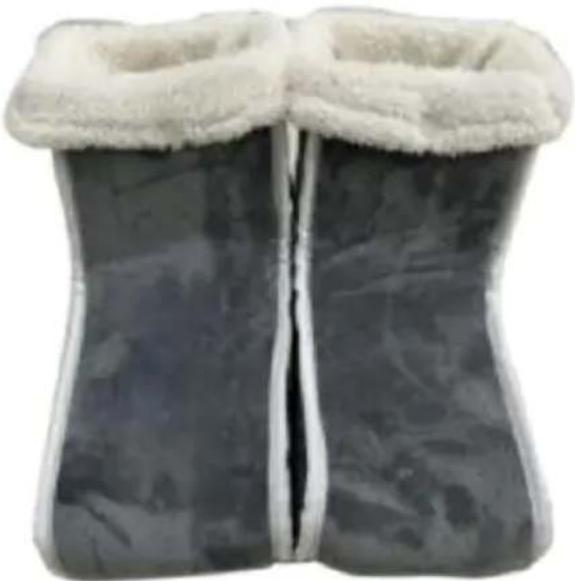

ELECTRIC HEATED

FOOT WARMER

MODEL: FT-02A

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HEATED

FOOT WARMER

MODEL: FT-02A

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any data changes on our product.

	Do not fold or crease to use
	Do not dry clean
	Do not insert pins
	Do not wash
	Do not bleach
	Wash by hand
	Not to be used by very young children (0-3 years)
	This product is of protection class II. That means equipped with enhanced or double insulation.
	Indoor Use Only
	CORRECT DISPOSALThis product is subject to the provision of europea Directive 2012/19/EU. The symbol showing a whee crossed through indicates that the product requires separate refuse collection in the European Union. applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical an electronic devices.

Electrical Foot Warmer Heating Pad Instructions

Thank you for choosing the Foot Warmer. Our goal is to provide the best products to enhance your life.

This is an electrical product. Please ensure you read and understand the instructions below before using your Foot Warmer. Failure to do so may result in electrical shock or fire causing serious bodily injury. WARNING!

RISK OF ELECTRICAL SHOCK

The product is designed specifically for humans.

WARNING: This is an electrical product. Please read all directions before use. Failure to do so may result in electrical shock or fire causing serious bodily injury.

1. Read all instructions before using this product.
2. FOR INDOOR USE ONLY
3. DO NOT use if any visible damage is apparent (cracks, tears, or exposed wires and heat elements).
4. Must instantly turn off the Foot Warmer and unplug when overheating or charred flavor occurs during use.
5. Serious heart patients, those that depend on a pacemaker, and pregnant women should check with their doctor before use.
6. DO NOT use for unconscious or heat-sensitive people.
7. DO NOT make any modifications to the switch button, wires, or heat element.
8. DO NOT use in sleeping; Do not put the Foot Warmer under in m or quilt when use.
9. DO NOT use cord as handle.
10. DO NOT puncture or use any sharp object to secure the Foot Warmer.
11. DO NOT use another electronic heating device in conjunction with Foot Warmer.
12. DO NOT tuck the heating pad when use.
13. DO NOT sit and lie on the Foot Warmer heating pad.

14. DO NOT heap and cover anything on the Foot Warmer when use.

15. DO NOT USE for Children.

1. Unplug when not in use.

17. DO NOT USE WET.

1. DO NOT dry clean this Foot Warmer. Dry cleaning solvents may damage the wires.
2. DO NOT use bleach or cleaning fluids.

20. DO NOT use a wringer.

21. DO NOT iron your Foot Warmer.

1. DO NOT use mothballs or sprays of any kind.
2. DO NOT reconnect the heated product or use it until it is completely dry.

24. DO NOT use analgesic cream in combination with your Foot Warmer.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Function

The fast heating technology provides you unmatched warmth and pain relief to cold feet, saving feet from poor circulation, arthritis and cold floors; Besides, it's perfect for treating sore muscles in your back, shoulders, abdomen, legs, and arms; promote blood flow, or keep you warm.

6 Temperature Settings: LED controller adjusts heat easily with 6 temperature settings to accommodate your comfort level (40°C/104°F to 60°C/140°F).

TIMER: 4 level settings ranging from 2~8H, conserves energy and prevents burns caused by excessive heating.

6 HEAT SETTINGS:

Warm (level 1) — temperature range (~40°C/104°F)

Low (level 2) — temperature range (~45°C/112°F)

Medium Low (level 3) — temperature range (~48°C/119°F)

Medium (level 4) — temperature range (~52°C/126°F)

Medium High (level 5) — temperature range (~56°C/133°F)

High (level 6) — temperature range (~60°C/140°F)

Features

ON/OFF Button Switch; IC controller box with LED indication;

6 temperature levels to adjust (40°C/104°F to 60°C/140°F);

4 timer levels to adjust (2/4/6/8H);

Single circuit provides consistent temperature;

Fuse inside of controller;

Hand and Machine Washable.

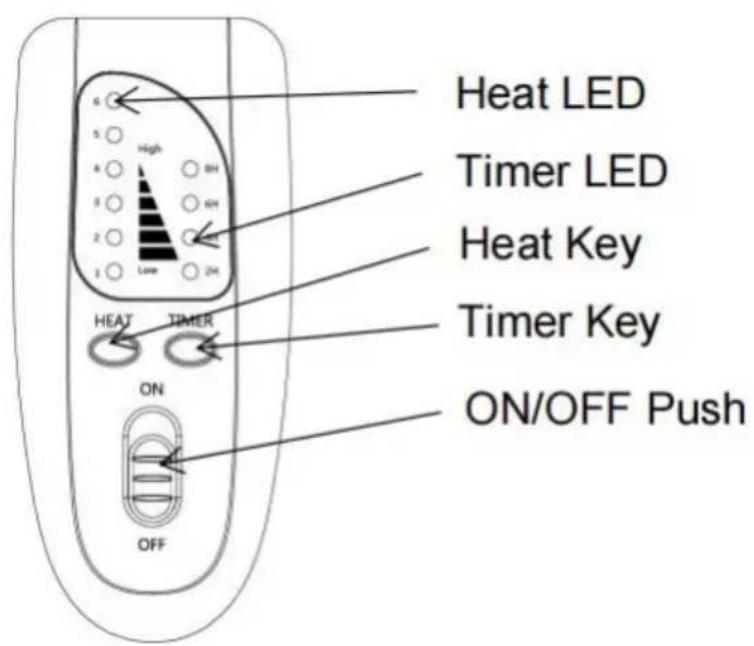

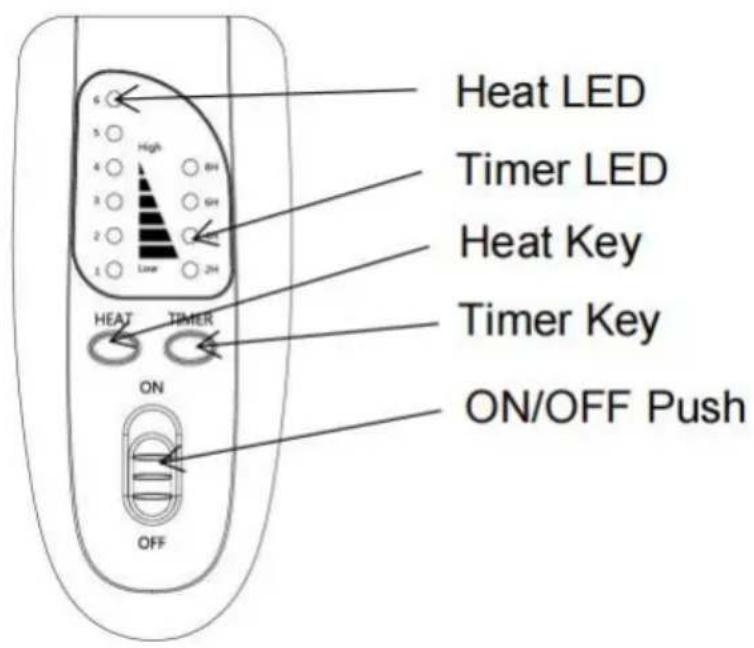

Foot Warmer Heating Pad Operation

1. Ensure the plug into a safety-tested electrical outlet.
2. Turn On: Press the Power key to ON, the Foot Warmer into Default Mode (LED display shows 3 and 4H Timer Indicator LED ON). Default Mode:

Heat level: Medium (3 level) — temperature range (~48°C/119°F)

Timer level: 4H to auto shut OFF.

1. Adjust Temperature (1~6 levels):

In Default Mode, press the heat key to adjust temperature for suitable requirement, that heat LED indication

will range corresponding temperature level.

1. Timer:

In Default Mode, press the Timer key to set the heat-up time, that time indication will range corresponding

Timer levels (2/4/6/8H).

The timer LED will also be shifted down one level every 2H. When timer is out, all the LEDs will be off, and the

Foot Warmer will be shut off. In Timer Auto OFF Mode, press Heat key or Timer key to return to Default Mode.

1. Turn Off: Push Down the Switch Key to OFF in any Modes

6. Clean: Turn off the Foot Warmer, unplug Foot Warmer from the wall outlet. Remove the controller and Power unit.

Foot Warmer can be machine washed and must be dry before reassembling the unit. Do not use cleaners or chemicals.

7. Storage: Turn off the Foot Warmer, unplug the Foot Warmer. Store pad in a dry, safe, clean and cool place after clean up.

KEEP SHIPPING PACKAGING for use in the event that your unit needs servicing. (If this unit is shipped without the

original packing, damage could occur and void the warranty).

PRE-OPERATING INSTRUCTIONS

When removing the unit from the packing case, check for any shipping damage. Please contact your shipper and

dealer immediately if the unit bears any sign of damage from mishandling.

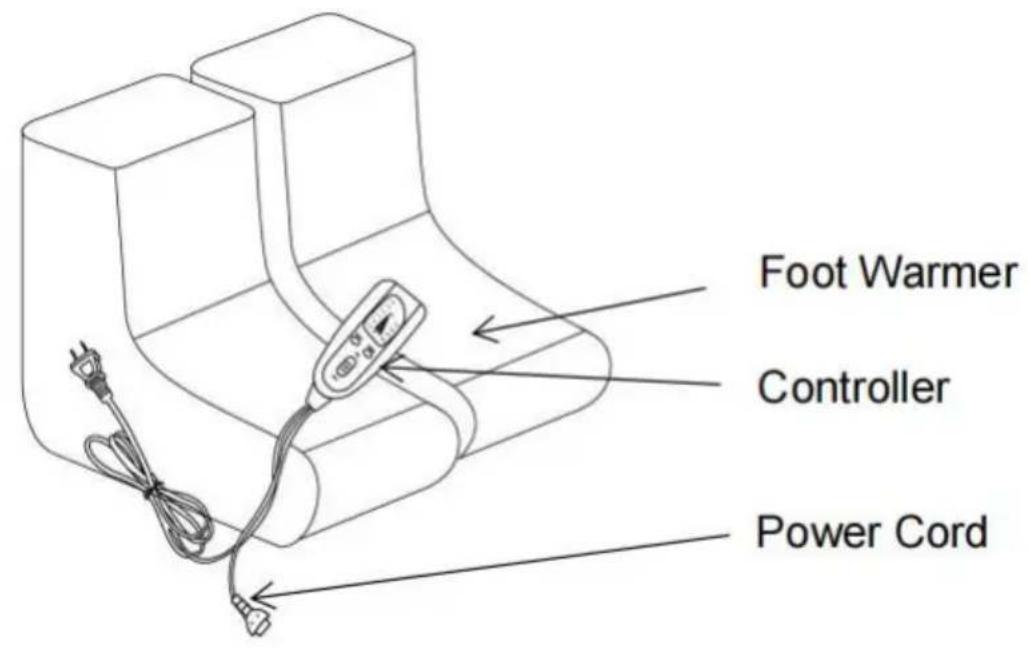

Contents

One Foot Warmer, One controller box with Power Cord, Instructions

Limitations of Liability

1. Terms of usage is unconditional upon your acceptance, without change to the terms, conditions or notice listed herein.
2. Proper use including reviewing all safety precautions.
3. No prohibited or unlawful use. The product is intended for human use only.
4. We reserve the right to change the terms and conditions under which this product is offered.
5. Buyer assumes all risks and liability from the use of this product. We are not liable for any damages arising from use or misuse of this product.

Specifications

Model name:	Foot Warmer Heating pad
Model No.:	FT-02A
Power:	58 Watts
Size:	31x22x15cm (12.2x8.7x5.9Inch)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
