FT-2220 - Heated blanket/cushion Vevor - Free user manual and instructions

Product Type	Heating pad for feet (foot warmer)
Brand	Vevor
Model	FT-2220
Dimensions	54.5 × 4.8 cm (21.5 × 19 inches)
Power	56 watts
Temperature range	40 °C to 60 °C (104 °F to 140 °F)
Number of temperature settings	6 levels
Timer	4 levels: 30, 60, 90 and 120 minutes
Automatic shutdown	Yes, according to timer
Control type	LED controller with on/off, heat and timer buttons
Machine washable	Yes (remove controller and power supply)
Dry cleaning	No
Usage	Indoor only
Safety	Double insulation (Class II), internal fuse, overheat protection
Do not use on	Children 0-3 years, persons insensitive to heat, during sleep
Included accessories	Heating pad, controller with power cable, instruction manual
Certifications	FCC, CE
Material	Soft fabric (not specified)
Warranty	Not specified – refer to electronic warranty certificate

Frequently Asked Questions - FT-2220 Vevor

How to use the Vevor FT-2220 foot warmer?

Plug the device into a secure outlet. Press the on/off button to turn it on. The default mode starts at a medium heat level (level 3, ~48°C) and a timer of 60 minutes. Use the Heat and Timer buttons to adjust as needed.

What temperature settings are available?

The foot warmer offers 6 temperature levels: 40°C (level 1), 45°C (level 2), 48°C (level 3), 52°C (level 4), 56°C (level 5) and 60°C (level 6).

How to set the timer?

Press the Timer button to cycle from 30 to 120 minutes (30, 60, 90, 120). The corresponding LED lights up. The timer automatically decreases by one level every 30 minutes. Once the time is up, the device turns off.

Can I machine wash the pad?

Yes, the pad is machine washable. Before washing, turn off and unplug the device, then remove the controller and power supply. Wash by hand or on a gentle cycle. Do not bleach, dry clean, or iron. Make sure it is completely dry before reusing.

Is it safe to use during sleep?

No, it is strongly advised not to use the foot warmer during sleep. Do not place the pad under a mattress or blanket. Use it only when you are awake.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not use the device with a damaged cord.

Can I use the foot warmer on other body parts?

Yes, the pad can be used to soothe sore muscles on the back, shoulders, abdomen, legs, and arms. It is also effective in improving blood circulation. However, do not sit or lie on it.

Is the product suitable for children?

The foot warmer should not be used on very young children (0-3 years). For children over 8 years, supervision is required. Children should not play with the device.

How to clean the pad without damaging it?

Clean the pad by hand or machine (gentle cycle) with water and mild soap. Do not use bleach, dry cleaning solvents, mothballs, or sprays. Do not iron the pad. Dry it completely before reconnecting.

What to do in case of burning smell or overheating?

Immediately turn off the device and unplug it from the outlet. Check that no object is folded or covering the pad. If the smell persists or damage is visible, stop use and contact after-sales service.

USER MANUAL FT-2220 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

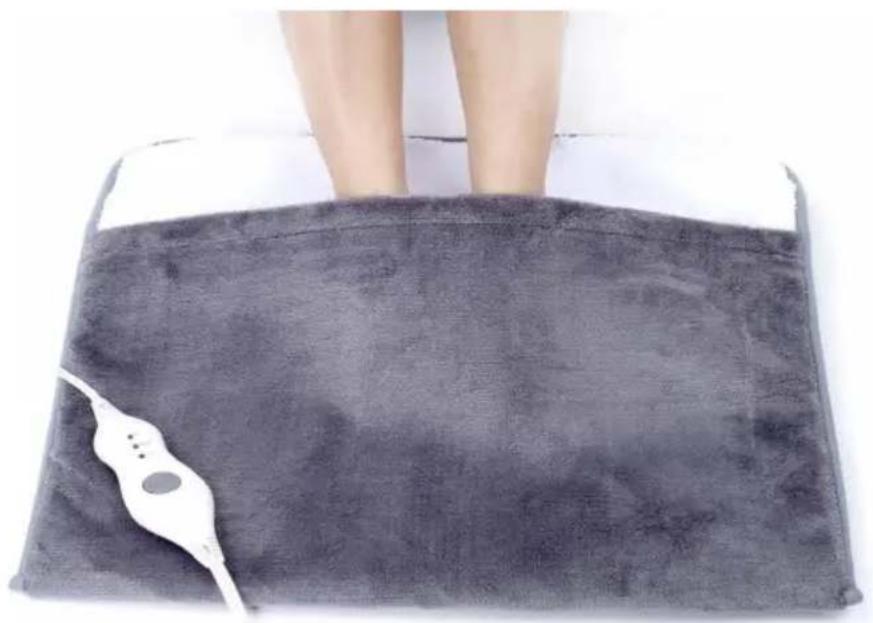

ELECTRIC HEATED

FOOT WARMER

MODEL: FT-2220 FT-1616

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HEATED

FOOT WARMER

MODEL: FT-2220 FT-1616

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any data changes on our product.

	Do not fold or crease to use
	Do not dry clean
	Do not insert pins
	Do not wash
	Do not bleach
	Wash by hand
	Not to be used by very young children (0-3 years)
	This product is of protection class II. That means equipped with enhanced or double insulation.
	Indoor Use Only
	CORRECT DISPOSALThis product is subject to the provision of europea Directive 2012/19/EU. The symbol showing a whee crossed through indicates that the product requires separate refuse collection in the European Union. applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical an electronic devices.

Electrical Foot Warmer Heating Pad Instructions

Thank you for choosing the Foot Warmer. Our goal is to provide the best products to enhance your life.

This is an electrical product. Please ensure you read and understand the instructions below before using your Foot Warmer. Failure to do so may result in electrical shock or fire, causing serious bodily injury. WARNING!

RISK OF ELECTRICAL SHOCK

The product is designed specifically for humans.

WARNING: This is an electrical product. Please read all directions before use. Failure to do so may result in electrical shock or fire, causing serious bodily injury.

1. Read all instructions before using this product.
2. FOR INDOOR USE ONLY
3. DO NOT use if any visible damage is apparent (cracks, tears, or wires and heat element).
4. Must instantly turn off the Foot Warmer and unplug when overheating or charred flavor is noticed during use.
5. Serious heart patients, those that depend on a pacemaker, and pregnant women should check with their doctor before use.
6. DO NOT use for unconscious and sensitive to heat people.
7. DO NOT make any modifications to switch button, wires, and heat element.
8. DO NOT use while sleeping; do not put the Foot Warmer under a mattress or quilt when in use.
9. DO NOT use cord as handle.
10. DO NOT puncture or use any sharp object to secure the Foot Warmer.
11. DO NOT use another electronic heating device in conjunction with Foot Warmer. 12. DO NOT tuck the heating pad when in use.
12. DO NOT sit or lie on the Foot Warmer heating pad.
13. DO NOT heap or cover anything on the Foot Warmer when in use. 15. DO NOT USE for Children.
14. Unplug when not in use. 17. DO NOT USE WET.
15. DO NOT dry clean this Foot Warmer. Dry cleaning solvents may damage the wires.
16. DO NOT use bleach or cleaning fluids. 20. DO NOT use a wringer. 21. DO NOT iron your Foot Warmer.
17. DO NOT use mothballs or sprays of any kind.
18. DO NOT reconnect the heated product or use it until it is completely dry. 24. DO NOT use analgesic cream in combination with your Foot Warmer.
19. If the supply cord is damaged, it must be replaced by the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.
20. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Function

The fast heating technology provides you unmatched warmth and pain relief to cold feet, saving feet from poor circulation, arthritis and cold floors; Besides, it's perfect for treating sore muscles in your back, shoulders, abdomen, legs, and arms; promote blood flow, or keep you warm.

6 Temperature Settings: LED controller adjusts heat easily with 6 temperature settings to accommodate your comfort level (40°C/104°F to 60°C/140°F).

TIMER: 4 level settings ranging from 30~120 min, conserves energy and prevents burns caused by excessive heating.

6 HEAT SETTINGS:

Warm-temperature range (~40°C/104°F)

Low-temperature range (~45°C/112°F)

Medium Low-temperature range (~48°C/119°F)

Medium-temperature range (~52°C/126°F)

Medium High-temperature range (~56°C/133°F)

High-temperature range (~60°C/140°F)

Features

ON/OFF Push Switch; IC controller box with LED indication;

6 temperature levels to adjust (40°C/104°F to 60°C/140°F);

4 timer levels to adjust (30/60/90/120 min.);

Single circuit provides consistent temperature;

Fuse inside of controller;

Hand and Machine Washable.

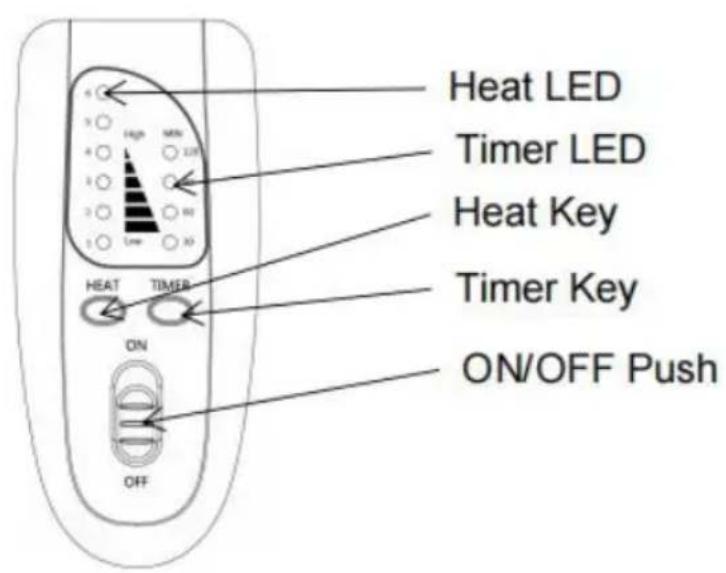

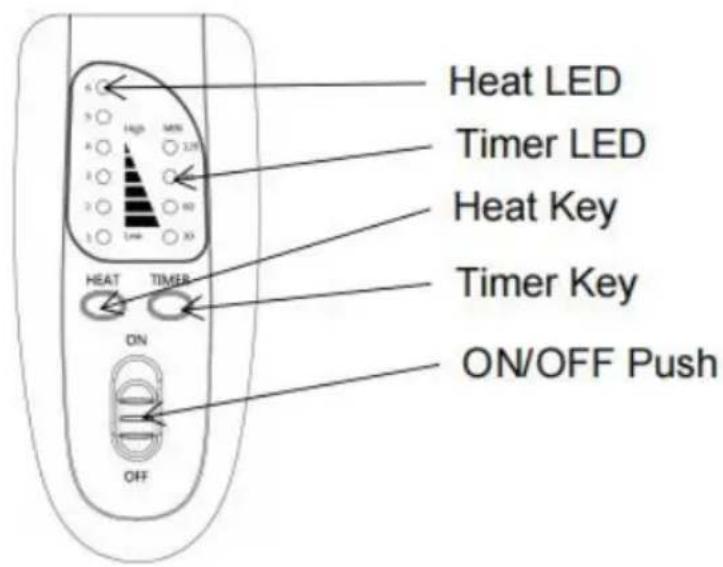

Foot Warmer Heating Pad Operation

1. Ensure the plug into a safety-tested electrical outlet.
2. Turn On: Push Up the Switch key to ON, the Foot Warmer into De Mode (1/2/3 heat Indicator LED ON, 60min Timer

Indicator LED ON).

Default Mode:

Heat level: Medium (3 levels) – temperature range (~48°C/119°F)

Timer level: 60 min to auto shut OFF.

1. Adjust Temperature (1~6 levels):

In Default Mode, press the heat key to adjust the temperature to a suitable requirement; the heat LED indication will range

corresponding to the temperature level.

1. Timer:

In Default Mode, press the Timer key to set the heat-up time; the time indication will range corresponding to the timer

levels (30/60/90/120 min).

The timer LED will also shift down one level every 30 min. When the timer is out, all LEDs will be off, and the Foot

Warmer will shut off. In Timer Auto OFF Mode, press the Heat key or key to return to Default Mode.

1. Turn Off: Push down the Switch Key to OFF in any mode.

6. Clean: Turn off the Foot Warmer, unplug it from the wall outlet. Remove the controller and power unit. The Foot

Warmer can be machine washed and must be dry before reassembling the unit. Do not use cleaners or chemicals.

7. Storage: Turn off the Foot Warmer, unplug the Foot Warmer, and store the pad in a dry, safe, clean, and cool place after cleaning.

clean up.

KEEP SHIPPING PACKAGING for use in the event that your unit needs servicing. (If this unit is shipped without the original packaging, damage could occur and void the warranty).

packing, damage could occur and void the warranty).

PRE-OPERATING INSTRUCTIONS

When removing the unit from the packing case, check for any shipping damage. Please contact your shipper and dealer immediately if the unit bears any sign of damage from mishandling.

immediately if the unit bears any sign of damage from mishandling.

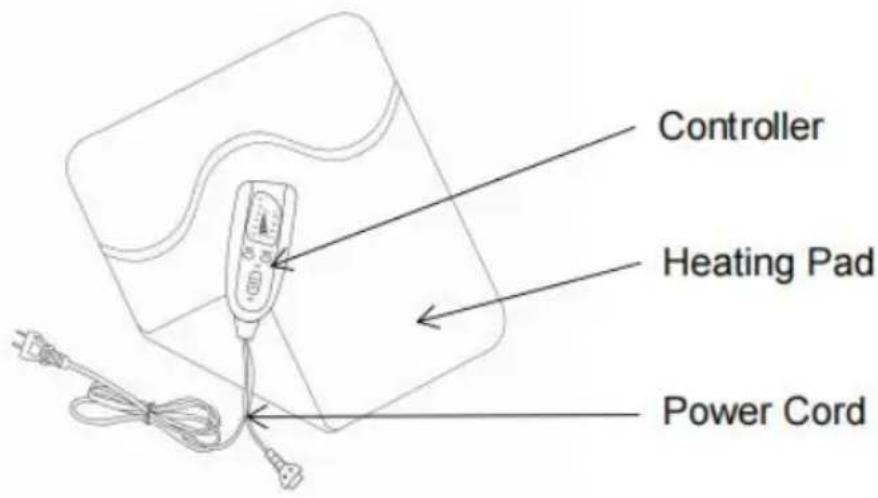

Contents

One Foot Warmer Heating pad, One controller box with Power Cord, Instructions

Limitations of Liability

1. Terms of usage is unconditional upon your acceptance, without change to the terms, conditions or notice listed herein.
2. Proper use including reviewing all safety precautions.
3. No prohibited or unlawful use. The product is intended for human use only.
4. Our reserves the right to change the terms and conditions under which this product is offered.
5. Buyer assumes all risks and liability from the use of this product. Not liable for any damages arising from use or misuse of this product.

Specifications

Model name:	Foot Warmer Heating pad
Model No.:	FT-1616	FT-2220
Power:	56 Watts	56 Watts
Size:	39*38cm(15.4*15Inch)	54.5*48cm(21.5*19Inch)

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
