SHOCK ABSORBING LANYARDS USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

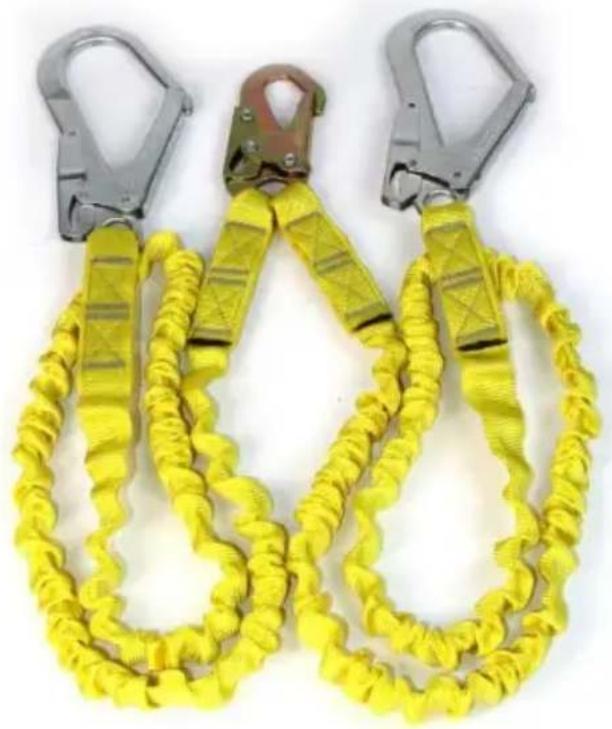

SHOCK ABSORBING LANYARDS

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

WARNING:

Do not skip this instruction manual. Read the instruction manual carefully before using the equipment. If failed in doing so it may cause serious injury or death. This manual must be read and understood in its entirety and used as part of fall protection training program.

This product is part of a personal restraint, work positioning, suspension, or system. The user must read and follow the manufacturer's instructions for each component or part of the complete system. These instructions must be provided the user of this equipment. The user must read and understand these instructions or have them explained to them before using this equipment. Manufacturer's instructions must be followed for proper use and maintenance of this product. Alterations or misuse of this product or failure to follow instructions in result in serious injury or death.

These instructions are intended to meet the manufacturer's instructions as required by ANSI/ASSE Z359.13. The user must fully understand the limitation proper equipment use.

Consult your doctor if there is reason to doubt your fitness to safely absorb shock from a fall arrest. Age and fitness seriously affect a worker's ability to withstand falls. Pregnant women and minors must not use this equipment.

Information
DESIGN:	Y shaped 1.5 in. wide polyester tubular webbing incorporated with energy absorbing (6 ft.) polyester webbing.
WEBBING:	Polyester | Width: 1.5 in. ± 0.04 in.
STITCHING THREAD:	High-tenacity polyester.
METAL COMPONENTS:	Alloy steel | Plating: Zinc plated | Finish: Shot blas Breaking Strength:5000 lbs.
VITAL TEST COMPLIANCE:	Dynamic Strength: Maximum breaking force does not exceed 900 lbs. in the line when tested on a free a 6 foot height attached to a test mass of 282 lb
WEIGHT:	2kg (4.4 lbs)

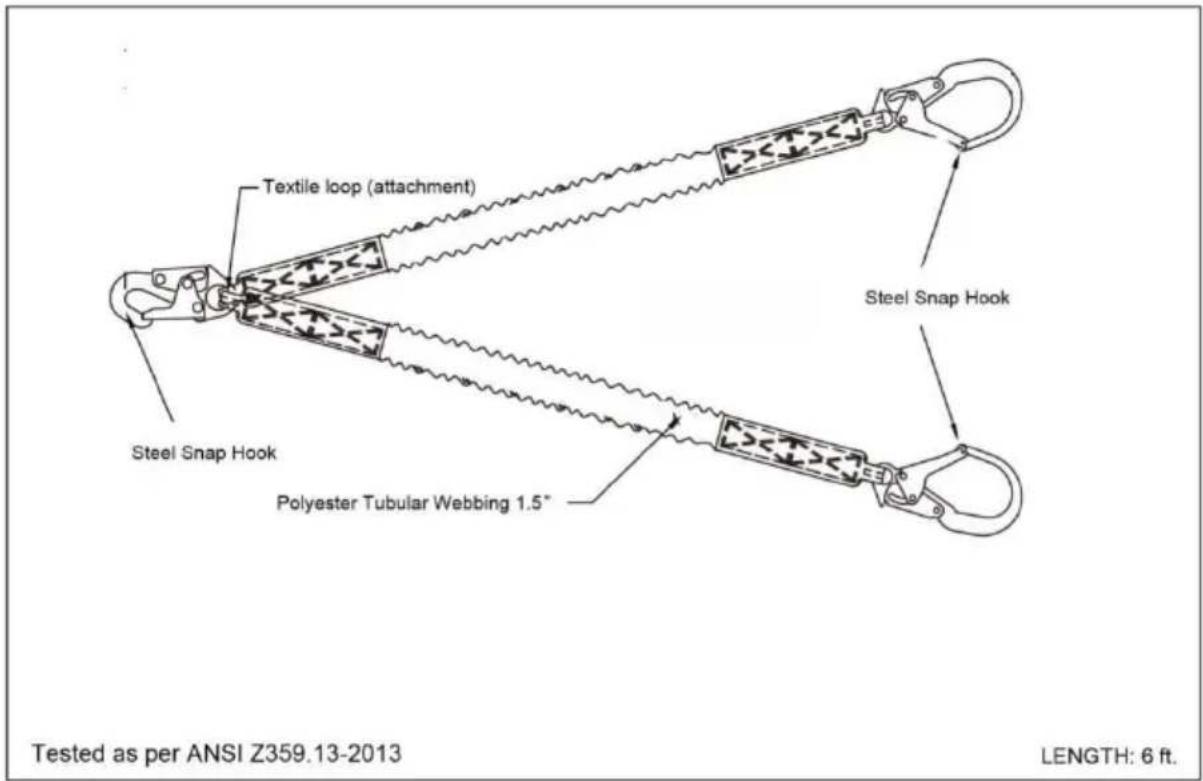

Textile loop (attachment) Steel Snap Hook Steel Snap Hook Polyester Tubular Webbing 1.5" TESTED AS PER ANSI Z359.13-2013 LENGTH: 6 ft.

TECHNICAL SPECIFICATIONS

Model	ROPE-D-102-131
Color	Yellow
Net Weight (kg)	2
Line Supervisor (ft)	6

Applications:

Safety Lanyards have been manufactured using Polyester/Steel.

Inspection work, construction, demolition, maintenance, oil production, and confined space rescue. Maximum Arrest force and Maximum Elongation/Maxi Deployment distance of personal energy absorber when dynamically tested accordance with the requirements of ANSI Z359.13 are as follows. See F applications.

A. Restraint: The lanyard is used to prevent the user from reaching a

as leading edge work.

B. Work Positioning: The lanyard is used to position or support (with a body belt) the user at the work position, such as window washing or C. Suspension: The lanyard (generally a Y-type) is used with a chair or support system to suspend or transport the user vertically, such as in a Seat. No vertical free fall possible.
D. Rescue: The lanyard (generally a Y-type) is used to retrieve a victim such as confined space rescue and retrieval. No vertical free fall is possible. E. Fall Arrest: The D-ring extension is used in-line with a personal fall to assist in attachment to the system.

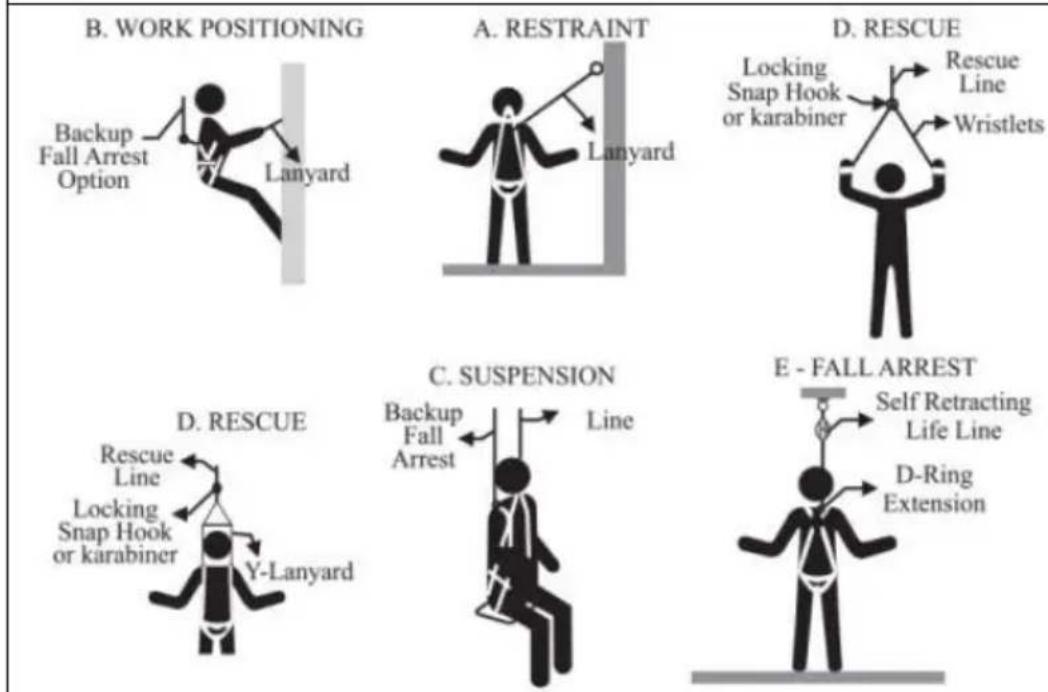

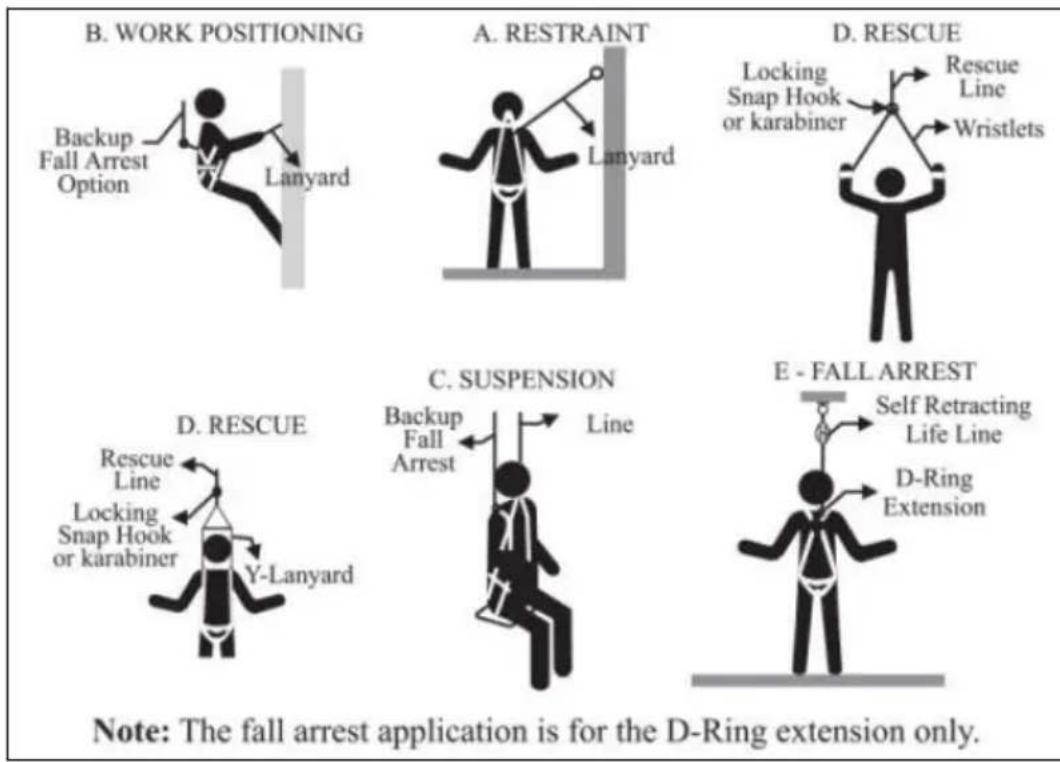

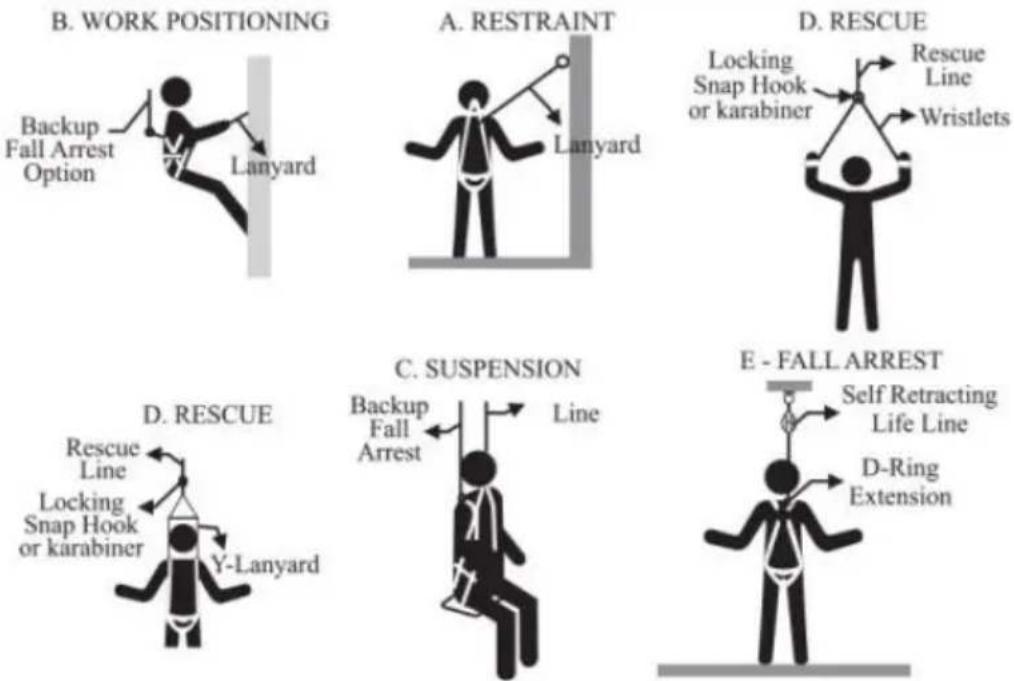

Figure 1 for applications.

Note: The fall arrest application is for the D-Ring extension only.

Limitations:

The following application limitations must be recognized and considered being using this product:

A. Capacity: This equipment is for use by persons with a combined weight (weight, clothing, tools, etc.) within the range of 130 lbs -310 lbs.
B. Free Fall: Lanyards used for work positioning applications must be rig

minimize any potential vertical free fall. In no case should the potential greater than two feet. For situations where the free fall may exceed two backup fall arrest system should be used. If the D-ring extension assembly used in conjunction with a self-retracting lifeline or an energy absorbing a fall arrest application, the length of the D-ring extension assembly must into account when calculating the free fall distance and the fall clearance requirements.

C. Fall Clearance: Always ensure fall clearance distance before using lanya equipped with the Palmer Safety SHOCK Pack. If there is a risk of fall anchorage is below the attachment points on the harness, it is essential lanyard provided with an energy absorber. Before using a shock absorbing check that there is sufficient fall clearance below the user to prevent a with the structure or the ground. See Figure 2.

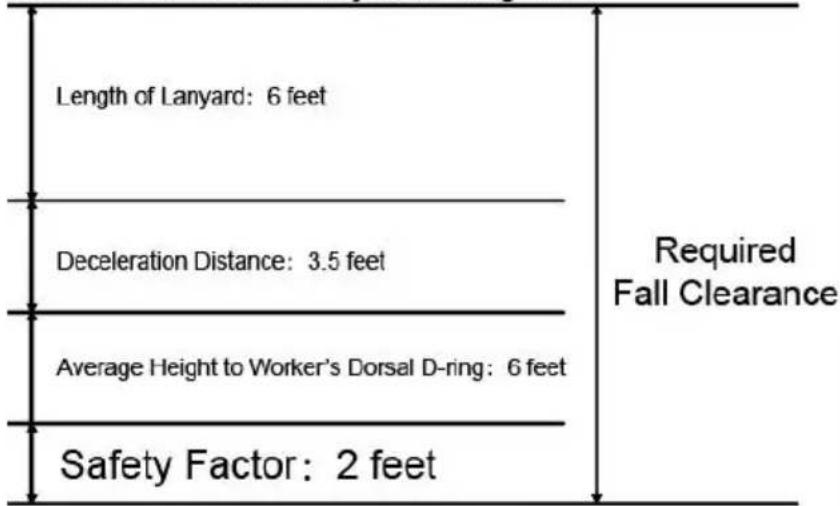

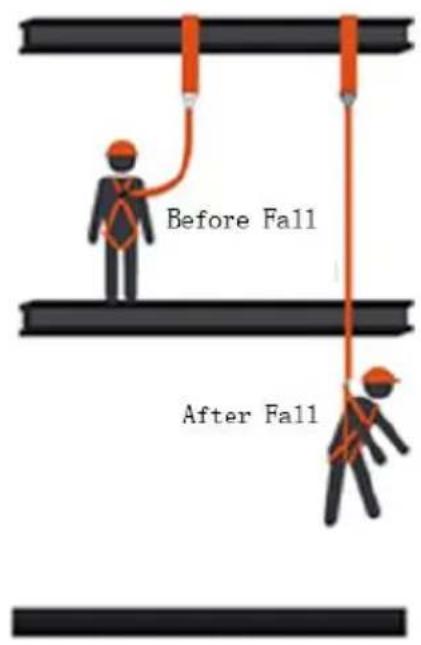

Figure 2 Fall Clearance

ENERGY ABSORBING LANYARD FALL CELARANCE

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet

Deceleration Distance: 3.5 feet

Average Height to Worker's Dorsal D-ring: 6 feet

Safety Factor: 2 feet

Total Clear-Fall: 17.5 feet

Required Fall Clearance

D. Backup Fall Arrest System: Some applications of this equipment may

use of a backup fall arrest system, such as when using a Y-lanyard to person in a Easy Seat.

E. Physical and Environmental Hazards: Use of this equipment in areas with physical or environmental hazards may require additional precautions to reduce possibility of injury to the user or damage to the equipment. Hazards are not limited to; heat, chemicals, corrosive environments, high voltages, lines, gases, moving machinery, and sharp edges. Contact Palmer Safety is have any questions about using this equipment where any physical or environmental hazards exist.

SYSTEM REQUIREMENTS :

1) Compatibility of Connectors:

Connectors (hooks, karabiners, and D-rings) must be capable of supporting at least 5,000 lbs. (22.2 kN). Connectors must be compatible with the anchorage other system components. Do not use equipment that is not compatible. Non-compatible connectors may unintentionally disengage.

2) Making Connections:

Only self-locking snap hooks and karabiners are used with this equipment. Or use connectors that are suitable to each application. Ensure all connections a compatible in size, shape and strength. Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked.

3) Anchorage Strength:

The anchorage strength required is dependent on the application type. The following are guidelines for some application types:

A. Restraint: Anchorages must support a minimum of 3,000 lbs. per person attached.
B. Working Positioning: Anchorages must support at least 3,000 lbs. per person attached, or be designed, installed, and used under the supervision of a quality person as part of a complete system, maintaining a safety factor of at least
C. Suspension: Anchorages must support a minimum of 2,500 lbs. per person attached.

D. Rescue: Anchorages must support a minimum of 2,500 lbs. per person attached.

OPERATION AND USAGE:

Plan your restraint, working positioning, suspension, or rescue system before starting your work. Consider all factors that affect your safety at any time due use.

When planning your system:

A. For work positioning systems, the anchorage location must be selected to the free fall to two feet, to reduce swing fall hazards, and to avoid striking during a fall.
B. Free Fall: Depending on the lanyard type and the application, the allowable fall for a 6ft Lanyard, maximum free fall allowed is 6ft.
C. Fall Clearance: Should a fall occur, there must be sufficient clearance in area to arrest the fall before striking the ground or other objects.
D. Backup Fall Arrest: Some suspension and work positioning applications of equipment may require a backup fall arrest system and independent fall arres anchorage.
E. Sharp Edges: Avoid working where the lanyard, subsystem, or other system components will be in contact with or abrade against unprotected sharp edges not loop the lanyard around small diameter structural members. If working with equipment near sharp edges is unavoidable, protection against cutting must be provided by using a heavy pad or other means over the exposed sharp edge F. Rescue: Should a fall occur, the user (employer) must have a rescue plan the means at hand to implement it.
G. After A Fall: Any equipment which has been subjected to the forces of a fall must be removed from service immediately and destroyed or contact a factory authorized service center for repair.

WARNING: Do not alter or intentionally misuse this equipment. Consult VEVOI when using this equipment in combination with components or subsystems other than those described in this manual. Some subsystem and component combinations may interfere with the operation of this equipment. Use caution

using this equipment around moving machinery, electrical hazards, chemical hazards, and sharp edges.

Before each use of this equipment, carefully inspect it to ensure that it is in serviceable condition. Check for worn or damaged parts. Ensure that all hard is present and secure. Inspect for sharp edges, burrs, cracks, or corrosion. E self-locking snap hooks or karabiners work properly. Inspect the rope or webb for wear, cuts, burns, frayed edges, breaks, or other damage. Do not use it inspection reveals an unsafe condition.

INSPECTION

Frequency:

Before each use visually inspect the equipment.

The lanyard must be inspected by a competent person other than the user preferably every six month or at least annually. Follow the manufacturer's instructions for associated equipment (full body harness, work seat, etc.) used your restraint, work positioning, suspension, or rescue system.

Inspection Steps:

Inspection criteria for the equipment shall be set by the user's organization and inspection criteria shall equal or exceed the criteria established by the standard ANSI/ASSE Z359.13 or the manufacturer's instructions.

IMPORTANT:

Training must be conducted without exposing the trainee to a fall hazard.

Training should be repeated periodically.

Inspection criteria shall include:

Absence or illegibility of markings.

Absence of any elements affecting the equipment form, fit or function.

Inspect the lanyard hardware (snap hooks, adjusters, thimbles, spreader bar, etc). These items must not be damaged, broken, distorted, or have any sharp edge burrs, cracks, worn parts, or corrosion. Ensure the connecting hooks work properly. The hook gates must move freely and lock upon closing.

IMPORTANT: If this equipment has been subjected to forces resulting from the arrest of a fall, it must be immediately removed from service and destroyed returned to VEVOR for possible repair. Extreme working conditions (harsh environment, prolonged use, etc.) may require increasing the frequency of inspections.

Inspect the webbing:

The material must be free of frayed, cut, or broken fibers. Check for tears, abrasions, mold, burns, or discoloration.

Inspect the stitching.

Check for pulled or cut stitches. The webbing must be free of knots, excessive soiling, heavy paint buildup and rust staining. Check for chemical or heat dar indicated by brown, discolored or brittle areas. Check for ultraviolet damage, indicated by discoloration and the presence of splinters or slivers on the web surface. All of these factors are known to reduce webbing strength. Damaged questionable webbing should be replaced.

Inspect the labels.

All labels must be present and fully legible. Record the inspection date and on the inspection log. If inspection reveals a defective condition, remove the from service immediately and destroy, or contact a factory authorized service center for repair.

MAINTENANCE-SERVICING-STORAGE:

Clean the lanyard with water and a mild detergent solution. Wipe the hardwa with a clean, dry cloth, and hang it to air dry. Do not force dry with heat. any questions regarding the cleaning of this equipment, or require more information contact VEVOR. An excessive buildup of dirt, paint, etc., may prevent the lanyard from working properly, and in severe cases degrade the webbing point where it has become weakened and should be removed from service. I have any questions concerning the condition of your lanyard or doubt about putting it into service, contact VEVOR.

Additional maintenance and servicing procedures (i.e. replacement parts) must completed by a factory authorized service center. Authorization must be in wr

Equipment which is in need of or scheduled for maintenance shall be tagged "unusable" and removed from service.

Store the lanyard in a cool, dry, clean environment out of direct sunlight. Av areas where chemical vapors may exist. Thoroughly inspect the lanyard after extended storage.

Inspection & maintenance log.

LABELING&GENERAL MARKING REQUIREMENTS:

Markings are provided in English.

The legibility and attachment of required markings shall endure for the life of component, subsystem or system being marked.

Equipment shall be marked with the following:

Product model; Year of manufacture; Manufacture name or logo; Capacity ratio. Manufacturer's instructions for the use of equipment and warnings to be followed to avoid contact with sharp edges, abrasive surfaces and need to make only compatible connections; Material of construction; Length of equipment; Maximum elongation, average arrest force, maximum free fall distance; 6 ft free fall per energy absorber is marked in black print on a contrasting white background text fonts compliance to standards.

HOW TO DISPOSEALANYARD:

When the lanyard becomes unfit or in case of any wear and tear, dispose of lanyard immediately.

Training:

This equipment must be used by persons who have been properly trained correct application and use.

It is the responsibility of all users of this equipment to understand these instructions and be trained in the correct installation, use, and maintenance equipment. These individuals must be aware of the consequences of imprint installation or use of this equipment. This user manual is not a substitute comprehensive training program. Training must be provided on a periodic ensure the proficiency of the users.

CHECK CARD

It is recommended that the lanyard be inspected and examined by a competent person for any damages or failures if the need arises, but at least once a observations should be recorded in the table below. In case such damages are observed, the lanyard should be replaced immediately. The lanyard shall only be used within a work positioning system, according to EN 358:1999. The instruction for use for the individual components are to be observed.

SERVICE and INSPECTION RECORD

SERIAL NUMBER:
MODEL NUMBER:
DATE PURCHASED:	DATE OF FIRST USE:

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

Textile loop (attachment) Steel Snap Hook Steel Snap Hook Polyester Tubular Webbing 1.5° Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

Backup Fall Arrest Option Lanyard

A. RESTRAINT

Lanyard

D. RESCUE

Locking Snap Hook or karabiner Rescue Line Wristlets

D. RESCUE

Rescue Line Locking Snap Hook or karabiner Y-Lanyard

C. SUSPENSION

Backup Fall Arrest Line

E - FALL ARREST

Self Retracting Life Line D-Ring Extension

Note: The fall arrest application is for the D-Ring extension only.

Limites:

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet Deceleration Distance: 3.5 feet Average Height to Worker's Dorsal D-ring: 6 feet Safety Factor: 2 feet Required Fall Clearance

Total Clear-Fall: 17.5 feet

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETESTWC NSW 2122 Australie

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

Textile loop (attachment) Steel Snap Hook Polyester Tubular Webbing 1.5" Steel Snap Hook Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

Note: The fall arrest application is for the D-Ring extension only.

Einschränkungen:

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet

Deceleration Distance: 3.5 feet

Average Height to Worker's Dorsal D-ring: 6 feet

Safety Factor: 2 feet

Total Clear-Fall: 17.5 feet

Required Fall Clearance

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

MODELLO NUMERO.: WEB-T-38-6

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

Textile loop (attachment) Steel Snap Hook Steel Snap Hook Polyester Tubular Webbing 1.5° Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

SPECIFICHE TECNICHE

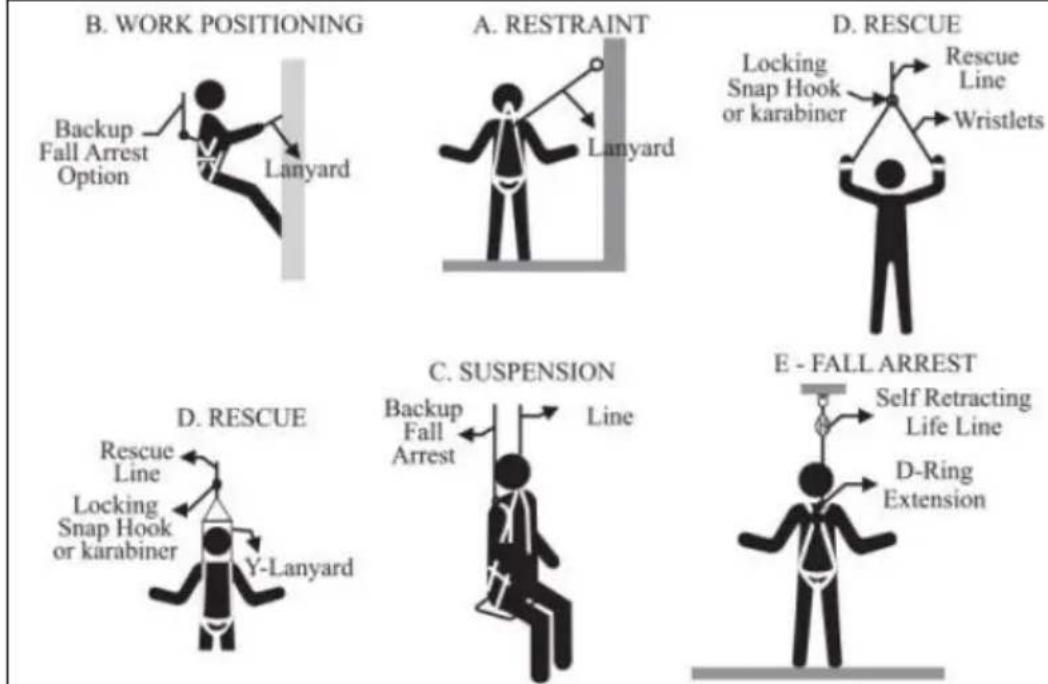

Figura 1 per le applicazioni.

Note: The fall arrest application is for the D-Ring extension only.

Limitazioni:

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet Deceleration Distance: 3.5 feet Average Height to Worker's Dorsal D-ring: 6 feet Safety Factor: 2 feet Required Fall Clearance

Total Clear-Fall: 17.5 feet

MANUTENZIONE-ASSISTENZA-STOCCAGGIO:

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Indirizzo : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

N° DE MODELO.: WEB-T-38-6

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

Textile loop (attachment) Steel Snap Hook Steel Snap Hook Polyester Tubular Webbing 1.5° Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

Figura 1 para aplicaciones.

Note: The fall arrest application is for the D-Ring extension only.

Limitaciones:

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet Deceleration Distance: 3.5 feet Average Height to Worker's Dorsal D-ring: 6 feet Safety Factor: 2 feet Required Fall Clearance

Total Clear-Fall: 17.5 feet

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Dirección : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

Textile loop (attachment) Steel Snap Hook Steel Snap Hook Polyester Tubular Webbing 1.5° Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

SPECYFIKACJA TECHNICZNA

Note: The fall arrest application is for the D-Ring extension only.

Ograniczenia:

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet

Deceleration Distance: 3.5 feet

Average Height to Worker's Dorsal D-ring: 6 feet

Safety Factor: 2 feet

Total Clear-Fall: 17.5 feet

Required Fall Clearance

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Adres : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD N 2122 Australia

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim F Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

SCHOKDEMPENDE LIJNEN

HANDLEIDING

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Textile loop (attachment) Steel Snap Hook Polyester Tubular Webbing 1.5° Steel Snap Hook Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

TECHNISCHE SPECIFICATIES

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet Deceleration Distance: 3.5 feet Average Height to Worker's Dorsal D-ring: 6 feet Safety Factor: 2 feet Required Fall Clearance

Total Clear-Fall: 17.5 feet

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Adres : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOCK ABSORBING LANYARDS

Yellow and silver safety harnesses with adjustable straps (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Textile loop (attachment) Steel Snap Hook Steel Snap Hook Polyester Tubular Webbing 1.5° Tested as per ANSI Z359.13-2013 LENGTH: 6 ft.

TEKNISKA SPECIFIKATIONER

Modell	ROPE-D-102-131
Färg	Gul
Nettovikt (kg)	2
L ine S handledar (med)	6

Applikationer:

Note: The fall arrest application is for the D-Ring extension only.

Begränsningar:

Before Fall After Fall

From Connection Point of Lanyard Anchorage Point

Length of Lanyard: 6 feet Deceleration Distance: 3.5 feet Average Height to Worker's Dorsal D-ring: 6 feet Safety Factor: 2 feet Required Fall Clearance

Total Clear-Fall: 17.5 feet

UNDERHÅLL-SERVICE-FÖRVARING:

INSPECTION DATE:	INSPECTIONS ITEMS NOTED	CORRECTIVE ACTION	MAINTENANCE PERFORMED
Approved by:
Approved by:
Approved by:

Adress : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOC NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd., Suite 250, 9166 Anahe Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
