Product type	Foldable solar panel
Brand	Jackery
Model	SolarSaga 100 Air (JS-100H)
Dimensions (unfolded)	1668 × 423 × 17 mm
Dimensions (folded)	433 × 423 × 47 mm
Weight	3,2 kg ± 0,2 kg
Ingress protection (IP) rating	IP68
Operating temperature range	-20°C to 65°C
Maximum power (STC)	100 W ± 5%
Maximum power (BNPI)	110 W ± 5%
Open circuit voltage (Voc) STC	29,7 V ± 5%
Short circuit current (Isc) STC	4,1 A ± 5%
Voltage at maximum power point (Vmp) STC	25,4 V ± 5%
Current at maximum power point (Imp) STC	3,95 A ± 5%
Maximum system voltage	80 V
Maximum reverse current	15 A
Bifaciality coefficient (Pmax)	> 65%
USB-A output	5 V ⎓ 2,4 A
USB-C output	5 V ⎓ 3 A
Standard warranty	12 months
Box contents	Solar panel, multifunctional solar charging cable (3 m), 4 DC8020 to DC7909 adapters, user manual
Care and cleaning	Wipe with a damp cloth; do not immerse in water
Safety	Do not twist, do not scratch, do not expose to flames; correct connection required

Frequently Asked Questions - SolarSaga 100 Air Jackery

How to unfold and install the Jackery SolarSaga 100 Air solar panel?

Take the panel out of its storage bag, gradually unfold it along the folds, open the two stands at the back, orient it towards the sun and connect the cable to your portable power station. Do not twist the panels and avoid shaded areas.

Can I connect multiple SolarSaga 100 Air panels together?

Yes, you can use a solar panel connector (sold separately) to connect two panels of the same model. Make sure the connector is suitable and that the combination includes protection against reverse currents and overvoltages.

How to use the solar angle indicator to optimize production?

The indicator projects a shadow onto its base. Adjust the position of the panel until the shadow is inside the inner white circle. This ensures optimal sun exposure and maximum energy production.

Is the panel water resistant?

Yes, the Jackery SolarSaga 100 Air has an IP68 rating, making it waterproof and dust resistant. However, do not immerse the panel in water or any other liquid.

Which devices can I charge with the solar panel?

The panel can charge Jackery portable power stations via the DC8020 connector (or DC8020 to DC7909 adapter). Its built-in USB-A and USB-C ports allow direct charging of smartphones, tablets, power banks and other small devices (5 V/2,4 A for USB-A, 5 V/3 A for USB-C).

How to clean and maintain the solar panel?

Use a damp cloth to gently wipe the surface. Do not use corrosive substances, do not scratch with sharp objects and do not apply excessive pressure. Store it in its protective bag after use.

What is the warranty period and how to activate it?

The standard warranty is 12 months from the date of purchase. For an extended warranty, register your product online on the Jackery website or contact customer service at [e-mail].

Can I use the solar charging cable with other panels?

No, the included multifunctional solar charging cable is only compatible with the SolarSaga 100 Air (JS-100H) panel. Do not use it with other models to avoid any risk of damage.

What to do if energy production is low?

Check that the panel surface is fully exposed to the sun and that the solar angle indicator's shadow is centered. Adjust the position during the day. Make sure the connections are properly plugged in and the cables are not damaged.

How to store the solar panel after use?

Disconnect the multifunction cable, fold the stands, then fold the panel along the folds in the order shown. Put it back in the provided storage bag. Avoid storing it near flames or flammable materials and in a dry place.

USER MANUAL SolarSaga 100 Air Jackery

Jackery TOP

USER MANUAL

Jackery SolarSaga 100 Air

CONTACT US:

1-888-502-2236 (US)

[e-mail]

www.jackery.com

TABLE OF CONTENTS

US

English01-09

SAFETY TIPS 01

WHAT'S IN THE BOX 02

HOW TO USE 02

TECHNICAL PARAMETERS 08

WARRANTY 09

FR

Français10-18

CONSEILS DE SÉCURITÉ 10

CONTENU DE LA BOÎTE 11

CONSEILS D'UTILISATION 11

CARACTÉRISTIQUES TECHNIQUES 17

GARANTIE 18

ES

Español19-27

* Please read the user manual first before using this product.
* Do not bend the solar panels.
* Do not place the solar panels under trees, buildings or in other shaded areas for use.
* Do not submerge the solar panels in water or any other liquid for extended periods.
* Use a damp cloth to gently wipe them clean.
* Do not use or store the solar panels near open flames or flammable materials.
* Do not scratch the solar panels with sharp objects.
* Keep corrosive substances away from the solar panels.
* Do not step on or place heavy objects on the solar panels.
* Do not disassemble the solar panels.
* The output circuit of solar panel must be connected to the equipment properly, and reverse connection of positive and negative poles is strictly prohibited.
* Check the connection status of all components, wires, and plugs before use.
* Do not drop the product, as this may cause internal damage and render it unusable.

* The solar panel is not intended for permanent installation. Please store the solar panels during strong winds, hail or other severe weather to avoid damage or potential hazards.
* Under normal circumstances, solar panels may be exposed to higher currents or voltages than those under standard test conditions. When calculating the rated voltage of components, the rated current of conductors, and the size of the control device connected to the PV output, multiply the short-circuit current ( I_cc ) and open-circuit voltage ( V_oc ) values indicated on the panel nameplate by a factor of 1.25.
* Any damage to the product may lead to electric shock or fire.
* Do not expose the solar panels to artificial spotlight.
* Do not connect the solar panel to other solar panels or power sources unless the combination includes protection against reverse current and overvoltage.

FC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

WHAT'S IN THE BOX

1

Pure electrical circuit lines without any symbols

Jackery SolarSaga 100 Air Storage Bag

●

Jackery Solar Generator

●

Pure diagram of a U-tube manometer or pressure vessel without any text, labels, or symbols

Multifunctional Solar Charging Cable (9.84 ft/3m)

4

DC8020 to DC7909 Adapter
User Manual

5

Note

The multifunctional solar charging cable is only compatible with the SolarSaga 100 Air (JS-100H) solar panel. Do not use it with other solar panel models.

HOW TO USE

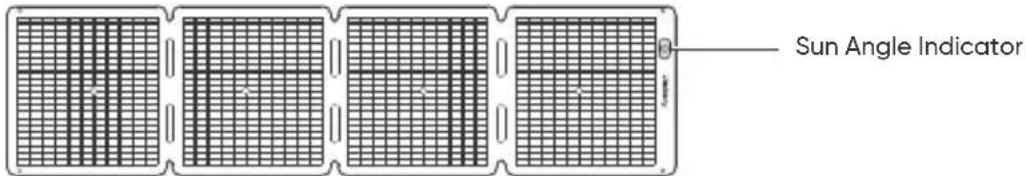

Front View

Sun Angle Indicator

Rear View

Pure architectural floor plan lines without any text, numbers, or symbols

Junction Box

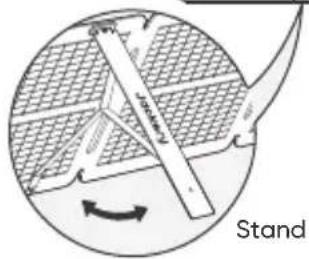

Stand

Hole for Ground Stake (Ø10mm / 0.39in)

UNFOLDING THE SOLAR PANEL

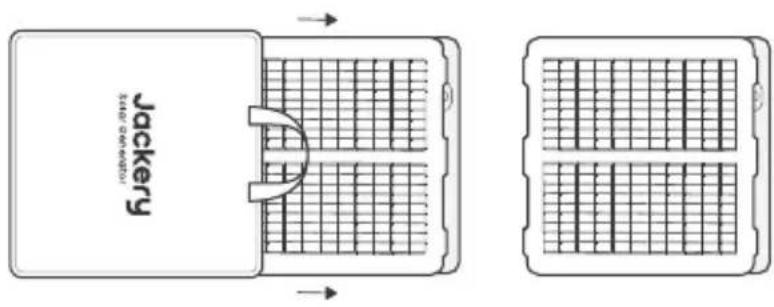

1. Take the solar panel out of the storage bag.

Jackery Jackery (100%) Jackery (100%)

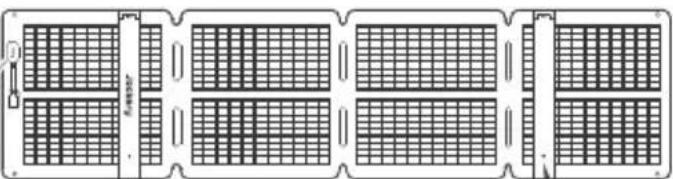

1. Unfold the solar panel step by step as shown in the illustration.


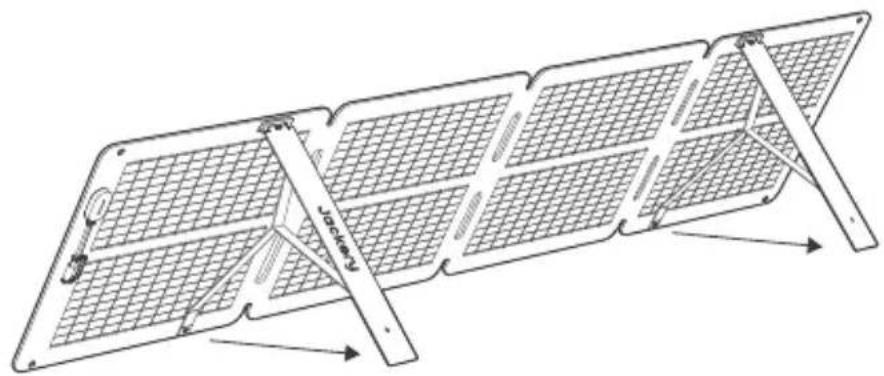

1. Open the two support stands on the back of the solar panel.

Line drawing of a solar panel with grid pattern and directional arrows indicating orientation (no text or symbols)

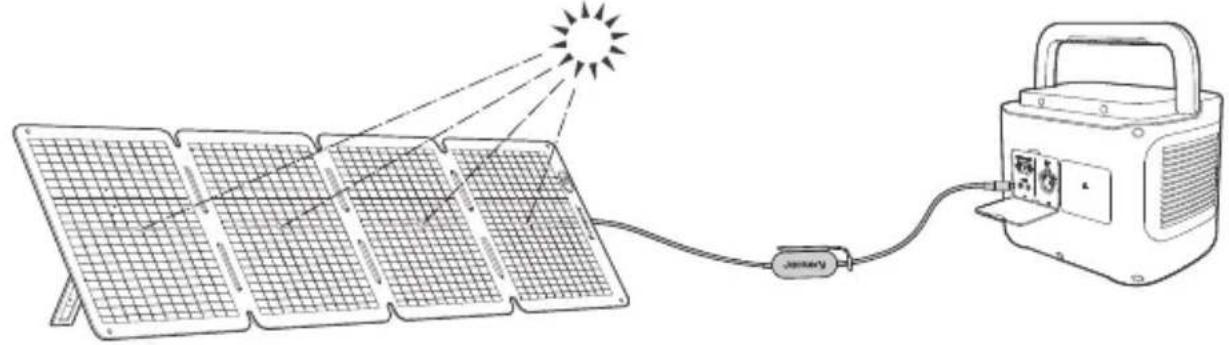

1. Adjust the panel to face the sun, then connect it to your portable power station.

Diagram illustrating solar panel array connection to a portable device with labeled components and light source

● FOLDING THE SOLAR PANEL

1. Unplug the multifunction charging cable and fold the support stands.

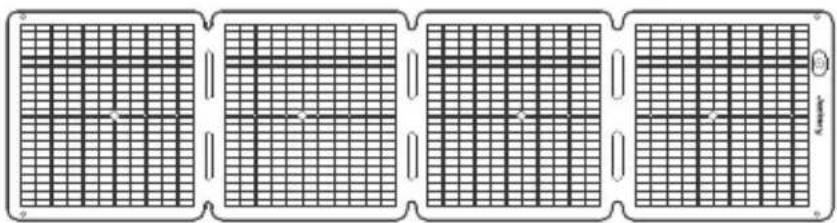

Four identical grid-patterned panels arranged horizontally, each with a small circular button labeled 'Analog' at the bottom right (no other text or symbols)

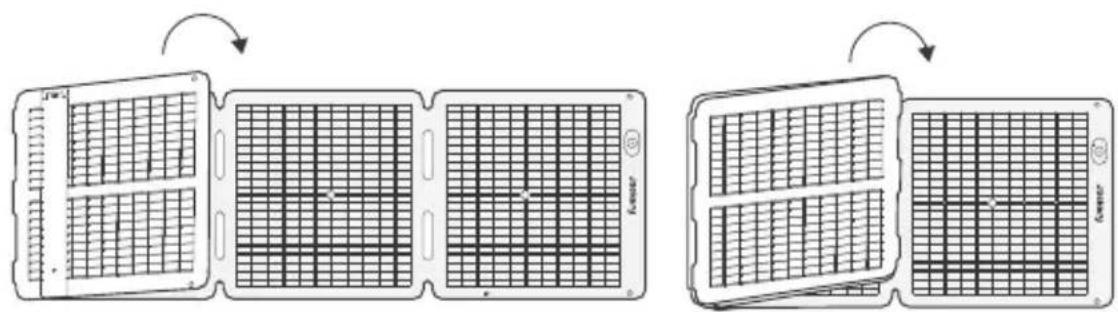

1. Fold the solar panel along the creases in order, as shown in the illustration.


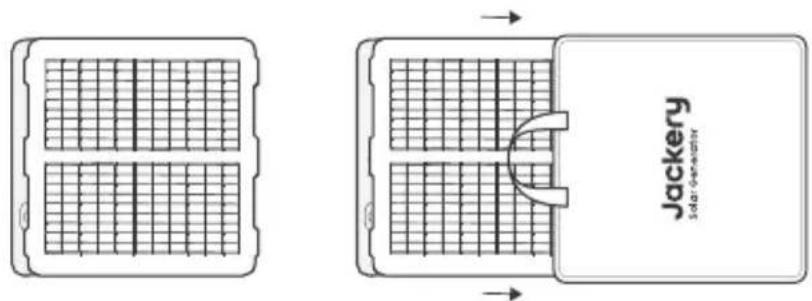

1. Place the solar panel back into the storage bag.

Jackery Solar Generator

● CHARGING JACKERY PORTABLE POWER STATION

Connect the charging cable to the solar panel and the DC input port of the portable power station.

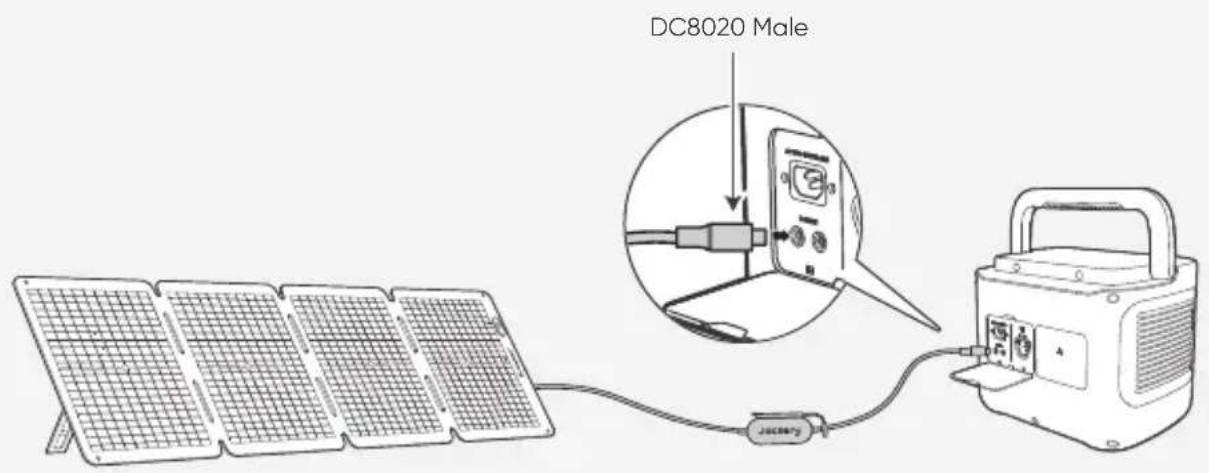

DC8020 CONNECTOR

Compatible with Jackery portable power stations with DC8020 input port(s).

DC8020 Male DC8020

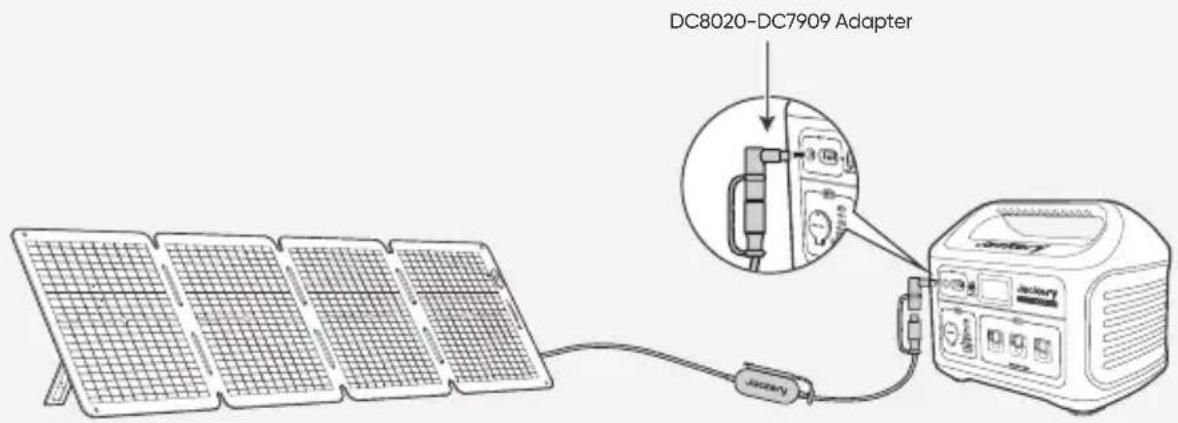

DC8020-DC7909 ADAPTER

Compatible with Jackery portable power stations with DC7909 input port(s).

DC8020-DC7909 Adapter

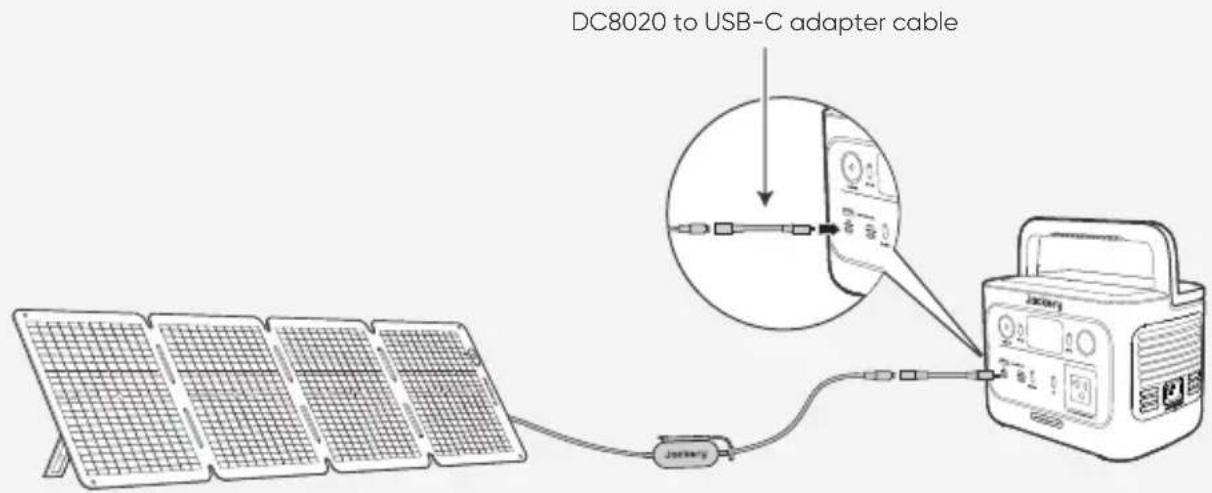

DC8020 TO USB-C ADAPTER CABLE (SOLD SEPARATELY)

Compatible with Jackery portable power stations with USB-C input port(s)

DC8020 to USB-C adapter cable JACM

Note

The DC8020 to USB-C Adapter Cable is used to charge Jakcery portable power station only. Do not use it to charge any other devices.

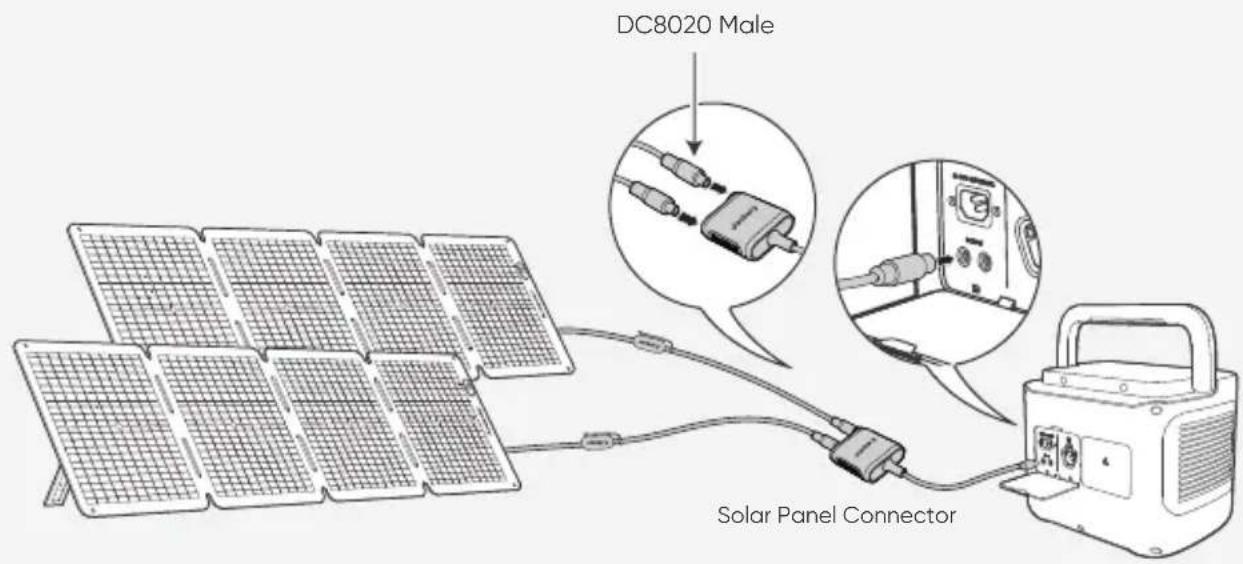

● WHEN USING THE SOLAR PANEL CONNECTOR (SOLD SEPARATELY)

Connect the two solar panels to the solar panel connector respectively and then connect the solar panel connector to the DC input port of the portable power station.

DC8020 Male Solar Panel Connector

※ Ensure that only solar panels of the same model are connected to the input of the connector.

● SUN ANGLE INDICATOR

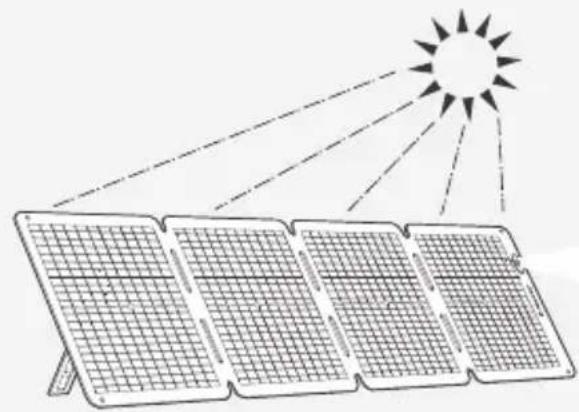

The product has a sun angle indicator. When sunlight hits its surface, a shadow will appear at its bottom.

Diagram of solar panels with a sun emitting rays, no text or symbols present

Sun Angle Indicator

Indicator point
Shadow

If the shadow falls on the white inner circle at its bottom, it means that the solar panel is facing directly towards the sun and you can get optimal power generation; if not, it is suggested to adjust its angle until it does.

Shadow falls in the white inner circle

Shadow does not fall in the white inner circle

Note

To maximize the power generation, adjust the orientation of Jackery SolarSaga 100 Air throughout the day to ensure full exposure of the panel surface to direct sunlight.

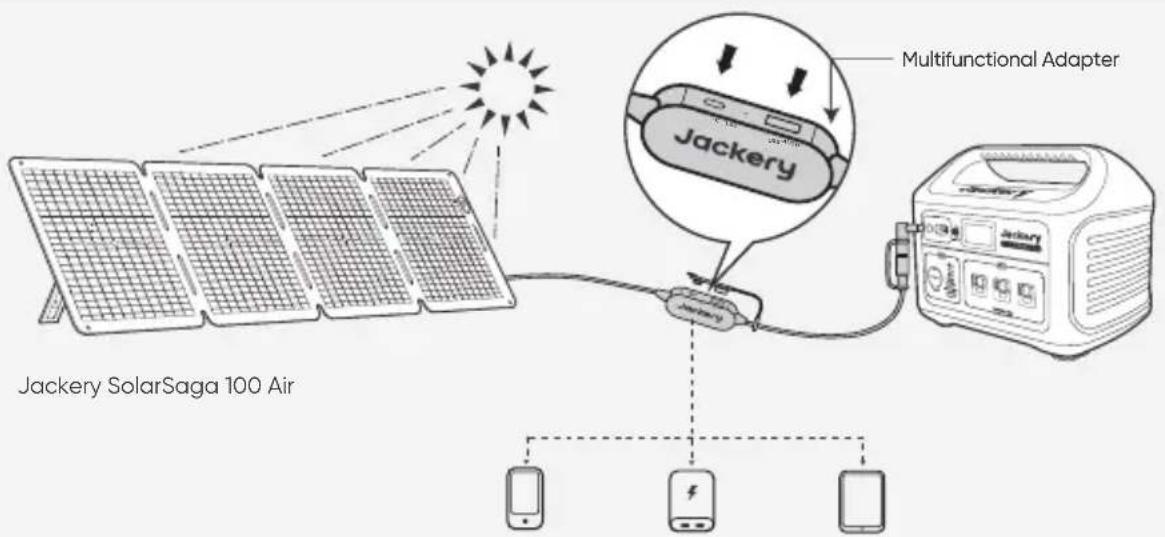

POWER YOUR DEVICE

Cell Phone
Power Bank Tablet

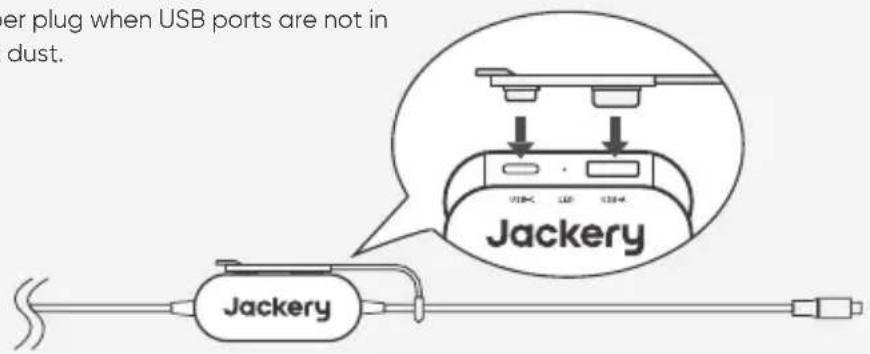

* Insert the rubber plug when USB ports are not in use to prevent dust.

er plug when USB ports are not in dust. Jackery

TECHNICAL PARAMETERS

JACKERY SOLARSAGA 100 AIR

BASIC INFORMATION

Product Name	Jackery SolarSaga 100 Air
Model	JS-100H
Dimensions (unfolded)	65.67 × 16.65 × 0.67 in / 1668 × 423 × 17mm
Dimensions (folded)	17.05 × 16.65 × 1.85 in / 433 × 423 × 47mm
Weight	7.05 lb ± 0.44 lb / 3.2kg ± 0.2kg
IP Rating	IP68
Operating Temperature Range	-4°F to 149°F / -20°C to 65°C

ELECTRICAL DATA

	STC*	BNPI*
Maximum Power ( P_max )	100W±5%	110W±5%
Open-Circuit Voltage ( V_sc )	29.7V±5%	30.0V±5%
Short-Circuit Current ( I_sc )	4.1A±5%	4.5A±5%
Maximum Power Voltage ( V_np )	25.4V±5%	25.7V±5%
Maximum Power Current ( I_np )	3.95A±5%	4.28A±5%
Maximum System Voltage	80V
Maximum Reverse Current	15A
Protection Class Against Electric Shock	Class II
Bifaciality Coefficient (back/front)	P_max >65%, V_cc >97%, I_sc >65%
Voltage Temperature Coefficient	-0.25%/°C
Power Temperature Coefficient	-0.22%/°C
Photovoltaic Consumer Products	IEC TS 63163 Consumer Product Category 2

* STC (Standard Test Conditions, 1000W/m², 25°C, AM 1.5)
* BNPI (Bifacial Nameplate Irradiance, Front 1000W/m², Rear 135W/m², 25°C, AM 1.5)
Unfold the bracket and place it on a flat surface. The design load is 1600Pa, and the safety factor is 1.5 times.

MULTIFUNCTIONAL ADAPTER

USB-A Output	5V==2.4A
USB-C Output	5V==3A

Warranty Period

YEAR

Standard Warranty

The product is covered by a limited warranty from Jackery for the original purchaser that covers the product from defects in workmanship and materials for 12 months from the date of purchase ( damages from normal wear and tear, alteration, misuse, neglect, accident, service by anyone other than authorized service center, or act of God are not included).

During the warranty period and upon verification of defects, this product will be replaced when returned with proper proof of purchase.

YEARS

Extended Warranty

To activate the Warranty Extension, you must register your product online or contact our customer service team at [e-mail] to extend the standard warranty runtime.

Contact Us

For any inquiries or comments concerning our products, please send an email to [e-mail], and we will respond to you as soon as possible. If there is any quality-related issue with the product, you may request a replacement or refund by submitting a request form at www.jackery.com.

Customer Service

[e-mail]

Lifetime technical support

CONSEILS DE SÉCURITÉ

Pure electrical circuit lines without any symbols

Jackery SolarSaga 100 Air Sac de rangement
●

Jackery Solar Generator

●

Pure diagram of a U-shaped tube with two side connectors and a central vertical component labeled 'Factory', no text or symbols present.

Jackery USER MANUAL Jackery 3.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x12.0x1688 502-2236

Four identical grid patterns arranged horizontally, each with a vertical line and a small angle marker (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

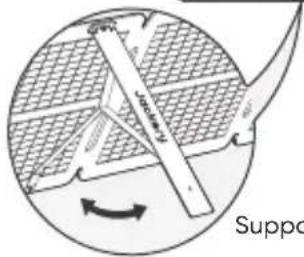

Support

Jackery Sub-Compressor

Line drawing of a modular solar panel with grid panels and a stand, showing structural deformation (no text or symbols)

Diagram of solar panel array connected to a portable radio via a sun beam (no text or symbols)

REPLIAGE DU PANNEAU SOLAIRE

Pure grid pattern diagram with no text, numbers, or symbols

Jackery Total capacity

CHARGEMENT DE LA STATION D'ÉNERGIE PORTABLE JACKERY

Diagram showing solar panel connection to a radio with an analog device, including a magnified view of the device's internal components.

Remarque

Diagram of solar panels under sunlight illuminating a grid-patterned panel (no text or symbols)

Diagram of a server rack with grid layout and indicator lights (no text or symbols)

Jackery SolarSaga 100 Air Bolsa de almacenamiento

●

Jackery Solar Generator

●

Pure diagram of a U-shaped tube with two connectors and a central component labeled 'F-veater' (no text or symbols beyond label)

Cable de carga solar multifuncional (9,84 pies/3 m)

Four identical grid diagrams arranged horizontally, each with a vertical line and a small circular symbol on the right (no text or labels)

Pure architectural floor plan lines without any text, numbers, or symbols

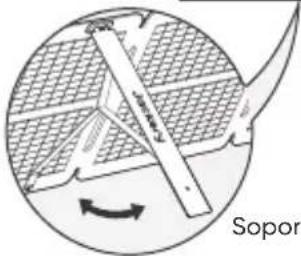

Sopor

Jackery SABO (640-825) →

Line drawing of a flexible solar panel with grid panels and a stand, showing internal structure and rotation arrows (no text or symbols)

Diagram illustrating solar panel array connection to a portable radio with a sun source and power outlet

Four identical grid diagrams arranged horizontally, each with a horizontal line and a vertical dashed line, no text or symbols present.

Jackery Total capacity

Diagram of solar panels under sunlight illuminating a grid-patterned panel (no text or symbols)
