USER MANUAL RM6000 Concept

Nayod k sestayeni mlvnku

• Seestayte mlnyek/obr.1
• Odstrante prêdnf kryt (obr. 21)
• Nasade a otoce telo mlynku proti smeru hodinovych ruckek, tak ay probstka zajistla pevne tuto cst. (obr. 31). Nasade zasobnik na telo mlynku (obr. 4).

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V - 50-60 Hz
Input 1900 W
Sound level ≤ 85 dB
Continuous operating time	Kneading (KB max) 10 min.
	Grinding (KB max) 5 min.
	Whipping (KB max) 5 min.
	Blending (KB max) 2 min.
Power consumption in off state <0,5 W

When connected to the mains, the appliance is in the off state and waits for the control dial to turn on.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.
• Do not leave the appliance unattended when it is switched on or connected to the mains.
• Disconnect the appliance from the electrical outlet if it is not being used.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

图

concept

concept

• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not allow the power cord to hang freely over the edge of the worktop where children might reach it.
• Do not use the appliance outdoors or on a wet surface, there is a risk of electric shock.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the power cord to move or handle the appliance.
• Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.
• Do not touch the appliance with wet hands.
• When installing accessories, cleaning and maintenance or in the event of a malfunction, switch off the appliance and disconnect the plug from the electrical outlet.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Check the appliance and the power cord for damage regularly. Never switch on a damaged appliance.
• Do not touch moving parts when using the appliance.
• Keep your hair, fingers and cloth away from the moving parts of the appliance.
• Pay extra attention when handling the adapters, the blades are very sharp and can cause injury.
• The appliance accessories must not be used in a microwave oven.
• Immediately after switching off the motor and unplugging the power cord, some parts may be still moving for a while. Wait until they stop completely.
• Use the appliance for food processing only.
• The maximum allowable temperature of processed food is 80^ . Do not use the appliance for boiling food!

• Do not repair the appliance yourself. Contact an authorized service centre.

• Never bypass the safety switches.

• Do not put food in the rotating hooks while the appliance is working.
• Place the appliance on a smooth, flat and stable work surface.
• Do not insert the plug into the wall outlet without installing all the necessary accessories.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

concept

concept

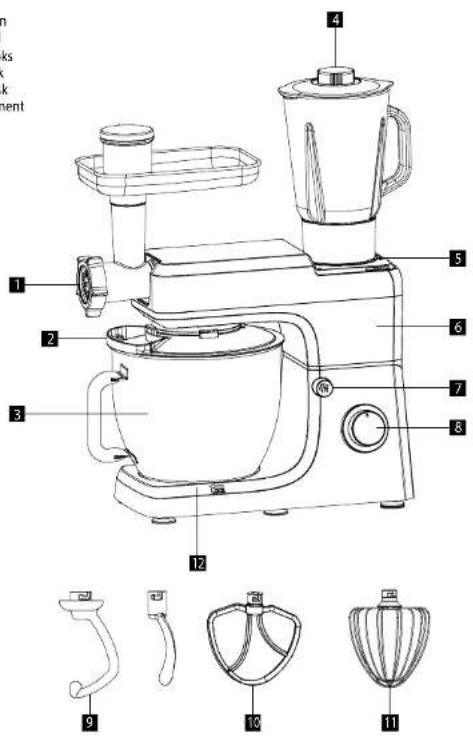

PRODUCT DESCRIPTION

1 Hole for positioning the meal grinder / grater
2 Lid of the container
3 Container
4 Mixer
5 Hole for placing the mixer
6 Tipping arm
7 Release button
8 Speed control
9 Kreading hooks
10. Mixing which
6 Mixing whisk
11 Balloon whisk
11.2 Heating element

OPERATING INSTRUCTIONS

Whipping, kneading and blending

1. Place the mixing container in the base and turn it clockwise until it clicks into place.
2. To raise the arm, press the release button (7) and at the same time lift the arm by gently pulling it up.
3. Place the lid on the container (2).
4. Place the desired whisk on the output shaft, push the whisk against the spring gently and turn it until it locks into
   the lock.
5. Now put the ingredients in the container. Do not exceed the maximum allowable amount of ingredients, which is 1.5kg .
6. Release the arm with the release button (7) while lowering it with a slight pressure.
7. Insert the plug into the wall outlet.
8. Switch on the appliance and turn the speed control button (8) to select a speed between 1 and 6 (depending on the type of dough being prepared).
9. After mixing is complete, turn the speed control button (8) to the "0" position. Then remove the plug from the wall outlet.
10. Press the release button (7) and at the same time lift the arm by gently pulling it up.
11. The container can now be removed.
12. Remove the mixture from the container with a spatula.
13. Cleaning is described in the "Cleaning" chapter.

Setting the speed and using the whisks. The maximum quantity of the mixture must not exceed 1.5 kg.

Speed Use	Type of mixture
1-2 Dough hooks Dense mixtures (e.g. bread dough, pizza, yeast dough)
3-4 Mixing whisk Medium dense mixtures (e.g. pancake mixture, rubbed dough, butter creams)
5-6 Whisk Light mixtures (e.g. cream, egg white, pudding)

NOTE:

Do not exceed the maximum continuous operating time (KB max), see the table of technical parameters.

Leave the motor off for at least 20 minutes before using the appliance again.

The RM6010 can only be used with whisks and kneading hooks. Other accessories are not applicable.

Blender

IMPORTANT

DO NOT attempt to use this function while grinding or mixing.
1. Do not connect the appliance to the mains until the blender container is in the correct position.
2. Disconnect the blender from the mains before removing the blender container.
3. Blended food in the container must not exceed 80^
4. To avoid spillage, do not exceed 1.5 litres of liquid in the blender container.
5. Warning: Never remove the lid from the blender container while blending.
6. Do not use the blender for more than 2 minutes.

Function

The blender can be used for both blending and mixing. It can be used for example for preparing soup, sauce, milk shake, baby food, blending vegetables, fruit, puree, etc. For easier operation, cut the food into small pieces before placing it in the container.

EN

concept

concept

Blender instruction manual

• Remove the back cover (Fig. 1).
• Place the food in the glass container.
• Place the lid on the glass container (Fig. 2).
• Insert the measuring cup into the lid opening and turn it clockwise (Fig. 3).
• Place the blender container on the appliance and turn
  it counter-clockwise (Fig. 4)
• Insert the plug into the wall outlet.
• Set the speed control button to the desired position.
• Switch off the appliance and unplug it.
• Remove the measuring cup with the lid.
• Remove stuck food from the inside of the container with a soft spatula.
  Keep the spatula away from the blades.
  To remove the blender container, turn it clockwise.
  To remove the measuring cup, turn it counter-clockwise.

TIPS

• Add food only when the appliance is switched off. If you remove the measuring cup from the lid, you can add food while the appliance is running.
• From time to time it is necessary to switch off the appliance and remove stuck food from the inside of the container.

Grinder

IMPORTANT

DO NOT attempt to use this function while blending or chopping.
1. Cut boneless meat into pieces. Approximately to the size of 20 × 20 × 60 ~mm so as to be easily inserted in the opening of the container.
2. Inserted food should not contain bones and other hard parts. Bones could cause the motor to stop. If the motor stops, stop the appliance immediately and unplug it. Remove the entire meat grinder assembly. If the motor stops automatically, eliminate the cause of the stop. After the motor has cooled down, it is possible to continue.
3. Switch the appliance on by pressing the speed control button (8).
4. Place the food in the container exclusively using the stamper.
5. After grinding is completed, turn the speed control button (8) to the "0" position and remove the plug from the wall outlet. 6. Maximum grinding time is 5 min. in continuous operation.

Assembly instructions for grinder

• Assemble the grinder (Fig. 1)
• Remove the front cover (Fig. 2).
• Place and turn the grinder body counter-clockwise so that it clicks firmly into place (Fig. 3). Place the container on the grinder body (Fig. 4).
• Place the meat container under the grinder.
• Insert the plug into the wall outlet.

• Set the speed control button. Then place the food in the container and push it into the container with the stamper.

After use, switch off the appliance and unplug it.
- Press the release button located close to the grinder body. Turn the grinder clockwise and remove the entire grinder assembly.
- Place back the front cover.

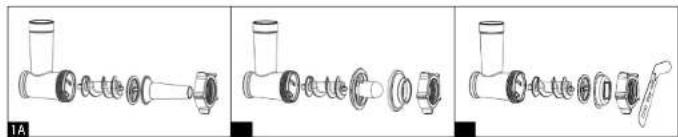

Stuffing sausages

1. Insert the auger into the body of the grinder. Place the extruding disc and the sausage filling sleeve on the axis of the auger. Tighten the nut of the grinder by hand (Fig. 1A).
2. Fit and turn the grinder body counterclockwise so that the lock secures this part firmly.
3. Fit the tray onto the grinder body.
4. Tighten the casing at one end, Fit the free end onto the filling sleeve.
5. Switch the machine on using the speed controller button 8. Select the speed as required.
6. Insert the ground mixture into the inlet opening of the grinder and gradually fill the casing. Do not push the rammer with great force to avoid overloading the appliance.
7. Be careful not to force air into the hopper when filling. The recommended length of each sausage is 10-15 cm. Knot the individual sausages using string.
8. At the end, you can squeeze the food residue out of the attachment by throwing in a few pieces of bread.

Filling of meatballs

1. Insert the auger into the body of the grinder. Place the extruder disc and the meatball clamp on the axis of the auger. Tighten the grinder nut (Fig. 1B).

2. Fit and turn the grinder body counterclockwise so that the lock secures this part firmly.

3. Fit the tray onto the grinder body.
4. Switch the machine on using the speed controller button 8. Select the speed as required.
5. Feed the ground mixture into the inlet opening of the grinder. Do not push the rammer with great force to avoid overloading the appliance.

6. Shape the extruded mixture as required.

7. At the end, you can squeeze the food residue out of the attachment by throwing in a few pieces of bread.

Preparing the candy

1. Insert the auger into the body of the grinder. Place the extruder disc and the candy preparation sleeve on the axis of the auger. Tighten the nut of the grinder (Fig. 1C).
2. Fit and turn the grinder body counterclockwise so that the lock secures this part firmly.
3. Fit the tray onto the grinder body.
4. Slide the candy formers with different profile shapes into the nut..
5. Switch the machine on using the speed controller button 8. Select the speed as required.
6. Insert the dough into the inlet opening. Do not press the blower with great force to avoid overloading the appliance.

Note: It is recommended to hold the dough in the desired shape with your hand to prevent it from tearing.

EN

concept

concept

EN

Preparing pasta

1. Insert the auger into the body of the grinder. Place the extruder disc with the selected type of pasta on the axis of the auger. Tighten the nut on the grinder (Fig. 1).
2. Fit and turn the grinder body anticlockwise so that the safety catch secures this part firmly.
3. Fit the tray onto the grinder body.
4. Switch on the machine using the speed control button (8). Select the speed as required.
5. Insert the dough into the inlet opening. Do not press the blower with great force to avoid overloading the appliance.

Note: It is recommended to hold the dough in the desired shape with your hand to prevent it from tearing.

1. Bucatini
2. Spaghettioni
3. Penne
4. Pappardelle
5. Fettuccine
   6.7iti

Grater

IMPORTANT

DO NOT attempt to use this function while grinding, blending or chopping.

1. Cut the food into pieces. Approximately to the size of 20 × 20 × 60 ~mm so as to be easily inserted in the opening of the container. Inserted food should not contain hard parts. Hard parts could cause the motor to stop. If the motor stops, stop the appliance immediately and unplig it. Remove the entire grater assembly. If the motor stops automatically, eliminate the cause of the stop. After the motor has cooled down, it is possible to continue.
2. Switch the appliance on by pressing the speed control button (8).
3. Place the food in the container exclusively using the stamper.
4. After grinding is completed, turn the speed control button (8) to the "0" position and remove the plug from the wall outlet.
5. Maximum grating time is 5 min, in continuous operation.

Assembly instructions for grater

• Assemble the grater (Fig. 1).
• Remove the front cover (Fig. 2).
• Place and turn the grater body counter-clockwise so that it clicks firmly into place (Fig. 3).
• Place the grated food container under the grater.
• Insert the plug into the wall outlet.
• Set the speed control button. Then place the food in the container and push it into the container with the stamper (Fig. 4).

60

After use, switch off the appliance and unplug it.
- Press the release button located close to the grater body. Turn the grater clockwise and remove the entire grater assembly.
- Place back the front cover.

1. Fine vegetable grater
2. Coarse vegetable grater
3. Slicing grater

Heating function for perfectly risen dough

• Process the yeast dough.
• Leave the robot in the closed position, with the lid of the container adhering to the bowl.
• Use the speed control (8) to select position H
  The heating element under the bottom of the bowl will heat up the bowl, resulting in a better and faster rise.

Tip: if you want to boost the rising even more, remove the kneading hooks after working the dough and cover the bowl with a clean cloth instead of the lid. The hinged arm must be in the closed position.

CLEANING AND MAINTENANCE

• Unplug the power cord from the wall outlet before cleaning.
• Never Immense the base of the blender with a motor into the water!
• Do not use any sharp or abrasive cleaners.
  Only a damp cloth should be used to clean the outside of the cover.

Container and accessories

NOTICE

The whisks and the container can be washed in the dishwasher.
Other parts are not suitable for washing in a dishwasher.
The parts that come into contact with food can be washed in soapy water.
Before reassembling, let all the parts dry thoroughly.
After drying, apply a small amount of vegetable oil to the surface of the container and the replaceable adapters of the grinder.

EN

concept

concept

DE

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with the European Directive 2012/19/EU on waste electrical equipment (WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.

Danksagung
