Product Type	Wire Stripping Machine
Brand	Vevor
Model	SD-025MINI (SD-25)
Main Material	Aluminum Alloy
Stripping Capacity	φ 1.5 mm to 25 mm
Dimensions	19 × 37 × 18 cm
Weight	3.8 kg
Power Source	Manual (crank) or Electric (drill)
Stripping Modes	Manual by crank, motorized by drill
Blade Adjustment	Plastic adjustment nut and blade adjustment nut
Adjustable Inlet Opening	Yes, to prevent cable oscillation
Main Functions	Strip the insulation layer without damaging the inner conductor
Maintenance and Cleaning	Sharpen blades if dull, clean after use
Safety	Never put hands inside the machine during operation
Spare Parts and Repairability	Replaceable blades, adjustable by nuts
General Information	Portable, practical, energy-saving, nice appearance

Frequently Asked Questions - SD-025MINI Vevor

How to adjust the distance between the blades and the shaft?

Turn the plastic adjustment nut counterclockwise to slide the blade up and down. Once the distance is adjusted, tighten the mounting nut of the blade shaft.

What is the stripping capacity of the SD-025MINI machine?

The machine can strip wires with a diameter of φ 1.5 mm to 25 mm.

Can a drill be used with this machine?

Yes, in electric mode: first remove the crank, then install the drill-driven rod. Connect the drill to strip wires automatically.

Why is the machine not stripping properly?

Three possible causes: 1) the wire diameter is too small; 2) the blade center is not aligned with the groove center (adjust the blade core); 3) the blade edge is too dull (sharpen the blades).

How to sharpen the blades?

Use a sharpening stone or a suitable sharpening tool. Follow the instructions in the manual for precise sharpening.

Can the machine strip multi-strand cables?

Yes, if the total diameter is within the range of φ 1.5 mm to 25 mm. Ensure the insulation is stripped without damaging the strands.

How to adjust the inlet opening?

Adjust the opening height according to the cable size so that the cable can enter without lateral oscillation.

What are the safety precautions?

Never put your hands inside the machine during operation to avoid injury. Keep children at a distance.

Does the machine require special maintenance?

Clean the machine after each use. Sharpen the blades regularly if necessary. Check the tightening of nuts.

Where to find the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support. Refer to the manual for more details.

USER MANUAL SD-025MINI Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WIRE STRIPPING MACHINE USER MANUAL

MODEL:SD-25

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SD-25

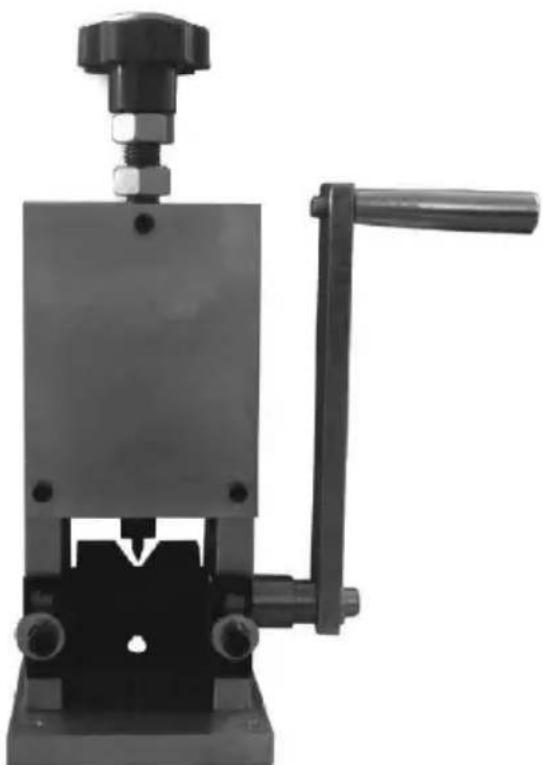

Mechanical clamp device with a black base and lever mechanism (no visible text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

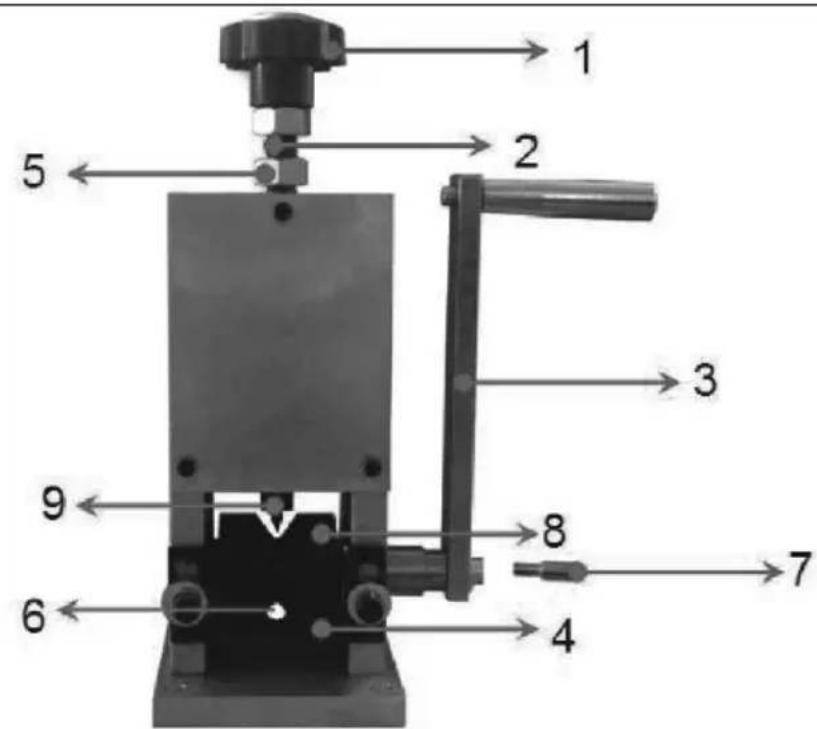

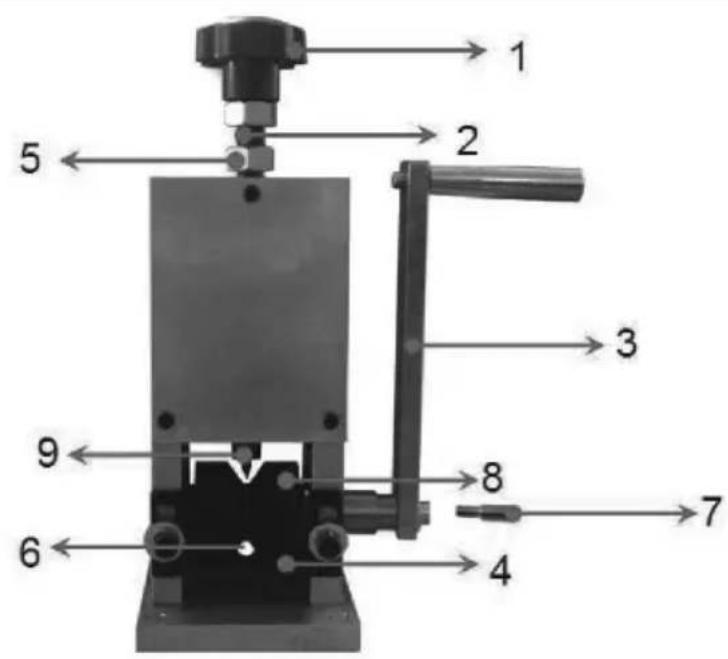

ALUMINUM ALLOY WIRE STRIPPER MACHINE

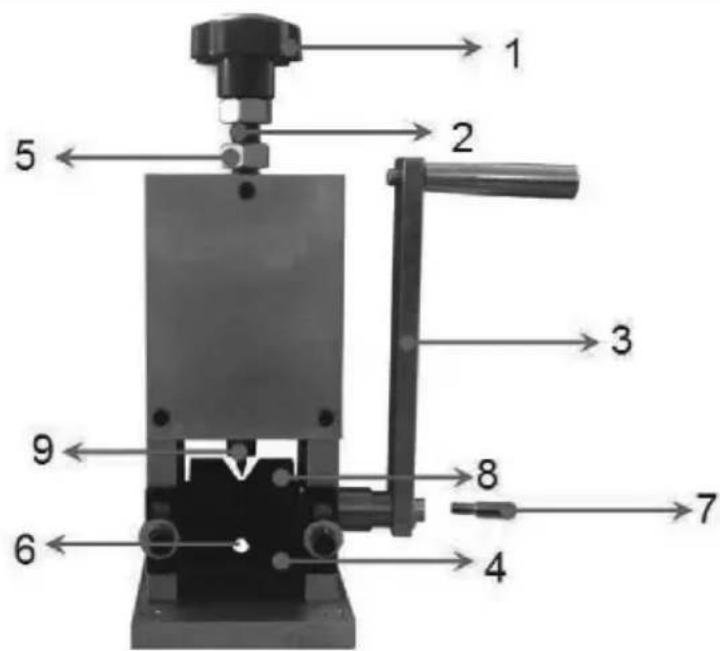

1: plastic regulating nut

2: blades regulating nut

3: hand crank

4: feeding panel

5: blades fixed screw

6: feeding hole

7: drill operated rod

8: shaft

9: blades

Specifications

Capacity: φ1.5mm\~ 25mm

Size: 19X37X18 cm

Weight: 3.8kg

It's easy to operate with hand crank or drill driven, portable and con energy saving, nice appearance; u can get copper wire after the sing blades stripping

Operation

1:Adjust distance between blades and shaft in accordance with the ca size (the insulating layer stripped but not hurt the inner conductor)

2:Feeding:strip the cables through feeding hole( u can adjust the feed hole according cable size to the proper position which cables can enter but not swing)

3: Stripping: (hand operated) rotate hand crank in order to peeling, if ca peel:

① too small wire diameter
② the blades center not in line with groove center( adjust the blade
③ blades edge is too dull( sharpen the blades)

Mechanical assembly showing a hand operating a drill bit connected to a metal frame (no text or symbols visible)

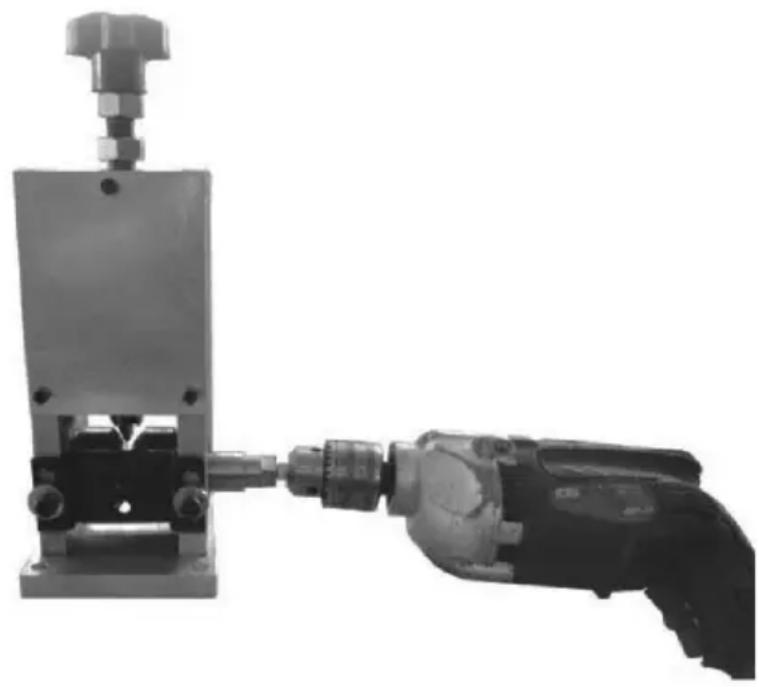

Drill operated picture

Drill driven: If u want drill driven in operation, pull down the hand crank first, then install the drill driven rod with drill, u can begin to strip the cables)

Notice: don't input ur hands into the machine in any circumstance.

Mechanical device with a handle and mounting bracket (no visible text or symbols)
