USER MANUAL LFT01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FISH TAPE USER MANUAL

MODEL:LFT01/LFT04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

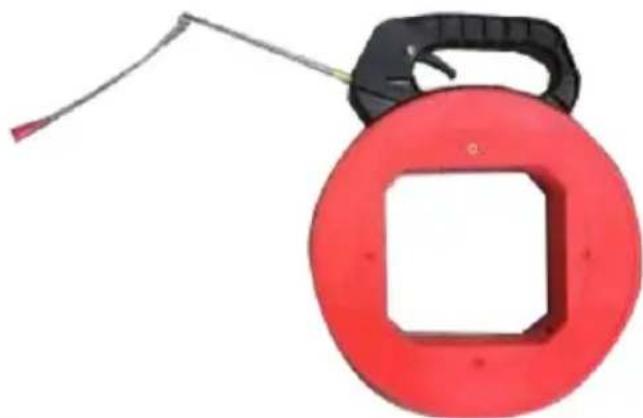

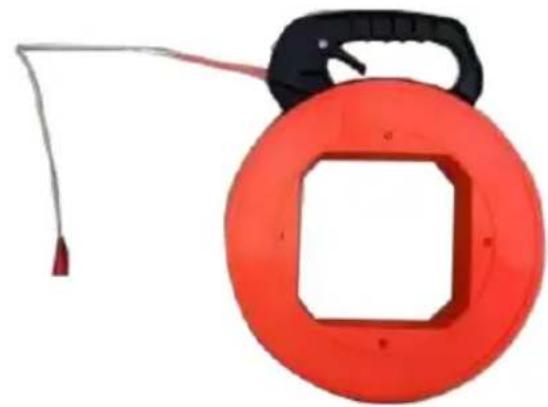

FISH TAPE

MODEL:LFT01 MODEL:LFT01

Red circular object with a square hole and black handle, attached to a wire (no text or symbols visible)

Red circular object with a square hole, attached to a black handle (no text or symbols visible)

Red circular object with a square hole and black handle, attached to a wire (no text or symbols visible)

★ Picture is for reference only, please refer to the actual.

MODEL:LFT01/LFT04

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data to where there are any technology or software updates on our product.

Product parameter

Model	LFT01	LFT01	LFT01	LFT01	LFT04	LFT01	LFT01
Fish Tape Material	Plastics	Flat Steel	Glass Fibre	Glass Fibre	Glass Fibre	Plastics	Flat Steel
Fish Tape Length	125ft	240ft	100ft	100ft	200ft	100ft	120ft
Fish Tape Size	Φ4.5mm	W3.0mm	Φ4.5mm	Φ4.2mm	Φ4.7mm	Φ5.8mm	W3.1mm
product size	385*306*51mm	385*306*51mm	385*306*51mm	385*306*51mm	511*432*51mm	390*306*51mm	385*306*51mm
package size	405*320*60mm	405*320*60mm	405*320*60mm	405*320*60mm	540*450*65mm	405*320*60mm	405*320*60mm
N.W	1.25kg	2.7kg	1.3kg	1.3kg	2.30kg	1.54kg	1.8kg
G.W	1.65kg	3.2kg	1.7kg	1.6kg	2.92kg	1.9kg	2.1kg
Guarantee	2 Year	2 Year	2 Year	2 Year	2 Year	2 Year	2 Year

PRODUCT DESCRIPTION

Fish Tape will make you easy to move or thread cables and Re-Wire through drywall, conduit or insulation. Simply guide the fish tape through the narrow opening, attach wires to the pulling loop and guide the wire with the new location smoothly and efficiently. It is housed in a sturdy carrying Reel case and is made from high-grade carbon steel for performance. An easy reel out allows you to finish the job faster without straining you

- Save a lot of money by doing your own wiring. Even if you've ne picked up an electrical tool in your life, you can safely rough-in wiring using the Steel Fish Tape Reel while running cable throughout the ro and making the electrical connections.

- Easy-to-use installer's solution for pulling and installing cable in con

- Reel winds up and stores excess fish tape as the wire is pulled.

• Strong pulling strength. Shatter proof.

• Built-in thumb lock holds the wire in place.

- Finger fitting grips around reel fits the hand comfortably.

- Tape is wound directly into housing, no need to snap retaining tap

- Greasy lubrication covers steel to help moving properly.

- Exclusive hand trigger assembly helps wind tape tightly as it automatically wipes off excess lubricant.

- End is tapered in formed Hook so that you can attach a cord or and pull it back through the wall.

- Stiff enough forgetting up a wall from the floor below.

- Sturdy enough to support such an application.

- No problem pushing it through several curvy parts of the conduits of raceway.

- Glides through tricky bends without sticking or snagging.

- Pull wire through a tight-spaced conduit or raceway with the Ideal Grip.

- Trigger allows the snake to be forced without stressing the reel and always easy and smooth pull-out and rewind motion.

METHOD OF APPLICATION

★ Picture is for reference only, please refer to the actual.

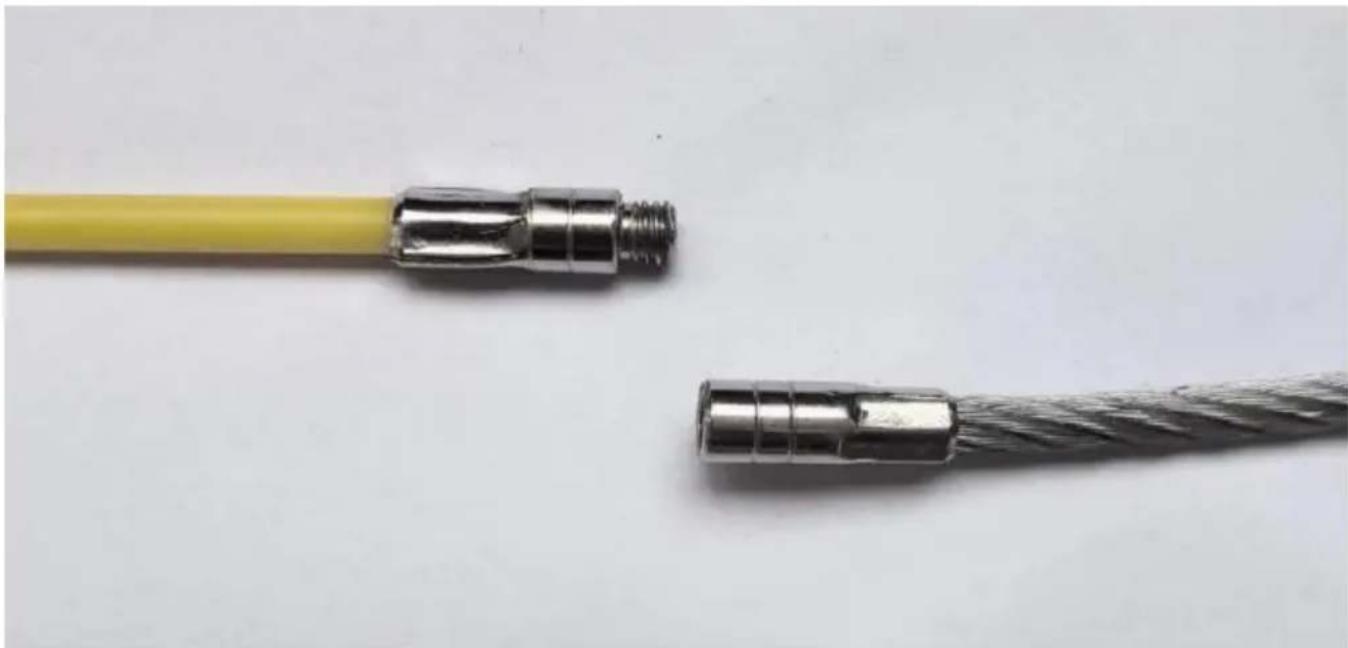

Close-up of two metallic cable connectors with threaded ends, one yellow and one gray, against a plain white background (no text or symbols)

Detachable cable connector for easy use.

Close-up of a hand holding a medical or surgical tool with a metallic wire and curved wire attached (no text or symbols visible)

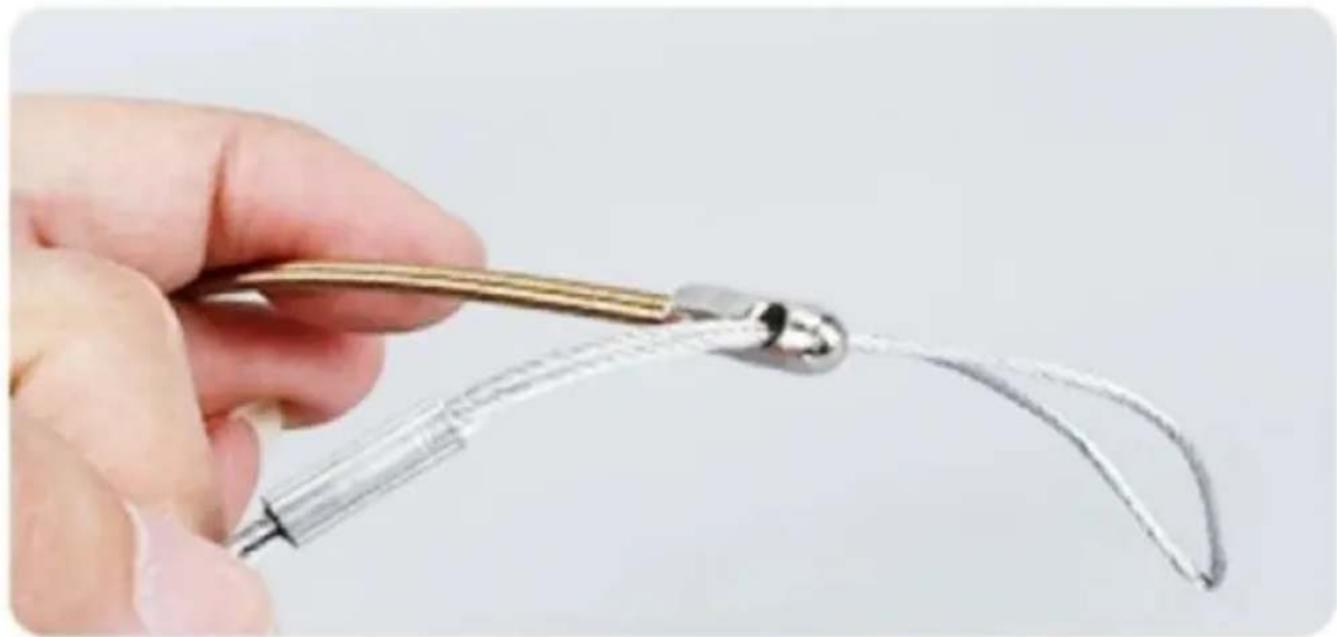

Pass the noose through the retractor connector.

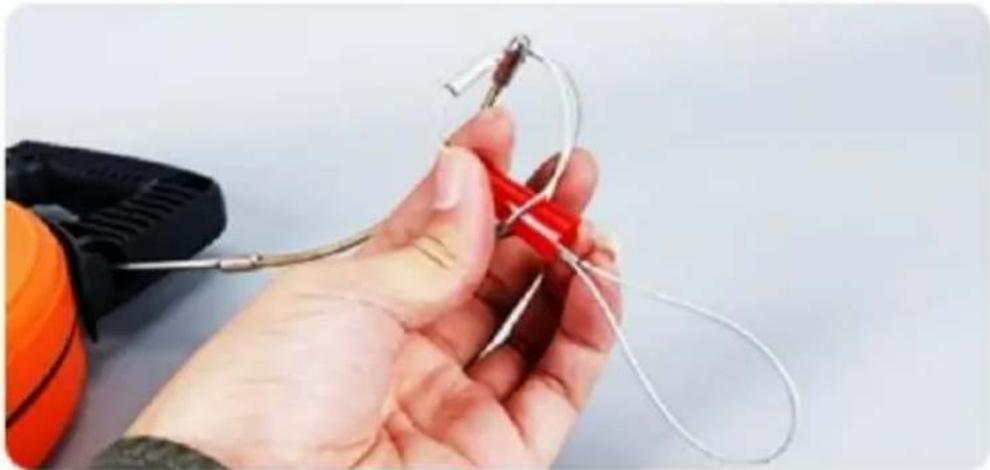

Close-up of a hand holding a thin wire with a red string, being held by a power tool (no text or symbols visible)

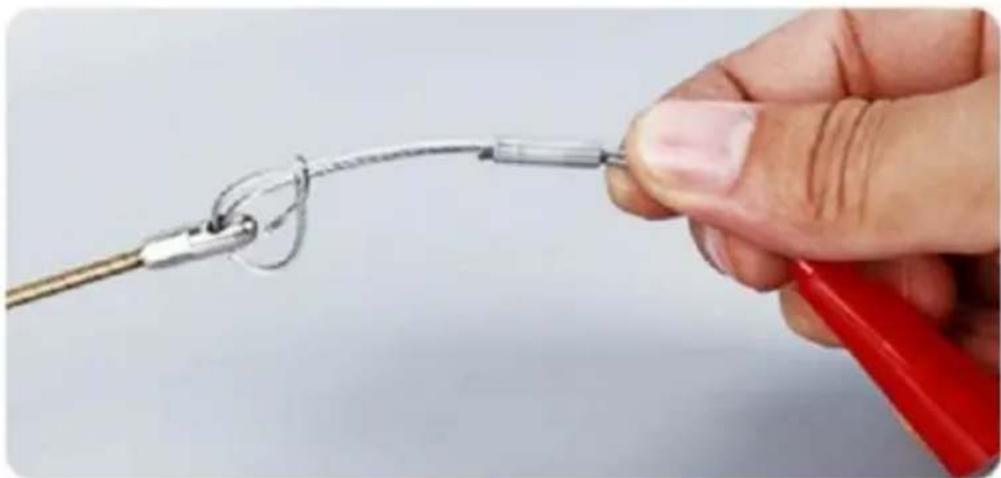

Loop the noose into the stringer.

Close-up of a hand holding a metal wire with a loop, being held by a red tool (no text or symbols visible)

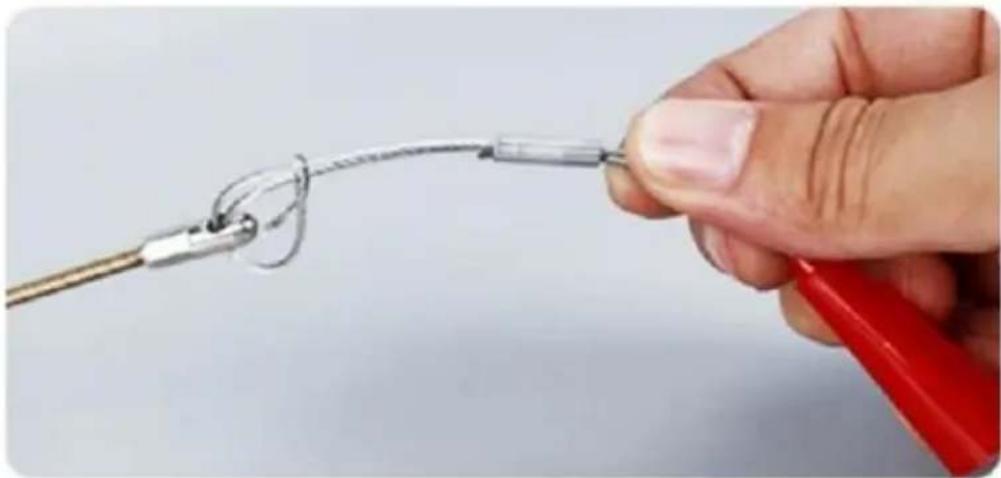

Stretch the thread stringer.

Close-up of a hand holding a thin, thin wire or fiber against a plain background (no text or symbols visible)

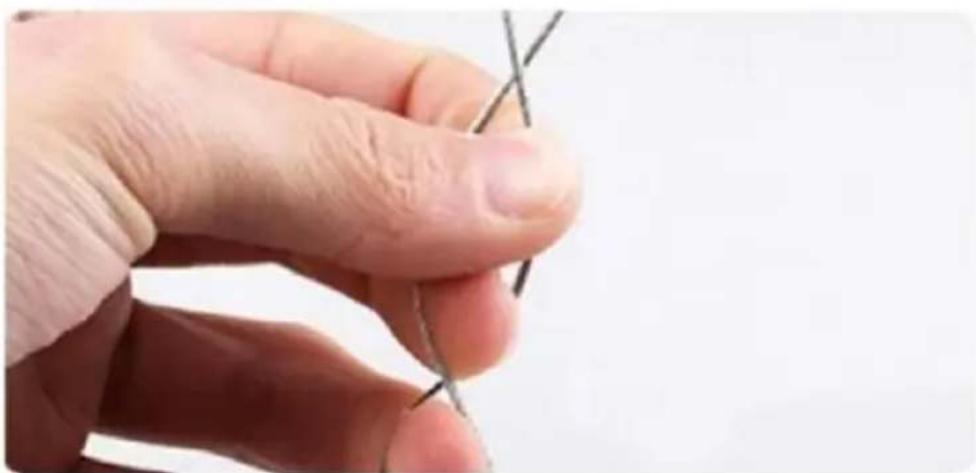

Wrap the noose in the shape of the number eight.

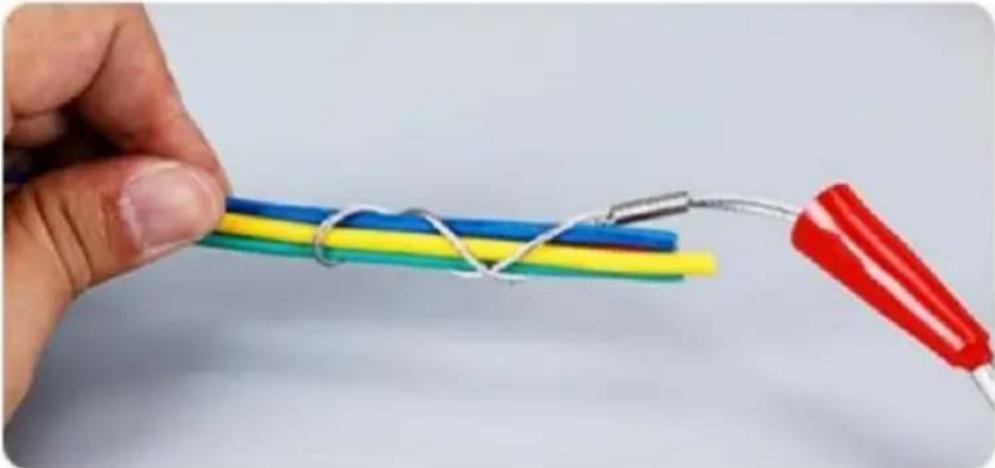

Hand holding a coiled wire with colored wires (blue, yellow, green) and a red tool nearby (no text or symbols visible)

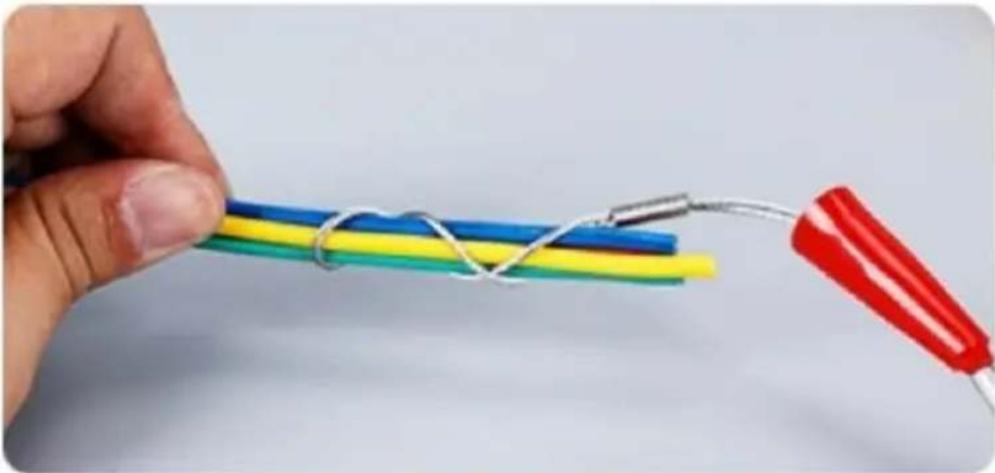

Thread the required wire through the middle of the noose.

Close-up of a colorful cable with wires attached to a black and orange electric scooter (no visible text or symbols)

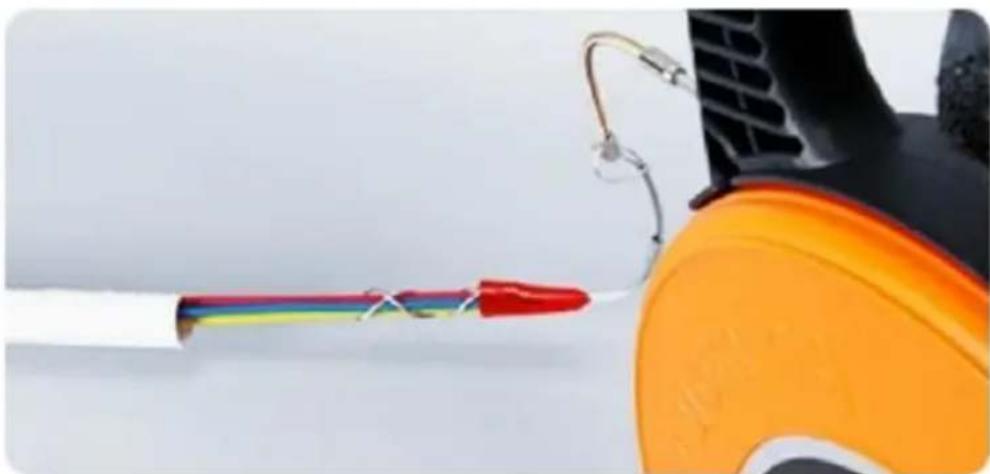

After the wire is fixed, the connecting head is rotated and tightened, then the wire can be pulled.

Tips: The above method is for reference only, specifically, please refer the actual use scenario.
