WHEEL DOLLIES

MODEL:MR8016-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

WHEEL DOLLIES

MODEL:MR8016-4

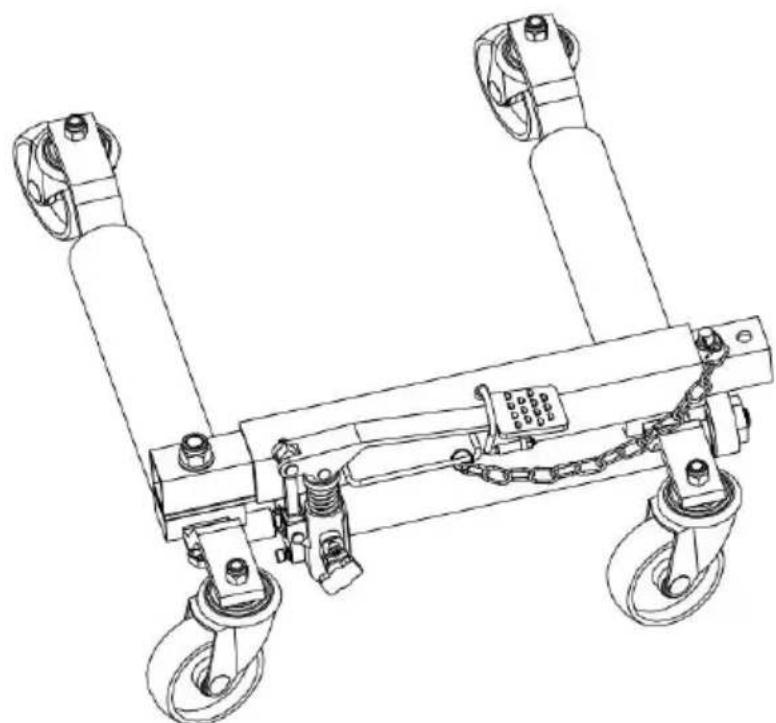

Technical line drawing of a mechanical device with wheels and attached components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructio manual carefully.

SECURITY & WARNINGS

1. Before use, read manufacturer's instruction manual for the vehicle you will

2. Do not exceed rated capacity.

3. Use only on hard, level surface.

4. Before moving a load, assure that the load is centered and secured with restraint device

5. No alterations shall be made to this product.

6. Keep clear of load's path while placing on and removing from dollies, and moving.

7. Use as intended only. Do not use for aircraft purposes. Use only in pairs.

8. Inspect before every use; do not use if parts are loose or damaged.

9. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.

10. Assemble only according to these instructions. Improper assembly can create hazards.

11. Keep your work area clean and well lit. Cluttered work areas invite accide

12. Keep bystanders, children, and visitors away while operating Wheel Dolly. Distractions can cause you to lose control.

13. Keep clear of load while lifting and lowering

14. Do not work under vehicle while on Dollies.

15. Lower load slowly.

16. Weight capacity and other product capabilities apply to properly and completely assembled product only.

17. Store idle Wheel Dollies out of reach of children and other untrained per wheel dollies are dangerous in the hands of untrained users.

18. Wheel Dolly service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.

19. When servicing a Wheel Dolly, use only identical replacement parts -refer attached, product-specific parts list and diagram. Follow instructions in the "Inspection,Maintenance, And Cleaning"section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a 1 of injury.

20. Do not allow anyone in the vehicle while using the Wheel Dolly. Do not the vehicle while it is on Wheel Dollies. Keep all bystanders a safe distance from the vehicle.
21. This product is not a toy. Do not allow children to play with or near the Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact for a replacement.
22. The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur. The operator must understand that common sense and caution are factors, which cannot be built this product, but must be supplied by the operator.
23. DO NOT operate wheel dollies on inclined surfaces. wheel dollies must be used on level surfaces only. Unanticipated motion will occur as soon as wheel dollies lifts tire from surface.
24. DO NOT overload wheel dollies beyond the load rating (1500lbs per unit)
25. DO NOT start the vehicle's engine, or drive with wheel dollies in use. w dollies are designed for hand maneuvering of vehicles only.
26. DO NOT use wheel dollies to lift tires wider than 12 inches.
27. DO NOT attempt to push wheel dollies over obstacles. They are design be used on level and reasonably smooth surfaces only.
28. After lifting, be sure to always lock the pin in place before operating. Put pin out after finishing work and then release the valve.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	MR8016-4
Maximum Load Capacity	1500lbs
Color	Red
Maximum Tire Width	12"/305 mm
Castor Diameter	4" / 100 mm

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

NO	PICTURE	NAME	QTY
1		Left Aluminum Sleeve Bracket With Wheels	1
2		Right Aluminum Sleeve Bracket With Wheels	1
3		Equipped With Pedal Oil Pump Component	1
4		Expansion Sleeve Component	1
5		Bolt M14 * 130	1
6		5# Hex Key	1
7		Oil Pump Rod Joint	1
8		Washer M14	1
9		Lock Nut M14	1
10		M6 * 25 Hexagon Sock Countersunk Head Screw (Black)	4
11		M6 * 20 Hexagon Sock Screw	4
12		Washer M6	4
13		4# Hex Key	1

ASSEMBLY STEPS

Technical line drawing of two mechanical suspension components with mounting brackets and force arrows (no text or symbols)

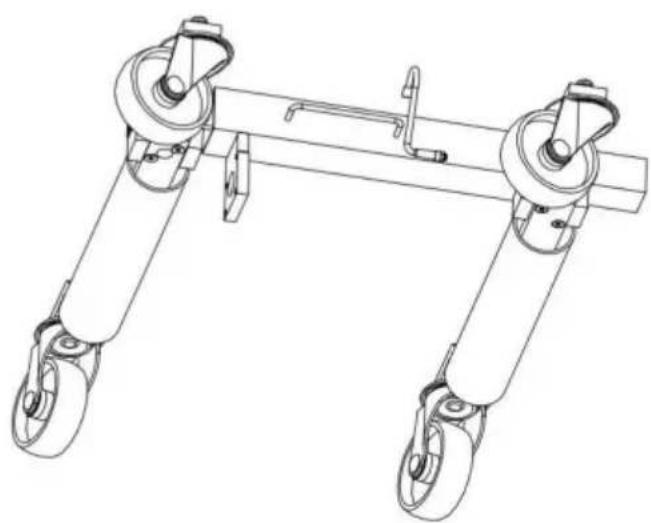

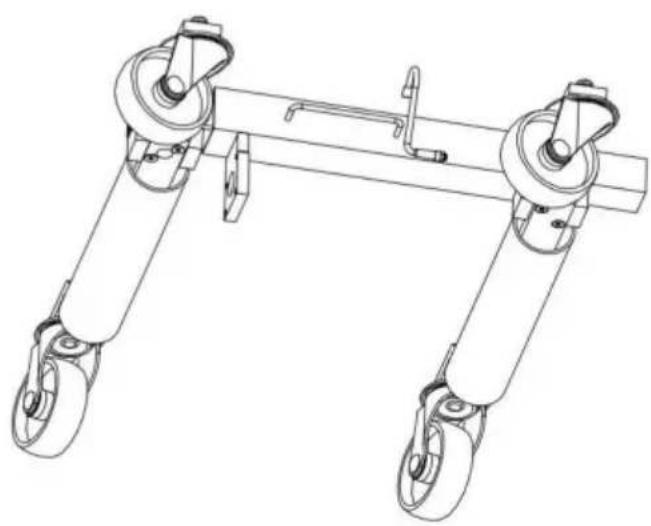

Technical line drawing of a mechanical support system with two vertical wheels and a horizontal rail (no text or symbols)

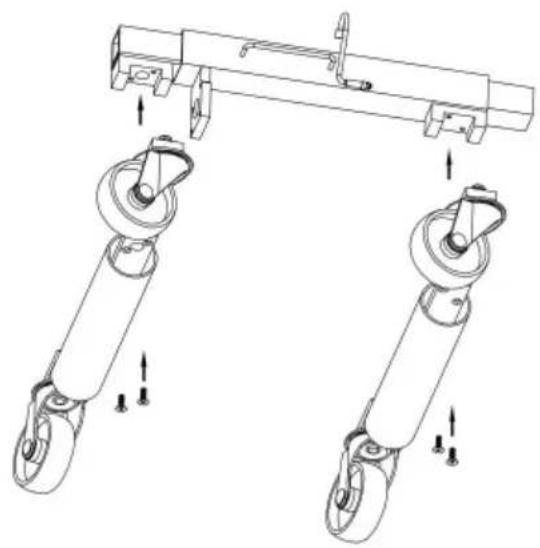

1. Tighten and fix the Left flat iron component and Right flat iron component ② to the Expansion sleeve component with Screw M6x25 ⑩ As shown in the figure.

Technical line drawings of three different mechanical components with wheels and levers, shown from different angles (no text or symbols present)

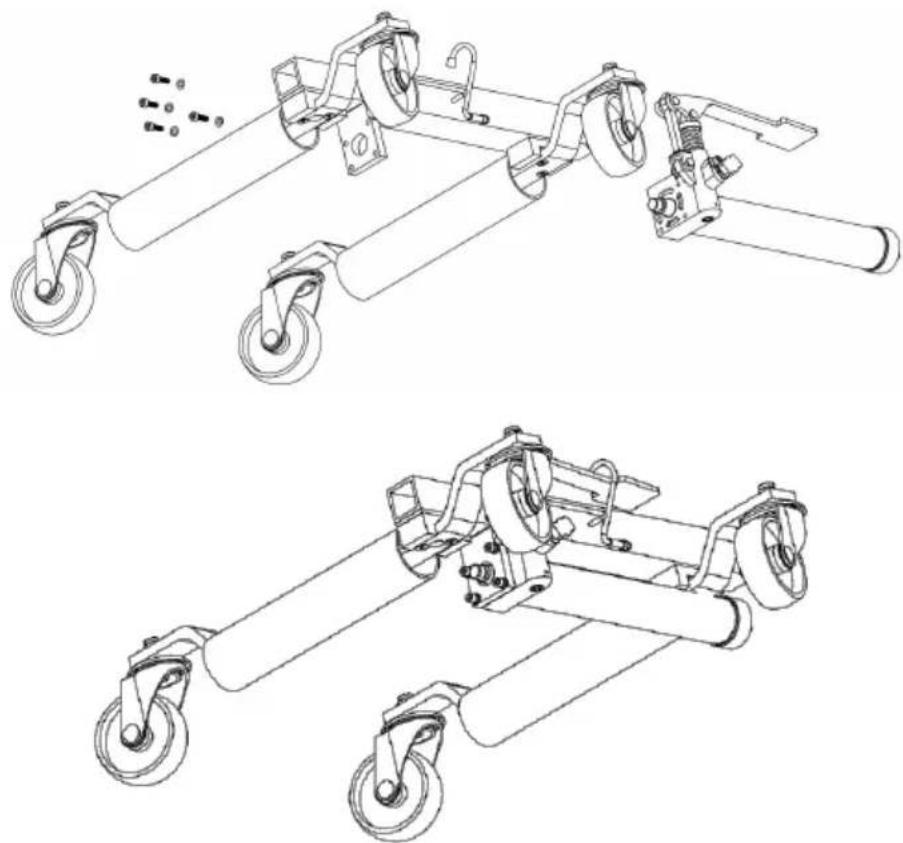

1. Fix the Equipped with pedal oil pump component the body with M6 hexagon socket screw ^11 Washer 6^12 as shown in the figure.

Technical line drawing of a mechanical vehicle with two wheels and a handle (no text or symbols)

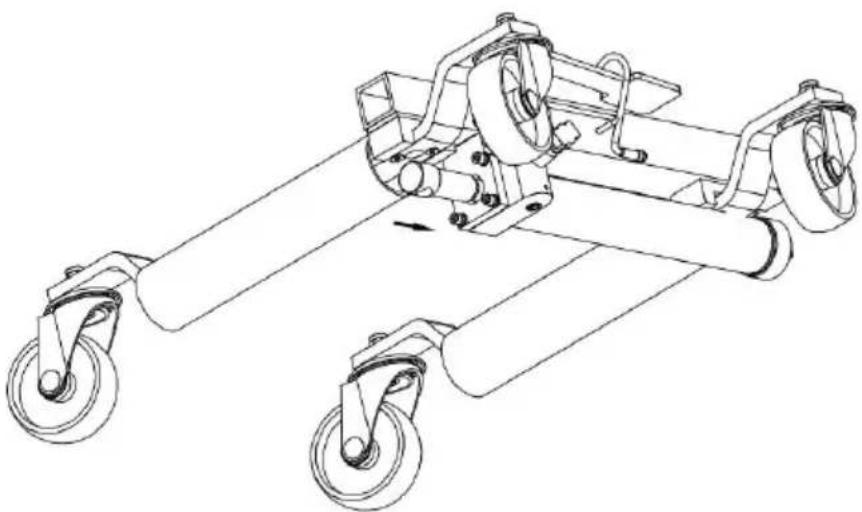

1. Screw the Oil pump rod ⑦ointo the oil pump. Pay attention to align the holes on the nut with the body holes as shown in the figure.

Technical line drawings of a mechanical device with wheels and adjustment parts (no text or symbols)

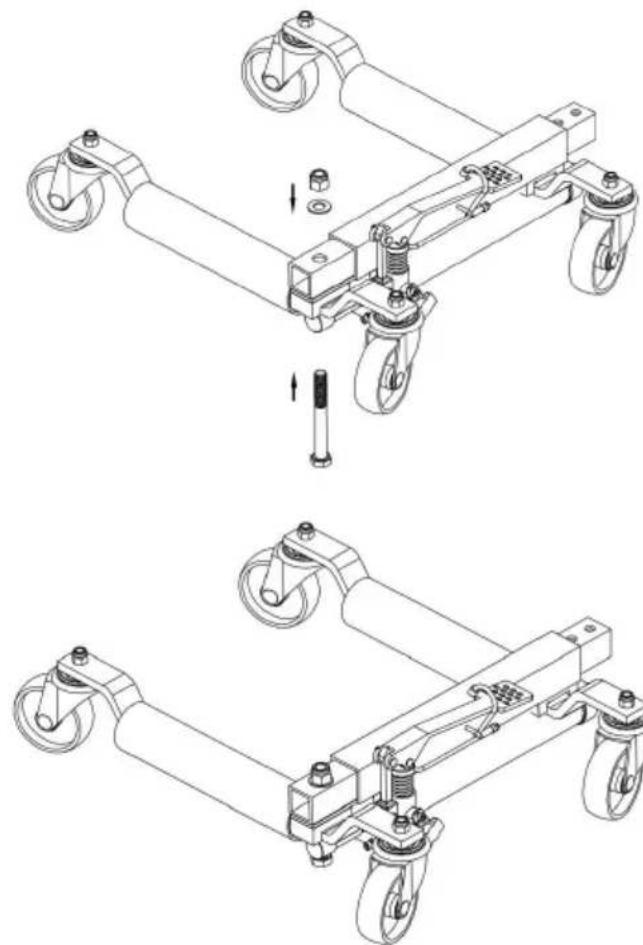

1. Tighten and fix the oil pump and main body with Bolt ⑤14Wash30Φ14 ⑧lock nut M149.

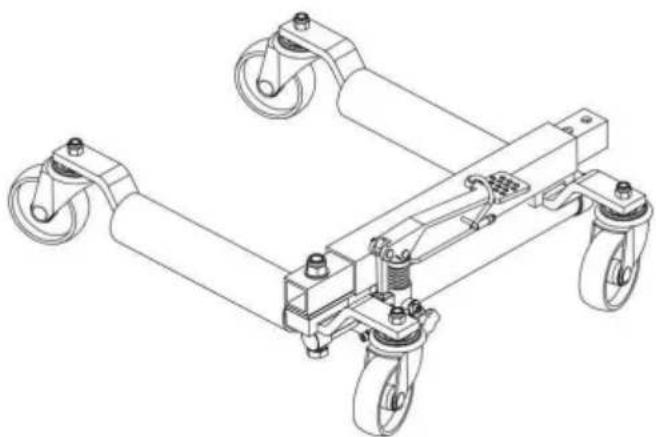

Technical line drawing of a mechanical support system with four wheels and mounting feet (no text or symbols)

1. Lock the pin in place.

INSTRUCTIONS

Person assembling a red and white mechanical device on asphalt (no visible text or symbols)

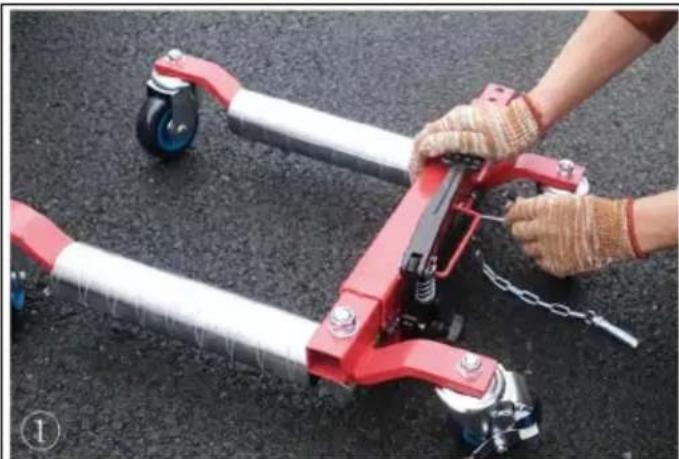

1. Pull out the lock pin from frame, release the retaining hook of the operating lever.

Close-up of hands installing or adjusting a red mechanical device on asphalt pavement (no visible text or symbols)

1. Open release value by turning handwheel anticlockwise.

Close-up of a person's legs and feet wearing a red bicycle-mounted device on asphalt, next to a car wheel (no visible text or symbols)

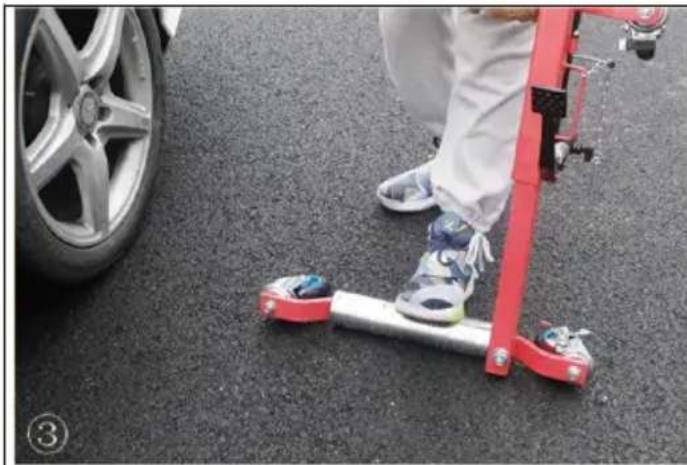

1. Expand the wheel dollies.

Close-up of a car tire being loaded with a red-handled lift tool, with a gloved hand adjusting the handle (no visible text or symbols)

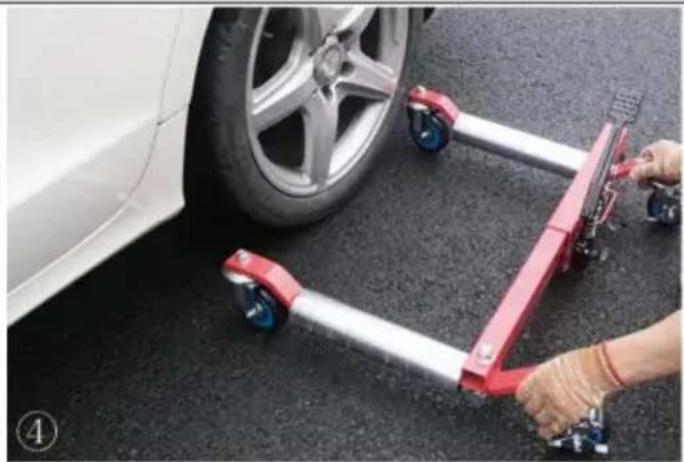

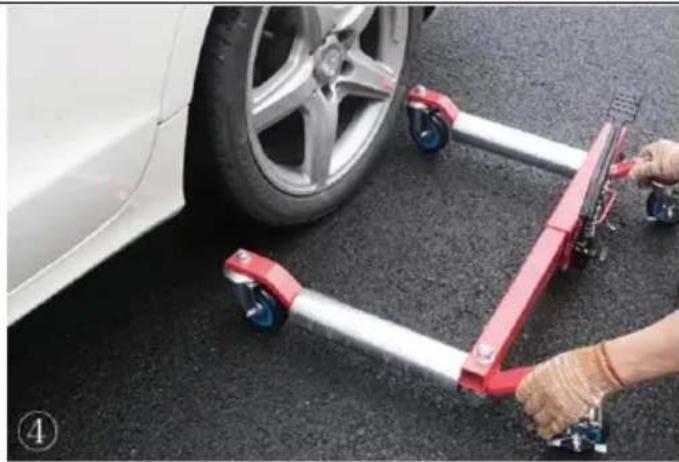

1. Slide the go wheel dollies around wheel to be lifted.

Person using a red mechanical clamp on a car tire, no visible text or symbols

1. Close release value by turning handv clockwise.

Close-up of a car tire mounted on a red robotic lift, with a white car visible in the background (no text or symbols)

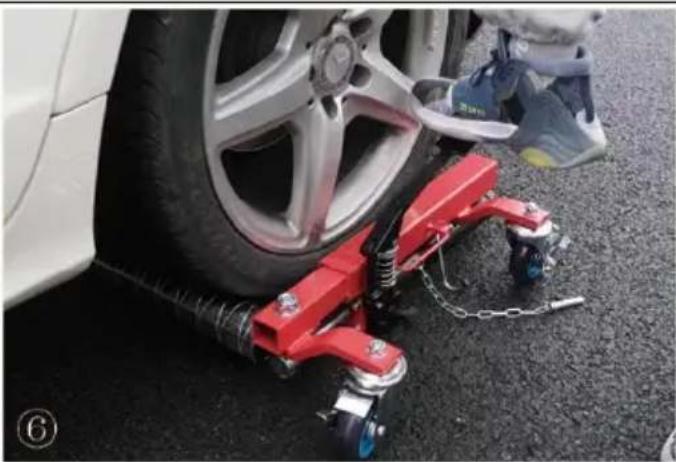

1. Place foot on pedal depressing smoothly to lift tire from surface one or less.

Close-up of a red car tire being adjusted by a hand, with no visible text or symbols

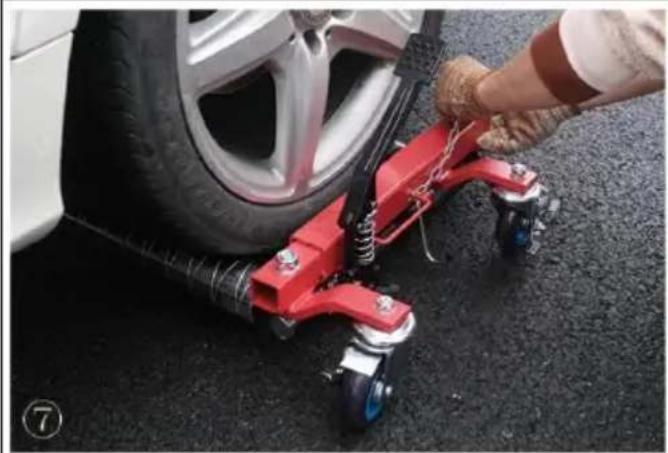

1. Be sure lock the pin in place.

White convertible sports car parked on red mobility platform outdoors, no visible text or symbols

1. To release wheel dollies, pull the out from frame and open value by handwheel anticlockwise.
