DHM-55-DT - Handling tool Vevor - Free user manual and instructions
Find the device manual for free DHM-55-DT Vevor in PDF.
| Product Type | Drum Heater |
| Brand | Vevor |
| Model | DHM-55-DT |
| Power | 1300 W |
| Voltage | 230 V (European version) |
| Frequency | 50 Hz |
| Connector Type | European Plug |
| Compatibility | 55-gallon drums (approximately 208 liters) |
| Ambient Temperature Range | -30 °C to 60 °C |
| Temperature Setting Range | 0 °C to 63 °C (0 °F to 145 °F) |
| Control | Digital thermostat with display |
| Timer | Yes, programmable |
| Unit Conversion | Celsius / Fahrenheit |
| Functions | Heating and keep warm |
| Material | Resistant insulating fabric |
| Approximate Dimensions | Suitable for 55-gallon drum (diameter ~58 cm, height ~89 cm) |
| Safety | Do not use in overlay; avoid sharp objects |
| Maintenance | Clean with a damp cloth; store in a dry and ventilated place |
| Package Contents | Heating blanket, cover, controller, probe |
Frequently Asked Questions - DHM-55-DT Vevor
User questions about DHM-55-DT Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Handling tool in PDF format for free! Find your manual DHM-55-DT - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DHM-55-DT by Vevor.
USER MANUAL DHM-55-DT Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

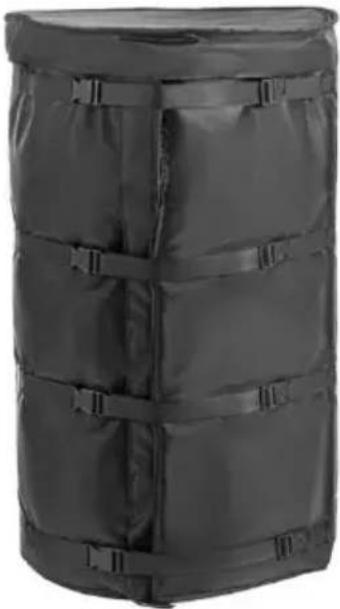

Drum Hearer
MODEL:DHM-55-DT
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: DHM-55-DT
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.
Precautions for the use of heaters:
- Heater power supply and socket must be matched, can not be over-voltage use.
- Heaters cannot be used overlapping.
- Prevent sharp objects scratch the heater.
| Model | Power (W) | Voltage (V) | Frequency (Hz) | Plug Type |
| DHM-55-DT | 1300 | AC 230 | 50 | European Standard |
| 1300 | AC 120 | 60 | American Standard |
| Suitable for gas cylinder specifications | 55 Gal |
| Use ambient temperature range | -30°C ~ 60°C |
| Heating temperature adjustment range | 0-145°F / 0-63°C |
Part List
| Picture | Name | QTY. |
 | Heated Blanket | 1 |

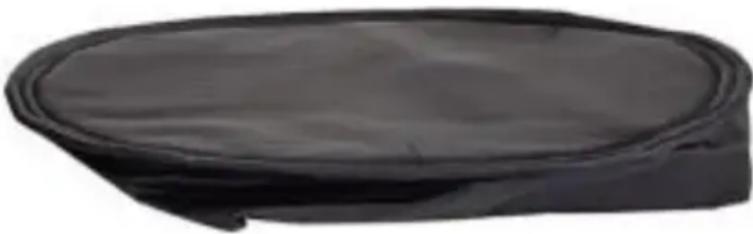

 | Lid | 1 |

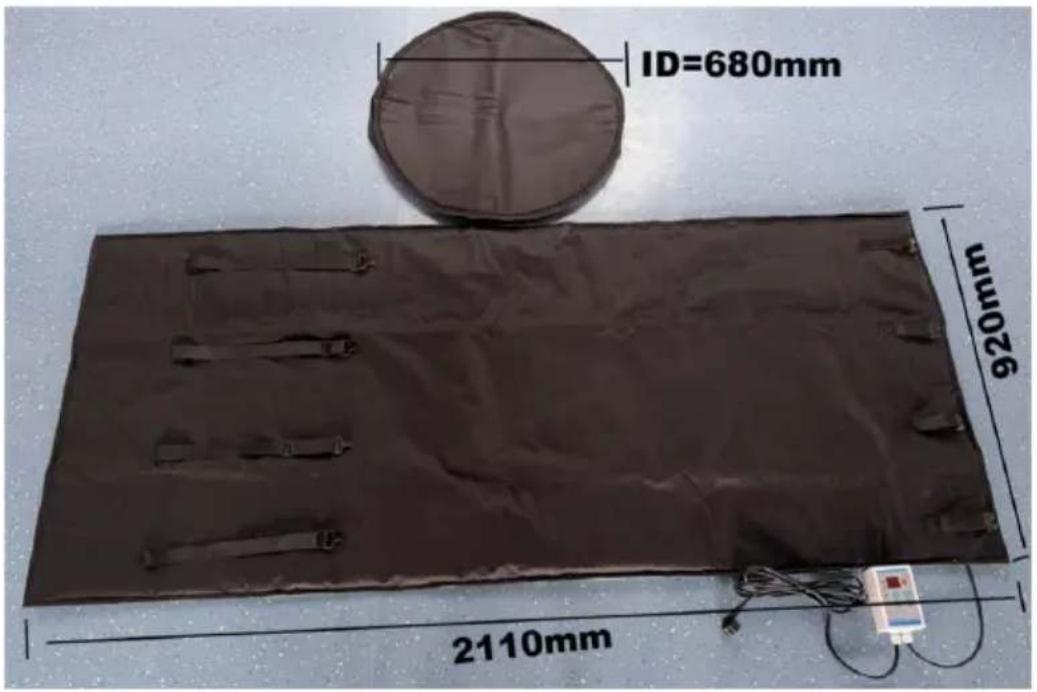

Product Size

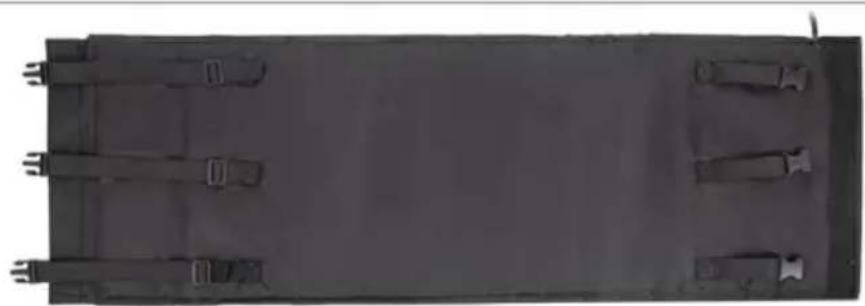

Installation Instructions


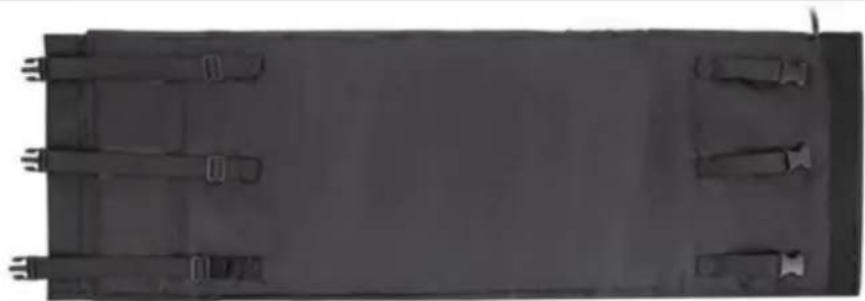

Top-down view of a dark rectangular object with multiple small protrusions and connectors (no visible text or symbols)Wrap drum heater around the barrel


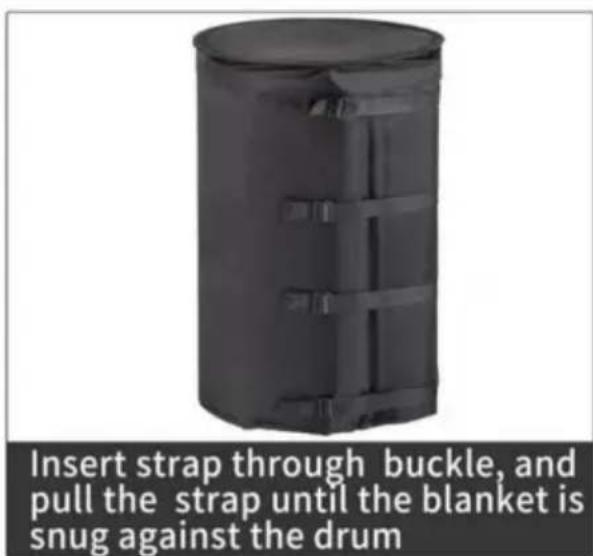

Black cylindrical container with attached metal bands (no visible text or symbols)Insert strap through buckle, and pull the strap until the blanket is snug against the drum


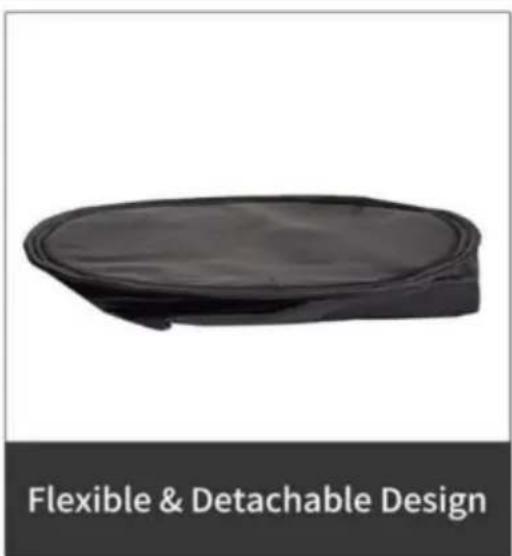

Black oval-shaped object with layered texture, resembling a cushion or fabric (no text or symbols visible)Flexible & Detachable Design
Step1: Open the package, check the plug of the heater, the voltage matched with the current voltage power outlet. After the inspection, wrap heater around the gas cylinder and tighten the upper sealing rope of heater. Insert strap through buckle, and pull the strap until the blanket is snug against the bucket.
Step2: If using with a controller, plug blanket into controller and plug 1 controller into the power source.
Step3: Insert controller probe between theblanket and bucket Set controller todesired temperature range.
NOTE: When the heater is not in use, to clean up the surface dirt, fit neatly, placed in a dry ventilated place.

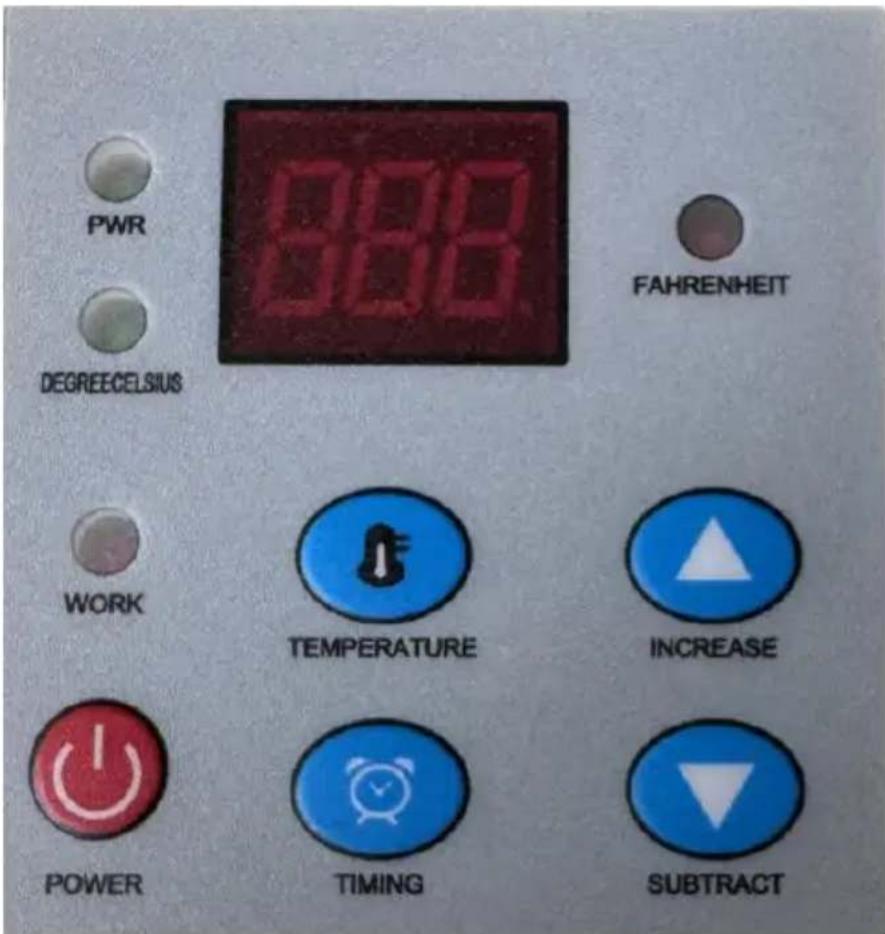

Thermostat Instructions For Use
Temperature Setting:
In the power on state, you can directly press the "up and down" arr select the temperature you want to set, and press the temperature sy to confirm.
Timer shutdown:
Step1: Press the "timing button" when the power is on;
Step2: press the "up and down" two arrows, select the heating time
Step3: Press the "timing button" again to confirm.
Temperature difference setting:
Step1: Press and hold the "temperature button" for about 10 seconds under the power-on condition;
Step2: Select the temperature difference range you need, the temperature difference setting range of 1-10 degrees;
Step3: Press the "temperature button" to confirm after setting.
"Celsius" and "Fahrenheit" conversion:
Step 1: Check the thermostat and keep it off;
Step 2: Press and hold the power on button for about 5 seconds, the left EXCHANGE indicator will light up, if the EXCHANGE indicator is the temperature unit is Celsius; if the EXCHANGE indicator is in green temperature unit is Fahrenheit.
| Q & A | ||
| Question | Picture | Answer |
| When the thermostat shows this icon. |  | Check or replace th sensor. |
