CGW-104INCH - Outdoor blind Vevor - Free user manual and instructions

Product Type	Outdoor Awning
Brand	Vevor
Model	CGW-104INCH
Material	Iron
Color	Black
Awning Dimensions (W x D)	264 cm x 91 cm (104 x 36 inches)
Shade Area	264 x 91 cm
Maximum Suitable Door/Window Width	228 cm (89.8 inches)
Maximum Snow Load	Heavy wet snow: 30 cm (12 inches); light snow: 61 cm (24 inches)
Wind Resistance	Up to 48 km/h (30 mph)
Assembly Required	Yes, with detailed instructions
Kit Contents	Frame, metal tiles, tripods, screws (expansion and wood), metal plates
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Safety	Use safety glasses and gloves; assemble on a flat, hard surface; do not sit or stand on the unit; keep children away
Maintenance	Remove snow quickly if it accumulates
Spare Parts	Replacement screws available; contact support for other parts
Repairability	Technical support via the manufacturer

Frequently Asked Questions - CGW-104INCH Vevor

How to install the Vevor CGW-104INCH awning?

Installation involves several steps: assemble the tripods, mount the frame, attach the frame to the wall (with anchors for hard walls or nails for wood walls), then install the metal tiles from right to left overlapping. Follow the diagrams in the manual for precise positioning.

What is the wind resistance of the awning?

The awning is designed to withstand winds up to 30 mph (48 km/h). Beyond that, it may be damaged. It is recommended to retract it in case of a storm.

Can the awning be installed on a wood wall?

Yes, for wood walls, use the provided wall nails with a 6 mm drill bit. For hard walls (concrete, brick), use the expansion screws with a 12 mm drill bit.

What safety precautions should be taken?

Wear ANSI safety glasses and work gloves during assembly. Assemble on a flat, hard, level surface. Do not sit or climb on the awning. Keep children away.

How to clean the awning?

The manual does not specify a specific cleaning method. It is recommended to use a soft cloth and soapy water to remove dirt. Avoid abrasive products.

Is the awning motorized?

No, the Vevor CGW-104INCH awning is a manual awning without motorization. It extends and retracts manually.

What is the warranty of the awning?

The warranty is electronic and can be viewed at www.vevor.com/support. Keep your proof of purchase.

How to get spare parts?

Replacement screws are available. For other parts, contact Vevor customer service via their website. The manual states that spare parts such as screws are available.

Can the awning be left deployed in case of snow?

No, the awning can withstand up to 24 inches (61 cm) of light snow or 12 inches (30 cm) of heavy snow. Beyond that, it risks collapsing. It is imperative to remove snow quickly.

What tools are needed for installation?

You will need a level, tape measure, chalk or pencil, ladder, drill with 6 mm or 12 mm bits depending on the wall, and safety glasses and gloves.

USER MANUAL CGW-104INCH Vevor

Affordable. Reliable. Home Improvement.

METAL DOOR AWNING

USER MANUAL

MODEL:CGW-104INCH

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

METAL DOOR AWNING

MODEL:CGW-104INCH

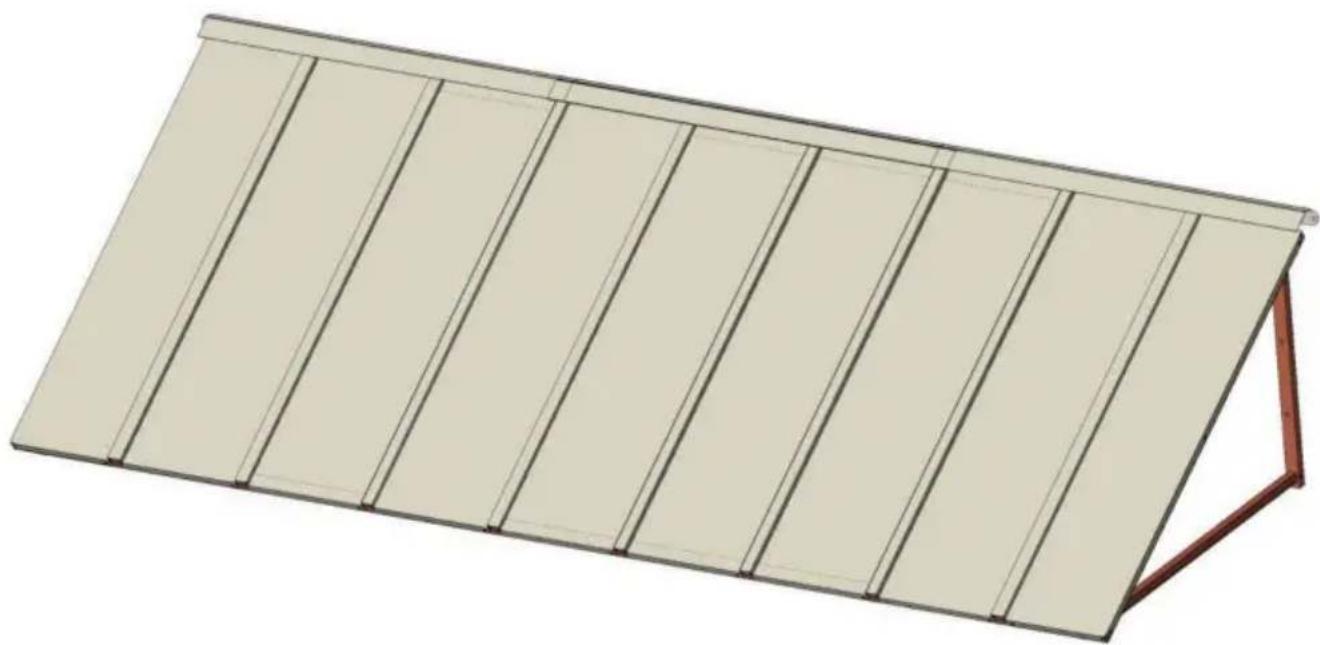

3D rendering of a beige roof structure with vertical slats and a red frame (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Metal Door Awning.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Metal Door Awning.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage
7. Spare parts such as screws are available.

SAVE THIS MANUAL

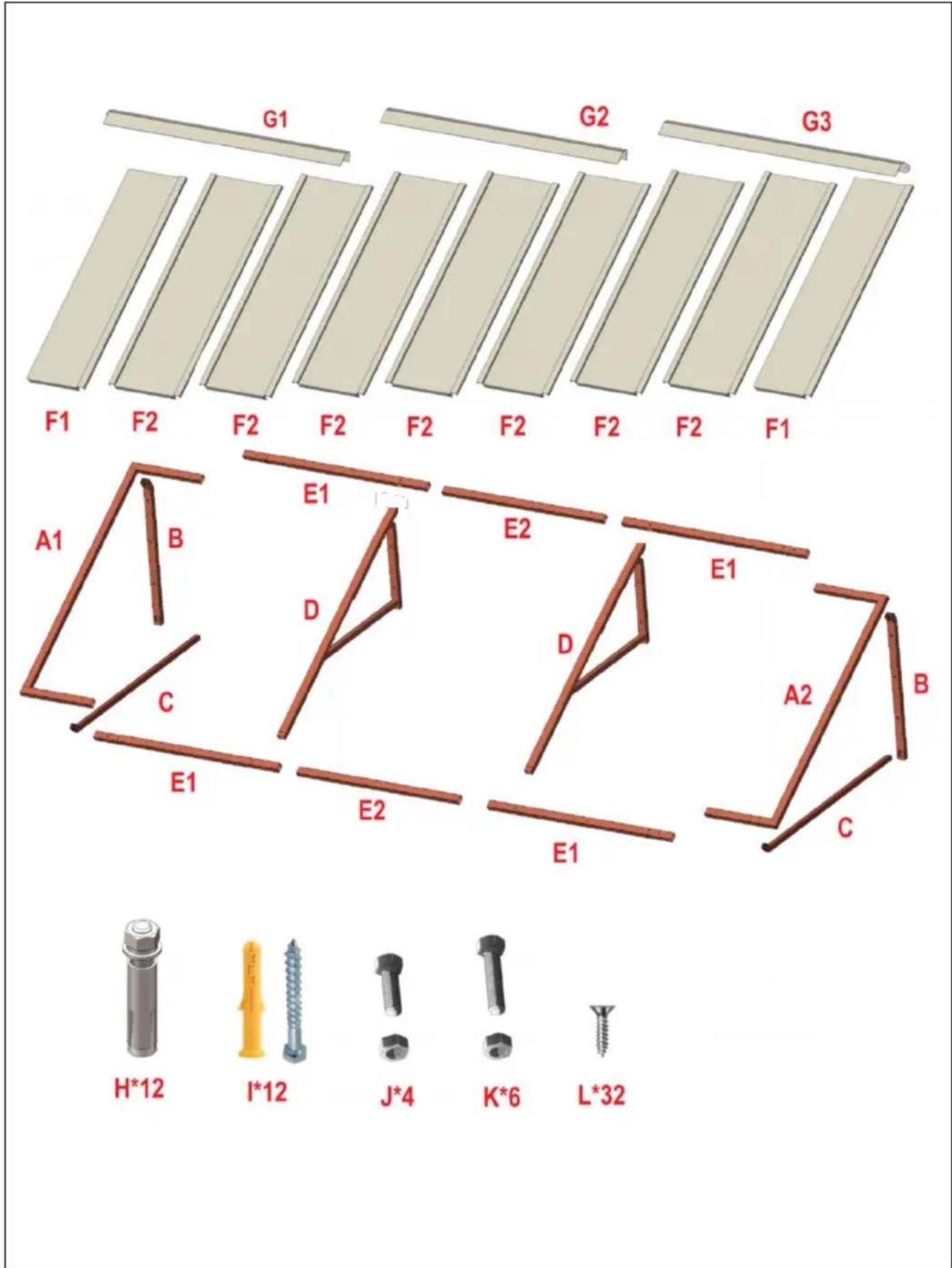

PARTS LIST

Serial number	Quantity	Part picture
A1	1
A2	1
B	2
C	2
D	2
E1	4
E2	2
F1	2
F2	7
G1	1
G2	1
G3	1
H	12
I	12
J	4	Short screw M8*25mm
K	6	Long screw M8*40mm
L	32

1
Assemble the frame.

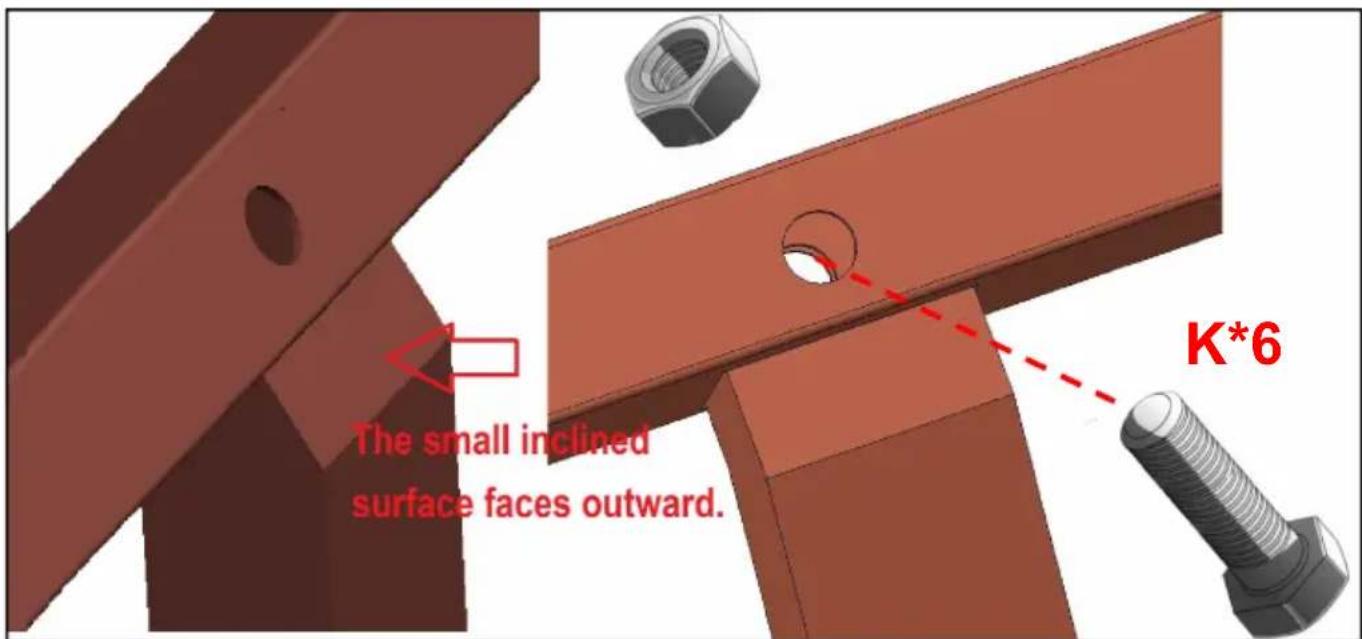

Use screws(K*6) to assemble the support tripods on both side

2
Assemble the frame.

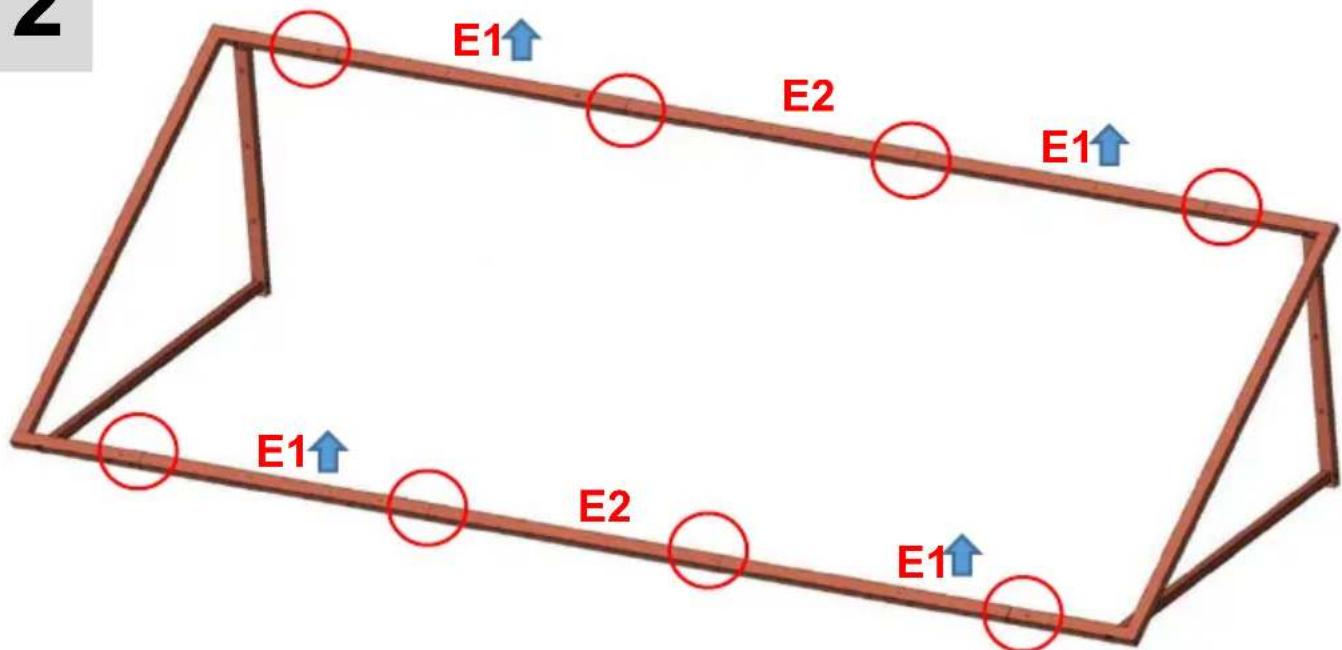

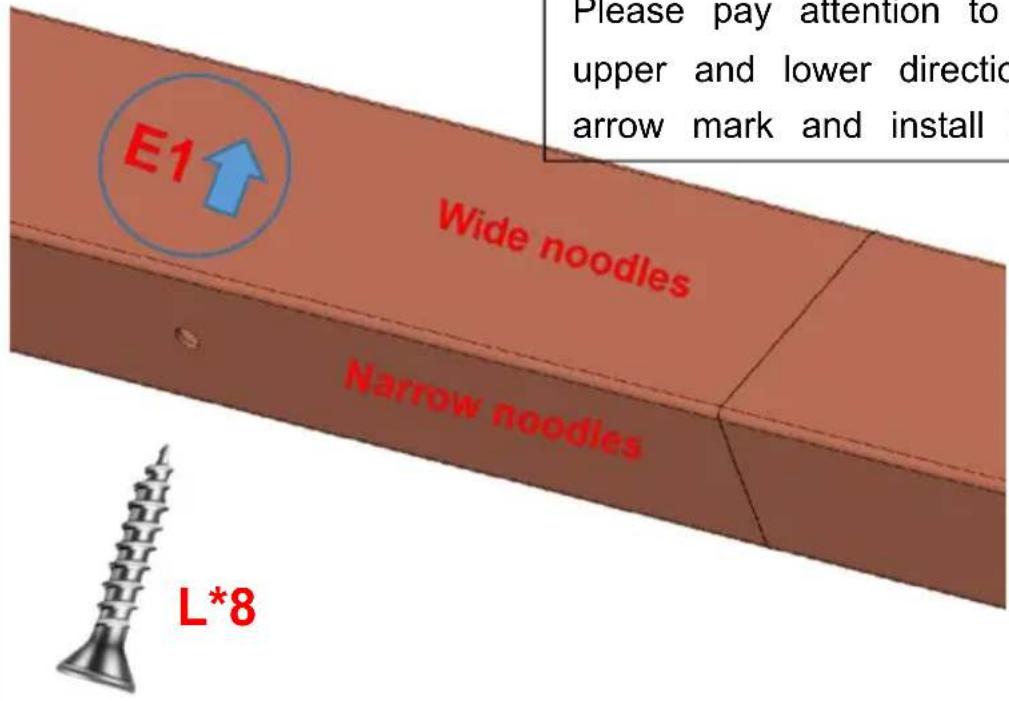

Part E1 is labeled with an arrow mark. Please pay attention to distinguishing the upper and lower directions according to the arrow mark and install it as shown in the

Assemble the frame using screws(L*8).

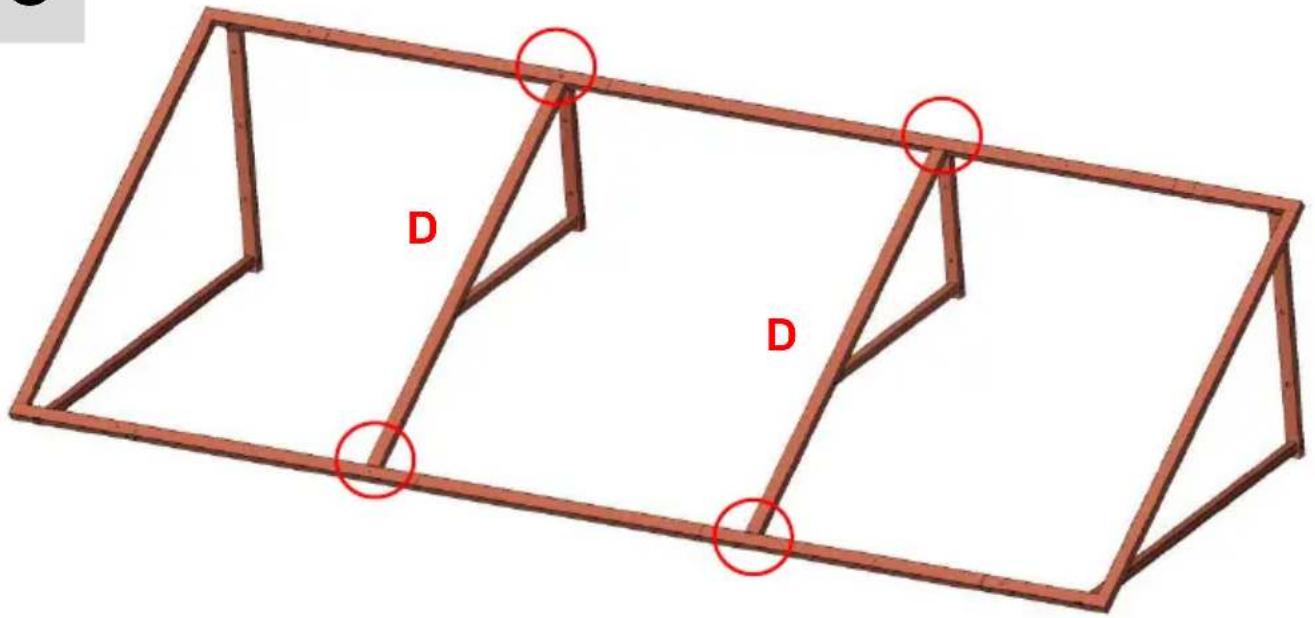

3

Assemble the frame.

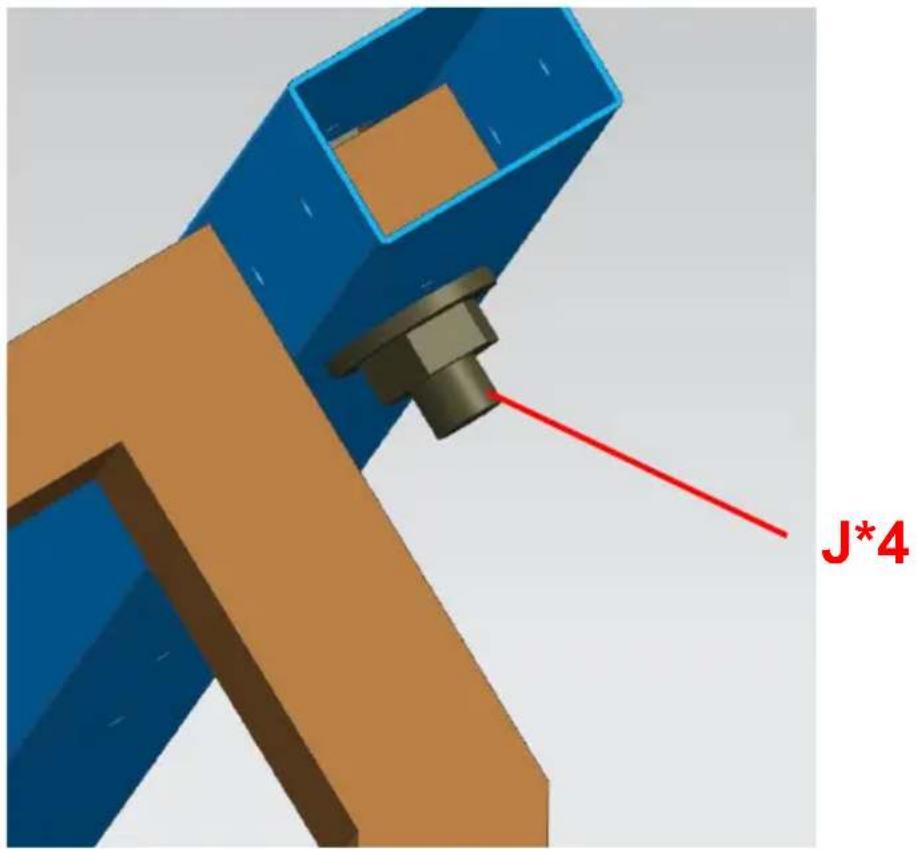

Use screws(J*4) to assemble the middle support tripod.

4-1

Mount the frame on the wall.

Architectural line drawing of a two-story house with a tiled roof and windows, showing a worker using a power tool (no text or symbols present)

Parts Required

Drill

Level

Measuring Tape

Chalk/Graphite

Step-Ladder

1. The installation drawings are on the next page.

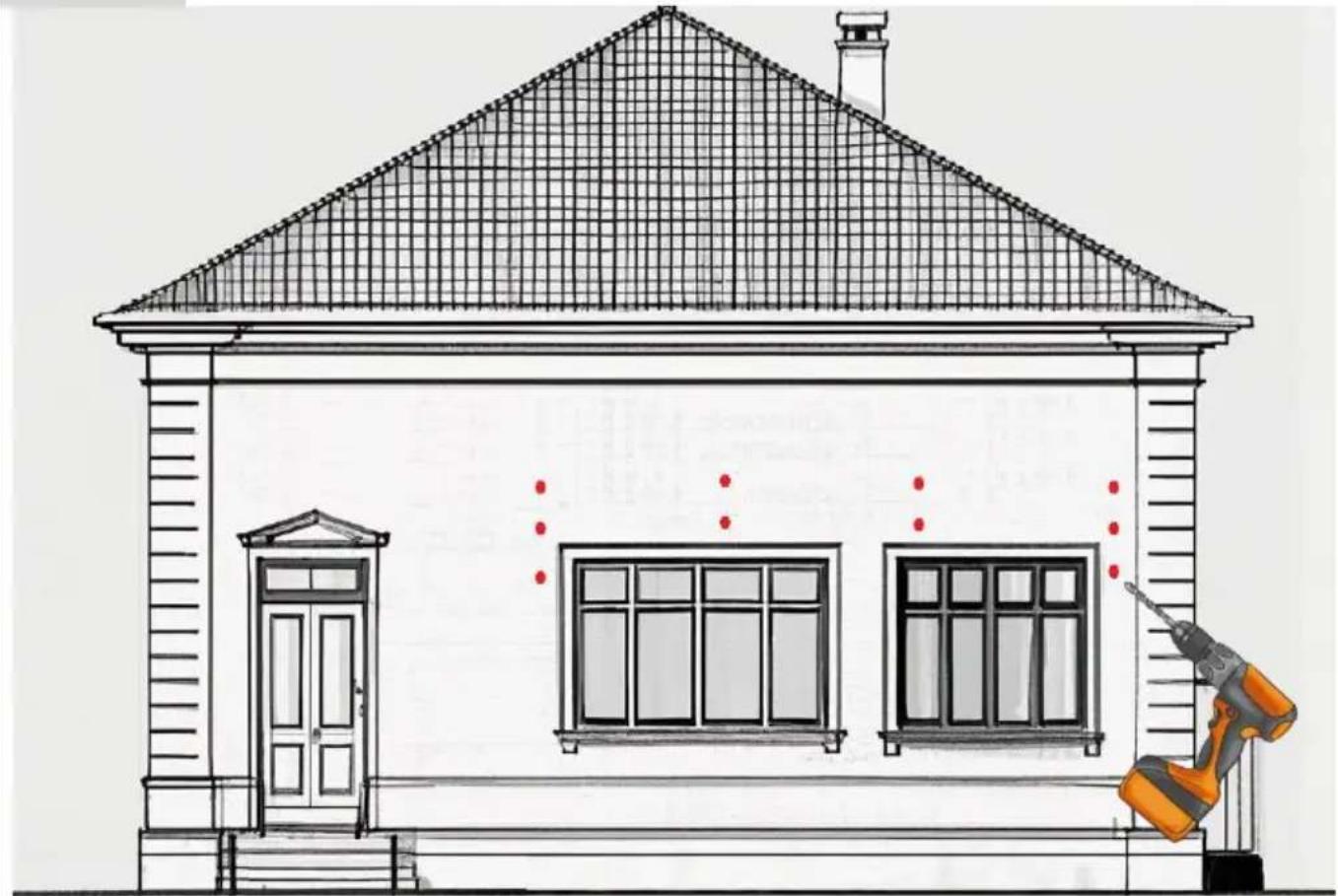

2. Mark the location of the mounting holes measured onto you mounting surface using chalk/graphite. Use a level as needed.
3. Drill pilot holes onto the specific markers. Select the size of drilled hole according to the following different types of walls

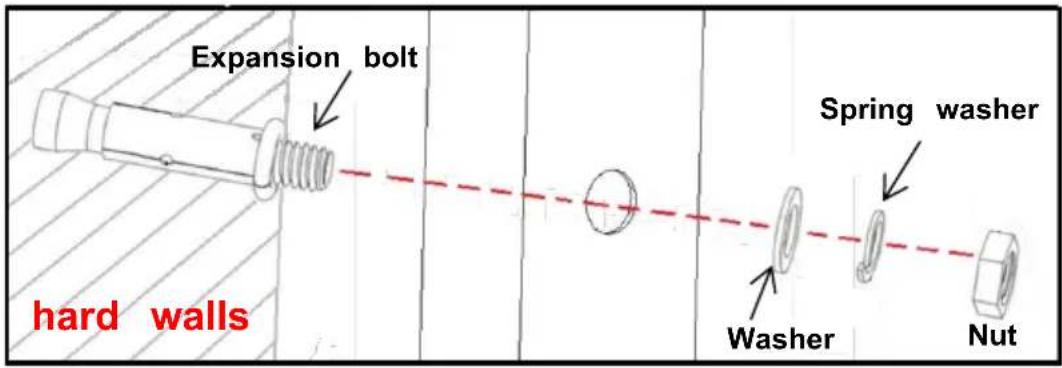

Plan 1(Suitable for hard walls): Install with expansion screws using a drill bit with a diameter of 12mm .

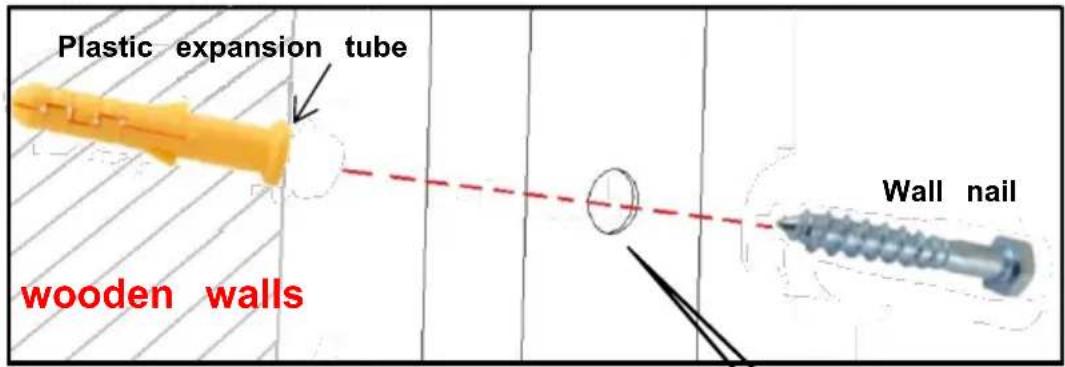

Plan 2(Suitable for wooden walls): Install with wall nails(I*10), using a drill bit with a diameter of 6mm.

4.Fix the whole assembled frame to the wall.

Note: Check whether the frame is firmly installed on the w prevent it from falling off in the later stage.

4-2

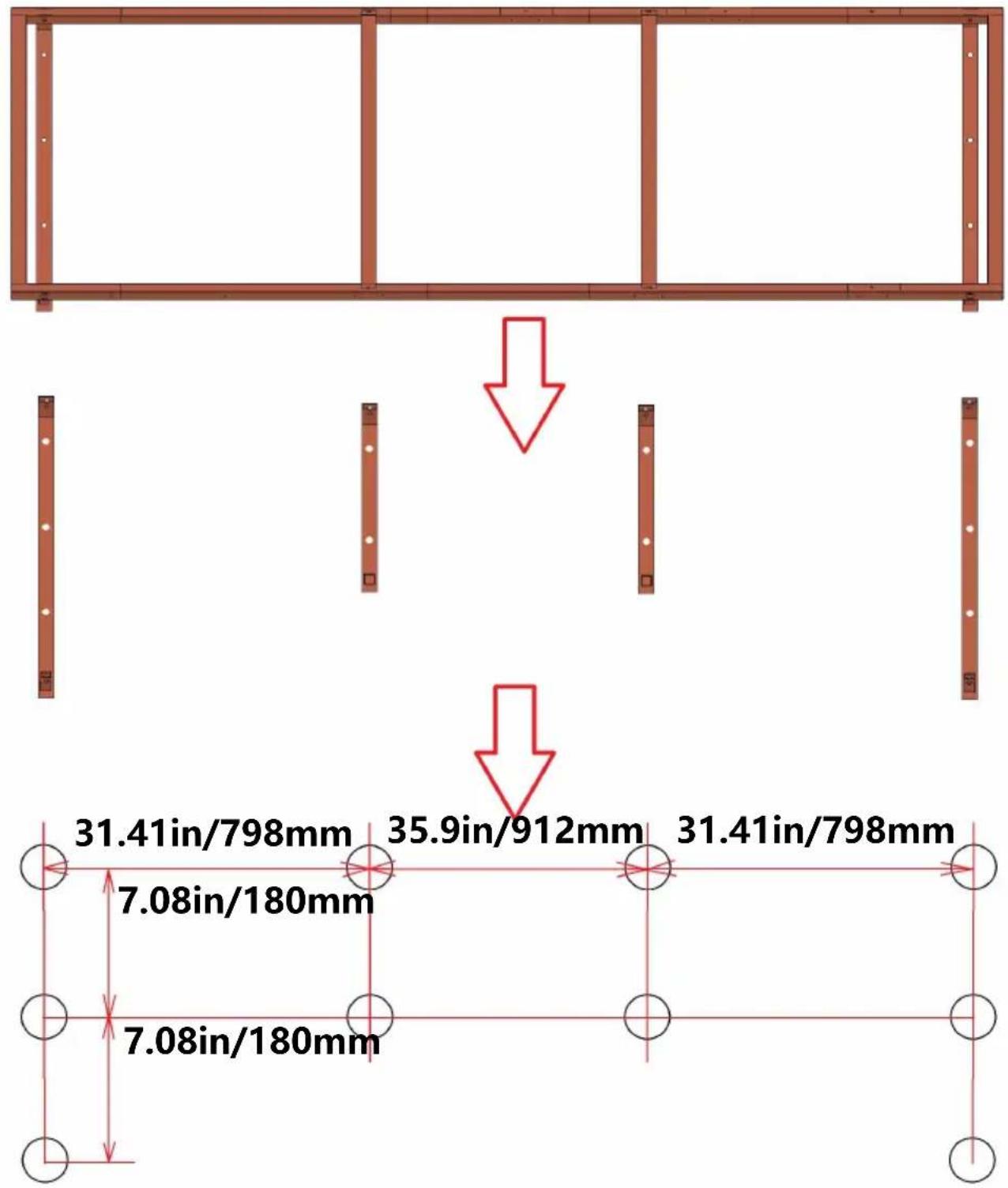

Installation drawings.

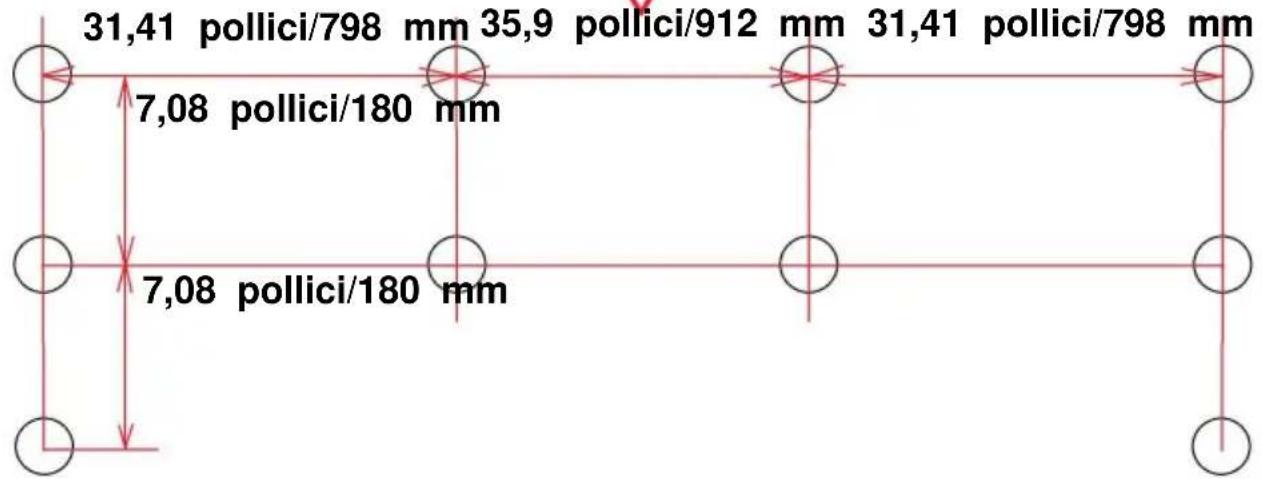

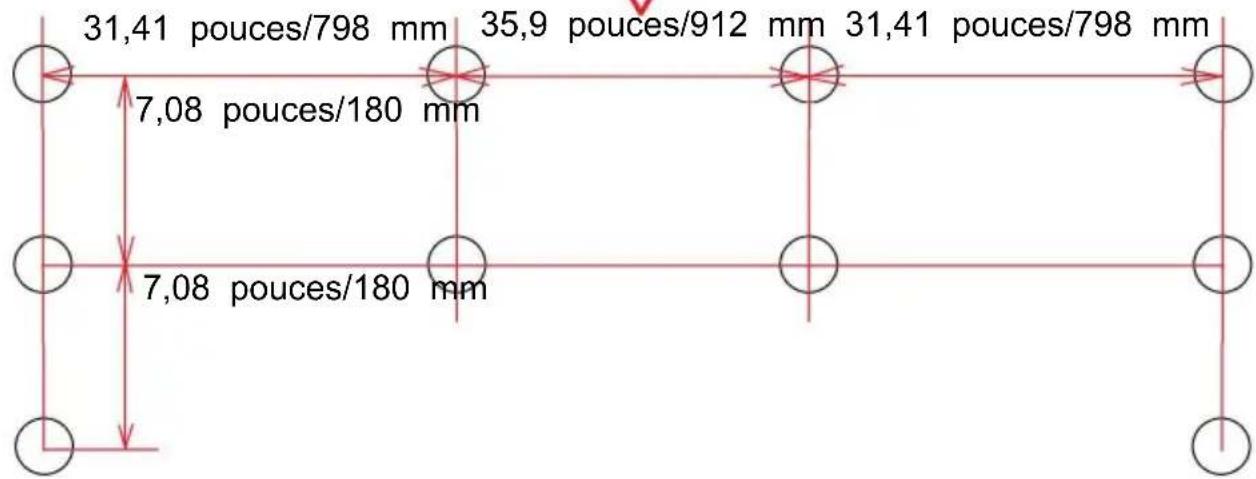

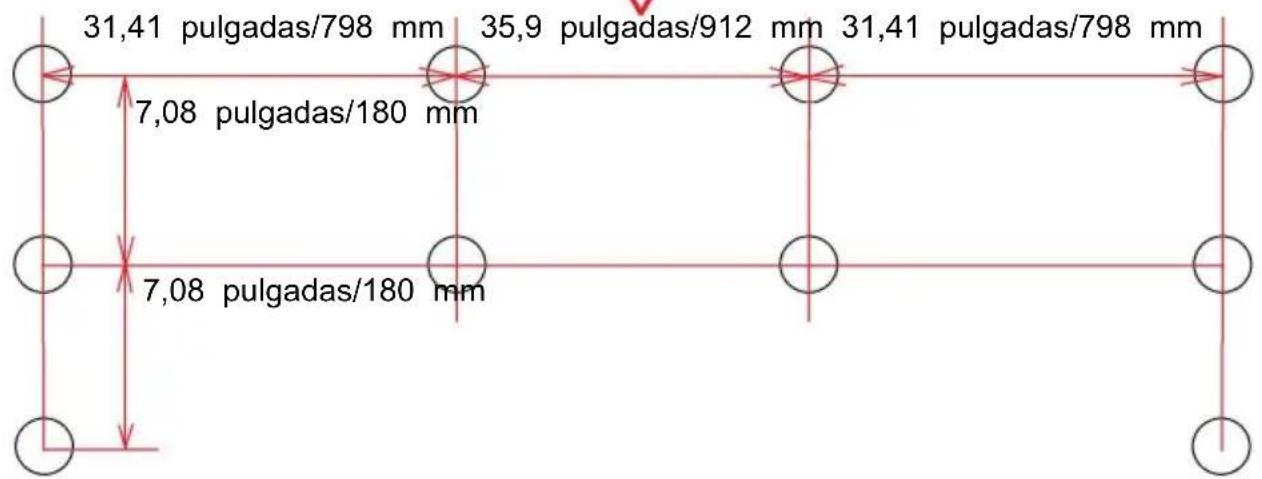

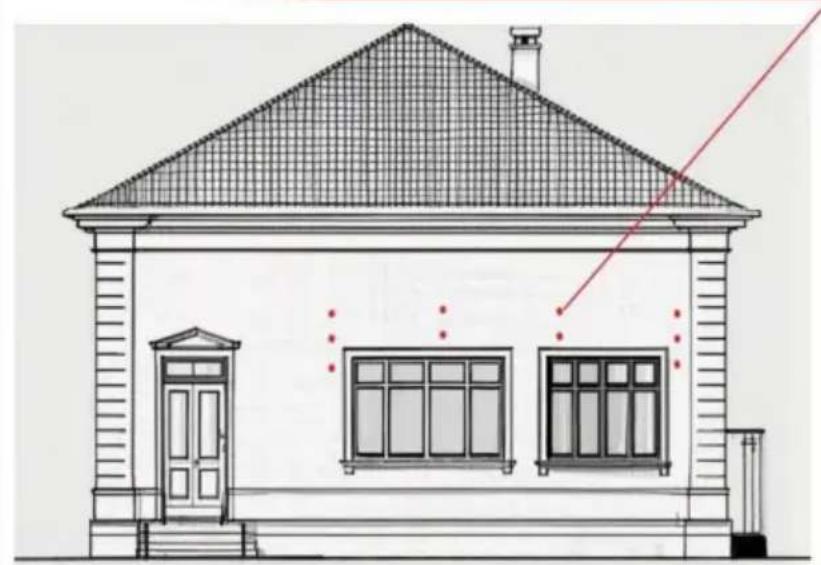

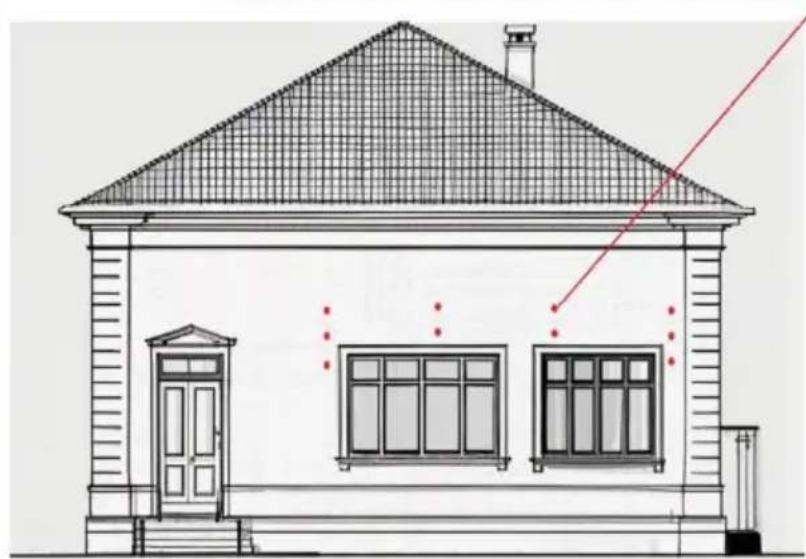

Mark 10 fixing hole positions on the wall according to the d and then drill 10 holes.

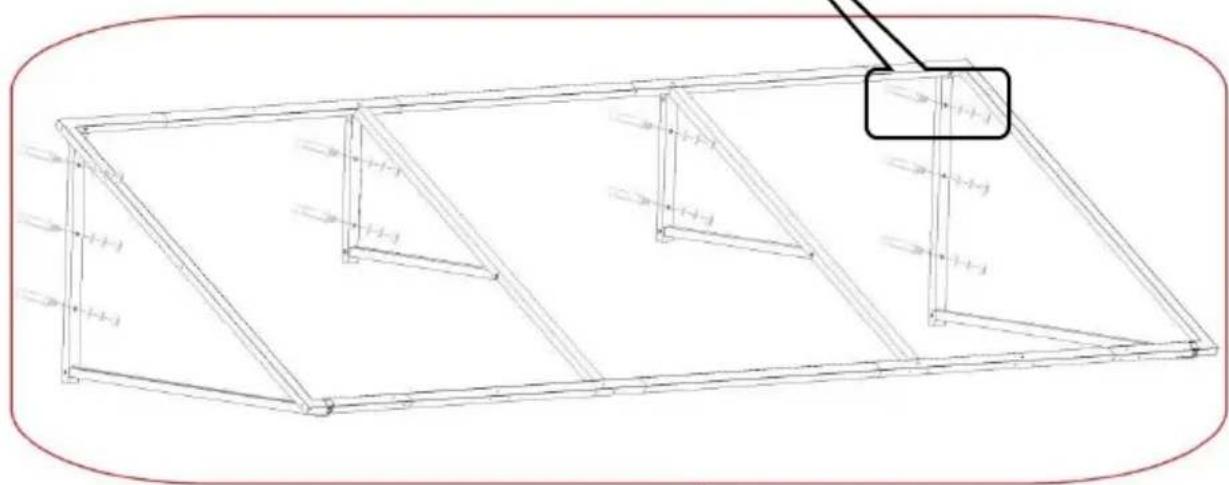

4-3

Installation drawings.

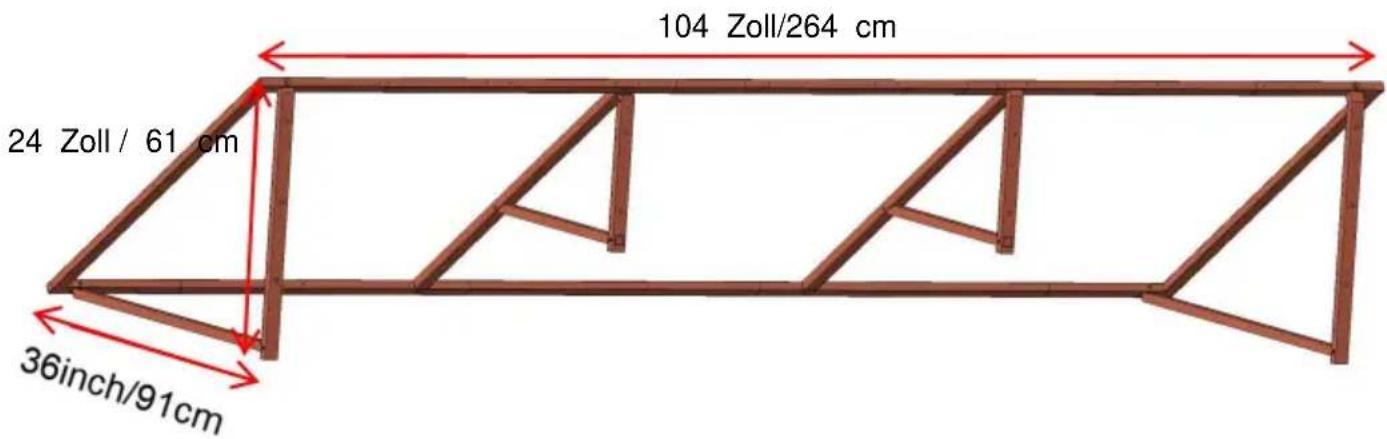

Technical line drawing of a 3D rectangular frame structure with internal supports and mounting holes (no text or symbols)

Architectural line drawing of a two-story house with a triangular roof and two windows, showing structural details (no text or symbols)

5

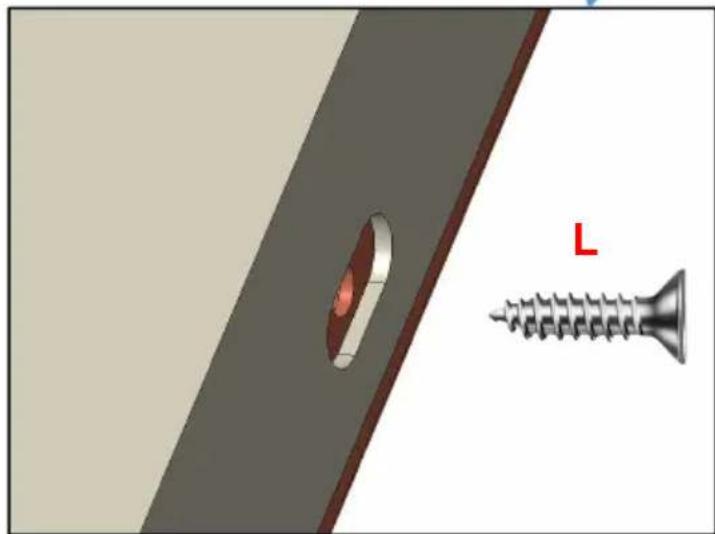

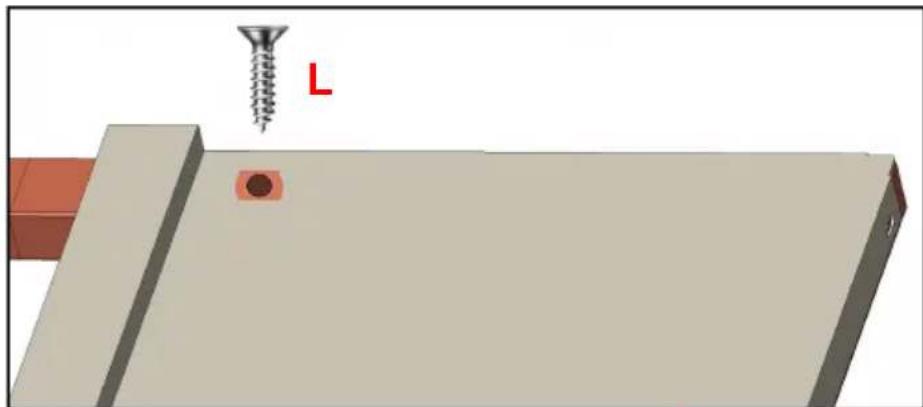

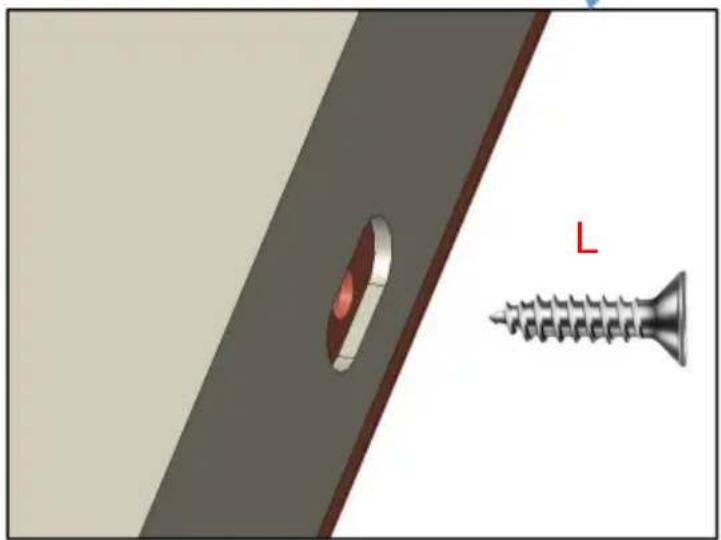

Installing the metal tiles.

3D diagram of a mechanical component with a screw and labeled point L, no text or symbols present

NOTE: After the frame i installed on the wall, install the metal tiles or piece by one.

3D diagram showing a screw and a ring component on a surface, with no visible text or symbols

1. Fix the shelf to the wall.

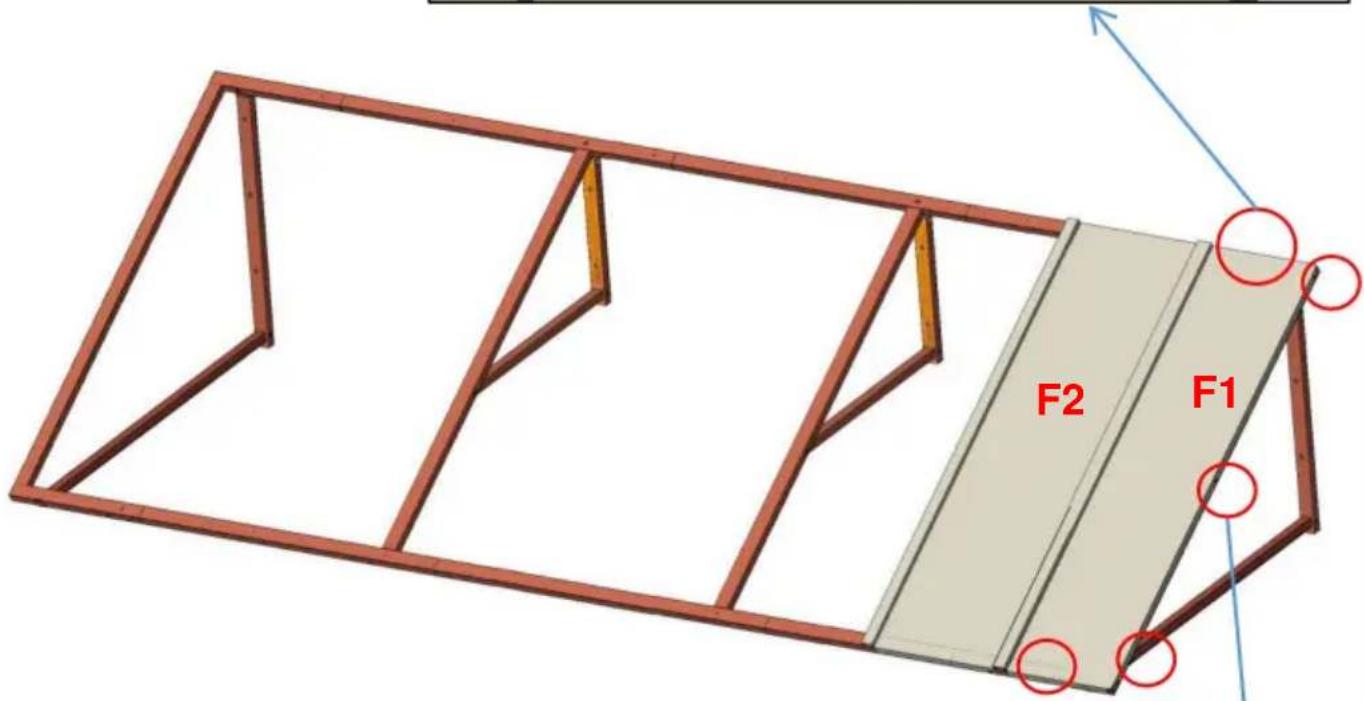

2. Start installing the first metal tiles F1 and F2 from the right the product. Let F1 overlap F2, and then fix F1 with screws

6

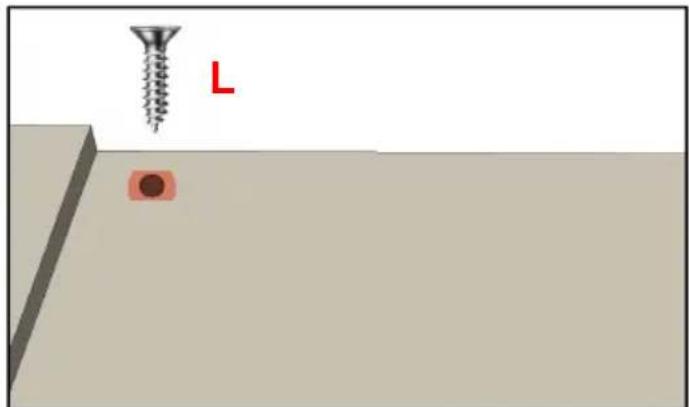

Installing the metal tiles.

Simple diagram showing a screw and a red L-shaped object on a surface (no text or symbols)

Diagram showing a screw and a ring on a surface, with no visible text or symbols

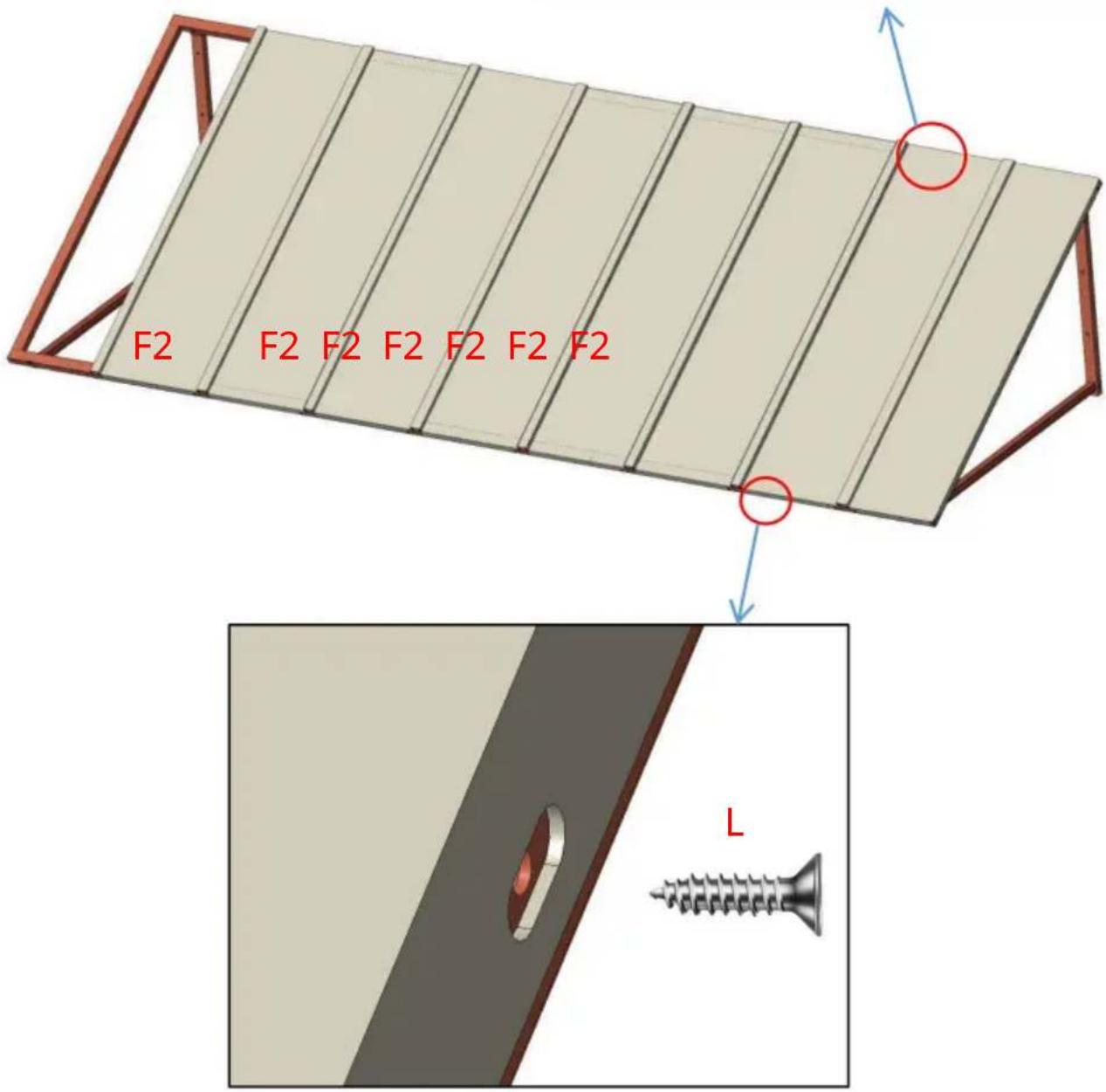

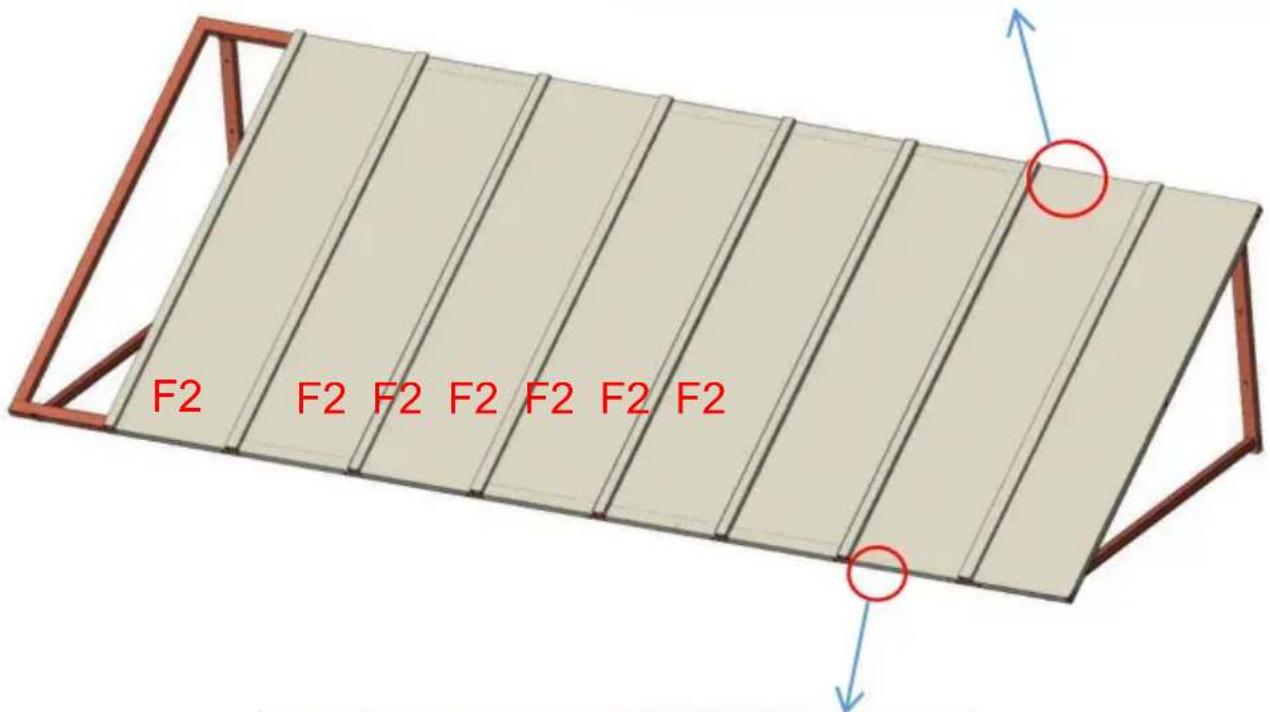

Install the metal tiles(F2) sequentially from the right side of the product and secure them with screws(L*14).

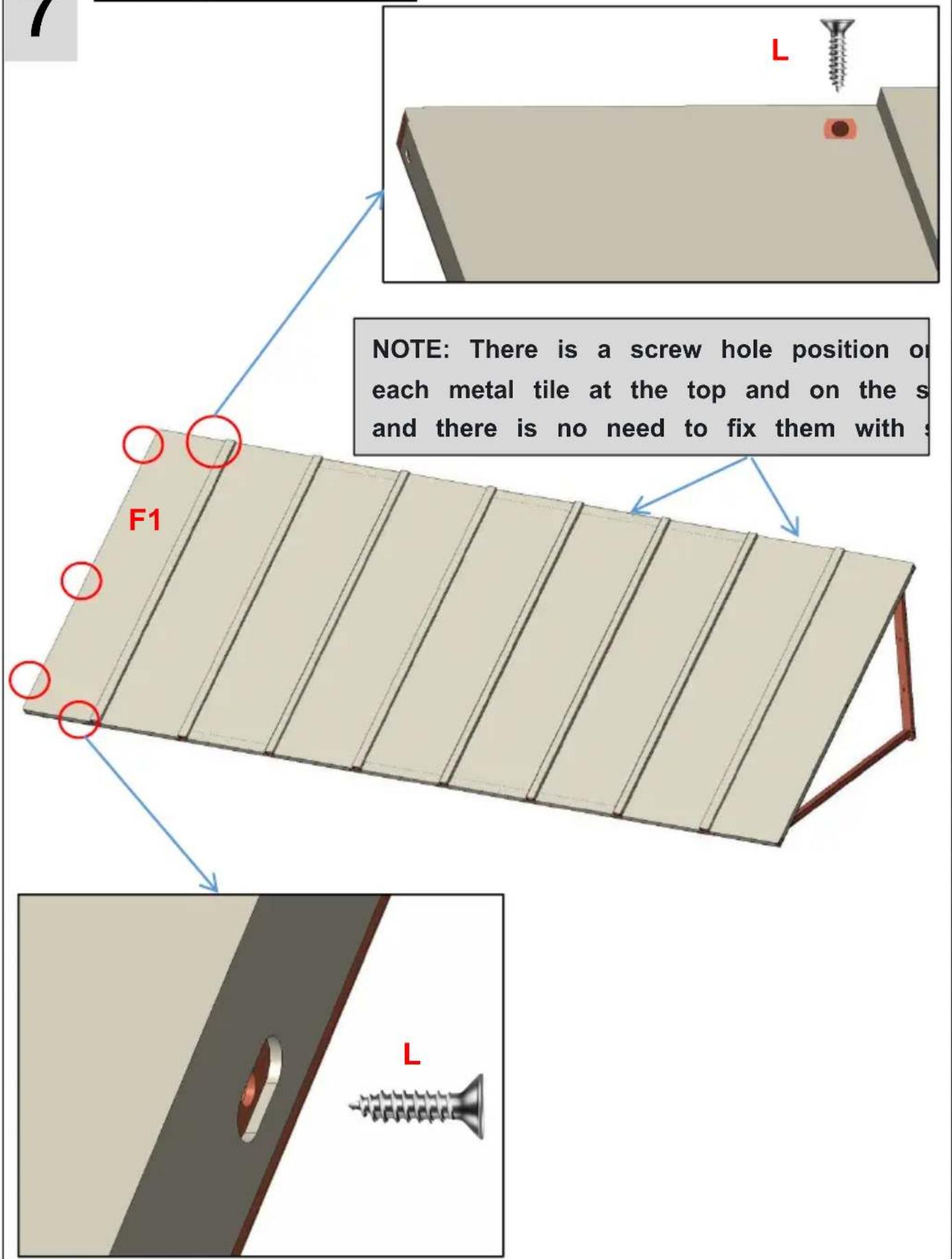

7
Installing the metal tiles.

Install the last tile F1 and fix it with screws(L*5).

8

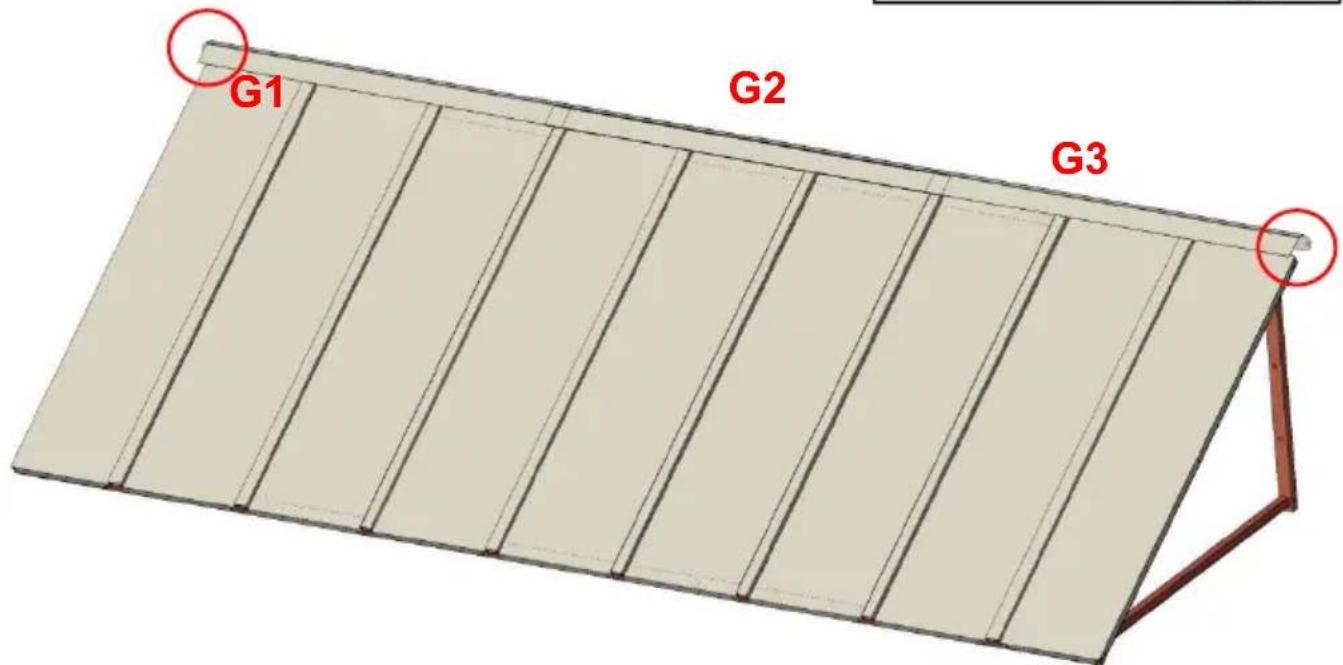

Fix the metal plates.

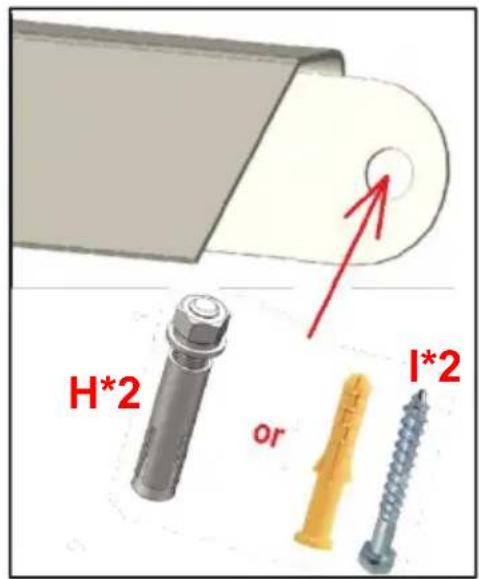

Fix the metal plates G1 and G3 with screws(H or I).

Plan 1(Suitable for hard walls): Install with expansion screws using a drill bit with a diameter of 12mm.

Plan 2(Suitable for wooden walls): Install with wall nails(I*2), a drill bit with a diameter of 6mm.

Then place G2 between G1 and G3. Note: G2 doesn't need to with screws.

Metal plates (G1 G2 G3): The height of the awning does n Metal plates into consideration. The metal plates can be mo any distance above the solid frame of the awning.

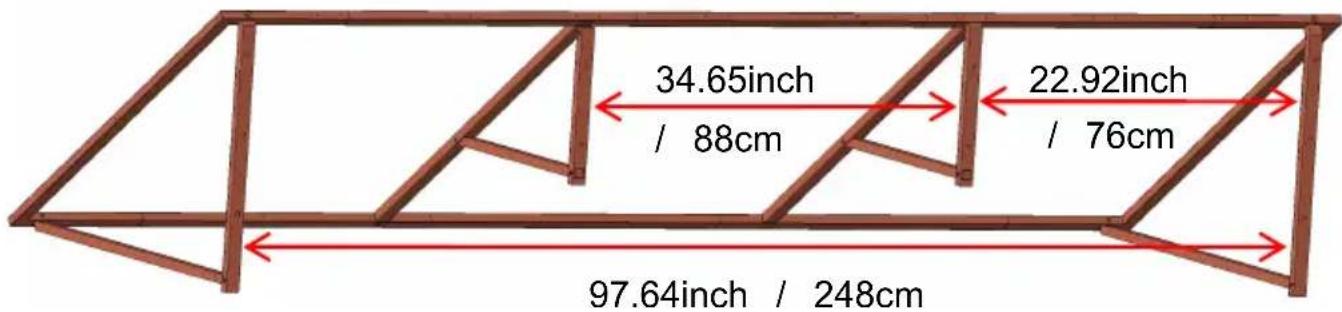

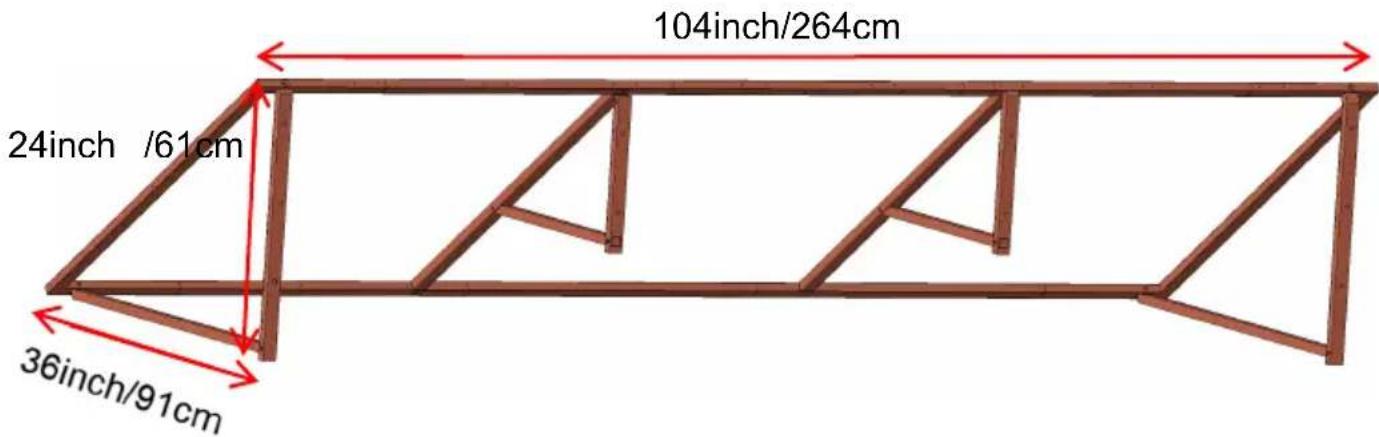

PRODUCT PARAMETER

Model	CGW-104INCH
Material	Iron
Colour	Black
Shading area	104*36inch(264**91cm)
Maximum suitable width for doors/windows	89.8inch/228cm

Snow Loads

The aluminum door canopies are manufacture from the highest - quality components available on the market today. They are designed to withstand normal weather conditions, including rain, sleet, snow, and wind. However, they not designed to endure winds exceeding 30 miles per hour, snow loads of more than inches of heavy, wet snow, or 24 inches of snow. Additionally, they cannot withstand the impact force of snow and ice falling from upper roof or piling up. This product will excellent performance as long as it is institively correctly and used within its designed load bearing limits.

Please remove snow promptly during use.

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

Technical Support and E-Warranty Certificate www.vevor.com/support
