Product Type	Long Ram Jack
Brand	Vevor
Model	QJD-CB080A-00
Lifting Capacity	8 tons
Lifting Stroke	500 mm
Intended Use	Lifting heavy loads with hoists or cranes
Power Source	Manual hydraulic (lever pump)
Main Material	Steel
Dimensions (L x W x H)	Approx. 660 x 117 x 109 mm
Release Valve	Yes, to control lowering
Oil Filler Plug	Yes, on the reservoir
Recommended Oil	Anti-wear hydraulic oil 32# or equivalent
Maintenance	Check oil level, lubricate pivot points, clean piston
Safety	Do not overload, always use jack stands, do not work under load
Spare Parts	Full list in manual, available from Vevor
Repairability	Simple user maintenance; hydraulic issues: contact seller
Warranty	Electronic warranty via www.vevor.com/support
Included Accessories	Control handle with slotted opening

Frequently Asked Questions - QJD-CB080A-00 Vevor

Why is my jack not lifting?

Make sure the release valve is fully closed (turned clockwise). Check that the load does not exceed the 8-ton capacity. Bleed air from the system by removing the oil filler plug.

What to do if the jack leaks after lifting?

Check that the release valve is fully closed. If the load is excessive, reduce it. If the problem persists, the hydraulic unit may be defective; contact the seller.

How to lower the jack after unloading?

Remove the pressure handle. Use the slotted opening of the handle to slightly turn the release valve counterclockwise. The piston rod will descend slowly. Do not turn quickly to avoid sudden descent.

Why is the lifting performance poor?

Check the hydraulic oil level. If air is trapped in the system, with the ram fully retracted, remove the oil filler plug to release the air, then reinstall it.

How to add hydraulic oil?

Make sure the saddle and pump piston are fully lowered. Place the jack upright. Remove the oil filler plug. Fill to the lower edge of the opening with 32# hydraulic oil. Reinstall the plug.

What oil to use for this jack?

Use anti-wear hydraulic oil grade 32# or equivalent. Do not use brake fluid or any other inappropriate fluid.

How to bleed air from the hydraulic system?

With the ram fully retracted, remove the oil filler plug to allow pressurized air to escape. Reinstall the plug. This should improve lifting performance.

What safety precautions should be followed?

Never exceed the 8-ton capacity. Never work under a load not supported by jack stands. Use only the provided handle. Ensure all personnel are clear before lowering the load.

How to maintain my jack regularly?

Periodically check the oil level. Lubricate pivot points, axles, and hinges with light oil. Clean the piston and pump ram with an oily cloth. Do not use sandpaper.

Where to find spare parts for this jack?

The manual contains a complete list of parts with reference numbers. Contact Vevor via www.vevor.com/support to order spare parts.

USER MANUAL QJD-CB080A-00 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

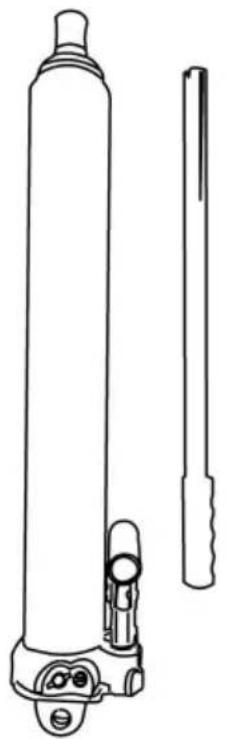

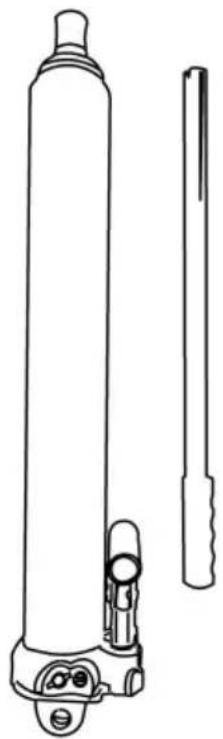

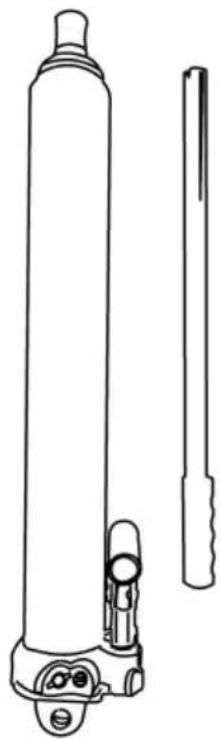

LONG RAM JACK

MODEL:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used represent an estimate of savings you might benefit from buying tools with us compared to the major top brands and do not mean to cover all categories of tools offered by us. You are reminded to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LONG RAM JACK

MODEL:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning:

For your safety and to prevent injury, please read very carefully the following warnings and operating instructions:

- This is just a lift drive, which is designed to be used with cranes to lift heavier loads. Do not use this product for any purpose other than for which it was intended.

- This is a lifting device only, which is designed to be used with cranes to lift heavier loads. Do not overload; overloading may cause damage or failure of the unit. Do not use this product for any purpose other than for which it was intended.

- Load must be supported immediately by other appropriate means. Never work on, under or around load until it is properly supported on appropriately rated jack stands.

- Do not drop load suddenly. The resulting shock to the unit may cause damage. The unit must be fully retracted before adding oil. Fill to the lower edge of the filling hole. Use only high quality hydraulic fluid. Do not use brake fluid or any other type of improper fluids that may cause damage to the unit.

- All mounting hardware must be tight before using.

- Read, study, understand and follow all instructions before use or maintenance.

- It is the owner's responsibility to keep labels and manuals available from the manufacturer. Failure to heed these and all other warnings pertaining to this product can result in sudden loss of lifted load, resulting in death, personal injury, or property damage.

Caution:

Use the handle provided for this product or an authorized replacement handle to ensure proper release valve operation.

OPERATION INSTRUCTIONS:

To raise:

1. Using the slotted opening at the end of the handle, turn the release valve clockwise to tighten it.
2. Put the handle in the pressing handle holder and press up and down. The piston rod will rise slowly to the height you need. Then immediately transfer the load to appropriately-rated support devices such as jack stands.

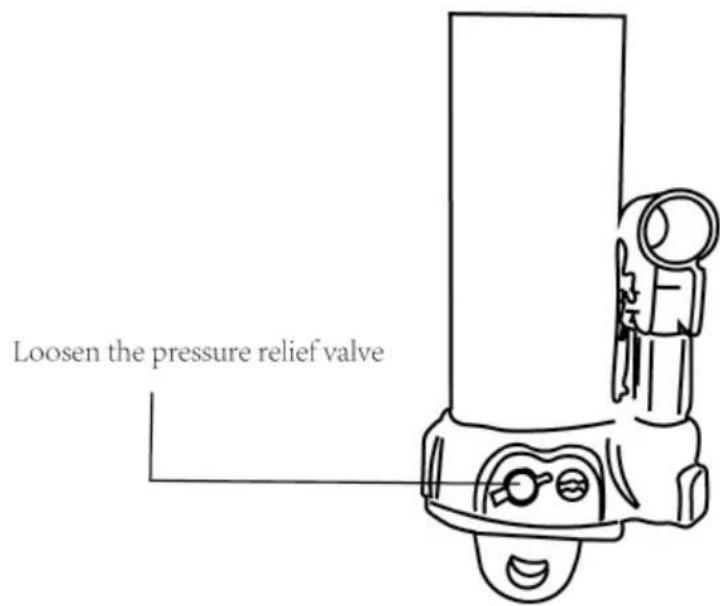

To lower:

Remove the pressing handle. Using the slotted opening at the end of the handle, turn the release valve slightly counterclockwise to loosen it. Then the piston rod will move down slowly. When loaded, the release should not be turned quickly, otherwise too speedy lowering will lead to danger.

Warning:

Be sure all tools and personnel are clear before lowering the load. Danger: dynamic shock loads are created by quickly opening and closing the release valve as the load is being lowered. The resulting overload may cause hydraulic system failure, which could cause severe personal injury and/or property damage.

FOR SAFETY'S SAKE

Lifting weight should not exceed the specified duty of this jack. Without a supporting rack, it is not allowed to work under the lifted body after it is raised.

ROUTINE MAINTENANCE

Proper quantity of oil should be maintained, otherwise the specified lift height would not be reached.

To avoid damaging, the jack should be kept from shocking while in operation.

The jack is not allowed to stand on one side or upside down.

This product is not suitable for the operation environment full of acid or alkaline corrosive air.

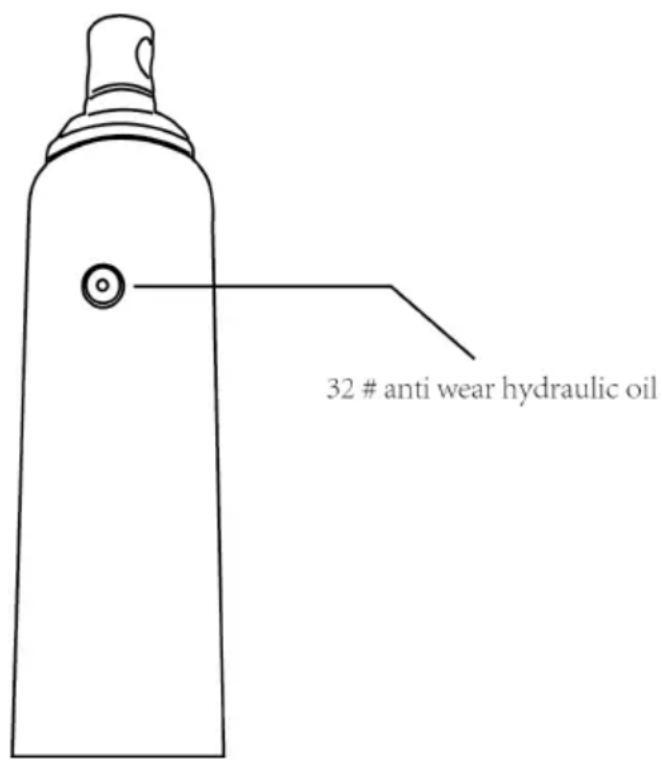

Adding oil

1. With saddle fully lowered and pump piston fully depressed, set jack upright, level position. Remove oil filler plug.
2. Fill until oil is level with the filler plug hole, reinstall oil filler plug.

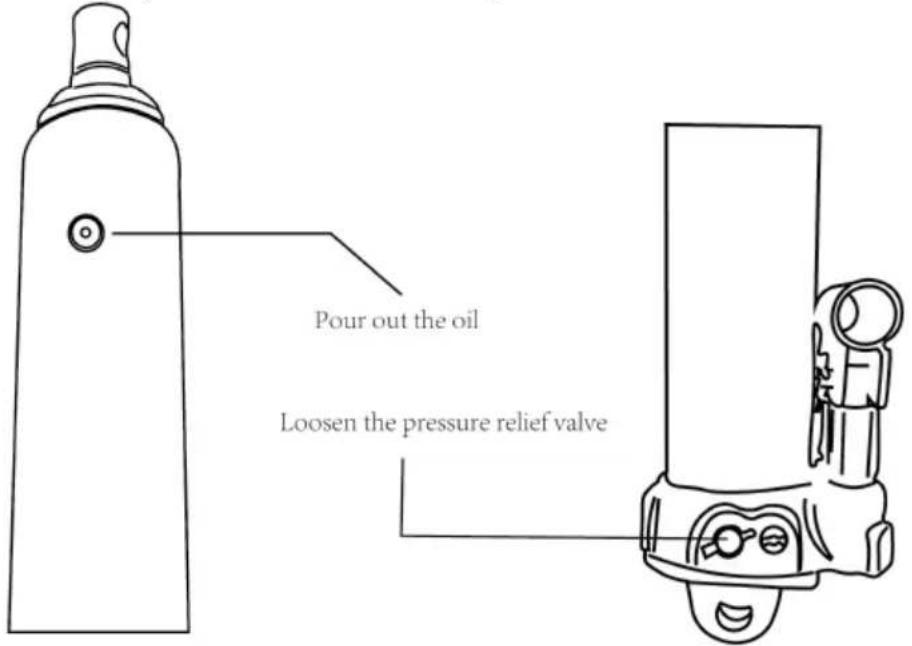

Changing oil

For best performance and longest life, replace the complete fluid suit at least once per year.

1. With saddle fully lowered and pump piston fully depressed, remove oil filler plug.
2. Lay the jack on its side and drain the fluid into a suitable container.

Note: Dispose of hydraulic fluid in accordance with local regulations.

1. Fill with good quality jack oil. Reinstall oil filler plug. We recommend anti-wear hydraulic oil or equivalent.

Lubrication

1. Apply a coating of light lubricating oil to pivot points, axles, and hinges to prevent rust and ensure that wheels, casters, and pump assemblies move freely.
2. Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.

Caution: Never use sandpaper or abrasive material on these surfaces.

1. When not in use, store the jack with the pump piston and ram fully retracted.

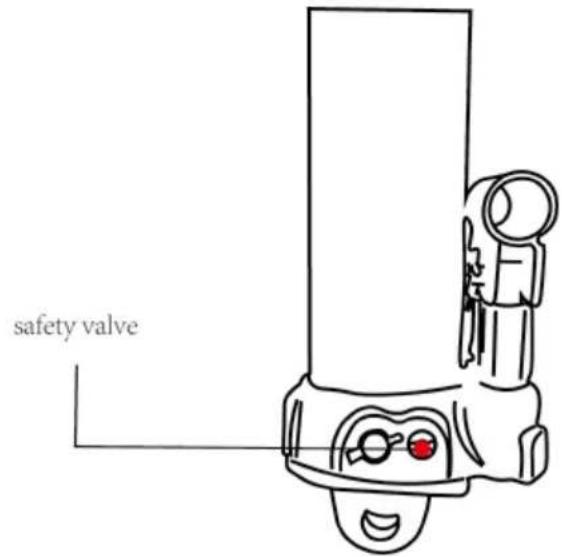

Warning: Do not adjust this valve.

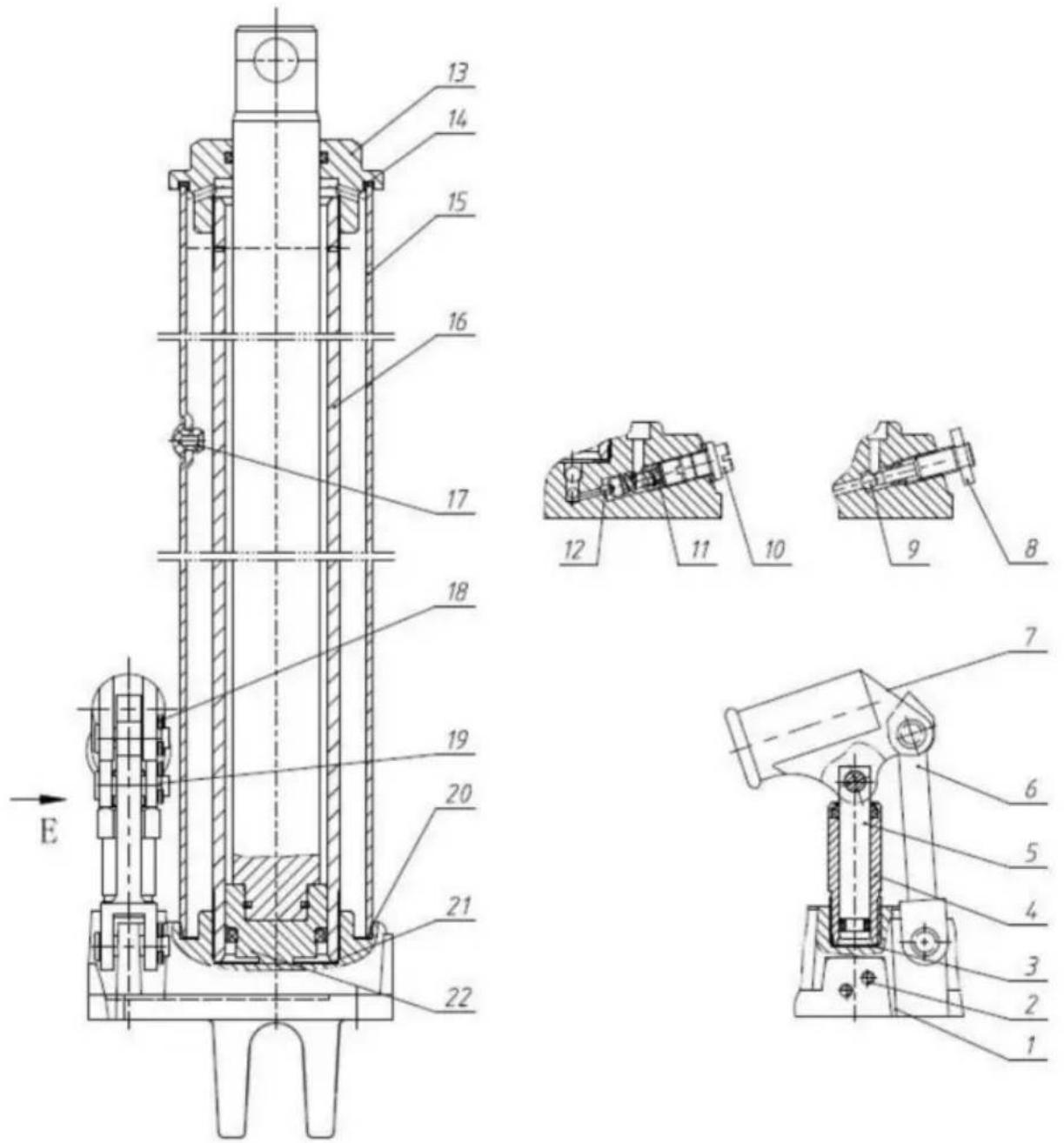

Structural composition Models: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

PART LIST

ITEM No.	DESCRIPTION	QTY		ITEM No.	DESCRIPTION	QTY
1	Valve body	1		12	4mm steel ball	1
2	Conical screw	2		13	Top cap	1

3	gasket	1		14	Top cover sealing gasket	1
4	Pump body	1		15	Oil storage tank	1
5	Pump core group	1		16	Cylinder barrel	1
6	Connecting rod	1		17	Oil plug	1
7	Jack holder	1		18	Cotter pin	3
8	Pressure relief valve	1		19	Flat shoulder pin	3
9	6mm steel ball	3		20	Trapezoidal sealing ring	1
10	Relief valve	1		21	Cylinder sealing gaske	1
11	Pressure relief valve	1		22	Piston rod group	1

Parameter table

Model	Lifting Capacity (TON)	Lifting Travel (mm)
QJD-CB040B-00	4	500
QJD-CB030A-00	3	505
QJD-CB080A-00	8	500
QJD-CB080B-00	8	500

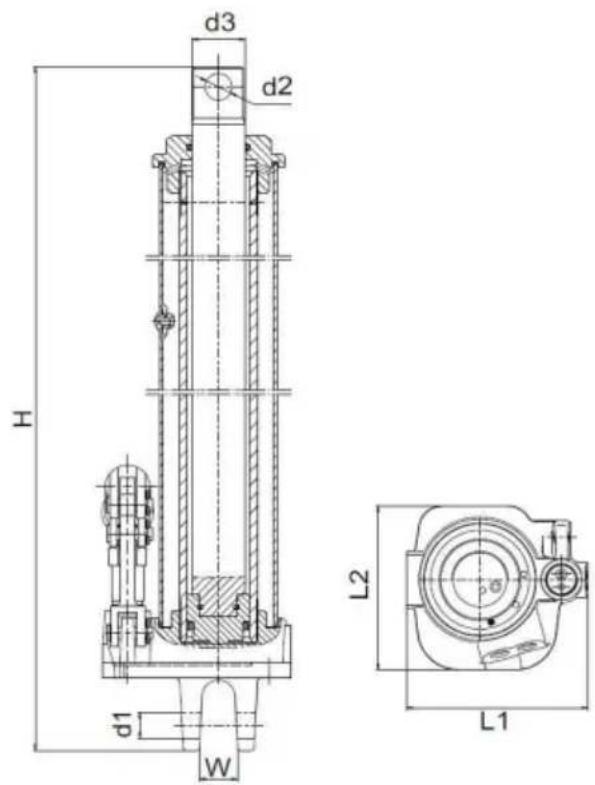

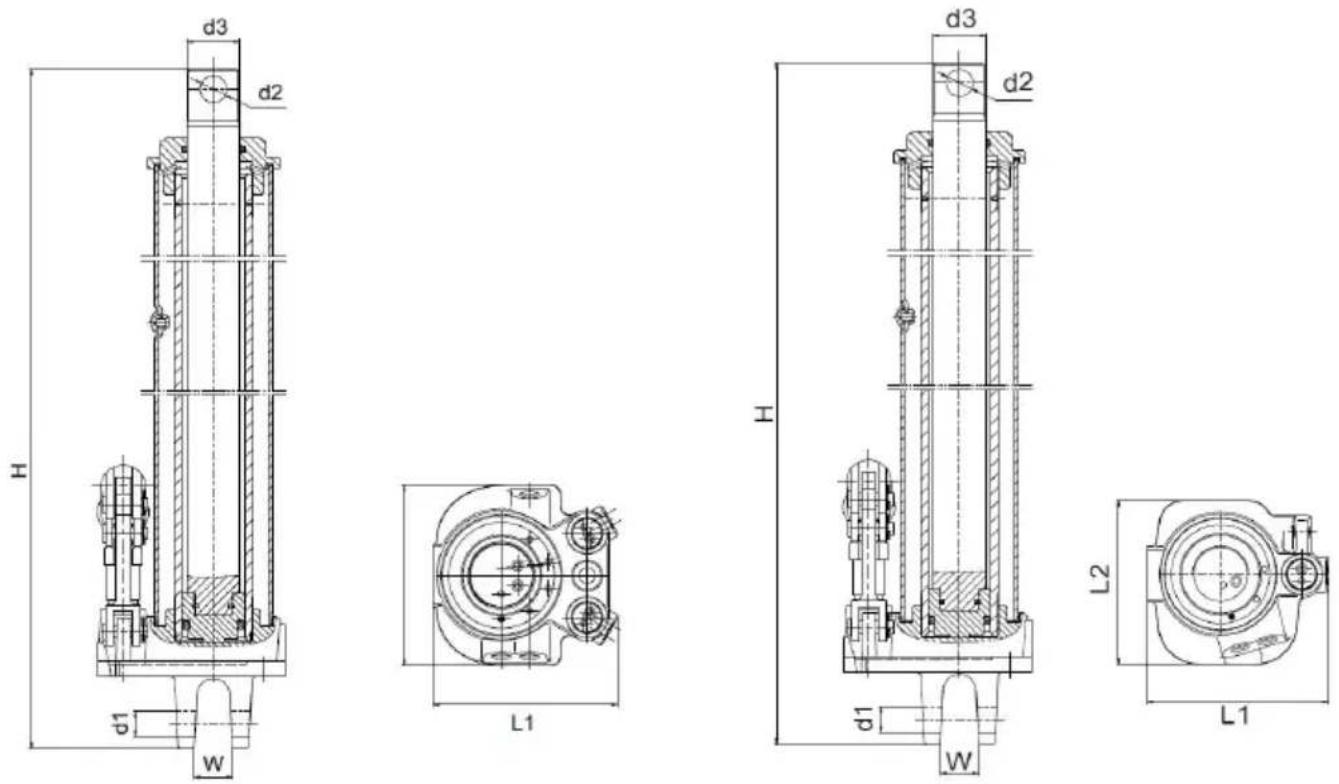

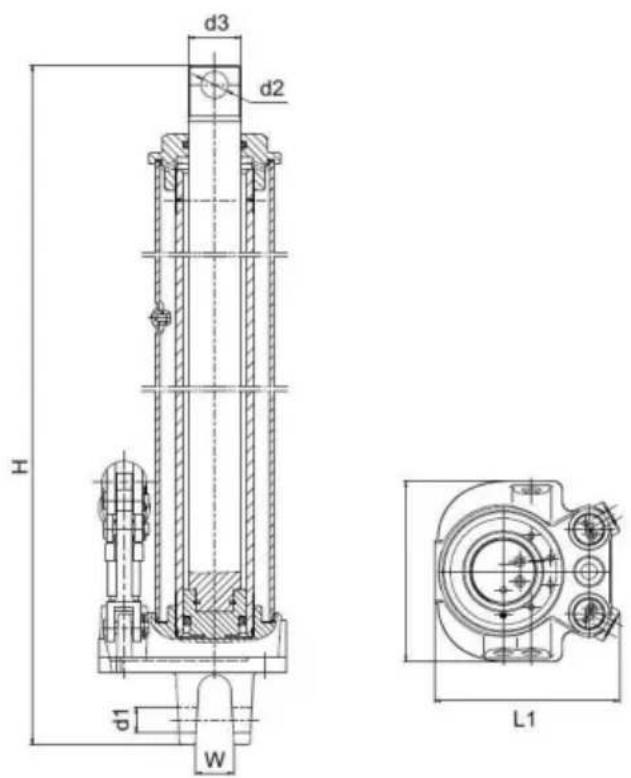

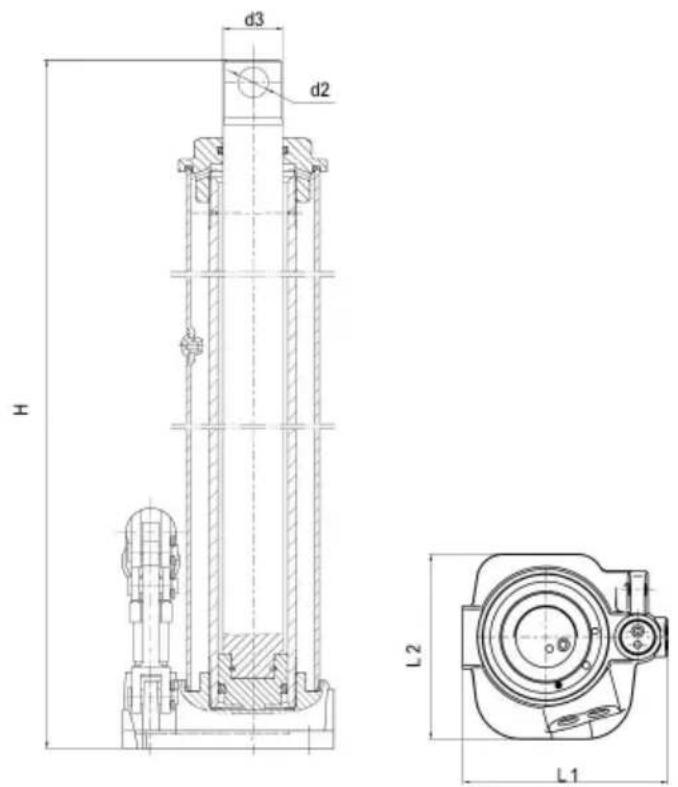

Dimensions

Model: QJD-CB040B-00

Models: QJD-CB080B-00, QJD-CB030A-00, QJD-CB080A-00

型号	H(mm)	D1(mm)	D2(mm)	D3(mm)	W(mm)	L1(mm)	L2(mm)
QJD-CB040B-00	612	/	φ16.5	φ28	/	117	104
QJD-CB030A-00	655	φ16.5	φ16.5	φ28	22	115	104
QJD-CB080A-00	660	φ16.5	φ16.5	φ30	22	117	109
QJD-CB080B-00	660	φ16.5	φ16.5	φ30	22	125	115

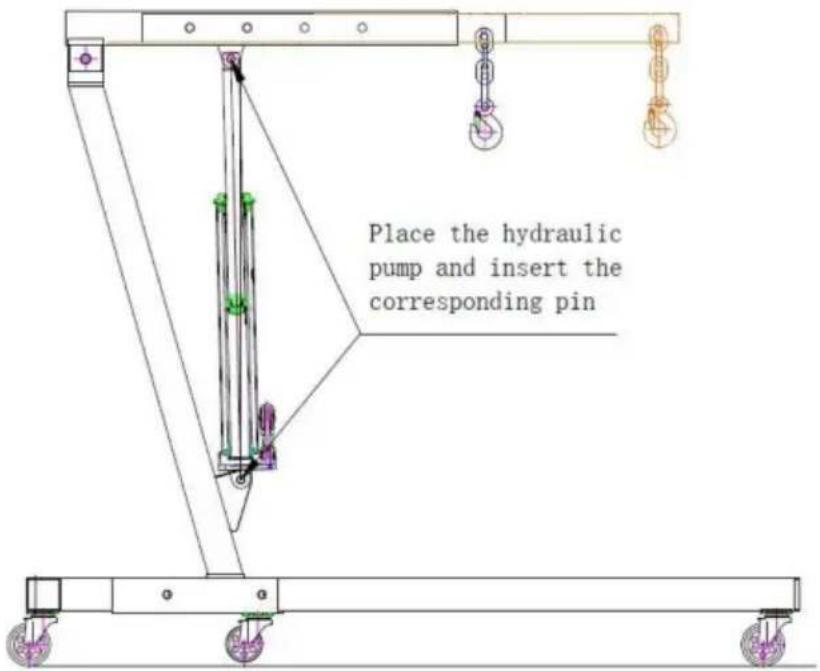

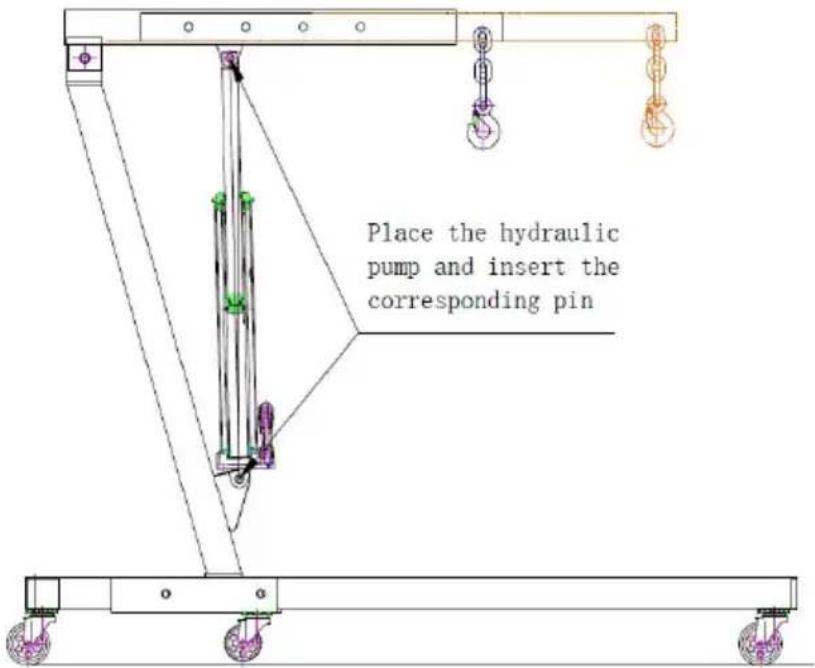

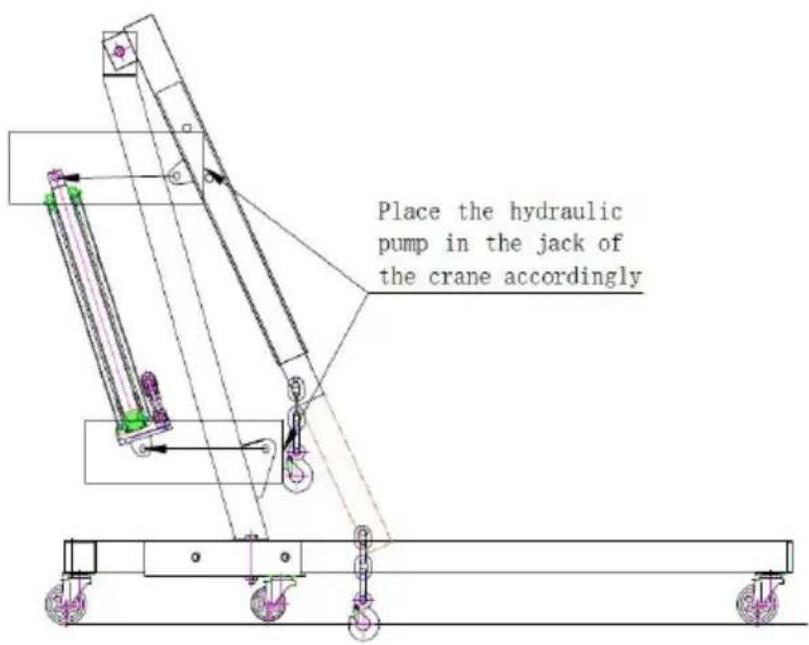

Plunger pump installation instructions

TROUBLESHOOTING

Symptom	Possible Causes	Corrective Action
Jack will no load	Release valve not tightly closed overload condition Air supply in adequate	Ensure release valve tightly clos Remedy overload condition Ensure adequate air supply
Jack bleeds off after lift	Release valve not tightly closed Overload condition Hydraulic unit malfunction	Ensure release valve tightly clos Remedy overload condition Contact seller
Jack will no lower after unloading	Reservoir overfilled Linkages binding	Drain fluid to proper level Clean and lubricate moving part
Poor lift performance	Fluid level low Air trapped in system	Ensure proper fluid level With ram fully retracted, remove filler plug to let pressurized air escape,reinstall oil filler plug
Will not lift full extension	Fluid level low	Ensure proper fluid level
