HS-GT1603B - Lawn mower Vevor - Free user manual and instructions

Brand	Vevor
Model	HS-GT1603B
Product Type	Push Reel Lawn Mower
Cutting Width	18 inches / 450 mm
Cutting Height Range	1.37 to 2.44 inches / 35 to 62 mm
Number of Height Positions	5 positions (adjustment levers)
Power Source	Manual (push)
Cutting Mechanism	Rotating reel with cutting bar
Frame Material	Steel
Handle	Plastic with foam
Grass Catcher	Mesh bag included
Assembly Required	Yes, manual assembly
Blade Adjustment	Calibration via spring screws
Maintenance	Oil or lubricant on cutting cylinder, bearings and moving parts; clean debris
Safety	Do not use barefoot; keep children and bystanders away; inspect before use
Intended Use	Residential lawns
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200 000 CN
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, ASTV NSW 2122
Importer (USA)	Sanven Technology Ltd, Suite 250, 9166 Anaheim
Support and Warranty	www.vevor.com/support

Frequently Asked Questions - HS-GT1603B Vevor

How to adjust the cutting height of the Vevor HS-GT1603B mower?

The cutting height is adjusted by moving the adjustment levers located next to the small wheels. There are 5 positions: pull the levers one by one and move them to the desired position. Position 1 is the lowest (1.37 inch) and position 5 the highest (2.44 inches). Both levers must be set to the same height.

How to calibrate the mower blades?

Calibration involves adjusting the spring screws on both sides of the mower. To loosen the blades, turn the screws clockwise to move the cutting bar away from the reel. To tighten, turn clockwise to bring the bar closer. Make equal adjustments on both sides, then check with a piece of paper: all blades should cut evenly.

What safety measures should be followed?

Never place hands or feet near the reel. Do not mow wet grass to avoid slipping. Wear closed-toe shoes, walk slowly, and do not use the mower if damaged. Inspect the appliance before each use. Keep children at a distance.

Does the mower need assembly before use?

Yes, assembly is required. Follow the instructions: attach the handle parts to the side and lower bars using the provided knobs and bolts. Mount the mesh bag. Wear gloves and safety glasses during assembly.

How to maintain the Vevor HS-GT1603B mower?

After use, store it sheltered from weather. Regularly apply oil or lubricant to the cutting cylinder, bearings and moving parts. Keep the cutting bar and blades free of debris. Check that the mowing area has no obstacles.

Can the mower be used on tall grass?

The mower is designed for grass up to about 2.44 inches (62 mm) in height. It is less effective on taller grass. It is recommended to mow regularly to avoid excessive growth.

What if the mower does not cut well?

First check the blade adjustment: if too loose or too tight, adjust the spring screws. Use a paper test to check cutting uniformity. If necessary, clean debris between the bar and reel.

What type of lubricant should be used?

Use a light oil or multi-purpose lubricant for moving parts (bearings, cutting cylinder). Avoid products that are too thick which could attract dirt.

Does the mower need electricity or fuel?

No, it is a manual push mower without engine. It operates solely by pushing force, making it quiet and eco-friendly.

Where to find spare parts or technical support?

For spare parts and technical assistance, visit www.vevor.com/support. The warranty is electronic; the certificate is available online. Keep your proof of purchase.

USER MANUAL HS-GT1603B Vevor

Affordable. Reliable. Home Improvement.

PUSH REEL LAWN MOWER

MODEL:HS-GT1603B

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Push Reel Lawn Mower
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

Black plastic bag with tassel, labeled 'Net bag x1' at bottom (no other text or symbols)

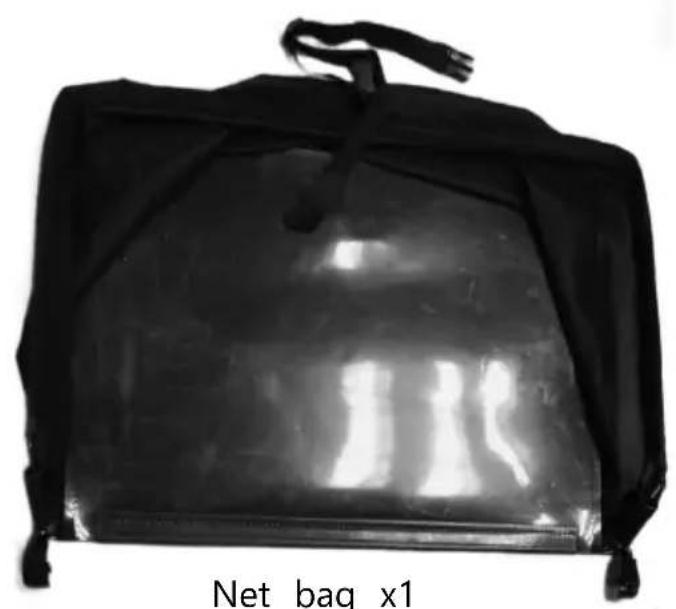

Net bag x1

Mechanical device with attached wheels and structural components (no visible text or symbols)

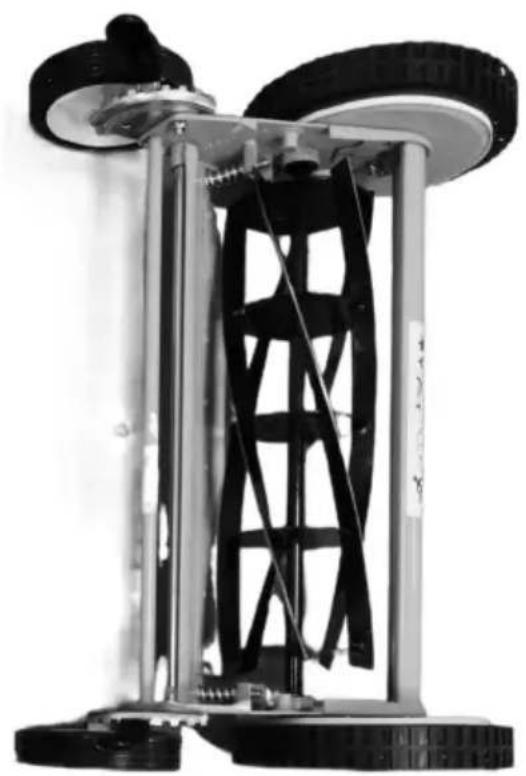

Push Reel Lawn Mower x1

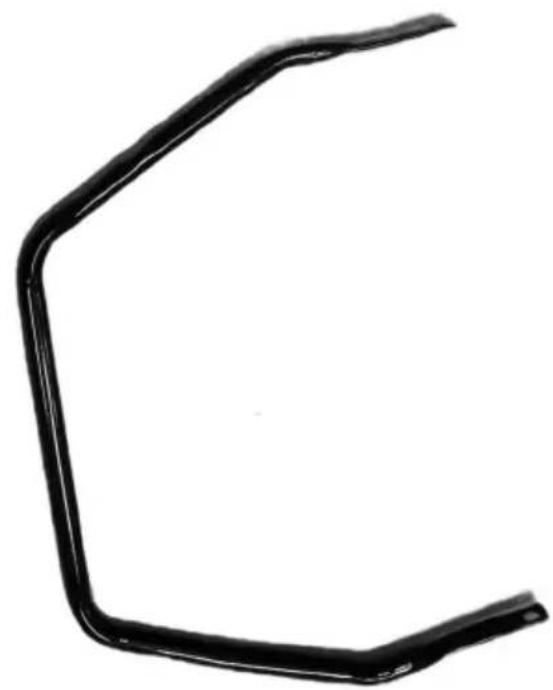

Pure black curved line drawing without any text, numbers, or symbols

Handle bottom bars x1

Simple black L-shaped bracket on white background (no text or symbols)

Handle top with Foam Grip

Two black automotive lever brackets with no visible text or symbols

Side bars x2

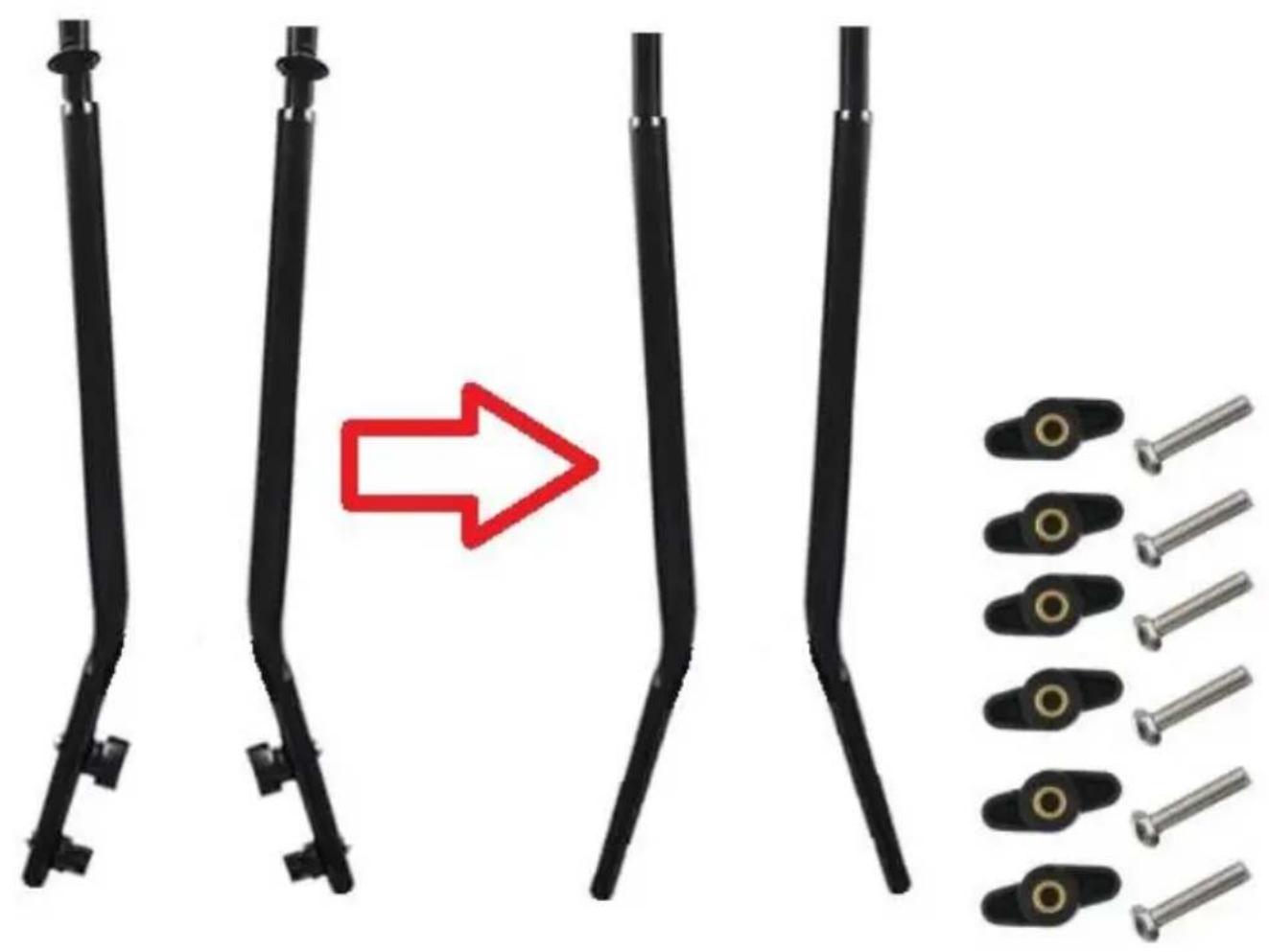

Three black plastic components with a red arrow pointing to one, followed by a row of metallic screws (no text or symbols)

Remove the plastic knobs and screws from the Side bars and seaside for later use.

Assembly Instructions:

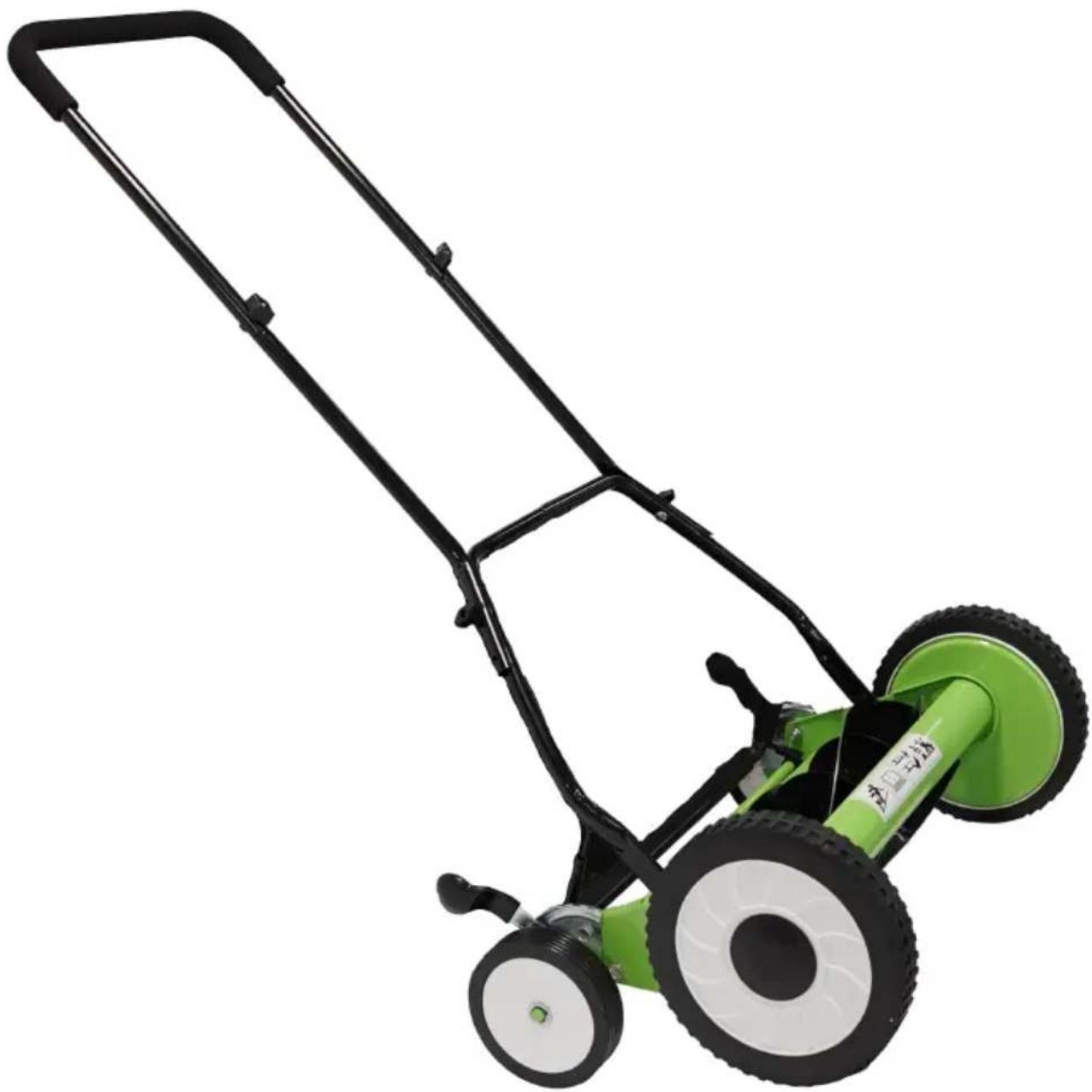

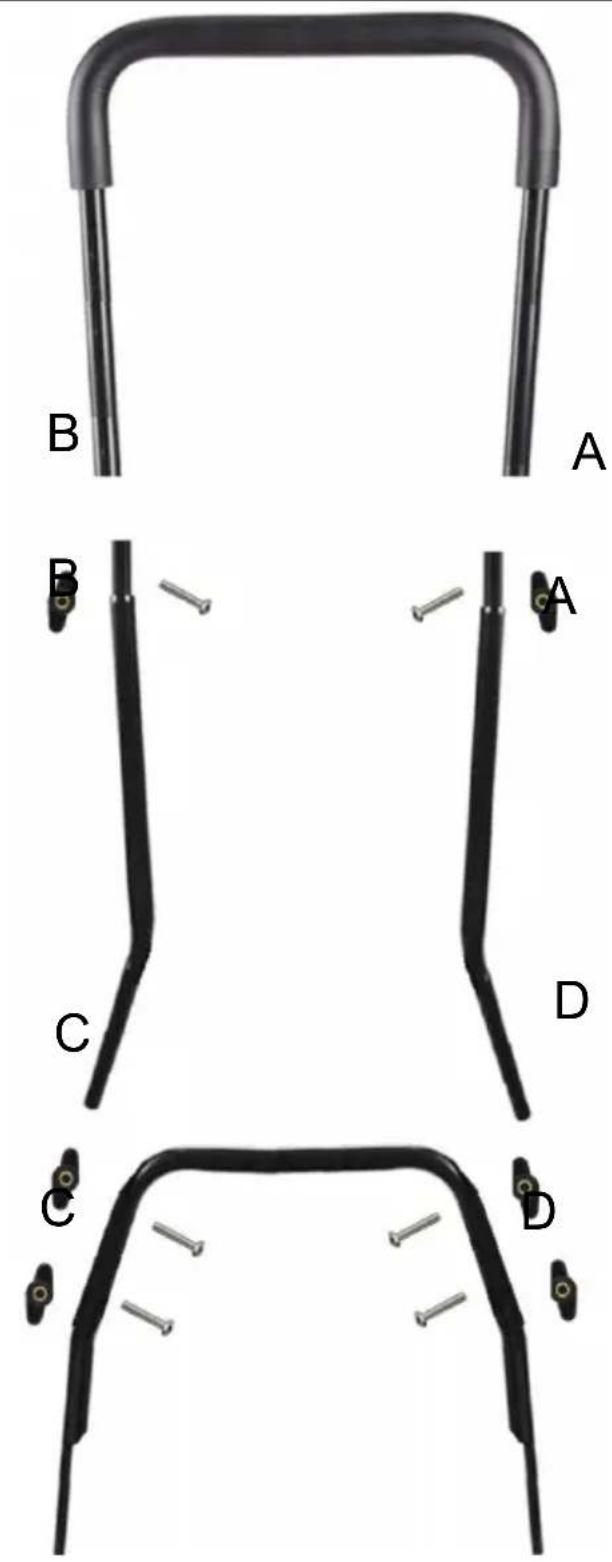

1. Attach the Handle top with Foam Grip to the Side Bars using provided knobs, bolts at labeled points A and B.
2. Attach the Handle bottom bar (labeled points C and D at the the mower.
3. Attach the Side bars to the handle bottom bars using the pro knobs, bolts and washers at labeled points D and C.

Green and black manual lawn mower with a flat blade, no visible text or symbols

Assemble the Handle bottom bars with the Push Reel Lawn Mow

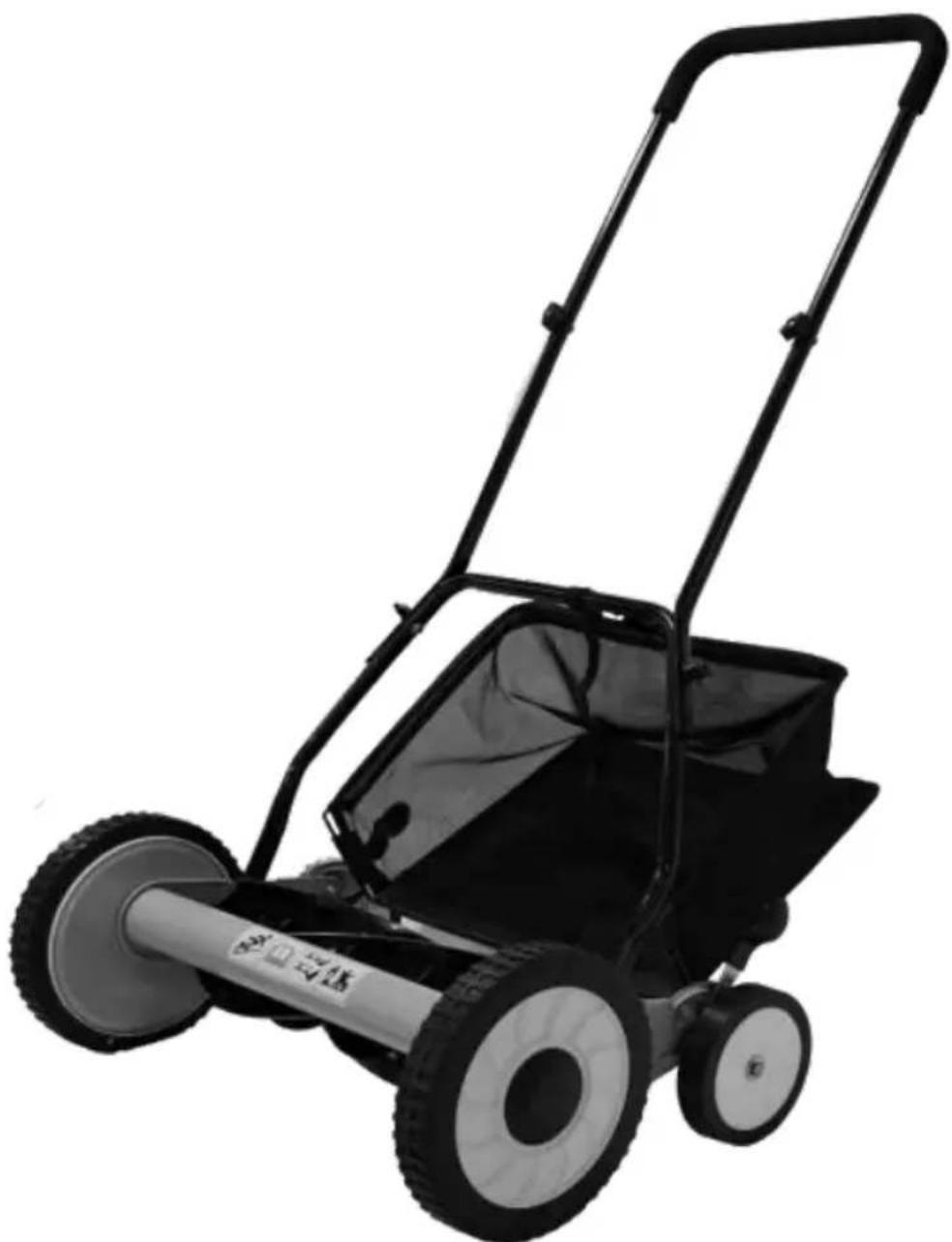

Black and white photo of a manual lawn mower with handlebars and wheels (no visible text or symbols)

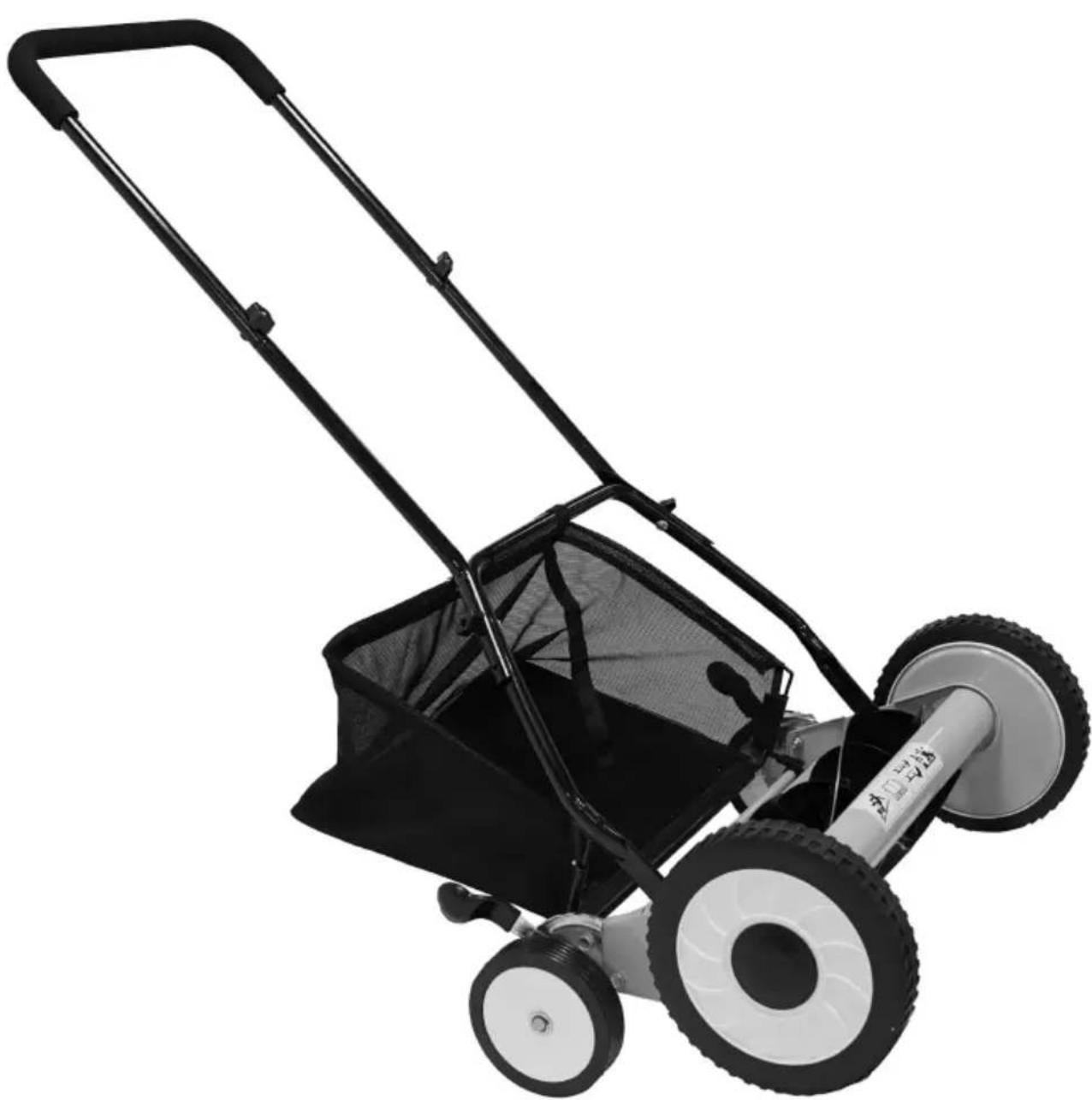

Assemble the Net bag onto the Push Reel Lawn Mower.

Push Mower Safety Guidelines

Never place hands, fingers or feet inside the reel. Although motor does not power this mower, when the wheels turn reel of the mower spins and can cut.

Never mow when the grass is wet enough to be slipper

Do not use the push mower while barefoot or while wea sandals.

Walk slowly, never run. Always be sure of your footing using the push mower.

Never intentionally strike or ram trees, fences, etc. This cause injuries or severely damage the push mower mechanisms.

Make sure that the push mower is in a safe operating Do not attempt to operate this reel mower if it is dama push mower is damaged, have it repaired before using.

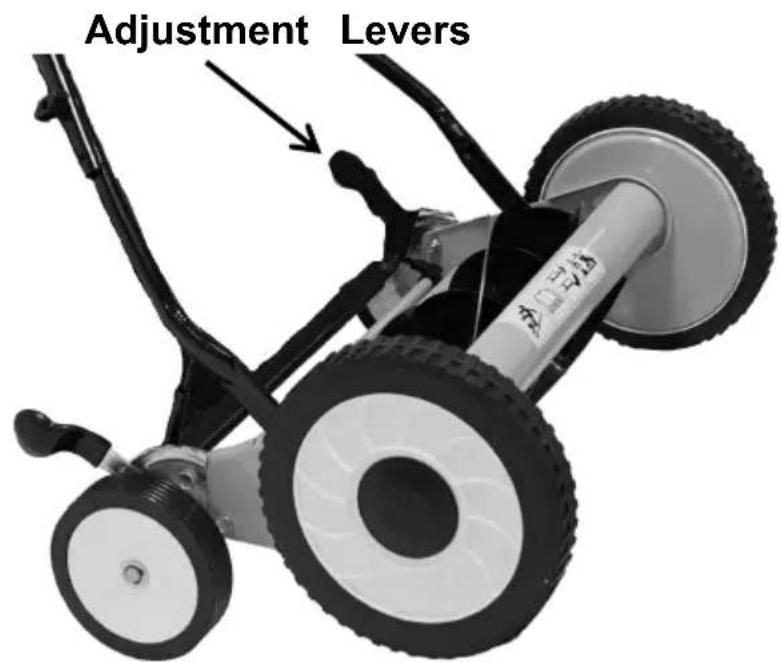

Cutting Height Adjustments

The cutting height of the push mower can be adjusted from 1 34 - moving the height adjustment levers to the required position.

To achieve the lowest cutting position, one at a time pull the adjustment levers located next to the smaller wheels and move it to the highest positions (position 1).

To achieve the highest cutting position, move the adjustment levers on a time to their lowest position (position 5).

NOTE: The two height adjustment levers must be set to the same height position.

Mower Blade Calibration Adjustments

The blades on the push mower are all calibrated prior to leaving the and generally do not require adjustments. However, adjustments may be required only if you notice a rough, uneven cut, the mower is difficult push or the mower simply does not cut the grass. Please note before proceeding that adjusting the blades is a very sensitive procedure. A 1/16 is considered a major adjustment. Carefully follow the procedures below.

Proper calibration is achieved when the cutting blades (see) are adjusted so that the rotating cutting reel ever so slightly comes even contact along the entire length of the cutting bar, creating shearing or scissor-like effect.

WARNING The cutting bar and rotating reel blades can be damaged if they are adjusted too close to each other.

Loosening the Blades

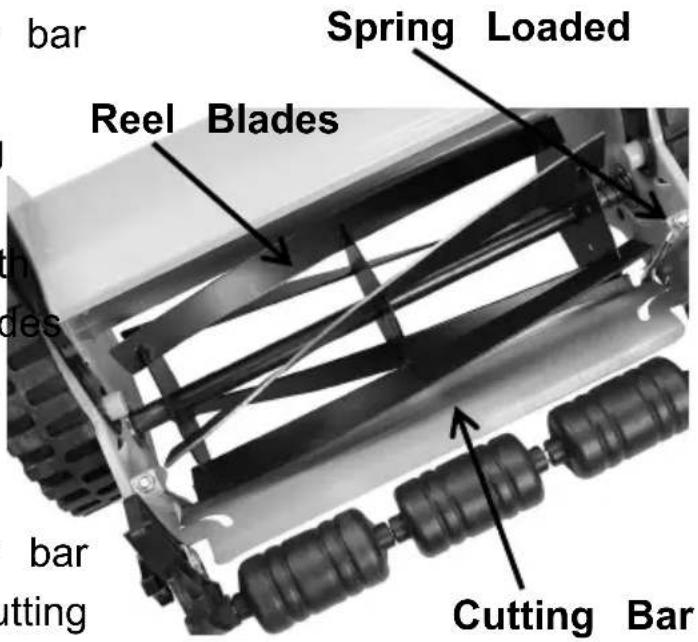

To loosen the blades, the cutter bar

Must be moved away from the cutting reel by turning the spring

loaded screws equally counter

clockwise. Be sure to loosen both

spring loaded screws on both sides

of the mower the same amount.

Tightening the Blades

To tighten the blades, the cutter bar must be moved closer to the cutting

reel by turning the spring loaded screws equally clockwise.

Be sure to tighten the spring loaded screws

On both sides of the mower the same amount.

Checking the Adjustments

1. Turn the mower upside down.
2. Insert a piece of paper between the cutter bar and the reel blade carefully turn the reel blades by hand.
3. All blades should slice the paper evenly along the entire length of cutter bar while the reel turns smoothly.
4. If the mower has an intermittent cut, adjustment should be made appropriate sides of the blades to attain proper cutting action.

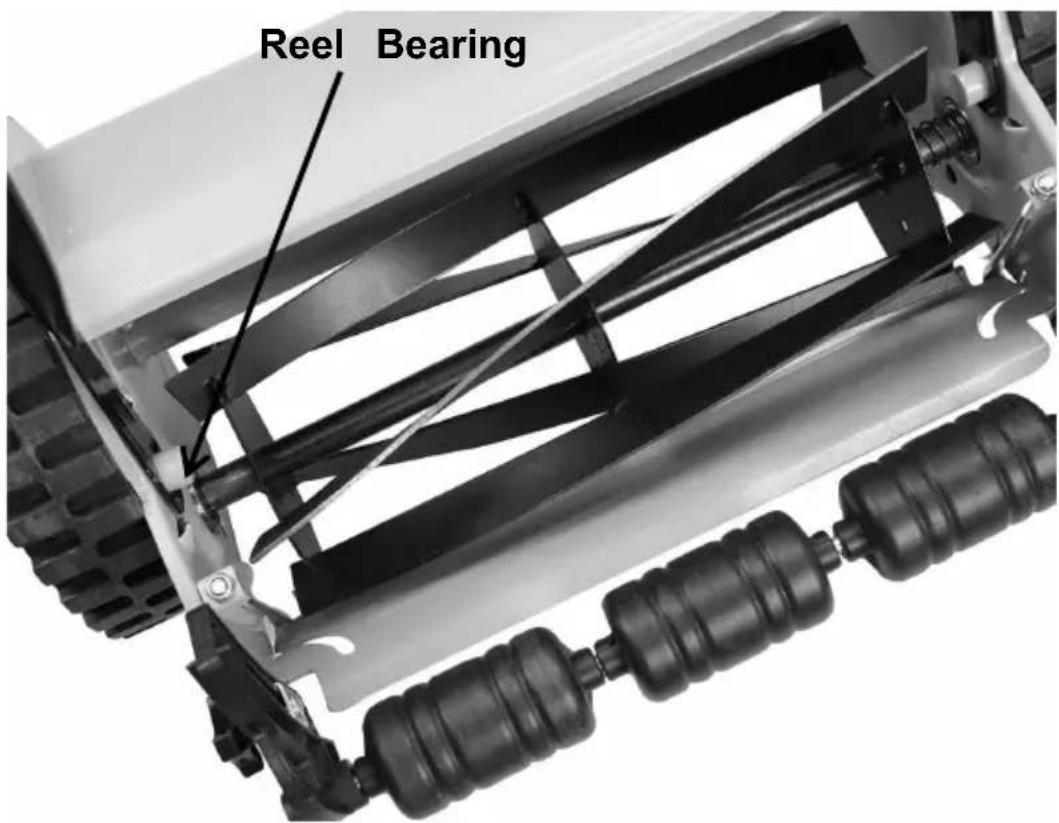

General Care

To extend the life of the mower, store the mower during inclement with Minimum care is required to ensure smooth operation of your mower. avoid damage to the mower or cutting blades, keep the area to be free from any debris. For best results regularly apply oil or lubricant mower's cutting reel, bearings and other moving parts.

WARNING

Keep cutter bar and reel blade free from any debris.

PRODUCT PARAMETER

Model	HS-GT1603B
Cutting width	18inch/450mm
Mowing height range	1.37~2.44inch/35~62mm

This push lawn mower has an adjustable blade height of 1.37"-2.44". Capable of cutting grass up to 4 inches tall and less effective on taller grass.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

KOSIARKA BĘBNOWA

MODELE: HS-GT1603B

www.vevor.com/support

MODELE: HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Mechanical device with transparent frame and internal structural components (no visible text or symbols)

Push Reel Lawn Mower x1

Pure black curved line drawing without any text, numbers, or symbols

Simple black right-angle bracket shape on white background (no text or symbols)

Handle top with Foam Grip

Handle bottom bars x1

Two black automotive suspension brackets with no visible text or symbols

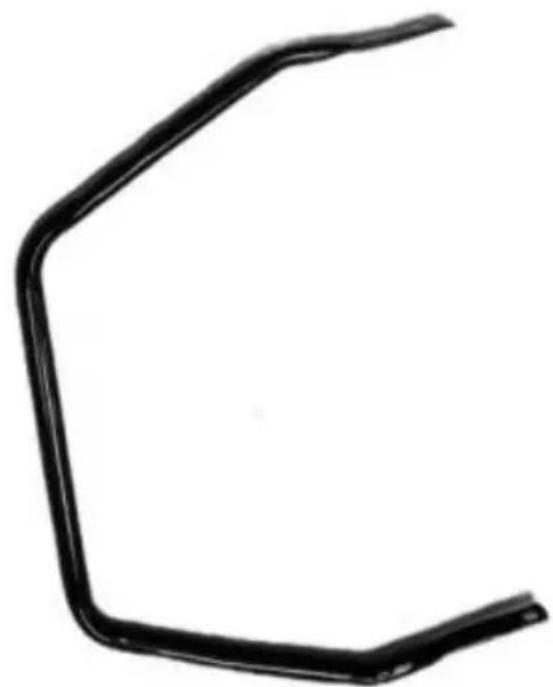

Side bars x2

Diagram showing a black mechanical component being processed, with a red arrow pointing to a detail and multiple metal pins arranged nearby (no text or symbols present)

Green and black lawn mower with a flat blade, no visible text or symbols

Black-and-white photo of a manual lawn mower with visible wheels and handle (no text or symbols)

OSTRZEŻENIE

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

SPINDELMÄHER

MODELL: HS-GT1603B

www.vevor.com/support

MODELL: HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Mechanical device with transparent frame and internal structural components (no visible text or symbols)

Push Reel Lawn Mower x1

Pure black curved line drawing without any text, numbers, or symbols

Simple black right-angle bracket on white background (no text or symbols)

Handle top with Foam Grip

Handle bottom bars x1

Two black automotive suspension brackets with no visible text or symbols

Side bars x2

Diagram showing a black mechanical component being processed, with a red arrow pointing to a detail and multiple metal pins arranged nearby (no text or symbols)

Green and black lawn mower with a flat blade, no visible text or symbols

Black and white photo of a manual lawn mower with visible wheels and handle (no text or symbols)

WARNUNG

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

www.vevor.com/support

MODÈLE : HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Mechanical device with transparent frame and internal structural components (no visible text or symbols)

Push Reel Lawn Mower x1

Pure black curved line drawing without any text, numbers, or symbols

Simple black right-angle bracket on white background (no text or symbols)

Handle top with Foam Grip

Handle bottom bars x1

Two black automotive suspension brackets with no visible text or symbols

Side bars x2

Diagram showing a black mechanical component being processed, with a red arrow indicating the process and a row of metal pins (no text or symbols present)

Green and black lawn mower with a flat blade, no visible text or symbols

Top-down view of a black-and-white manual lawn mower with visible wheels and handle (no text or symbols)

AVERTISSEMENT

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

DUWROL GRASMAAIER

MODEL: HS-GT1603B

www.vevor.com/support

MODEL: HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Black rectangular bag with tassels and a handle, labeled 'Net bag x1' below (no other text or symbols)

Net bag x1

Mechanical device with transparent frame and metal components, no visible text or symbols

Push Reel Lawn Mower x1

Pure black curved line drawing on white background (no text or symbols)

Handle bottom bars x1

Simple black right-angle bracket shape on white background (no text or symbols)

Handle top with Foam Grip

Two black automotive levers with no visible text or markings

Side bars x2

Diagram showing a sequence of black mechanical components with a red arrow pointing to one, alongside a row of metal screws (no text or symbols present)

Green and black manual lawn mower with a flat blade and wheels (no text or symbols visible)

Black-and-white photo of a manual lawn mower with visible wheels and handle (no text or symbols)

WAARSCHUWING

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

PUSH REEL GRÄSKLIPPARE

MODELL: HS-GT1603B

www.vevor.com/support

MODELL: HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Mechanical device with transparent frame and black components, no visible text or symbols

Push Reel Lawn Mower x1

Pure black curved line drawing on white background (no text or symbols)

Handle bottom bars x1

Simple black right-angle bracket shape on white background (no text or symbols)

Handle top with Foam Grip

Two black metal automotive tractors with curved arms and mounting holes (no visible text or symbols)

Side bars x2

Diagram showing a sequence of black mechanical components with a red arrow pointing to one, alongside a row of metal screws (no text or symbols present)

Green and black lawn mower with a flat blade, no visible text or symbols

Black and white photo of a manual lawn mower with visible wheels and handle (no text or symbols)

WARNING

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

CORTADORA DE CÉSPED DE CARRETE

DE EMPUJE

MODELO: HS-GT1603B

www.vevor.com/support

MODELO: HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Mechanical device with transparent frame and internal structural components (no visible text or symbols)

Push Reel Lawn Mower x1

Pure black curved line drawing without any text, numbers, or symbols

Simple black right-angle bracket shape on white background (no text or symbols)

Handle top with Foam Grip

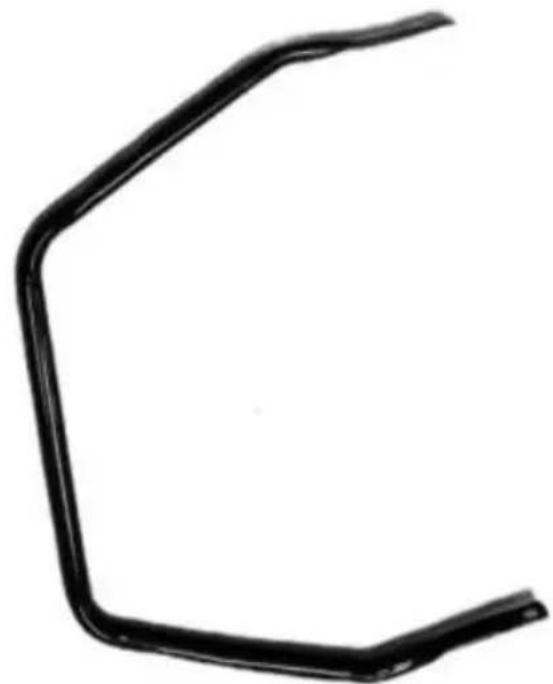

Handle bottom bars x1

Two black automotive suspension brackets with no visible text or symbols

Side bars x2

Diagram showing a black mechanical component being processed, with a red arrow pointing to a detail and multiple metal pins arranged nearby (no text or symbols present)

Green and black lawn mower with a flat blade, no visible text or symbols

Black and white photo of a manual lawn mower with visible wheels and handle (no text or symbols)

ADVERTENCIA

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

TOSAERBA A SPINTA

MODELLO: HS-GT1603B

www.vevor.com/support

MODELLO: HS-GT1603B

Black and white photo of a manual lawn mower with visible blades and wheels (no text or symbols)

Mechanical device with transparent frame and black components, no visible text or symbols

Push Reel Lawn Mower x1

Pure black curved line drawing on white background (no text or symbols)

Handle bottom bars x1

Simple black right-angle bracket shape on white background (no text or symbols)

Handle top with Foam Grip

Two black metal automotive tractors with curved ends, shown from different angles (no text or symbols visible)

Side bars x2

Diagram showing a black mechanical component being processed, with a red arrow pointing to a detail and multiple metal pins arranged nearby (no text or symbols present)

Green and black lawn mower with a flat blade, no visible text or symbols

Black and white photo of a manual lawn mower with visible wheels and handle (no text or symbols)

AVVERTIMENTO

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
