ZH001 - Lawn mower Vevor - Free user manual and instructions

Product Type	Lawn Mower Wheels
Brand	Vevor
Model	ZH001
Tire Specification (inches)	11 x 4
Rim Specification (inches)	7
Maximum Load per Wheel (lbs)	350
Quantity of Wheels Provided	2
Tire Material	Rubber
Rim Material	Steel
Kit Contents	2 wheels, 4 metal sleeves, 4 plastic pieces (0.25 and 0.5 inches), 4 galvanized washers, 4 5/8 inch spacers
Intended Use	Replacement of lawn mower wheels
Assembly Required	Yes, follow the manual instructions
Safety Precautions	Keep away from flames, sharp points; do not use as a toy
Recommended Maintenance	Clean regularly; check tightness of fasteners
Warranty	Refer to the electronic warranty certificate at www.vevor.com/support
Country of Origin	China (Shanghai)
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, TESTWOOD NSW 2122
Importer (United States)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Frequently Asked Questions - ZH001 Vevor

What is the diameter of the ZH001 wheels?

The wheels have a tire diameter of 11 inches and a rim of 7 inches.

What is the maximum load capacity per wheel?

Each wheel can support up to 350 lbs (approximately 159 kg).

Are the wheels delivered with mounting accessories?

Yes, the kit includes 2 wheels, 4 metal sleeves, 4 plastic pieces, 4 galvanized washers, and 4 spacers.

How to install the new wheels on my lawn mower?

Follow the manual instructions: attach the sleeves to the axle, place the plastic pieces, washers and spacers, then mount the wheel. Tighten properly.

Are these wheels compatible with all lawn mowers?

They fit lawn mowers with 1/2 inch axles (sleeve provided). Check your mower's dimensions before purchase.

What materials are the wheels made of?

The tire is made of rubber, the rim of steel. The accessories include plastic pieces and galvanized washers.

Are there safety precautions to follow?

Important: Keep away from open flames (flammable product), sharp objects, and do not use as a toy. Read the full manual before use.

How to maintain the Vevor ZH001 lawn mower wheels?

Clean the wheels regularly, check tire wear and tightness of fasteners. Store in a dry, frost-free place.

Can I order spare parts?

Yes, contact Vevor technical support via www.vevor.com/support to get spare parts.

Where to find the complete manual in French?

Download the PDF manual from notice-facile.com or directly from www.vevor.com/support.

USER MANUAL ZH001 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

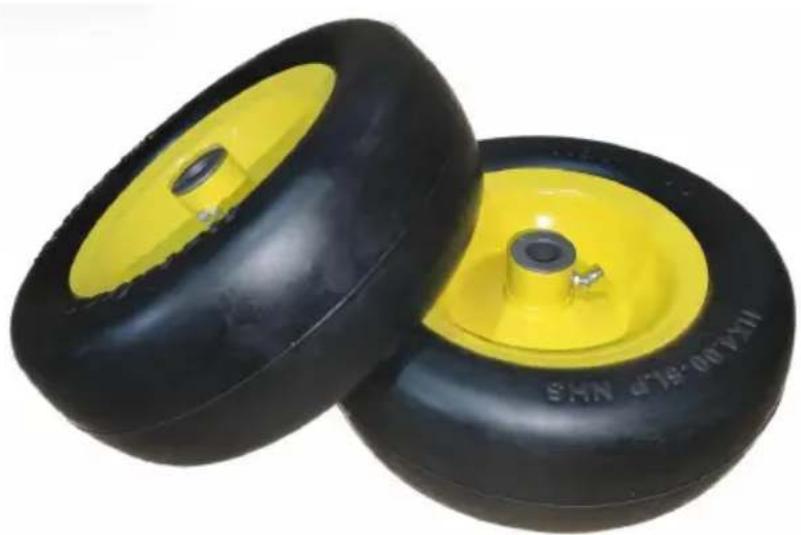

Lawn Mower Wheels

MODEL: ZH001

We continue to be committed to providing you tools at competitive prices. "Save Half", "Half Price", or any

Similar expressions used by us only represent an estimate of savings you might benefit from buying tools with us compared to the major top brands. They are not necessarily meant to cover all categories of tools offered by us. You are kindly reminded to verify costs when you are placing an order with us if you are saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again of any technology or software updates on our product.

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and

instructions can cause personal injury or damage to valuable property.

1. While assembling and using this product, keep the work area clean and well lighted, and keep spectators and children out of the work area.
2. Assemble only according to lawn mower wheels parameter. Improper assembly can create hazards.
3. Use as intended only.
4. Flammable: Keep away from open flame. This product will ignite and burn if brought into contact via an open flame.
5. Keep away from sharp points, blades and other items, so as not to scratch the product.
6. This product is not a toy, Lawn mower wheels can be used as toys for children to play with.

SAVE THESE INSTRUCTION

Part List
NO.	Name	Picture	QTY.

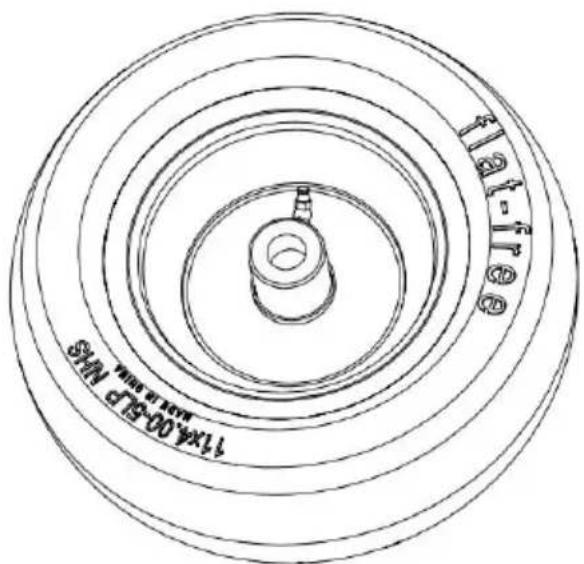

1	Lawn Mower Wheels		2
2	1/2inch Powder Metallurgy Sleeve		4
3	Φ1* Φ 3/4*0.25inch Plastic Parts		4
4	Φ 1* Φ 3/4*0.5inch Plastic Parts		4
5	Φ 1.25* Φ 3/4*0.08inch Galvanized Gasket		4
6	5/8inch SHIM		4

Product Introduction

Tyre Specification (inch	11*4
Rim Specification (inch	7
Single Max. Load (Ibs	350

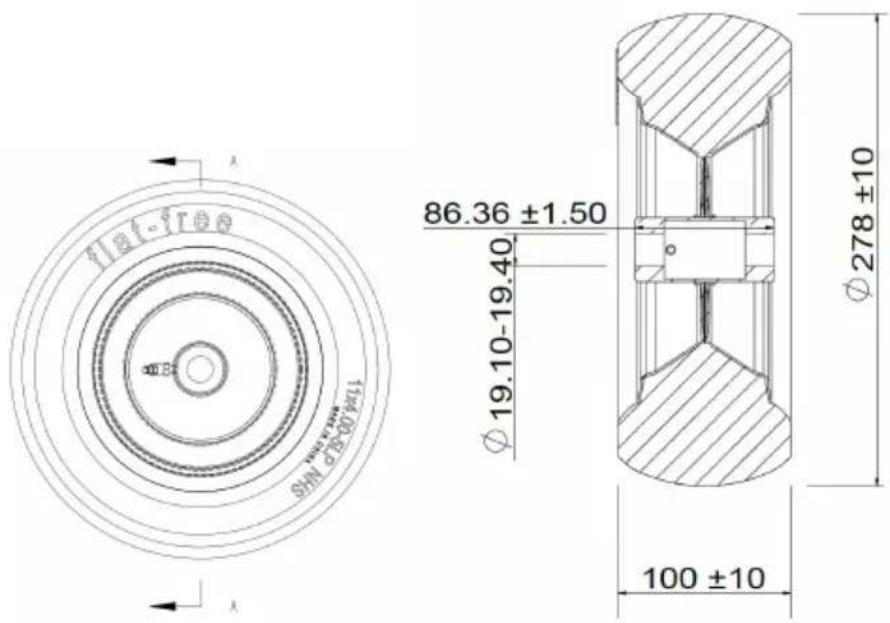

(Unit: mm)
