USER MANUAL HS-GT1601D Vevor

PUSH REEL LAWN MOWER

MODEL: HS-GT1601B / HS-GT1601D

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: HS-GT1601B / HS-GT1601D

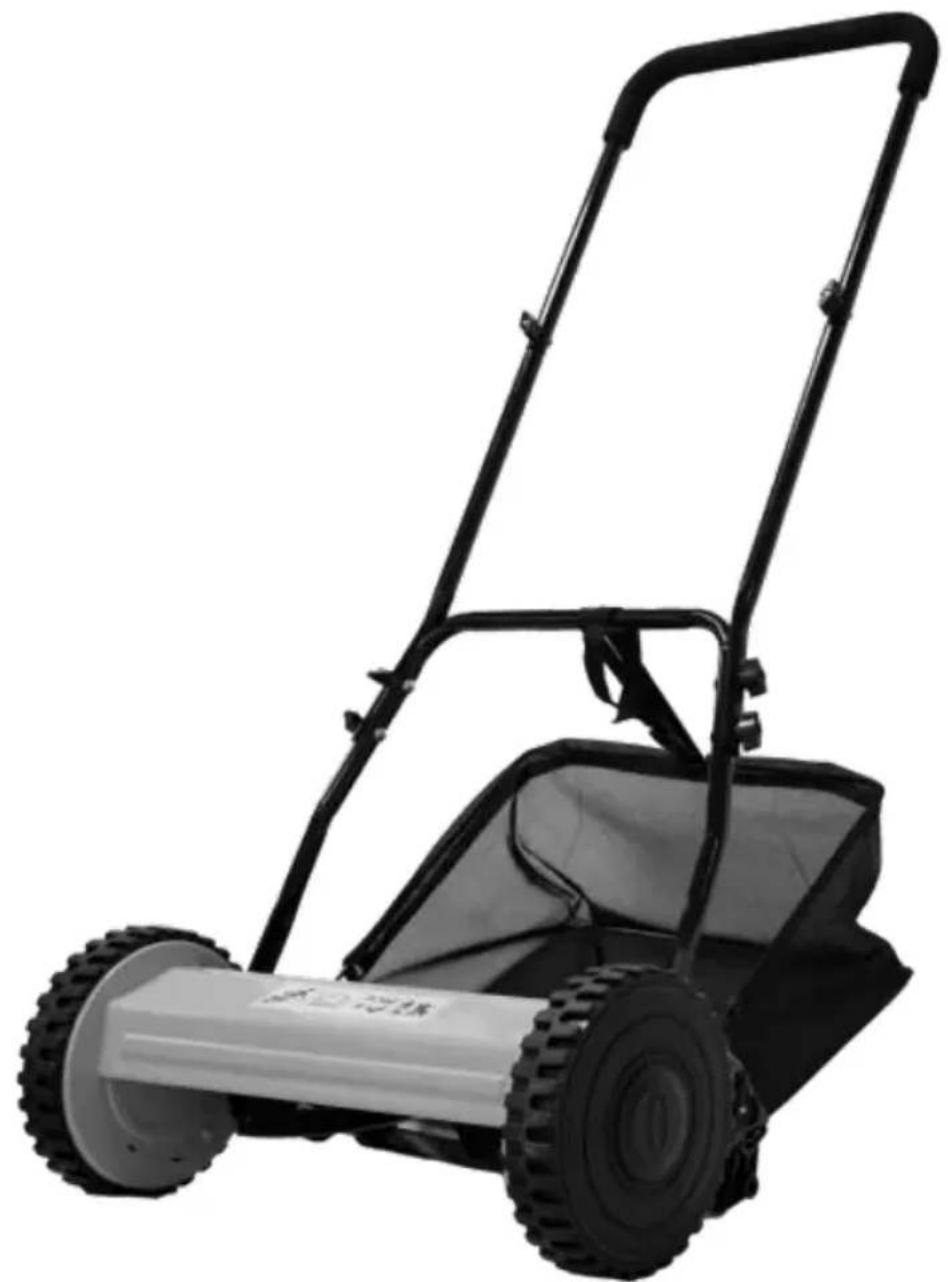

Black and white photo of a lawn mower with visible blades and handle (no text or symbols).

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly can create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble if tired or when under the influence of alcohol, or medication.
  6. The product capabilities apply to properly and completely assembled products only.
  7. Assemble on a flat, level, hard and smooth surface capable of supporting the Push Reel Lawn Mower.
  8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

  1. DO NOT SIT OR STAND ON THIS ITEM.
  2. This product is not a toy. Do not allow children to play with or near this item.
  3. Do not exceed specified weight capacities.
  4. Use as intended only.
  5. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

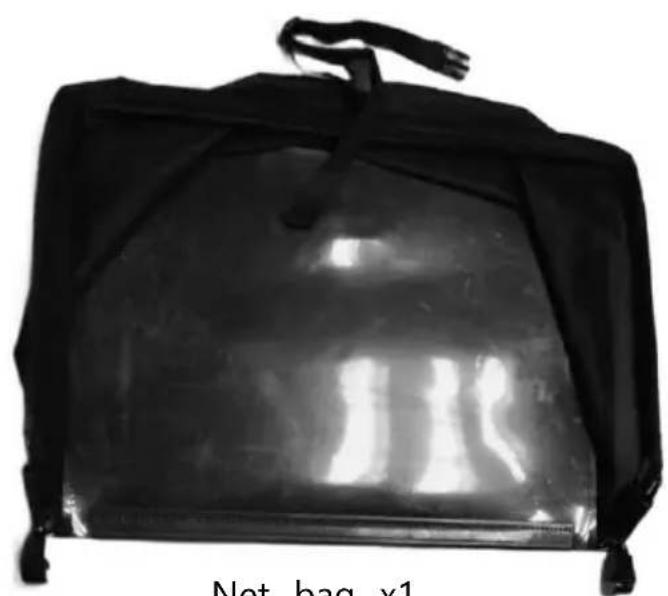

Black plastic bag with tassels and a handle, no visible text or symbols on the bag itself.

Net bag x1

Exterior view of a white wheeled vehicle with black tires and four circular warning symbols on its side (no text or labels visible).

Push Reel Lawn Mower x1

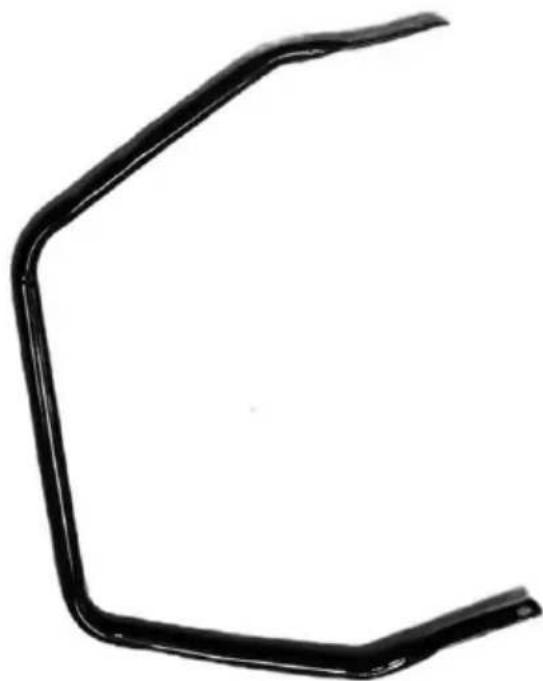

Pure black curved line drawing without any text, numbers, or symbols.

Handle bottom bars x1

Simple black L-shaped bracket on white background (no text or symbols).

Handle top with Foam Grip

Two black metal automotive levers with side bars, shown from different angles (no text or symbols on the levers themselves).

Side bars x2

Three black plastic components with a red arrow pointing to one, followed by a row of metallic screws (no text or symbols).

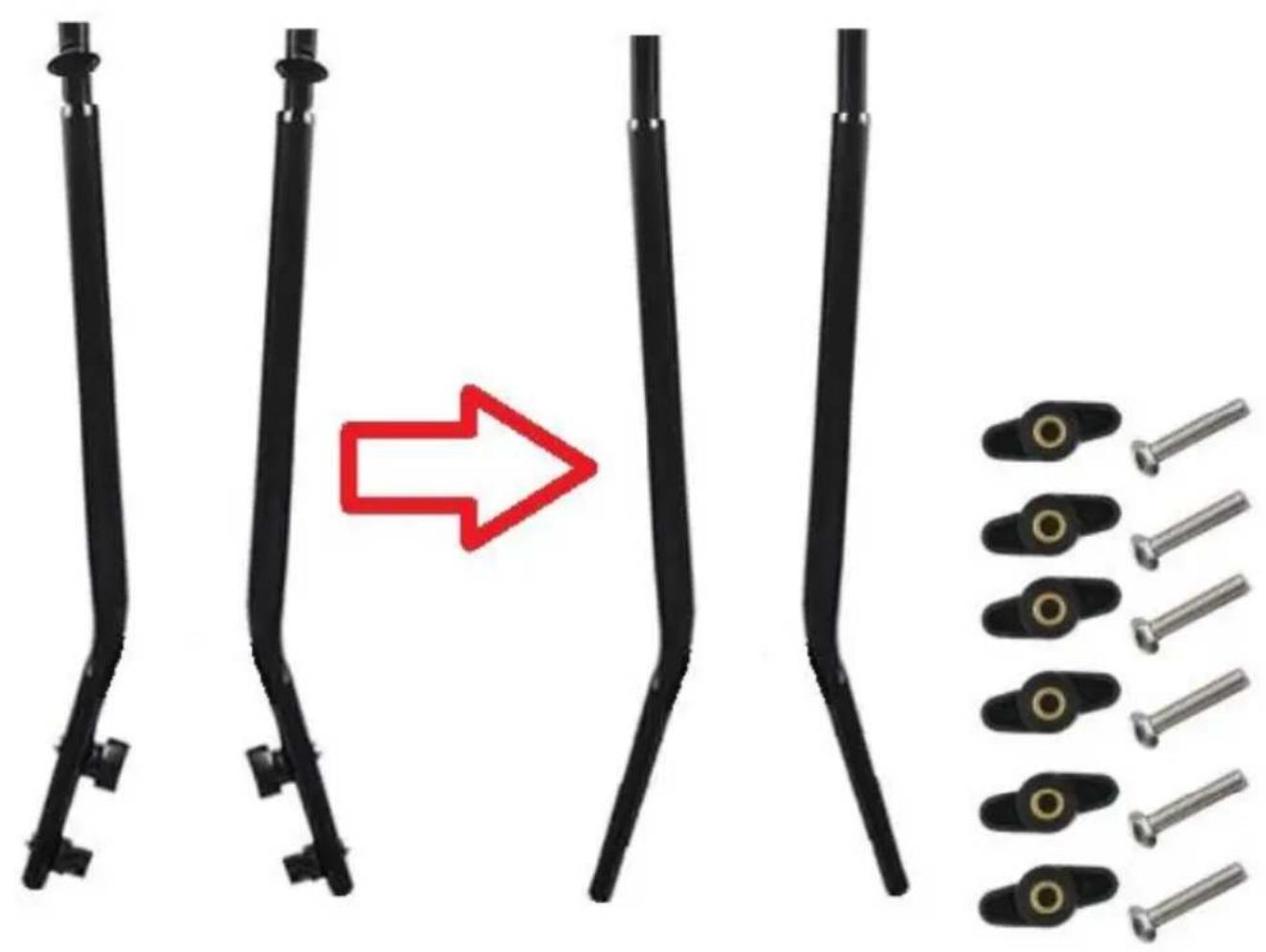

Remove the plastic knobs and screws from the Side bars and set aside for later use.

Vevor HS-GT1601D - PARTS LIST - 7

Assembly Instructions:

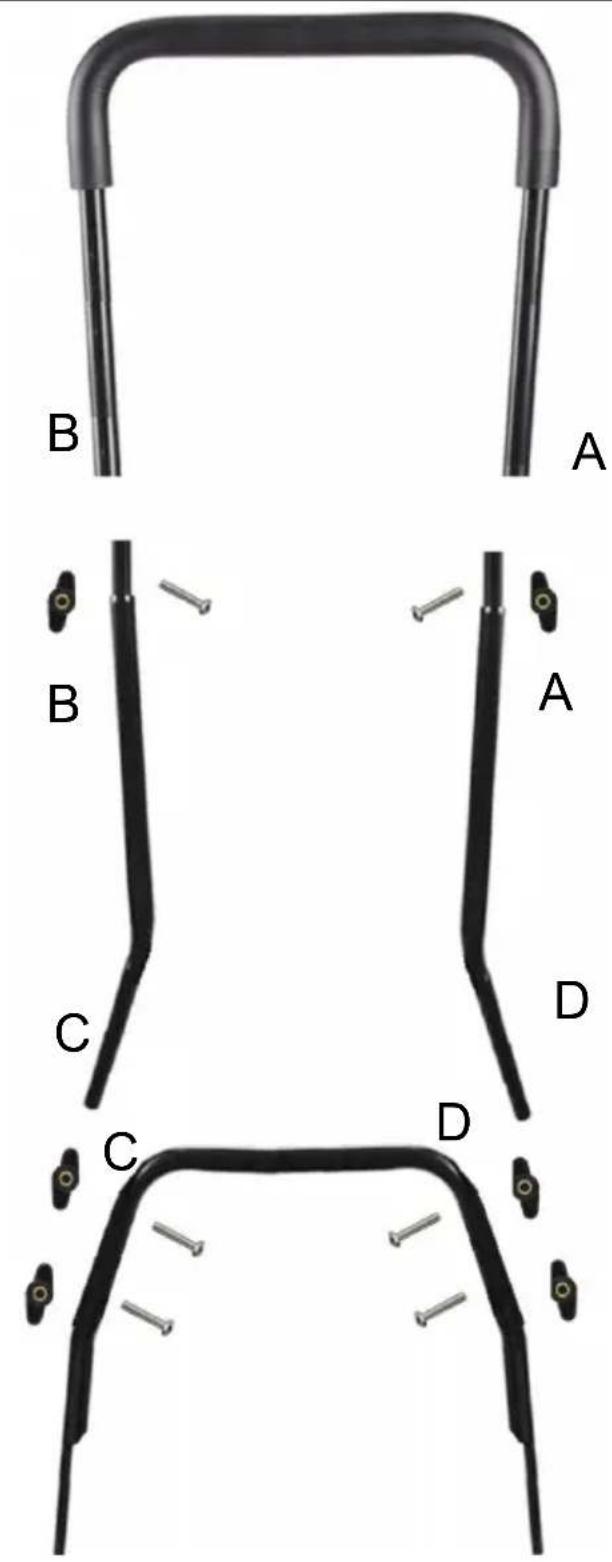

  1. Attach the Handle top with Foam Grip to the Side Bars using provided knobs and bolts at labeled points A and B.
  2. Attach the Handle bottom bar (labeled points C and D) to the mower.
  3. Attach the Side bars to the Handle bottom bars using the provided knobs, bolts, and washers at labeled points D and C.

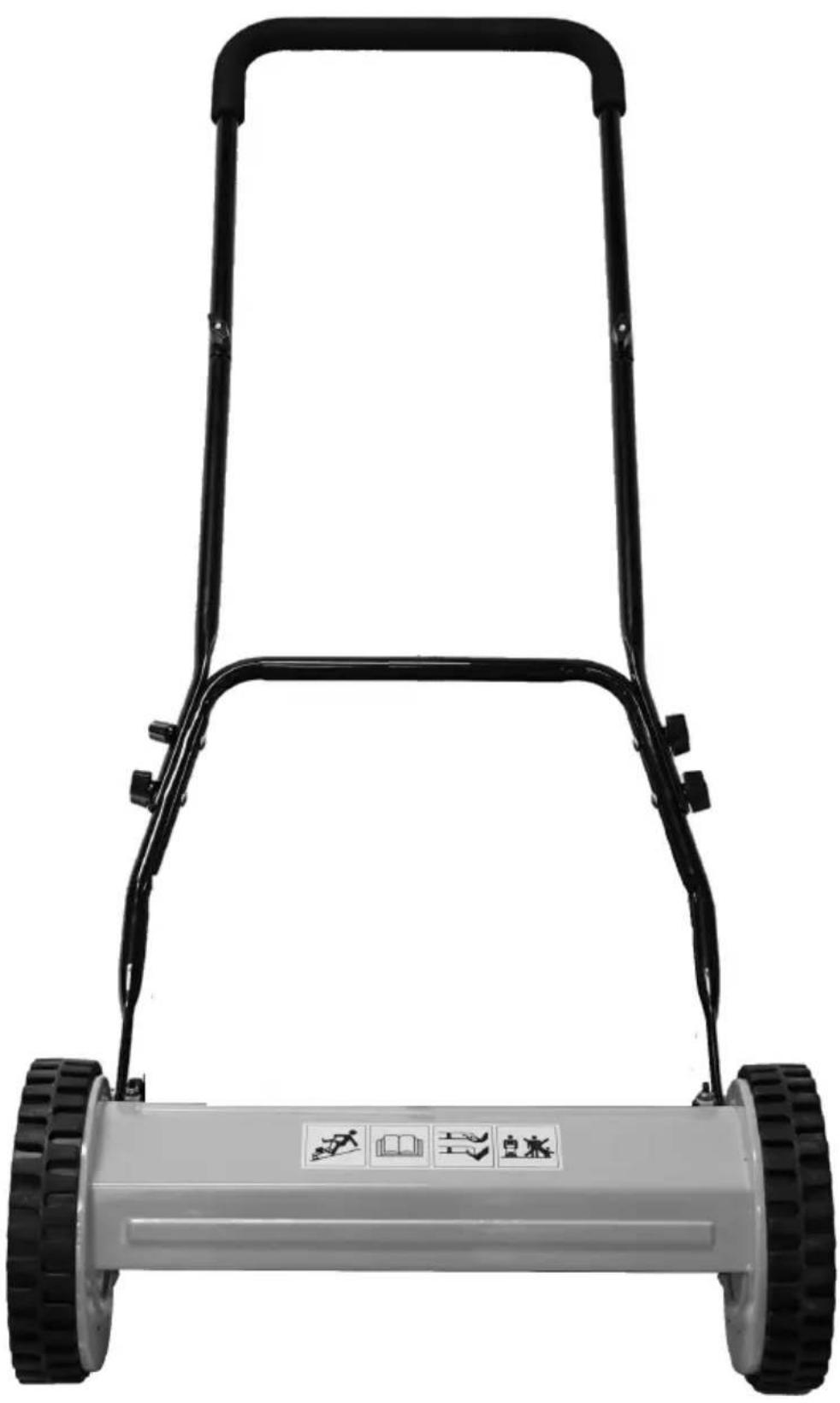

Front view of a manual lawn mower with visible tire, frame, and base (no text or symbols).

Assemble the Handle bottom bars with the Push Reel Lawn Mower.

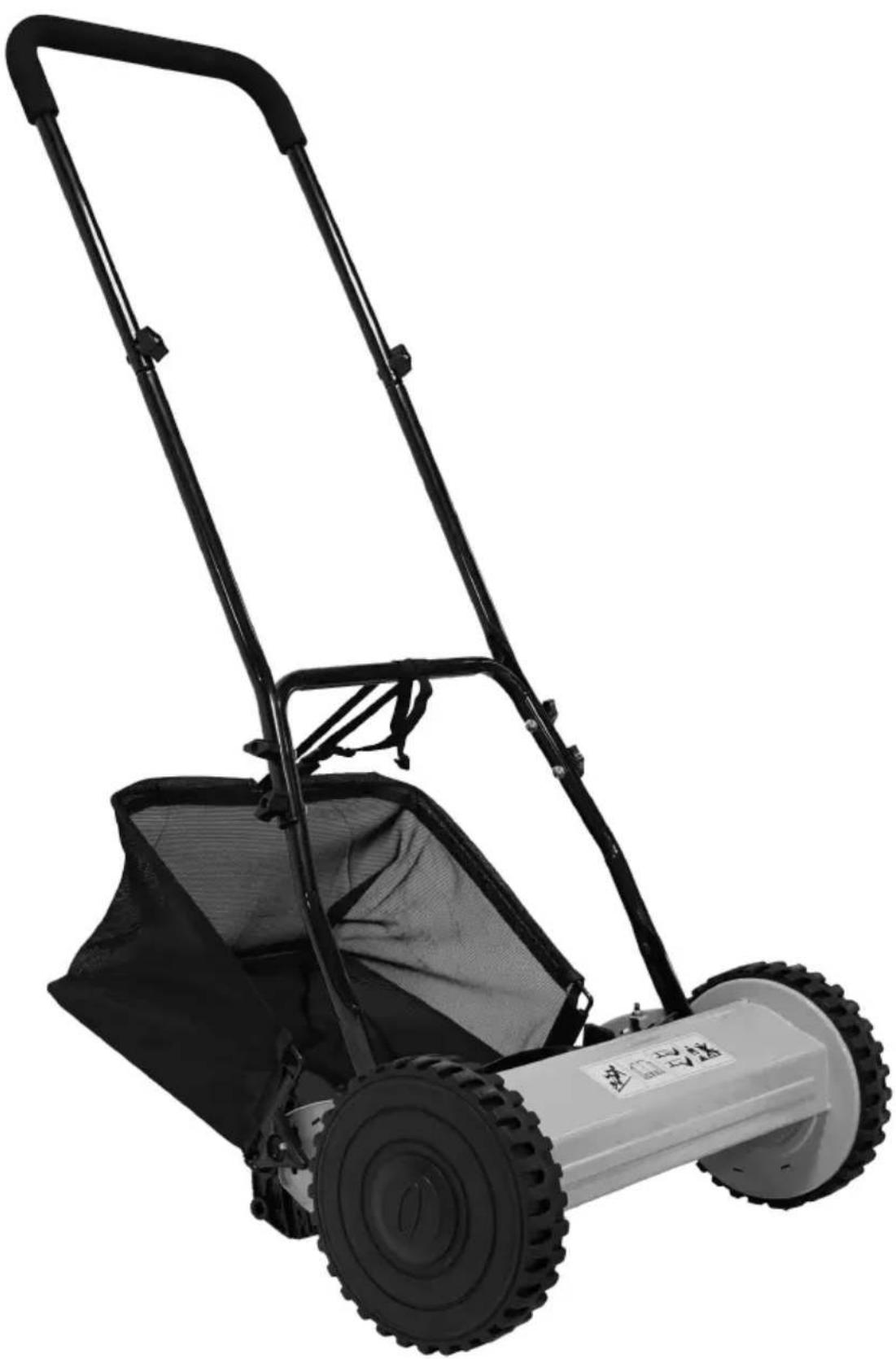

Black-and-white photo of a manual lawn mower with mesh cover and wheels (no visible text or symbols).

Assemble the Net bag onto the Push Reel Lawn Mower.

SAFETY PRECAUTIONS

Never use the mower while people, especially children, are nearby. Always walk, never run.

Do not operate the mower when barefoot or wearing open sandals.

Thoroughly inspect the area where the mower is to be used and remove all objects which may be thrown by the machine.

Always be sure of your footing on slopes. Do not mow excessively steep slopes. Keep all nuts, bolts, and screws tightened.

Always ensure that the equipment is in a safe working condition.

Replace worn or damaged parts immediately.

Keep hands and feet clear of the rotating blades.

Use caution when adjusting the blades.

ADJUSTING THE CUTTING HEIGHT

Loosen the knobs on either side of the roller A and adjust both equally C, in the direction of the arrow, to obtain the desired height. Tighten the knobs A.

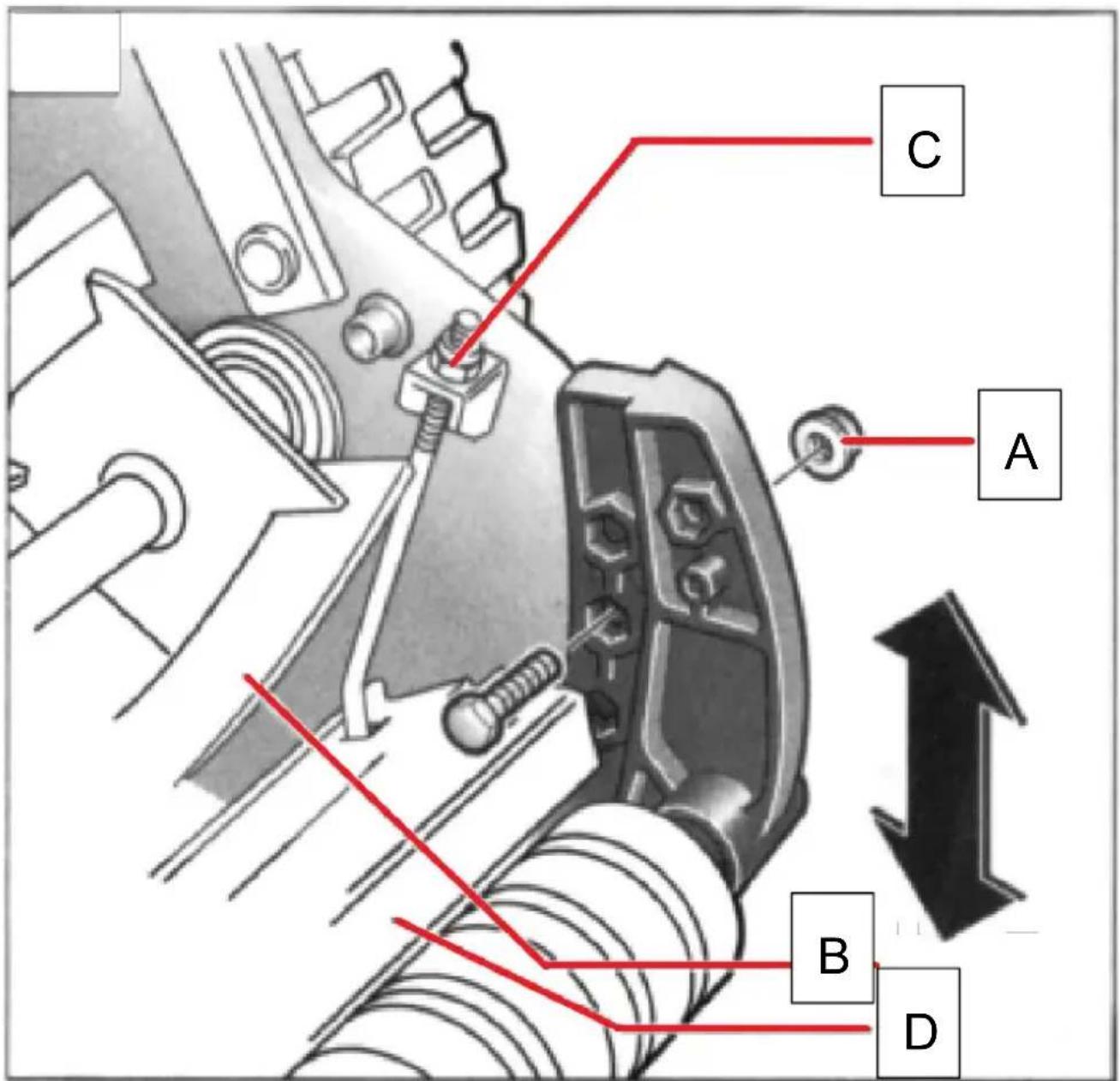

ADJUSTING THE BLADE

The cutting blade D should be adjusted if the grass is not cut evenly. Insert a piece of paper between the cylinder B and fixed blade D. Turn both adjuster nuts C clockwise a little at a time until the cutting cylinder B cuts the paper evenly across the whole blade length D.

Note: The blades act like a pair of shears.

C A B D

MOWING

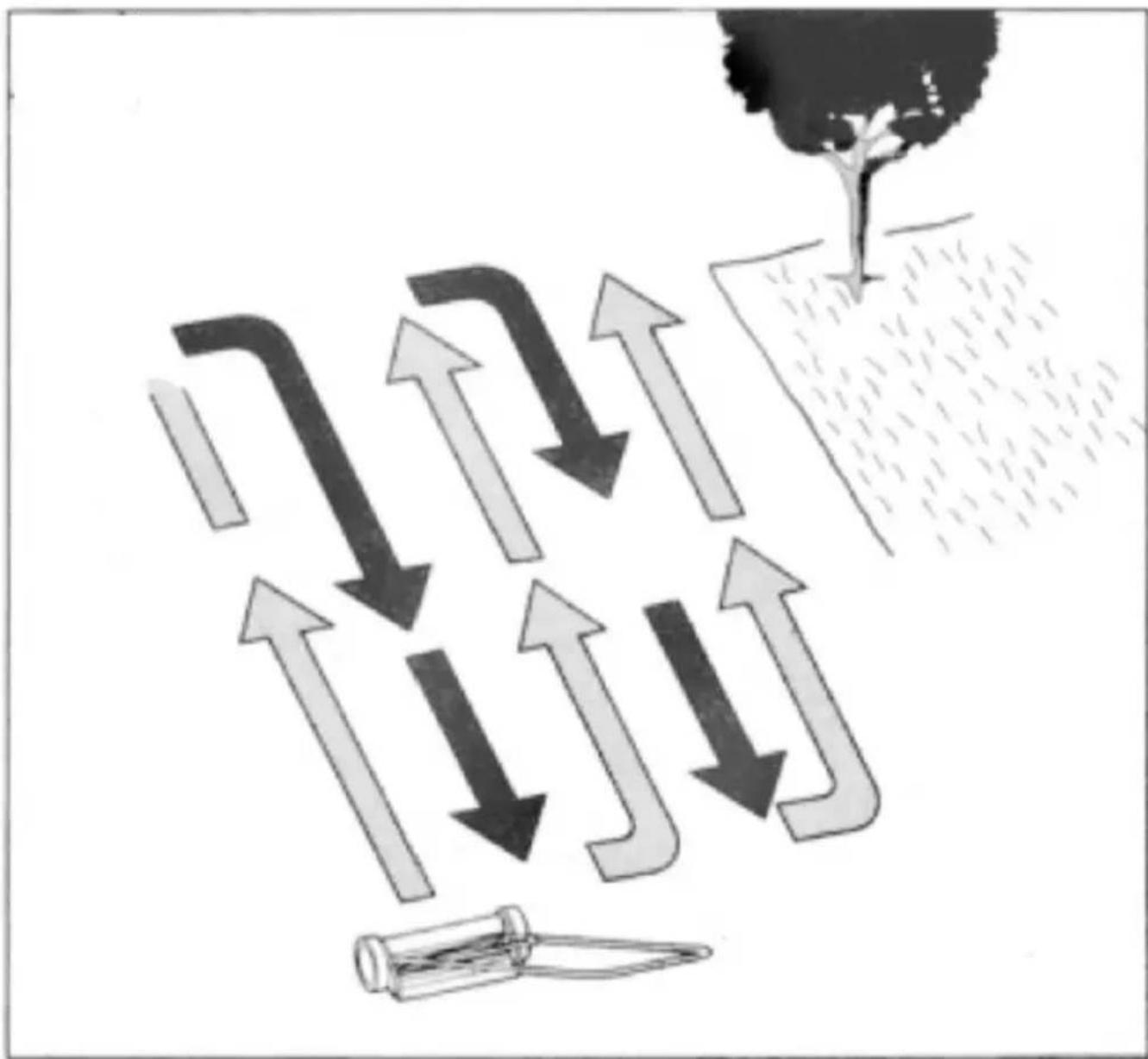

For best results, place the lawnmower on the edge of the lawn and mow in the forward direction. Then turn at the end of each run and mow in the opposite direction, slightly overlapping the previously

strip.

Illustration of a tree growing from a soil layer with arrows indicating flow direction, next to a small vial and a pen (no text or symbols).

MAINTENANCE

To ensure long and reliable service, carry out the following maintenance regularly: Regularly check for obvious defects such as loose, dislodged or damaged blades, loose fittings and worn or

damaged components. Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance repairs before using.

STORAGE

Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polish. Remove all grass and debris. Turn the machine on its side and clean the blade area. Grass cuttings are compacted in the blade area, remove with a wooden or plastic implement. Store the lawnmower in a safe place out of the reach of children. Do not place other objects on the machine.

PRODUCT PARAMETER

ModelHS-GT1601B
Cutting width14inch/350mm
Mowing height range0.6~1.75inch/15~45mm
ModelHS-GT1601D
Cutting width16inch/400mm
Mowing height range0.6~1.75inch/15~45mm

This push lawn mower has an adjustable blade height of 0.6"-1.75". Capable of cutting grass up to 4 inches tall and less effective on taller grass.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Technical Support and E-Warranty Certificate www.vevor.com/support
