USER MANUAL S0J-FE12-10 Vevor

Affordable. Reliable. Home Improvement.

Rotary Tool

Model:S0J-FE12-10

Model:S0J-FE12-10

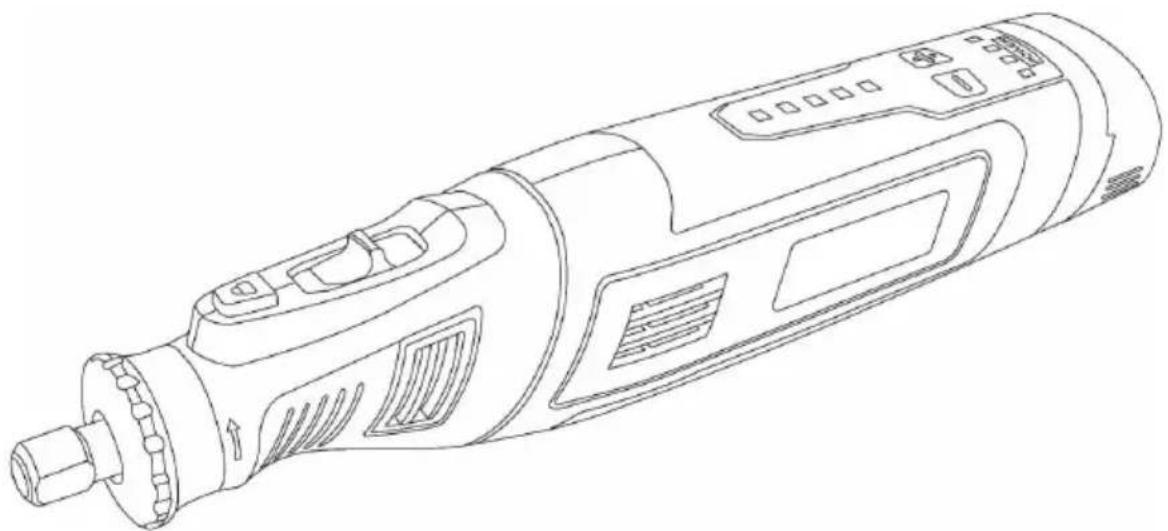

Line drawing of a handheld electronic device with ports and control panel (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Warning-marking concerning risk of Eye Injury
	Warning-marking concerning Risk of Hearing Loss
	CORRECT DISPOSALThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
	To preserve natural resources, please recycle or dispose of battery properly. This battery pack contains Li-ion batteries. C your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery by operating your tool, then remove the battery pack from the housing and cover the battery connections with heavy-duty ad tape to prevent shortcircuit and energy discharge. Do not atte open or remove any of the components.

Safety Notes

Please do not press the spindle lock while the machine is running to avoid to the machine or safety accident.

Safety instructions

Warning: read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accident
b) Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets. Will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radi ranges and refrigerators. There is an increased risk of electric shock if your earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a po will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplug the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled. Cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operate power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power to may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tc Carrying power tools with your finger on the switch or energising power tools have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A

or a key left attached to a rotating part of the power tool may result in pe injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, c and gloves away from moving parts. Loose clothes, jewellery or long hair can caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust-related hazards.

4) Battery tool use and care

a) Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.

b) Recharge only with the charger specified by the manufacturer. A charger is suitable for one type of battery pack.

c) Use power tools only with specifically designated battery packs. Use of an other battery packs may create a risk of injury and fire.

d) When battery pack is not in use, keep it away from other metal objects paper clips, coins, keys, nails, screw, or other small metal objects that can re connection from one terminal to another. Shorting the battery terminals together may cause burns or fire.

e) Under abusive conditions, liquid may be ejected from the battery; avoid cc if contact accidentally occurs, flush with water. If liquid contacts eyes, addition seek medical help. Liquid ejected from the battery may cause irritation or bur

5) Safety instructions for all operations

Safety warnings common for grinding, sanding, wire brushing, polishing, carving abrasive cutting-off operations:

a) This power tool is intended to function as a grinder, sander, wire brush, carving or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions lis below may result in electric shock, fire and/or serious injury.

Note! List only those operations that are applicable.

b) Do not use accessories which are not specifically designed and recommend by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

running faster than their rated speed can break and fly apart.

d) The outside diameter and the thickness of your accessory must be within capacity rating of your power tool. Incorrectly sized accessories cannot be adequately controlled.

e) The arbor size of wheels, sanding drums or any other accessory must profit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessive and may cause loss of control.

f) Mandrel mounted wheels, sanding drums, cutters or other accessories must fully inserted into the collet or chuck. If the mandrel is insufficiently held and overhang of the wheel is too long, the mounted wheel may become loose a ejected at high velocity.

g) Do not use a damaged accessory. Please inspect the accessory before ease use such as abrasive wheels for chips and cracks, sanding drum for cracks, excess wear, wire brush for loose or cracked wires.

If power tool or accessory is dropped, inspect for damage or install an unda accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating

accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face sh safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop aproncapable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying d generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation.

Prolonged exposure to high-intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpie or of a broken accessory may fly away and cause injury beyond immediate

operation.

c) The rated speed of the grinding accessories must be at least equal to the maximum speed marked on the power tool. Grinding accessories

j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own (Cutting accessory contacting a "ive" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

k) Always hold the tool firmly in your hand(s) during the start-up. The reactive torque of the motor, as it accelerates to full speed, can cause the tool to t1) Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Clampir small workpiece allows you to use your hand(s) to control the tool. Round m such as dowel rods, pipes or tubing has a tendency to roll while being cut, may cause the bit to bind or jump toward you.

m) Position the cord clear of the spinning accessory. If you lose control, the may be cut or snagged and your hand or arm may be pulled into the spin accessory.

n) Never lay the power tool down until the accessory has come to a complete. The spinning accessory may grab the surface and pull the power tool out of control.

0) After changing the bits or making any adjustments, make sure the collet I chuck or any other adjustment devices are securely tightened.

Loose adjustment devices can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

p) Do not run the power tool while carrying it at your side. Accidental contains the spinning accessory could snag your clothing, pulling the accessory into your body.

q) Regularly clean the power tool's air vents. The motor's fan will draw the inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

r) Do not operate the power tool near flammable materials. Sparks could igni these materials.

s) Do not use accessories that require liquid coolants. Using water or other coolants may result in electrocution or shock.

6) Further safety instructions for all operations

Kickback and related warnings:

Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stallir the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wh is entering into the pinch point can dig into the surface of the material caus the wheel to climb out or kick out. The wheel may either jump toward or a the operator, depending on the direction of the wheel's movement at the point pinching. Abrasive wheels may also break under these conditions. Kickback is result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm if you to resist kickback forces. The operator can control kickback forces, if pro precautions are taken.
b) Use special care when working corners, sharp edges, etc. Avoid bouncing snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
c) When attaching a toothed saw blade, since such blades create frequent kickback, make sure maintain a firm grip on the rotary tool and pos your body and arm to allow you to resist kickback forces.
d) Always feed the bit into the material in the same direction as the cutting exiting from the material (which is the same direction as the chips are throw. Feeding the tool in the wrong direction causes the cutting edge of the bit to out of the work and pull the tool in the direction of this feed.
e) When using rotary files, cut-off wheels, high-speed cutters or tungsten carb cutters, always have the work securely clamped. These wheels will grab if th become slightly canted in the groove, and can kickback.

When a cut-off wheel grabs, the wheel itself usually breaks. When a rotary high-speed cutter or tungsten carbide cutter grabs, it may jump from the groc and you could lose control of the tool.

6) Additional safety instructions for grinding and cutting-off operations

Safety warnings specific for grinding and abrasive cutting-off operations:

a) Use only wheel types that are recommended for your power tool and only recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

b) For threaded abrasive cones and plugs use only undamaged wheel mandrel with an unrelieved shoulder flange that are of correct size and length. Proper mandrels will reduce the possibility of breakage.

c) Do not "jam" a cut-off wheel or apply excessive pressure. Do not attempt make an excessive depth of cut. Over stressing the wheel increases the load and susceptibility to twisting or snagging of the wheel in the cut and the po of kickback or wheel breakage.

d) Do not position your hand in line with and behind the rotating wheel. Wr wheel, at the point of operation, is moving away from your hand, the possib kickback may propel the spinning wheel and the power tool directly at you.

e) When the wheel is pinched, snagged or when interrupting a cut for any switch off the power tool and hold the power tool motionless until the wheel to a complete stop. Never attempt to remove the cut-off wheel from the cut the wheel is in motion otherwise

kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging.

f) Do not restart the cutting operation in the workpiece. Let the wheel reach speed and carefully re-enter the cut. The wheel may bind, walk up or kickba the power tool is restarted in the workpiece.

g) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near edge of the workpiece on both sides of the wheel.

h) Use extra caution when making a "pocket cut" into existing walls or other areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warn and instructions may result in electric shock, fire and/or serious injury.

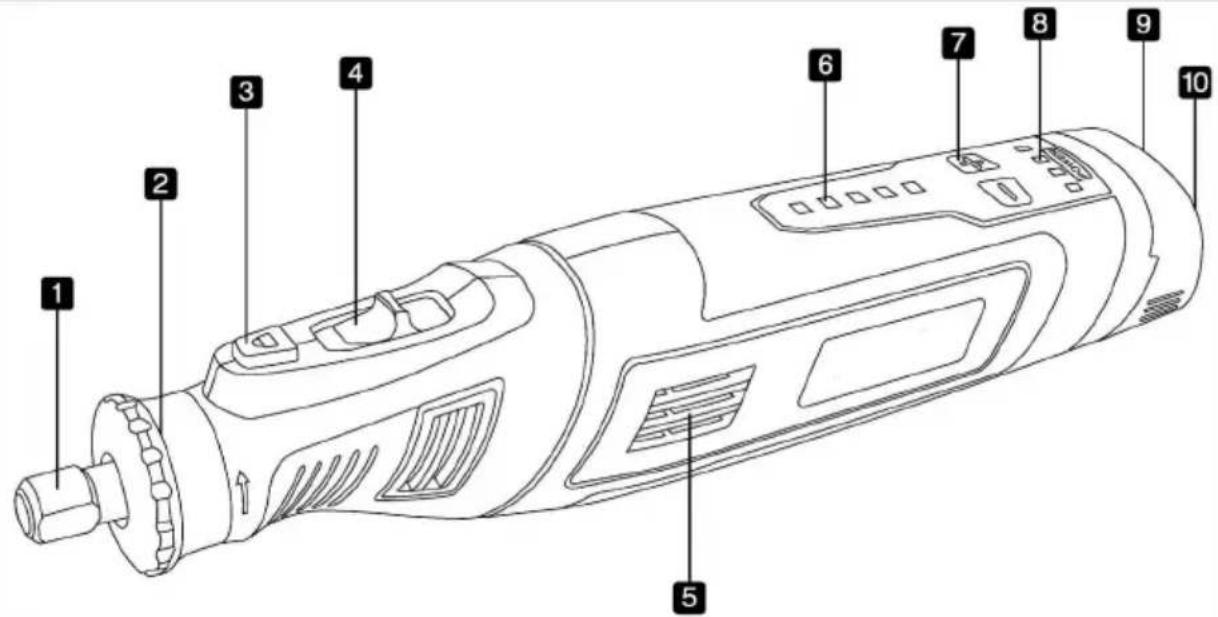

Technical diagram of a handheld device with numbered parts for identification

1. Collet nut
2. Shaft collar
3. Shaft lock button
4. On/Off button
5. Air vents
6. Speed indicator lights
7. Speed control buttons
8. Battery status indicator light
9. Charging port
10. Hanging ring

NOTE: This product does not come with a charger.

Technical Data

Rechargeable battery:	8V Li-ion 2500mAh
Charging voltage:	USB 5V DC
Charging cord:	Type C USB wire
Battery charging time:	about 1.5- 2.5hours
No load speed:	5000-30000 RPM
Collet size:	1.6mm (1/16")/2.3mm(3/32") / 3.2mm(1/8")

Operation

Charging the tool

Note! The Mini Grinder does not come completely charged from the factory. sure to charge tool prior to initial use.

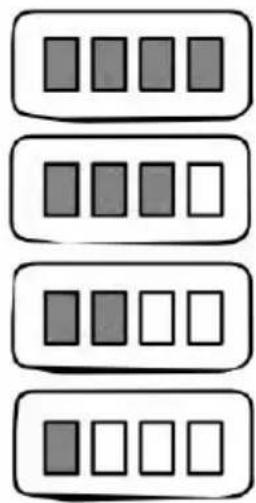

Battery Status Indicator

The rotary tool is equipped with a battery status indicator to show the battery charge state. Press the on/off button and see which LED lights up to gauge the status.

Four stacked rectangular panels with alternating dark and light squares, no text or symbols present

Full Charge

Mid Charge

Low charge; requires charging soon.

Battery requires immediate charging.

Note: Once connected for charging, the battery status indicator lights

will illuminate and blinking remain so whilst charging. when all four Li be illuminated without blinking means the tool is fully charged.

Turn On/Off the Tool and Setting the Speed Range

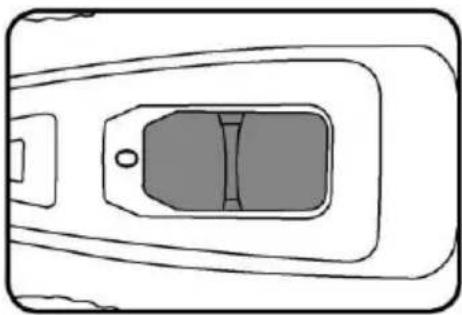

Turn On/Off the Tool

1. Press the on/off button to turn the tool on. The battery status indicator Li illuminate.
2. To turn the tool off, press the on/off button again.

Top-down schematic of a vehicle showing front, side, and top views (no text or symbols)

Setting the Speed Range

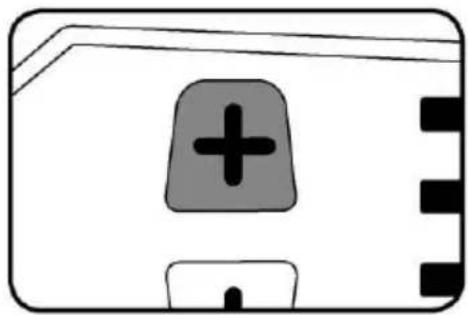

1. Once the tool is turned on, press the '+' button to increase the speed. Note: The default speed of the tool when turned on is 20, press the

‘+’ and ‘-’ buttons as appropriate to vary the speed setting between 5 and 30.

Note: This rotary tool has a gear setting memory function. When you set it to speed at '15', the tool will stay in speed '15' even after a restart.

Simple line drawing of a device with a plus sign and battery (no text or symbols)

1. To decrease the speed, press the '-' button.

Simple line drawing of a rectangular device with a central button and three vertical bars (no text or symbols)

Overheat Protection

Note! This tool is Mini Grinder for light-duty applications, do not abuse it for heavy duty or continuously for long time working.

The tool is designed as one of the most powerful tool on the same level. It perfect for light-duty DIY & crafting, and also can be short time working for cutting, drilling, or routing, but not recommended for continuously long time working or heavy duty since is still a mini grinder for light-duty applications. To avoid the user to abuse the tool, it is built in a overheat protection function, once the tool is overused and caused the quickly heating up, the overheat protection function will shut off the tool to avoid damage. After the tool rest and cool down to the normal temperature, restart it for your work.

Operating Instructions for Using the Rotary Tool

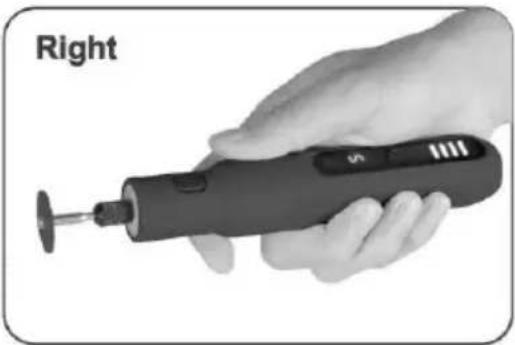

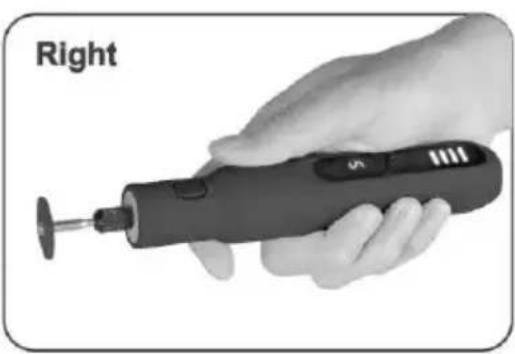

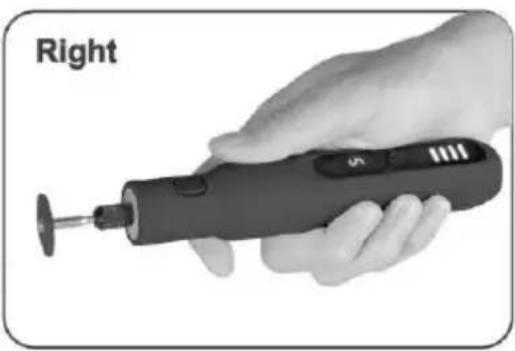

The first step in learning to use the rotary tool is to get the "feel" of it. Hold it in your hand and feel its weight and balance. Feel the taper of the housing. Always hold the tool away from your face. Accessories can be damaged during handling, and can fly apart as they come up to speed. This is not common, but it does happen. Whenever you hold the tool, be careful not to cover the air vents with your hand. This blocks the airflow and causes the motor to overheat. For best control in close work, grip the rotary tool like a pencil between your thumb and four fingers.

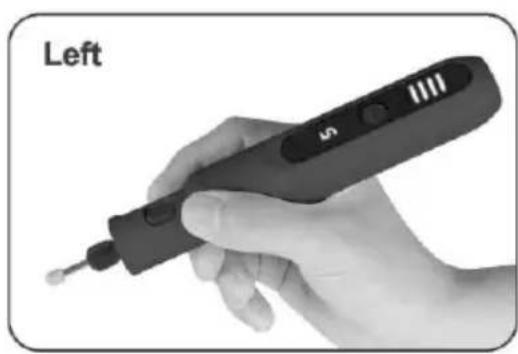

(See Figure Left). The "Golf Grip" method of holding the tool can be used for more aggressive operations such as grinding a flat surface or using cutoff wheels. (See Figure Right)

Hand holding a handheld electronic device with a 'Left' label (no other text or symbols visible)

Hand holding a handheld electric shaver with a black handle and circular tip, labeled 'Right' in the top-left corner (no other text or symbols visible)

Practice on scrap materials first to see how the Rotary Tool's high-speed action performs. Keep in mind that the work is done by the speed of the tool and by the accessory in the collet. You should not lean on or push the tool during use. Instead, lower the spinning accessory lightly to the work and allow it to touch the point at which you want cutting (or sanding or etching, etc.) to begin. Concentrate on guiding the tool over the work using very little pressure from your hand. Allow the accessory to do the work. Usually, it is best to make a series of passes with the tool rather than attempt to do all the work in one pass. To make a cut, for example, pass the tool back and forth over the work, much as you would a small paintbrush. Cut a little material on each pass until you reach the desired depth. For most work, the gentle touch is best. With it, you have the best control, are less likely to make errors, and will get the most efficient work out of the accessory.

Speed Setting for Accessories:

Note! Please check the reference list and select the right speed for each job using items appropriately. The number of speed level is from 1 to 5, the sp from 5k to 30k rpm accordingly.

Reminder! The following table is only a description of the use method of all accessories that may be used for this tool, such as application scenarios, processing materials, recommended speed selection, etc. Do not mean that the sales package contains all these accessories. The actual accessories which sa package included, please refer to the description of the sales link.

Functions	Images	Accessory Description	Cork	Hardwood	Plastic	Steel	Aluminum, brass, etc.	Shell, stone	Ceramic	Glass
Sanding		Sanding paper	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	—	—	—
		Sanding bands	Speed 1-4 RPM 5-16k	Speed 1-4 RPM 5-16k	Speed 1-4 RPM 5-16k	Speed 1-4 RPM 5-16k	Speed 1-4 RPM 5-16k	Speed 1-4 RPM 5-16k	Speed 1-4 RPM 5-16k	—
Cutting		Cutting blade	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	—	—	—	—	—
		Cut off wheels fiberglass	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	—	—	—
Grinding/ Sharpening		Silicon carbide grinding wheels with shank	—	—	—	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	—
		Aluminum oxide Grinding wheels with shank	—	—	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	—
		Rubber grinder with shank	—	—	—	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	—	—	Speed 3-5 RPM12-20k
Carving/ Engraving		Diamond grinding needle	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k
		HSS cutter	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	—	—	—	—	—
Drilling		HSS drill bit	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	Speed 4-5 RPM16-20k	—	—	—	—	—
Cleaning/ Polishing		Brushes	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k	Speed 2-4 RPM8-16k
		Felt wheels / Mandrel	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM12-20k	Speed 3-5 RPM11-20k
Accessories		Collets	To clamp accessories
		Wrench	For replacing the accessories
		Mandrel for cut off wheel	To link Rubber emery wheel/ Sanding paper / Diamond wheel/cut off wheels/ Grinding wheels
		Sanding shank	Mandrel drum for sanding bands installation

Accessories

Attaching Accessories

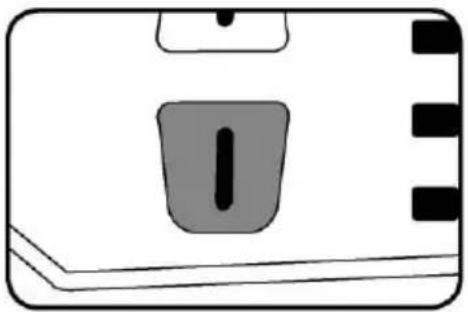

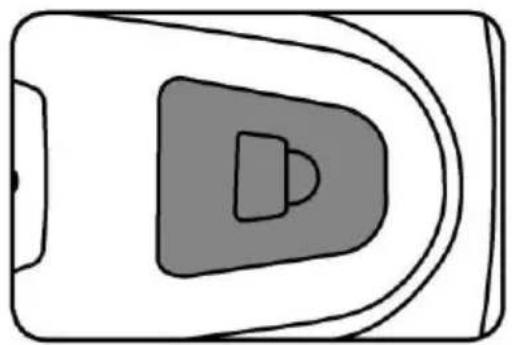

1. Press and hold the shaft lock button.

Simple line drawing of a device with a central button and curved top (no text or symbols)

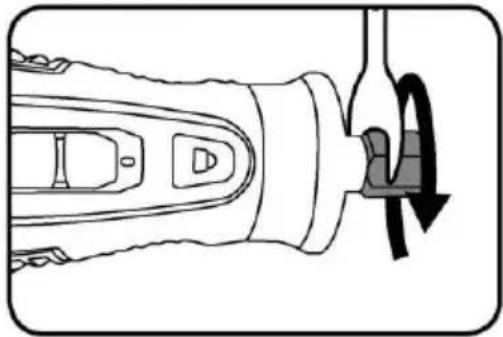

1. Using the supplied collet wrench, slightly loosen the collet nut.

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

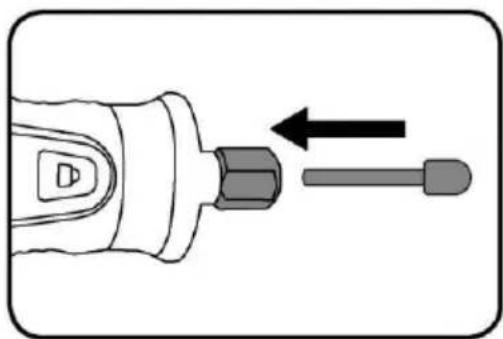

1. Insert the shaft of the accessory into the collet.

Diagram of a screwdriver with an arrow indicating direction (no text or symbols)

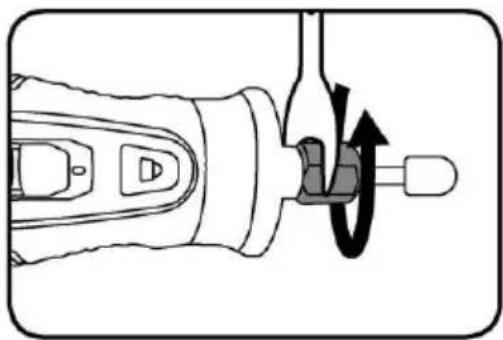

1. With the shaft lock button engaged, finger tighten the collet nut until the accessory shank is firmly gripped by the collet.

Diagram of a mechanical device with a rotating knob and connecting rod (no text or symbols)

Note: Avoid excessive tightening of the collet nut when no accessory is inserted, as this may cause the collet to get stuck in the collet nut. If this happens, push the shank of an accessory into the hole of the collet nut.

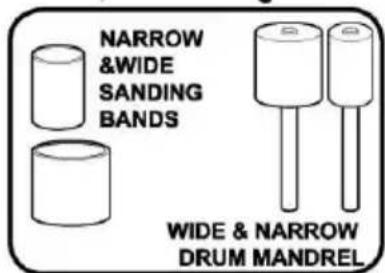

Sanding Bands

Materials: timbers, plastics, soft metals, ceramics, stone and glass. Sanding ban can be used for shaping wood, smoothing edges and sanding inside curves. drum mandrels allow you to easily replace the sanding bands when they be worn and lose their grit.

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

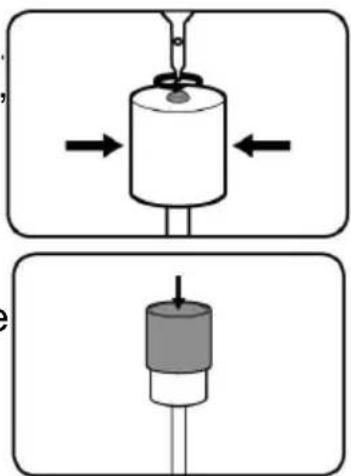

1. Using the small screwdriver on the back of the collet wrench, loosen the small screw on the drum mandrel to contract the drum.

2. Slide a sanding band onto the drum and retighten the screw to hold the band in place.

Diagram showing two mechanical or electrical component configurations with directional arrows indicating movement or force direction.

WARNING! before each use, ensure that the drum is sufficiently expa to secure the band during use. loose accessories may fly off and ca injury to the operator and/or bystanders.

Sanding Discs

Materials: timbers, plastics, soft metals, ceramics, stone and glass. Sanding discs are good for smoothing and shaping wood or fibreglass stripping paint and removing rust. The flexible discs make them good sanding contoured surfaces and hard to reach areas. Attach these to screw mandrel for use and replace them when worn.

SANDING DISCS SCREW MANDREL

1. Loosen and remove the small screw from the top of the screw mandrel with the small screwdriver on the back of the collet wrench. Also remove one of the washers from the mandrel.

2. Slide a sanding disc onto the mandrel, then replace the wash and screw to hold the disc in

WASHER WASHER DISC

Cut-Off Wheels

Materials: timbers, plastics, soft metals, ceramics, stone and glass.

These emery discs can be used for shortening bolts, reslotting stripped screwheads, cutting through small rod and tubing or making rectangular holes in sheet metal. Attach these to a sc mandrel for use and replace them with worn.

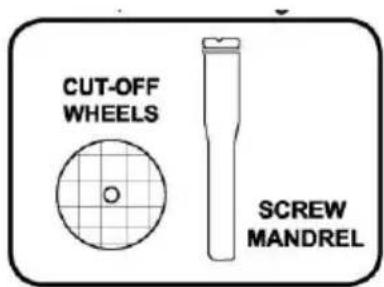

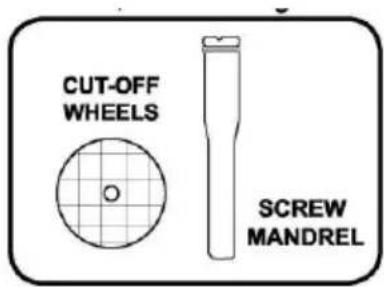

CUT-OFF WHEELS SCREW MANDREL

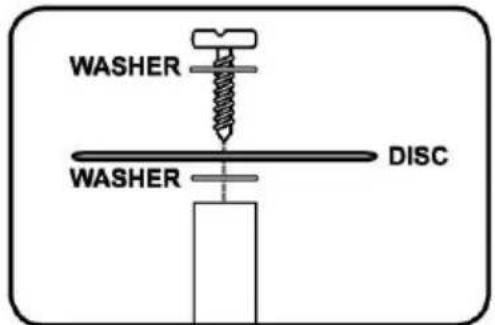

1. Loosen and remove the small screw from the top of the screw mandrel. Also remove one of the washers from the mandrel.
2. Slide a cut-off wheel onto the mandrel, then replace the washer and screw to hold the disc in place.

WASHER WASHER DISC

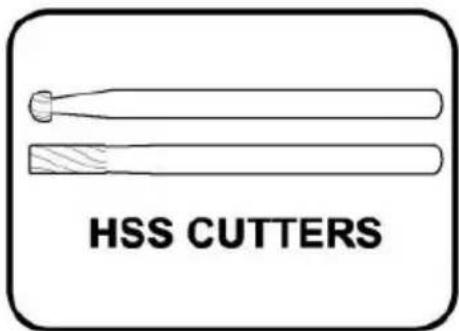

HSS Cutters

Materials: leather, timbers, plastics, sc metals (aluminium, copper, brass etc.) and clay.

High speed cutters can be used for carving, cutting out grooves, slots and inlays or hollowing out surfaces.

HSS CUTTERS

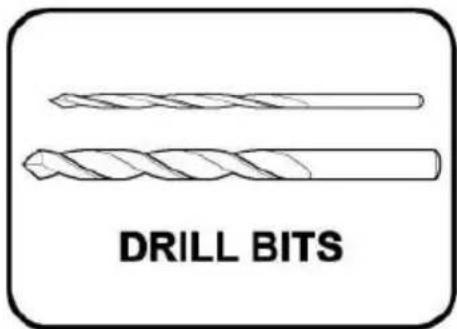

Drill Bits

Materials: timbers, plastics and soft metals.

These are ideal for making small ho in workpieces. Change out the colletsuit the size of the drill bit shank.

DRILL BITS

Steel Brushes

Materials: brass, copper, pewter, aluminium stainless steel. The steel brushes are ideal for Removing rust and corrosion, polishing Deburring and blending surfaces, as well as cleaning electrical components.

STEEL BRUSHES

Note: Allow the tips of the wire brushes to do the work. Do not ap excessive pressure or use the sides of the bristles on the work surfa this may cause thebristles to wear and break.

Nylon Brushes

Materials: hard plastic, aluminium,

NYLON BRUSHES

silverware, jewellery and other precious metals.

The nylon brushes are ideal for light deburring, general cleaning and

polishing jobs. These can also be used with polishing compound (not supplied) for faster cleaning or polishing.

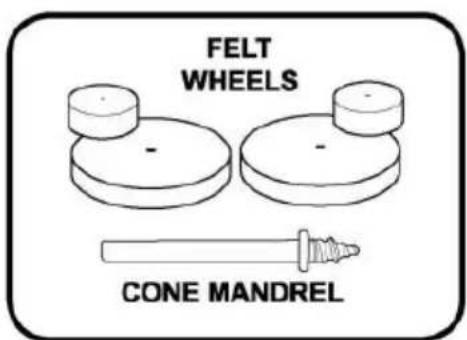

Felt Wheels

Materials: plastics, jewellery, soft and ferrous metals, stone, glass and ceramics

The felt polishing wheels can be to smooth semi-rough surfaces, cleaning and polishing. The cloth v is ideal for polishing silverware or detailing to a high lustre and restoring door or window hardware. Attach these to the cone mandrel for use.

FELT WHEELS CONE MANDREL

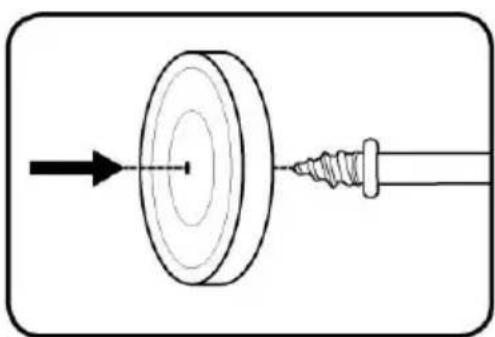

1. Thread the felt wheel straight down onto the cone mandrel and tie all the way down to the collar of the shank.

Diagram of a mechanical component with a rotating shaft and threaded end, showing concentric circular features (no text or symbols)

Rubber Polishing Point

Materials: stone, ceramics and ferrous metals.

The rubber tip is embedded with abrasives for removing rough areas, small burrs and scratch marks left from grinding and sanding. Also ideal for cleaning and defining grooves.

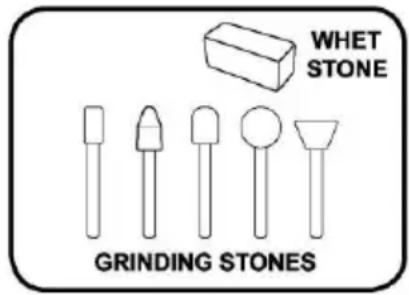

Grinding Stones

Materials: soft and hard metals (including stainless steel), ceramic,

stone, glass.

The aluminium oxide grinding stones are great for cleaning up welded jo deburring castings, removing rust, cutting rivets, sharpening tool blades just general purpose grinding on me

WHET STONE GRINDING STONES

The grinding stones will wear out with use, and make subsequent use uneven and hard to control for precision work. These can be reshaped using the method below.

1. Secure the unbalanced grinding stone in the rotary tool.
2. Turn on the rotary tool and run the whet stone lightly against the revolving grinding stone.

This will remove high spots on the accessory.

Technical line drawing of a mechanical component with a knob and shaft (no text or symbols)

Diagram of a handheld device with a circular button and rectangular block, no text or symbols present

Note: Maintain a firm grip on the rotary tool and the whet stone. Do not apply excessive pressure against the spinning grinding stone, let the whet stone and tool do the work.

Note: The accessories used with different product models vary, and it impossible to provide a comprehensive introduction of all of them. The above introduction serves only as a reference for operation. The spec accessories should be determined based on the actual items purchase

WARNING! wear safety glasses, well fitting gloves and be mindful ab-finger placement when holding the whet stone against the grinding accessory.

Cleaning&maintenance

Always pull out the mains power plug before starting any cleaning wo

Cleaning

Keep all safety devices, air vents and the motor housing free of dirt and du as possible.

Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do no cleaning agents or solvents; these could attack the plastic parts of the equipr Ensure that no water can seep into the device.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Outil rotatif

Line drawing of a handheld electronic device with ports and control panel (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

Four horizontal rectangular panels with alternating dark and light squares, arranged vertically (no text or symbols)

Full Charge

Mid Charge

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down schematic of a vehicle showing front, side, and top views (no text or symbols)

Simple line drawing of a device with a plus sign and battery (no text or symbols)

Simple line drawing of a rectangular device with a central button and three vertical bars (no text or symbols)

Hand holding a handheld electronic device with a 'Left' label (no other text or symbols visible)

Hand holding a handheld electric shaver with a black handle and a circular tip, labeled 'Right' in the top-left corner (no other text or symbols visible)

Simple line drawing of a device with a central button and curved top (no text or symbols)

Technical diagram of a mechanical component with directional arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with two arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

Simple diagram of a cylindrical object with an arrow pointing upward, mounted on a vertical rod (no text or symbols)

WASHER WASHER DISC

WASHER WASHER DISC

Fraises HSS

HSS CUTTERS

Forets

Diagram of a mechanical component with a rotating shaft and threaded end, showing concentric circular features (no text or symbols)

Diagram of a mechanical component with a knob and shaft, no text or symbols present

à surfaces

Diagram of a handheld device with a circular arrow indicating rotation or adjustment (no text or symbols)

Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Rotationswerkzeug

Modell: S0J-FE12-10

Modell: S0J-FE12-10

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

Four horizontal rows of rectangular blocks with varying shades of gray and white, arranged vertically (no text or symbols)

Full Charge

Mid Charge

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down schematic of a vehicle showing front and side views (no text or symbols)

Simple line drawing of a device with a plus sign and a button (no text or symbols)

Simple line drawing of a device with a button and three vertical bars (no text or symbols)

Überhitzungsschutz

Hand holding a handheld electronic device with a black handle and indicator lights (no visible text or symbols)

Hand holding a handheld electric shaver with a black body and control buttons (no visible text or symbols)

Simple line drawing of a device with a central button and curved top (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a screwdriver with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

WASHER WASHER DISC

WASHER WASHER DISC

HSS-Fräser

HSS CUTTERS

Bohrer

Diagram of a mechanical component with a rotating shaft and threaded end, showing motion direction (no text or symbols)

Gummi-Polierspitze

Technical line drawing of a mechanical component with a central rotating knob (no text or symbols)

und

Diagram of a handheld device with a circular knob and rectangular base, no text or symbols present

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Utensile rotante

Modello: S0J-FE12-10

Modello: S0J-FE12-10

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

Four horizontal rows of rectangular blocks with varying shades of gray and white, arranged vertically (no text or symbols)

Full Charge

Mid Charge

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down schematic of a vehicle showing front, side, and top views (no text or symbols)

Simple line drawing of a device with a plus sign and battery (no text or symbols)

Simple line drawing of a rectangular device with a central button and three vertical bars (no text or symbols)

Hand holding a handheld electronic device with a label 'Left' in the top-left corner (no other text or symbols visible)

Hand holding a handheld electric shaver with a black body and a circular tip, labeled 'Right' in the top-left corner (no other text or symbols visible)

Simple line drawing of a device with a central button and curved top (no text or symbols)

Technical diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a screwdriver with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

WASHER WASHER DISC

rondella

Dischi da taglio

WASHER WASHER DISC

Frese HSS

HSS CUTTERS

Punte da trapano

Diagram of a mechanical component with a rotating shaft and concentric rings, showing directional flow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical tool with a rotating knob and a rectangular block (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down schematic of a vehicle showing front, side, and top views (no text or symbols)

Simple line drawing of a device with a plus sign and a button (no text or symbols)

Simple line drawing of a device with a button and three vertical bars (no text or symbols)

Hand holding a handheld electronic device with a 'Left' label (no other text or symbols visible)

Hand holding a handheld electric shaver with a black handle and a circular head (no text or symbols visible)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

WASHER WASHER DISC

arandela su lugar.

Discos de corte

WASHER WASHER DISC

Fresas HSS

HSS CUTTERS

Brocas

Diagram of a mechanical component with a rotating shaft and threaded end, showing concentric circular features (no text or symbols)

Diagram of a mechanical component with a knob and shaft, no text or symbols present

trabajos

Diagram of a handheld device with a rotating knob and rectangular block, no text or symbols present

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Narzędzie obrotowe

Model: S0J-FE12-10

Model: S0J-FE12-10

Line drawing of a handheld electronic device with ports and control panel (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

Four horizontal rows of rectangular blocks, each containing three shades of gray and one white (no text or symbols)

Full Charge

Mid Charge

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down line drawing of a car interior with no text or symbols

Simple line drawing of a device with a plus sign and battery (no text or symbols)

Simple line drawing of a rectangular device with a central button and three vertical bars (no text or symbols)

Hand holding a handheld electronic device with a 'Left' label (no other text or symbols visible)

Hand holding a handheld electric shaver with a black handle and control buttons (no text or symbols visible)

Simple line drawing of a device with a central button and curved top (no text or symbols)

Technical diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a screwdriver with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating shaft and housing, showing motion direction (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

Diagram of a mechanical device with arrows indicating force or movement (no text or symbols)

Simple diagram of a cylindrical object with a pointer and two stacked layers, no text or symbols present.

WASHER WASHER DISC

podkładkę

WASHER WASHER DISC

CUT-OFF WHEELS SCREW MANDREL

Frezy HSS

HSS CUTTERS

Diagram of a mechanical component with a pulley and threaded shaft, showing directional flow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a handheld device with a circular button and rectangular block, no text or symbols present

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Roterend gereedschap

Model: S0J-FE12-10

Model: S0J-FE12-10

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down schematic of a vehicle showing front, side, and top views (no text or symbols)

Simple line drawing of a device with a plus sign and a button (no text or symbols)

Simple line drawing of a device with a button and three vertical bars (no text or symbols)

Oververhittingsbeveiliging

Hand holding a handheld electronic device with a 'Left' label (no other text or symbols visible)

Hand holding a black handheld electric shaver with a circular head and control buttons (no text or symbols visible)

Simple line drawing of a device with a central button and surrounding components (no text or symbols)

Technical diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a screwdriver with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

WASHER WASHER DISC

plaats te

Afkortschijven

Materialen: hout, kunststoffen, zachte metalen, keramiek, steen en glas.

WASHER WASHER DISC

HSS-frezen

Materialen: leer, hout, kunststof, zachl metalen (aluminium, koper, messing e en klei.

HSS CUTTERS

Boortjes

Diagram of a mechanical component with a rotating shaft and concentric rings, showing directional flow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

en laat

Diagram of a handheld device with a circular component inserted, showing a button and a separate rectangular block (no text or symbols present)

Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Roterande verktyg

Modell: S0J-FE12-10

Modell: S0J-FE12-10

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

Product Description and Specifications

Technical diagram of a handheld device with numbered parts for identification

1. Spännhylsmutter
2. Axelkrage
3. Axellåsknapp
4. På/Av-knapp
5. Luftventiler
6. Hastighetsindikatorlampor
7. Hastighetskontrollknappar
8. Batteristatusindikatorlampa
9. Laddningsport
10. Hängande ring

Low charge; requires charging soon.

Battery requires immediate charging.

Top-down line drawing of a car interior with no text or symbols

Simple line drawing of a device with a plus sign and a battery (no text or symbols)

Simple line drawing of a rectangular device with a central button and three vertical bars (no text or symbols)

Överhettningsskydd

Hand holding a handheld electronic device with a label 'Left' in the top-left corner (no other text or symbols visible)

Hand holding a handheld electric shaver with a black body and a circular head (no text or symbols visible)

Simple line drawing of a device with a central button and curved top (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a screwdriver with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

NARROW &WIDE SANDING BANDS WIDE & NARROW DRUM MANDREL

Diagram showing two mechanical or electrical component configurations with directional arrows indicating movement or force direction.

WASHER WASHER DISC

plats.

Kapskivor

WASHER WASHER DISC

HSS-skärare

HSS CUTTERS

Borrbitar

Diagram of a mechanical component with a central shaft and threaded end, showing motion direction (no text or symbols)

Gummipoleringspunkt

Diagram of a mechanical device with a central knob and a handle, showing no text or symbols.

Diagram of a handheld device with a circular component inserted, showing a button and a rectangular block (no text or symbols)

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
