USER MANUAL LTCZ-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE CHANGER

MODEL: LTCZ-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

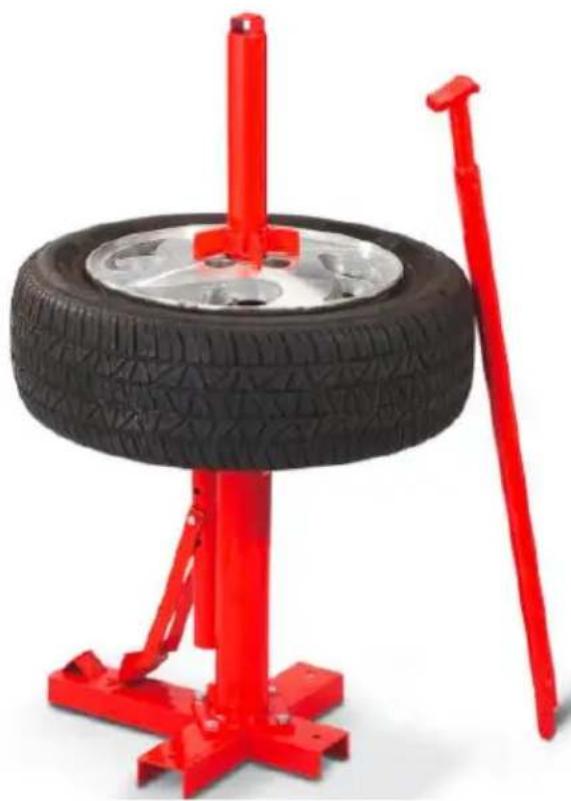

TIRE CHANGER

MODEL: LTCZ-B

Red manual tire mounted on a stand with a tool extending upward (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SPECIFICATIONS

Model	Fit Tire Diameter (inch)	Net Weight (kg)	Gross Weight (kg)	Package Size (mm)
LTCZ-B	8-16	14.5	15.5	940×230×230

Safety & Warning

• Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.
• Please release tire air pressure before using this tire changer.
  ● Always wear ANSI-approved safety goggles, steel-toed boots and protective gloves while operating the tire changer.
• Before and after each use, check to make sure that all hardware tightly secured. Regularly inspect for damage. If fraying or distortio found, immediately discontinue use.
• Use common sense when working. Stay alert and concentrate when setting up and using the tire changer. Never work while under the influence of alcohol, drugs or medications.
• While assembling and using the tire changer, keep the work area and well-lighted. Keep spectators and children out of the work area
• Dress appropriately. Never wear loose-fitting clothing or jewelry when working. Contain long hair, and keep hair, clothing and gloves aw from moving parts.

PACKAGE CONTENTS

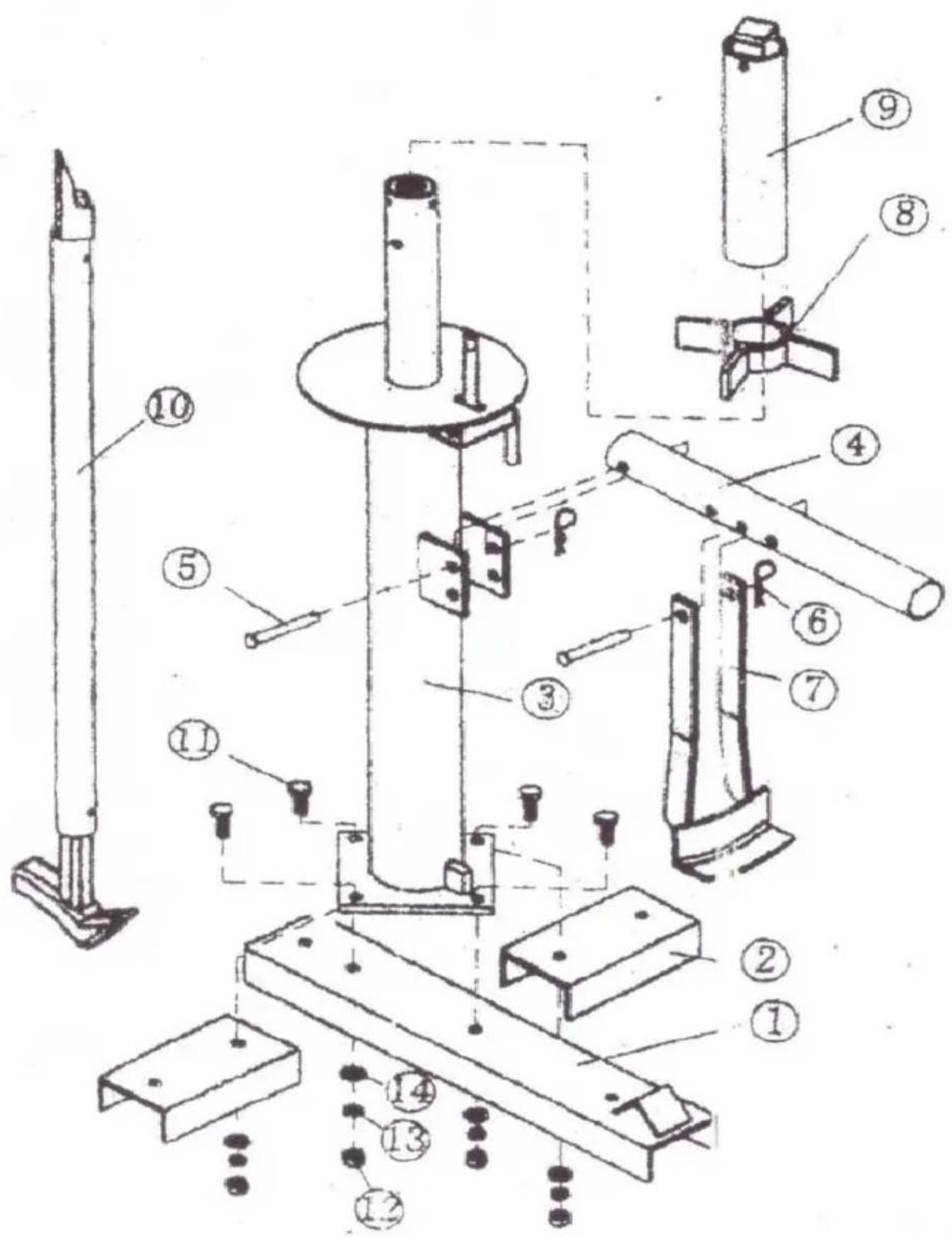

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Item No.	Description	Qty.	Item No.	Description	Qty.
1	Long Leg	1	8	Platen	1
2	Short Leg	2	9	Threaded Rod	1
3	Support Rod	1	10	Crowbar	1
4	Casina Pipe	1	11	Bolt M10×25	4
5	Lock PIN	2	12	Nut M10	4
6	R Pin	2	13	Spring Washer	4
7	Arc Shovel	1	14	Plate Washer	4

INSTALLATION GUIDE:

A. Place the short leg(2) on either side of the long leg(1) and vertically.Attach support rod (3) to short leg(2) and long leg (1)with bolts (11),nuts (12),spring washer(13)and plate washe (14).
B. Lift the casina pipe(4) and align the hole openings on casino pipe(4) and support rod (3), insert the lock pin(5) to holes, in R pin(6) to the hole of lock pin(5) at last.
C. Lift the arc shovel(7) and align the hole openings on casina pipe(4) and arc shovel(7), insert the lock pin(5) to holes, inse pin(6) to the hole of lock pin(5) at last.
D. Attach the component to the floor of the workplace with expansion screws.

OPERATION.

A. Remove the tire

Close-up of a person using a tire lift on an orange industrial support structure (no visible text or symbols)

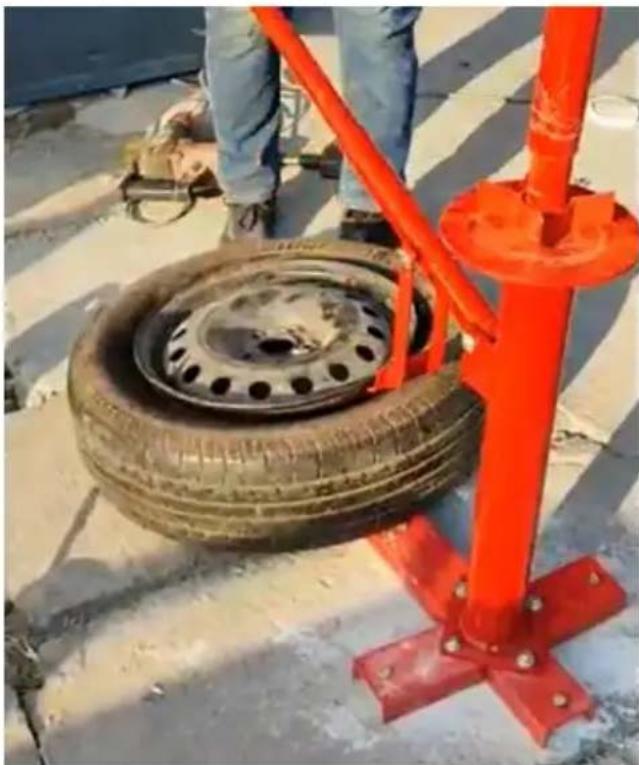

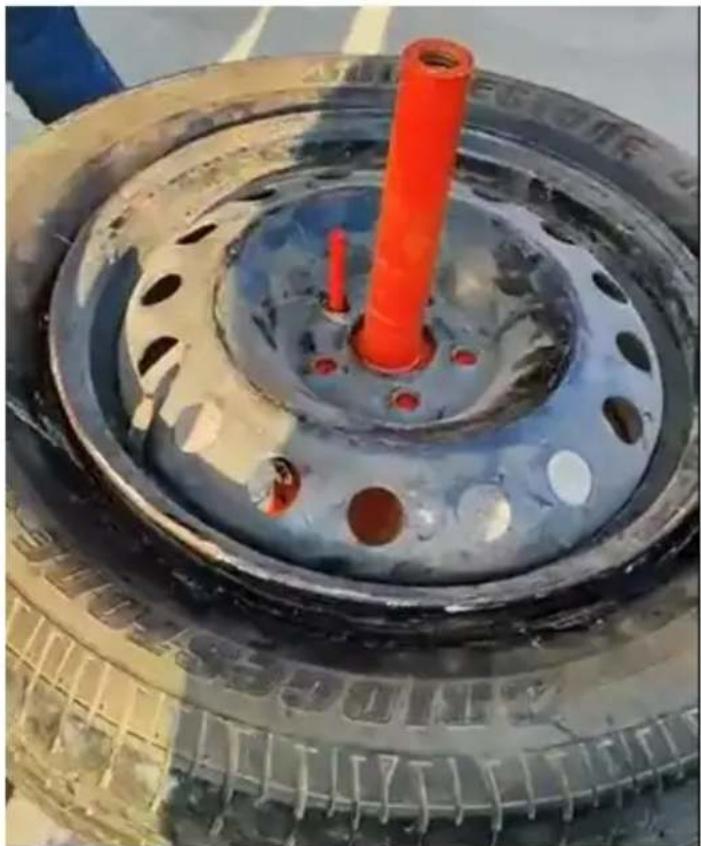

1. Insert the crowbar(10) to the casina pipe(4).Place the arc shovel between the hub and the tire. Press hard on the crowbar to free the tire from the hub.

Close-up of a damaged tire with orange pipes and perforated rim, no visible text or symbols

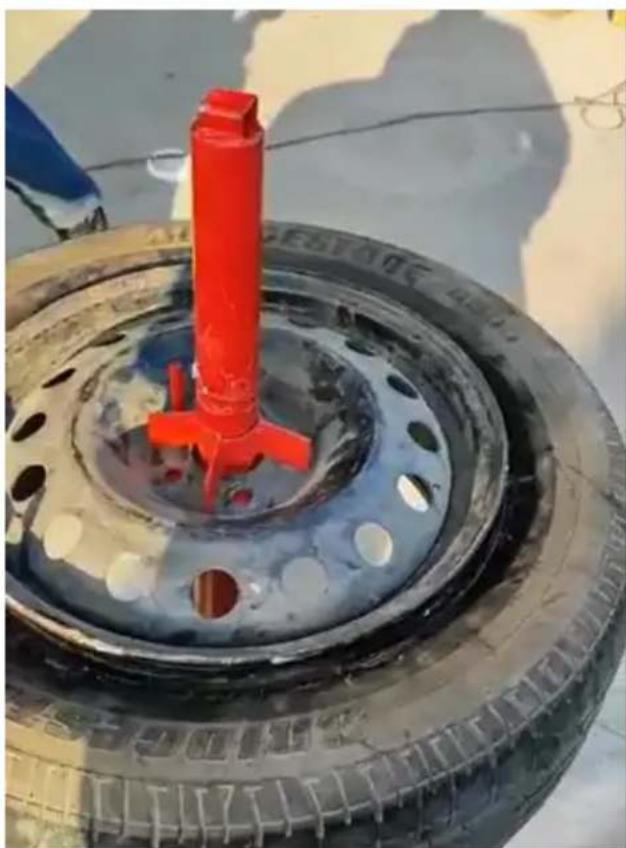

1. Place the whole wheel on the tire changer and place the of the wheel in line with the dowel pin.

Close-up of a red tire mounted on a black tire wheel, with no visible text or symbols.

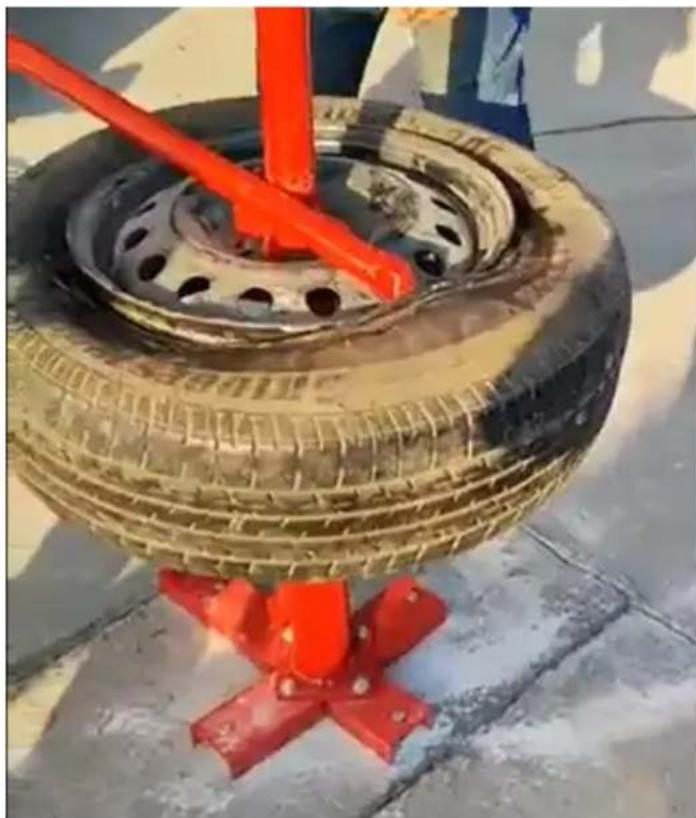

1. Insert the platen(8) and threaded rod (9), rotate the thread rod so that the platen compacts the hub.

Close-up of a damaged tire with red-handled tool, no visible text or symbols

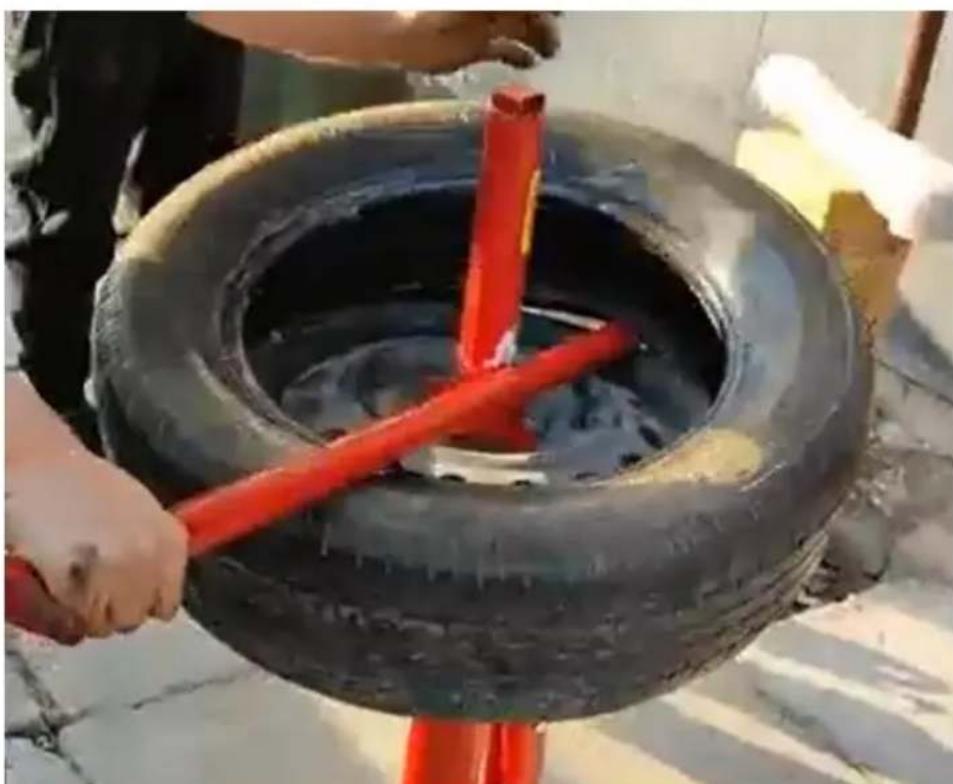

1. Use the crowbar(10) to pry one side of the tire from the and rotate against the threaded rod (9) to peel the tire from the

Person washing a large tire with red-handled sticks, no visible text or symbols

1. Repeat step 4 to remove the other side of tire from the

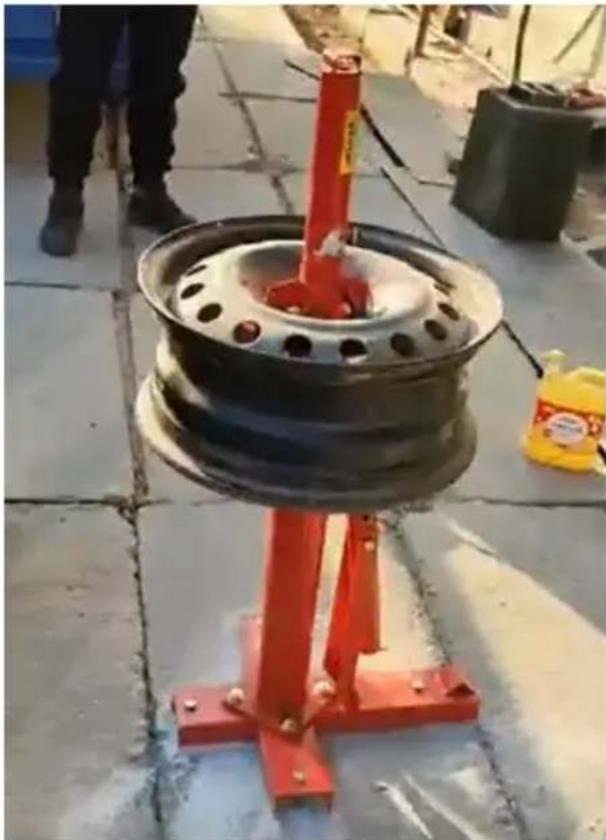

B、Tire assembly

Red bicycle lift with red lever and wheel, standing on concrete floor (no visible text or symbols)

1. Attach the hub to the tire changer.

Close-up of a hand using a red tool to lift a tire, no visible text or symbols

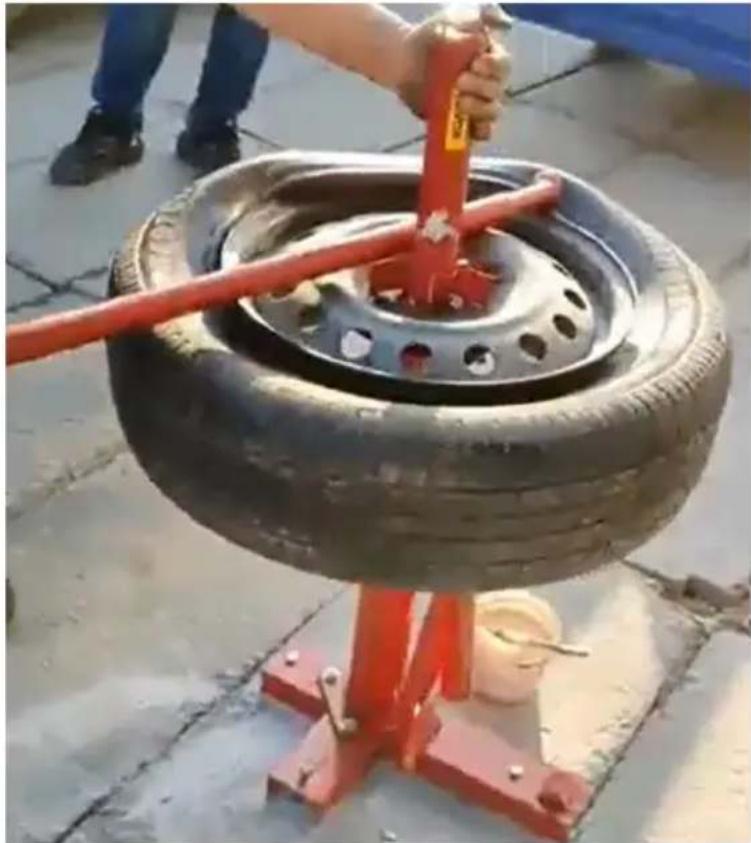

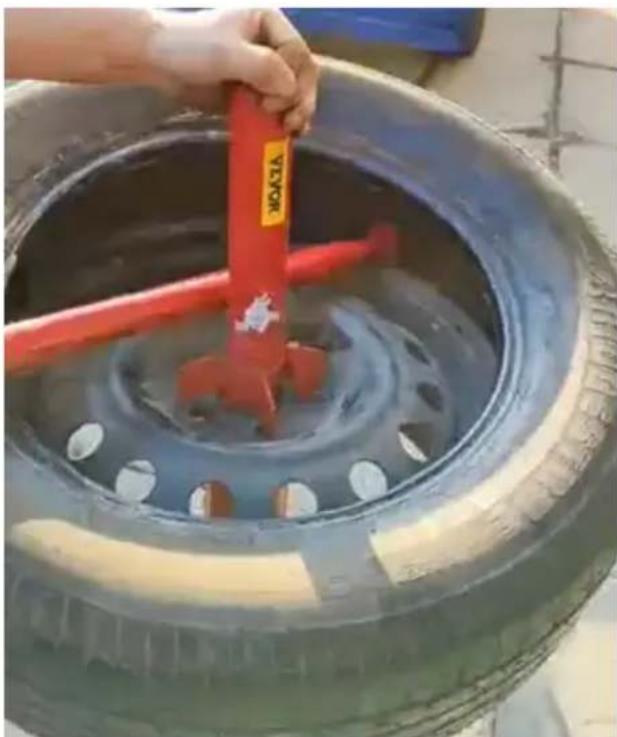

1. Insert one side of the tire and rotate with the crowbar(10) ag the threaded rod (9) to load one side of the tire into the hub.

Close-up of a red-handled tire being hoisted by hand, with another person standing nearby (no visible text or symbols)

1. Repeat step 2 to load the other side of tire into the hub.
