USER MANUAL 8625-4 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
GEAR PULLER
MODEL:8625-4
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings
you might benefit from buying certain tools with us compared to the major top brands and doses necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify ca when you are placing an order with us if you are actually saving half in comparison with the top ma
VEVOR®

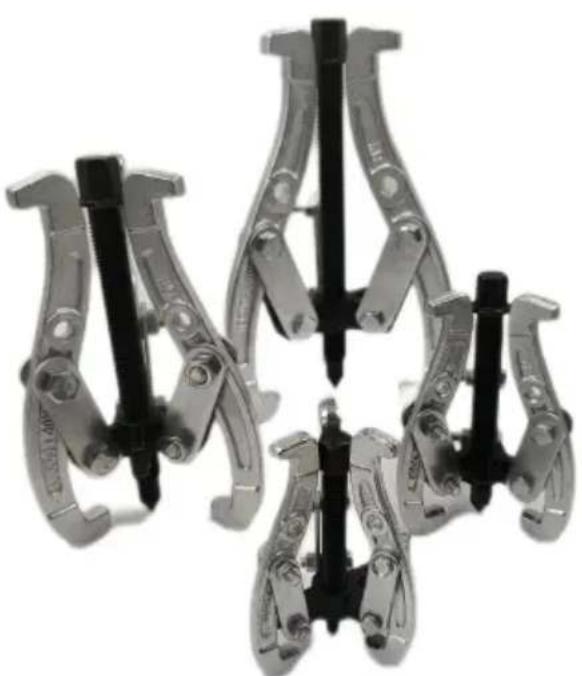

GEAR PULLER
MODEL: 8625-4
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

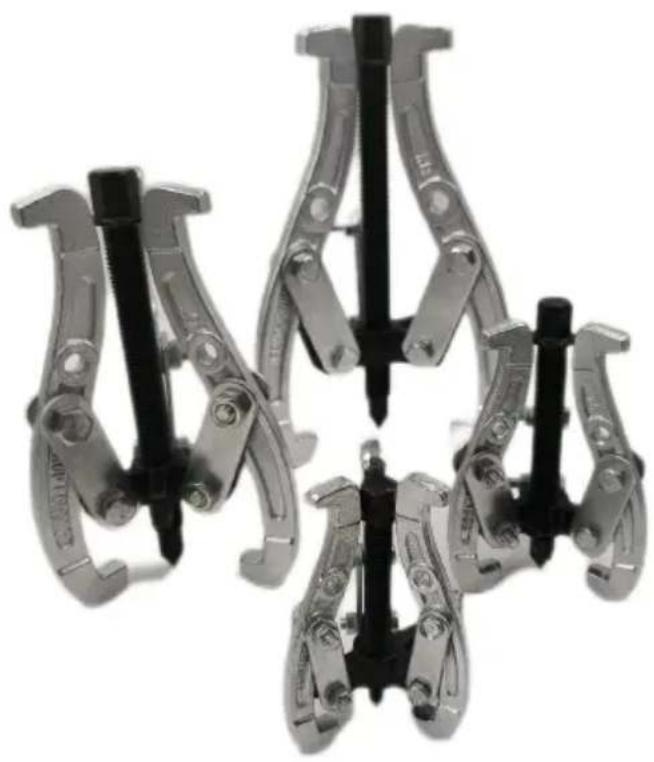

Safety & Warning
- Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warning and instructions can cause death, personal injury, or damage value property.
- While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
- Wear ANSI-approved safety goggles, heavy-duty work gloves, and safety shoes during use.
- Use as intended only.
- Before each use, inspect the general condition of the product. Check for: broken, cracked, or bent parts, loose or missing parts, and a condition that may affect the proper operation of the product.
- After every use, wipe with a clean cloth. Then, store the product in safe, dry location out of reach of children and other non-authorize people.
- Ensure only genuine parts are used for replacement & Repair.
- Be aware of dynamic loading! The sudden load movement may bring create an excess load, causing product failure.
Specifications
| Model Series | 8625-4 |
| Max. Tensile Force (t) | 1/1.5/2.7/4 |
| Max. Jaw Spread(inch) | 3/4/6/8 |
| Structural Style | Mechanical |
Figure of the Product
4 different models and the BOM for each model are as follows
| Part | Description | Qty. |
| 1 | Screw Stem | 1 |
| 2 | Pull Tab | 6 |
| 3 | Bolt | 6 |
| 4 | Nut | 6 |
| 5 | Puller Ring | 1 |
| 6 | Claw Feet | 3 |
NOTE:
6 plain nuts are required for assembly of each model. In addition, we present 6 anti-falling nuts, which you can choose to use according to the actual operation.
Installation instructions

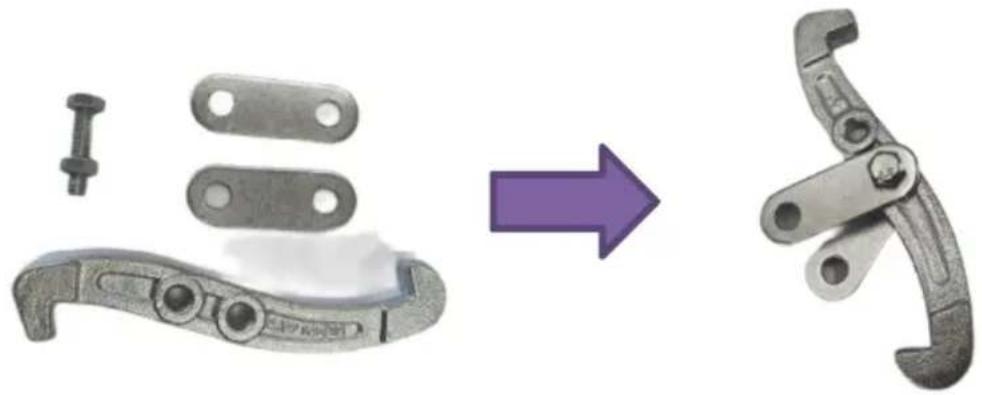

Step 1.
Step 2.

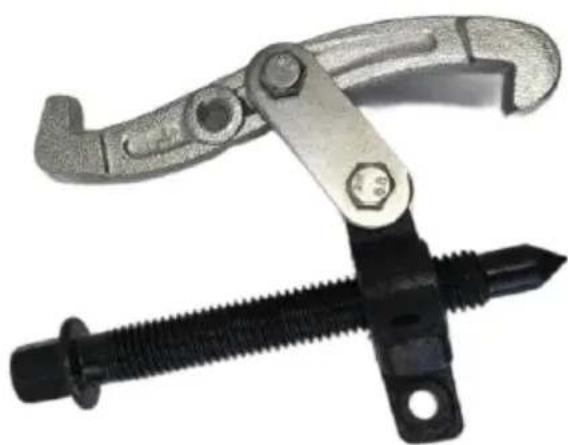

Step 3.

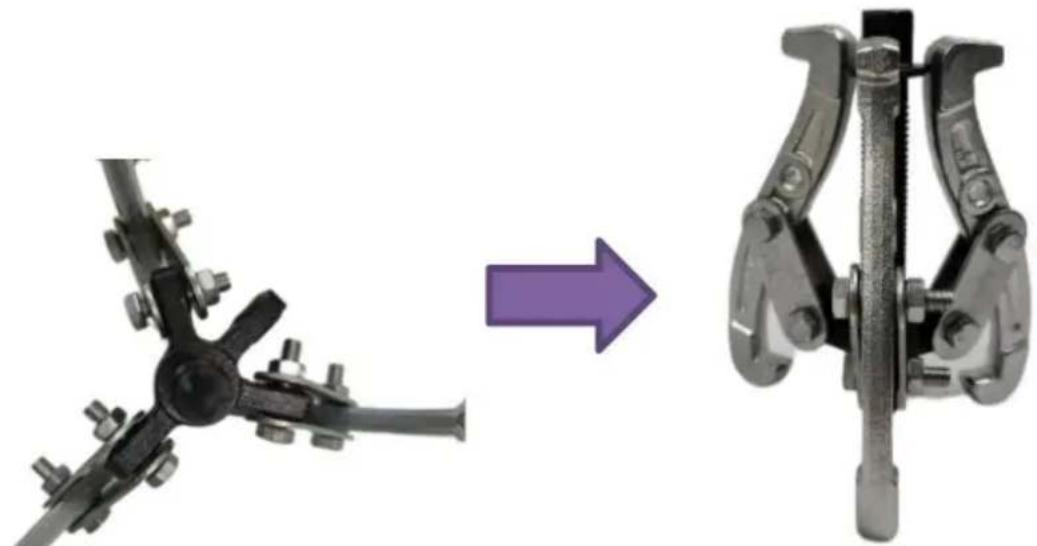

Step 4.

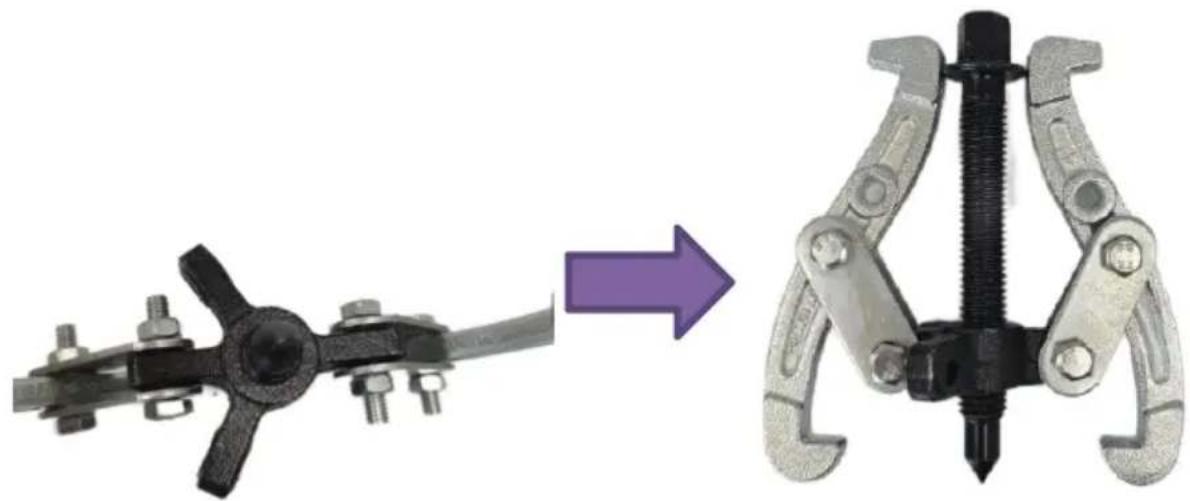

Double Leg Pattern

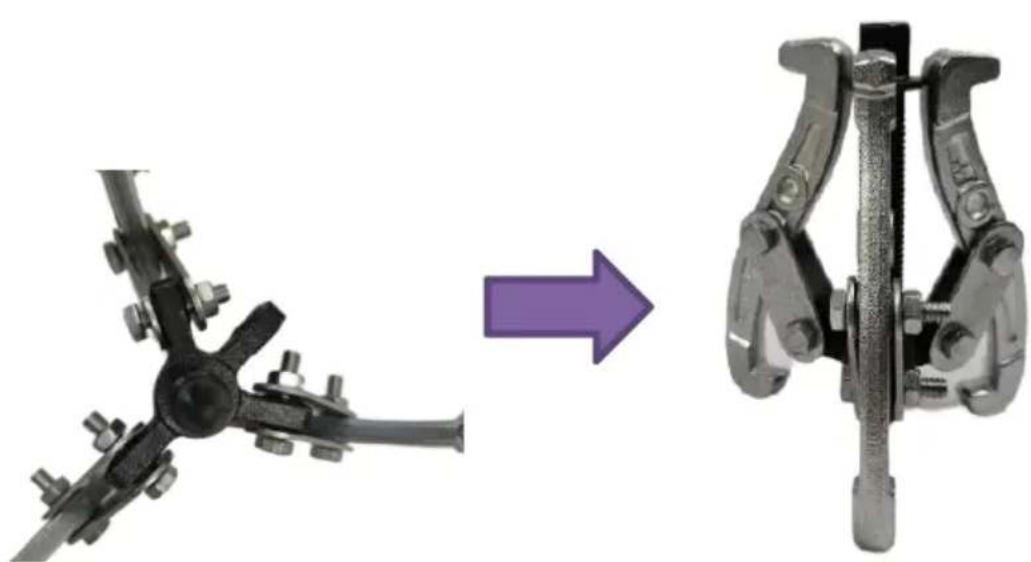

Three-legged Pattern
Instructions
A.Gear puller is often used in mechanical maintenance.
B. It is mainly used to remove the damaged bearings from the shaft the axis.
C. It mainly comprises a rotating handle, a screw rod, and a pulling. There are two claws, three claws, the main size of the length of the claw, pull claw spacing, and screw length, to adapt to different diamete and different coaxial installation depths of the bearing.
D. When in use, the screw center is positioned at the shaft end cent to adjust the position of the pulling claw so that the pulling claw is to the outer ring of the bearing, and the rotating handle makes the claw drive the bearing to move outward along the axis to remove.
Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate www.vevor.com/support Made In China
VEVOR®
TOUGH TOOLS, HALF PRICE
Assistance technique et certificate de garantie electronique www.vevor.com/support
EXTRACTEUR D'ENGRENAGES
MODELE:8625-4
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
www.vevor.com/support
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
Fabricado en China
VEVOR®
TOUGH TOOLS, HALF PRICE
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
www.vevor.com/support
HULP NODIG? NEEM CONTACT MET ONS OP!
Installatie-instructions

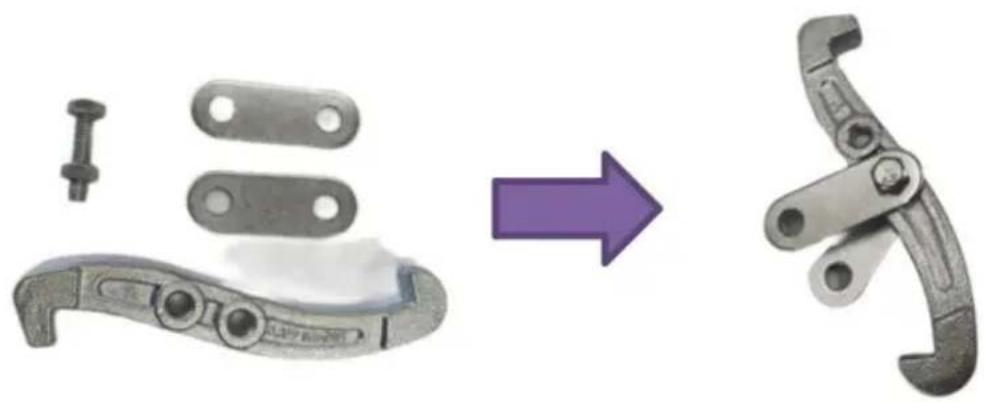

Stap 1.
Stap 2.

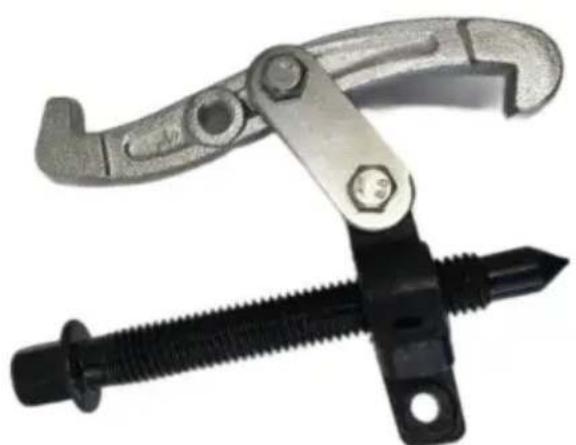

Stap 3.

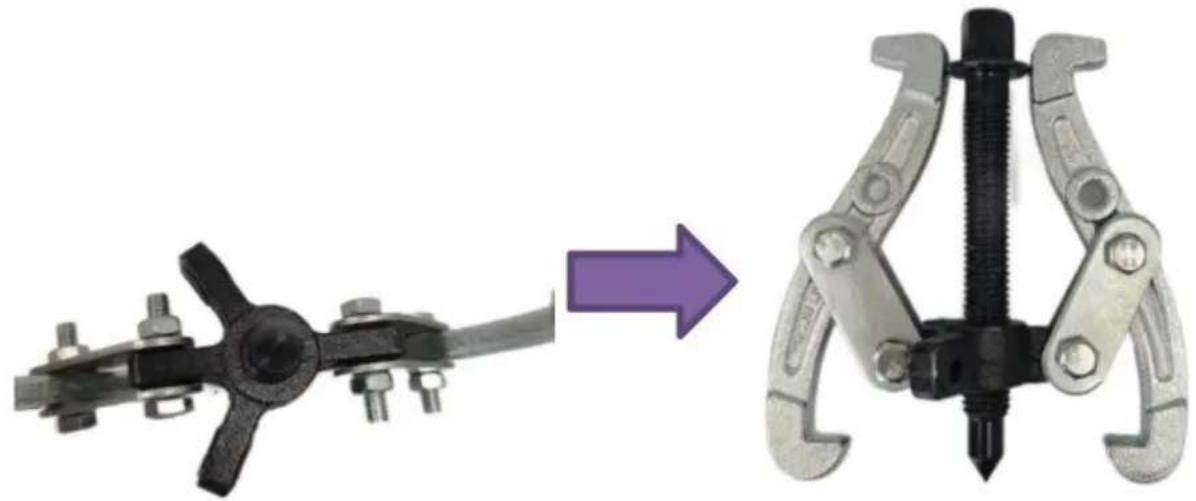

Stap 4.
