USER MANUAL HKB1040B Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

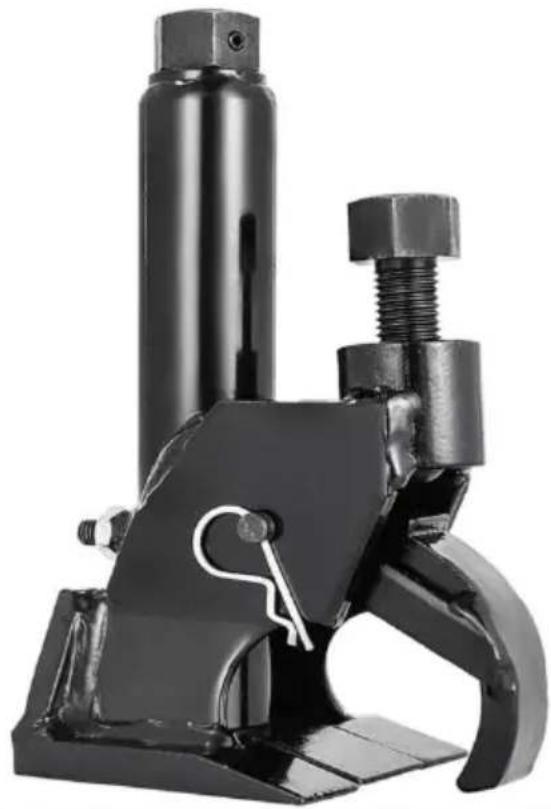

TIRE BEAD BREAKER
MODEL: HKB1040A/HKB1040B
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an esti savings you might benefit from buying certain tools with us compared to the major top brand doses not necessarily mean to cover all categories of tools offered by us. You are kindly ren verify carefully when you are placing an order with us if you are actually saving half in comp; the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
TIRE BEAD BREAKER
MODEL: HKB1040A/HKB1040B
Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
SPECIFICATIONS
| Model | Fit Tire Diameter (inch) | Net Weight (kg) | Gross Weight (kg) | Package Size (mm) |
| HKB1040A | Less Than 4 | 4.7 | 5.1 | 295×165×125 |
| HKB1040B | Less Than 4 | 5.2 | 5.6 | 295×165×125 |
Safety & Warning
- Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.
● DO NOT use a impact wrench, as it will damage the bead break - Before and after each use, check to make sure that all hardware tightly secured. Regularly inspect for damage. If fraying or distortio is found, immediately discontinue use.
- Use common sense when working. Stay alert and concentrate when setting up and using the tire bead breaker. Never work while un influence of alcohol, drugs or medications.
● While assembling and using the tire bead breaker, keep the work - clean and well-lighted. Keep spectators and children out of the world area.
- Dress appropriately. Never wear loose fitting clothing or jewelry with working. Contain long hair, and keep hair, clothing and gloves away from moving parts.
PARTS BREAKDOWN


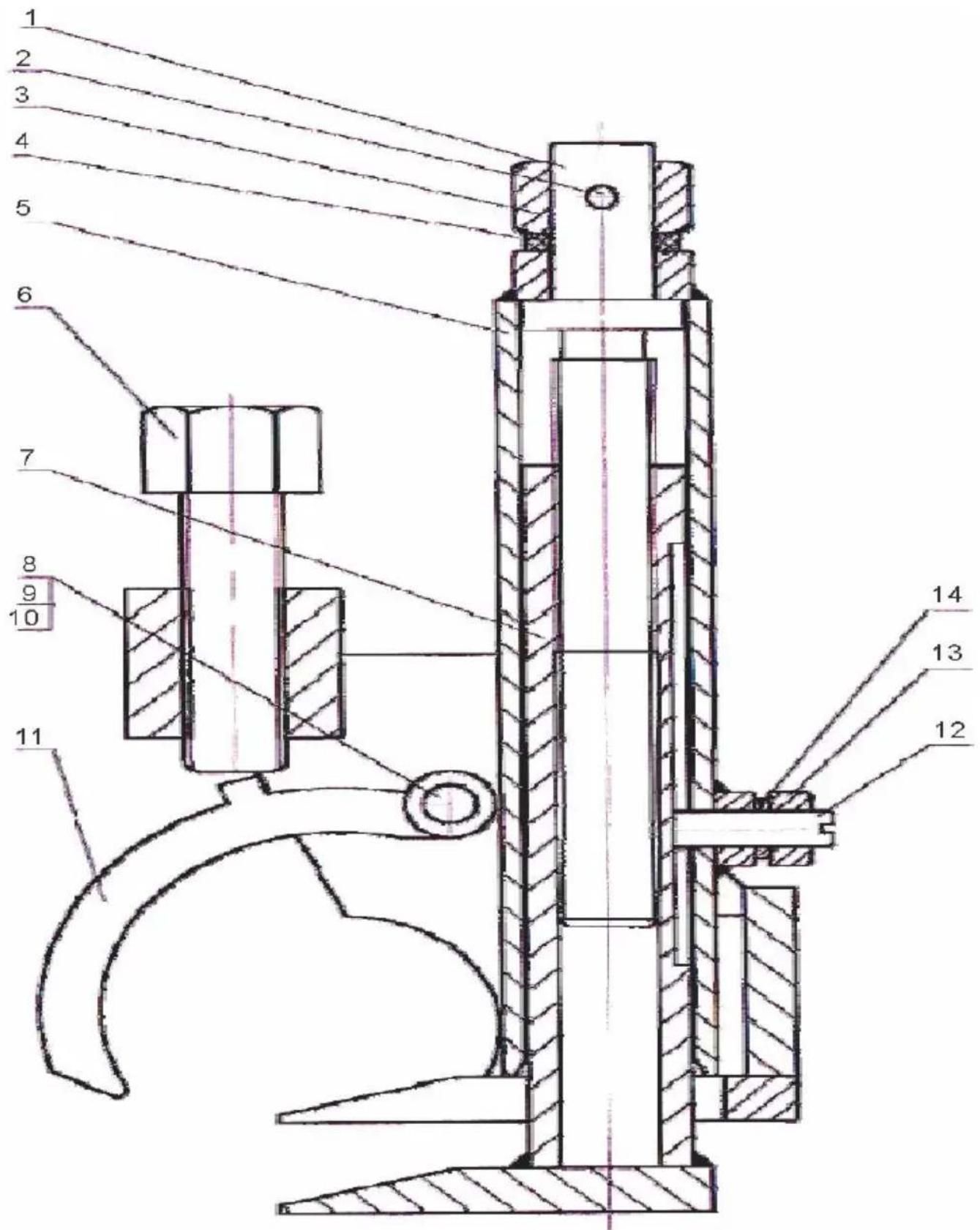

Technical schematic diagram of a mechanical assembly with numbered components and cross-sectional viewsPARTS LISTING
| Item No. | Description | Qty. | Item No. | Description | Qty. |
| 1 | Long Screw | 1 | 8 | Spindle | 1 |
| 2 | Elastic Pin | 1 | 9 | Washer | 1 |
| 3 | Hex Nut | 1 | 10 | Cotter Pin | 1 |
| 4 | Washer | 1 | 11 | Hook | 1 |
| 5 | Bush Ass'y | 1 | 12 | Bolt | 1 |
| 6 | Short Screw | 1 | 13 | Hex Nut | 1 |
| 7 | Claw Ass'y | 1 | 14 | Elastic Washer | 1 |
OPERATION
Tools required: adjustable wrench, open end wrench, or air ratchet. * DO NOT use a impact wrench, as it will damage the bead breake


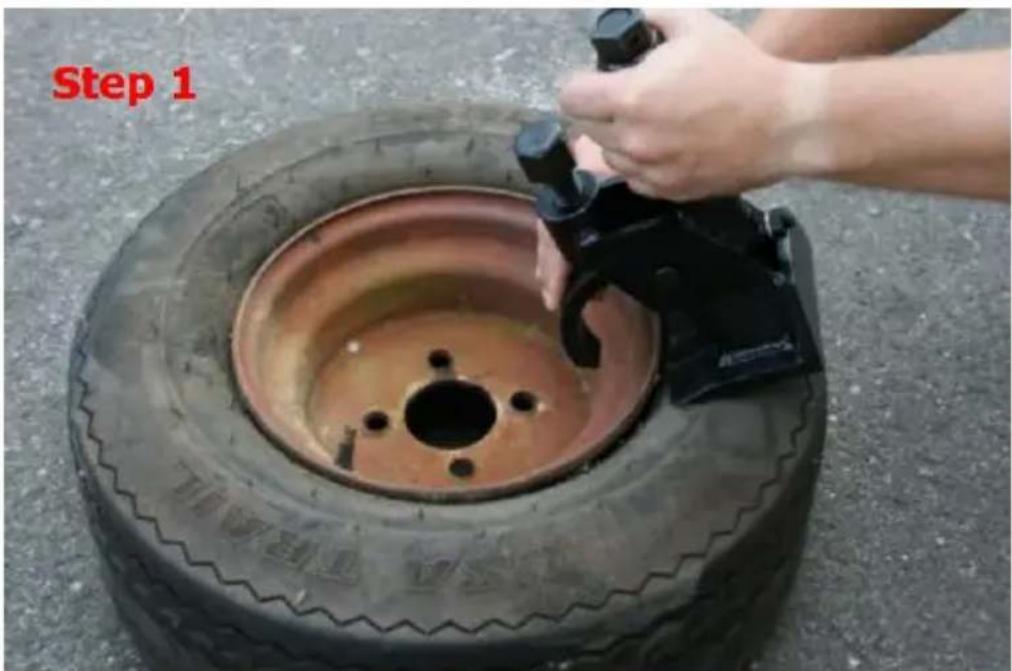

Close-up of a hand adjusting a tire with a camera, labeled 'Step 1' in red text (no other signage or text)- Place bead breaker onto the rim with teeth and breaker foot between rim & tire bead.


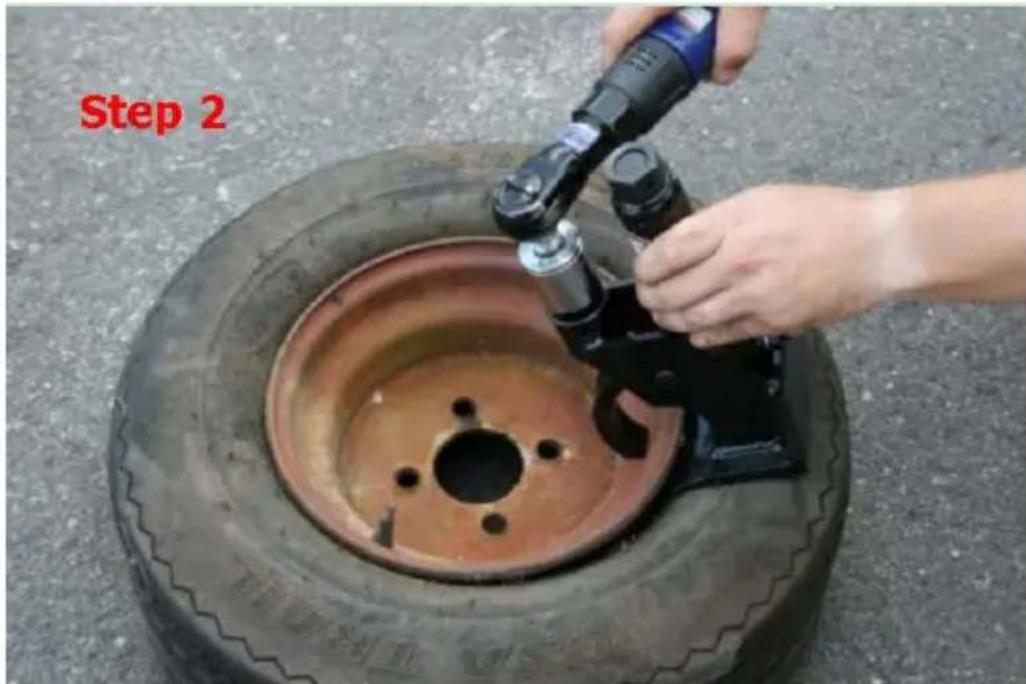

Step 2- Tighten the rim clamp jaw until “snug” with a hand wrench. Make sure bead breaker teeth and foot are against the bead.


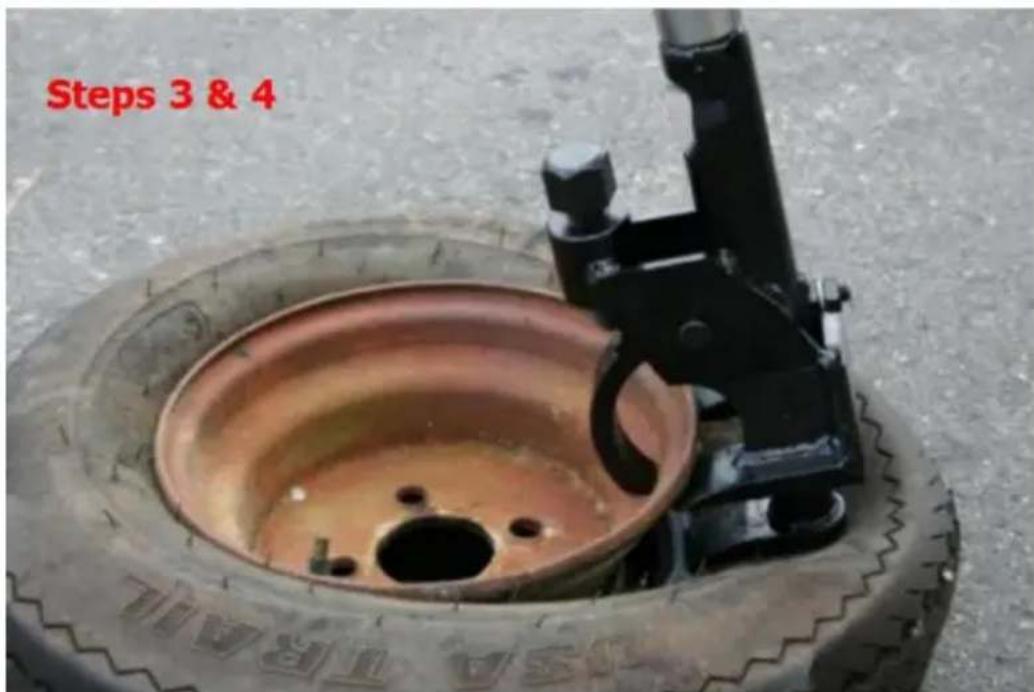

Steps 3 & 4- Continue tightening with a wrench until snug. DO NOT over-tighten
- Using the wrench, begin turning the bead breaker nut clockwise. T will begin driving the bead breaker foot downward.


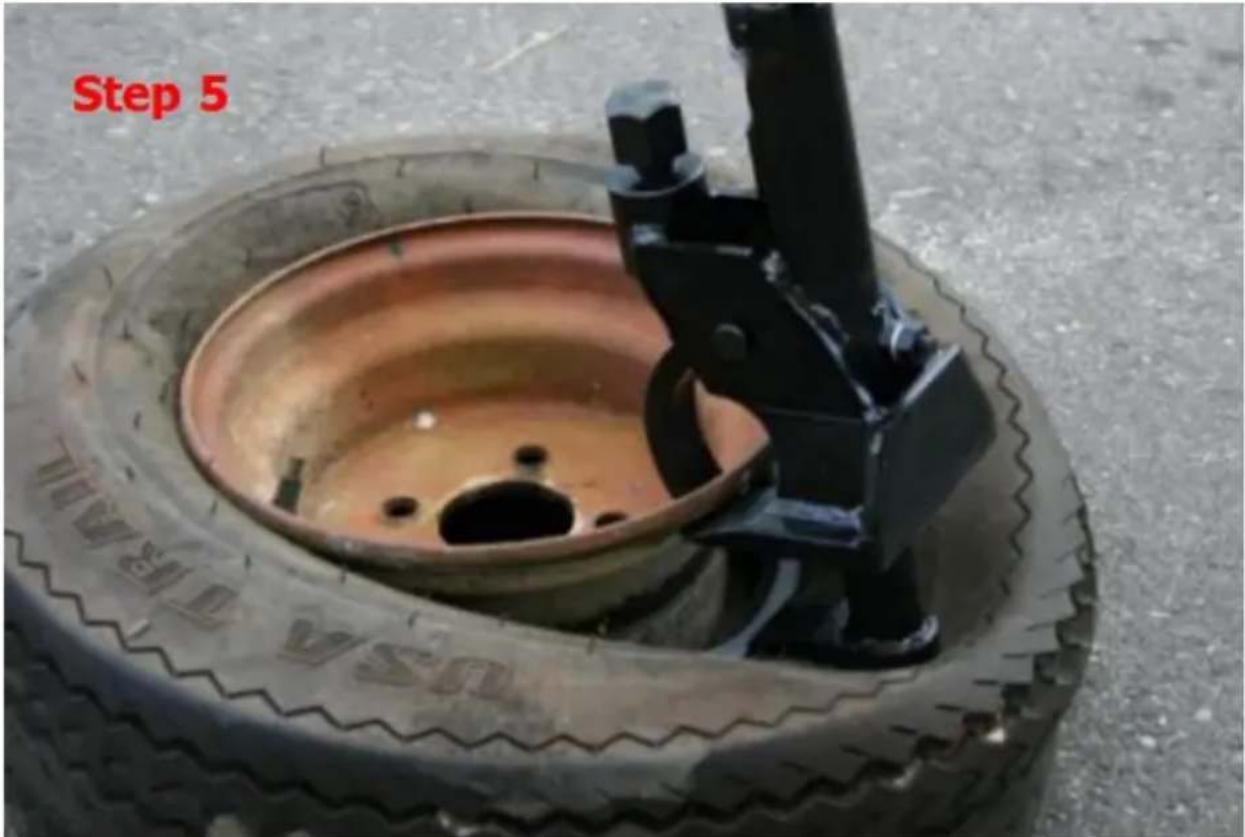

Step 5 U.S.A- Continue to turn clockwise until the bead is broken loose from the necessary, repeat this process in 2 to 3 locations on each side of the until the entire bead is broken.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
