USER MANUAL JX1.3-30 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

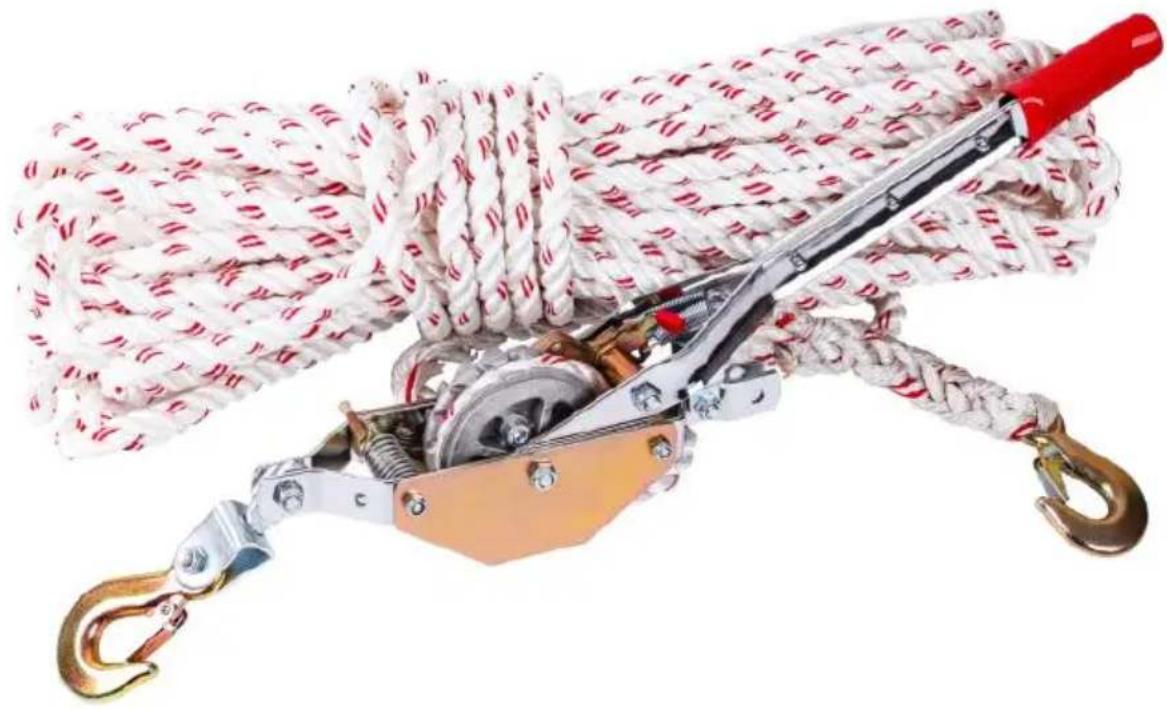

RATCHET POWER

PULLER

MODEL: JX1.3-30

Mechanical robotic claw tool with attached rope and hook, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. Keep hands, clothing, hair, and jewelry clear of the rope/gear when using the ratchet power puller.

2. Do not use the ratchet power puller if the rope is frayed, twisted, damaged.

3. Do not allow anyone to stand near the rope/in the rope pulling line/behind the hand puller while it is on.

4. Against the parameter table, do not overload fracture tension!

5. Never use other levers or tubes to put force on the tightener har

6. It is prohibited to subject the rope tightener to sudden shock-loadir energy.

7. It is prohibited to let the Polyester rope over/close to or around the corner sharp corner, which will cause the rope to be cut off.

8. The product is solely for pulling purposes on loads.

9. The product is not intended for hauling floating vessels, nor not for professional and/or industrial applications.

10. Do not use the ratchet power puller for hoisting or lifting operation for this type of application hoists must comply with particular safe requirements.

11. The ratchet power puller shown in this operation manual is not intended for transporting people.

MODEL AND PARAMETERS

Model	JX1.3-30
Capacity	3/4T
Rope Type	Polyester Rope
Rope Diameter/Length	Φ15mm/30.5m
Description	2 Hooks&Single Gear
Single Rope Span	30.5m
Breaking Tension	1.1T

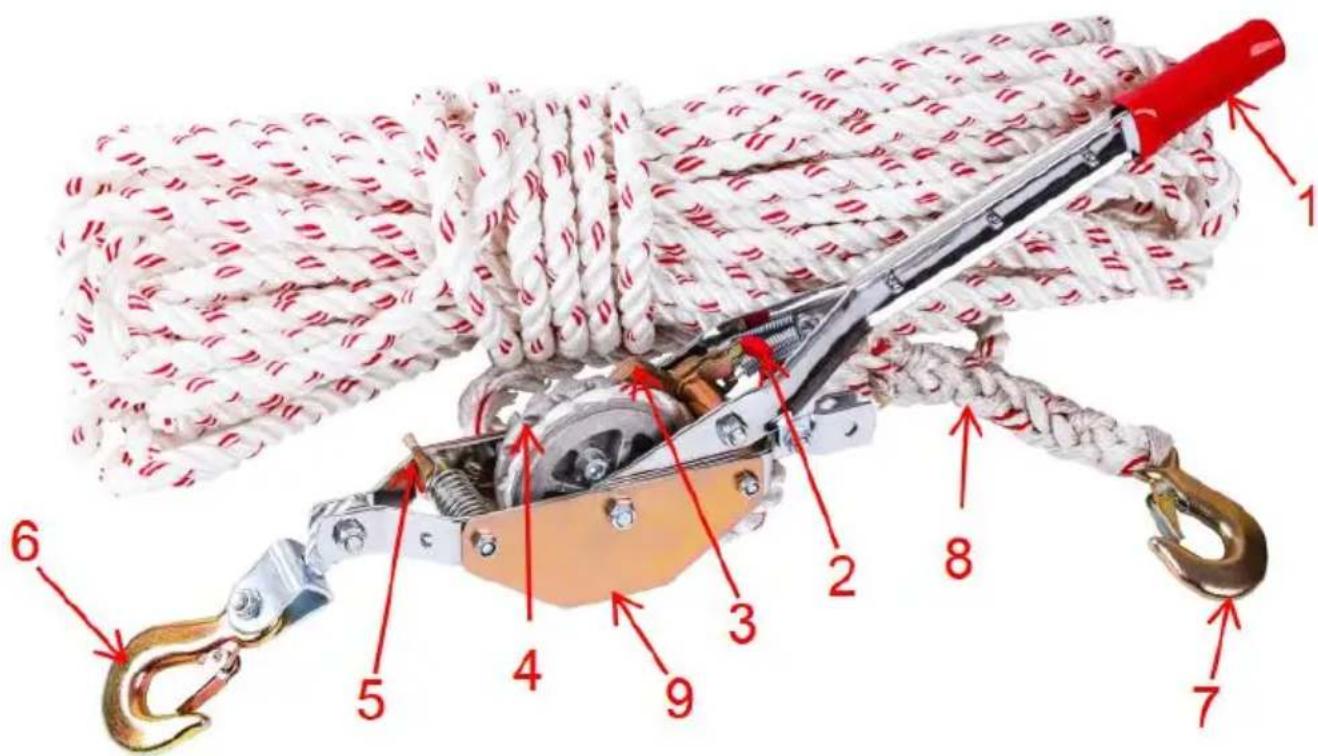

STRUCTURE DIAGRAM

Labeled diagram of a mechanical lifting device with numbered parts and rope routing

1. Handle 2. Pawl Spring Switch 3. Drive Pawl 4. Ratchet 5. Stop Pawl Trigger 6. Anchor Hook 7. Load Hook 8. Polyester Rope 9. Guard

COMPONENTS

No.	Picture	Name	Qty
1		Ratchet Power Puller	1
2		User Manual	1

OPERATION

CHECK THE HAND PULLER CAREFULLY BEFORE USING IT!

Suggestion: The best way to get acquainted with how the hand operates is to carry out a few test runs before you actually use i

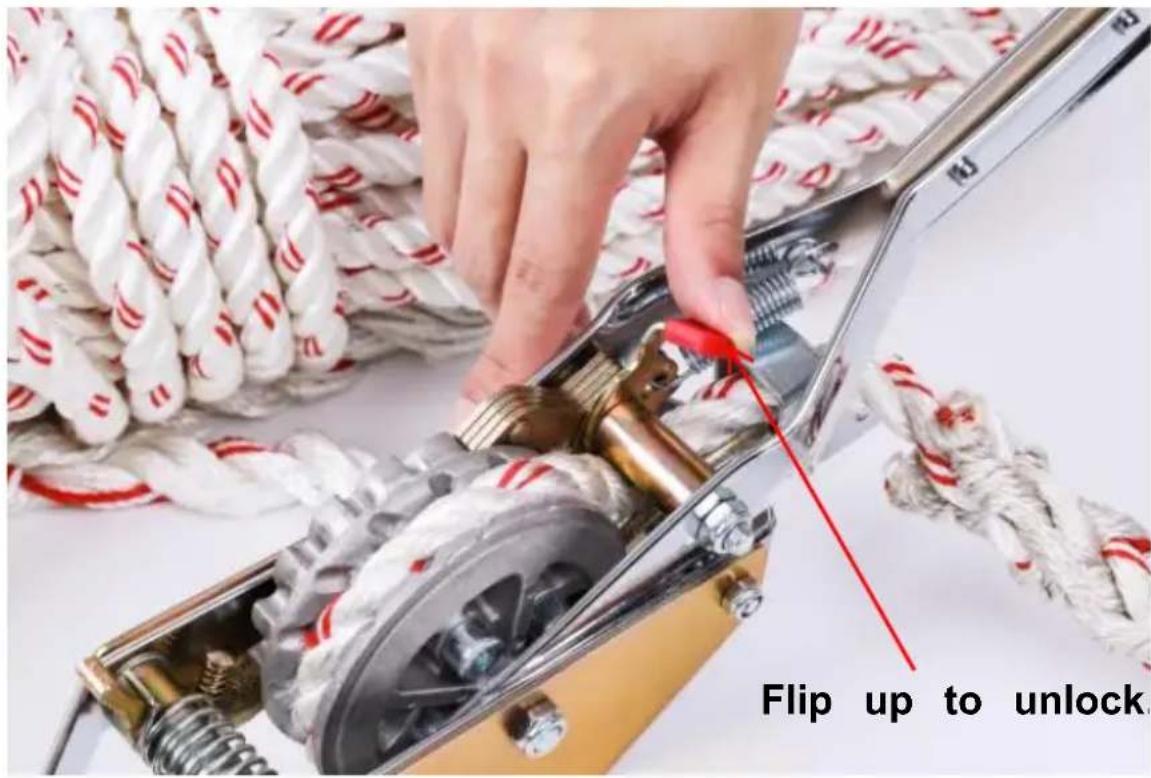

Step 1: Switch the pawl spring to upper unlock position in order to release the pawl.

Flip up to unlock

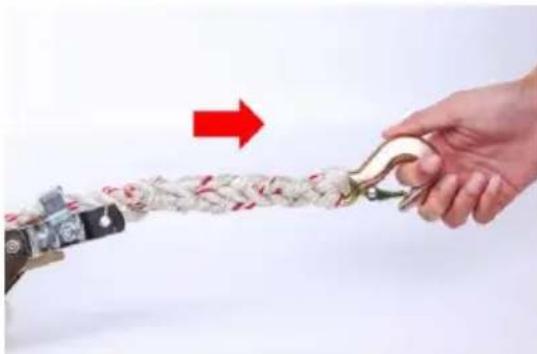

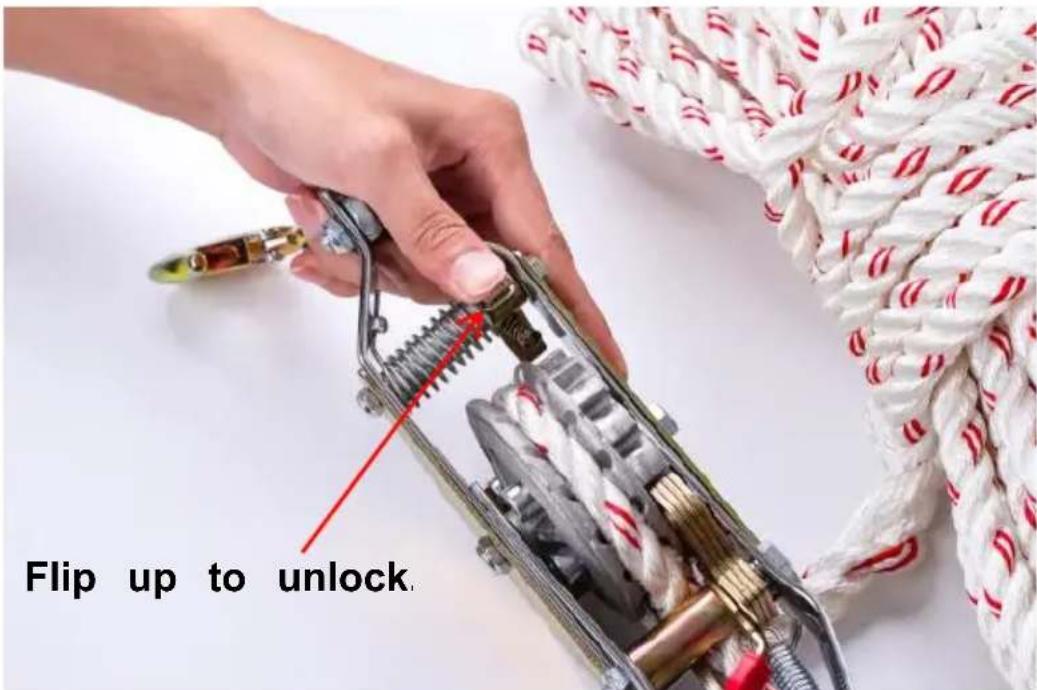

Step 2: Hold the trigger simultaneously, the polyester rope can be pulled out.

Flip up to unlock.

Robot with a red-handled tool interacting with a patterned fabric, no visible text or symbols

Hand holding a rope with a hand adjusting it, no visible text or symbols

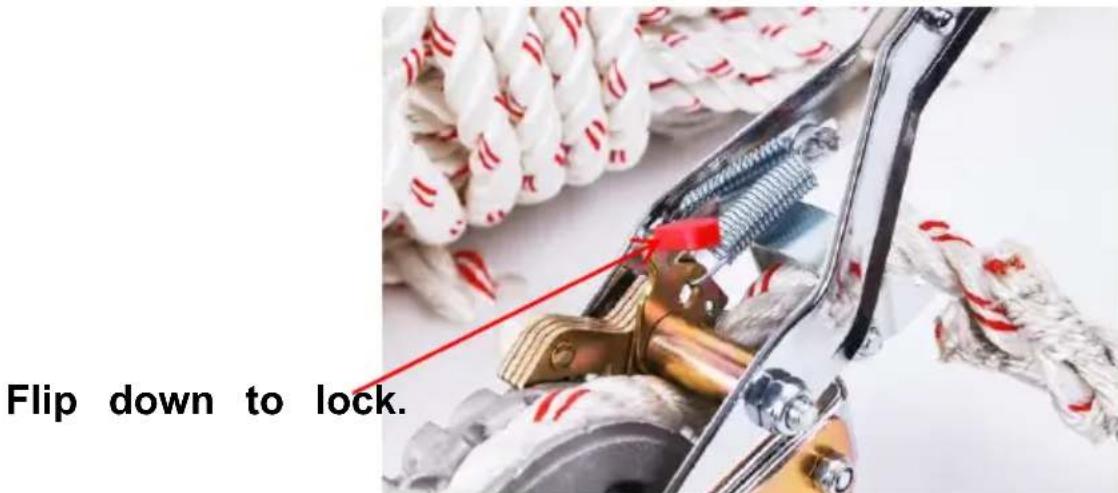

Step 3: Switch the pawl spring back to original position to lock the pawl.

Flip down to lock.

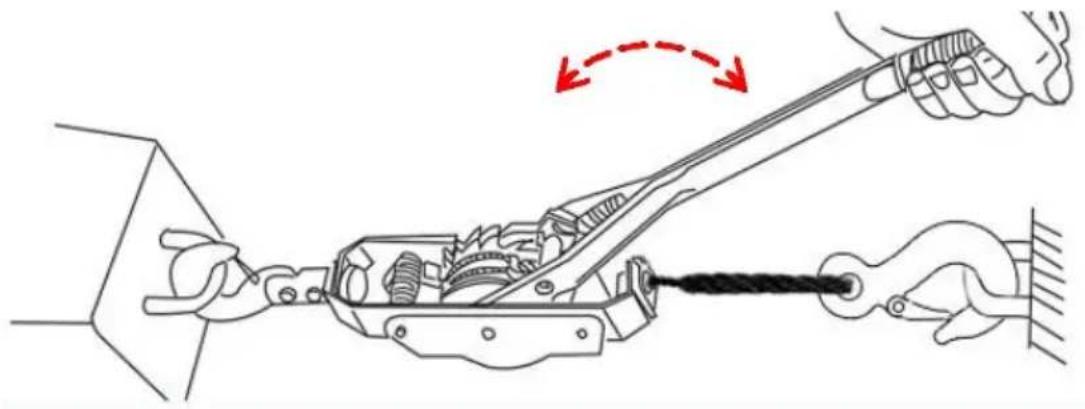

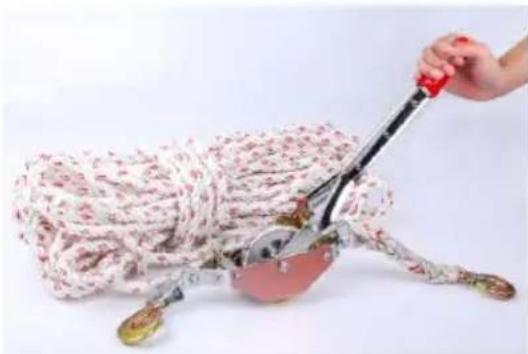

Step 4: The polyester rope will be retracted when you push and pull the handle back and forth.

Illustration of a hand using a tool to lift a mechanical component, showing motion direction (no text or symbols)

MAINTENANCE

1. Do not expose to the sun for a long time.
2. Be sure to wipe the product with a dry cloth after use in harsh environment, such as bad weather or by the sea.
3. Keep away from fire.
