USER MANUAL ZX-B005 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL BEARING REMOVAL

TOOL KIT

MODEL: ZX-B005

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ZX-B005

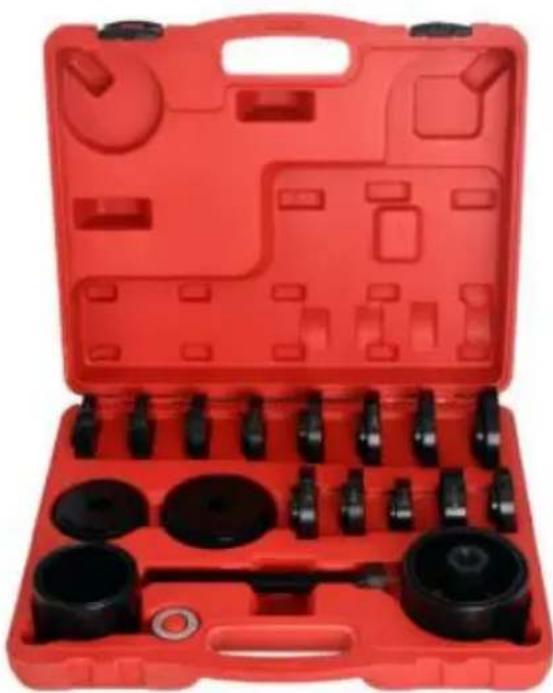

Red hard-crank mechanical tool kit with multiple cylindrical components and a central shaft (no visible text or labels)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warning and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not a children to play.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and using.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled product only
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's
8. Assemble and use this product ONLY in accordance with these instructions for its intended purpose of bearing removal and bearing housing separation.
9. DO NOT overreach. Keep proper footing and balance at all times.
10. Maintain this product. Check for misalignment, binding, wear, or other damage before use. If any damage is detected, repair or replace the problematic components before further use.

SAVE THESE INSTRUCTIONS

SPECIFICATION AND PACKAGE LIST

• This set reduces the chance of damage to hub and bearing.
• Also suitable for removing and installing large industrial

No.	Name	Picture	type	Qty
1	Nut		3/4"-10UNC length:74.3mm	1
2	Bolt		3/4"-10UNC length:195mm	1
3	drive plate		Φ55.6*17.2mm	1
			Φ63.5*19mm	1
			Φ66.8*19mm	1
			Φ70.6*19mm	1
			Φ71.9*19mm	1
			Φ71.9*19mm	1
			Φ72.9*19mm	1
			Φ73.4*19mm	1
			Φ74.7*19mm	1
			Φ77.5*19mm	1
			Φ81.3*19mm	1
			Φ83.6*19mm	1
			Φ88.3*19mm	1
4	Support lange		Φ82.3*19mm	1
			Φ101.6*18.7mm	1
5	sleeve		Φ76.2*64mm	1
			Φ82.6*64mm	1
			Φ92.2*64.6mm	1
			Φ101.6*64.6mm	1
6	Flat gasket		/	2

OPERATION

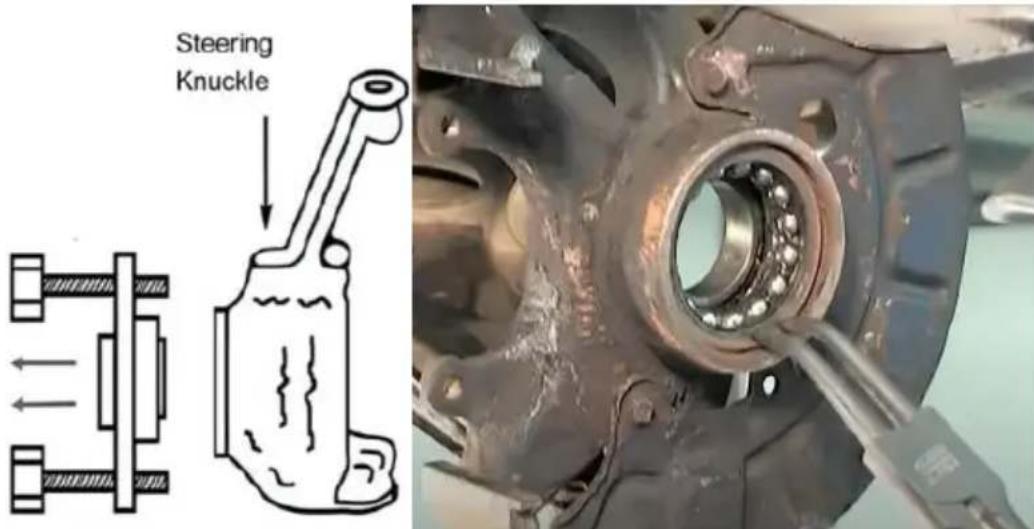

Remove Wheel hub and then remove the fixed clamp springs for steel knuckle bearings.

Steering Knuckle

Remove steering knuckle bearings(If you are removing steering knuckle components, it is recommended to clamp the knuckle with a vice before removing the knuckle bearings.)

Four-panel photo sequence showing a hand holding a bolt, inspecting a mechanical component with threaded shaft (no visible text or symbols)

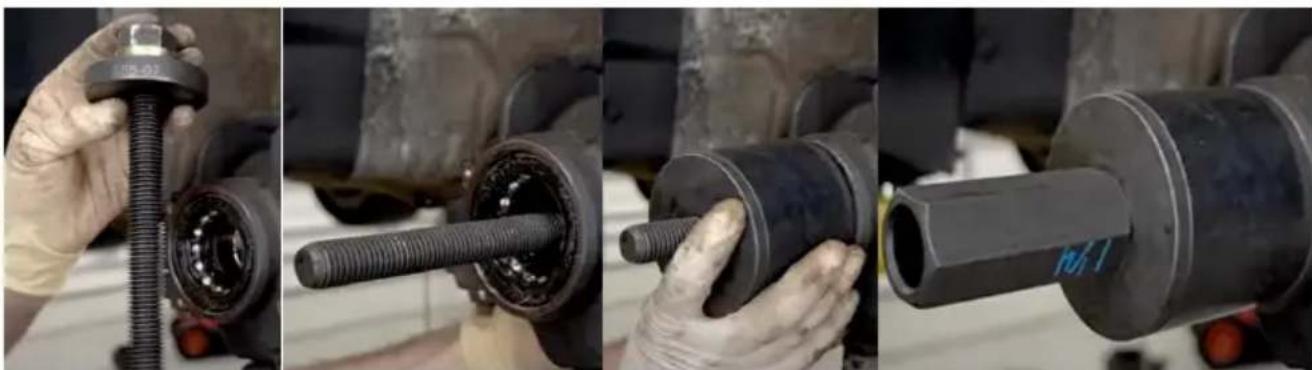

1. Assemble the long bolt, flat washer, sleeve, end cover, and flat w

Close-up of a hand operating a cylindrical mechanical component, no visible text or symbols

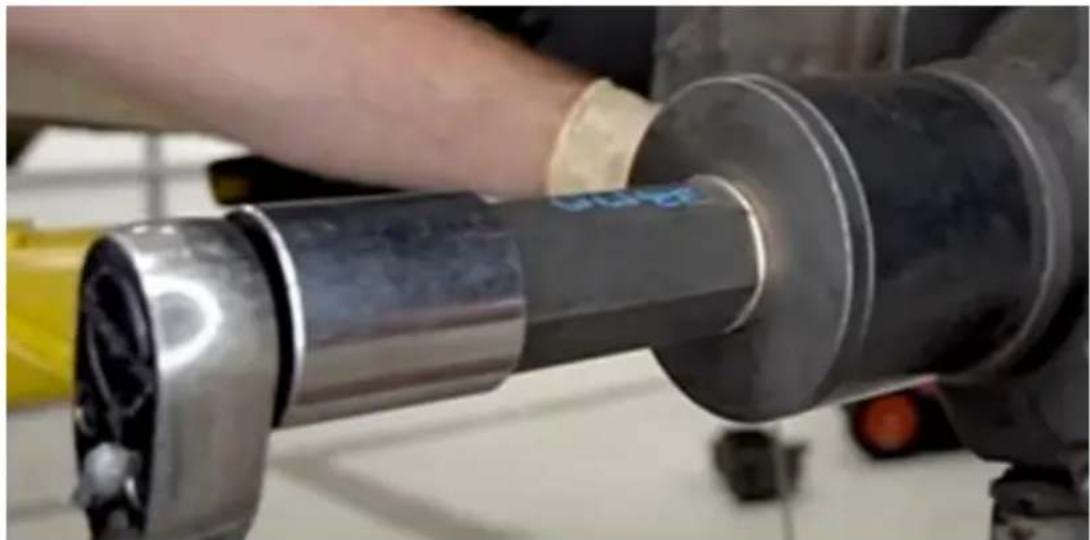

1. Use a ratchet wrench to turn the nut, and the knuckle bearing is pulled out.

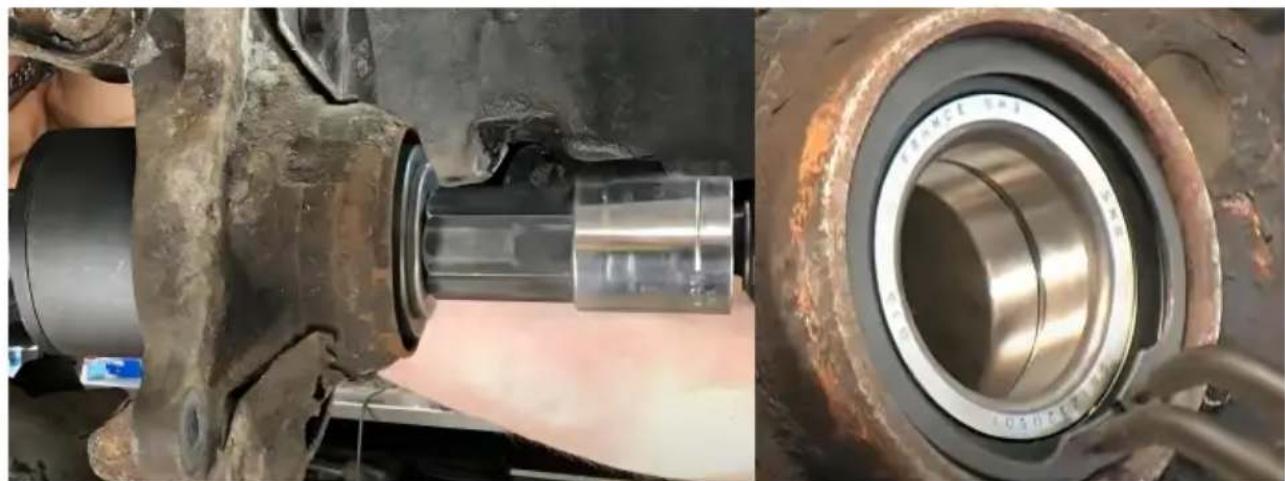

Steering knuckle bearings mounting

Close-up of mechanical components including a cylindrical bearing and a ball bearing, both showing assembly details (no visible text or symbols)

MAINTENANCE

• Clean these tools with a clean moist cloth after each use. Do not caustic chemicals or harsh abrasives. Rinse entirely clean and allow t to dry completely before further use.
  ● Lubricate attachments as needed to ensure smooth operation.
• Replace components if their threading begins to wear and cannot used smoothly and safely.
