CYXSL10300-D - Lifting tool Vevor - Free user manual and instructions

Brand	Vevor
Model	CYXSL10300-D
Product Type	Boat Transom Launching Wheel
Maximum Load Capacity	136 kg (300 lb)
Tire Diameter	26 cm (10.23 inches)
Wheel Arm Material	304L Stainless Steel
Tire Material	Foam Wheel (Solid)
Pedestal Material	304L Stainless Steel Plate (3 mm thickness)
Square Tube Specification	38 x 25 mm
Screw Dimensions	M8, M12
Recommended Inflation Pressure	25 PSI (for pneumatic tire)
Applications	Inflatable boats less than 4 m in length
Compatible Transom Thickness	Up to 36 mm
Maintenance and Cleaning	Rinse with fresh water after use; apply anti-rust lubricating oil
Safety	Read the manual before use; wear safety glasses and gloves during installation; do not use on highways
Spare Parts and Repairability	Wheels, brackets, pedestals, screws available; technical support via vevor.com/support
General Information	Installation requires drilling (drill bit Φ 8.5 mm); complete kit with screws and washers

Frequently Asked Questions - CYXSL10300-D Vevor

What is the maximum load capacity of the Vevor CYXSL10300-D launching wheel?

The maximum load capacity is 136 kg (300 lb).

Is this wheel suitable for all types of boats?

It is designed for inflatable boats less than 4 m in length and for a transom thickness up to 36 mm.

What tools are needed for installation?

You will need a ruler, a pencil, a portable electric drill, a Φ 8.5 mm drill bit, sealing putty, a 13# wrench and an adjustable wrench, a Phillips screwdriver, rags, and lubricating oil or lithium grease.

How to install the wheels on the transom?

Draw a horizontal reference line, place the pedestal, mark the holes, drill vertically with an 8.5 mm drill bit, apply sealing putty, then secure the pedestal with the screws. Next, install the brackets and wheels using the lug wrench.

Should I lubricate the bearings before use?

Yes, it is recommended to add lithium grease or lubricating oil inside the bearing hole to ensure smooth rotation.

Can the wheel be used on the road?

No, this wheel is designed for manual use over short distances for boat launching. Do not use with a car, motorcycle, or any other motorized vehicle.

What is the recommended inflation pressure for the pneumatic tire?

The recommended pressure is 25 PSI. Do not inflate too quickly.

How to maintain the stainless steel wheel?

Rinse with fresh water after each use and regularly apply anti-rust lubricating oil to prevent corrosion.

What to do if a part is lost or damaged?

Contact support via www.vevor.com/support for spare parts or technical assistance.

Can I install the wheel on a transom thicker than 36 mm?

The supplied screws are suitable for a transom thickness less than or equal to 36 mm. Beyond that, longer screws would be necessary.

USER MANUAL CYXSL10300-D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Transom Launching Wheel

MODEL: CYXSL10300-D

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

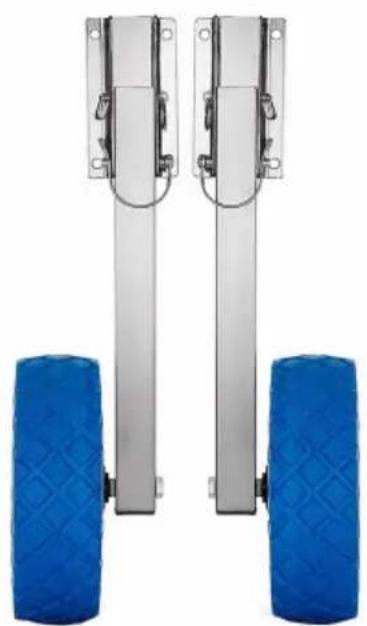

Transom Launching Wheel

MODEL: CYXSL10300-D

Two vertical metal frame components with blue textured wheels, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Model	CYXSL10300-D
Tire Diameter	10.23"/26 cm
Max Load Capacity	300 lbs/136 kg
Wheel Arms Material	Stainless Steel
Tire Material	Foam Wheel

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property

WARNING:

1. Avoid children using sand anchor guides. and this product is not a toy. [allow children to play with.
2. Keep away from sharp points, blades and other items.

INSTALL PRECAUTIONS

1. Install only according to these instructions. Improper Install can create haza
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during ins
3. Keep install area clean and well lit.
4. Keep bystanders out of the area during install.
5. Do not install when tired or when under the influence of alcohol, drugs or medication.
6. Product capabilities apply to properly and completely installed product only.

SAVE THESE INSTRUCTIONS

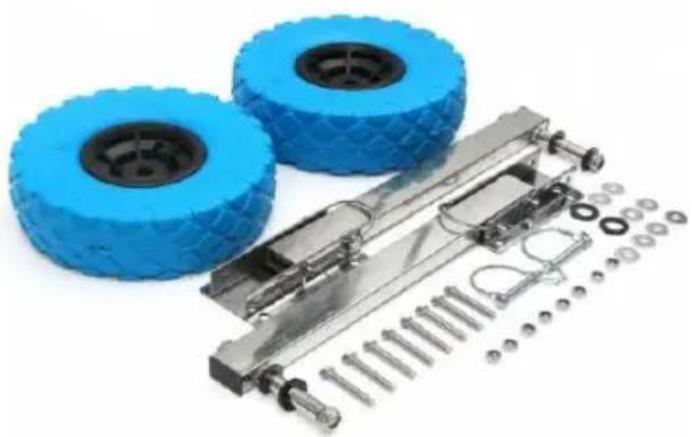

PACKING LIST

Exterior view of a blue toy tire assembly with metal components and bolts (no text or symbols visible)

Tools preparedness:

Ruler, Pencil, Electric portable dr Drill bit (Φ 8.5mm), sealing gum stay wrench (13#) and Adjustable wrench (2 pcs,or Parallel-jaw vic Cross screwdriver, rags, Lubricating oil or Lithium-base grease, etc.

No	Picture	Part Number	Qty	No	Picture	Part Number	Qty
A		Wheel	2	B		Pin Key	2
C		Pedestal	2	D		Bracket	2
E		Nylon Washer M16	6	F		Big Washer M8	8
G		Screw M12*120	2	H		Shaft Sleeve	2
I		Pin Key	4	J		Lock Nut M8	8
K		Nut M12	2	L		Lock Nut M12	2
M		Screw M8*50	8	N		Pipe Plug	2

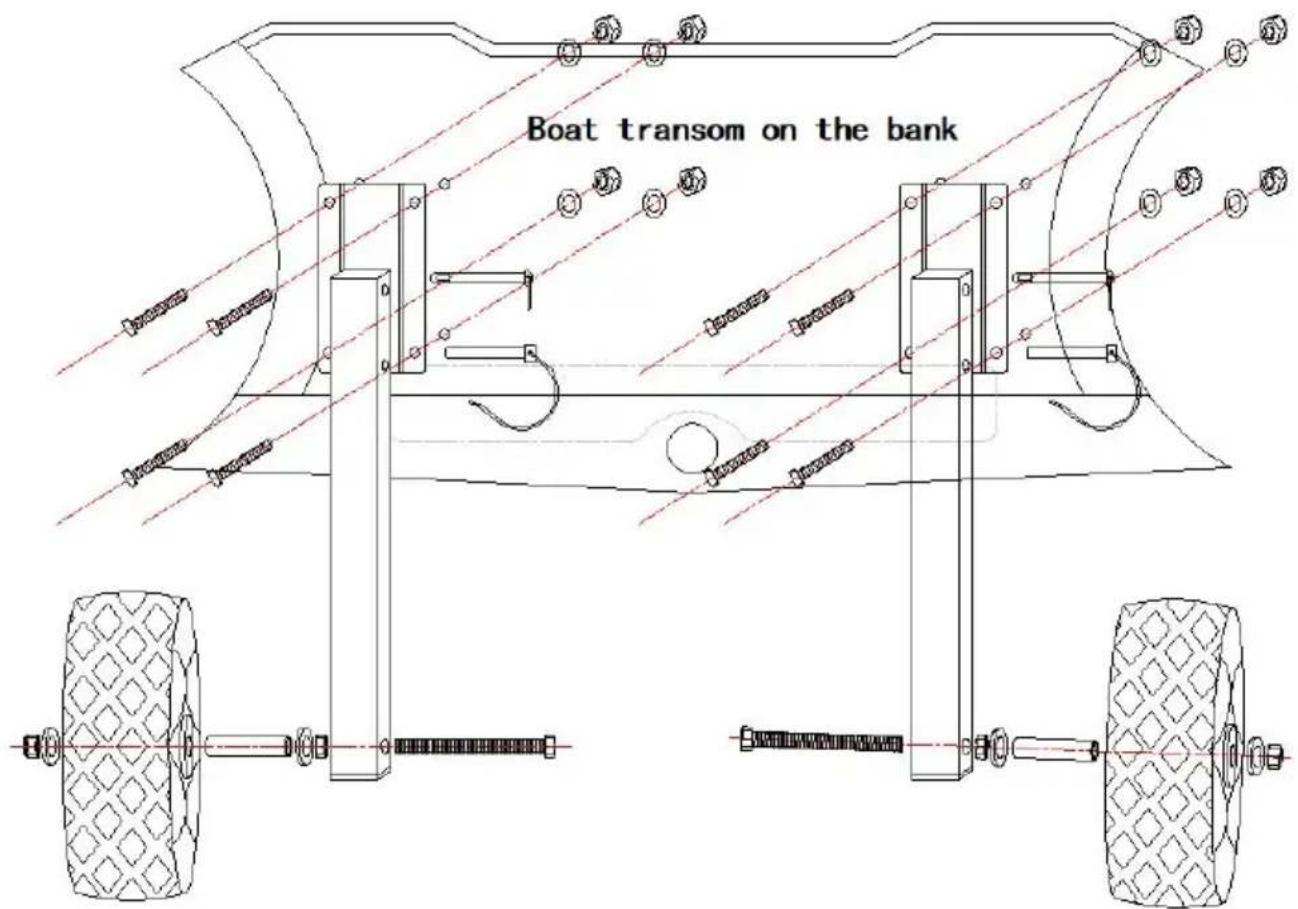

INSTRUCTIONS FOR USE

Transom launching wheel installation and operation:

1. Model D Transom launching wheel are made of 304 L stainless square tube (Specification: 38*25mm ), the pedestals are made of 304 L stainless plate (thickness:3mm), the screws and so on, are all using 304 L stainless steel mates the stainless steel material need to regular maintenance, Rinsing them with first water after using and apply anti-rust Lubricating oil , etc.
2. This product is suitable for inflatable boat that the length is less than 4m screws provided along with are suitable for the thickness of the transom is 3 and less than 36mm.
3. The wheel is Solid wheel or pneumatic wheel, it's not for highway use, bearing, it's suitable for short distance use by manual dragging. Please don't use car, motorcycle or bateery car to drag fast, prevent the wheels to be damaged
4. Please add lubricating oil or Lithium-base grease into bearing hole and be sleeve regularly.
5. The recommended inflation pressure of inflation wheel is 25P.S.I, Don't infl too fast.

Transom launching wheel installation and operation instruction:

Tools preparedness: Ruler, Pencil, Electric portable drill, Drill bit(Φ8.5mm), sealing gum, stay wrench (13) and Adjustable wrench (2 pcs, or Parallel-jaw vice), rag Lubricating oil or Lithium-base grease, etc.

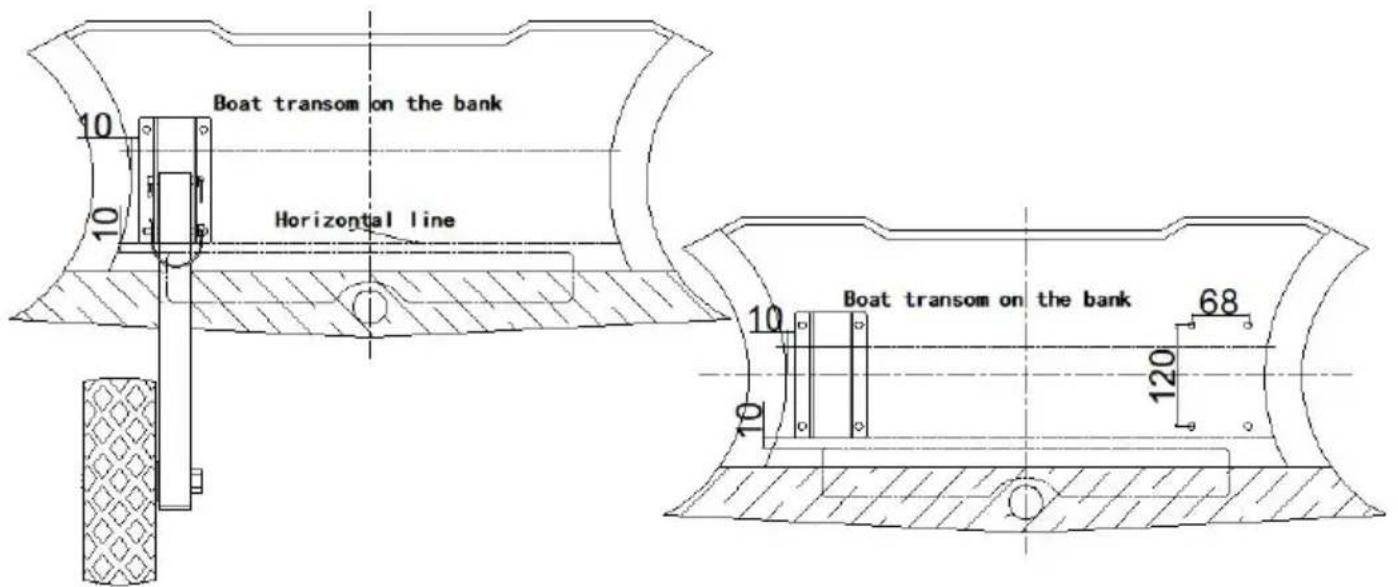

Step 1: Elevating the boat transom, Put the transom launching wheel close to transom, adjust the distance (up, down, left and right) and make sure to a suitable location for installation, Drawing a horizontal line to ensure the ball of the two transom launching wheels after installation, the dimensions in the are only for reference.

Step 2: Put the pedestal close to the horizontal line(had been drawn at step). Adjust the distance for pedestal (left and right), Mark location of each hole v marker or mark location of each hole by drawing way with compasses and r then vertical drilling holes with electric portable drill, drill bit diameter is about 8.5mm, drilling speed should be slow to prevent damage the transom.

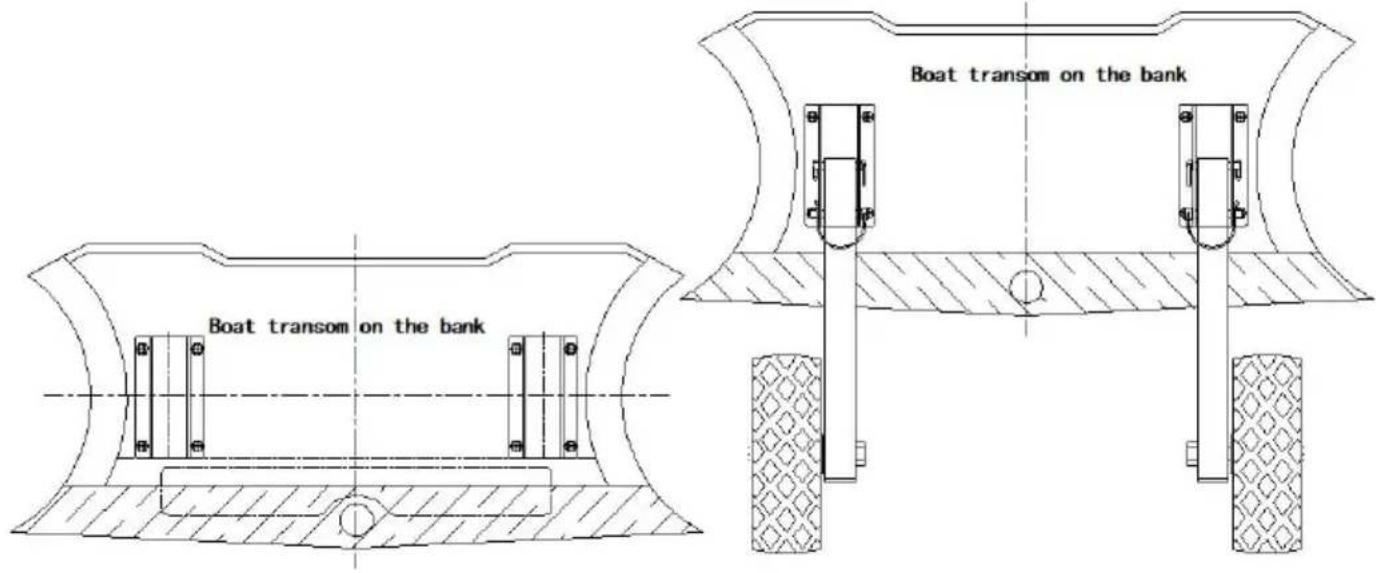

Step 3: Installing the pedestal on the transom tighten with screws. Note: 1. Preventing water enter the transom, should use the sealing on both screws and holes; 2. when fixing the pedestal, the stainless gaskets are placed inner side of the transom.

Step 4: Installing brackets and wheels on the completed placing pede with pin key, Turn the bracket and the wheel up and down to check wheel is fitting well or not. In order to insure the wheels turn flexibly put Lithium-base grease or Lubricating oil inside of the bearing hole to use them.
