USER MANUAL JJMMRDT01 Vevor

Affordable. Reliable. Home Improvement.

JEEP HARDTOP REMOVAL SYSTEM

MODEL: JJMMRDT01

Technical Support and E-Warranty Certificate

www.vevor.com/support

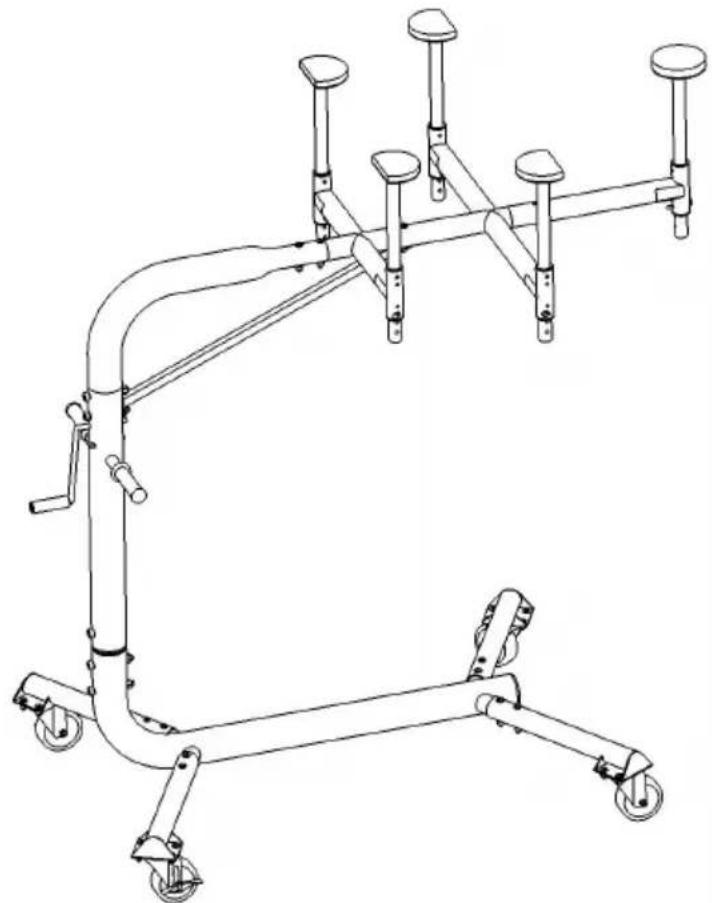

MODEL: JJMMRDT01

Technical line drawing of a mechanical support system with wheels and vertical supports (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING

• For some car models, using quick release support rods can make the hard more stable when stored on the product. The quick release support rod should installed after the hardtop is removed. (Note: Quick release support bars are generally used for 4-door Jeep models, and can also be used for some 2-do Jeep and 4-door BRONCO models depending on the actual roof size).
• After removing the hardtop, please ensure that the casters are locked to ensure that the product is securely fastened and not displaced.
• Please do not store the product outdoors.
• Please ensure that children are always removed from this product.
• Please ensure that this product is used on a flat road surface.
• After removing the hardtop from the vehicle, it is strictly prohibited to push hardtop or adjust its position by hand. Only the product and hardtop can be through the casters.
• Before launching the product, the hardtop must be 100% away from the vehicle.

PRODUCT CONFIGURATION

Model	JJMMRDT01
Support Height (inch / mm)	57.1-87.6/1450-2225
Load bearing capacity (lbs)	200

PARTS LIST

ITEM	Name	PICTURE	Q'TY	ITEM	Name	PICTURE	Q'TY
A	Long legs		4PCS	L	M8*65HexagonSocket Bolt		11PCS
B	UniversalWheel (withbrake)		2PCS	M	M10*95HexagonSocket Bolt		4PCS
C	UniversalWheel		2PCS	N	8 FlatWasher		16PCS
D	BottomBracket		1PCS	O	8 CurateWasher		11PCS
E	LiftingMechanism		1SET	P	M8 Nut		27PCS
F	BendingBracket		1PCS	Q	10 CurateWasher		4PCS
G	SupportingRod Frame		1PCS	R	M10 Nut		4PCS
H	Slanting Pole		1PCS	S	Plug		5PCS
I	QuickDismantlingRod		1PCS	T	AllenWrench		2PCS
J	Strut 1		4PCS	U	Open EndWrench		1PCS
J1	Strut 2		1PCS	V	Manual		1PCS
K	M8*16HexagonSocket Bolt		16PCS

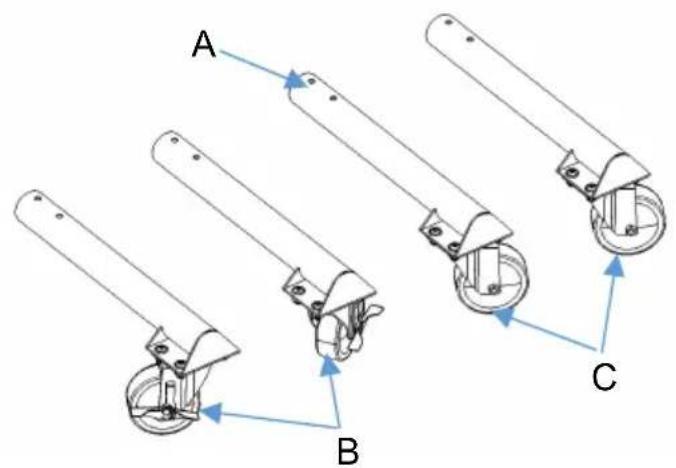

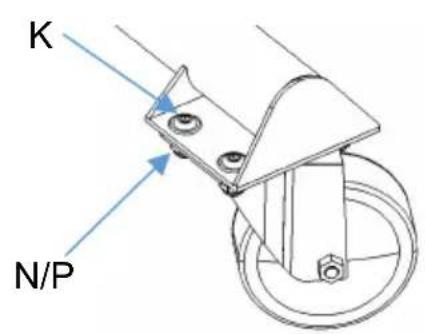

STEP1: Universal Wheel Installation

Refer to the diagram below and install the Universal Wheel (B/C) on long legs (A).

A B C

K N/P

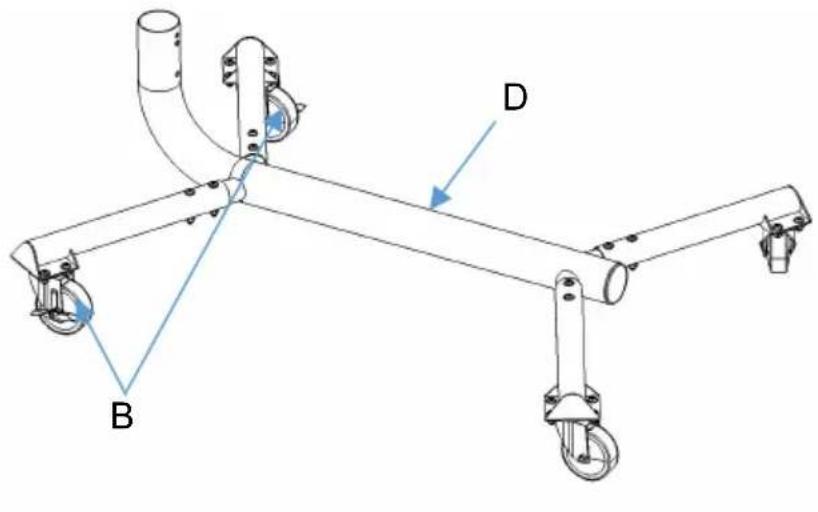

STEP2:

The assembled components of STEP1 are installed on the Bottom Bra (D).

Refer to the diagram below, pay attention to the position of the two Universal Wheels with brake(B) during installation and do not install tr incorrectly.

B D

L O/P

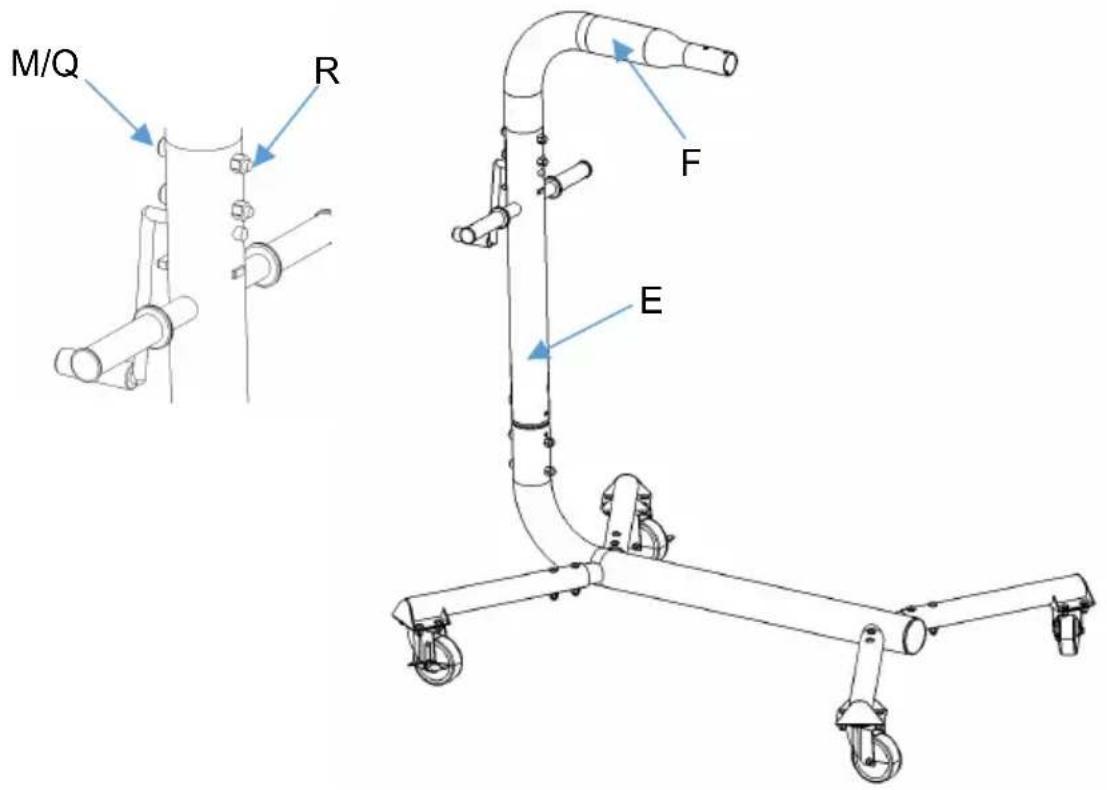

STEP3:

Install the Lifting Mechanism (E) and Bending Bracket (F).

M/Q R F E

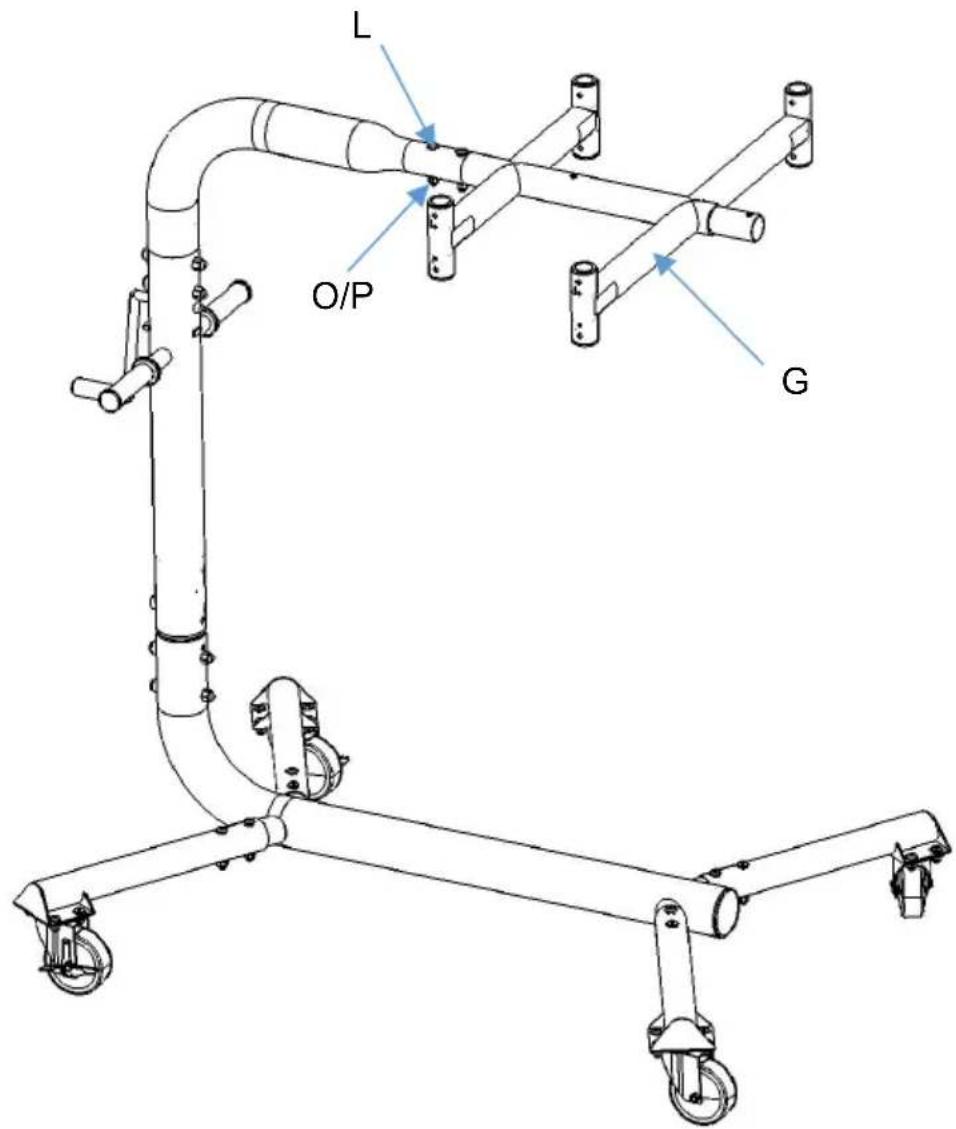

STEP4:

Install the Supporting Rod Frame (G).

L O/P G

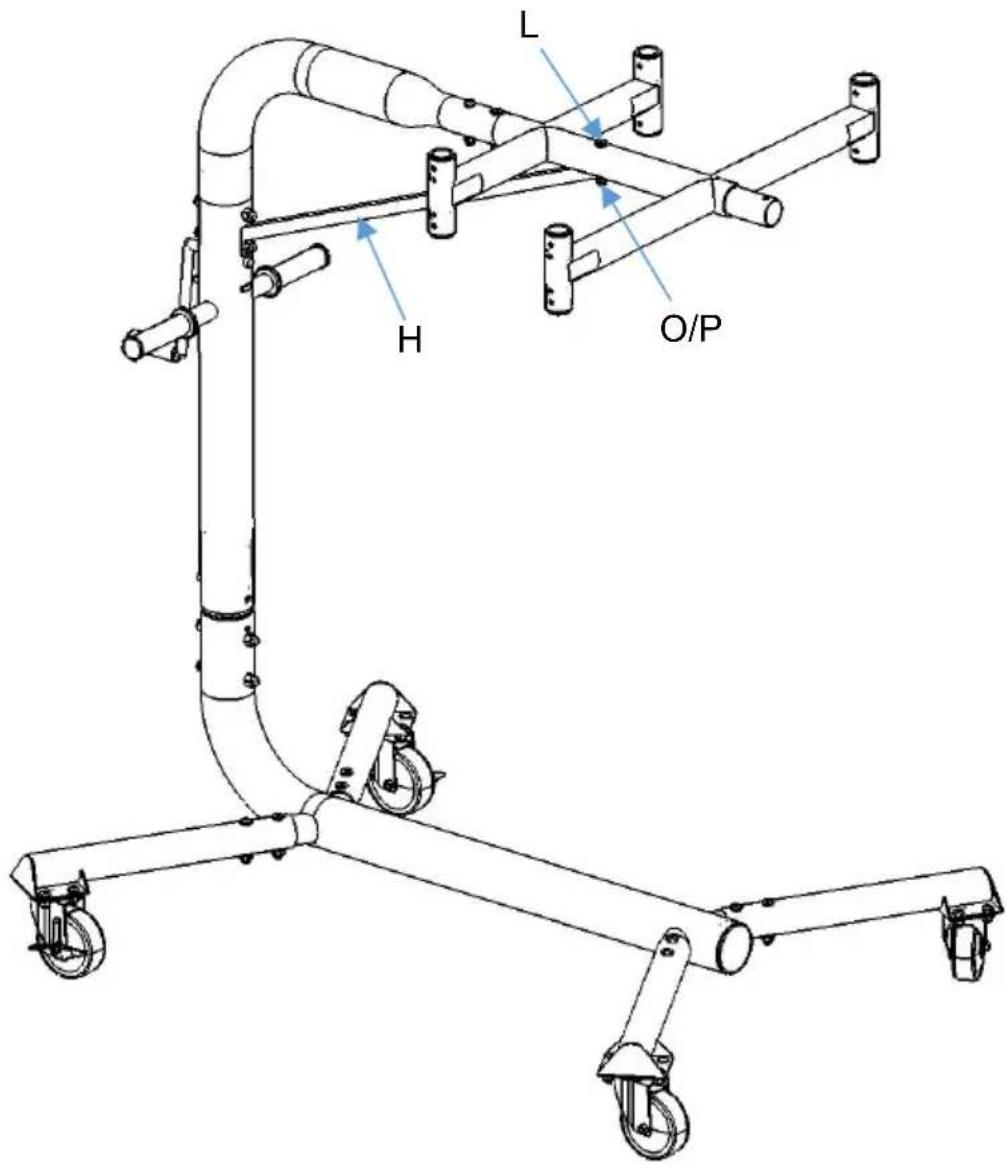

STEP5:

Install Slating Pole (H).

L H O/P

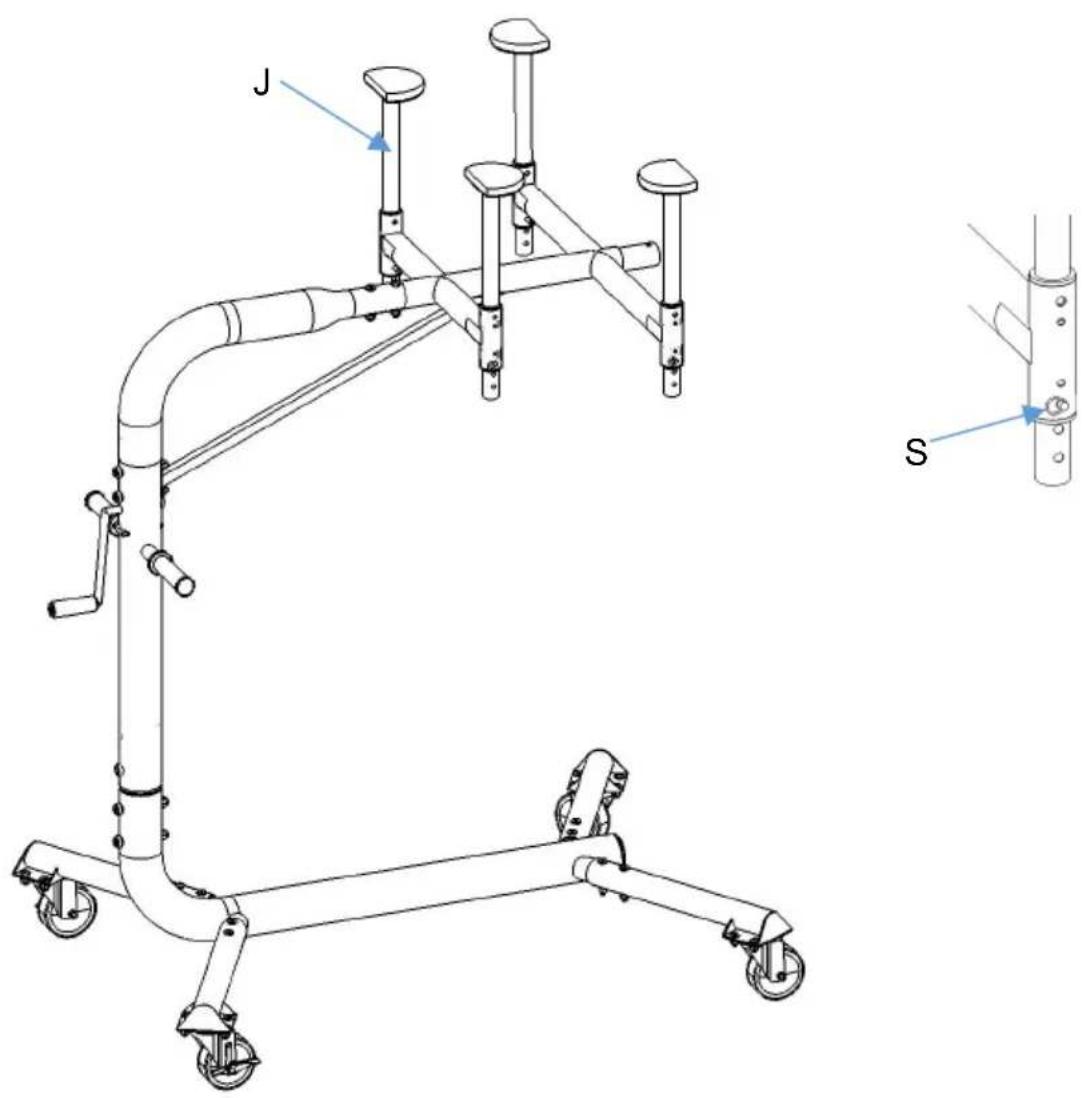

STEP6:

Install Strut 1 (J).

J S

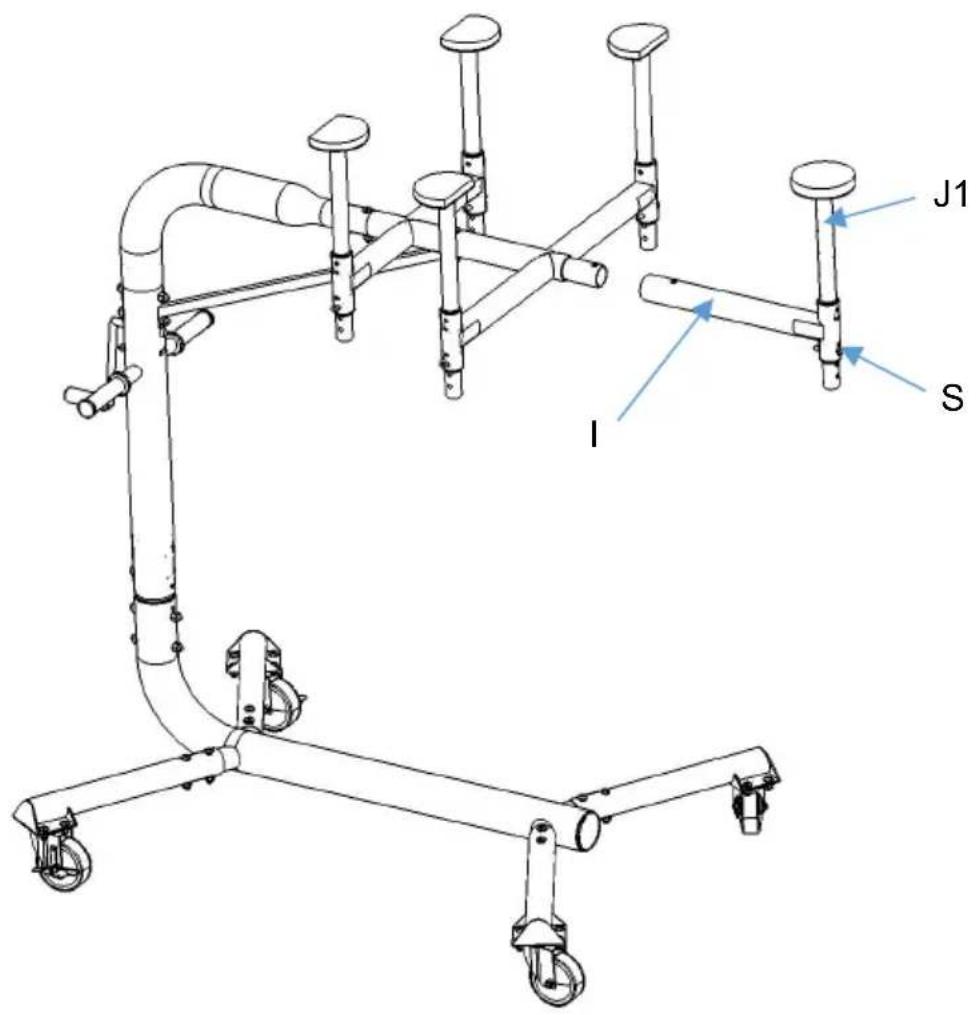

STEP7:

Install Quick Dismantling Rod (I) and Strut 2 (J1).

J1 S I

INSTRUCTIONS

• Before removing the hardtop, please make sure to first remove the vehicle components connected to the hardtop
• Detach the electrical connection in the driver's side rear cargo area and the washer fluid.
  ● Unscrew all bolts that secure the hardtop.
• Push the product to the center of the vehicle trunk, ensuring that the position of the four support pillars are low enough to smoothly pass through the rear frame. Align with four support positions. (Note: The quick release support rod

should not have been installed at this time)

• Rotate the handle clockwise to raise the bracket until all four support pillar contact the hardtop.
• Continuously rotate the handle clockwise until the hardtop is raised to a sufficient height. When the roof support surface is uneven, the height of the support pillars can be adjusted to ensure that the hardtop remains level.
• Slowly remove the hardtop and connect the quick support rod.
• When stored for a long time, lowering the height of the bracket can make more stable.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SYSTÈME DE RETRAIT DU TOIT RIGIDE JEEP

MODÈLE : JJMMRDT01

Affordable. Reliable. Home Improvement.

JEEP HARDTOP

SYSTÈME DE RETRAIT

MODÈLE : JJMMRDT01

Technical line drawing of a mechanical support system with multiple vertical posts and wheels (no text or symbols)

CONFIGURATION DU PRODUIT

M/Q R F ET

ÉTAPE 4 :

Machine Translated by Google

ÉTAPE 6 :

Installer la jambe de force 1 (J).J S

ÉTAPE 7 :

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

JEEP-HARDTOP-ENTFERNUNGSSYSTEM

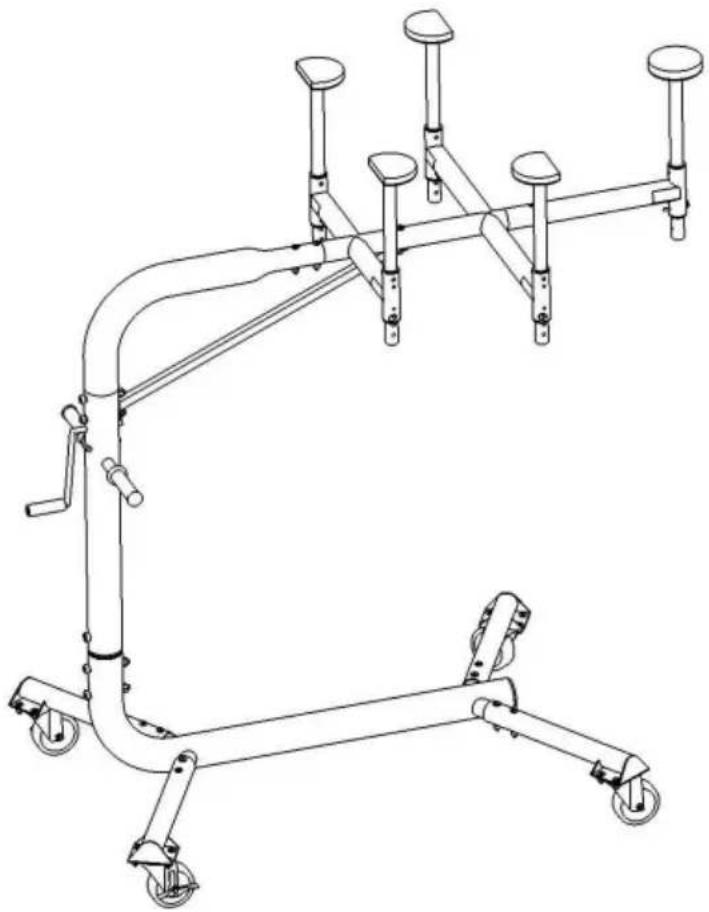

MODELL: JJMMRDT01

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

JEEP-HARDTOP

ENTFERNUNGSSYSTEM

MODELL: JJMMRDT01

Technical line drawing of a mechanical support system with multiple vertical posts and wheels (no text or symbols)

B D M Aus/Ein

SCHRITT 3:

M/Q R F UND

SCHRITT 4:

M Aus/Ein G

SCHRITT 5:

M H Aus/Ein

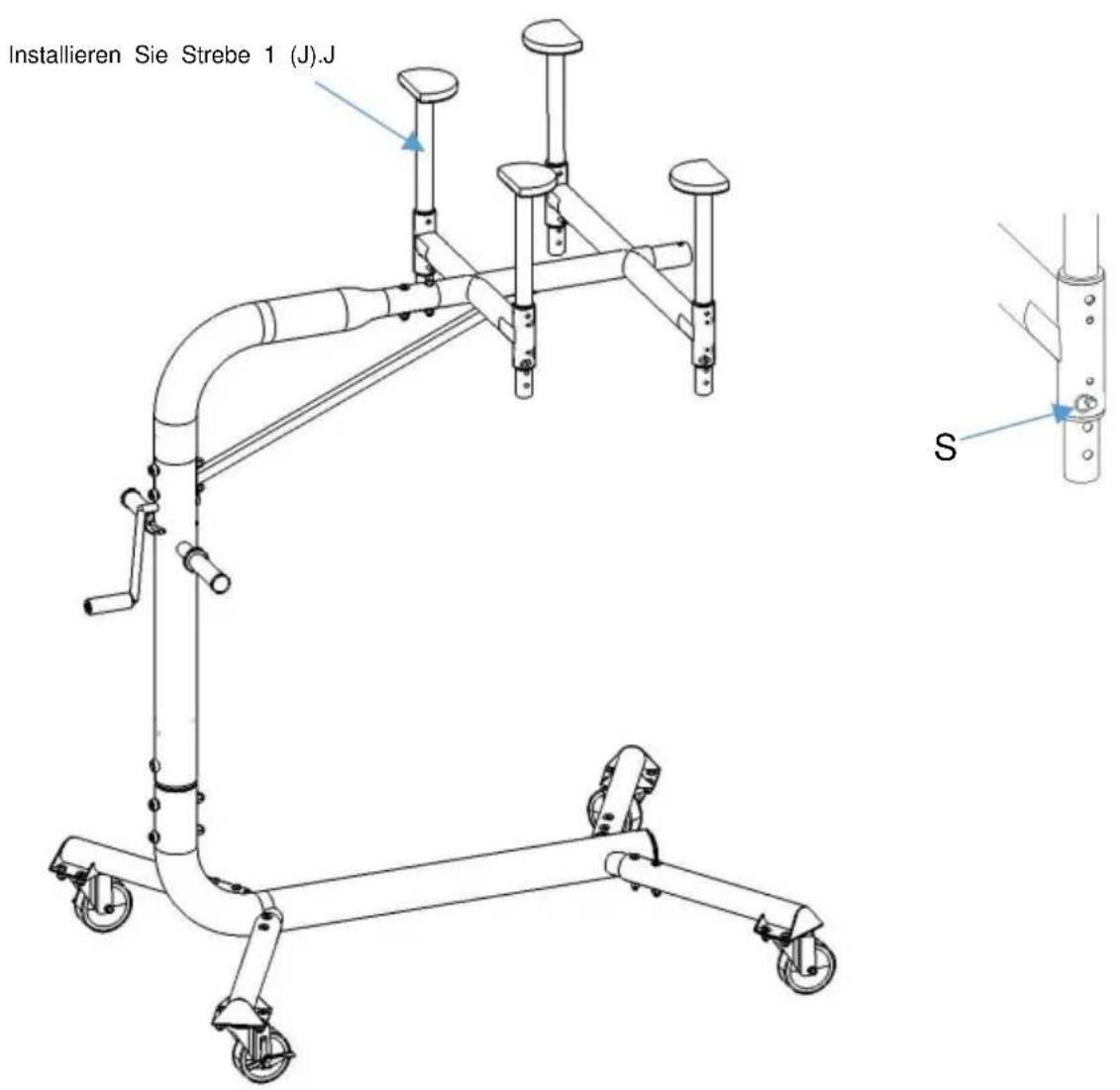

SCHRITT 6:

YH CONSULTING LIMITED. C/O YH Consulting

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

TETTO RIGIDO JEEP

Technical line drawing of a mechanical support system with multiple vertical supports and wheels (no text or symbols)

M/Q R F E

PASSO 4:

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Strada, Staines-upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

JEEP TECHO DURO

Technical line drawing of a mechanical support system with multiple vertical supports and wheels (no text or symbols)

K PROPOSED FOR WORK

PASO 2:

M/Q R F Y

PASO 4:

yo O/P SIMS

PASO 5:

YH CONSULTING LIMITADA. A LA CARGO DE YH Consulting

Carretera, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

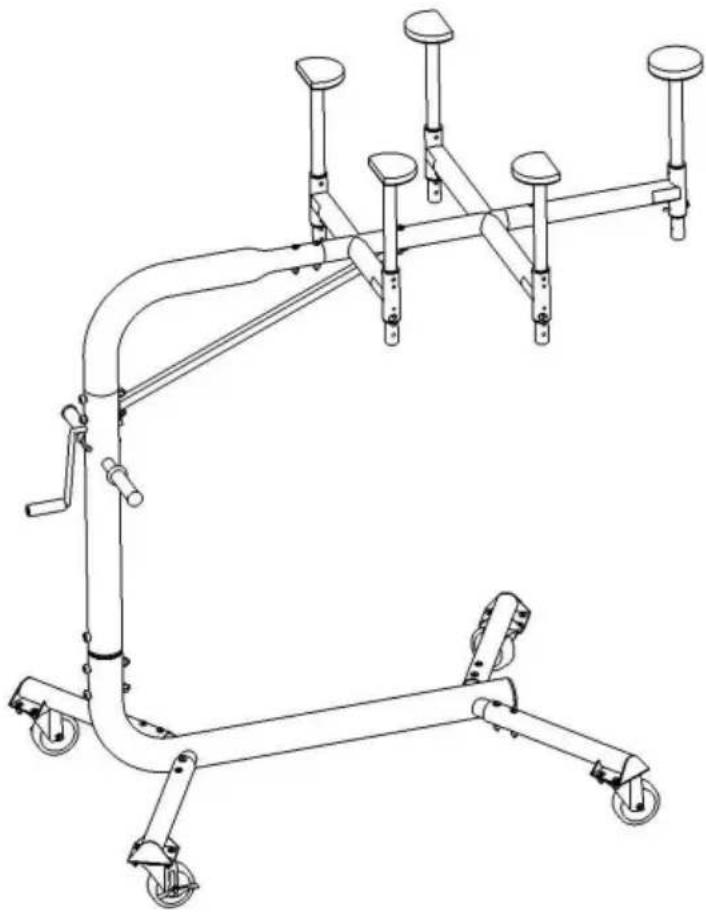

SYSTEM USUWANIA TWARDEGO DACHU JEEP
