USER MANUAL NMBP12-G3500-80-12 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

BOAT BILGE PUMP INSTRUCTIONS

MODEL:NMBP12-G3500-80-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: NMBP12-G3500-80-12

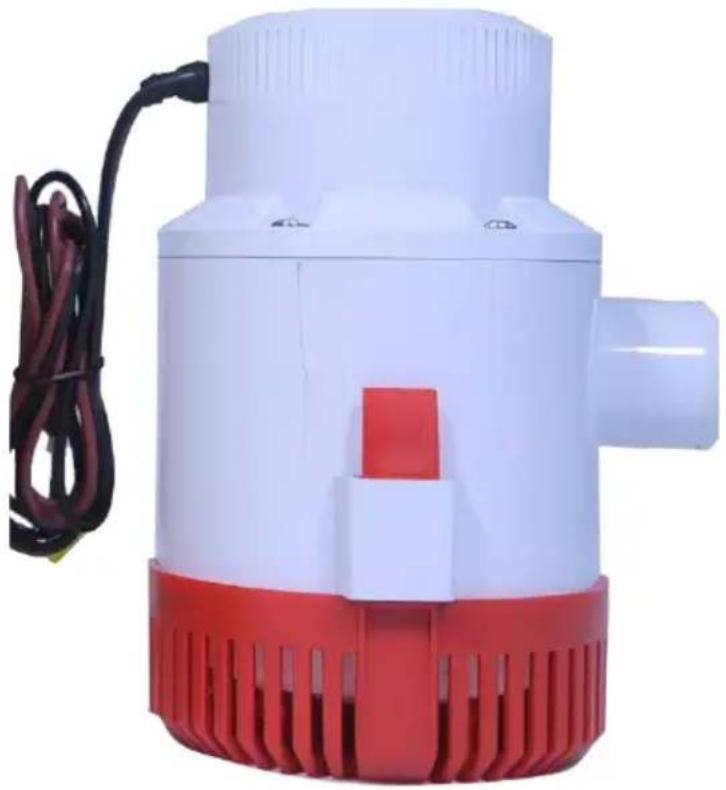

White and red square<|im_start|> Puerto Superc with attached cable (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refi collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic v but must be taken to a collection point for recycling e and electronic devices

PROPERTIES OF PRODUCTS

Input	Max powe	Max flow	Max lif	Outer diameter of outlet
DC12V	250W	3000GPH	5.5m	Φ40mm

DISASSEMBLY AND USE STEPS

CAUTION: Strainer must always be properly installed before attaching and running pump.

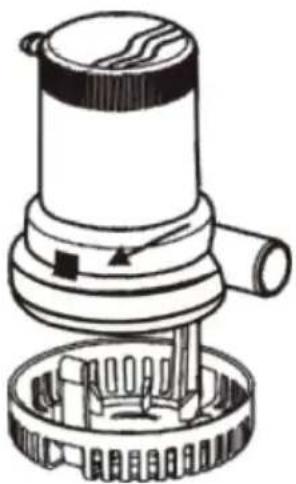

STEP 1

Remove the strainer from the bottom c pump by depressing the lock tabs on sides of the pump.

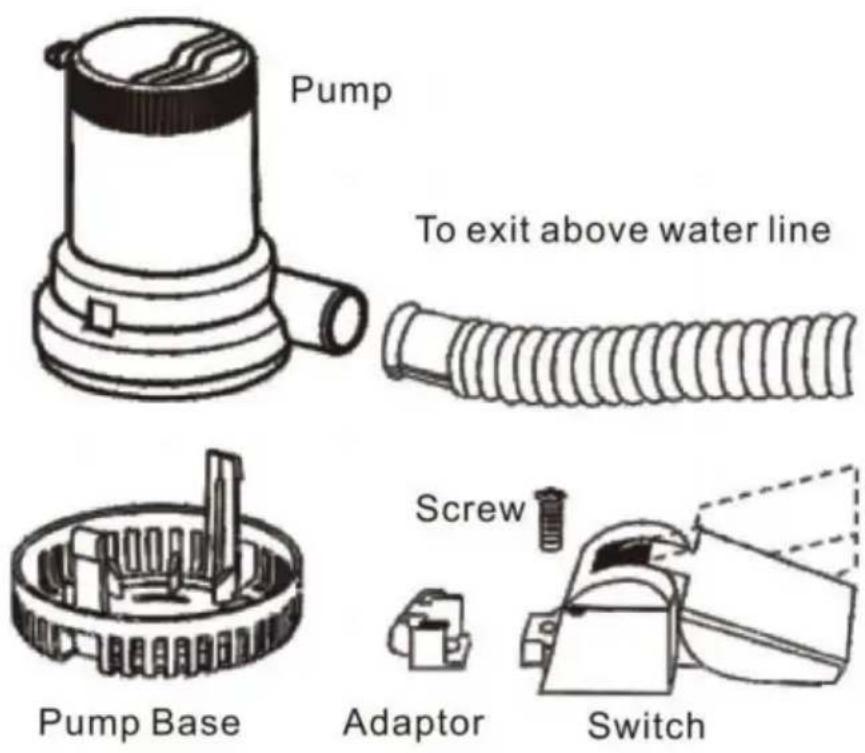

Technical line drawing of a mechanical component with gears and shaft (no text or symbols)

Pump To exit above water line Screw Pump Base Adaptor Switch

STEP 2

Determine the desired location for the pump. If only one pump is usually usually located where the water is deepest in the bilge while the boat rest. The installation must allow for complete drainage of the hose. A water pockets must be eliminated by having the hose running level of continuously upward.

STEP 3

Position the strainer so that pump nozzle is in the proper position to connect to the discharge hose.

STEP 4

A. If attaching the strainer to wood, fasten with stainless steel screws attaching the strainer to metal or fiberglass, first mount a wooden blo then fasten the strainer to the wooden block.

STEP 5

Mount the pump on the strainer so that both 11/2" lock-tabs snap in place.(The pump may be reversed on the setabs if so desired.)

STEP 6

Attach 1 1/8"1.D .Hose to the discharge nozzle and fasten with a sta steel clamp. The hose(Model #80)is recommended because it will not when making sharp bends.

If your pump is replacing a competitive model with Smaldia meter how which is hard to replace, you may use the Adaptor Model#69 to ada the smaller hose.

Note:

Restricting the flow from the pump by using a smaller hose does damage the pump. However, it will reduce the flow.

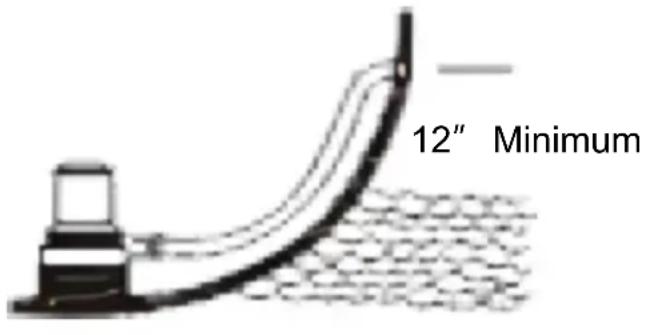

STEP7 Thru-hull Fittings

A. For most installations, install a full size 11/8" 1. D. Thru-hull fitting achieve the rated flow of the pump. Located the thru-hull fitting at le above the water line to prevent water from flowing back into the hull the pump is off.

12" Minimum

B. For stern installations, place the11/8" thru-hull fitting high enough in the stern so that submergence of the fitting will not occur under any conditions

STEP 8 wiring

In order to prevent electrolysis and corroded wire connections, it is essential that wire ends and terminals be sealed with heavy-duty mari sealant and located above the highest possible water level by fastenir with insulated staples or plastic straps.

When installing your pump, 16 gauge wire should be used. However, if installation is over 20" from the battery source, the wire size should be increased to 14 gauge. Using a wire that is too small causes undesirable heat in the wires and results in a voltage drop and lower performance of the pump.

STEP 9 fusing

To protect your electrical wiring and automatic switch from possible overload install a fuse in the positive(+)lead from the battery.If using panel switch with a fuse holder, check to see that the proper fuse is used. You may wish to install a panel switch with a built-in fuse hold

STEP 10

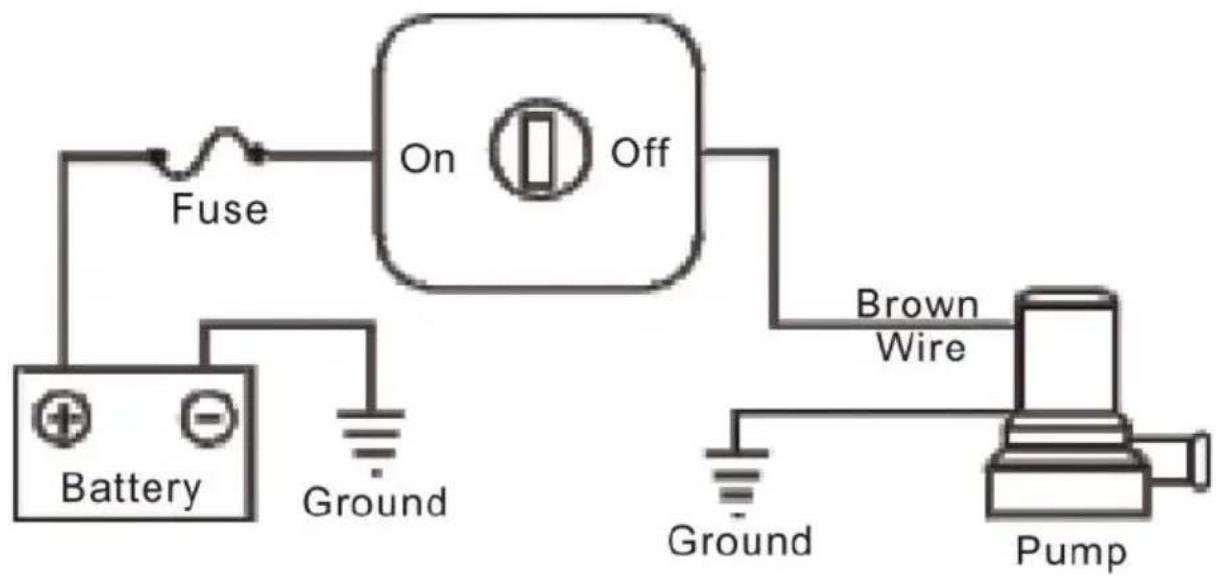

Follow one of the two wiring diagrams. Wiring for Manual Operation The manual system is the simplest system but it only provides ON-O control of the pump. Consequently, pump are often left ON longer than necessary.

Fuse On Off Battery Ground Brown Wire Ground Pump

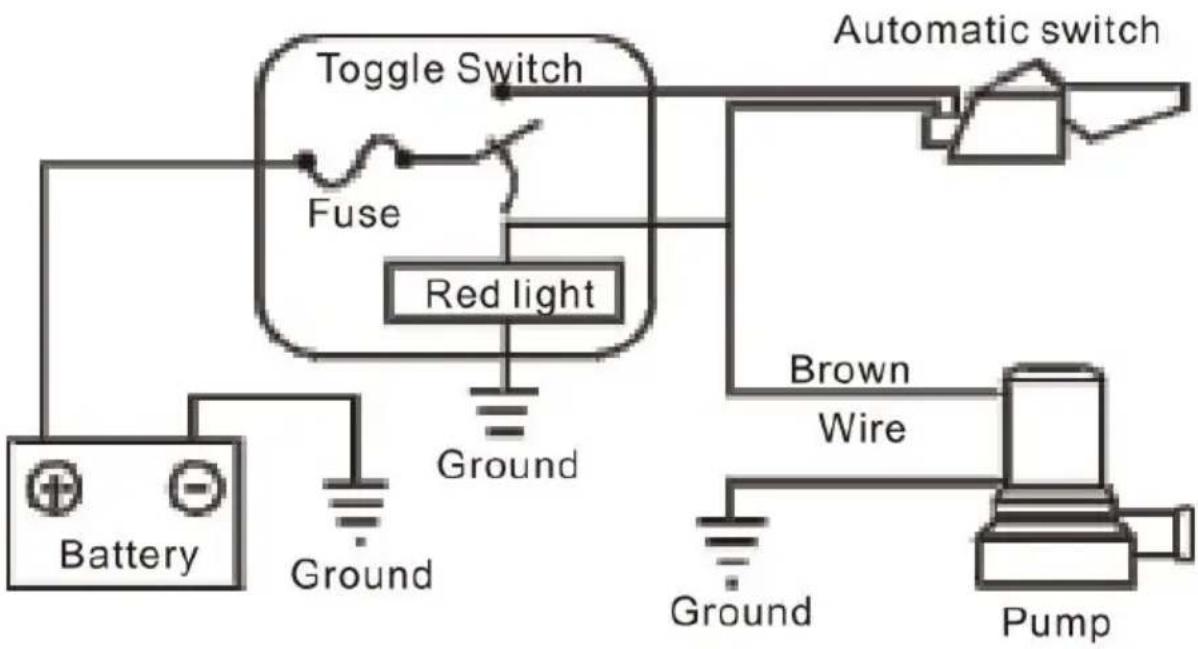

Wiring for Automatic Operation

The automatic system assures that the vessel is always pumped out, when unattended. In extends the life of the pump and your battery by automatically shutting the pump off when the water has been pumped

The automatic system can also provide for manual control of the pun installing a panel switch. These switches have a “fail-safe” feature w automatically returns the switch to the “off” position ,preventing the pump from being inadvertently left on.

STEP 11

Polarity is important. If it is not correct, the pump rotates backwards. It will still come out of the discharge nozzle but the flow will be very reduced. On the pump the correct polarity will be obtained when the wire of the pump is connected to the POS or+side of the battery. To verify that the direction of rotation(and thus the polarity)is correct is look into the running and see if the impeller rotates in the direction arrow molded into the bottom.Never insert fingers or other objects into inlet hole.

STORAGE

The pump itself is not affected by freezing temperatures. However, the pump is embedded in ice or surrounded by ice, it cannot be. Never turn the pump on if it is embedded in or surrounded by

Symptom	possible cause	cure
Reduced Flow	Plugged strainer	Clean outside of strainer and clean debris from around impeller.
	Discharge line plugged	Clean out hose by back flushing
	Low battery voltage	Check battery condition and charge if necessary.
	Kinked discharge hose	If hose is kinked because of sharp bend,convert to hose which will not kink bends.
No water pumped	Wire connections	Make sure wire Connections are not corroded.Visual check is not enough -a s pull on each wire will tell if the wires are still joined. Check to be sure joins are hanging down into the water.
	Fuse melted	Check fuse to see that it is the correct fuse still blows,check impeller through inlet opening to be sure it is no jammed or stuck with debris.
	Float switch failure	Lift end of float switch up-if pump runs, is OK.If pump does not run, turn Manual SWITCH TO on position-if pu runs automatic switch has failed.
Pump won't shut off	Something under float	Clean under the float to make sure debris not holding the float up
	Stuck float	Check to see that the float is loose and gummy bilge oil. If float action appears sluggish and/or the float does not move intermittent or sporadic operation of the p may occur.This condition is usually the result of oil and/or Dirt accumulating in a around the movable parts of the switch.To correct try soaking the entire switch In Marine cleaner for ten minutes, agitating several times and checking for smooth air free operation of the float. Repeat if necessary
	Switch mounted too Low IMPORTANT	If the pump is sucking air and the autorswitch has not reached the OFF position, the switch may be mounted too low for and should be pump reinstalled at least higher than the pump base.
Wires over-heated. Melted insulation	Combination of jammed impeller and wrong size fuse.	1. Ensure that there is no hair, debris a other debris stuck in the impeller. Please STEP 1 on page 2 for the method of managing debris in the impeller.2. Select the right fuse.
Repeated melted fuse	Fuse size or jammed impeller	Be sure fuse has amp rating Check imp to see that it is not bound up by fish I
