USER MANUAL LVT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRAILER JACK

MODEL: LVT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

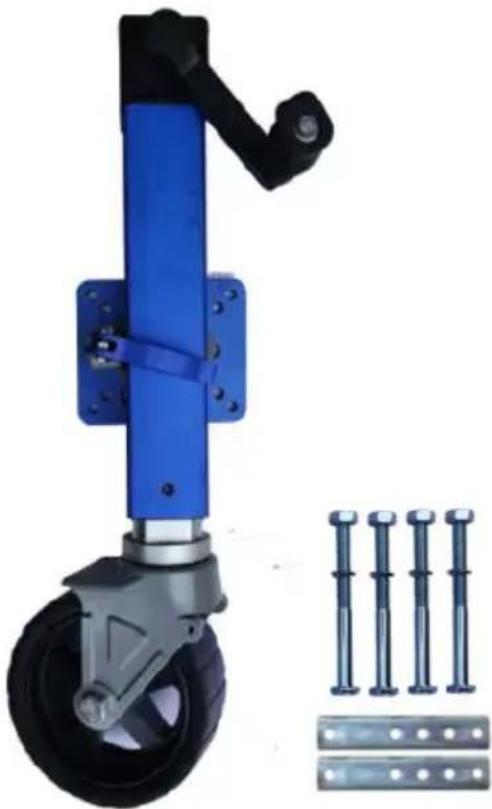

TRAILER JACK

MODEL:LVT

Blue industrial lift with black lever and four metallic bolts attached (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. The “WARNING” symbol above is a sign that a service or maintenance procedure involves a safety risk involved and may cause death or serious injury if not performed safely and within the parameter set forth in this manual.

2. Always wear eye protection when performing service or maintenance to the vehicle. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the n of the service.

3. Never allow anyone unfamiliar with this product to install, operate a service this product.

4. Never lift or level the trailer without a properly installed footpad.

5. Never crank the jack or couple the trailer without preventing the tr from rolling.

6. Never exert excessive side forces on the trailer jack.

7. Never allow anyone, including the operator, to put any body parts under the trailer jack or the supported load during jack operation.

8. Never exceed the load capacity!

9. Never use a trailer jack to lift the trailer for service or tire change

10. Never move the trailer before the trailer jack is fully retracted.

11. Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the jack.

12. Do not use the jack where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. jack can create sparks, which may ignite the flammable liquids, gases dust.

13. It is for use on flat, level, hard surfaces capable of supporting lo

14. Do not use blocks for additional ground clearance.

15. When using the drop foot or drop leg, make certain the supplied fully inserted through both sides of the inner tube and the drop tube using the jack.

16. If the trailer jack has a drop leg, never attempt to adjust the dro when there is any load on the jack.

Note:

1. The jack is only designed for vertical movement of the trailer.
2. Rapid and continuous lifting is not recommended to avoid gear heating and reduce service life.

MODEL AND PARAMETERS

Model	LVT
Capacity	1600 lbs
Mounting Bracket Type	Bolt-On Mounting Bracket
Crank Type	Side-Wind
Range	16.1-26.3inch
Screw Travel	10"
Wheel Size	7.8"
Minimum Product	27.4"(Total Product Height)

STRUCTURE DIAGRAM

Technical diagram of a blue industrial lift with numbered components and assembly details

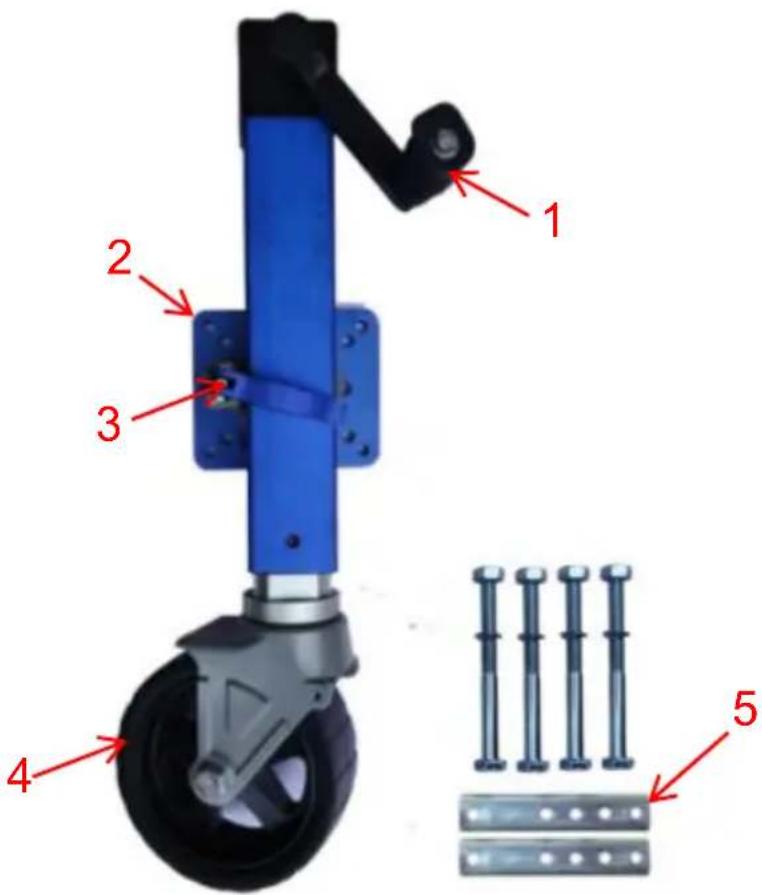

1. Handle 2. Connecting Plate 3. Pull Pin 4. Wheel 5. Mounting Fittings

COMPONENTS

No.	Picture	Name	Qty
1		Jack	1
2		Hand Rocker(Including bolt/nut/gasket)	1
3		Mounting Plate	2
4		Bolt(Including nut)	4
5		User Manual	1

ASSEMBLY

Technical line drawing of a mechanical device with wheels and mounting brackets, showing alignment lines (no text or symbols)

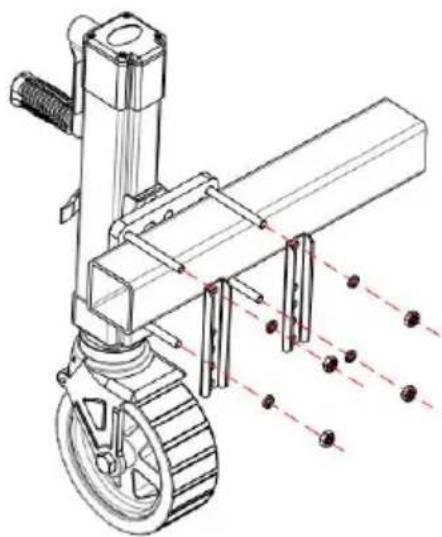

1. When mounting the trailer jack, it is best to hook it up to the to vehicle to make sure the trailer is secure.
2. Mount jack based on drawing shown above.
3. Make sure bolts and nuts are securely tightened.
4. (Regularly check to make sure bolts and nuts are securely tight.)
5. After the jack is mounted to trailer, attach the handle assembly to with bolt fastener provided.

OPERATION

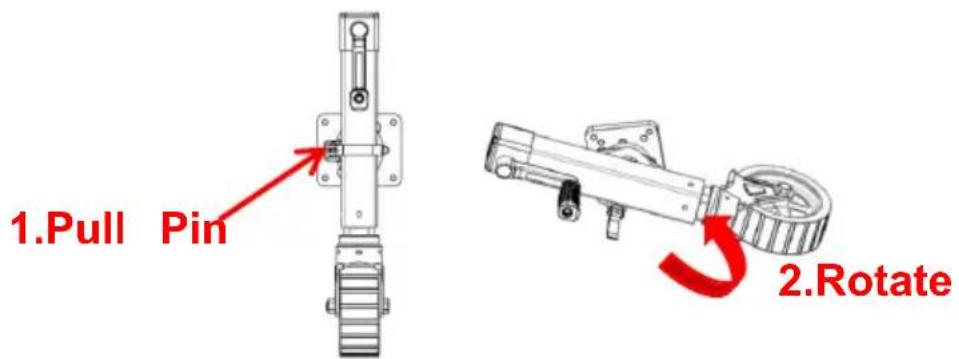

1. To activate the swivel function on the jack, pull the pull pin and jack into desired position.
2. Only swivel jack when trailer is securely attached to a tow vehicle. Make sure pull pin is properly engaged after swiveling into desire position.

1.Pull Pin 2.Rotate

1. Turn handle clockwise to raise.
2. Turn handle counterclockwise to lower.

Note: Remember that the jack must not interfere with the vehicle or when turning or passing over speed bumps, boat ramps, etc.

MAINTENANCE

1. Occasional cleaning with mild soap and water, along with light oil lubrication of pivot points, will prolong peak performance and appearance.
2. Periodically check whether the screws are loose.

3. Before each use, inspect jack tubes and replace them if bent or damaged.

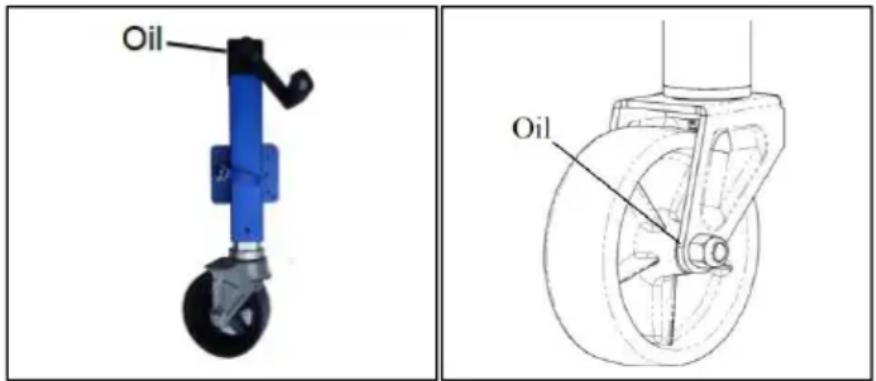

4. The following procedures should be performed at least annually. The internal gearing and bushings of the jack must be kept lubricated. Apply small amount of automotive grease to the internal gearing by removing the jack cover. Rotate the jack handle to distribute the grease evenly. The axle bolt assembly of the caster wheel must also be lubricated with the light weight of If this product is used in a marine environment, flush the jack assembly and bushings with fresh water, and apply fresh lubricant.

Oil Oil
