Product Type	Bolt-On Trailer Jack
Brand	Vevor
Model	TJBP5002SB-HEX
Load Capacity	5000 lb (2268 kg)
Mounting Type	Bolt-On
Crank Type	Side Wind
Height Range	15.4 - 29.7 inches (391 - 754 mm)
Screw Stroke	14.3 inches (363 mm)
Foot Size	6.8 x 3.93 inches (173 x 100 mm) rectangular
Main Material	Steel
Main Function	Raise and lower the trailer coupler vertically
Use	On a flat, hard, horizontal surface
Maintenance	Occasional cleaning with soapy water, annual lubrication of gears and bushings with automotive grease
Safety	Do not exceed capacity, do not use for tire changing, do not lift under load, use with safety pin
Box Contents	Jack, handle, connecting plate, 2 mounting plates, 4 bolts with nuts, 4 washers, user manual
Repairability	Spare parts available via Vevor support
Warranty	Electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - TJBP5002SB-HEX Vevor

How to install the jack on the trailer?

Mount the jack according to the provided diagram by securing the mounting plate with the supplied bolts and nylock nuts. Tighten firmly and check tightness regularly. It is recommended to connect the trailer to the towing vehicle to ensure safety during installation.

How to lift the trailer?

Turn the handle clockwise to lift the trailer. Ensure the surface is flat and hard. Never exceed the load capacity of 5000 lb.

How to lower the trailer?

Turn the handle counterclockwise to lower the trailer. Ensure the trailer is stable and that no one is under the load.

What safety precautions should I take?

Always wear safety glasses, use the jack only on a flat and hard surface, do not exceed the 5000 lb capacity, never lift for tire changing, do not let anyone under the load, and always insert the safety pin into the support foot.

What is the maximum load capacity?

The maximum capacity is 5000 pounds (2268 kg). Never exceed this limit.

Can I use this jack to change a tire?

No, this jack is designed only for vertical movement of the trailer and not for tire changing or maintenance under the trailer. Use a suitable jack.

How to maintain the jack?

Clean it occasionally with mild soapy water and lubricate pivot points with light oil. At least once a year, remove the jack cover and apply automotive grease to the internal gear while turning the crank to distribute. In a marine environment, rinse with fresh water.

What to do if the crank becomes hard to turn?

This may indicate a lack of lubrication. Follow the annual maintenance procedure: apply automotive grease to the internal gear and lubricate the bushings. Also check that the tubes are not bent or damaged.

Can I use the jack on an inclined surface?

No, the jack must be used on a flat, horizontal, and hard surface capable of supporting the load. Use on an inclined surface may cause tipping or failure.

Where to find technical support or warranty?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. Keep the manual for reference.

USER MANUAL TJBP5002SB-HEX Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BOLT-ON JACK

MODEL: TJBP5002SB-HEX

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BOLT-ON JACK

MODEL:TJBP5002SB-HEX

Product assembly of a mechanical device with metal components and bolts (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. The “WARNING” symbol above is a sign that a service or mainten procedure involves a safety risk and may cause death or serious if not performed safely and within the parameters set forth in this manual.
2. Always wear eye protection when performing service or maintenance to the vehicle. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the service.
3. Never allow anyone unfamiliar with this product to install, operate or service this product.
4. Never lift or level the trailer without a properly installed footpad.
5. Never crank the jack or couple the trailer without preventing the train from rolling.
6. Never exert excessive side forces on the trailer jack.
7. Never allow anyone, including the operator, to put any body parts under the trailer jack or the supported load during jack operation.
8. Never exceed the load capacity!
9. Never use a trailer jack to lift the trailer for service or tire chang
10. Never move the trailer before the trailer jack is fully retracted.
11. Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the jack.
12. It is for use on flat, level, hard surfaces capable of supporting lo
13. Do not use blocks for additional ground clearance.
14. When using the drop foot or drop leg, make certain the supplied fully inserted through both sides of the inner tube and the drop before using the jack.
15. If the trailer jack has a drop leg, never attempt to adjust the dr when there is any load on the jack.

Note:

1. The jack is only designed for vertical movement of the trailer.

2. Rapid and continuous lifting is not recommended to avoid gear heat and reduce service life.

MODEL AND PARAMETERS

Model	TJBP5002SB-HEX
Capacity	5000 lbs
Mounting Bracket Type	Bolt-On Mounting Bracket
Crank Type	Side-Wind
Range	15.4-29.7inch
Screw Travel	14.3inch
Foot Size	6.8x3.93" (Rectangle)

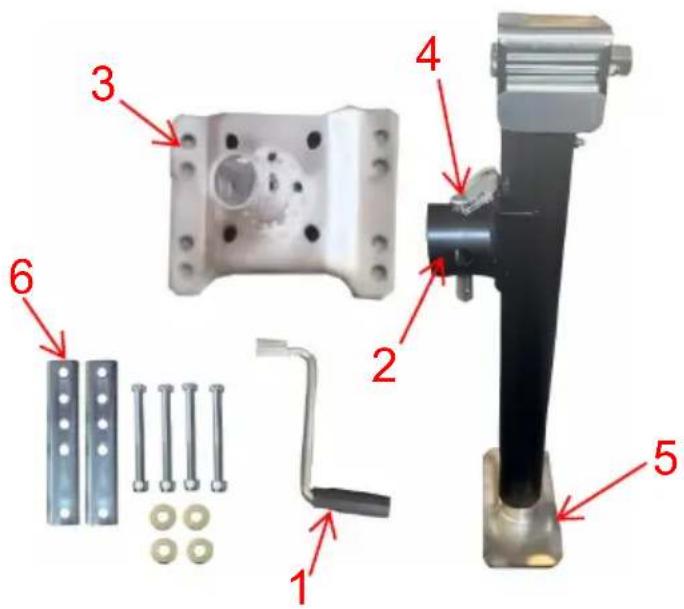

STRUCTURE DIAGRAM

1. Handle
2. Connecting Plate 4. Pin

3. Foot Plate 6. Mounting Fittings

4. Female Tube

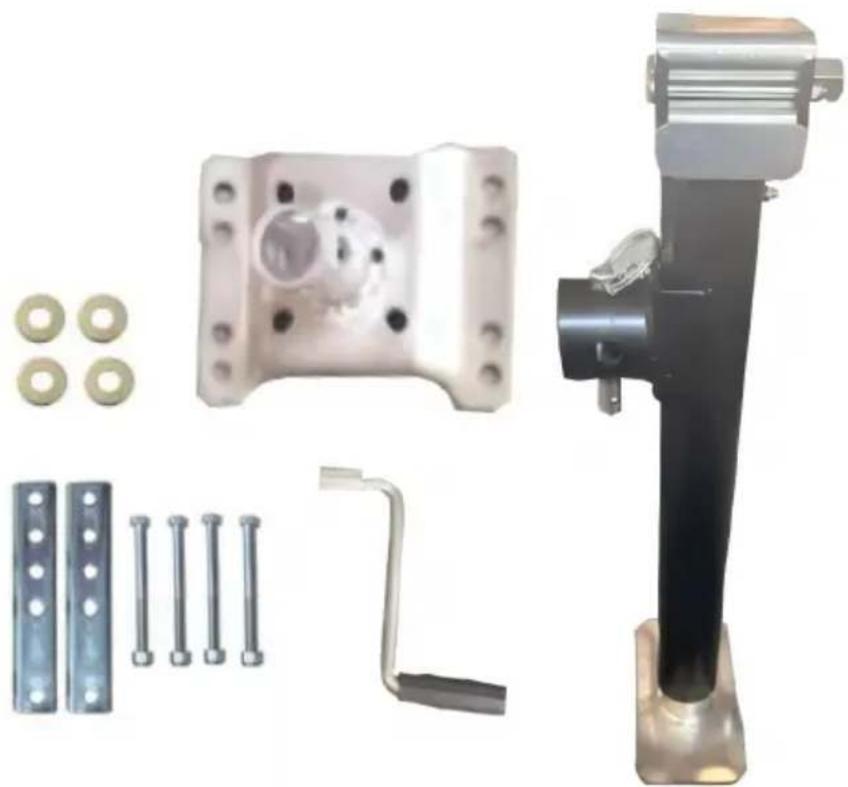

COMPONENTS

No.	Picture	Name	Qty
1		Jack	1
2		Handle	1
3		Connecting Plate	1
4		Mounting Plate	2
5		Bolt(Including nut)	4
6		Gaskets	4
7		User Manual	1

ASSEMBLY

Picture is only indicative

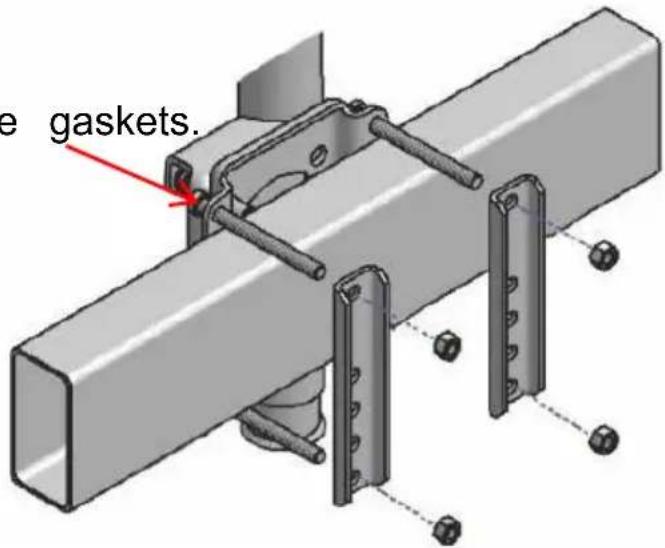

Close-up of a small, metallic object mounted on a wooden base, with a red arrow pointing to it (no visible text or symbols)

Mounting

the

gaskets.

1. When mounting trailer jack, it is best to hook it up to the tow v make sure the trailer is secure.
2. Mount jack based on drawing shown above.
3. Make sure bolts and nylock nuts are securely tightened.
4. (Regularly check to make sure bolts and nylock nuts are securely tight.)

OPERATION

1. Turn handle clockwise to raise.
2. Turn handle counterclockwise to lower.

Note: Remember that the jack must not interfere with the vehicle or when turning or passing over speed bumps, boat ramps, etc.

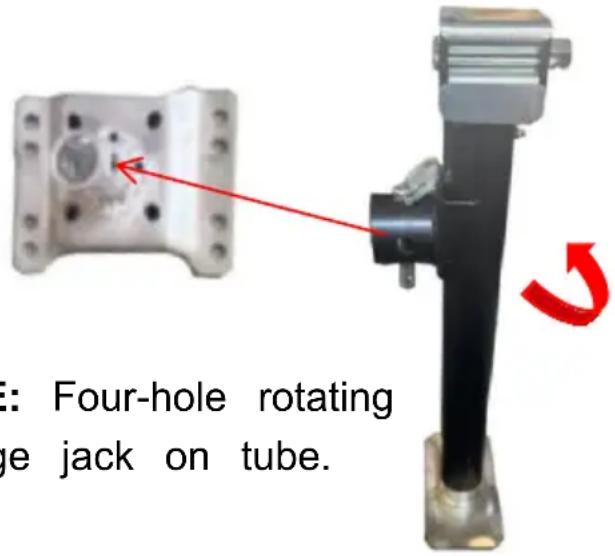

NOTE: Four-hole rotating storage jack on tube.

MAINTENANCE

1. Occasional cleaning with mild soap and water along with light oil lubrication of pivot points will prolong peak performance and appearance.
2. Periodically check whether the screws are loose.
3. Before each use, inspect jack tubes and replace them if bent or damaged.
4. The following procedures should be performed at least annually:
5. The internal gearing and bushings of the jack must be kept lubric

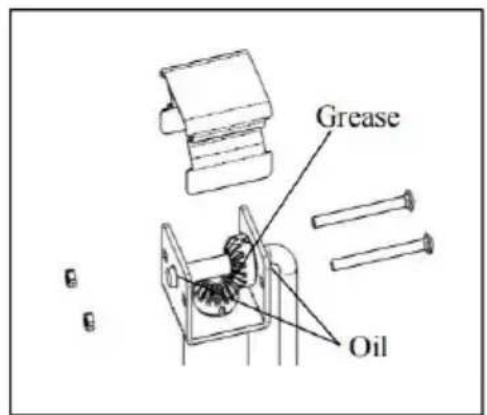

Apply a small amount of automotive grease to the internal gearing removing the jack cover. Rotate the jack handle to distribute the grease evenly. If this product is used in a marine environment, fl the jack assembly and bushings with fresh water, and apply fresh lubricant.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Product assembly of a mechanical device with metal components and bolts (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of a small metallic object mounted on a circular base, with a red arrow pointing to it (no visible text or symbols)

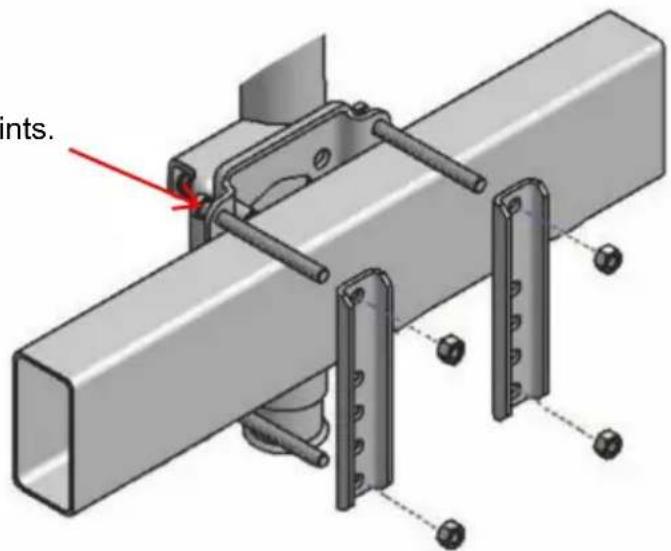

Montage des joints.
