Product Type	Sliding Door Kit
Brand	Vevor
Model	YMXT-XC40-8B
Rail Material	Aluminum
Compatible Door Thickness	35 mm and 45 mm
Closing System	Soft-close with damper
Bearing Type	Ball bearing
Number of Doors Supported	2 doors (double sliding door)
Kit Contents	Rails, carriages, floor guides, handles, screws, soft-close actuators
Tools Required for Installation	Wrench, drill, screwdriver
Estimated Maximum Load Capacity	80 kg per door (estimation)
Rail Length	Adjustable according to opening (custom cut)
Finish	Silver
Maintenance	Clean with a dry cloth, avoid prolonged sun exposure
Safety	Wear safety goggles and gloves during installation
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
EU Importer	E-CrossStu GmbH, Frankfurt am Main, Germany
Australia Importer	SIHAO PTY LTD, Eastwood, NSW
US Importer	Sanven Technology Ltd, Rancho Cucamonga, CA
Number of Pages in the Manual	96 pages

Frequently Asked Questions - YMXT-XC40-8B Vevor

How to install the soft-close system?

Place the front and rear actuators in the track at the indicated positions (L-268 mm and L-348 mm). Then insert the soft-close bracket with the idle wheels first. Engage the damper by pushing its trigger toward the engaged position on both sides.

What door thickness is suitable for this kit?

The kit is designed for wooden doors of 35 mm or 45 mm thickness. For 35 mm, the floor guide must be pushed 80 mm to the left.

How to adjust the door height after installation?

Use a wrench to adjust the door height at the pivot axis of the bracket. Turn in the necessary direction to raise or lower the door.

What to do if the soft-close does not work?

Check that the damper is properly engaged: the trigger must be in the 'engaged' position on both sides. If not, remove the door and reinstall the system. A poorly installed damper may be damaged.

How to cut the rail to the correct length?

Measure your door opening. For two doors, track length = 2 x door width - 1 inch (25.4 mm). Cut the rail to the desired length using a suitable saw.

How to install the floor guide for a 35 mm thick door?

Push ONLY the rear actuator/trigger 80 mm to the left. The front actuator does not change position. Then fix the floor guide with the provided screws.

Is it possible to use this kit for a single door?

The kit is designed for two sliding doors. For a single door, you would need to adapt the rail and components, but this is not intended by the manufacturer. It's better to choose a specific kit.

What tools are needed for installation?

The required tools are: a wrench, a drill, a screwdriver, possibly a saw to cut the rail. It is recommended to wear safety goggles and gloves.

Is the kit compatible with glass or metal doors?

No, the kit is specifically designed for wooden doors of 35 to 45 mm thickness. Use with other materials is not guaranteed.

Where to find the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support. Visit this page for any claims or technical support.

USER MANUAL YMXT-XC40-8B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Sliding Door Set

Model:YMXT-XC40-8B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Sliding Door Set

Model:YMXT-XC40-8B

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Sliding Door Set.

- Please read all of the instructions before using it. The information will help you achieve the best possible results.

The products carried in this catalog may be different in color than the actual item.

SAVE THESE INSTRUCTIONS

WARNING:

Ensure Health and Safety, local authority and general workshop practice

regulations are adhered to when using tools.

* DO NOT use tools if damaged.
* Maintain tools in good and clean condition for best and safest performance.
* Wear suitable clothing to avoid snagging. Do not wear loose jewellery and tie back long hair.
* Account for all tools and parts being used.
* If working off the vehicle, ensure that the workplace is secure and stable.
* Do Not use these tools if you are tired or under the influence of alcohol, drugs or intoxicating medication.
* PERSONAL SAFE TY WARNING!

Always Wear personal protective equipment.

*PERSONA L PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work performed.

2. Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.

Assembly and Use

PRE INSTALLATION-

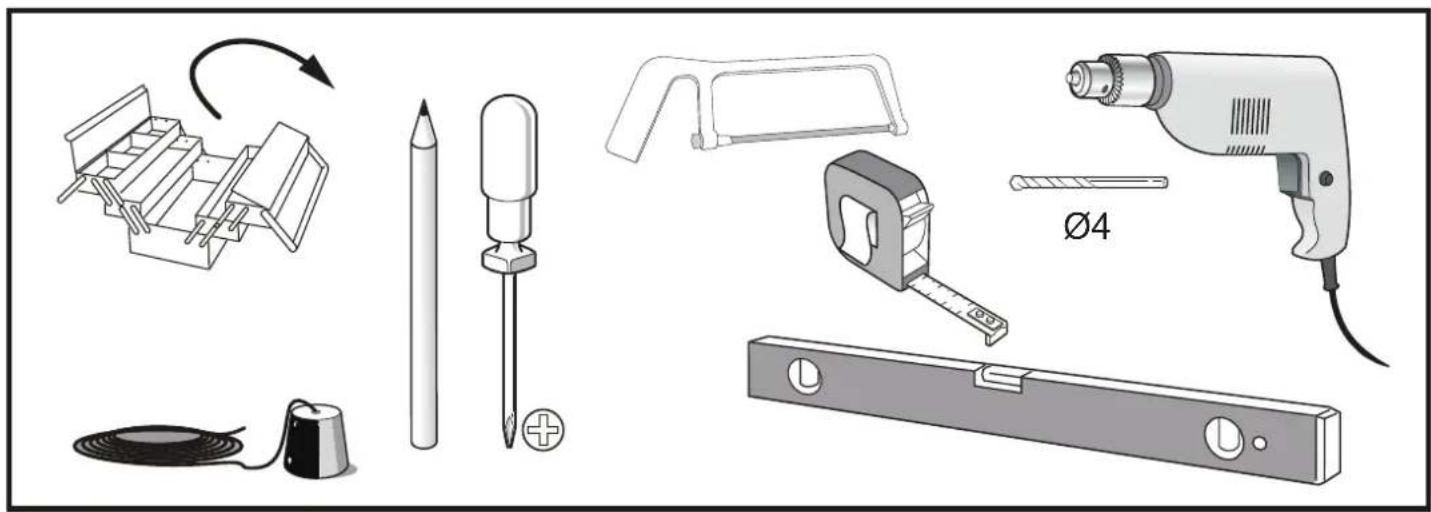

TOOLS REQUIRED

Illustration of various electrical tools including screwdriver, pushpin, saw, and power tool (no text or symbols)

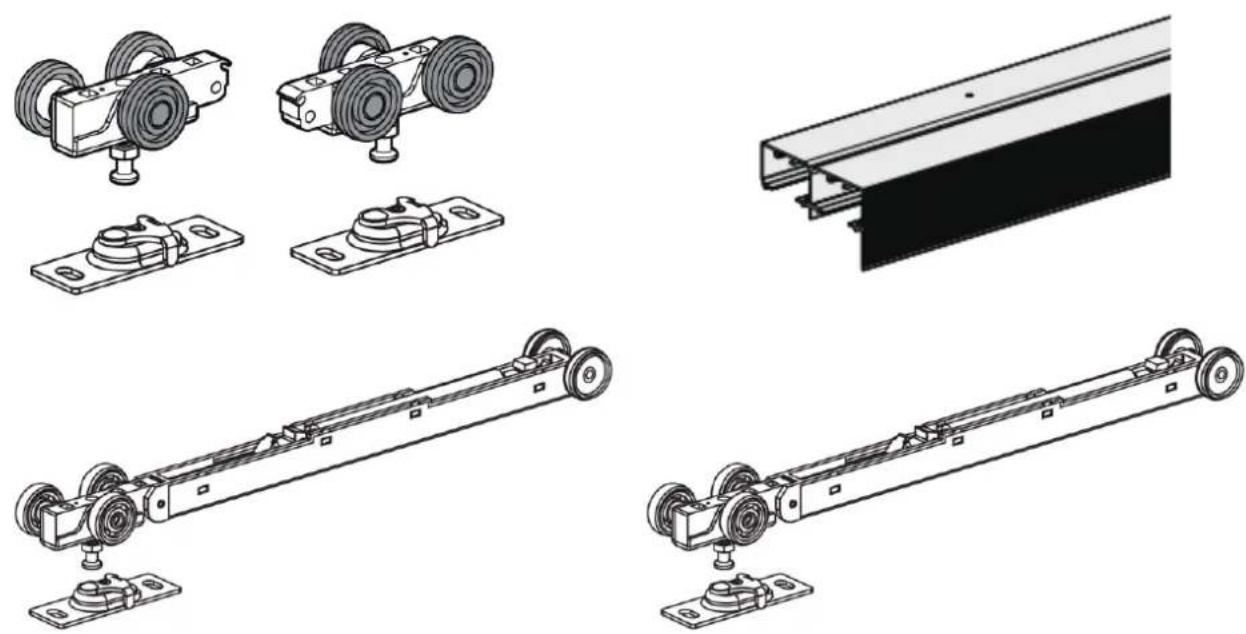

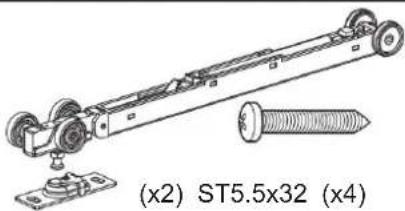

HARDWARE INCLUDED

Track Length	Screw Quantity
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)

INSTRUCTIONS

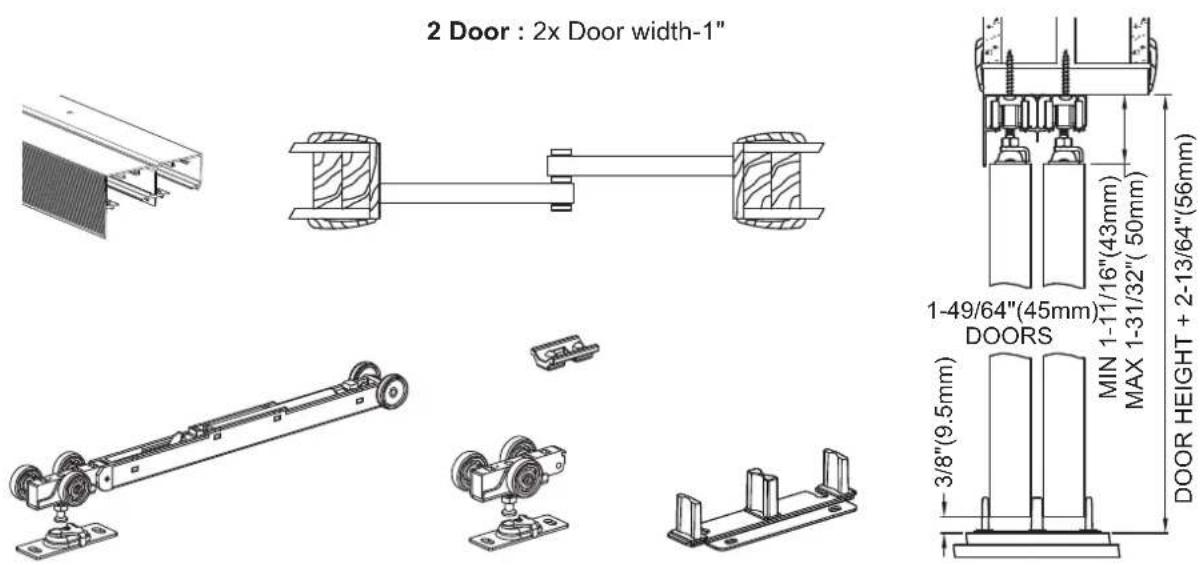

SLIDING DOOR HARDWARE

Fits 35 and 45mm thick wood door

PREPARE OPENING CAREFULLY: MAKE SURE CORNERS ARE SQUARE, HEADER IS LEVEL AND JAMBS ARE STRAIGHT.

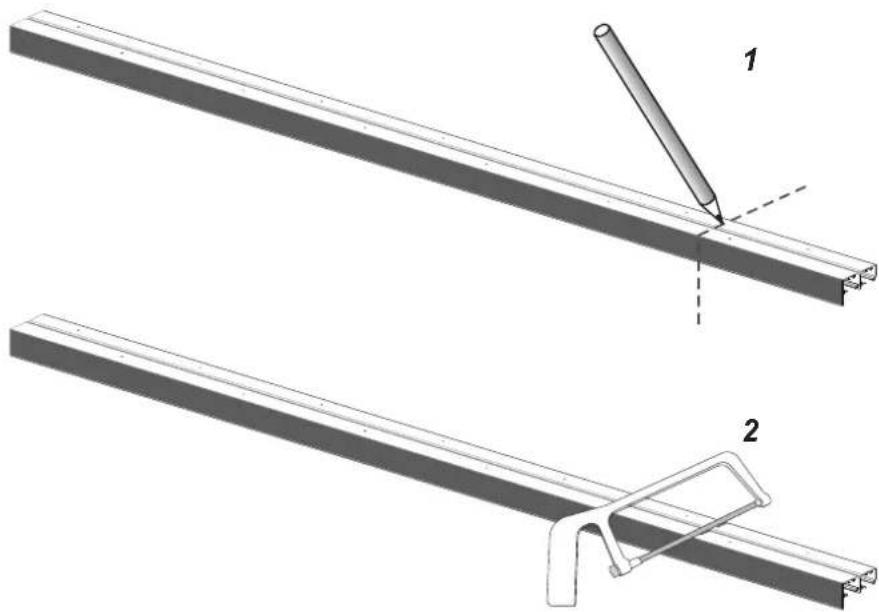

1 Cutting Instructions: The length of the track can be cut according to actual needs.

Technical illustration of two mechanical components with a pencil inserted, showing assembly steps (no text or symbols)

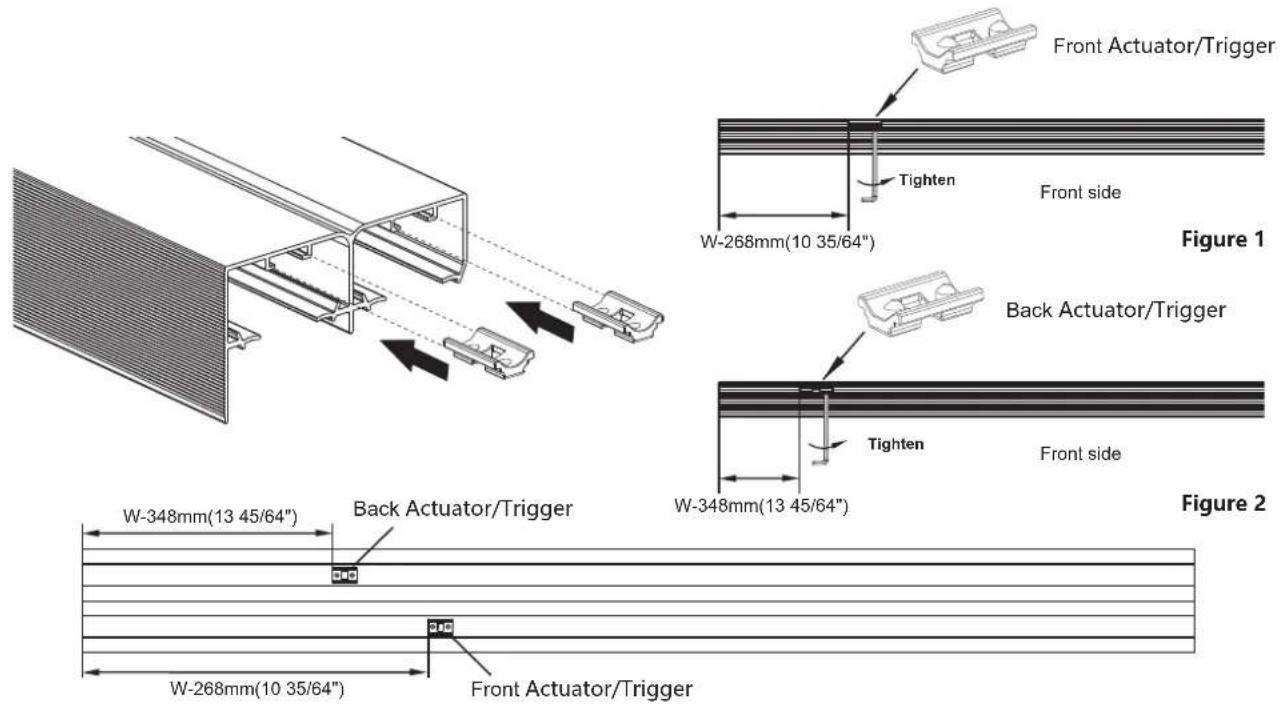

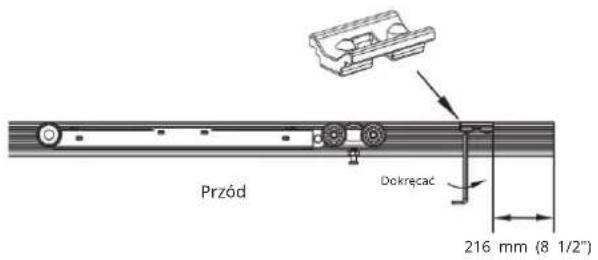

2 Place the 1st soft close actuator/trigger into the track at the given place using Figure 1 and 2. Note: W=Door width

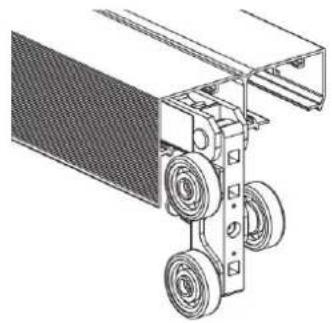

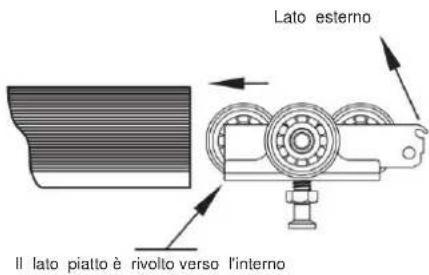

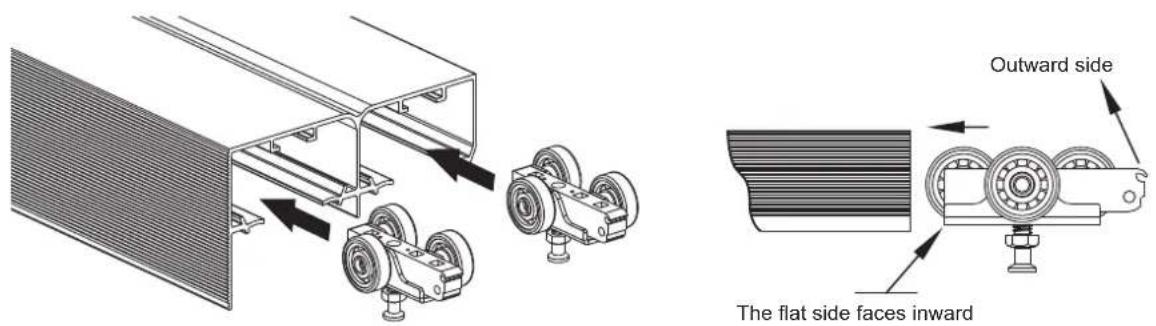

3 Insert Ball Bearing Hanger Wheel assembly into Track

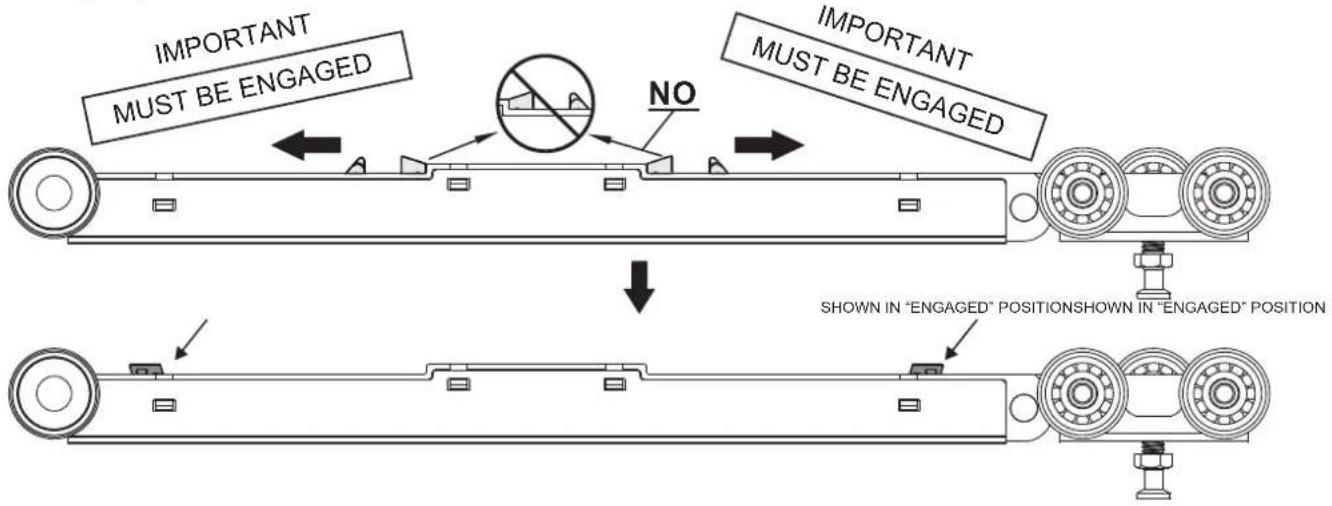

4 Engage Soft Close Dampener by pushing Dampener trigger toward "engaged" positions on both side. This step is very important. DAMPENER MUST BE ENGAGED or soft close will not work, Soft Close Dampener may be DAMAGED if installed incorrectly. Door will have to be removed and installation of Soft Close will have to begin again.

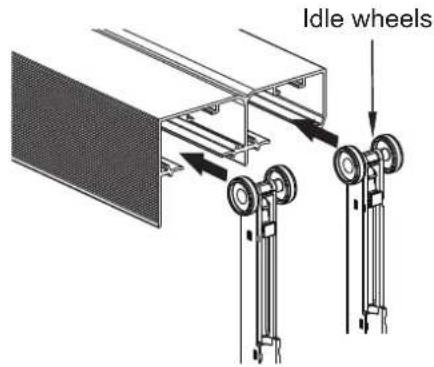

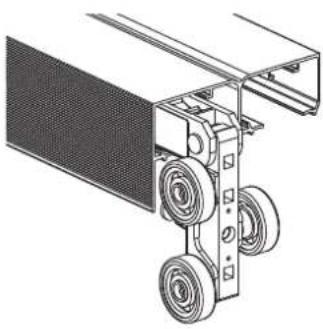

5 Insert Soft Close Hanger into Track.(Idle wheels first)

Rotate the hanger ( three wheel part ) to 90 ° and move soft close body first inside the track ,then also move the hanger inside the track.

a

b

Technical line drawing of a wheeled vehicle chassis with wheels and mounting bracket (no text or symbols)

C

Technical line drawing of a mechanical assembly with a meshed panel and mounting bracket (no text or symbols)

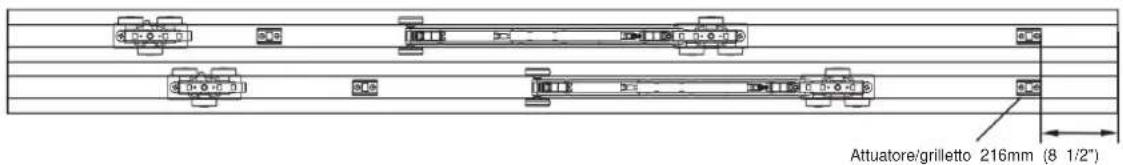

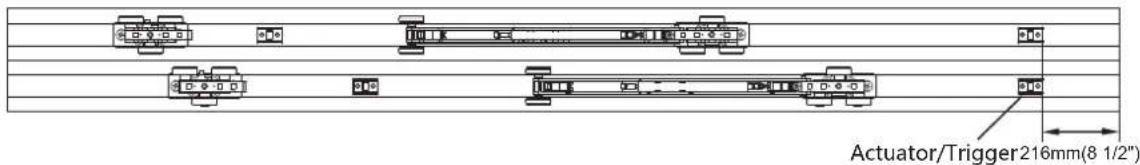

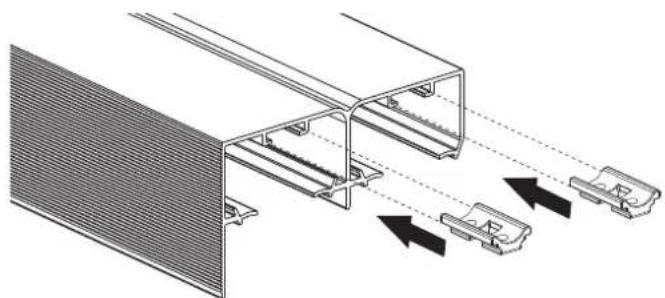

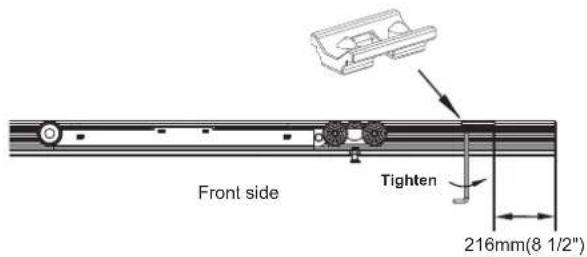

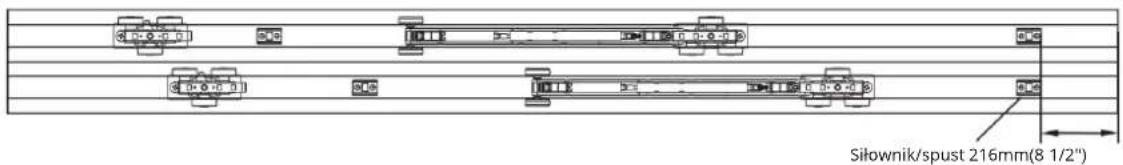

6 Place the 2nd soft close actuator/trigger into the track and have it 216 mm from the end plates.

Technical diagram of a structural component with arrows indicating assembly or flow direction (no text or symbols present)

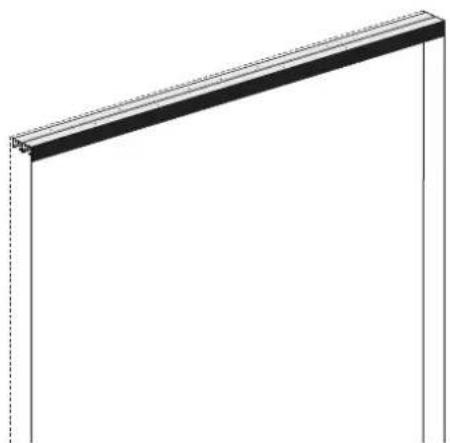

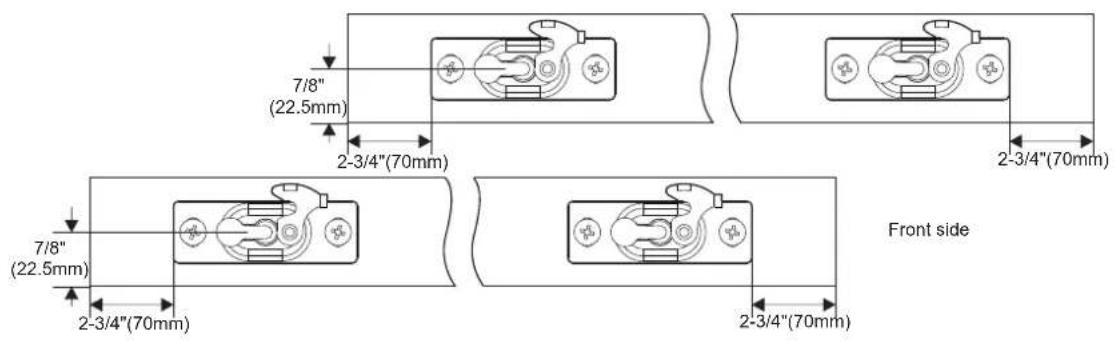

7 Mount Track to Header.

NOTE: Alternate hanger wheel assemblies in track to provide even pressure.

ST4.2x32

Pure structural diagram of a rectangular frame with vertical supports (no text or symbols)

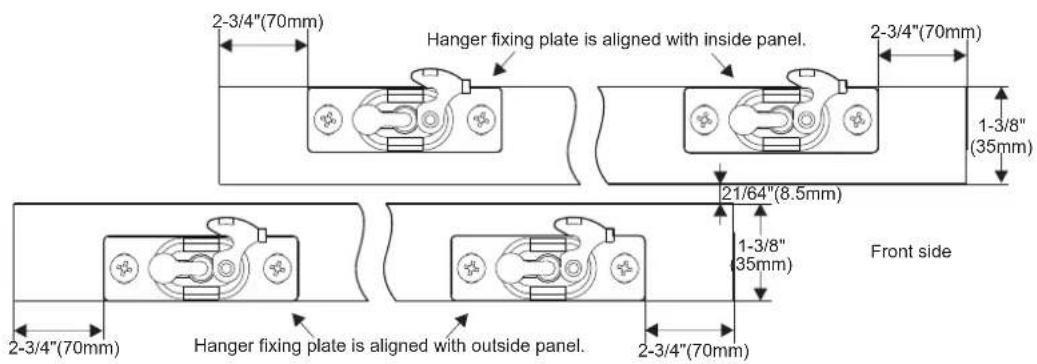

Mount Hanger Plates to Door: Fasten door plates to top of door,2-3/4"(70mm) from each edge.

45mm DOOR

35mm DOOR

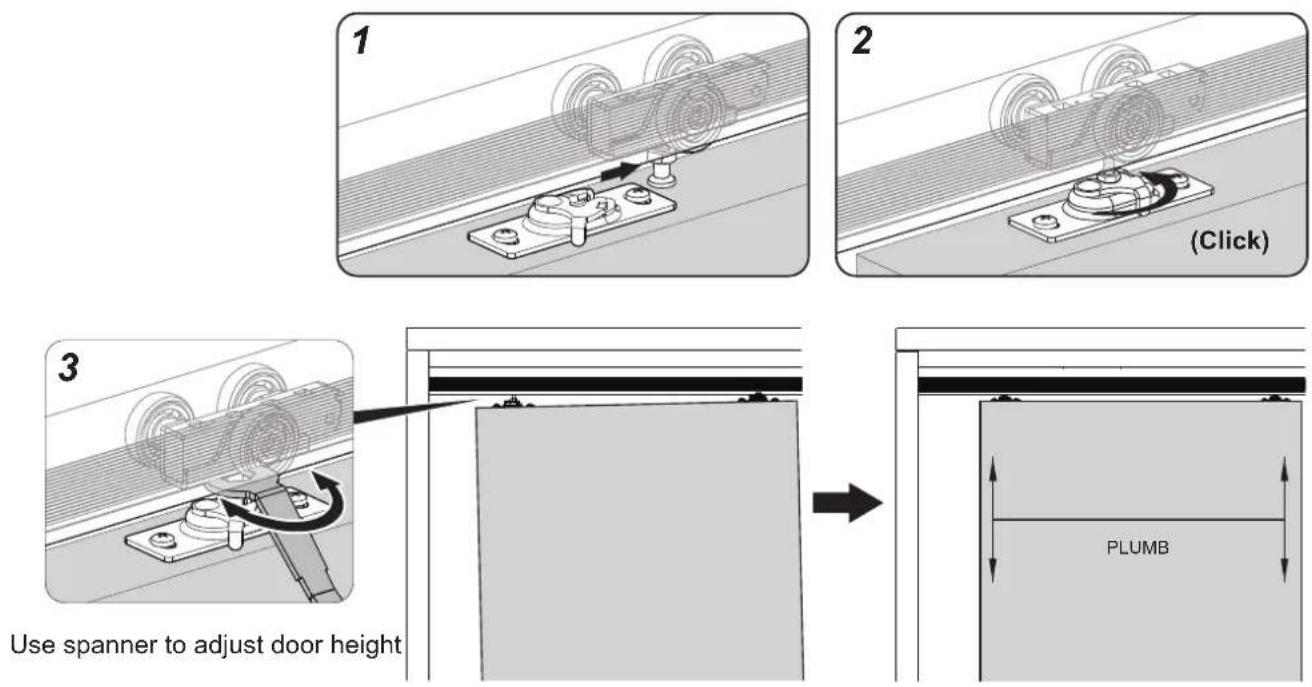

Hang Doors. Start with front door first. Slide pivot pin of hanger into socket and click the tab in place. Check for smooth travel. Repeat with rear door.

10

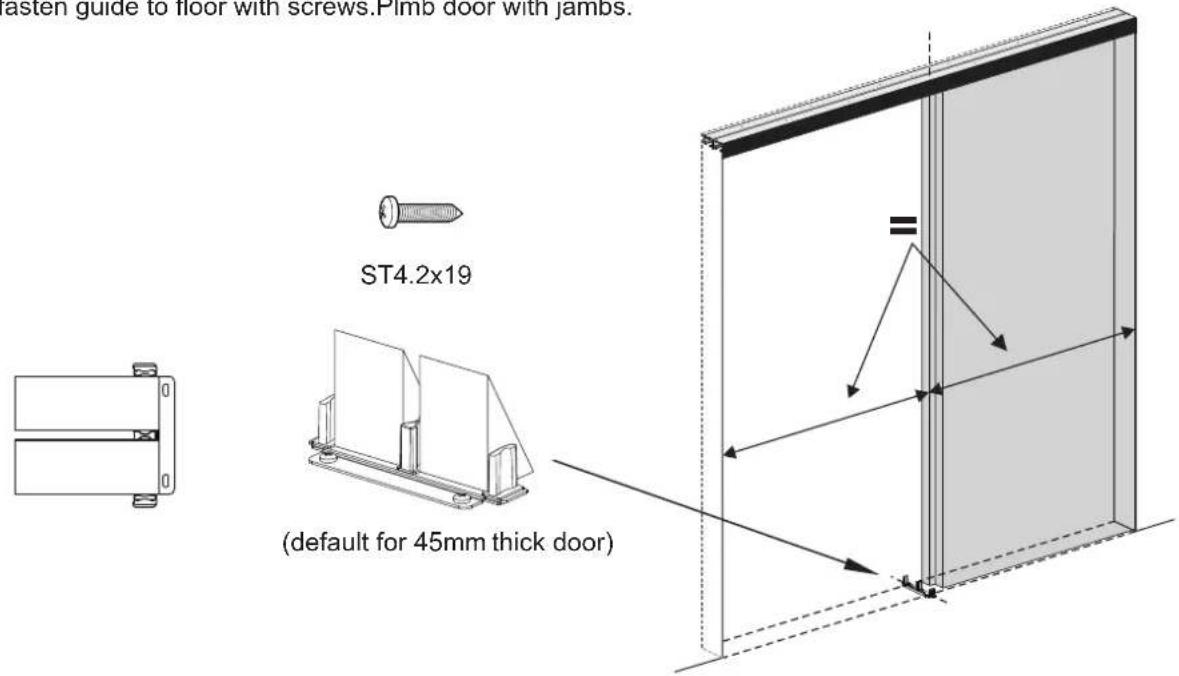

Install Bottom Guide: Slide both doors to side jamb. Place guide between doors and align doors with jamb, fasten guide to floor with screws.Plmb door with jambs.

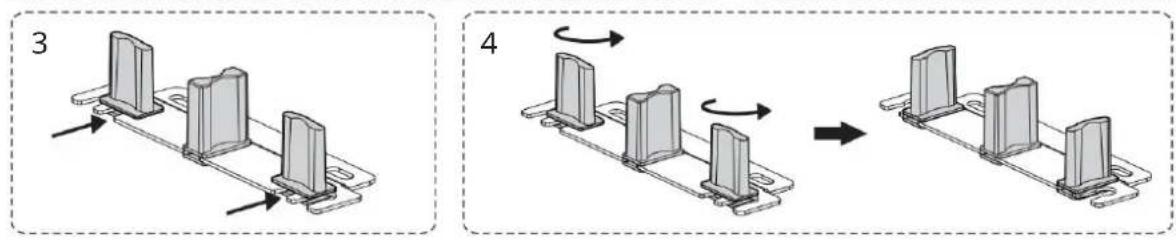

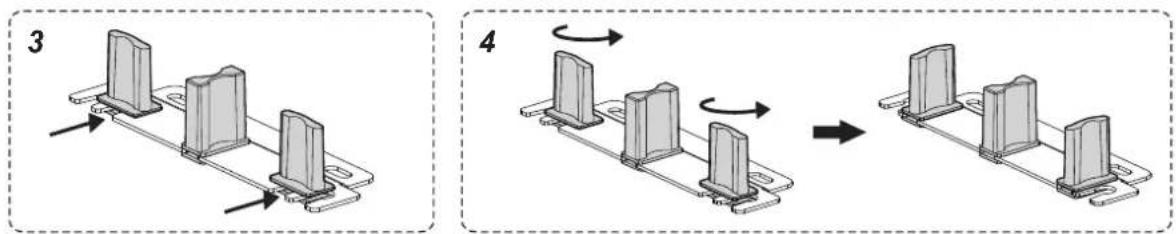

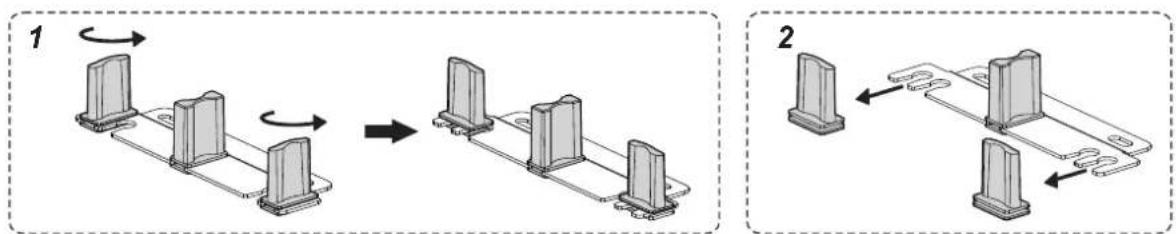

Floor guide installation instruction for 35mm thick wood door :

Mechanical assembly diagrams showing two configurations (labeled 3 and 4) of a multi-chamber mechanism with rotating arrows indicating motion (no text or symbols present)

11

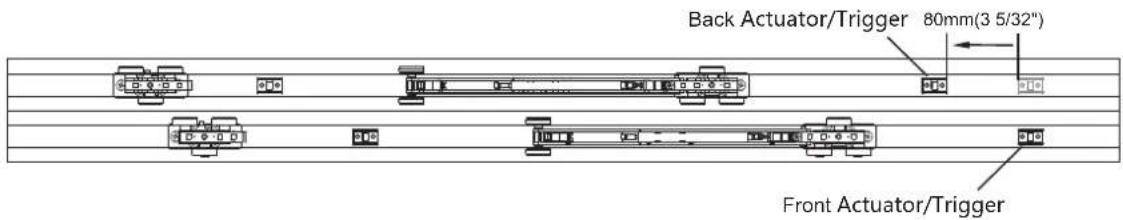

ONLY push the back actuator/trigger 80 mm to left as shown in following figure. NOTE: The front actuator/trigger don't need to move position.

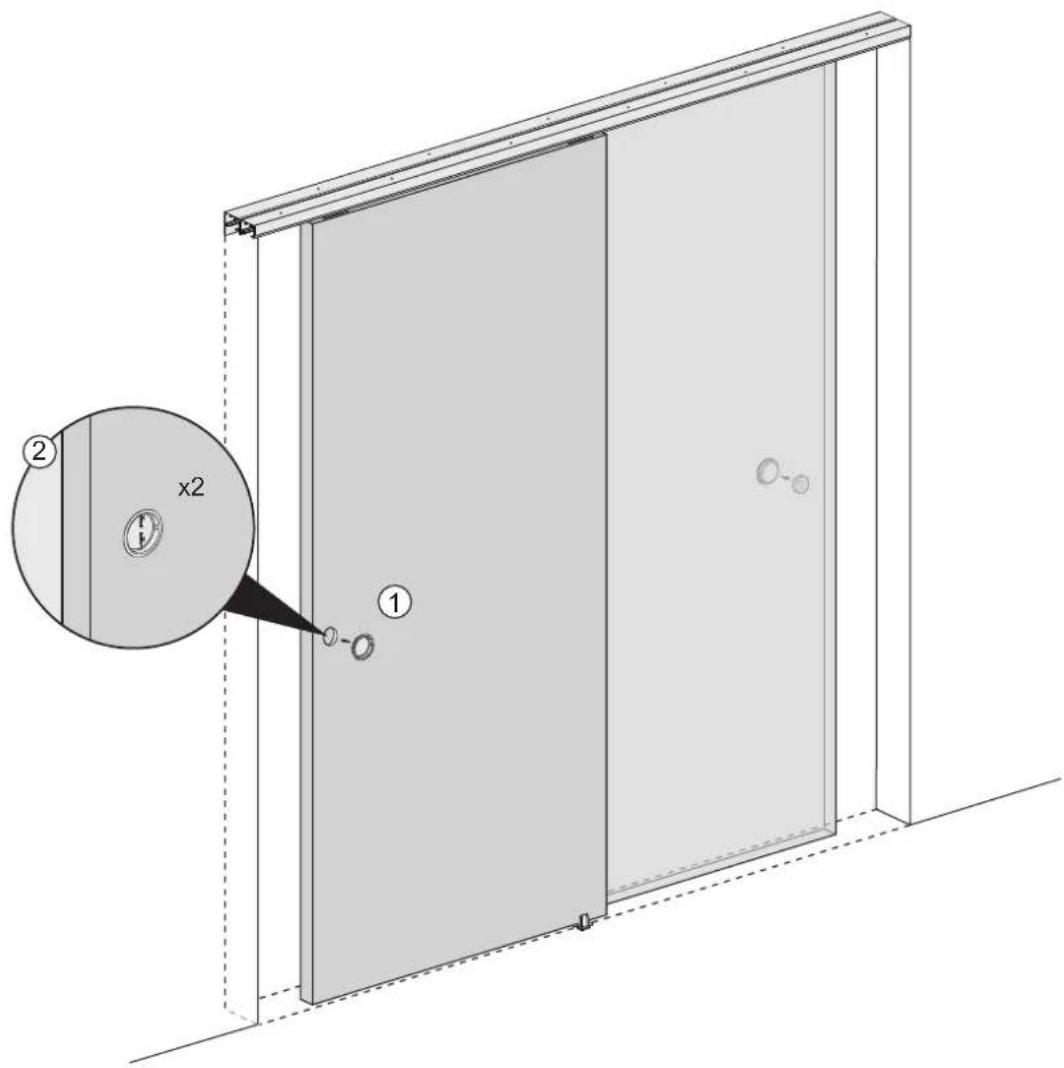

12 Install Handle: First, use a tool to make a groove on each of the two doors, with a depth of 29/64"(11.4mm) and a diameter of 2 1/8"(54mm), and finally fix the handle on the door.

Maintenance

1. Avoid prolonged exposure to the sun to avoid aging.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho

Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Illustration of various electrical tools including screwdriver, pusher, and power tool (no text or symbols)

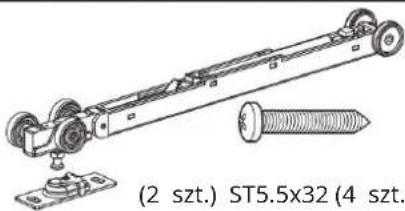

SPRZĘT W ZESTAWIE

Track Length	Screw Quantity	>14.2X32	(x2) ST5.5x32 (4 szt.)(x1)
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)
)		(4 szt.)	2)
(x1)		(x1)	(x2) (4 szt.)

INSTRUKCJE

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols present)

Technical line drawing of a wheeled vehicle chassis with wheels and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a grid-patterned panel and mounting bracket (no text or symbols)

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols)

7

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

C/O YH Consulting Limited Biuro 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Illustration of various electrical tools including screwdriver, pliers, and power tool (no text or symbols)

HARDWARE INKLUSIVE

Track Length	Screw Quantity	ST4.2x32		(x2) ST5,5x32 (x4)(x1)
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)
		(x4)		(x1) ST4.2x19 (x2)
(x1)		(x1)		(x2) (x4)

ANWEISUNGEN

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols present)

Technical line drawing of a wheeled vehicle chassis with wheels and mounting bracket (no text or symbols)

C

Technical line drawing of a mechanical assembly with a grid-patterned panel and mounting bracket (no text or symbols)

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols present)

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Illustration of various electrical tools including screwdriver, pliers, and power tool (no text or symbols)

MATÉRIEL INCLUS

Track Length	Screw Quantity	ST4.2x32	(x2) ST5.5x32 (x4)(x1)
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)
		(x4)	(x1) ST4.2x19 (x2)
(x1)		(x1)	(x2) (x4)

INSTRUCTIONS

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols)

Technical line drawing of a wheeled vehicle chassis with wheels and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a grid-patterned panel and mounting bracket (no text or symbols)

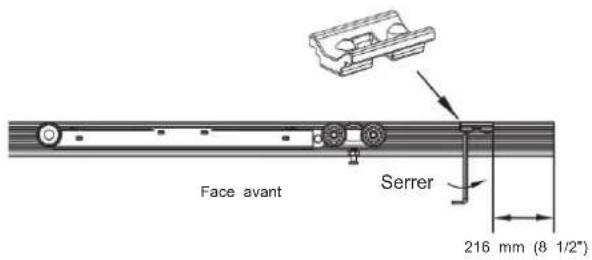

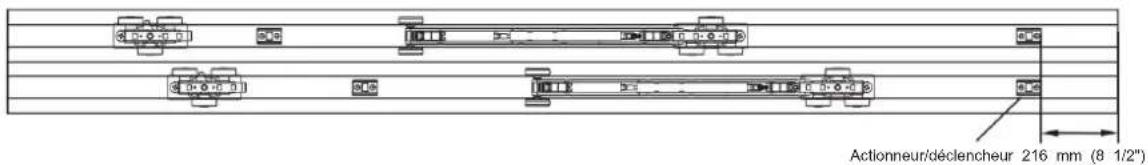

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols)

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

11

A/S YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

HULP NODIG? NEEM CONTACT METONS OP!

Illustration of various electrical tools including screwdriver, pliers, and power tool (no text or symbols)

INBEGREPEN HARDWARE

Track Length	Screw Quantity	ST4.2x32	(x2) ST5.5x32 (x4)(x1)
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)
		(x4)	(x1) ST4.2x19 (x2)
(x1)		(x1)	(x2) (x4)

INSTRUCTIES

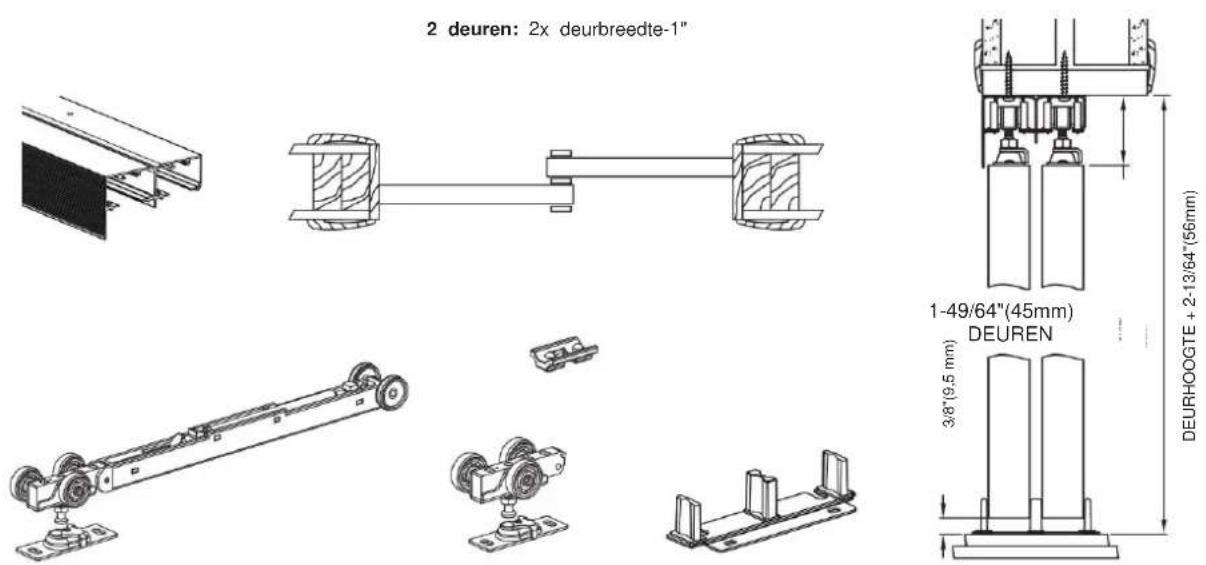

SCHUIFDEURBESLAG Past op houten deuren van 35 en 45 mm dik

BEREID HET OPENEN ZORGVULDIG VOOR: ZORG ERVOOR DAT DE HOEKEN HAAKS ZIJN, DE BOVENKANT WATERPAS STAAT EN DE STIJLEN RECHT ZIJN.

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols)

Technical line drawing of a wheeled vehicle chassis with wheels and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a grid-patterned panel and mounting bracket (no text or symbols)

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols)

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Kantoor 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

BEHÖVER HJÄLP? KONTAKTA OSS!

Illustration of various electrical tools including screwdriver, pusher, power tool, and sliding contact (no text or symbols)

HÅRDVARA INGÅR

Track Length	Screw Quantity
48"	(X7)			(x2)	ST5,5x32 (x4)
60"	(X9)
72"	(X11)	ST4.2x32	(x1)
96"	(X15)
		(x4)		(x1)	ST4,2x19 (x2)
(x1)		(x1)		(x2)	(x4)

INSTRUKTIONER

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols)

Technical line drawing of a wheeled vehicle chassis with wheels and a panel (no text or symbols)

C

Technical line drawing of a mechanical assembly with a grid-patterned panel and mounting bracket (no text or symbols)

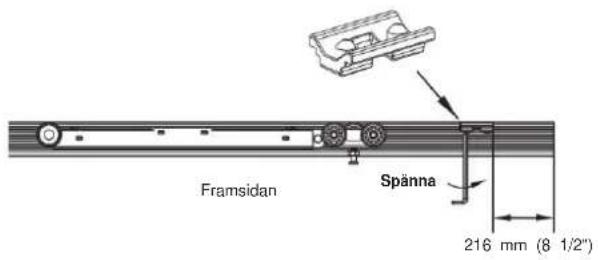

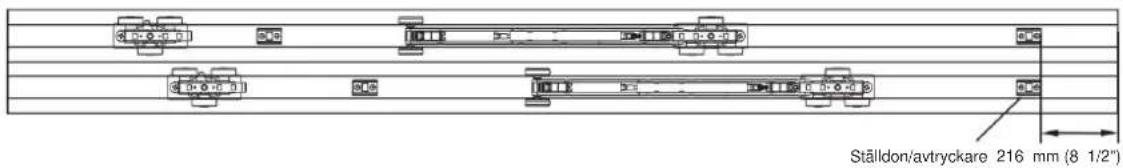

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols)

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

Illustration of various electrical tools including screwdriver, pusher, power tool, and sliding contact (no text or symbols)

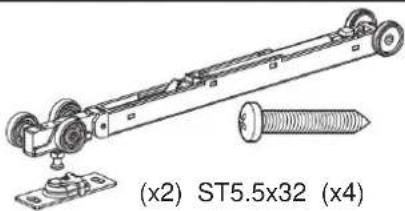

HARDWARE INCLUIDO

Track Length	Screw Quantity
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)

INSTRUCCIONES

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols)

Technical line drawing of a wheeled vehicle chassis with wheels and a panel (no text or symbols)

Technical line drawing of a mechanical assembly with a meshed panel and housing (no text or symbols)

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols)

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

C/O YH Consulting Limited Oficina 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of various mechanical components including wheels, mounts, and railings (no text or labels present)

Illustration of various electrical tools including screwdriver, pusher, power tool, and sliding contact (no text or symbols)

HARDWARE INCLUSO

Track Length	Screw Quantity
48"	(X7)
60"	(X9)
72"	(X11)
96"	(X15)
(x1)

ISTRUZIONI

Technical illustration of two mechanical assembly steps showing a tool interacting with a rod and a bracket (no text or symbols)

Technical illustration of a mechanical assembly with two wheels and directional arrows indicating motion (no text or symbols)

B

Technical line drawing of a wheeled vehicle chassis with wheels and a mesh panel (no text or symbols)

C

Technical line drawing of a mechanical assembly with a grid-patterned panel and mounting bracket (no text or symbols)

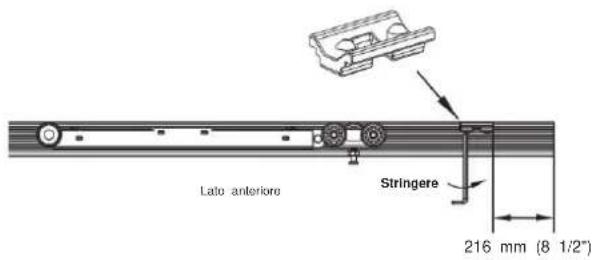

Technical line drawing of a structural component with arrows indicating assembly or flow direction (no text or symbols)

Pure architectural line drawing of a rectangular frame with vertical supports (no text or symbols)

Mechanical assembly diagrams showing two configurations (3 and 4) of a multi-stage mechanical component with mounting holes, no text or symbols present.

11

C/O YH Consulting Limited Ufficio 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
