USER MANUAL YMK40208 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DISTILLED WATER MACHINE

MODEL:YMK40208

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL:YMK40208

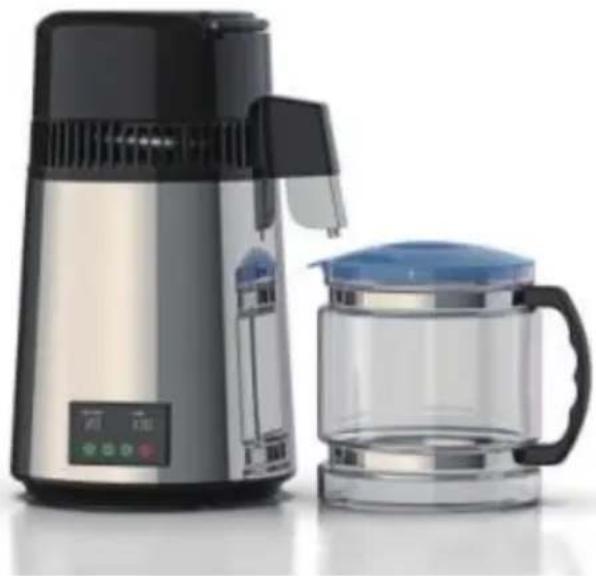

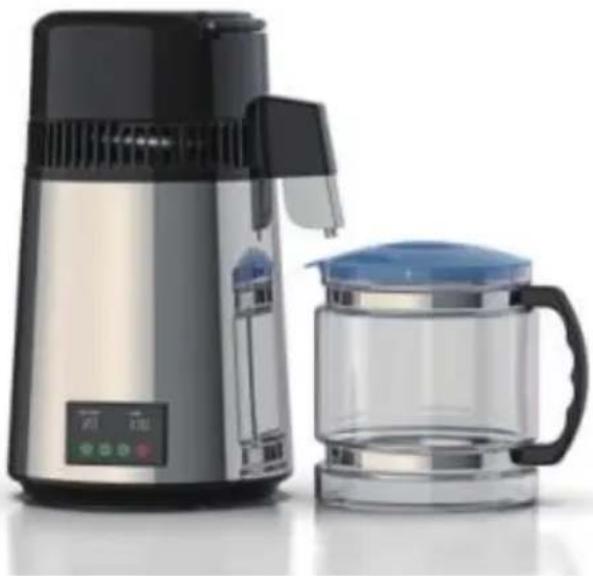

Modern stainless steel and clear glass water heater with digital display and blue lid (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	FCC Information:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance cou the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operat WARNING: Changes or modifications to this product r expressly approved by the party.responsible for compli could void the user's authority to operate the product Note: This product has been tested and found to co the limits for a Class B digital device pursuant to P the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there i guarantee that interference will not occur in a particu installation. If this product does cause harmful interfer to radio or television reception,which can be determin turning the product off and on, the user is encourage to correct the interference by one or more of the fo measures.Reorient or relocate the receiving antenna.Increase the distance between the product and rece Connect the product to an outlet on a circuit differthat to which the receiver is connected.· Consult the dealer or an experienced radio/TV tech for assistance.
	This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal waste, but must be taken to a collection point for re electrical and electronic devices

PARAMETER

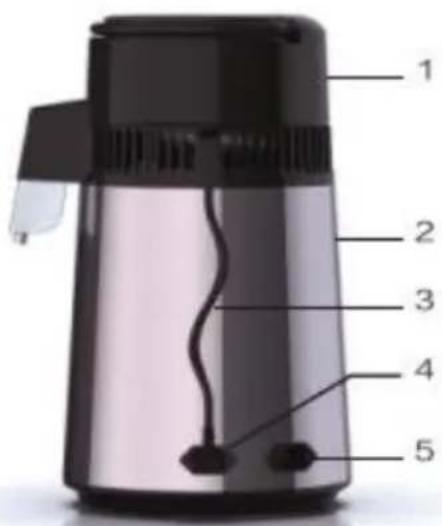

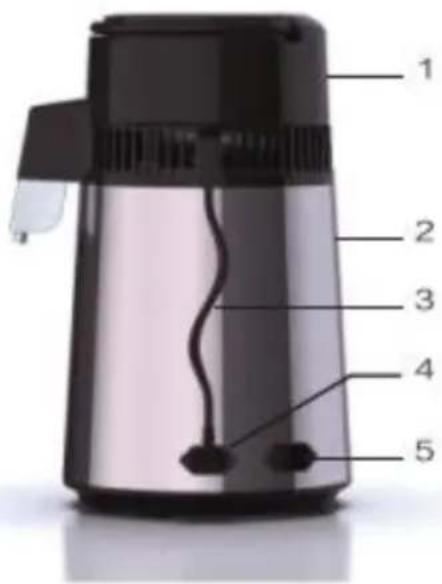

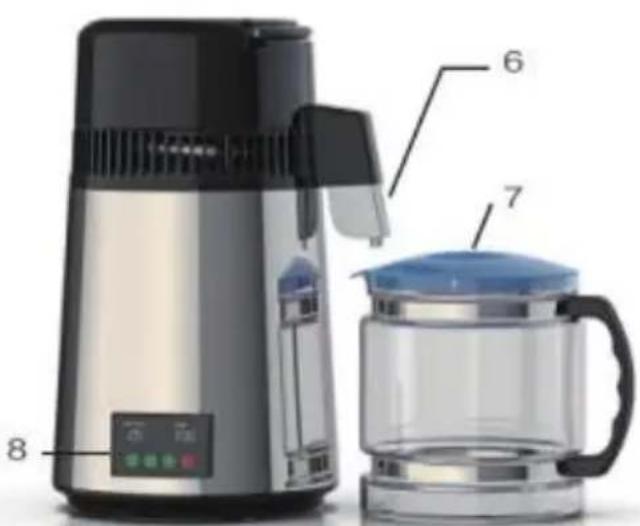

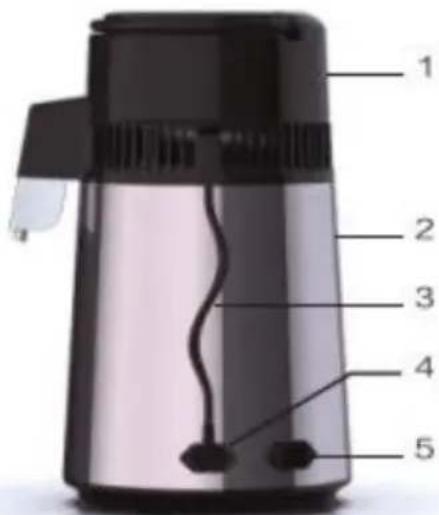

Labeled diagram of a coffee maker with numbered parts showing front, back, and interior views

1 2 3 4 5

1. Top body 2. Main body 3. Top body power cord
2. Top body socket 5. Power cord socket 6. Water outlets
3. Plastic bottle or Glass bottle 8. Display screen

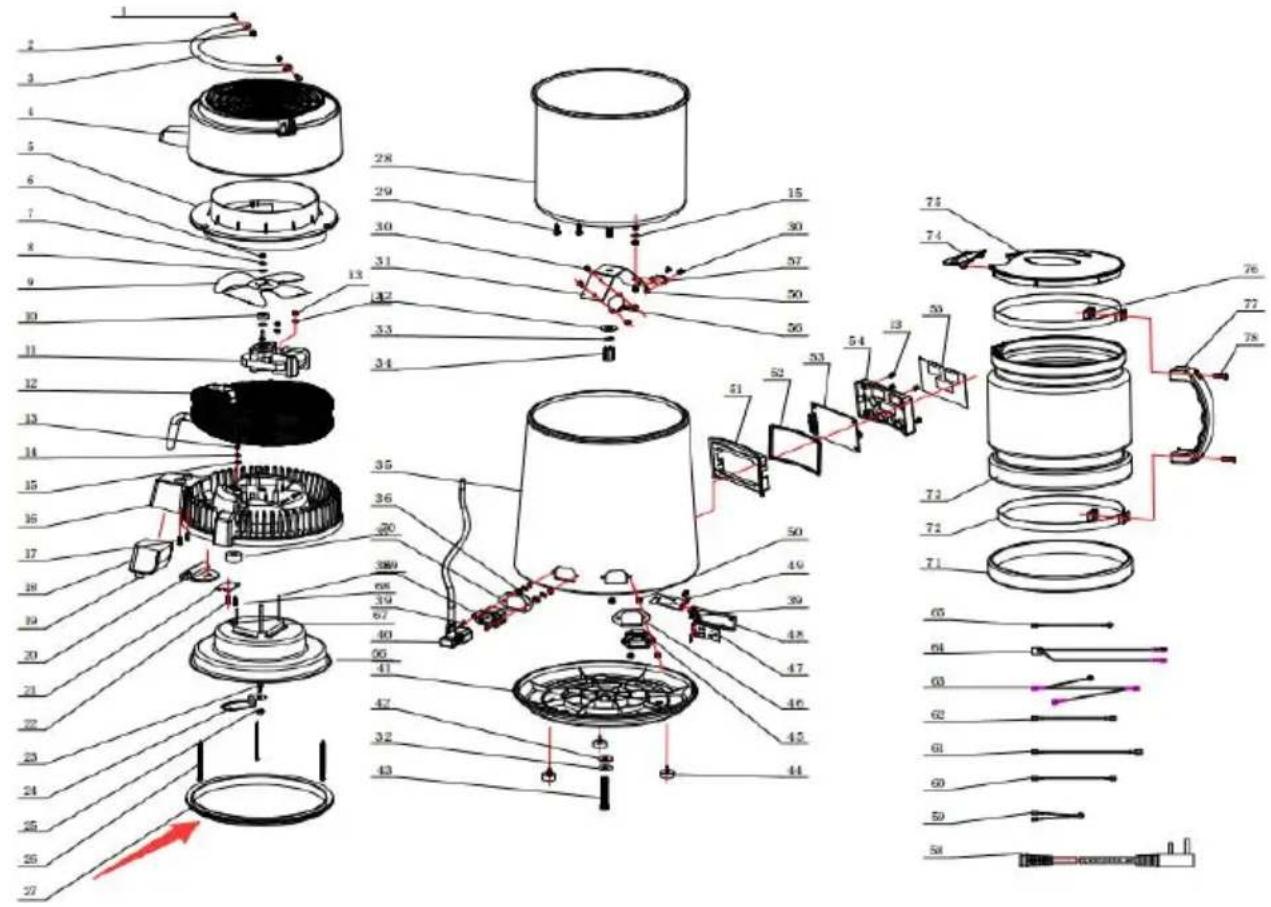

Exploded view diagram of a refrigerator with numbered parts and Chinese labels

24 Water fender	48	Nut	71 Dust cap cover
23 Distillation cap	47	Power socket gasket	70 Dust cap
22 Self-tscrew	46	Coupler	69 Water barrel cap
21 tension disc	45	Head screw	68 Water barrel
20 Neck	44	Cupule foot	67 Outlet seal ring
19 Stainless steel nozzle tube	43	Head screw	66 Head screw
18 Stainless steel nozzle	42	Bottom cap gasket	65 Head screw
17 Self-tscrew	41	Base cover	64 Triangle plate
16 Air inlet cap	40	Head power cord	63 Connecting cable7
15 Flat gasket	39	Coupler	62 Connecting cable6
14 Spring washer	38	Head socket gasket	61 Connecting cable4
13 Nut	37	Boat switch	60 Connecting cable3
12 Two coils of condensing pipe	36	Flat gasket	59 Connecting cable2
11 Motor	35	Outer shell	58 Connecting cable1
10 Motor shaft cover	34	Nut	57 Power cord
9 Fan blade	33	Spring gasket	56 Thermostat
8 Flat gasket	32	Flat gasket	55 Head screw
7 Spring gasket	31	Temperature control connecting plate	54 Thermostat
6 Nut	30	Head screw	53 light cable
5 Wind guide ring	29	Head screw	52 Key
4 Air outlet cap	28	Body assy	51 spring
3 Handle	27	Distillation cap scaling ring	50 Key Base
2 Nut	26	Self-tscrew	49 Key retainer
1 Head screw	25	Nut

PRODUCT FEATURES

Advanced silent fan + two disc super cooling technology: steam super cooling.

Electronic double screen display, adjustable set temperature and current real-time temperature display, ON/OFF button, you can turn on or off distiller at any time.

Anti-dry burning function: After the water inside the main engine is dried, the temperature control will automatically protect and turn off the power. Rapid water production: 4L condensed water can be produced in 3.5 hours.

Steam wine function: This product can produce wine according to consumer demand..

You can make pure dew and essential oil

NOTES(DANGER AND WARNING)

This appliance is intended to be used in household and similar applica such as:

staff kitchen areas in shops, offices and other working environments. farm houses.

by clients in hotels, motels and other residential type environments. bed and breakfast type environments.

If the manufacturer wants to limit the use of the appliance to lesstha above, this is clearly stated in the instructions. Before using this product please read this instruction carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

( WARNING: To reduce the risk of burns, electrocution, fire or injury persons!)

a) Do not disassemble the unit except for the authorized serviceman.
b) Unplug the unit before filling. Do not exceed the MAX mark.
c) Do not touch the socket with wet hand to reduce the risk ofelecti

Do not immerse the head and base in water or other liquid, nor fluss faucet.

After the water in the distillation barrel is dried and automatically prot by temperature control, the machine head assembly shall be opened af an interval of about 10 minutes to avoid possible burnscaused by the steam in the barrel.

Before the product is connected to the power supply, confirm whether marked voltage is consistent with the local used voltage.

If the plug, socket or product is damaged, do not remove the machine repair without permission, to avoid the wrong connection of the internal circuit, resulting in power short circuit and other dangers.

This appliance can be used by children aged from 8 years and above, they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless are older than 8 and supervised. Keep the appliance and its cord out reach of children aged less than 8 years. This product is not suitable for children, people with physical or mental disorders, to avoid harm caused by wrong use.

When taking the head components or cleaning products, turn off the ON/OFF button first, and unplug the power plug of the head component and the host power plug.

For the first time, add 1.0L of water and 2 tablespoons of citric acid tank of the main engine, cover the head assembly, boil water with electricity for about 20 minutes, after pouring out the water, rinse the and the distillation cover with clean water (the distilled water made fo first time cannot be drunk).

When cleaning the interior, it is forbidden to use steel wire brush(vel) and other hard articles to scrub the inner tank of the main engine a inner tank of the machine head, so as to avoid scratches formed on surface of the inner tank, which will cause dirt accumulation in the g fine scratches.

When it is necessary to stop the production, you can press the ON/

button below the display screen of the host machine. There is no need wait for the water in the tank of the host machine to dry up completely. This product can continuously produce condensed water, that is, after water in the tank is distilled, turn off the display ON/OFF button and the nose component after an interval of about 10 minutes. Add the valve with the largest scale into the inner tank of the main machine, press ON/OFF button on the display screen to restart the work.

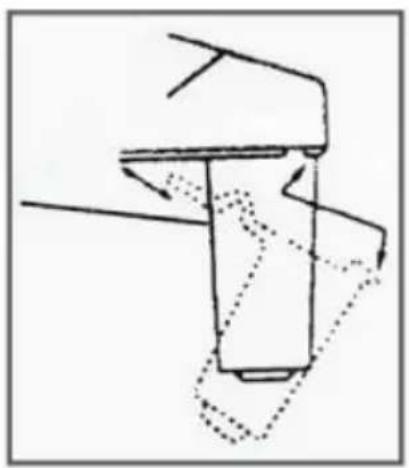

Installation and disassembly of outlet nozzle are shown in the diagram the right. Before the water outlet nozzle is installed into the machine the activated carbon shall be installed into the stainless ssteel water o nozzle first.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

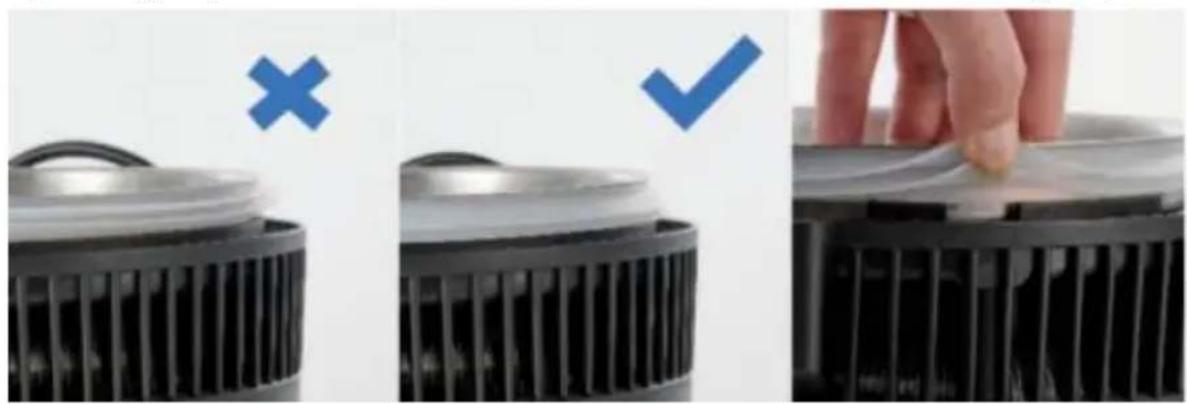

SILICONE SEAL ASSEMBLY

The silicone seal prevents water from escaping the distiller. When pla or replacing it, ensure that the rounded side is facing up.

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating inspection or modification (no text or symbols present)

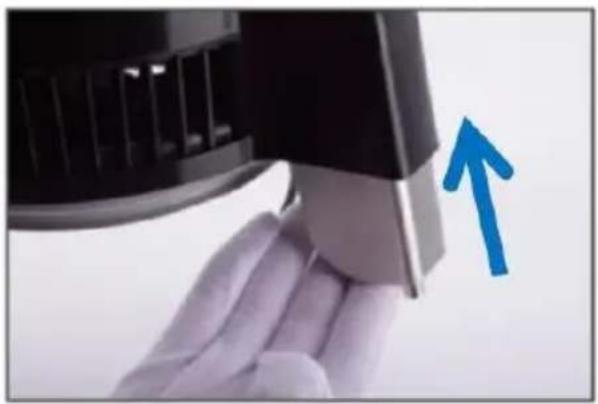

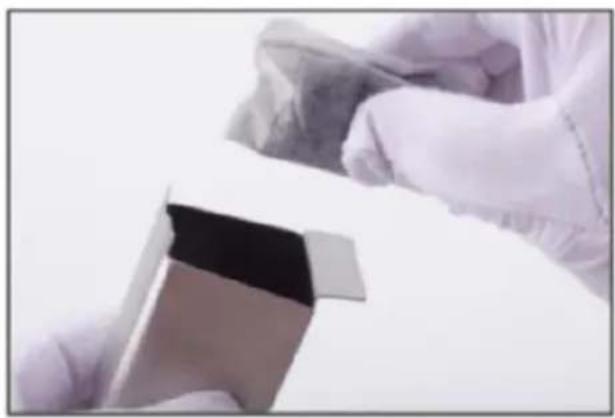

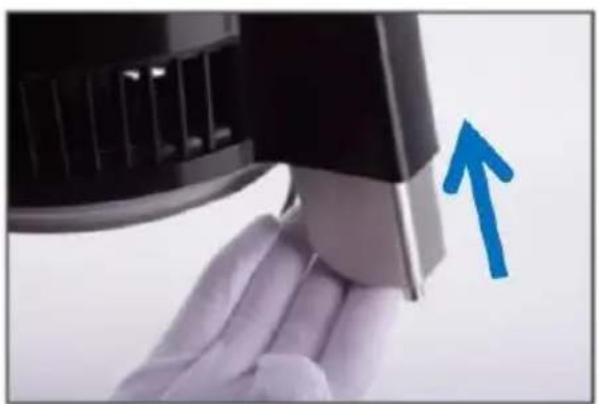

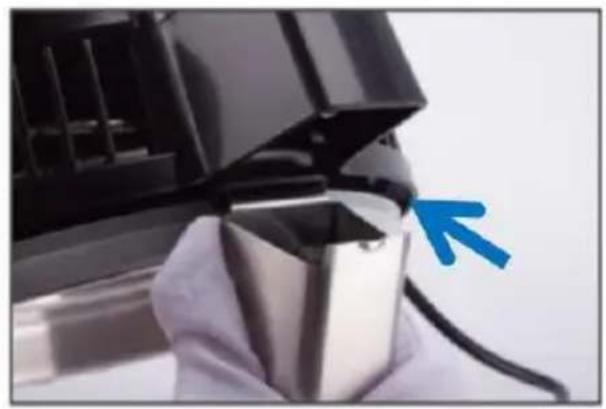

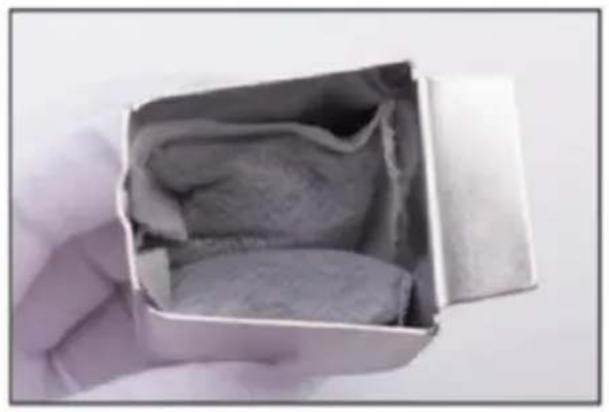

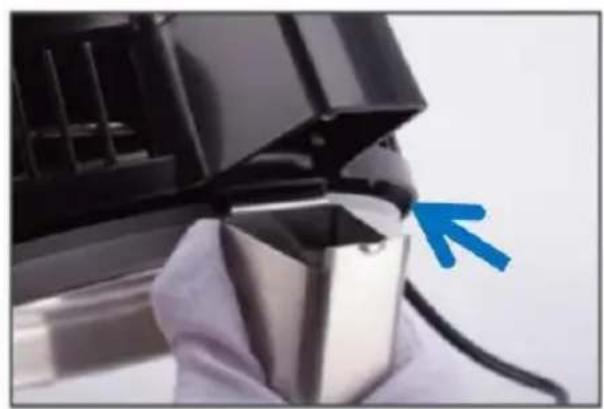

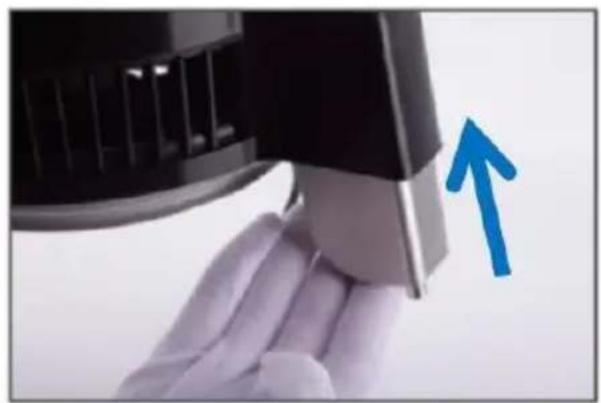

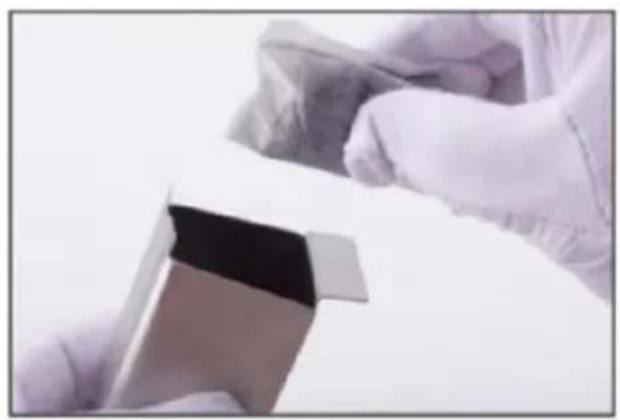

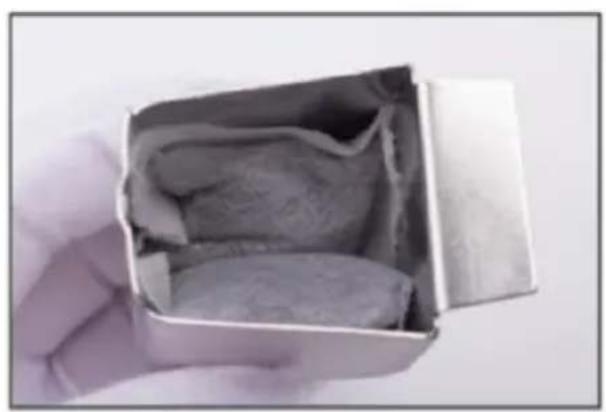

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

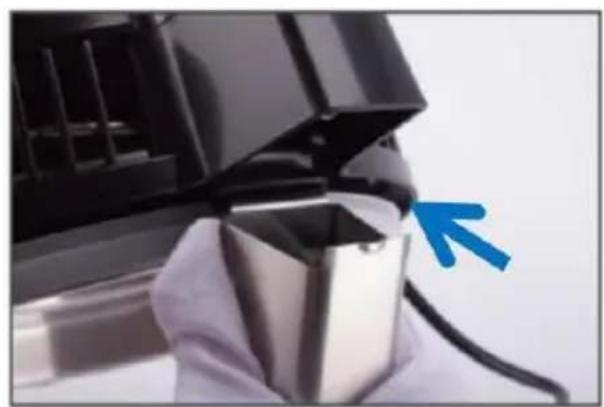

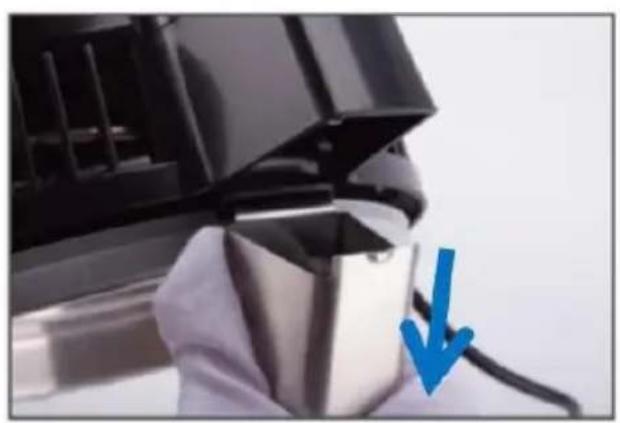

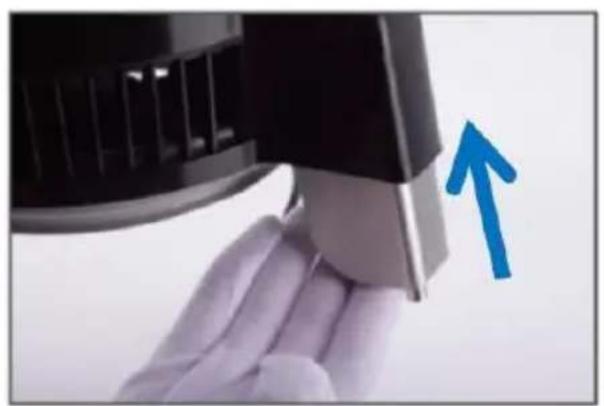

Installation and disassembly of outlet nozzle are shown in the diagram the right. Before the water outlet nozzle is installed into the machine the activated carbon shall be installed into the stainless steel water o nozzle first. Check that the seal remains in place.

Close-up of a kitchen appliance with a blue arrow pointing to a component (no visible text or symbols)

Close-up of gloved hands holding a small electronic device with a black and beige component (no visible text or symbols)

Hand holding a white rectangular box containing two wrapped food items, no visible text or symbols.

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of a hand holding a small object with a blue arrow pointing upward (no text or symbols visible)

Close-up of a gloved hand holding a small object near a mechanical component (no visible text or symbols)

Close-up of a stainless steel kitchen appliance with a blue arrow pointing to a drop in water (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a hand mixer (no visible text or symbols)

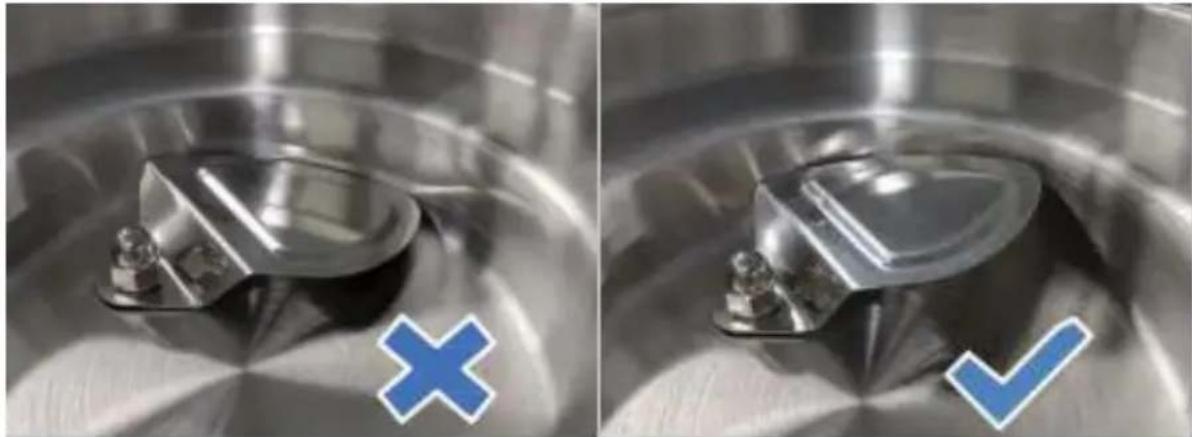

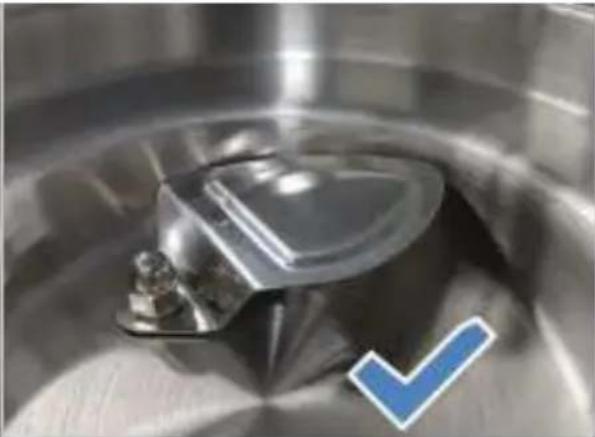

※ If the steam baffle is deformed, please correct it manually, other will affect the water outlet efficiency.

Two metallic mechanical components with cross and check symbols, no visible text or symbols on the parts themselves.

When using it for the first time, please boil it with detergent and wa then clean it.

This device complies with Part 15 of the FCC Rules. Operation is sub the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

USE INSTRUCTIONS

Open the package, take out the machine (the whole machine extension head and host machine), extract the head, and take out the inner part the tank. If it is a glass bottle, assemble the handle of the cup and ensure the handle is firmly assembled, follow “Glass bottle assembly method” in the glass bottle.

Add the water with the maximum scale water level into the tank of engine (do not exceed the water level).

Place the machine head on the main machine (check whether the setting of the machine head is properly installed or leaking), insert the connecting power plug (product plug) of the machine head into the set of the machine head, and insert the power cord plug (product plug) power socket of the machine head.

After confirming that the plug is correctly connected and firmly inserted insert the host power plug into the wall socket.

Press the start button, the start button indicator lights up, the head f starts to rotate, and the host enters the heating state.

When the main engine is heated for about 30 minutes, the distilled v begins to drip out of the outlet slowly until the water in the inner ta completely dried and protected by automatic temperature control.

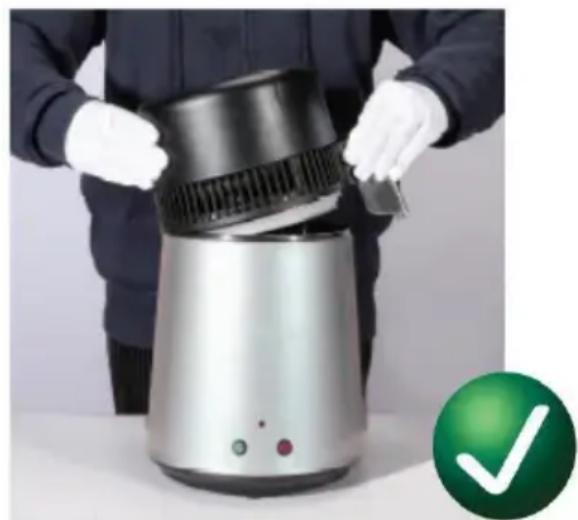

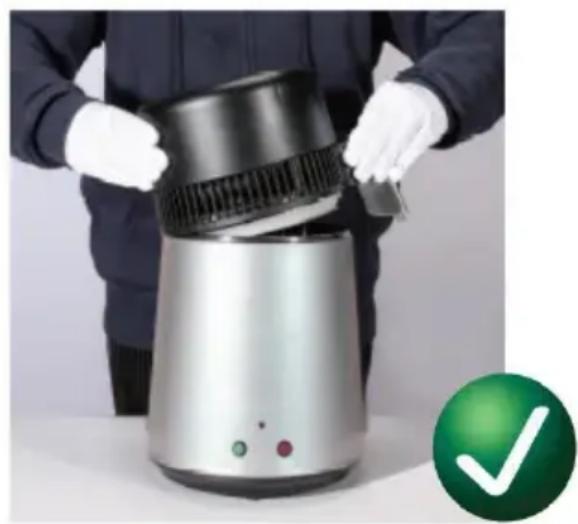

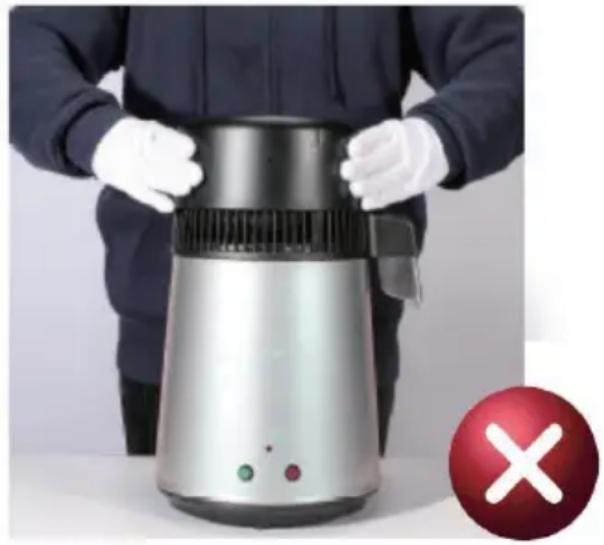

DISTILLER LID OPEN INSTRUCTION

Wait 15 minutes after stop the distillation before removing the lid. Ca open the lid from the side to avoid scald

Person in uniform holding a stainless steel electric heater with red indicator lights, next to a red circular icon with a white 'X' symbol (no text or symbols on the device itself)

Person in gloves handling a stainless steel portable heater with a green checkmark icon (no text or symbols on the device itself)

※ Remove the upper lid 15 minutes after stop distillation

FUNCTION DESCRIPTION

Open the packaging, take out the whole machine (divided into machining

head and main unit), extract the machine head, and remove the accessories inside the inner liner;

If it is a glass bottle, it is necessary to assemble the cup handle and that the handle is firmly assembled. The assembly method should follow the instructions mentioned later in the manual.

MAKING DISTILLED WATER

1. Add the water with the maximum scale water level into the tank main engine (do not exceed the water level).
2. Place the machine head on the main machine (check whether the sealing ring of the machine head is properly installed or leaking), insert connecting power plug (product plug) of the machine head into the side of the machine head, and insert the power cord plug (product plug) power socket of the machine head.
3. After confirming the correct connection and fastening of the plug, i the host power plug into the wall socket.' --- " is displayed on all th screens.
4. Touch the start button below the display, the left display displays current temperature, the right display displays the default temperature 105^ C, the next display displays the default time 3:30. Stop for 1 set the head fan starts to work, the machine enters the heating state, the display will become higher with heating, the next display time into the countdown.
5. When the machine is heated for about 30 minutes and the left screen rises to 100°C, distilled water begins to drip slowly from the I outlet. When the time on the next display screen changes to 0:00, the stops working and the display screen shows "--" or the water in the tank of the host is not filled to 4L, before the time of the machine next display screen becomes 0:00, the water in the inner bladder of host machine has been completely burned dry, the temperature control automatically protected, the display screen shows "E1", or, then water be added again for the next cycle work.
6. Fahrenheit Celsius temperature selection: The default startup

temperature is Centigrade. You can switch between Fahrenheit and Celsius by touching the °F/°C button, and the °F/°C indicator light will change with your operation.

1. Time setting: Touch the SET key, and the lower display shows 03 tail 0 flashing, then touch the SET key, the display shows 03:30, tail second 4 flashing, then touch the SET key, the display shows 03:30, third 2 flashing, then touch the SET key, the display shows 03: 30, 0 flashing, you can adjust the time you want to set through the "+" the longest time is 99: 59.

MAKING WINE

1. Put the steaming rack into the liner of the main engine and place materials used for steaming wine on it.
2. Place the machine head on the main machine (check whether the sealing ring of the machine head is properly installed or leaking), insert connecting power plug (product plug) of the machine head into the set of the machine head, and insert the power cord plug (product plug) power socket of the machine head.
3. After making sure that the plug is properly connected and fastened insert the power plug into the wall socket and display "--" on both s 4. Press the start button at the bottom of the display screen, the de setting temperature 105^ is displayed on the left display screen, and default time 3:30 is displayed on the right display screen. The default setting temperature can be adjusted according to the demand of wine making by pressing the "+" -" button at the bottom of the display scre lowest temperature can be set to 30^ , the highest to 108^ ). After stopping for 1 second, the head fan starts to work, and the host en heating state. After heating to the set temperature, the host enters th constant temperature state and begins to make wine until it is finishe until the time on the right display becomes 0:00, the host stops work press the start button (turn off), and unplug the power plug.

THE CARAFE ASSEMBLY

1 2 3
1	2	4
Put the stainless ste straps ① into the slo of the Carafe;	Insert the square nut into the stainless ste strap groove①	Fit the concave pa of the handle④ with the convex part of the stainless ste straps①
3
Tighten the upper screw and lower screw ③. with a cr screwdriver	The same applies to the other side of the handle	Place the lid on the Carafe with the opening facing the Carafe spout.

ACTIVATED CHARCOAL SACHET

Activated charcoal ingredients: Natural coconut shell. Functions: Remove odors and improves taste.

Validity date: Each activated charcoal sachet should be replaced within period of 25 days. If a strange taste or odor is discovered in the dist water, please replace the activated charcoal sachet immediately

Water will be tastier if you use 2 sachets at a time.

Please do not place an unused or currently used activated charcoal s in the refrigerator to avoid odor absorption that would result in poor taste.

Used activated charcoal sachet can be re-used for odor removal by pH, it in shoes or refrigerator. New activated charcoal sachets can release small trace of black powder, which is completely harmless to human It is just powdered charcoal. Please use at ease.

New activated charcoal sachets are sealed in sealed plastic bags and should be kept in a cool place.

The stored lifespan of a new activated charcoal sachet is 2 years

DISTILLER CLEANERS

Cleaner ingredients: Food-grade citric acid (made of natural crops such potatoes and corn). Functions: Can dissolve dirt and hard residues, an inhibit the growth of bacteria.

Objective: Cleaning the remaining residue after a distillation process

TROUBLE SHOOTING

Problems	Causes	Solutions
1. Weird noise occurs in the top	(1)Too much dirt on the Motor that cause this p to become defective or weird nois	clean motor and reassem the top
2. Top hasfunction	(1)Motor shaft is stuck	Seeking customer serviceassistance
	(2)Motor wire connection error	Check the motor wire connection
	(3)Motor fuse malfunction	Replace motor and reassembly
	(4)Power disconnected from the body	Distiller body reexamination
3.Water leakage from the top during the distillation process	(1)Top has bad heat dissipation problem	Be sure the main power plug into the wall outlet
	(2) Fan stops running excessive dust	Re-examine the top's function and clean dust
	(3)Cushion rubber ring hardened	Replace the cushion rubb ring
	(4)Cushion rubber ring incorrectly installed	Please recheck cushion rubber ring
	(5)Cooling duct is clogged or the distilled water doesn't drips smoothly	Re-examine the cooling d and remove foreign matter.Check the distilled water flow back
	(6)The nozzle has incorrectly installed and causing distilled water le	Please install correctly aft confirmation
	(7)Other Water leakage	The nozzle and the spou wate container did not align properly
Problems	Causes	Solutions
4. Body heatir problem	(1)No power supply the body,power cord and sockets have connection problem.	Check 2 sides of power c and sockets having any b connection problem or not Check the function of wa outlet is normal or not.Che the Main power switch is in“ON” position or not.
	(2)Blown fuse( It sometimes happens i the middle of the distillation process)	Replace fuse
	(3)Main Power cord malfunction	Replace the main power c
5.Burnt sockets	The power cords we not properly plugged that results in a po connection and it's melted	Replace sockets
6.Burnt main power cord	Power cord is deformed due to improper operation	Replace main power cord
7.Water leakage from the body	(1)The stainless steel tank is broken	Replace the stainless steel tank
	(2)Water drips from Top to thebottom	Check the Top during the distillation
8.Collected distilled waterless than 4 liters	(1)Poured less than liters of water	Pour the water till the “F” line
	(2)The fan stops running that causes lose the steam	Check the function of fan power is normal or not
9.When the display screen shows "F"	The temperature sensor is not welded properly or is damaged	The temperature sensor needs to be repaired and replaced
10.When the display screen shows "E1"	This is a temperature protection state.	It will reset naturally.
	The machine keeps displaying "E1"	It needs to be repaired

NOTE

This appliance is intended to be used in household and similar applica such as:

staff kitchen areas in shops, offices and other working environments. 1 houses.

by clients in hotels, motels and other residential type environments. be and breakfast type environments.

If the manufacturer wants to limit the use of the appliance to less than above, this is clearly stated in the instructions. Before using this product please read this instruction carefully and keep it for future reference.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,

shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : YMK402 08

Modern stainless steel and clear glass water heater with digital display and blue lid (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Product diagram of a modern coffee maker with labeled parts including a digital display and a blue lid.

1 2 3 4 5

Exploded view diagram of a mechanical device with numbered components and Chinese labels

24 Water fender	48	Nut	71 Dust cap cover
23 Distillation cap	47	Power socket gasket	70 Dust cap
22 Self-tscrew	46	Coupler	69 Water barrel cap
21 tension disc	45	Head screw	68 Water barrel
20 Neck	44	Cupule foot	67 Outlet seal ring
19 Stainless steel nozzle tube	43	Head screw	66 Head screw
18 Stainless steel nozzle	42	Bottom cap gasket	65 Head screw
17 Self-tscrew	41	Base cover	64 Triangle plate
16 Air inlet cap	40	Head power cord	63 Connecting cable7
15 Flat gasket	39	Coupler	62 Connecting cable6
14 Spring washer	38	Head socket gasket	61 Connecting cable4
13 Nut	37	Boat switch	60 Connecting cable3
12 Two coils of condensing pipe	36	Flat gasket	59 Connecting cable2
11 Motor	35	Outer shell	58 Connecting cable1
10 Motor shaft cover	34	Nut	57 Power cord
9 Fan blade	33	Spring gasket	56 Thermostat
8 Flat gasket	32	Flat gasket	55 Head screw
7 Spring gasket	31	Temperature control connecting plate	54 Thermostat
6 Nut	30	Head screw	53 light cable
5 Wind guide ring	29	Head screw	52 Key
4 Air outlet cap	28	Body assy	51 spring
3 Handle	27	Distillation cap scaling ring	50 Key Base
2 Nut	26	Self-tscrew	49 Key retainer
1 Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating inspection or modification (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a stainless steel robotic arm with a blue arrow pointing to the base (no text or symbols visible)

Close-up of gloved hands holding a small electronic component (no visible text or symbols)

Hand holding a white rectangular box containing two wrapped food items, no visible text or symbols.

Close-up of a mechanical component with a blue arrow pointing to a specific part (no visible text or symbols)

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a mechanical component (no visible text or symbols)

Close-up of a metallic industrial chimney with a blue arrow pointing to a water droplet (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid, no visible text or symbols

Two metallic mechanical components with cross and check symbols, one marked with a blue X, the other with a blue checkmark (no text or symbols on the components themselves)

Person in uniform holding a stainless steel electric heater with indicator lights, next to a red circular icon with a white 'X' symbol (no text or symbols on the device itself)

Person in gloves handling a stainless steel portable heater with a green checkmark icon (no text or symbols on device)

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: YMK402 08

Modern stainless steel and clear glass water heater with digital display, next to a blue-lidded glass container (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Exploded view diagram of a refrigerator internal components with numbered labels

24	Water fender	48	Nut	71	Dust cap cover
23	Distillation cap	47	Power socket gasket	70	Dust cap
22	Self-tscrew	46	Coupler	69	Water barrel cap
21	tension disc	45	Head screw	68	Water barrel
20	Neck	44	Cupule foot	67	Outlet seal ring
19	Stainless steel nozzle tube	43	Head screw	66	Head screw
18	Stainless steel nozzle	42	Bottom cap gasket	65	Head screw
17	Self-tscrew	41	Base cover	64	Triangle plate
16	Air inlet cap	40	Head power cord	63	Connecting cable7
15	Flat gasket	39	Coupler	62	Connecting cable6
14	Spring washer	38	Head socket gasket	61	Connecting cable4
13	Nut	37	Boat switch	60	Connecting cable3
12	Two coils of condensing pipe	36	Flat gasket	59	Connecting cable2
11	Motor	35	Outer shell	58	Connecting cable1
10	Motor shaft cover	34	Nut	57	Power cord
9	Fan blade	33	Spring gasket	56	Thermostat
8	Flat gasket	32	Flat gasket	55	Head screw
7	Spring gasket	31	Temperature control connecting plate	54	Thermostat
6	Nut	30	Head screw	53	light cable
5	Wind guide ring	29	Head screw	52	Key
4	Air outlet cap	28	Body assy	51	spring
3	Handle	27	Distillation cap scaling ring	50	Key Base
2	Nut	26	Self-tscrew	49	Key retainer
1	Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating inspection or modification (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a kitchen appliance with a blue arrow pointing to a component (no visible text or symbols)

Close-up of gloved hands holding a small electronic device with a black and white panel (no visible text or symbols)

Hand holding a metal box containing two wrapped food items, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a detail (no visible text or symbols)

Close-up of a hand pressing down on a device component with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a mechanical component (no visible text or symbols)

Close-up of a stainless steel kitchen appliance with a blue arrow pointing to a drop in water (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a hand mixer (no visible text or symbols)

Close-up of a metallic mechanical component with a blue 'X' symbol overlay (no text or symbols on the main subject)

Close-up of a metallic mechanical component with a blue checkmark overlay (no visible text or symbols)

Person in uniform holding a stainless steel electric vacuum cleaner with indicator lights, next to a red circular icon with a white 'X' symbol (no text or symbols on the device itself)

Person in gloves handling a stainless steel portable heater with a green checkmark icon (no text or symbols on device)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO:YMK402 08

Modern stainless steel and clear glass water heater with digital display, next to a blue-lidded glass container (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Labeled diagram of a coffee maker with numbered parts showing front, back, and interior views

1 2 3 4 5

Exploded view diagram of a device with numbered parts, likely a printer or scanner assembly.

24	Water fender	48	Nut	71	Dust cap cover
23	Distillation cap	47	Power socket gasket	70	Dust cap
22	Self-tscrew	46	Coupler	69	Water barrel cap
21	tension disc	45	Head screw	68	Water barrel
20	Neck	44	Cupule foot	67	Outlet seal ring
19	Stainless steel nozzle tube	43	Head screw	66	Head screw
18	Stainless steel nozzle	42	Bottom cap gasket	65	Head screw
17	Self-tscrew	41	Base cover	64	Triangle plate
16	Air inlet cap	40	Head power cord	63	Connecting cable7
15	Flat gasket	39	Coupler	62	Connecting cable6
14	Spring washer	38	Head socket gasket	61	Connecting cable4
13	Nut	37	Boat switch	60	Connecting cable3
12	Two coils of condensing pipe	36	Flat gasket	59	Connecting cable2
11	Motor	35	Outer shell	58	Connecting cable1
10	Motor shaft cover	34	Nut	57	Power cord
9	Fan blade	33	Spring gasket	56	Thermostat
8	Flat gasket	32	Flat gasket	55	Head screw
7	Spring gasket	31	Temperature control connecting plate	54	Thermostat
6	Nut	30	Head screw	53	light cable
5	Wind guide ring	29	Head screw	52	Key
4	Air outlet cap	28	Body assy	51	spring
3	Handle	27	Distillation cap scaling ring	50	Key Base
2	Nut	26	Self-tscrew	49	Key retainer
1	Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating selection or confirmation (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of gloved hands holding a small electronic device with a black and white panel (no visible text or symbols)

Hand holding a metal box containing two wrapped food items, no visible text or symbols

Close-up of a stainless steel robotic arm with a blue arrow pointing to the handle (no text or symbols visible)

Close-up of a robotic arm gripping a white object, with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with a blue arrow pointing to a white surface (no text or symbols visible)

Close-up of a stainless steel kitchen brush applying liquid to a glass jar (no text or symbols visible)

Two identical metallic mechanical components with a blue 'X' and a blue checkmark, shown side by side (no text or symbols on the components themselves)

Person in uniform holding a stainless steel electric heater with a red circular warning symbol (no text or symbols on device)

Person in gloves handling a stainless steel portable heater with a green checkmark icon (no text or symbols on device)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: YMK402 08

Modern kitchen appliance with a digital display and blue lid, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Labeled diagram of a coffee maker with numbered parts showing front, back, and interior views

1 2 3 4 5

Exploded view diagram of a device with numbered parts, likely a printer or scanner assembly.

24 Water fender	48	Nut	71 Dust cap cover
23 Distillation cap	47	Power socket gasket	70 Dust cap
22 Self-tscrew	46	Coupler	69 Water barrel cap
21 tension disc	45	Head screw	68 Water barrel
20 Neck	44	Cupule foot	67 Outlet seal ring
19 Stainless steel nozzle tube	43	Head screw	66 Head screw
18 Stainless steel nozzle	42	Bottom cap gasket	65 Head screw
17 Self-tscrew	41	Base cover	64 Triangle plate
16 Air inlet cap	40	Head power cord	63 Connecting cable7
15 Flat gasket	39	Coupler	62 Connecting cable6
14 Spring washer	38	Head socket gasket	61 Connecting cable4
13 Nut	37	Boat switch	60 Connecting cable3
12 Two coils of condensing pipe	36	Flat gasket	59 Connecting cable2
11 Motor	35	Outer shell	58 Connecting cable1
10 Motor shaft cover	34	Nut	57 Power cord
9 Fan blade	33	Spring gasket	56 Thermostat
8 Flat gasket	32	Flat gasket	55 Head screw
7 Spring gasket	31	Temperature control connecting plate	54 Thermostat
6 Nut	30	Head screw	53 light cable
5 Wind guide ring	29	Head screw	52 Key
4 Air outlet cap	28	Body assy	51 spring
3 Handle	27	Distillation cap scaling ring	50 Key Base
2 Nut	26	Self-tscrew	49 Key retainer
1 Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever and pivot without any text, numbers, or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating inspection or modification (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a robotic arm gripping a metallic device with a blue arrow pointing to the arm (no text or symbols visible)

Close-up of gloved hands holding a small electronic device with a black and white panel (no visible text or symbols)

Hand holding a metal box containing two wrapped food items, no visible text or symbols

Close-up of a stainless steel robotic arm with a blue arrow pointing to the handle (no text or symbols visible)

Close-up of a robotic arm gripping a white object, with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with a blue arrow pointing to a drop in air (no text or symbols visible)

Close-up of a stainless steel kitchen brush applying liquid to a glass jar (no text or symbols visible)

Two identical metallic mechanical components with a blue 'X' and a blue checkmark, shown side by side (no text or symbols on the components themselves)

Person in uniform holding a stainless steel electric heater with a red circular warning symbol (no text or symbols on device)

Person in gloves handling a stainless steel portable heater with a small clip, next to a green checkmark icon (no text or symbols on the device itself)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL:YMK402 08

Modern stainless steel and clear glass water heater with digital display and blue lid (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Labeled diagram of a coffee maker with numbered parts showing front, back, and interior views

1 2 3 4 5

Exploded view diagram of a device with numbered parts and Chinese labels

24	Water fender	48	Nut	71	Dust cap cover
23	Distillation cap	47	Power socket gasket	70	Dust cap
22	Self-tscrew	46	Coupler	69	Water barrel cap
21	tension disc	45	Head screw	68	Water barrel
20	Neck	44	Cupule foot	67	Outlet seal ring
19	Stainless steel nozzle tube	43	Head screw	66	Head screw
18	Stainless steel nozzle	42	Bottom cap gasket	65	Head screw
17	Self-tscrew	41	Base cover	64	Triangle plate
16	Air inlet cap	40	Head power cord	63	Connecting cable7
15	Flat gasket	39	Coupler	62	Connecting cable6
14	Spring washer	38	Head socket gasket	61	Connecting cable4
13	Nut	37	Boat switch	60	Connecting cable3
12	Two coils of condensing pipe	36	Flat gasket	59	Connecting cable2
11	Motor	35	Outer shell	58	Connecting cable1
10	Motor shaft cover	34	Nut	57	Power cord
9	Fan blade	33	Spring gasket	56	Thermostat
8	Flat gasket	32	Flat gasket	55	Head screw
7	Spring gasket	31	Temperature control connecting plate	54	Thermostat
6	Nut	30	Head screw	53	light cable
5	Wind guide ring	29	Head screw	52	Key
4	Air outlet cap	28	Body assy	51	spring
3	Handle	27	Distillation cap scaling ring	50	Key Base
2	Nut	26	Self-tscrew	49	Key retainer
1	Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating selection or confirmation (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of gloved hands holding a small electronic device (no visible text or symbols)

Hand holding a metal box containing two wrapped food items, no visible text or symbols

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of a robotic arm gripping a white object, with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with a blue arrow pointing to a drain (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a pipette inserted into it (no visible text or symbols)

Two identical metallic mechanical components with a blue 'X' and a blue checkmark, shown side by side (no text or symbols on the components themselves)

Person in uniform holding a stainless steel electric heater with control buttons, next to a red circular icon with a white 'X' (no text or symbols on the device itself)

Person in gloves handling a stainless steel portable heater with a green checkmark icon (no text or symbols on device)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: YMK402 08

Modern stainless steel and clear glass water heater with digital display, next to a blue-lidded glass container (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Product diagram of a digital coffee maker with labeled parts including a digital display and a blue lid

1 2 3 4 5

Exploded view diagram of a device with numbered parts and Chinese labels

24 Water fender	48	Nut	71 Dust cap cover
23 Distillation cap	47	Power socket gasket	70 Dust cap
22 Self-tscrew	46	Coupler	69 Water barrel cap
21 tension disc	45	Head screw	68 Water barrel
20 Neck	44	Cupule foot	67 Outlet seal ring
19 Stainless steel nozzle tube	43	Head screw	66 Head screw
18 Stainless steel nozzle	42	Bottom cap gasket	65 Head screw
17 Self-tscrew	41	Base cover	64 Triangle plate
16 Air inlet cap	40	Head power cord	63 Connecting cable7
15 Flat gasket	39	Coupler	62 Connecting cable6
14 Spring washer	38	Head socket gasket	61 Connecting cable4
13 Nut	37	Boat switch	60 Connecting cable3
12 Two coils of condensing pipe	36	Flat gasket	59 Connecting cable2
11 Motor	35	Outer shell	58 Connecting cable1
10 Motor shaft cover	34	Nut	57 Power cord
9 Fan blade	33	Spring gasket	56 Thermostat
8 Flat gasket	32	Flat gasket	55 Head screw
7 Spring gasket	31	Temperature control connecting plate	54 Thermostat
6 Nut	30	Head screw	53 light cable
5 Wind guide ring	29	Head screw	52 Key
4 Air outlet cap	28	Body assy	51 spring
3 Handle	27	Distillation cap scaling ring	50 Key Base
2 Nut	26	Self-tscrew	49 Key retainer
1 Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating selection or confirmation (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a robotic arm gripping a metallic device with a blue arrow pointing to the arm (no text or symbols visible)

Close-up of gloved hands holding a small electronic device (no visible text or symbols)

Hand holding a metal box containing two wrapped food items, no visible text or symbols

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of a robotic arm gripping a white object, with a blue upward arrow indicating motion (no text or symbols)

Close-up of a gloved hand holding a small object near a curved surface (no visible text or symbols)

Close-up of a stainless steel kitchen chimney with a blue arrow pointing to a water drop (no text or symbols visible)

Close-up of a stainless steel kitchen brush applying liquid to a glass jar (no text or symbols visible)

Two identical metallic mechanical components with a blue 'X' and a blue checkmark, shown side by side (no text or symbols on the components themselves)

Person in protective gear holding a stainless steel electric heater, with a red circular icon containing a white 'X' symbol (no text or symbols on the device itself)

Person in gloves assembling a stainless steel appliance with a green checkmark icon (no text or symbols on the device itself)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: YMK402 08

Modern stainless steel and clear glass water heater with digital display, next to a blue-lidded glass container (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Product diagram of a smart coffee maker with labeled parts including a digital display and a blue lid

1 2 3 4 5

Exploded view diagram of a refrigerator with numbered parts and Chinese labels

24	Water fender	48	Nut	71	Dust cap cover
23	Distillation cap	47	Power socket gasket	70	Dust cap
22	Self-tscrew	46	Coupler	69	Water barrel cap
21	tension disc	45	Head screw	68	Water barrel
20	Neck	44	Cupule foot	67	Outlet seal ring
19	Stainless steel nozzle tube	43	Head screw	66	Head screw
18	Stainless steel nozzle	42	Bottom cap gasket	65	Head screw
17	Self-tscrew	41	Base cover	64	Triangle plate
16	Air inlet cap	40	Head power cord	63	Connecting cable7
15	Flat gasket	39	Coupler	62	Connecting cable6
14	Spring washer	38	Head socket gasket	61	Connecting cable4
13	Nut	37	Boat switch	60	Connecting cable3
12	Two coils of condensing pipe	36	Flat gasket	59	Connecting cable2
11	Motor	35	Outer shell	58	Connecting cable1
10	Motor shaft cover	34	Nut	57	Power cord
9	Fan blade	33	Spring gasket	56	Thermostat
8	Flat gasket	32	Flat gasket	55	Head screw
7	Spring gasket	31	Temperature control connecting plate	54	Thermostat
6	Nut	30	Head screw	53	light cable
5	Wind guide ring	29	Head screw	52	Key
4	Air outlet cap	28	Body assy	51	spring
3	Handle	27	Distillation cap scaling ring	50	Key Base
2	Nut	26	Self-tscrew	49	Key retainer
1	Head screw	25	Nut

PRODUCT FEATURES

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

SILICONE SEAL ASSEMBLY

Three-panel image showing a mechanical component before and after, with blue X and ✓ symbols indicating inspection or modification (no text or symbols present)

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

Close-up of a stainless steel kitchen appliance with a blue arrow pointing to a component (no visible text or symbols)

Close-up of gloved hands holding a small electronic device with a black and beige component (no visible text or symbols)

Hand holding a white rectangular box containing two cylindrical objects, possibly food items or containers (no visible text or symbols)

Close-up of a mechanical device with a blue arrow pointing to a component (no visible text or symbols)

Close-up of a hand holding a device with a blue upward arrow indicating motion (no text or symbols visible)

Close-up of a gloved hand holding a small object near a mechanical component (no visible text or symbols)

Close-up of a stainless steel kitchen appliance with a blue arrow pointing to a drop in water (no text or symbols visible)

Close-up of a stainless steel kitchen appliance with a blue lid and a hand mixer (no visible text or symbols)

Close-up of a metallic mechanical component with a blue 'X' symbol overlay (no text or symbols on the main subject)

Close-up of a metallic mechanical component with a blue checkmark overlay (no visible text or symbols)

Person in uniform holding a stainless steel electric heater with red indicator lights, next to a red circular icon with a white 'X' symbol (no text or symbols on the device itself)

Person in gloves handling a stainless steel portable heater with a green checkmark icon (no text or symbols on the device itself)

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support
