Product Type	Pocket Hole Jig
Brand	Vevor
Model	XRS030
Number of Drilling Holes	3
Jig Material	Anodized Aluminum Alloy
Package Contents	1 drilling jig, 1 simple connector, 2 drill bits, 1 cross bit 6\", 1 cross bit 2-1/2\", 2 stop collars, 10 plugs, 10 screws
Drill Bit Type	Pocket Hole Drill Bits
Thickness Adjustment	Adjustable slider with imperial and metric markings
Depth Adjustment	Stop collar on the drill bit
Clamping System	Trigger clamp
Intended Use	Drilling pocket holes for woodworking joints
Required Safety Equipment	Impact-resistant safety glasses, respiratory mask, protective gloves
Maintenance	Wipe with anti-rust oil after use, store in a dry place
Country of Origin	Imported from China
Approximate Dimensions (L x W x H)	Not specified in the manual, compact jig
Approximate Weight	About 0.5 kg (estimated based on size)
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - XRS030 Vevor

What accessories are included with the XRS030 jig?

The kit includes: 1 drilling jig, 1 simple connector, 2 drill bits, 1 cross bit 6", 1 cross bit 2-1/2", 2 stop collars, 10 pocket hole plugs and 10 screws.

How to adjust the board thickness on the XRS030 jig?

Measure the thickness of your board, then use the adjustable slider with imperial and metric markings. Adjust the slider height according to the thickness and lock the screws in the appropriate position.

How to adjust the drilling depth?

Attach the stop collar on the drill bit at the indicated L1 position. During drilling, the stop ring stops the progression at the correct depth.

What protective equipment is recommended?

Always wear impact-resistant safety glasses (CSA Z94.3-07 or ANSI Z87.1 standards), a respiratory mask, and protective gloves. Non-slip shoes are also recommended.

How to maintain the XRS030 jig?

After use, wipe anti-rust oil on metal parts to prevent corrosion. Store the jig in a dry and safe place, out of reach of children.

What types of screws to use with this jig?

Use screws suitable for pocket holes, usually provided with the kit (10 screws). Purchase screws of appropriate length according to the thickness of the wood being assembled.

What to do if the hole has burrs?

Burrs are often due to too slow drilling speed. Increase the rotation speed of the drill for a cleaner cut.

The hole is drilled too deep, what to do?

Check the position of the stop collar on the drill bit and adjust it to the correct depth. Also ensure the clamp holds the jig firmly. If necessary, use longer screws.

Can I use the jig for angled joints?

The XRS030 jig is designed for straight drilling. For angles, a specific jig or additional accessory would be necessary. Follow the instructions in the manual for optimal use.

Where to find technical support and warranty?

Technical support and electronic warranty certificate are available at www.vevor.com/support. You can also contact customer service at ServiceClient@vevor.com.

User questions about XRS030 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your DIY tool in PDF format for free! Find your manual XRS030 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XRS030 by Vevor.

USER MANUAL XRS030 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

POCKET HOLE JIG

MODEL: XRS030, XRS040

We continue to be committed to providing you with tools at competitive prices. "Save Half," "Half Price," or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to major top brands and do not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when placing an order where we are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

POCKET HOLE JIG

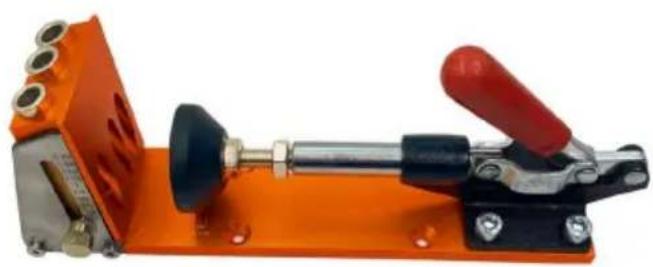

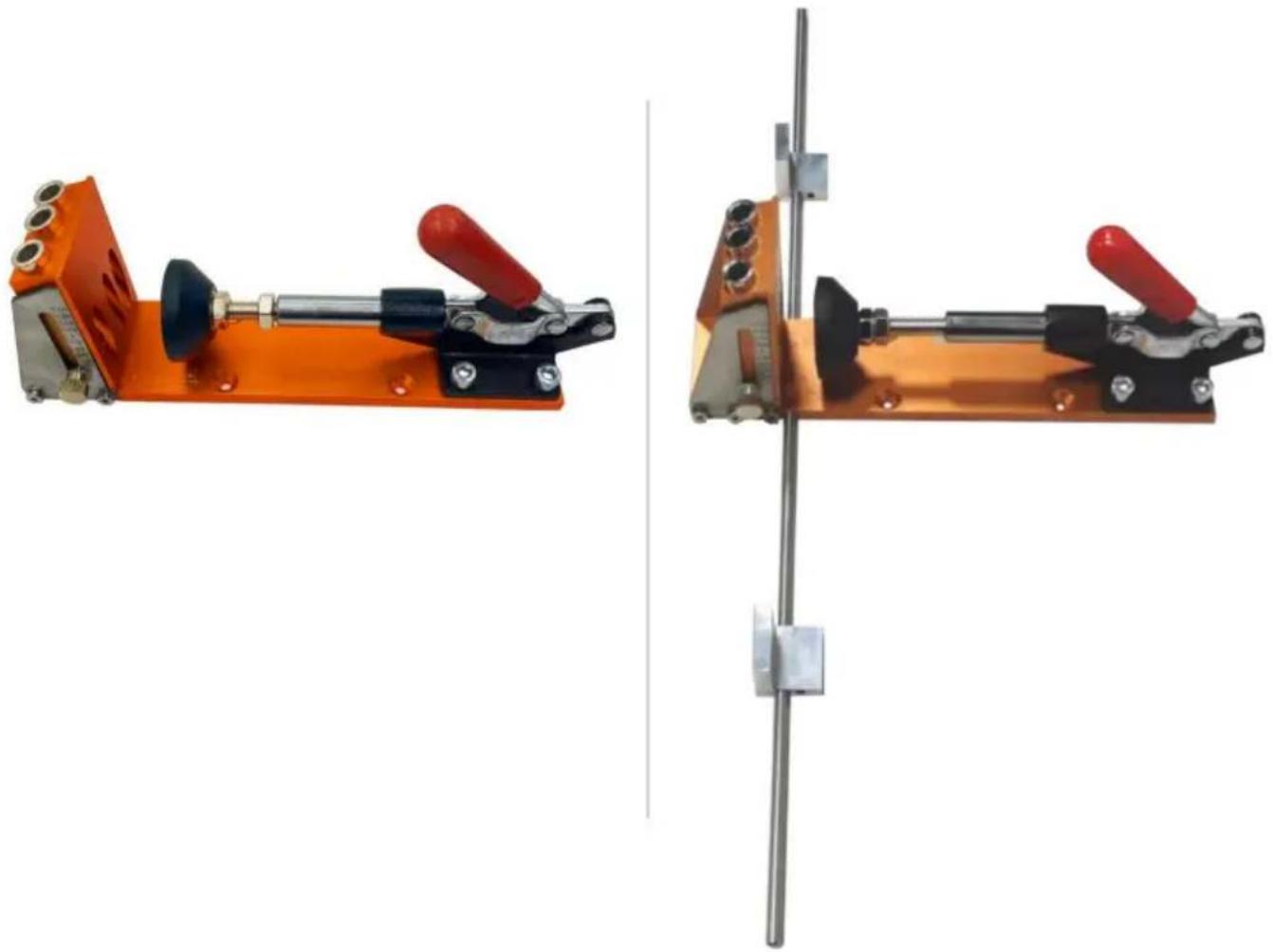

MODEL: XRS030 Orange industrial clamp device with black and red clamps, no visible text or symbols.

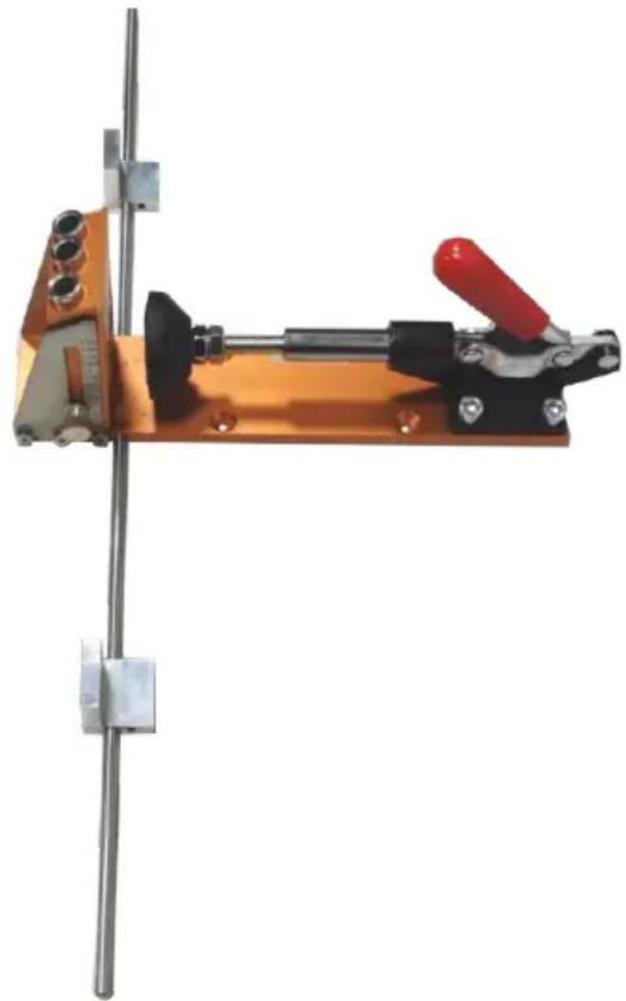

MODEL: XRS040 Industrial clamping device with orange frame and black handle, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Vevor XRS030 - NEED HELP? CONTACT US! - 1

CustomerService@vevor.com

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this pocket hole jig. Please read all of the instructions before using it. The information will help you achieve the best possible results.

	Warning-To reduce the risk of injury, user must read instr manual carefully.
	Warning- Be sure to wear eye protectors when using this product.
	Caution! Wear a breathing mask. Dust which is injurious health can be generated when working on wood and othe materials.

WARNING!

Read and understand all instructions before using this pocket hole jig. The operator must follow basic precautions to reduce the risk of personal injury and/or damage to the equipment. Keep this manual for safety warnings, precautions, operating or inspection and maintenance instructions.

WORK AREA

Operate in a safe work environment. Keep your work area clean, well-lit and free of distractions.
Keep anyone not wearing the appropriate safety equipment away from the work area.
Store unused tools properly in a safe and dry location to prevent rust damage. Lock the pocket hole jig away and keep it out of the reach of children.

PERSONAL SAFETY

WARNING! Always wear personal protective equipment.

PERSONAL PROTECTIVE EQUIPMENT

Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 and ANSI Z87.1 standards based on the type of work performed.
Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.
Wear protective clothing designed for the work environment and pocket hole jig.
Non-skid footwear is recommended to maintain footing and balance in work environment.

PERSONAL PRECAUTIONS

Control the pocket hole jig, personal movement and the work environment avoid personal injury or damage to pocket hole jig.

Do not operate any pocket hole jig when tired or under the influence drugs, alcohol or medications.
Avoid wearing clothes or jewelry that can become entangled with the moving parts of a tool. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

Use the correct pocket hole jig for the job. This pocket hole jig was designed for a specific function. Do not modify or alter this pocket hole use it for an unintended purpose.
Keep body parts away from pinch areas while using.
Children are not allowed to operate this product unless accompanied by adult
Pay attention to safety during use to avoid crushing fingers.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

Model and Parameters

Model	XRS030	XRS040
Number of Drilling Holes	3	3
Number of Chip Removal Holes	3	3
Material of Hole Jig	Anodized Aluminum Alloy	Anodized Aluminum Alloy
Packing	/	Plastic tool box
parts list	Fig30	Fig40

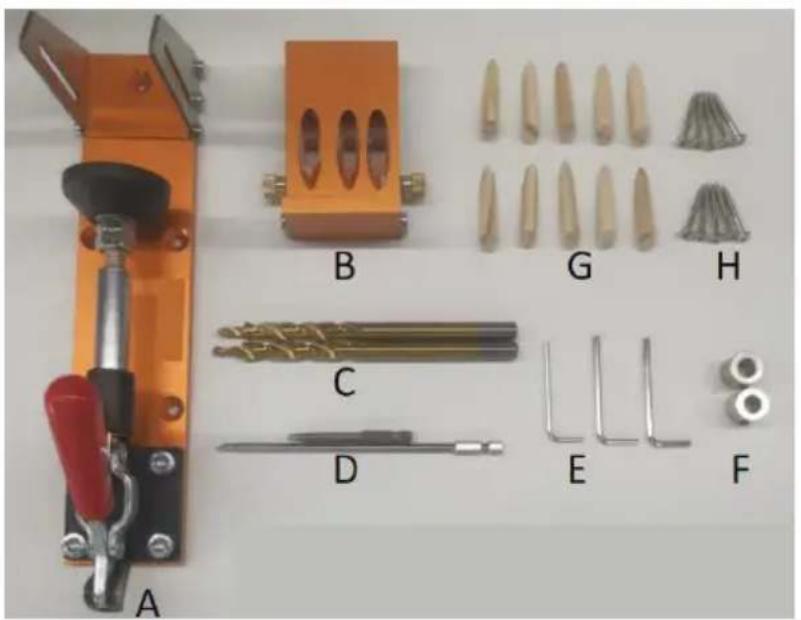

Structure Diagram

Collection of mechanical tools and components including a lever, clamps, and drill bits, no text or labels visible.

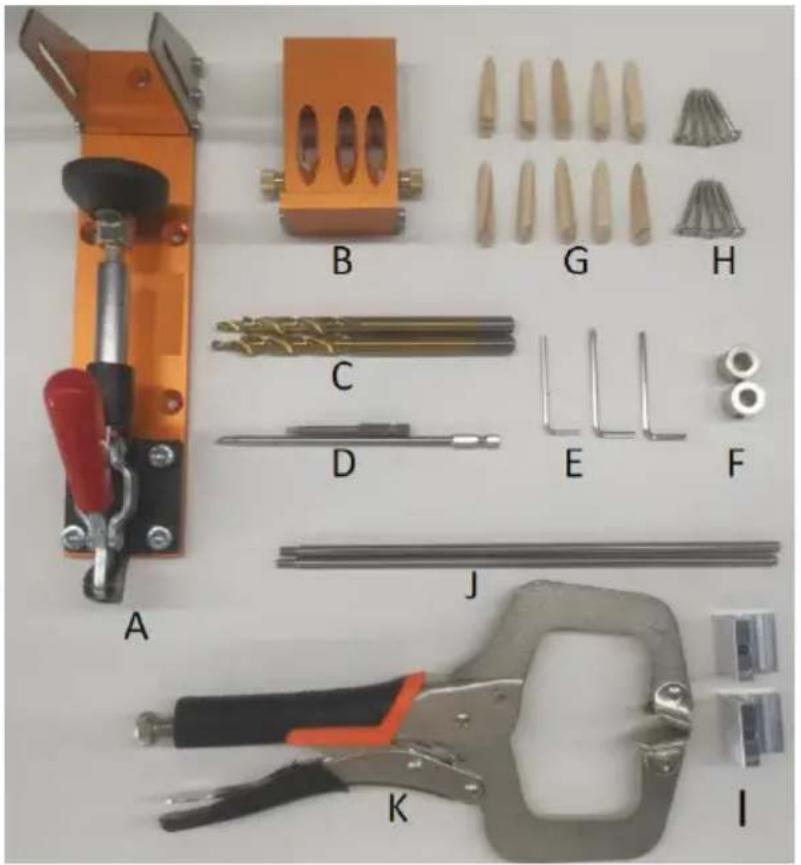

Fig030

XRS030:

A: 1 x Pocket Hole Jig B: 1 x Single fitting C: 2 x Drill Bits D: 1 x 6" Cross Bits and 1x 2-1/2" Cross Bits E: 2 x Hex Key F: 2 x Stop Collar G: 10 x Pocket Hole Plug H: 10 x Screws

A, B, G, H, C, D, E, F, J, K, I

Fig040

XRS040:

A: 1 x Pocket Hole Jig B: 1 x Single fitting C: 2 x Drill Bits D: 1 x 6" Cross Bits and 1x 2-1/2" Cross Bits E: 2 x Hex Key F: 2 x Stop Collar G: 10 x Pocket Hole Plugs H: 10 x Screws I: 2 x sliding block J: 2 x extended rods K: 1 x Clamping Pliers

Assembly and Use

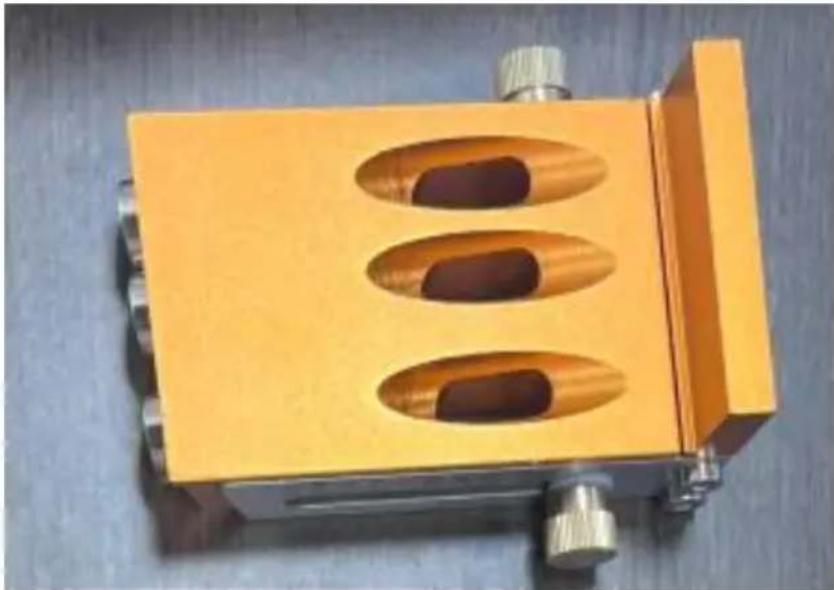

1. Single Hole Jig

Yellow rectangular electronic device with three oval cutouts and metallic connectors, no visible text or symbols.

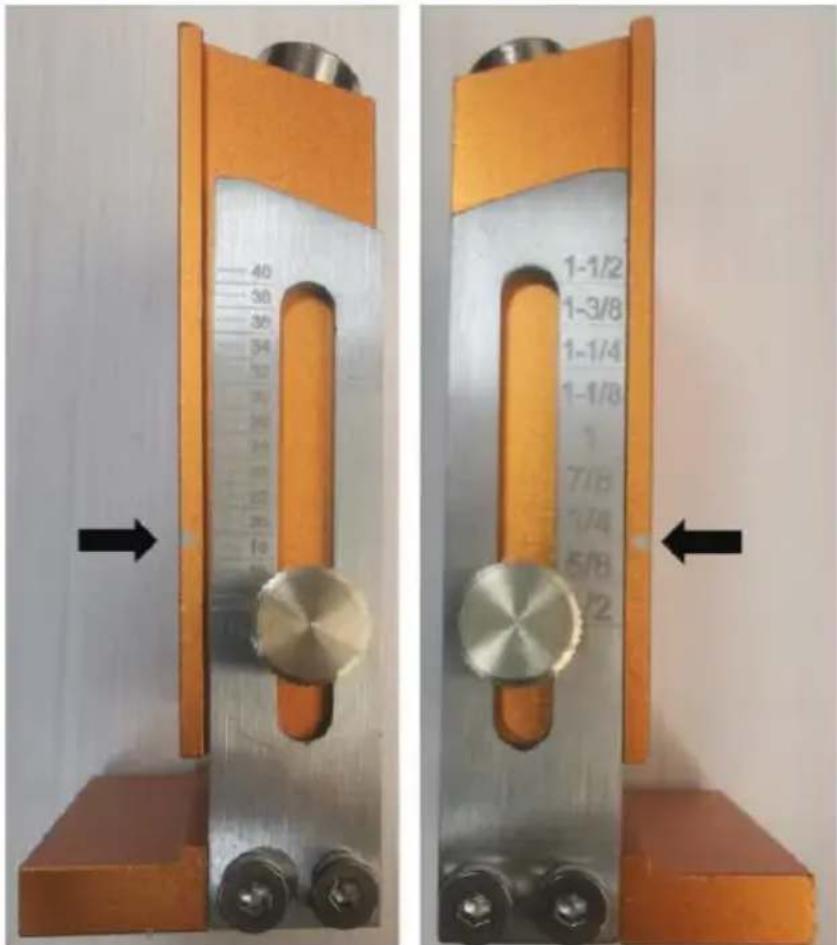

1.1 Adjustable Thickness Setting

Measure the thickness of your board. Markings are in both imperial and metric units. You can quickly adjust the height of the slider according to the thickness of the board. Lock the screws and set them to the appropriate thickness.

40, 30, 30, 34, 12, 35, 25, 24, 20, 18, 16, 15, 14, 13, 12, 1-1/2, 1-3/8, 1-1/4, 1-1/8, 7/18, 7/4, 5/8, 1/2

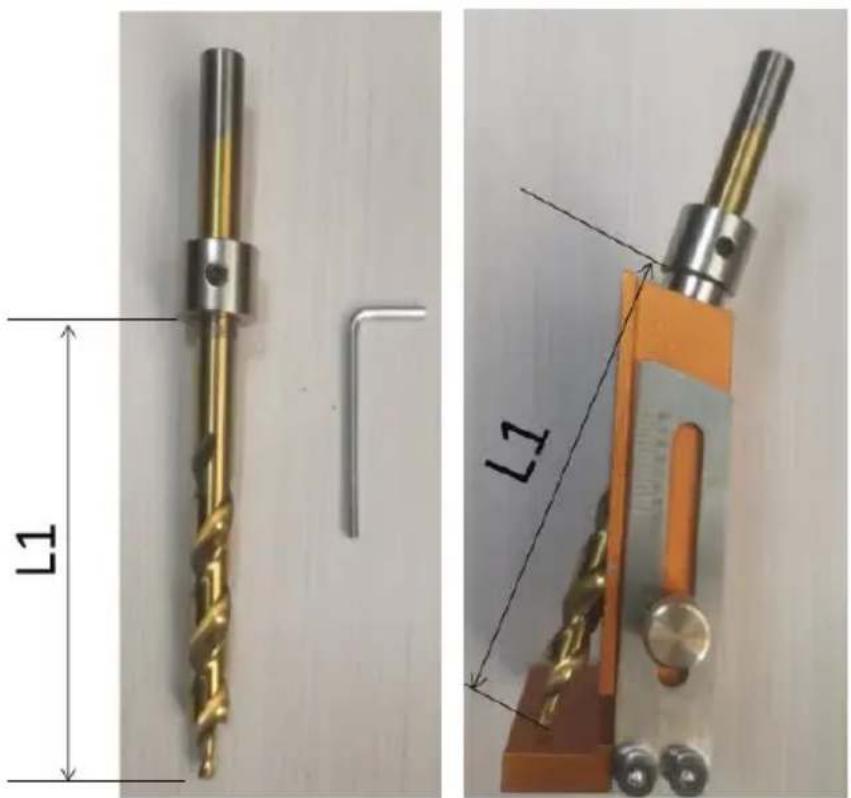

1.2 Adjust the depth of the hole

The stop collar is locked on the drill bits at a position equal to as shown.

L1, L1

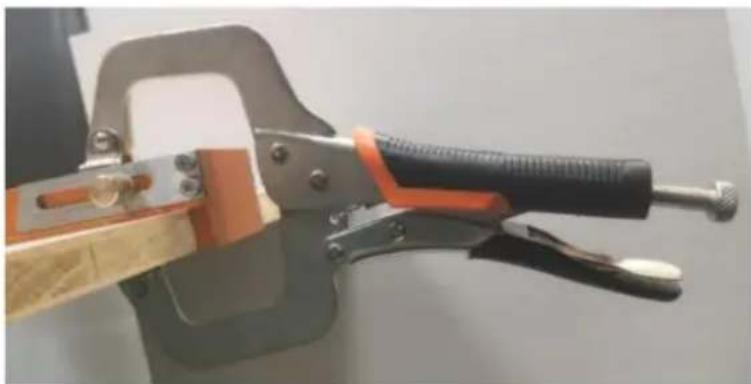

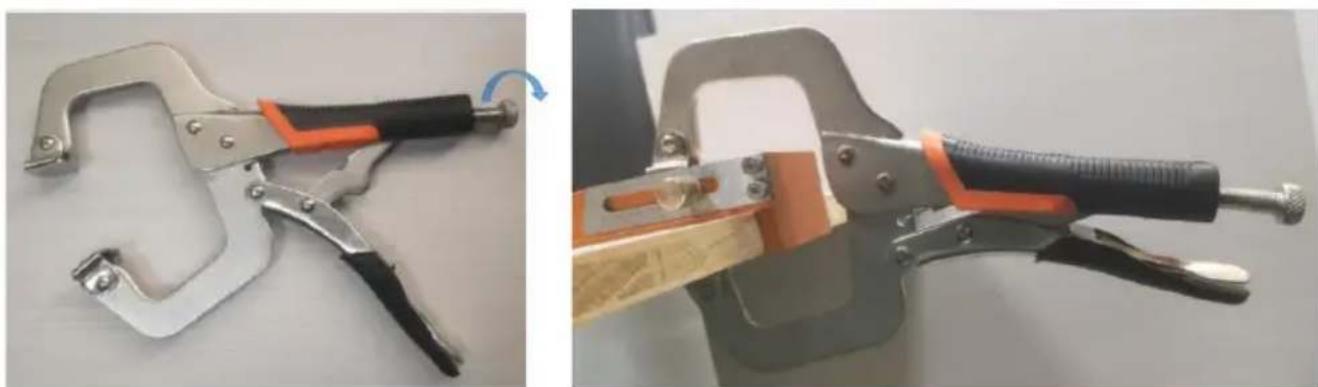

1.3 Quick Fixture

Adjust the opening size of the pliers by the bolt (slightly less than the thickness of the plate and fixture combined). Pulling the trigger causes the clamp to be fixed.

Two views of a metal clamp tool: one with a curved handle and orange grip, the other with a threaded handle and black end, no text or symbols visible.

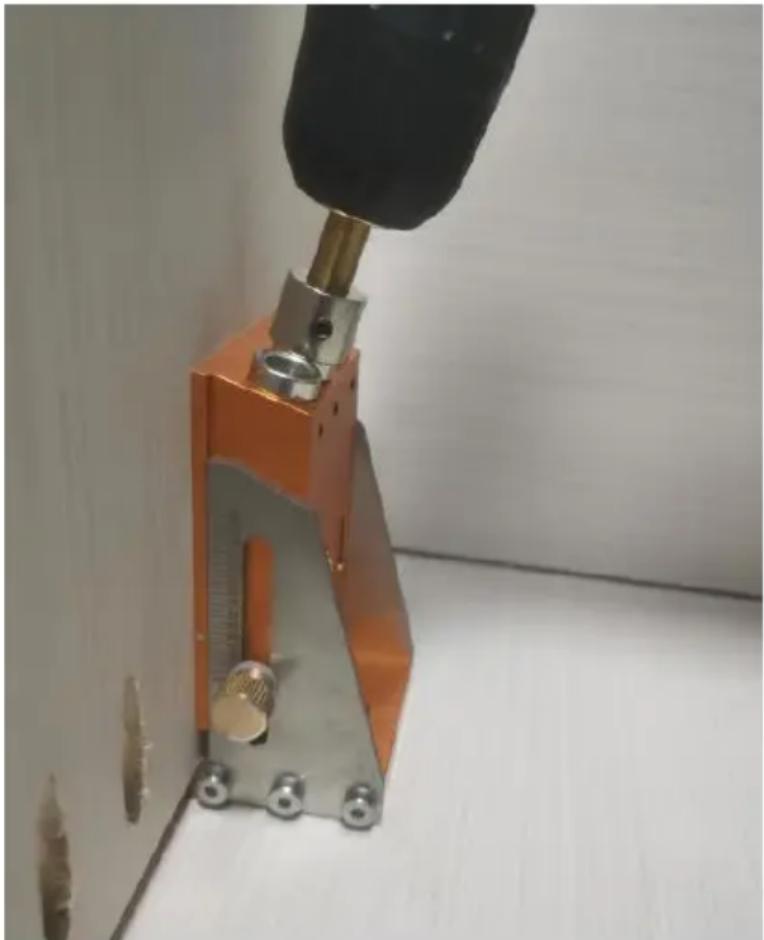

1.4 Drill hole

Drill depth of hole until the brake ring stops.

Note that the direction of drilling force is parallel to the pilot hole. Continuous operation for a long time will lead to the pilot hole heating and to the disadvantage of lifetime.

Close-up of a mechanical clamp tool with orange and black components, no visible text or symbols.

Hole Jig Kit (XRS030)

2.1 Assembly Jig kit

Assemble the Jig kit as shown below.

Orange electronic component with three circular holes and two metallic pins, no visible text or symbols.

Vevor XRS030 - Assembly Jig kit - 2

Close-up of an orange mechanical device with metallic components and a black textured base, no visible text or symbols.

Close-up of a metallic mechanical component with orange base and black spool, no visible text or symbols.

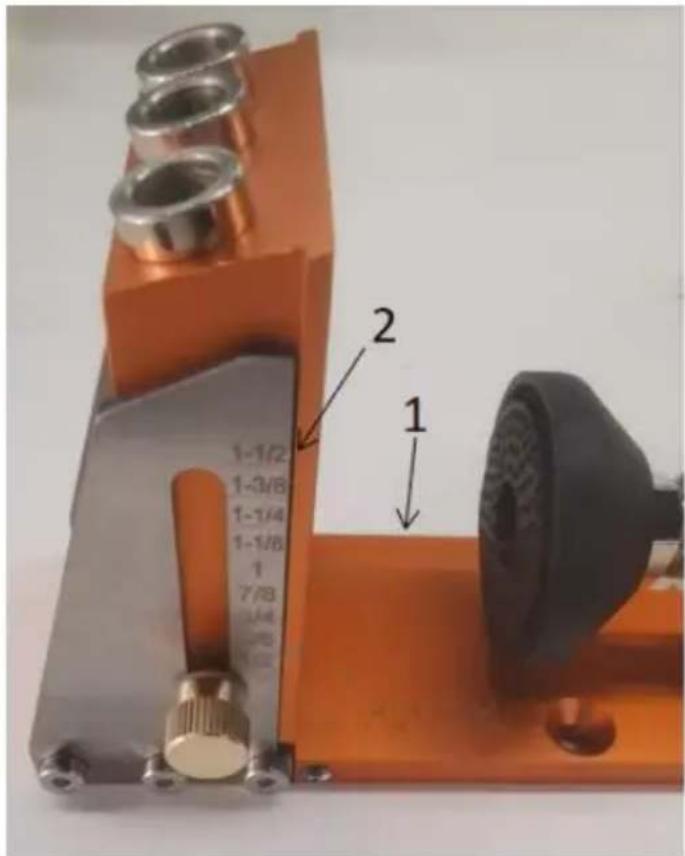

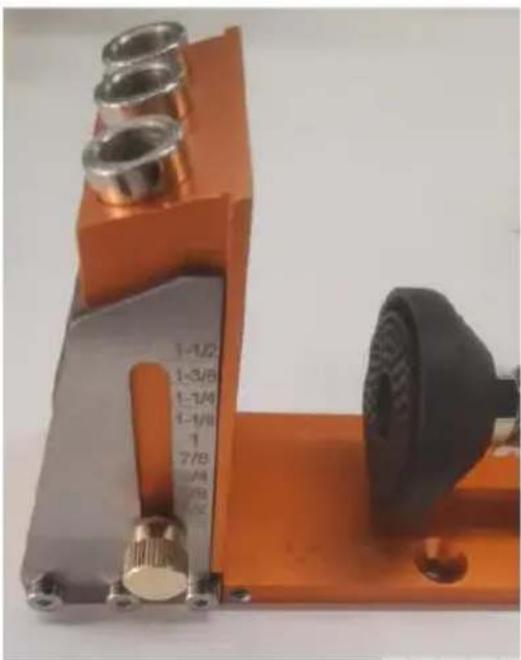

2.2 Adjustable Thickness Setting

Markings are in both imperial and metric units.

Adjust the length of the foot cup and press down the board, as marking thickness of the board can be measured.

As marking 2, you can quickly adjust the height of the slider according to the thickness of the board. Lock the screws and set them to the appropriate thickness.

1-1/2, 1-3/8, 1-1/4, 1-1/8, 1, 7/8, 1/4, 1/8, 1/12, 2, 1

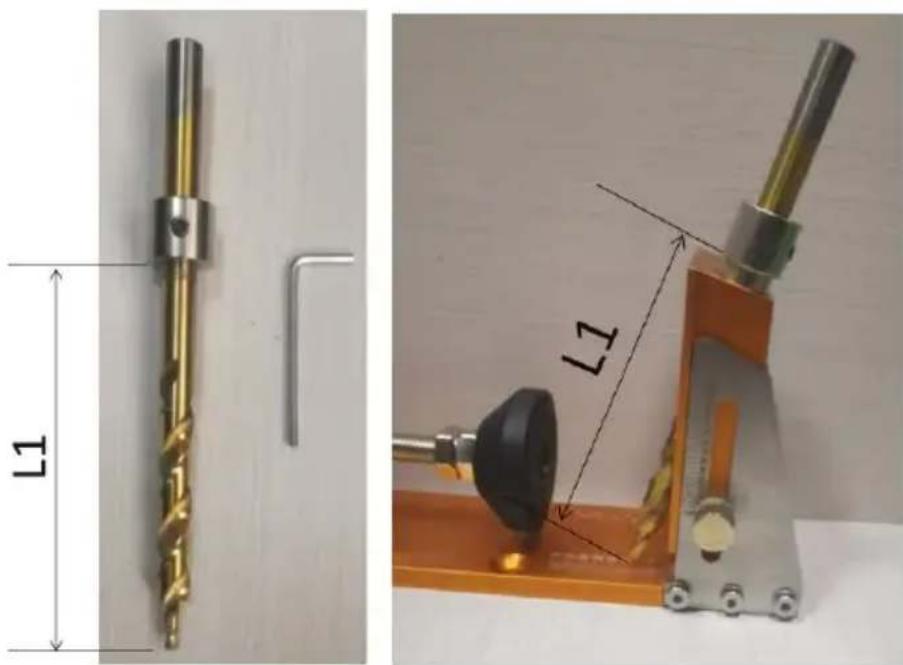

2.3 Adjust the depth of the hole

The stop collar is locked on the drill bits at a position as shown L1.

Technical diagrams showing a drill bit and its mechanical assembly with labeled dimensions (L1, L7), no readable text or symbols present.

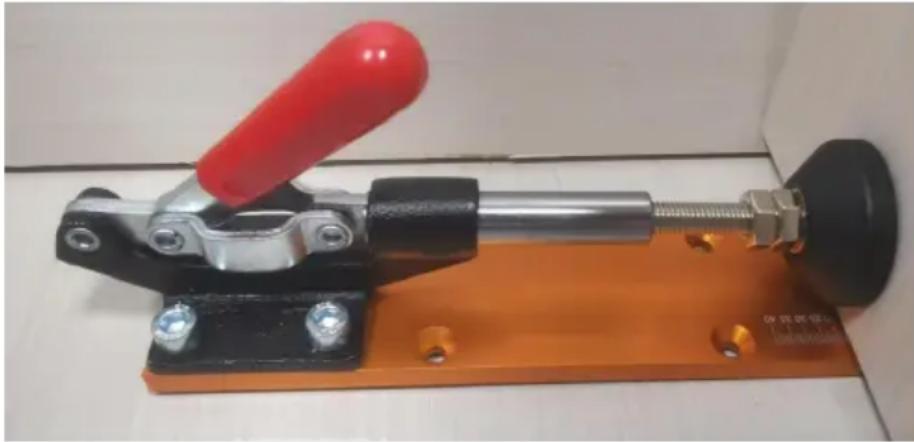

2.4 Quick Fixture

Close-up of a mechanical clamp device with a red handle and black base, mounted on an orange base plate. No visible text or symbols.

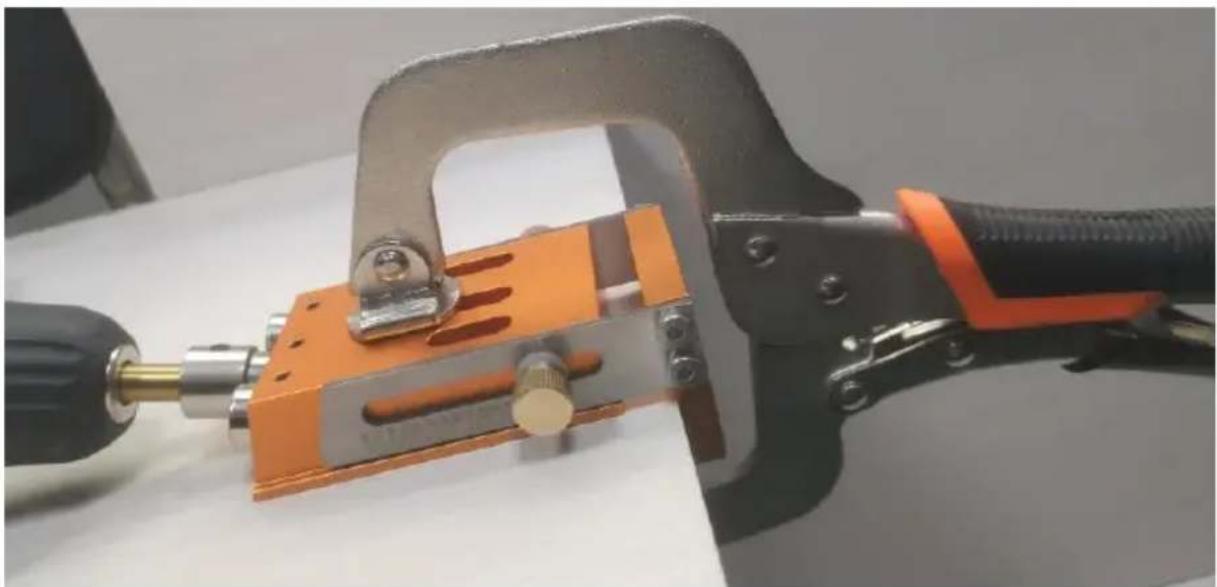

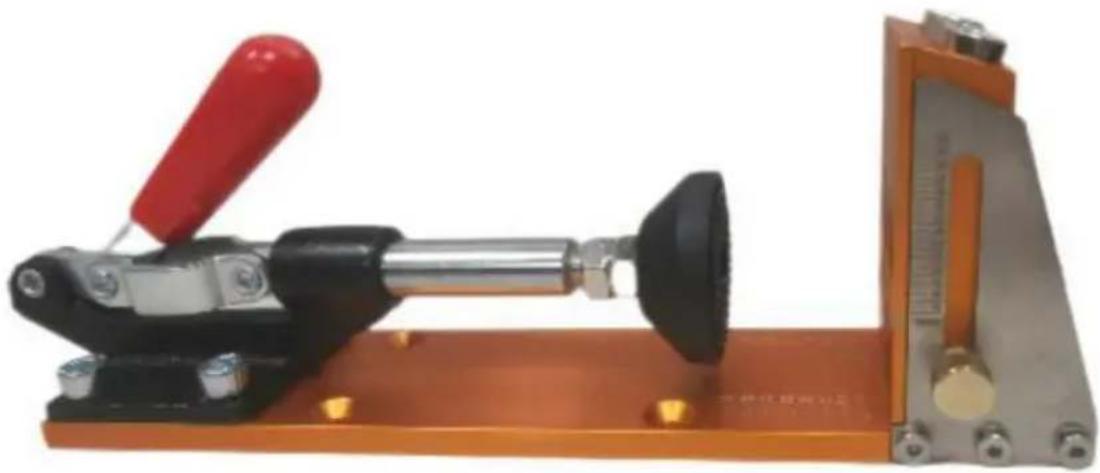

2.5 Drill hole

Drill depth of hole until the brake ring stops.

Note that the direction of drilling force is parallel to the pilot hole. Continuous operation for a long time will lead to the pilot hole heating and to the disadvantage of lifetime.

Close-up of a mechanical testing device with orange and metallic components. No visible text or symbols.

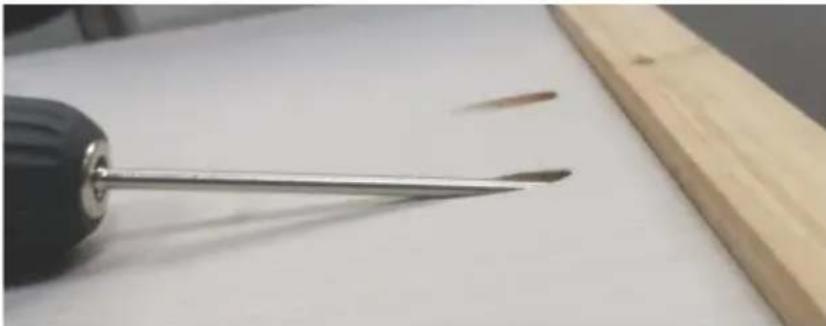

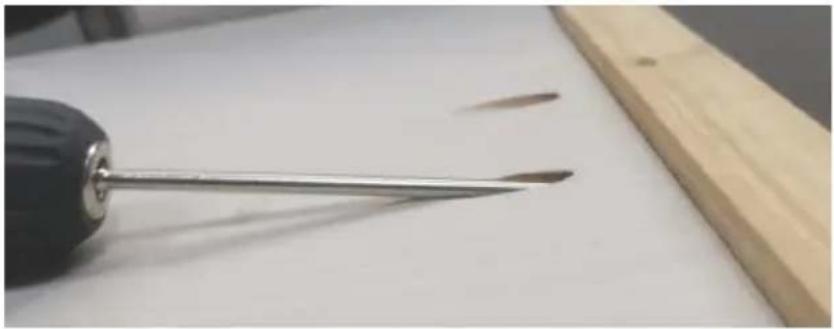

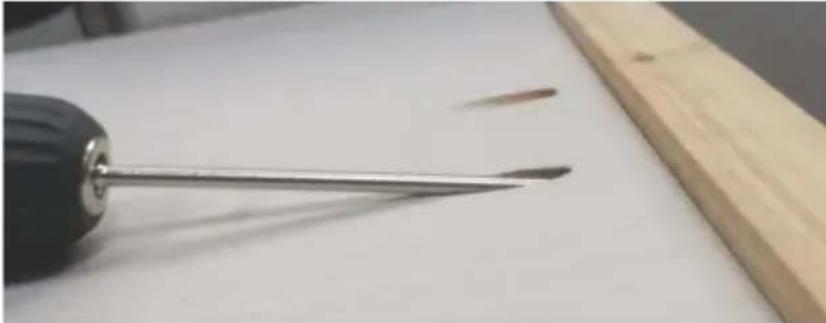

2.6 Screwing

Close-up of a screwdriver tip on a wooden surface. No text or symbols visible.

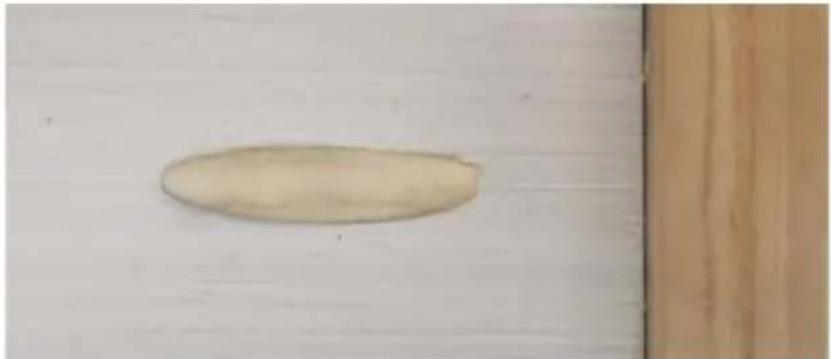

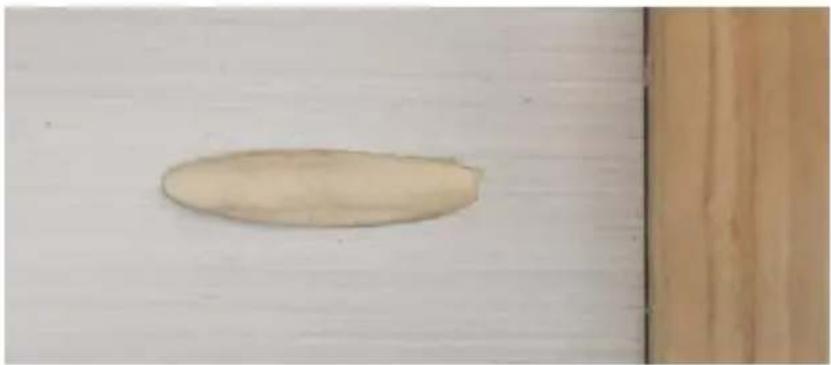

2.7 Pocket Hole Plugs

Simple wooden oval shape on a light surface next to a vertical wooden door. No text or symbols.

3. Hole Jig Kit (XRS040)

In addition to including the functionality of XRS030, XRS040 also adds extension capabilities.

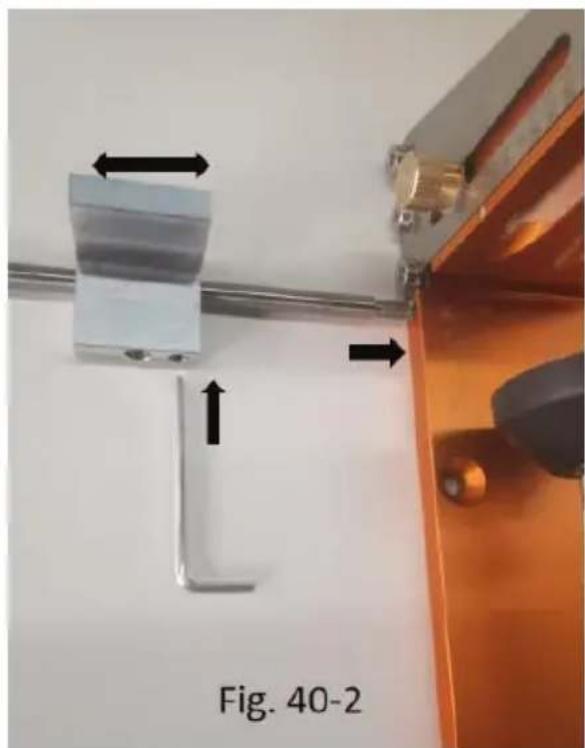

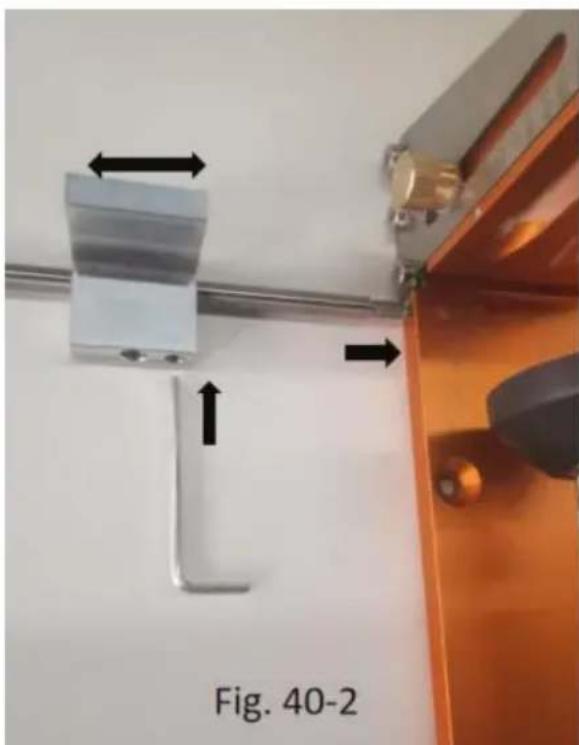

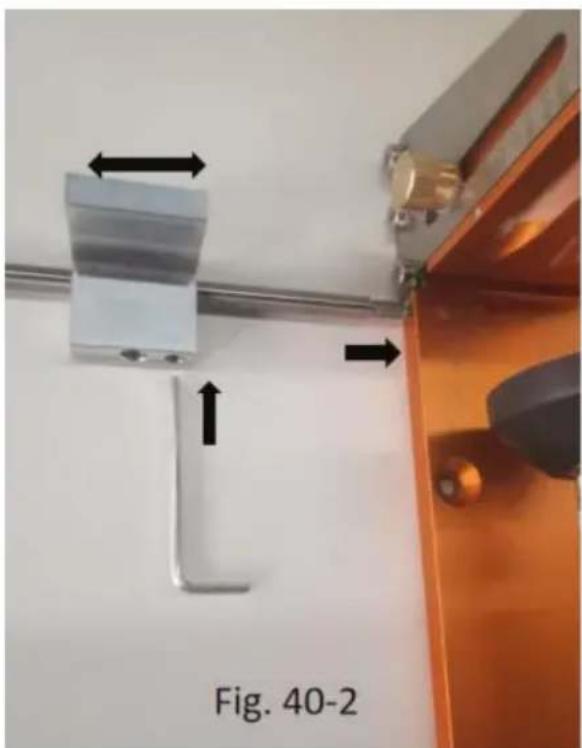

3.1 Sliding block and extended rods

Fig40-1 and Fig40-2 show two different assemblies. The arrow → indicates the direction of screws. The position of the slider can be shifted horizontally according to your needs.

Close-up of a mechanical clamp or bracket component with arrows indicating direction, labeled Fig. 40-1. No text or symbols on the main subject.

Close-up of a mechanical clamp or bracket assembly with directional arrows indicating movement, labeled Fig. 40-2. No text on the diagram itself.

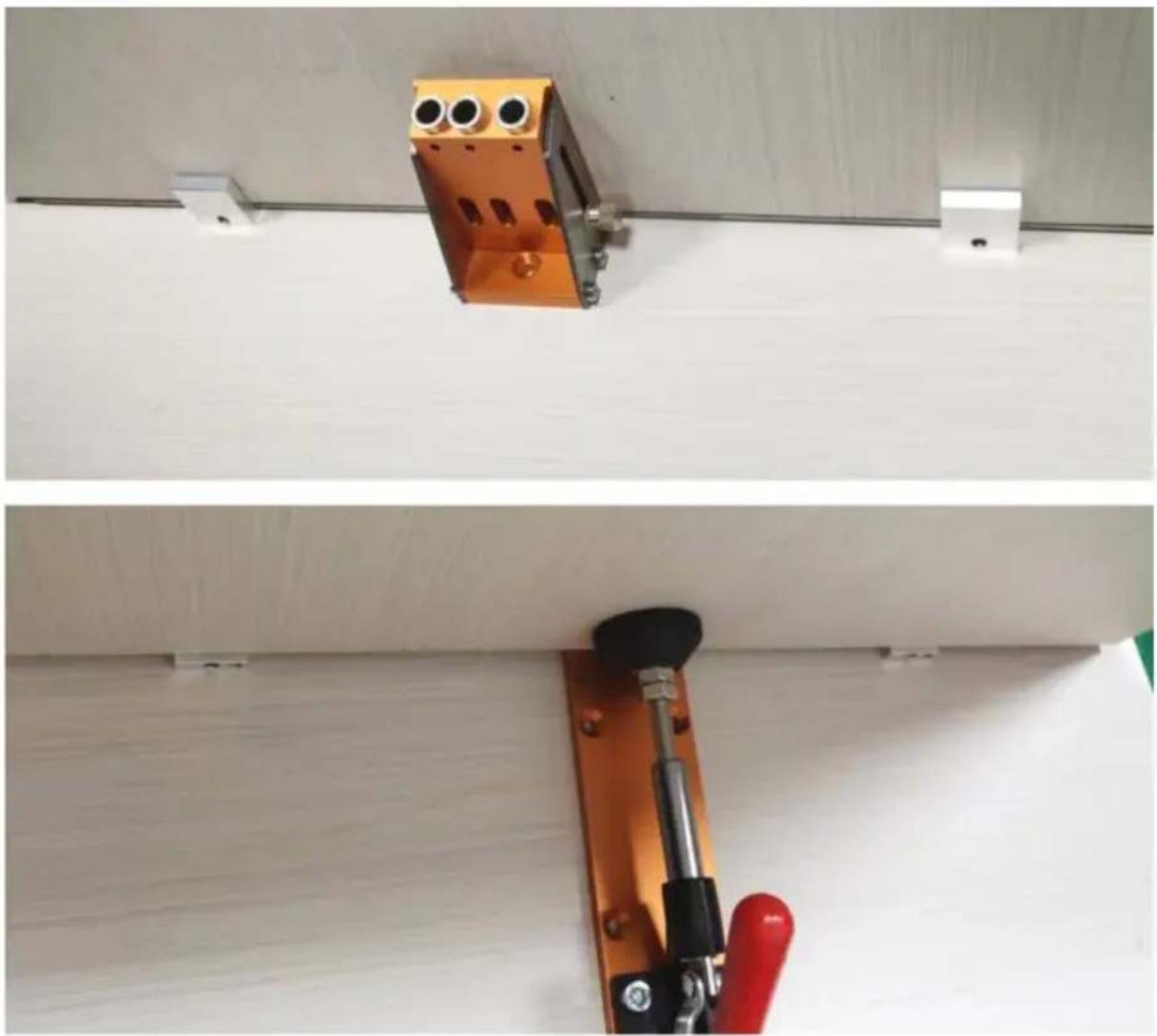

3.2 Drill hole

Two-panel photo showing a wooden electrical outlet mounted on a white wall, with a second panel of a tool inserted into a wooden frame. No visible text or symbols.

Troubleshooting Instruction

Problem	Reasons	Solution
There are burrs around the hole.	This speed is too slow	Adjust the rotation speed of the screwdriver.
The hole was pierced.	1. The hole was drilled too deep.2. The hole jig is not secured.	1. Adjust the stop collar to the proper position on the drill bit2. Use the pliers to ensure the tool is secured.3. Buy the screws of appropriate length

Maintenance

Make sure that the drilling is parallel to the direction of force, so the hole sleeve is not easy to wear.
Wipe off the anti-rust oil after using the drill to avoid rust.
