DRYWALL SKIMMING BLADE USER'S MANUAL

MODEL: XSJ-24-S003/XSJ-24-S004

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: XSJ-24-S003/XSJ-24-S004

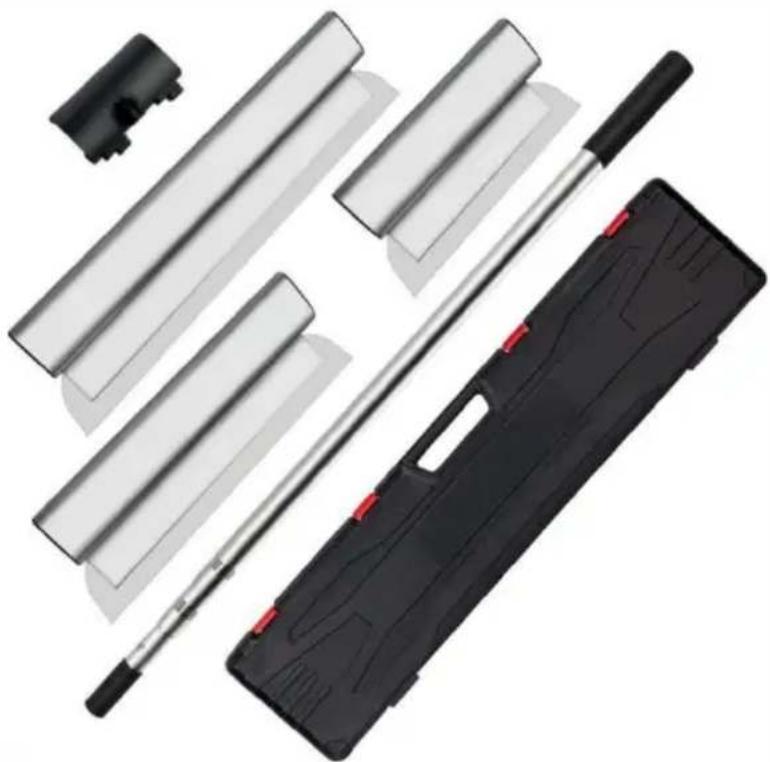

Assorted cleaning tools including a black horizontal bar, metal frame, and a small black clip with red clips (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

1. Avoid children using this product. And this product is not a toy. Do r children to play.
2. The edge of the blade is sharp, and extra attention should be paid to when using it.
3. Wear ANSI-approved safety goggles and heavy-duty work gloves during use.
4. Product capabilities apply to properly and completely assembled product only.

SAVE THESE INSTRUCTIONS

Drywall Skimming Blade

Suitable for application and smoothing of large-scale gypsum plaster.

1.Product Introduction

1) The drywall skimming blades are ergonomic and work more efficiently.
2) Simple and practical operation.
3) Wide application: Internal wall putty, external wall putty, cracking mortar, thermal insulation mortar, plastering gypsum, etc.
4)Large plane design ,more easy to clean the blade surface.

2.Product specifications

Model: XSJ-24-S003	10in	16in	24in	32in	40in
Product Size (L x W H) /mm	254*134*55	406*134*55	610*134*55	813*134*55	1016*134*55
Net Weight /kg	0.25	0.44	0.73	1	1.16
Blade Material	Stainless Steel
Blade Thickness /mm	0.5
Blade Handle Material	Aluminum
Model: XSJ-24-S004	7in	10in	14in	16in	24in
Product Size (L x W H) /mm	178*134*55	254*134*55	356*134*55	406*134*55	610*134*55
Net Weight /kg	0.17	0.25	0.37	0.44	0.73
Blade Material	Stainless Steel
Blade Thickness /mm	0.5
Blade Handle Material	Aluminum

3.Package Content

Model: XSJ-24-S003
Description	Qty
10 in Skimming Blade	1
16 in Skimming Blade	1
24 in Skimming Blade	1
32 in Skimming Blade	1
40 in Skimming Blade	1
Extendable Handle with adapter ( 862-2072mm)	1
Putty Knife	1
Drywall Compound Roller	1
Portable Storage Box	1

Model: XSJ-24-S004
Description	Qty
7 in Skimming Blade	1
10 in Skimming Blade	1
14 in Skimming Blade	1
16 in Skimming Blade	1
24 in Skimming Blade	1
Putty knife	1
Drywall Compound Roller	1
Extendable Handle with adapter ( 862-2072mm)	1
Portable Storage Box	1

4. Adjusting

1) After loosening the screw [7], adjust the suitable angle to lock.
2) Select a suitable blade, loosen the set screw, replace the selected blad fix it.
3) Adjust extendable handle, turn left to release, pull the extendable Hand out of the appropriate position, and turn right to lock.

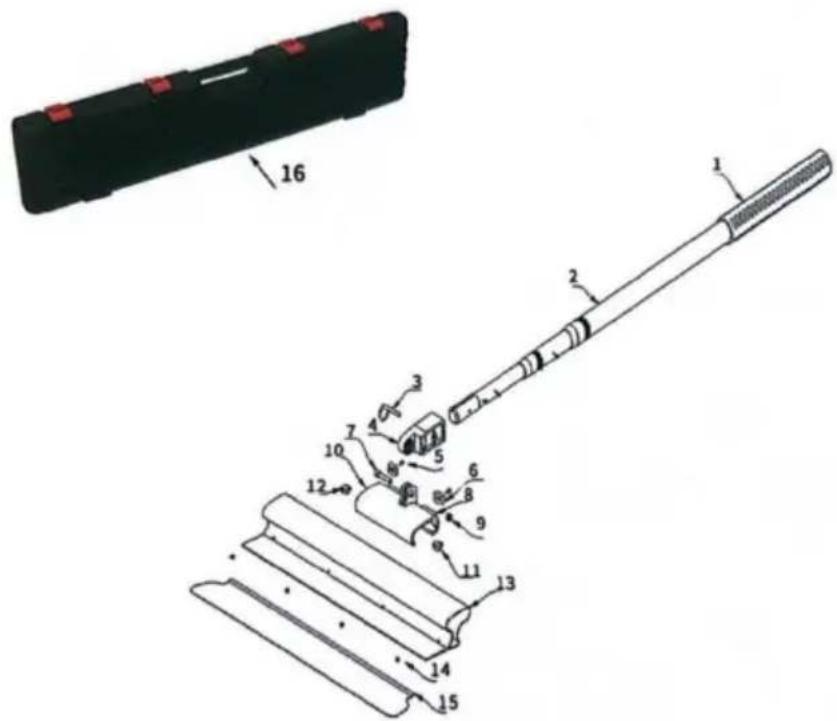

5.Product drawing

Technical diagram of a mechanical device with numbered parts and a labeled component '16'

Part Number	Product name		Qty
1	Extendable Handle	Grip cover	1
2		Telescopic rod	1
3		plug	1
4		Adjusting bracket	1
5	Slide screw		2
6	Slide block		2
7	Fixing screw		1
8	Fastener slide hole		1
9	Fixing nut		1
10	Fastener		1
11	Slider1		1
12	Slider2		1
13	Drywall skimming blade		1
14	Blade fixing screw		4
15	Blade		1
16	Plastic box		1

6. Installation picture

Close-up of a mechanical component with a red arrow indicating direction (no visible text or symbols)

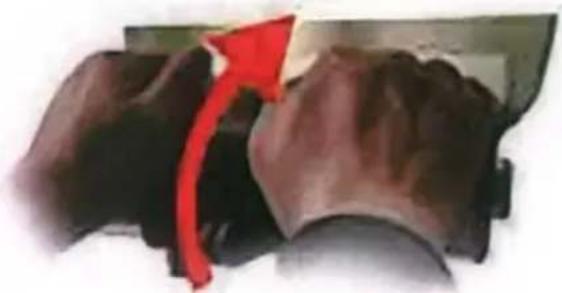

1. Press the adapter in firmly.

Two stacked electronic components with black and gray blocks, each with red arrows indicating direction (no text or symbols)

2.Push the slide block inward.

Mechanical assembly diagram showing a black component mounted on a metallic frame with red arrows indicating motion or force (no text or symbols)

3.Fix screw assembly.

Hand holding a smartphone with a black strap, scissors inserted, and red tool pins visible (no text or symbols)

1. To set retain ring to secure the extension pole.

Two black tool holders with red curved arrows indicating rotation or movement (no text or symbols)

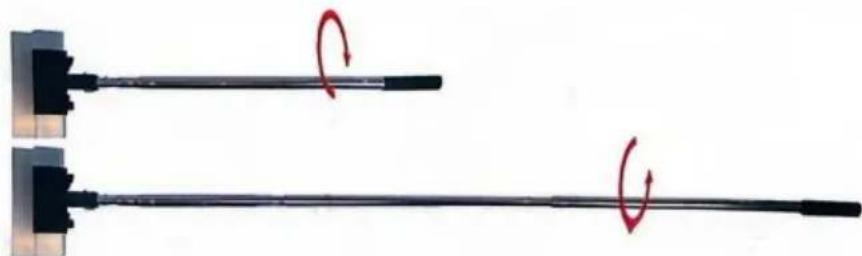

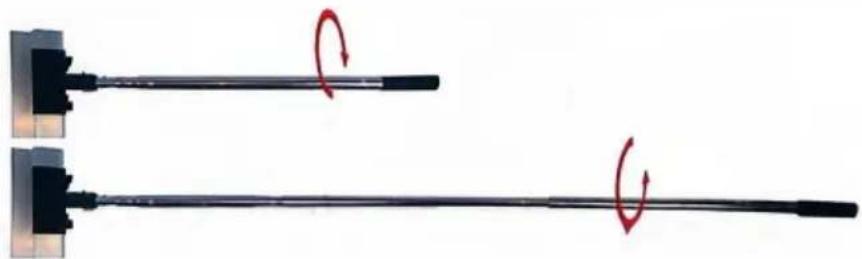

1. Rotate clockwise to loosen the extension pole. Rotate counterclock fix the extension pole.

7.Application

1) Internal and external wall putty scraping.
2) Crack resistant mortar.
3) Plastering mortar.
4) Intermediate coating and scraping of epoxy floor.
5) Plastering gypsum.

8. Maintenance

1) Keep the blade / blade rack clean and clean every time, which is con to the next use.
2) The drywall skimming blade shall be protected from collision and deformation.
3) Keep the connector clean for quick disassembly.
