GALVANIZED STEEL METAL EDGING

USER MANUAL

MODEL:ZY-39X3-5Black / ZY-39X3-5Grey / ZY-39X3-5Brown

ZY-39X5-5Black / ZY-39X5-5Grey / ZY-39X5-5Brown

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

Model: ZY-39X3-5Black / ZY-39X3-5Grey / ZY-39X3-5Brown

ZY-39X5-5Black / ZY-39X5-5Grey / ZY-39X5-5Brown

Pure electrical circuit lines without any symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

SAVE THIS MANUAL

PRODUCT SPECIFICATIONS

Model	ZY-39X3-5Black	ZY-39X3-5Grey	ZY-39X3-5Brown
Color	Black	Grey	Brown

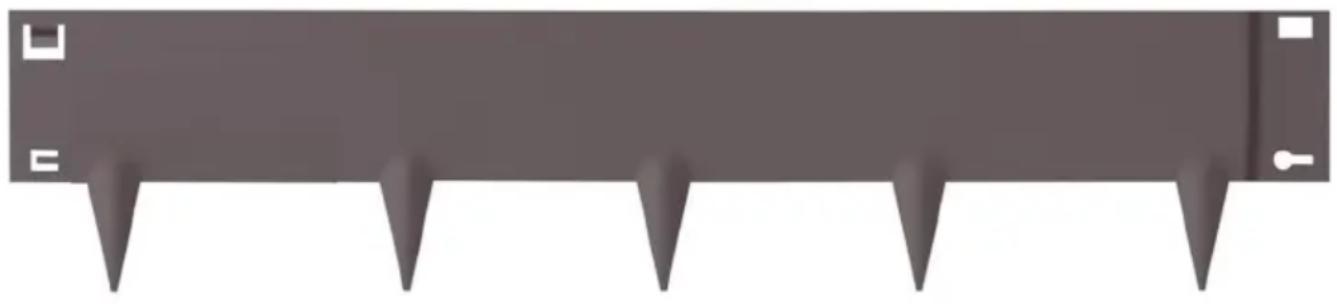

Size of Single metal edge	39*3in
Gloves	X1

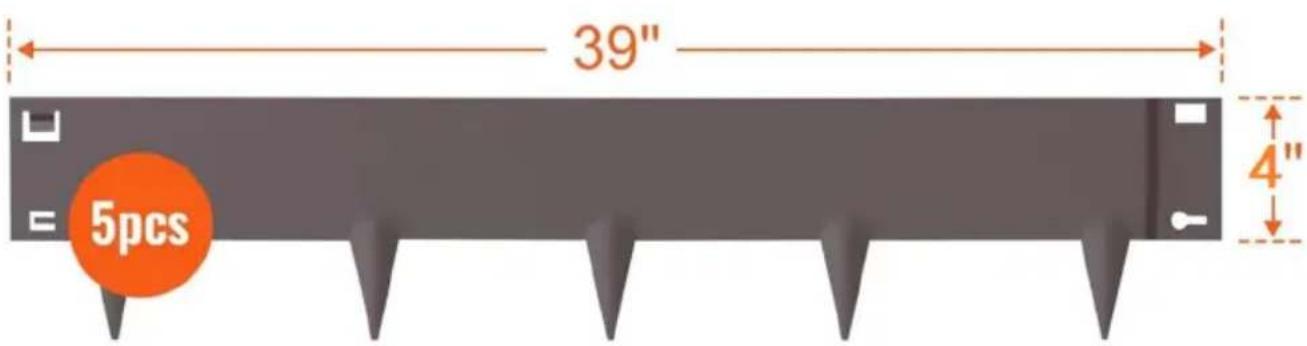

Model	ZY-39X4-5Black	ZY-39X4-5Grey	ZY-39X4-5Brown
Color	Black	Grey	Brown
Size of Single metal edge	39*4in
Gloves	X1
39" 5pcs

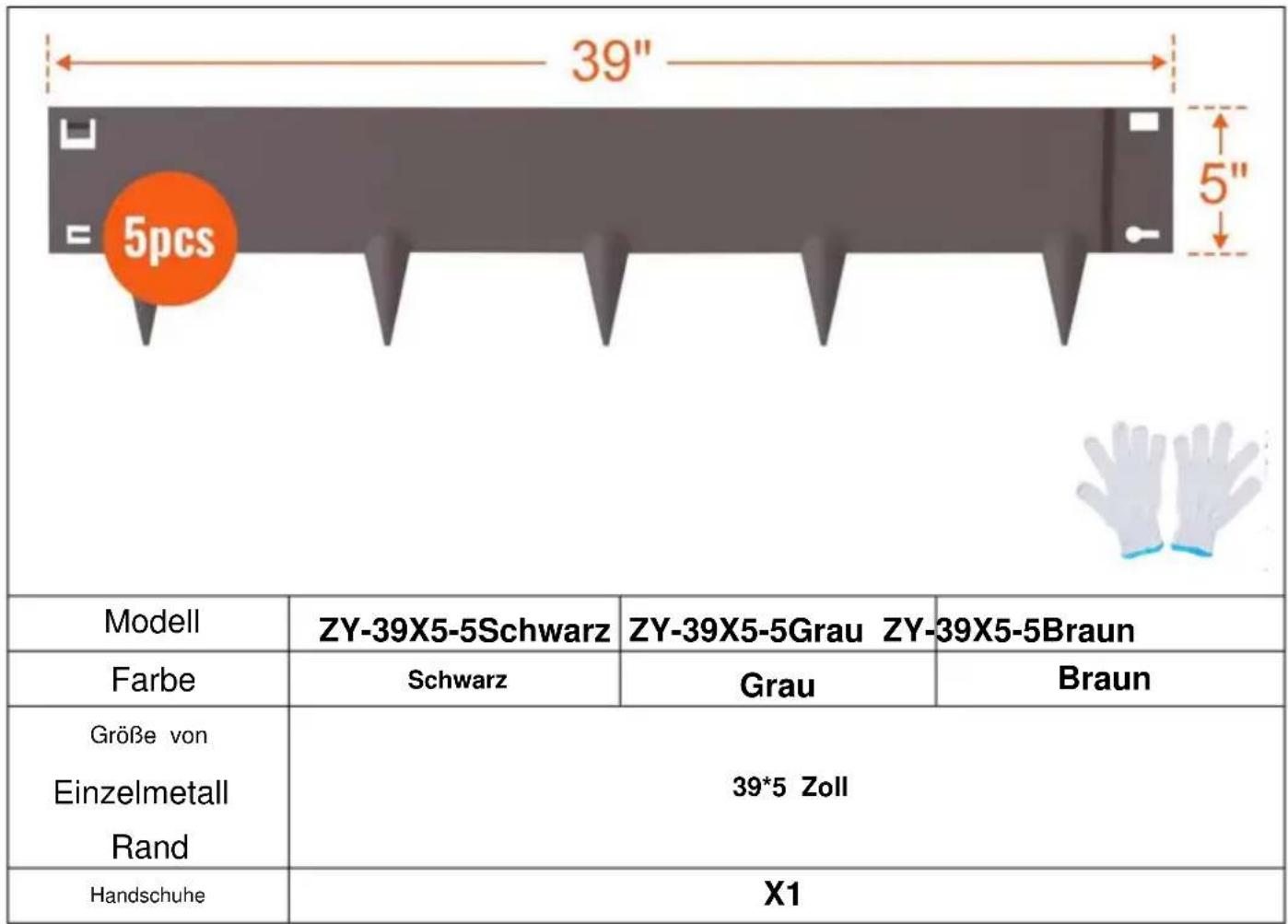

Model	ZY-39X5-5Black	ZY-39X5-5Grey	ZY-39X5-5Brown
Color	Black	Grey	Brown
Size of Single metal edge	39*5in
Gloves	X1

REQUIRED TOOLS

Spade
Hammer and a block of wo
Screwdriver

PRODUCT ASSEMBLE INSTRUCTIONS

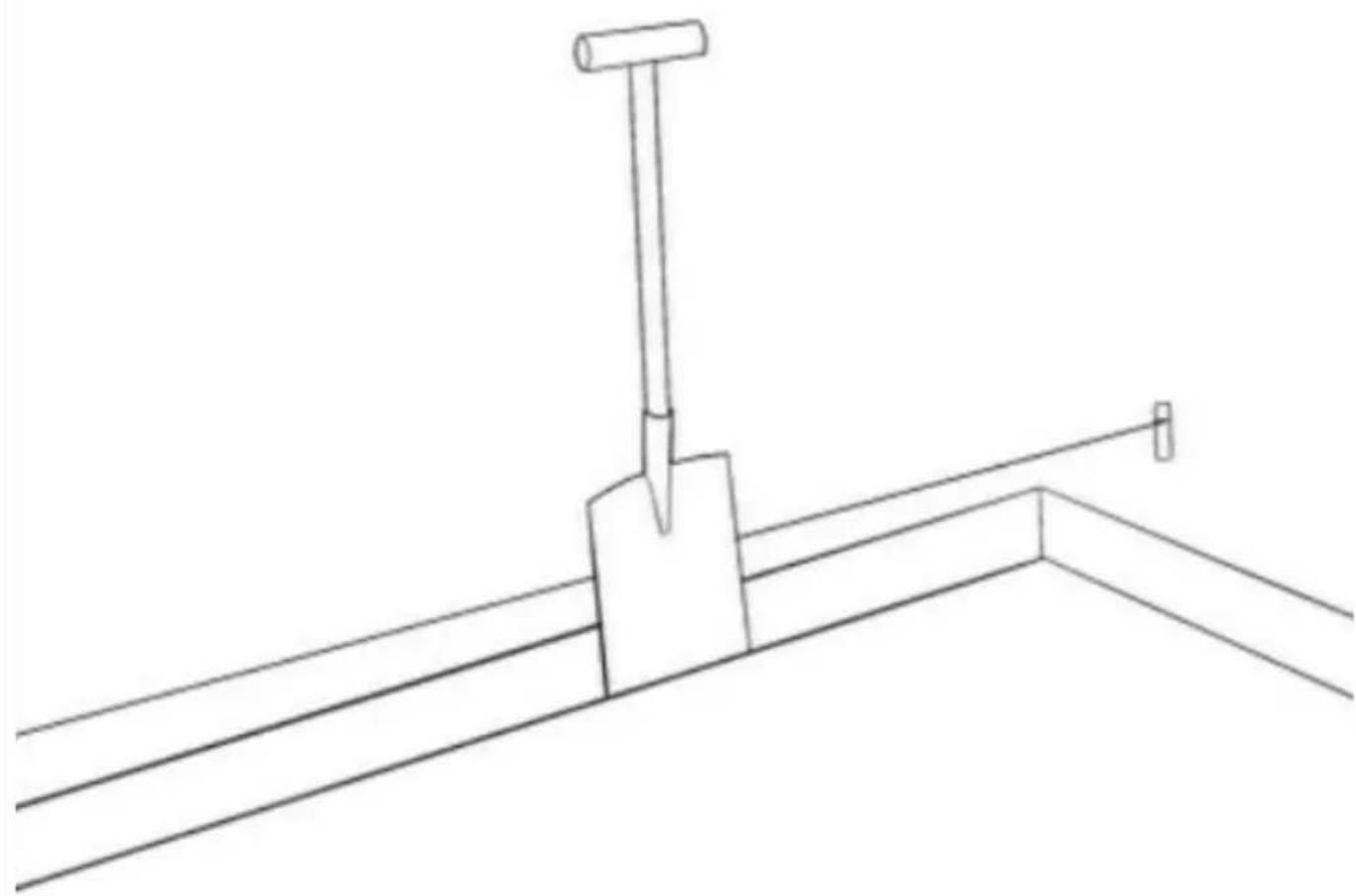

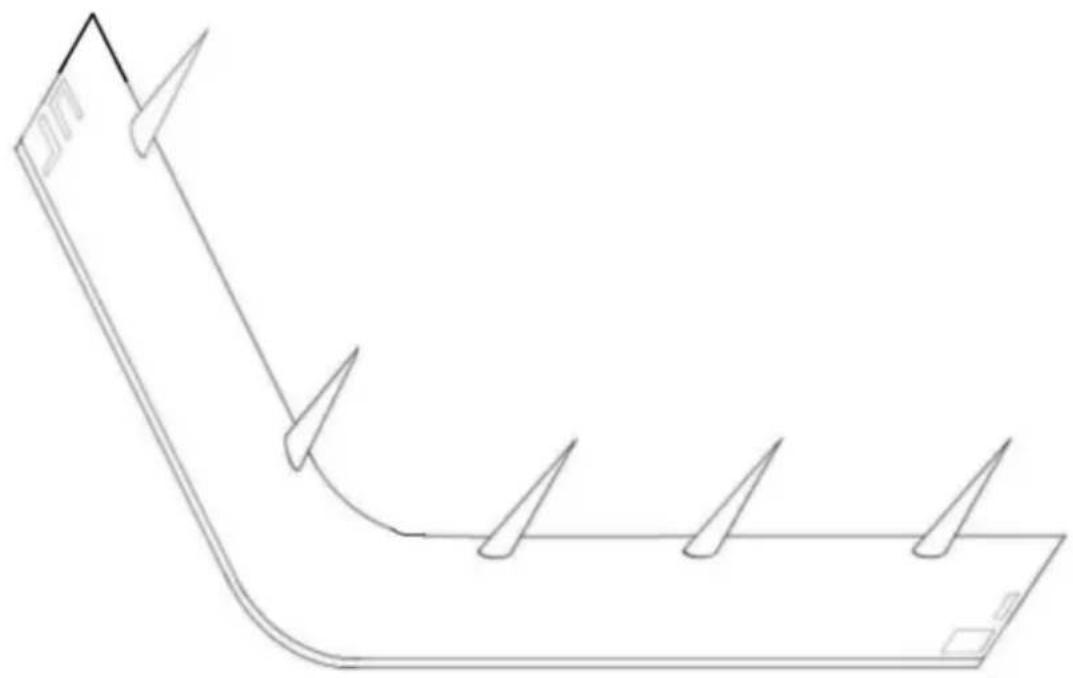

STEP 1 Prepare a line for the edging to follow and remove any obstructions. If ground is stony, loosen with pickaxe.

Line drawing of a structural support structure with a hammer and bracket (no text or symbols)

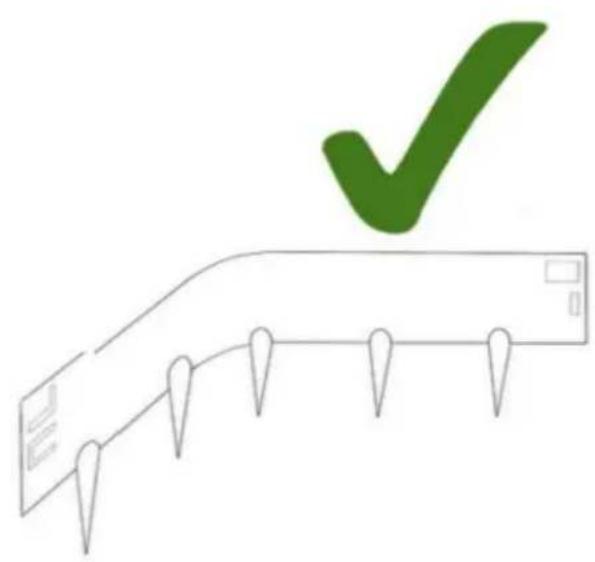

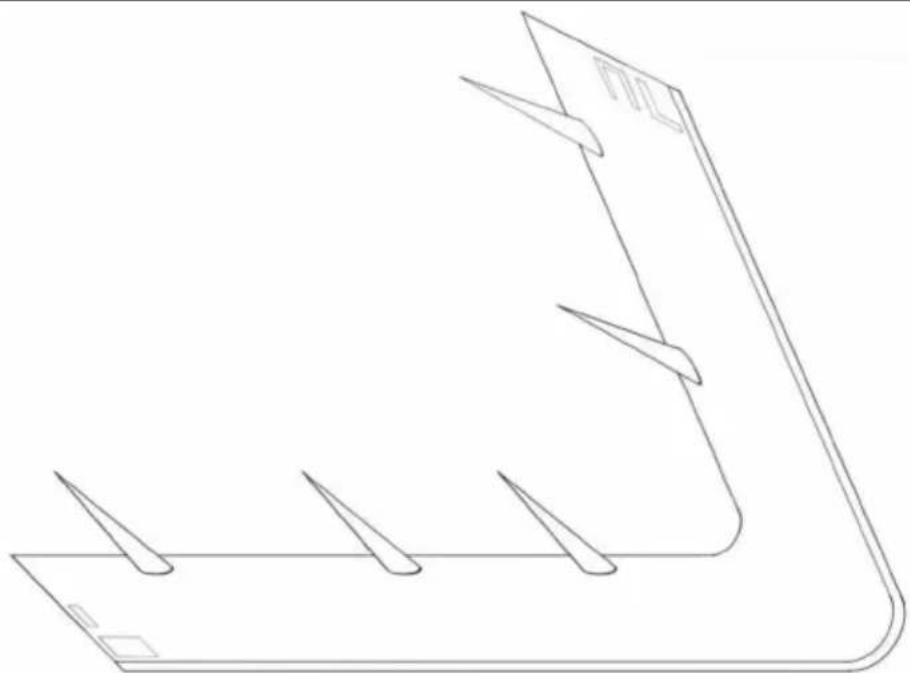

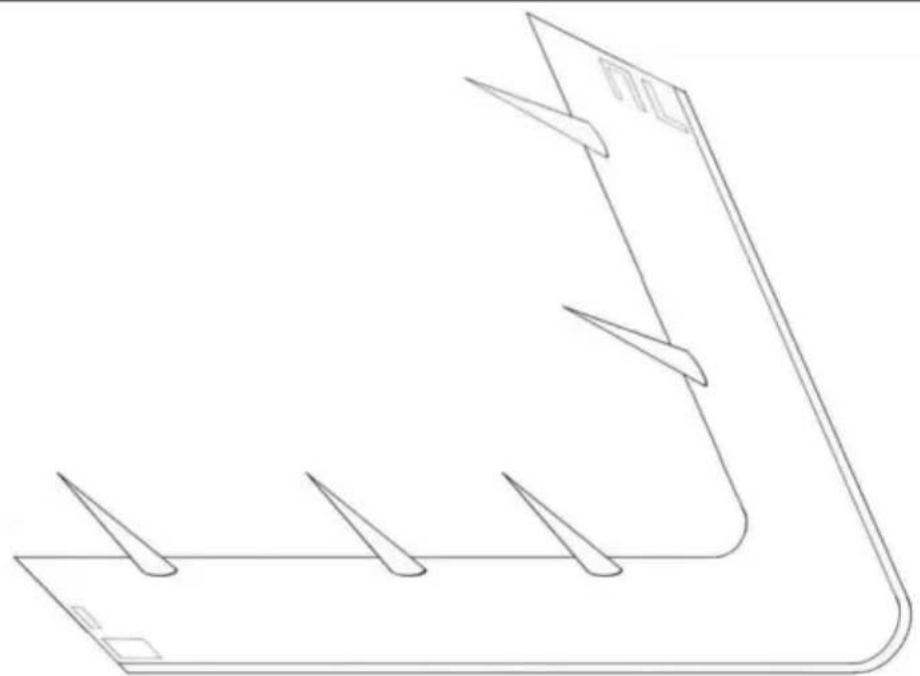

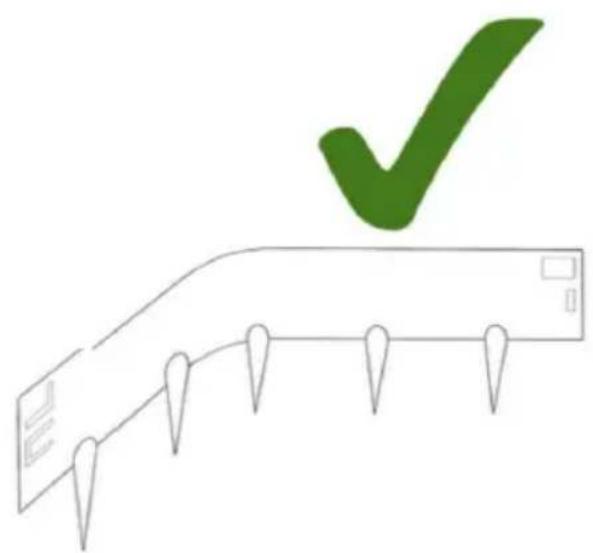

STEP 2 Bending instructions: A work bench, the edge of a table or other former is advised when bending the metal edge to requi

Technical line drawing showing a mechanical assembly with a bracket and a base plate, no text or symbols present.

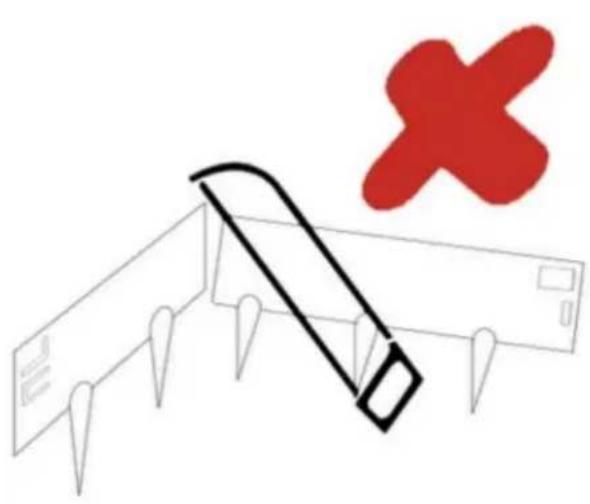

Simple line drawing of a saw cutting through a rack with a red X mark above (no text or symbols)

Illustration of a server rack with a green checkmark above it, no text or symbols present.

NOTE: Do not cut with anything as it can cause injury.

STEP 3

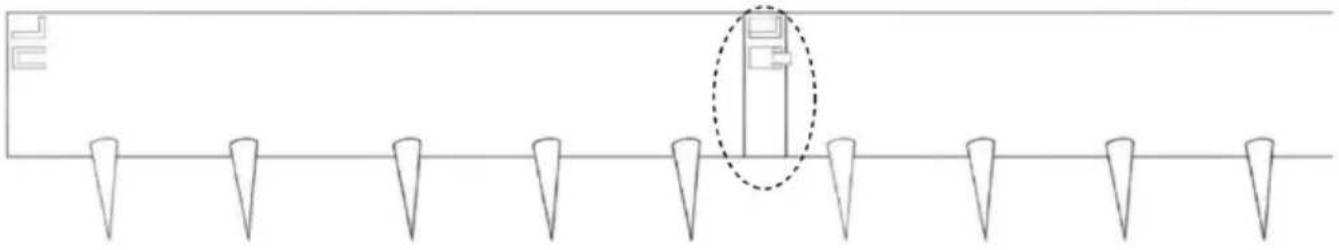

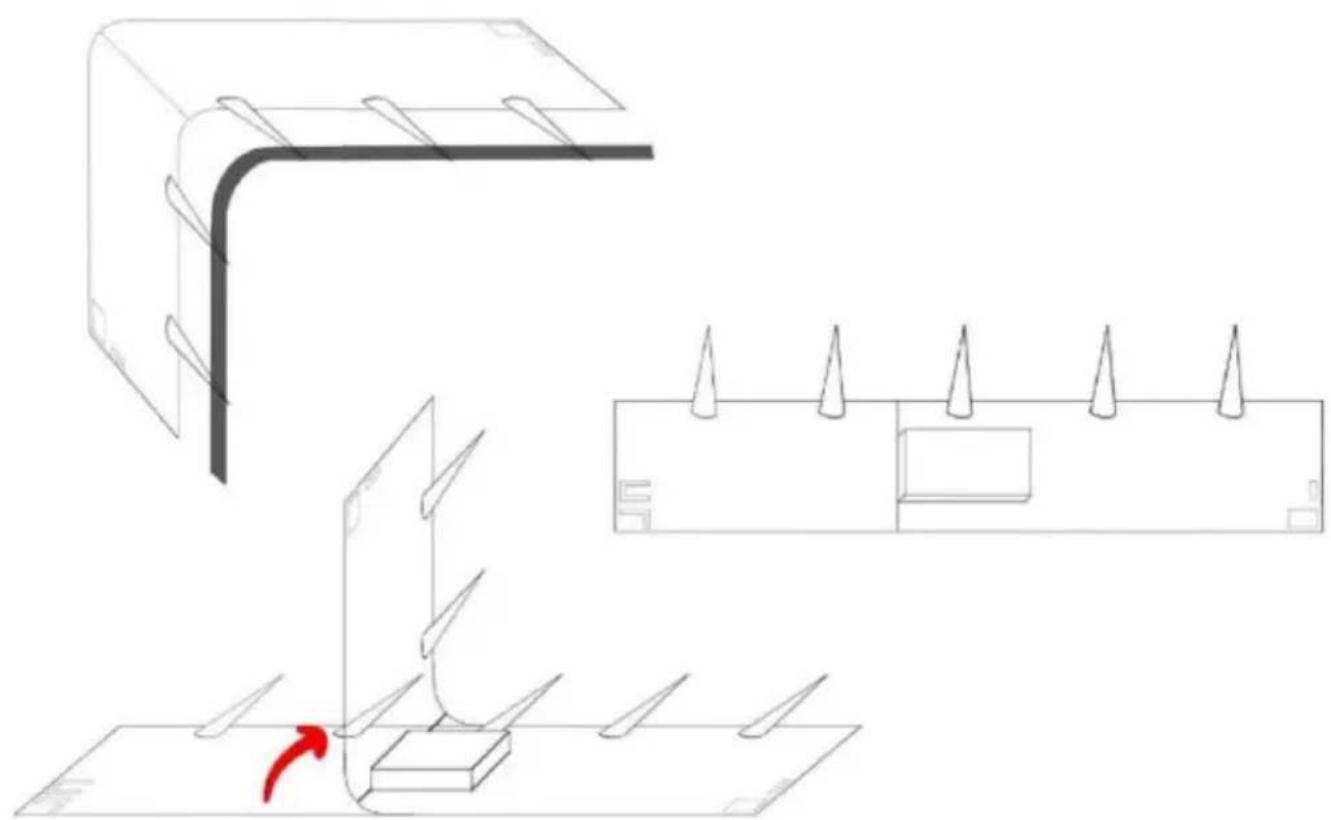

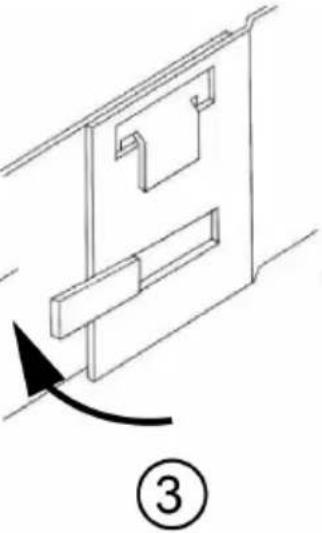

1. Insert two pieces of the metal edge together;2. Link the metal edge and use a screwdriver to push the tongue front panel through the hole in the rear panel nomorè ;than 453. Finally, flatten the tongue.

STEP 4 Insert the connected metal edges into the ground and s with a hammer.

Diagram showing three hand tools (hammers, checkmark, cross) above a grid of pin pins, likely illustrating a safety or inspection concept.

Diagram showing a material cross-section with granular texture and layered structure (no text or symbols)

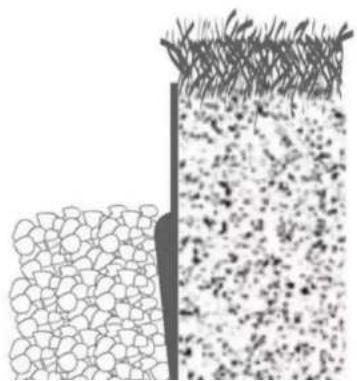

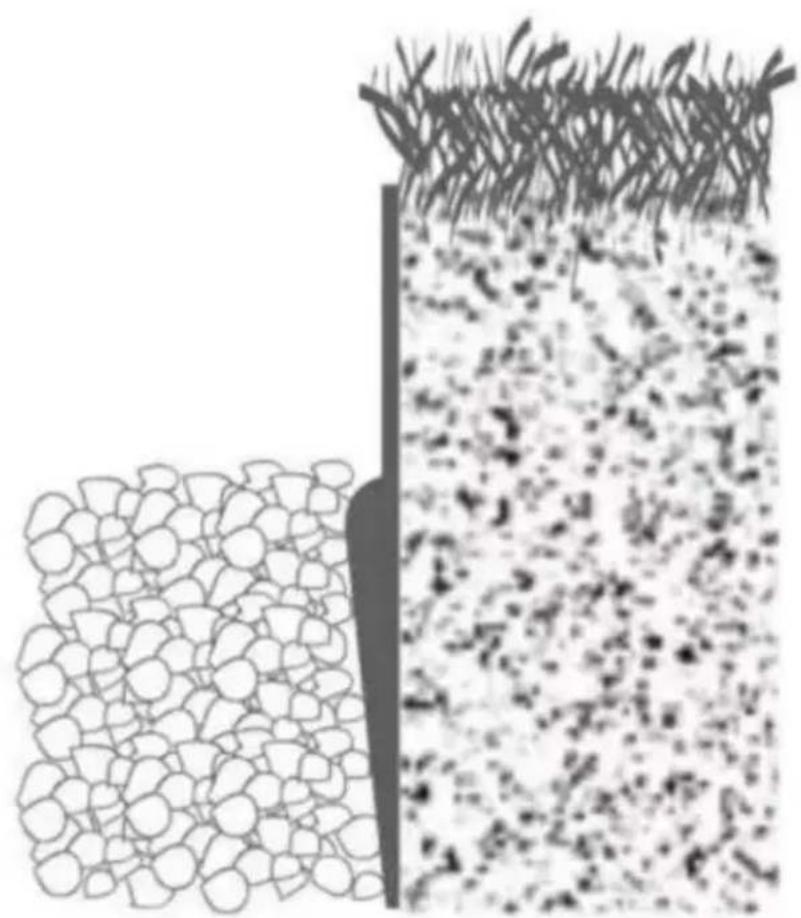

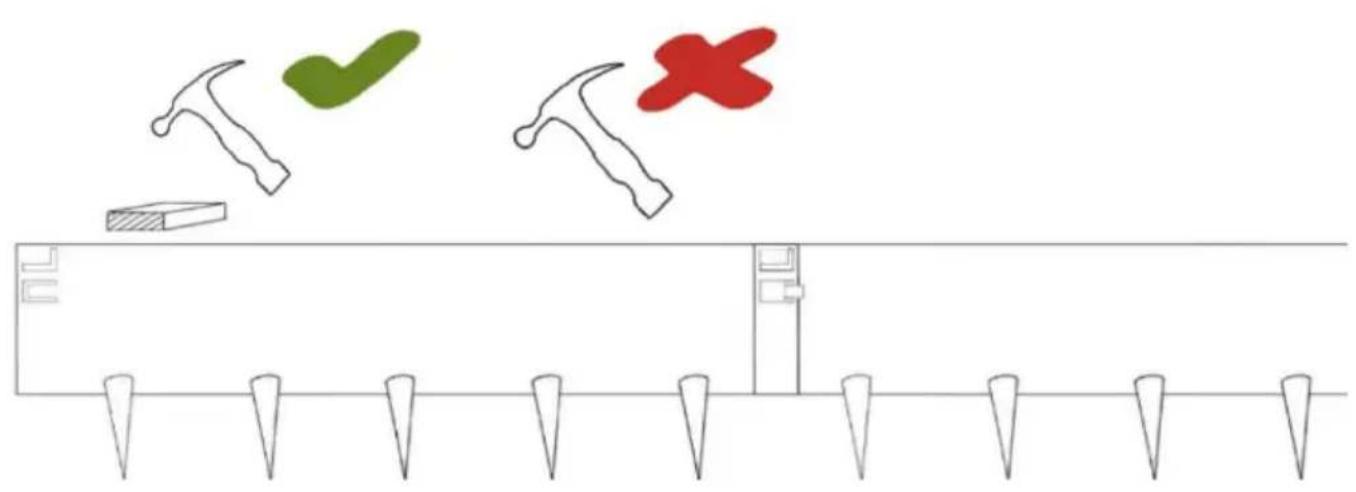

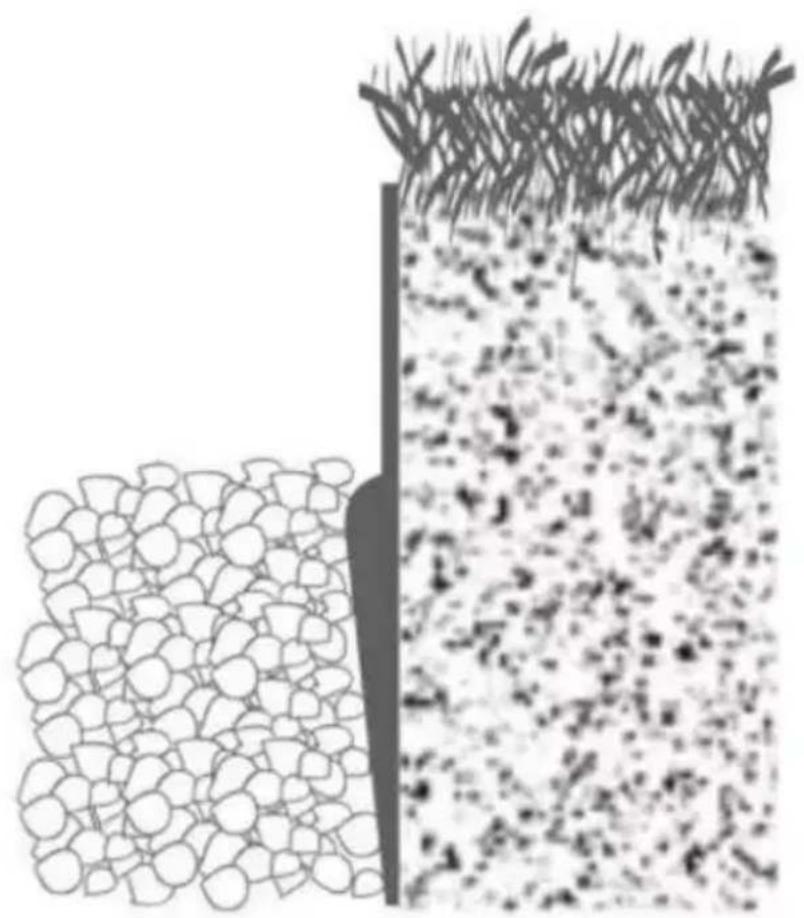

NOTE: Place a piece of wood over the metal edge when striking hammer to avoid damaging the metal edge.

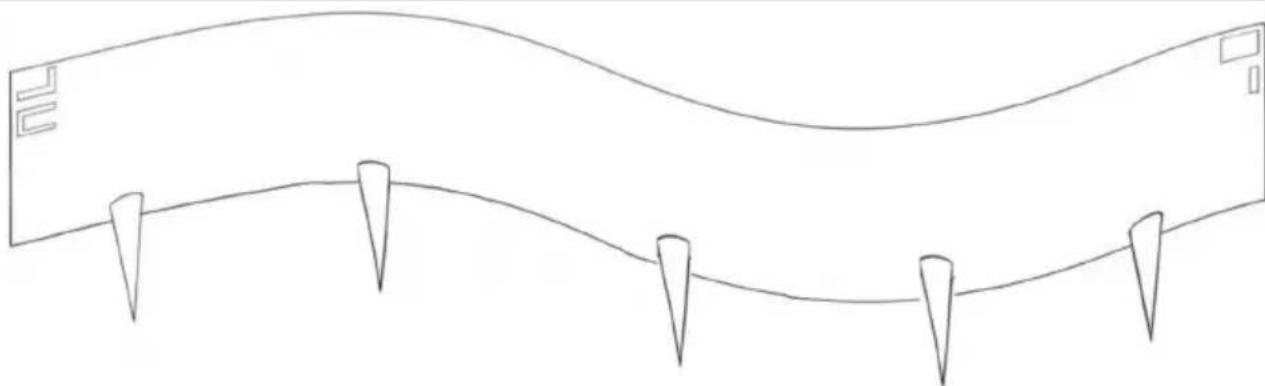

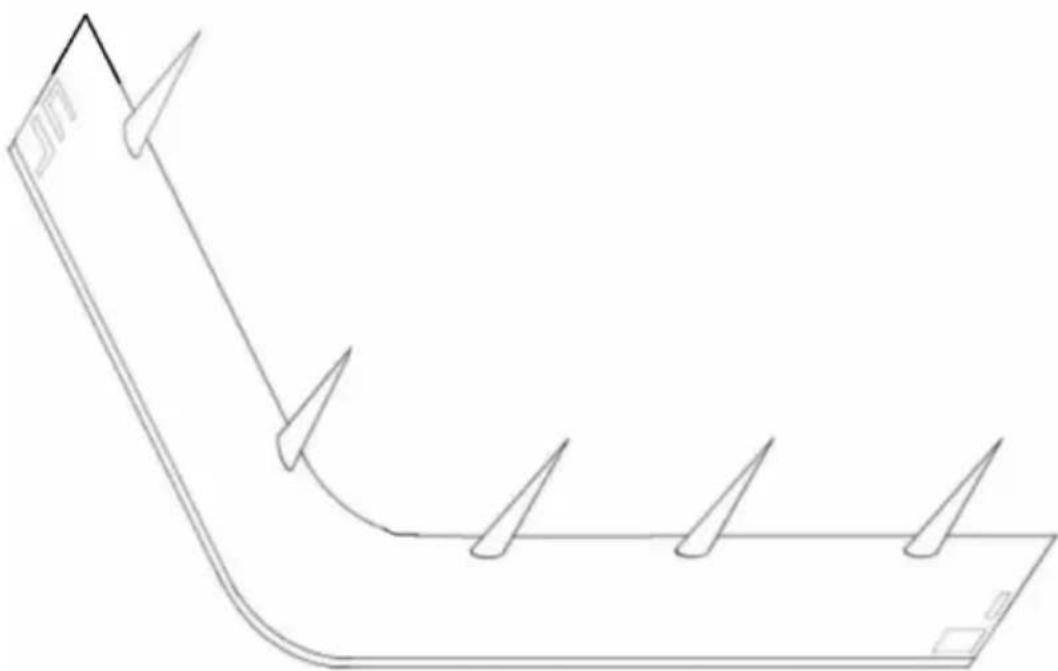

Supplementary statement:The metal barrier can be bent into the you need according to your needs (Including but not limited to th shapes).
