Product Type	Gauge Manifold for Refrigeration System
Brand	Vevor
Model	WZ-J401
Measurement Range (Low Side)	-30 to 500 psi
Measurement Range (High Side)	-30 to 800 psi
Compatible Refrigerants	R134A, R12, R410A, R22
Dimensions (L x W x H)	310 x 300 x 85 mm
Weight	3.1 kg
Port Configuration	4 ports
Hose Color	4 colors (red for high pressure, blue for low pressure)
Included Adapters	Female to male 1/2\" to 1/4\"
Intended Use	Charging, evacuation, vacuuming, and pressure monitoring
Body Material	Steel or alloy (not specified, reasonable estimate)
Valve Type	Integrated shut-off valves on the manifold
Safety Precautions	Use by qualified personnel only; avoid inhaling vapors; do not use with oxygen or very high-pressure gases
Maintenance and Cleaning	Clean with a soft cloth; avoid harsh solvents
Spare Parts and Repairability	Contact Vevor customer service for parts and repairs
Warranty	Electronic warranty certificate available on the Vevor website
Technical Support	Email support: [e-mail]

Frequently Asked Questions - WZ-J401 Vevor

What pressure ranges does this WZ-J401 gauge measure?

The low side measures -30 to 500 psi, and the high side measures -30 to 800 psi.

Which refrigerants can be used with this manifold?

It is compatible with refrigerants R134A, R12, R410A, and R22.

How to purge the hoses before use?

Connect the hoses with all valves closed, open the refrigerant tank valve, then slowly open the manifold valve until gas escapes from the fittings.

How to charge the system with vapor on the suction side?

After purging the hoses, open the refrigerant tank valve, then open the manifold valve to allow vapor to flow to the suction side.

How to monitor the system pressures?

Connect the hoses with all valves closed, then open the compressor service valves. The gauges will display the pressures.

How to evacuate the system with a vacuum pump?

Connect the hoses with all valves closed, start the vacuum pump, open the manifold valve, then the compressor service valves.

What are important safety precautions?

Only qualified personnel should use this device. Avoid breathing refrigerant vapors, never use it with oxygen, and wear protective equipment.

What to do in case of refrigerant leak?

Check the conversion joint gap and tighten the connector. If the problem persists, contact customer service.

Which adapters are supplied with the manifold?

Female to male adapters from 1/2" to 1/4" are included.

Where to find technical support for this gauge?

You can contact Vevor customer service by email at [e-mail] or visit www.vevor.com/support.

USER MANUAL WZ-J401 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MANIFOLD GAUGE SET OPERATING MANUAL

MODEL: WZ-J401

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cert with us compared to the major top brands and doses not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

MANIFOLD GAUGE SET OPERATING MANUAL

Model: WZ-J401

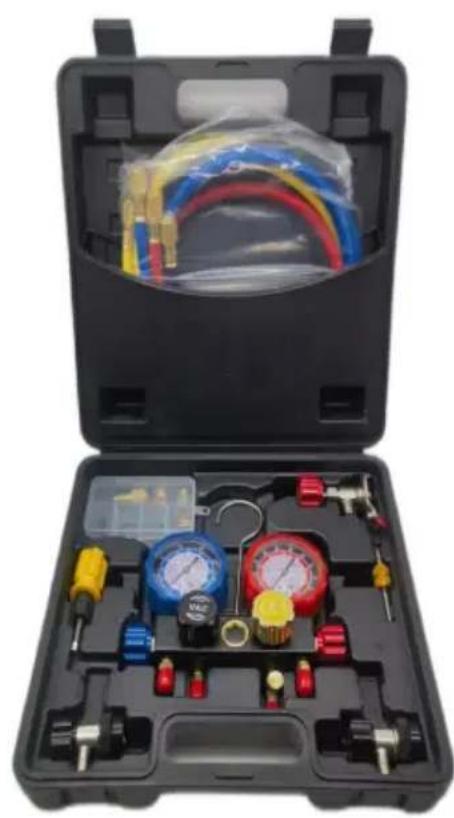

Open black medical or industrial testing kit with gas cylinders, valves, and tubing (no visible text or labels)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Technical parameters

Brand	Vevor
Model	WZ-J401
Measuring range:	-30~500psi (Low Side Gauge-30-800psi (High Side Gauge)
Refrigerants	R134A/R12/R410A/R22
Product size (mm)	310×300×85
Product weight (kg)	3.1

Safety Precautions

Safety & Warning

ONLY QUALIFIED SERVICE PERSONNEL SHOULD OPERATE THIS UNIT. MOST STATES, COUNTRIES ETC, MAY REQUIRE THE USER TO BE LICENSED. PLEASE CHECK WITH YOUR LOCAL GOVERNMENT AGENCY.

Danger - Avoid breathing refrigerant vapors and lubricant vapor or miBreathing high concentration levels may cause heart arrhythmia, loss of consciousness, or even cause suffocation. Exposure may irritate eye nose, throat, and skin. Please read the manufacturer Material Safety Data Sheet for further safety information on refrigerants and lubricants Danger - EXPLOSION RISK. Use extreme caution when working with flammable refrigerants. Never use this manifold with Oxygen.

Danger - EXPLOSION/RUPTURE RISK. DO NOT use this manifold with unregulated nitrogen, carbon dioxide or other very high pressure gases. Unregulated gases can cause components in a refrigeration system to rupture. Severe Injury or Death can occur.

Caution - All hoses may contain liquid refrigerant under pressure. Co

with refrigerant may cause frostbite or other related injuries. Wear pro personal protective equipment such as safety goggles and gloves. When disconnecting any hose, please use extreme caution.

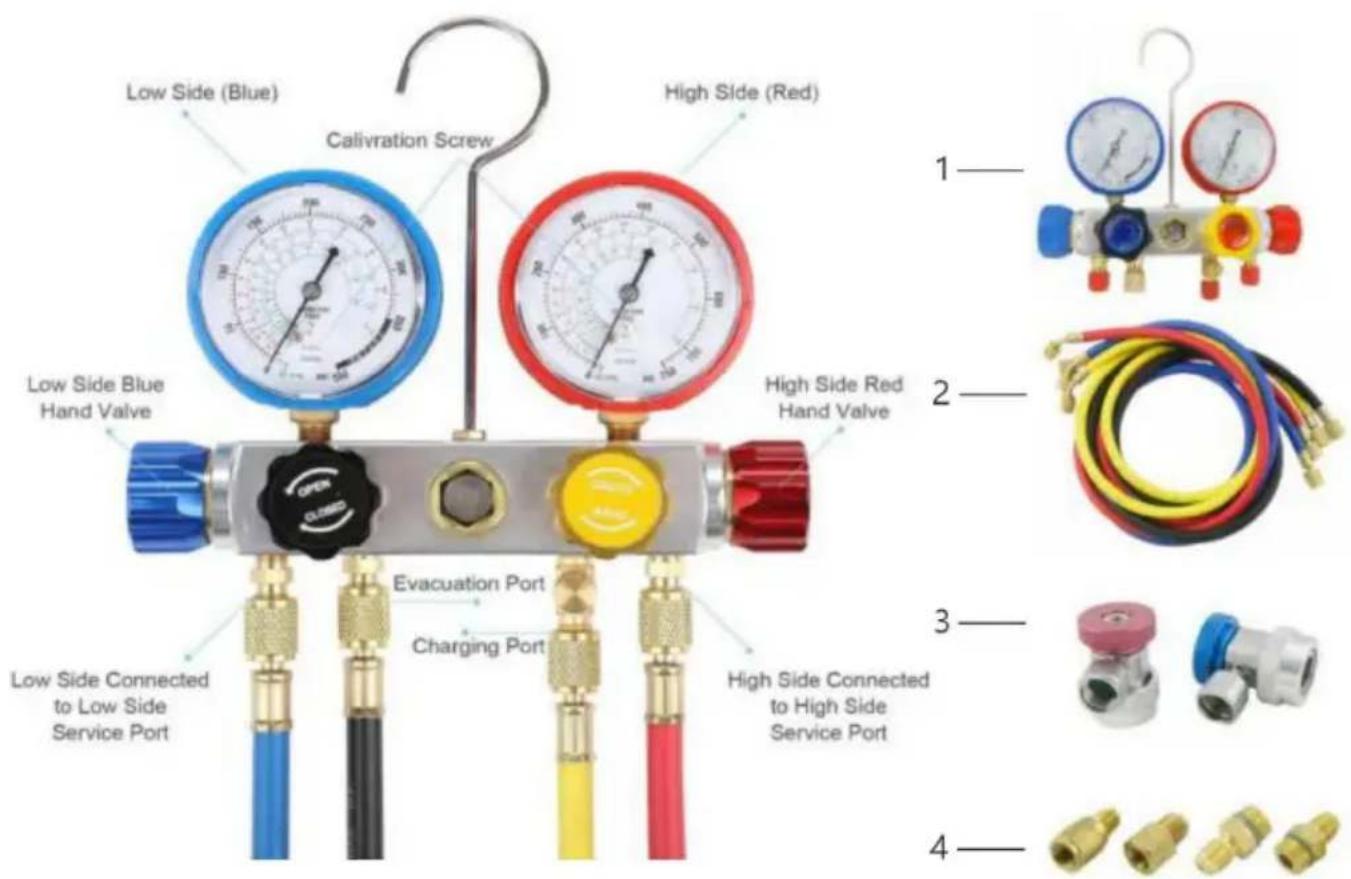

Product Structure Diagram

Part #	Part Name	Comment
1	Gauge	4 way, meets R134a R22 R410a refrigerant
2	Hose	4 Color, connect to different port
3	Coupler	Red - high pressure; Blue - low P
4	Adapters	Female to Male: 1/2" to 1/4"

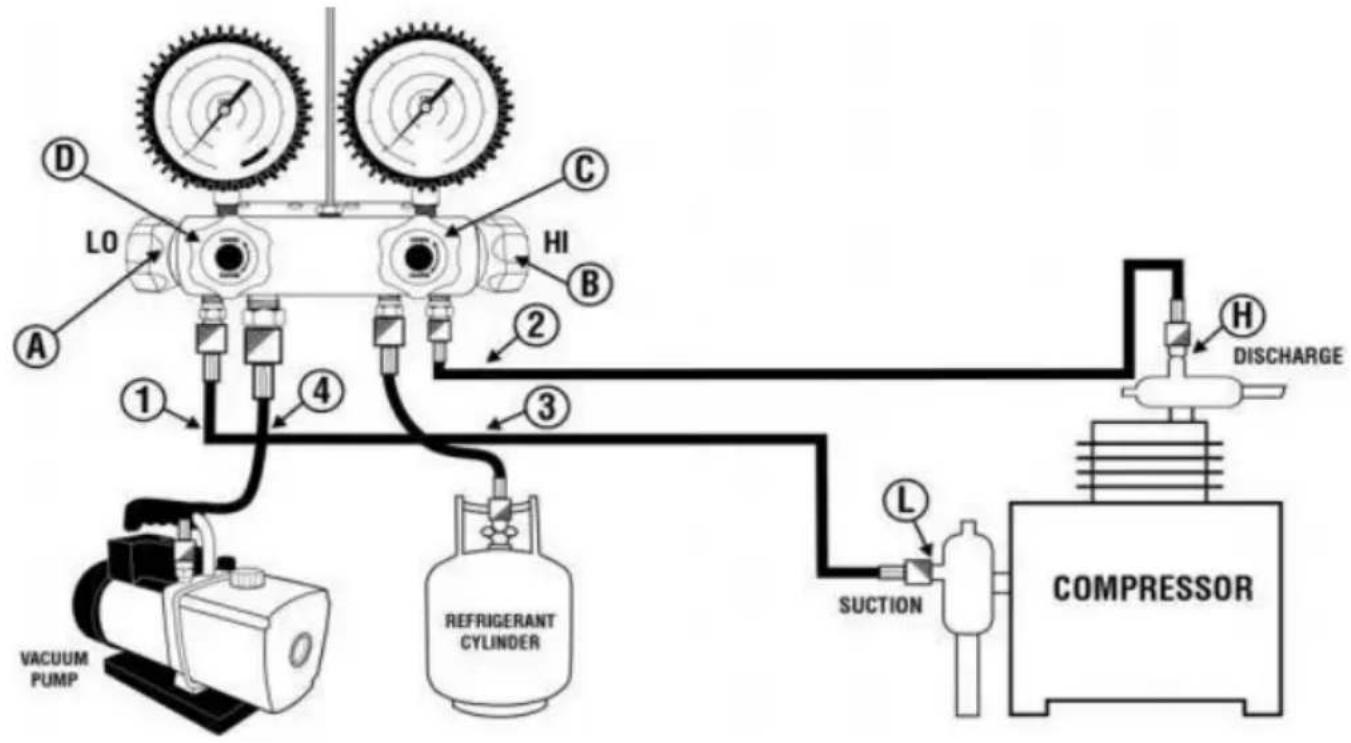

Instruction of use

I	TO PURGE HOSES WITH REFRIGERANT GAS.1.Connect hoses as shown with all valves closed on MANIF2.Loosely connect ^1 & ^2 hoses to COMPRESSOR & service ports respectively. 3.Open ^A & ^B valves on MANIFOLD.4.Open valve on REFRIGERANT Tank.5.Slowly open ^C valve on MANIFOLD until gas escapes from ^H & ^L service valve connections.6.Tighten ^H & ^H hose nuts on & service valve connectio
II	TO CHARGE SYSTEM WITH VAPOR ON SUCTION SIDE1.Connect hoses as shown with all valves closed on MANIF2.Purge hoses as in step I.3.Open REFRIGERANT tank valve.4.Open valve on ^C MANIFOLD.5.Open valve on ^A MANIFOLD.6.Open valve on ^L MANIFOLD.
III	TO MONITOR SYSTEM PRESSURESA. CONNECTIONSConnect hoses as shown with all valves closed on MANIOpen Ⓛ & Ⓗ service valves on COMPRESSOR.
IV	TO EVACUATE SYSTEM1. Connect hoses as shown with all valves closed on MAN2. Start VACUUM pump.3. Open Ⓓ valve on MANIFOLD.4. Open Ⓐ & Ⓗ valve on MANIFOLD.5. Open Ⓛ & Ⓗ service valves on COMPRESSOR.

Scope of application

For R134A/R12/R410A/R22 Refrigerant only

Common fault analysis

faultphenomenon	failure cause	solution
Refrigerationagent leakage	The conversion joint ga is too large	Tighten the switch connector
