USER MANUAL TLMPL-1.5M Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MOTORIZED PROJECTOR LIFT USER MANUAL

MODEL: TLMPL-1M, TLMPL-1.5M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MOTORIZED PROJECTOR LIFT

MODEL: TLMPL-1M, TLMPL-1.5M

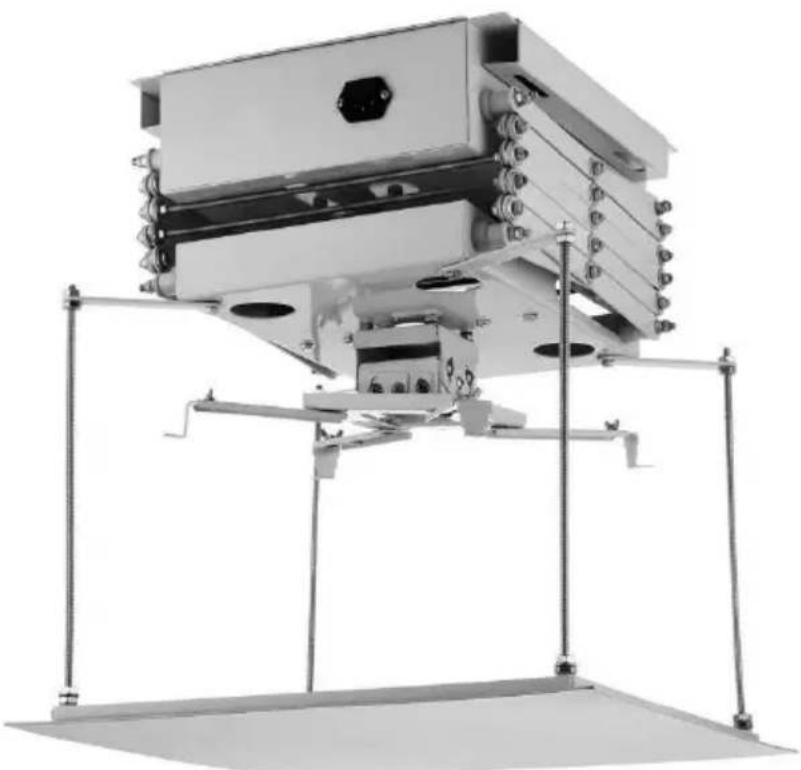

Mechanical device with mounted components and mounting brackets (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Motorized Projector Lift.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed Weight Capacities.

4. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Motorized Projector Lift.

5. Use as intended only.

6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PACKAGE LIST

Image	Quantity	Image	Quantity
A:	1 pcs	G: M4	4 pcs
B:	1 pcs	H: M3	1 pcs
		I: M4	1 pcs
C:	4 pcs	J: M1*10	10 pcs
D:	4 pcs	K: M3*12 [CHDS]	6 pcs
E:	2 pcs	L: M1*12	6 pcs
F: M8*70	4 pcs	M: M8*16	4 pcs

ASSEMBLY STEP

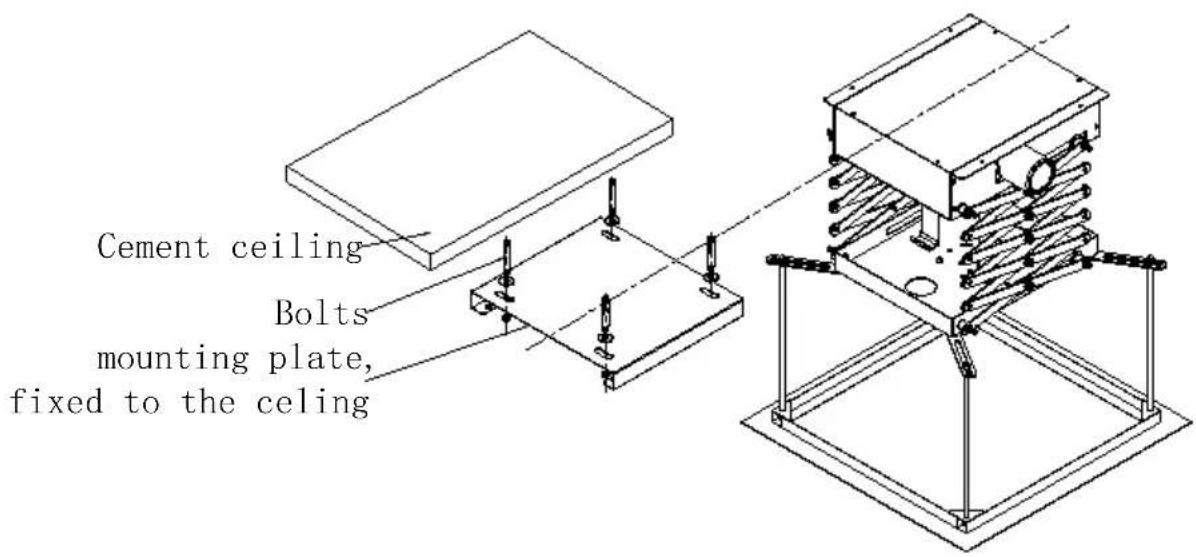

Cement ceiling Bolts mounting plate, fixed to the ceiling

We recommend that you install electric pylons in the following orc

By the focal length of the screen size and the projector is based determining the distance between the hanger and the screen, set a g hanger installation location. The installation hole in the ceiling hanger according to size. Meanwhile recommended installation position reserved for the maintenance side of the hole (40*40cm)

After a good mounting holes on the ceiling, measuring four runwa mounting plate holes center distance (211 * 225mm), in order to prevent the ceiling with the impact of drilling, the distribution of the four M10 bolts embedded on the ceiling.

3、The mounting plate is inserted bolts, and tighten the nut on the mounting plate is fixed to the ceiling.
4、The hanger into the mounting plate. With four M5 * 12mm s between the hanger and mounting plate.
5、Plug the remote control is powered by running down. Hanger factory set up, the next trip. Run to the next trip, hanger stop runnir

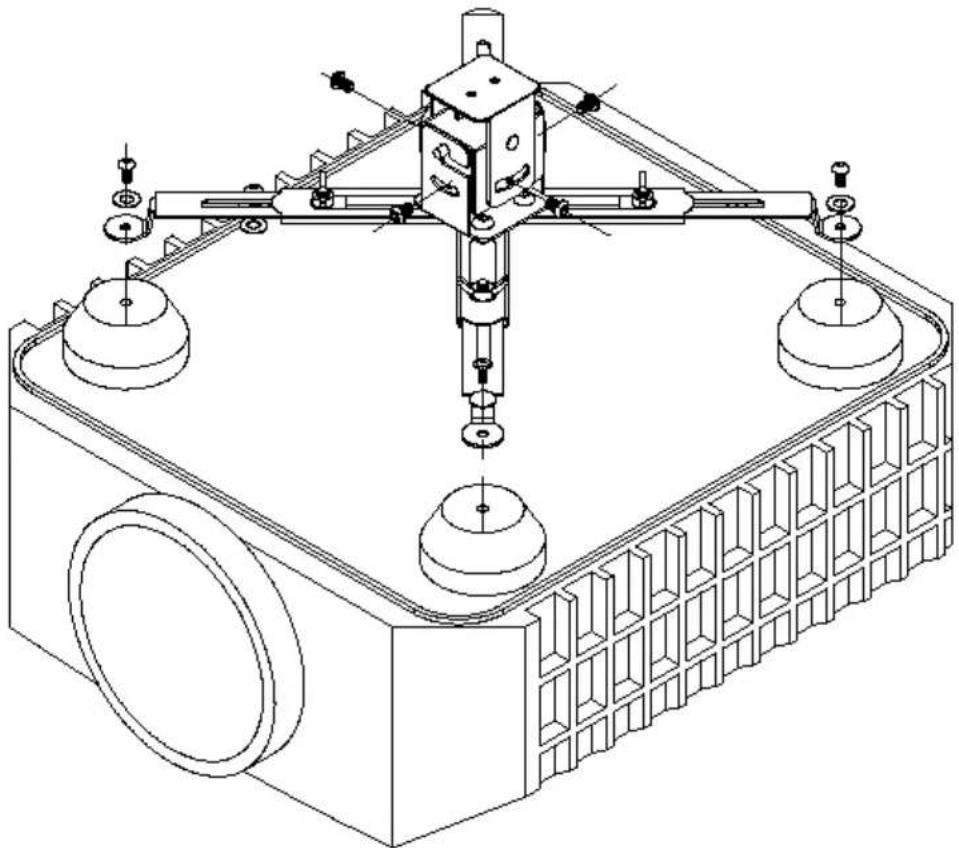

6、After installing the projector, with four M8 screw to connect the base plate and hanger. M6 bolts scissors mounting plate installed with the delivery of universal head.
7、According to the height of the screen, adjust the electric pylons trip. Adjustment method:

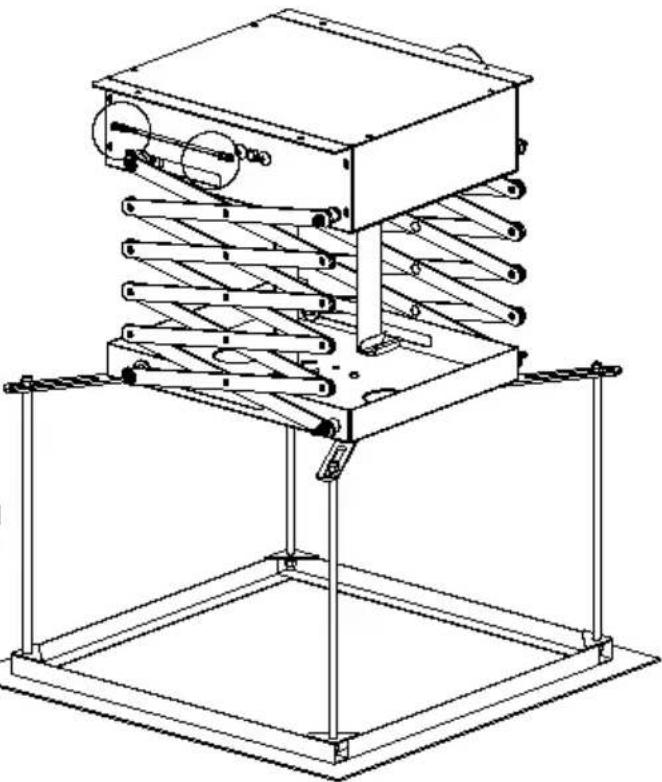

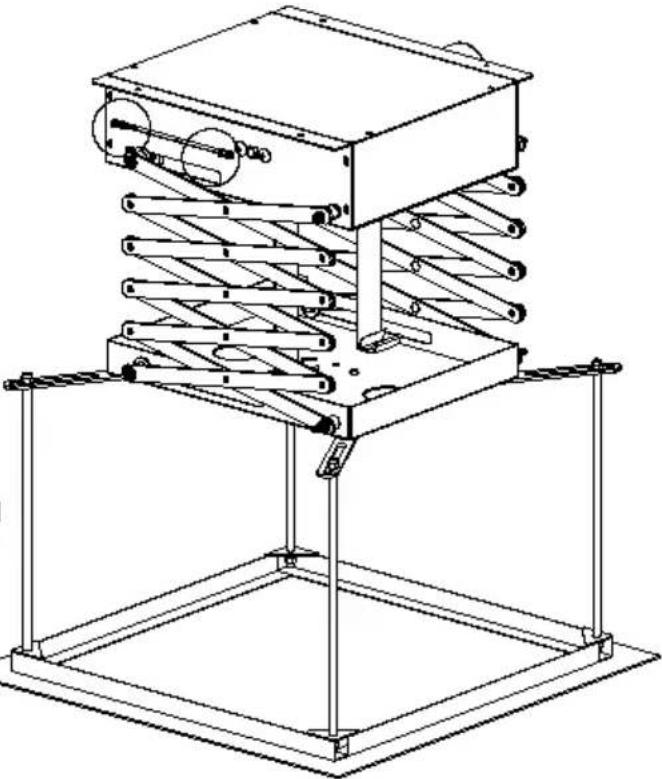

Loosen the screws slightly, moving the location of this block.

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Technical line drawing of a mechanical device with coiled spring and mounting base (no text or symbols)

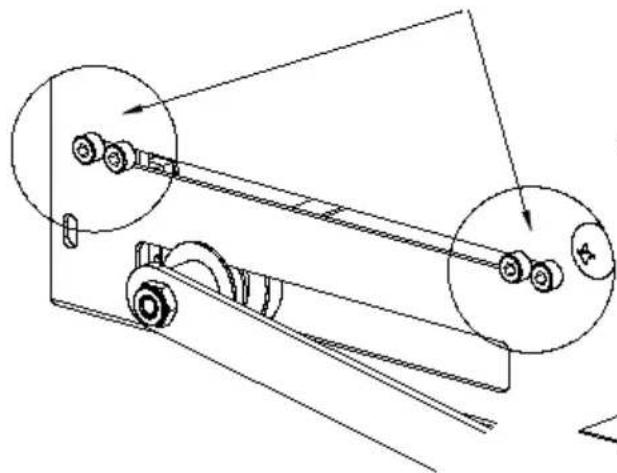

Use a screwdriver to slightly loosen the stroke positioning block diagram (on the right) screws (not to screw off), this position is slightly shifted left block, tighten the screws. Run hanger, hanger observed downstream location. Repeat this action until you find a suitable screen hanger he Adjust the upper limit, release the leftmost stroke positioning block, to right, tighten the screws. Run hanger, hanger observed upward position. Repeat this action until you find a suitable screen hanger height. Not After adjusting the upper and lower limit, we must tighten the fixing otherwise, will occur in the operation hanger positioning, localization of running. For 2M hanger, when adjusting the upper limit, do not let the scissors completely collapsed. (So no it stops the motor function)

Technical line drawing of a mechanical assembly with no visible text or symbols

PRODUCT PARAMETER

Model	TLMPL-1M
Power	38W
Voltage	110-120VAC 60Hz	220-240VVAC 50Hz
Maximum Loaded Weight	Max 15kg(It is recommended to use within 10kg of lo
Product Size	343*315*207 mm
Telescopic stroke	Max: 1m
Model	TLMPL-1.5M
Power	38W
Voltage	110-120VAC 60Hz	220-240VVAC 50Hz
Maximum Loaded Weight	Max 15kg(It is recommended to use within 10kg of lo
Product Size	343*315*215 mm
Telescopic stroke	Max: 1.5m

RECOVERY AND DISPOSAL

This product complies with the provisions of the European Directive 2012/19/EC. The symbol marked with a crossed out wheelie bin indicates that this product requires separate recycling in the EU. The same is products and all accessories marked with this symbol. Products marked such must not be disposed of with normal household waste, but must taken to a collection point for the recycling of electrical and electronic devices.

equipment.

Correct Disposal

This product is subject to the provision of european Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is set the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the line a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on,

user is encouraged to try to correct the interference by one or more following measures.

- Reorient or relocate the receiving antenna.

- Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assista
