USER MANUAL S10000 Vevor

Affordable. Reliable. Home Improvement.

ELECTRIC WINCH

USER MANUAL

MODEL:S6000 / S10000 / S12000 / SC13000 / SEC16800T

MODEL:S6000 / S10000 / S12000 / SC13000 / SEC16800T

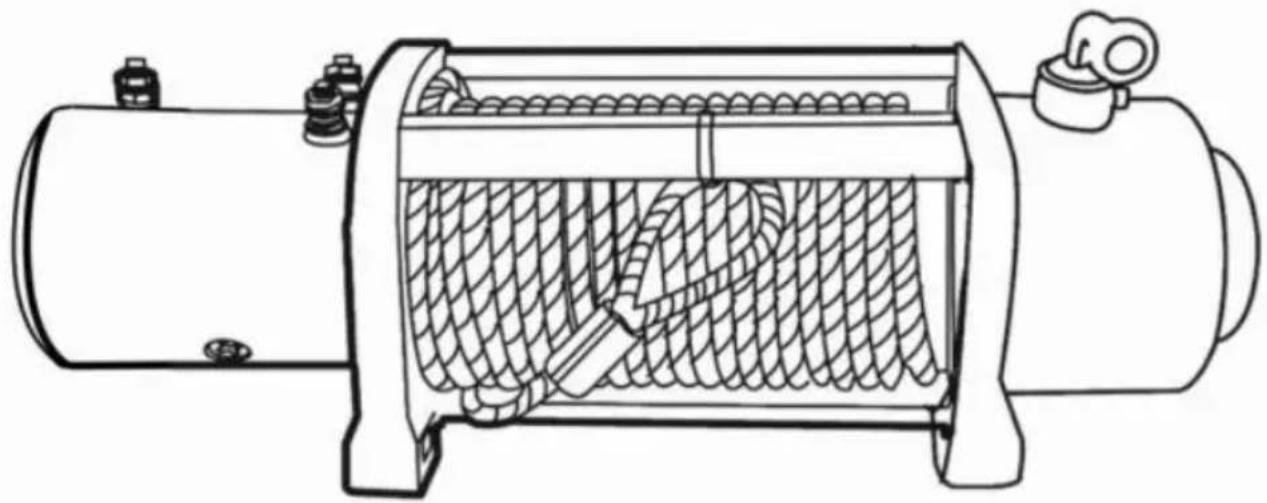

Technical line drawing of a mechanical device with internal helical structure and mounting base (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

READ AND UNDERSTAND THIS GUIDE BEFORE INSTALLATION & OPERATION

Warning! Observe safety precautions for personal safety and the safety of others. Improper equipment operation may cause personal injury and equipment damage.

Read the following carefully before attempting to operate your winch and keep the instructions for future reference.

SYMBOL INDEX

SYMBOL		EXPLANATION
		Always Read All Product Literature

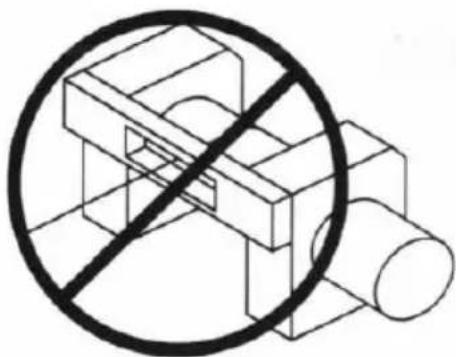

		Never Use As a Hois
		Always Properly Seat Load in Throat of Ho
		Never wind winch rop on bottom of drum
		Lock(Engage)
		Unlock(Disengage)
		Finger/Fairlead Crushing Hazard
		Hand Piercing/Cutting Hazard
		Explosion/Bursting Hazard

Warning

Dress Properly:

• Don't wear loose clothing or jewelry. They can be caught in moving parts
• Wear leather gloves when handling winch cable. Do not handle cable with bare hands broken wires can cause injuries
  • Non-skid footwear is recommended
• Protective hair covering to contain long hair

Keep a Safe Distance:

• Ensure that all persons stand well clear of winch cable and load during w operation, 1.5 times the cable length recommended. If a cable pulls loose or breaks under load it can lash back and cause serious personal injury or deal
• Don't step over the cable
• All visitors and onlookers should be kept away from the work area.
• Keep proper footing and balance at all times

Don't Abuse the Cord:

• Never carry your winch by the cord or yank it to disconnect it from the receptacle.
• Keep cord from heat, oil and sharp edges.

Don't Overwork the winch:

• If the motor becomes uncomfortably hot to touch, stop and let it cool for minutes.
• Don't maintain power to the winch if the motor stalls.
• Don't exceed maximum line pull ratings shown in tables. Shock loads must exceed these ratings.

Avoid Unintentional Starting:

- Winch clutch should be disengaged when not in use and fully engaged with use.

Check Damaged Parts:

- Before using, you should check your winch carefully. Any part that is damage should be properly repaired or replaced by an authorized service center.

Repair Your Winch:

- When repairing. use only identical replacement parts or it may cause considerable danger for the user.

Re-spool the Cable:

- Leather gloves must be worn while re-spooling. To re-spool correctly, it is necessary to keep a slight load on the cable. Hold the cable with one hand the remote-control switch with the other. Start as far back and in the center can. Walk up keeping load on the cable as the winch is powered in.

• Do not allow the cable to slop through your hand and do not approach the winch too closely.
• Turn off the winch and repeat the procedure until all the cable except 1m
• Disconnect the remote-control switch and finish spooling in cable by rotating drum by hand with clutch disengaged.
• On hidden winches, spool in cable under power but keep hands clear.

Warning: The use of any other accessory or attachment other than those recommended in the instruction manual may present a risk of personal injury. Warning: Always UNPLUG remote control before working in or around fairlead wire rope drum(danger zone). Never tuck hand control under arm or allow ar to hold it when in danger zone so that hand control cannot be accidentally activated.

Read the following carefully before attempting to operate your winch and keep instructions for future reference.

• The uneven spooling of cable, while pulling a load, is not a problem, unless there is a cable pile up on one end of the drum. If this happens reverse to relieve the load and move your anchor point further to the center of the
  • After the job is done you can unspool and rewind for a neat lay of the
• Store the remote control switch inside your vehicle where it will not become damaged, inspect it before you plug it in.

- When ready to begin spooling in, plug in remote control switch with clutch disengaged, do not engage clutch with motor running.

- Never connect the hook back to the cable. This causes cable damage. Always use a sling or chain of suitable strength.

- Observe your winch while winching, if possible while standing at a safe distance. Stop the winching process every meter or so to assure the cable i pulling up in one corner. Jamming the cable can break your winch.

- Do not attach tow hooks to winch mounting apparatus. They must be attached to vehicle frame.

- The use of a snatch block will aid recovery operations by providing a dou of the winch capacity and a halving of the winching speed, and the means maintain a direct line pull to the center of the fairlead. When double loading stationary winching, the winch hook should be attached to the chassis of the vehicle.

- Ensure rated “D” or bow shackles are used in conjunction with an approve trunk protector to provide a safe anchor point.

- When extending winch cable, ensure that at least five wraps of cable rema drum at all times. Failure to do this could result in the cable parting from t under load . Serious personal injury or property damage may result.

- All winches are provided with a red cable marking to identify that 5 cable remain on the Winch drum when this mark appears at the fairlead. No recov should be attempted beyond this marking.

- Since the greatest pulling power is achieved on the innermost layer of you winch, it is desirable to pull off as much line as you can for heavy pulls (leave at least 5 wraps minimum on the drum-red cable). If this is not practi a snatch block and double line arrangement.

- Draping a heavy blanket or similar object over the extended winch cable is recommended as it will dampen any back lash should a failure occur.

- Neat, tight spooling avoids cable binding, which is caused when a load is applied and the cable is pinched between the others. If this happens, alterna power the winch in and out. Do not attempt to work a bound cable under I free by hand.

- Apply blocks to wheels when vehicles are on an incline.

Battery:

- Be sure that the battery is in good condition. Avoid contact with battery and other contaminants.

• Always wear eye protection when working around a battery.

- Have the engine running when using the winch, to avoid flattening the bat

Winch Cable:

- Be sure that the cable is in good condition and is attached properly.

- Do not use the winch if cable is frayed.

- Do not move the vehicle to pull a load.

- The life of the cable is directly related to the use and care it receives. F its first and subsequent uses, a cable must be wound on to the drum unde of at least 500lbs (230kg) or the outer wraps will draw into the inner wraps severely damage the cable during winching. The first winch use should be a familiarization run while in a relaxed, non-recovery situation. Spool out the cab until the red cable appears (about five wraps on the drum), then rewind the on to the drum under a load of 500lbs (230kg) or more. This will slightly te and stretch the new cable and create a tight cable wrap around the drum. I to do so may result in cable damage and reduced cable life.

- When the cable is replaced, be sure to apply Lactate, or an equal compo the cable clamp thread. Tighten the clamp screw properly but do not over ti The lactate will prevent loosening of the screw in arduous conditions.

- Loctite 7471 Primer and 222 Thread locker are recommended.

Do not attempt to exceed the pulling limits of this winch.

DO NOT drive your vehicle to assist the winch in any way. Vehicle movement combination with winch operation may overload the cable, the winch itself or cause damaging shock loads.

Shock loads when winching are dangerous! A shock load occurs when an increased force is suddenly applied to the cable. A vehicle rolling back on a cable may induce a damaging shock load.

The winches shown in this manual are solely for vehicle, non-industrial applications.

Do not use winch in hoisting applications due to required hoist safety factors features.

Do not use the winch to lift, support or otherwise transport people

Disconnect the power cable from the battery when the winch is not in use.

Stay clear of cable while pulling.

Never exceed the pulling capabilities listed above.

Do not use the winch just by pulling out a bit of rope. It is highly recommend that only the last layer of rope be left on the winch when using the winch capacity.

The winch has a huge working current under loading, so it can not continue rewind the cable for a long time, it is highly recommended to pause the wire every 2 meters cable rewinding to allow the motor to dissipate heat.

DO NOT “move” your vehicle to assist the winch in pulling the load. The combination of the winch and vehicle pulling together could overload the wire rope and the winch.

Inspect wire rope and equipment frequently. A frayed wire rope with broken strands should be replaced immediately.

Use heavy leather gloves when handling wire rope. Do not let wire rope slid through your hands.

Never winch with less than 5 turns of wire rope around the winch drum since wire rope end fastener may NOT withstand full load.

Never put your finger through the hook. If your finger should become trapped the hook, you could lose your finger.

Simple line drawing of a hand using a tool to interact with a mailbox (no text or symbols)

Simple line drawing of two hands tying a knot (no text or symbols)

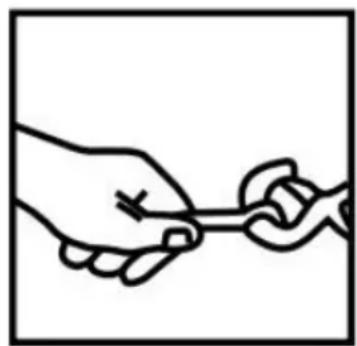

ALWAYS USE THE HAND SAVER When guiding the wire rope in or out.(See Figure). Do not use winch in hoisting applications due to required hoist safety factors and features.

ALWAYS STAND CLEAR OF WIRE ROPE, HOOK AND WINCH. IN THE UNLIKELY EVENT ANY COMPONENT FAILURE IT'S BEST TO BE OUT OF HARM'S WAY.

Warning: The use of any other accessory or attachment other than the recommended in the instruction manual may present a risk of personal injury.

WINCH INSTALLATION

MOUNTING YOUR WINCH

The winch is to be mounted into a suitable steel mounting frame using the 4-point foot mounting system in either a horizontal or vertical plane.

It's very important that the winch be mounted on a flat surface so that the three sections (motor, cable drum and gear housing) are properly aligned.

Before commencing installation ensure the mounting facility being used is capable of withstanding the winches rated capacity.

The fitment of winches and/or a frontal protection system may affect the triggering of SRS air bags. Check that the mounting system has been tested and approved for winch fitment in the airbag equipped vehicle.

Winch mounting frames and /or Frontal Protection Systems are suggested to suit most popular vehicles. Winch frames are packaged with detailed fitting instructions.

Should you wish to manufacture your own mounting plate the dimensions below will assist. A steel mount plate 6mm thick is recommended. Fasteners should be steel high tensile grade 5 or better. A poorly designed mount may void warranty.

The winch should be secured to the mounting with 3/8"UNC x 1-1/4"stainless steel bolts and spring washers provided.

The fairlead is to be mounted so as to guide the cable onto the drum eve

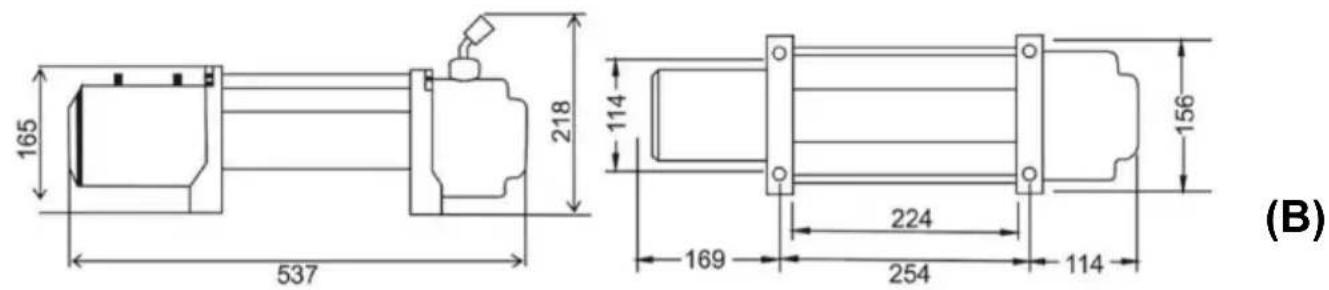

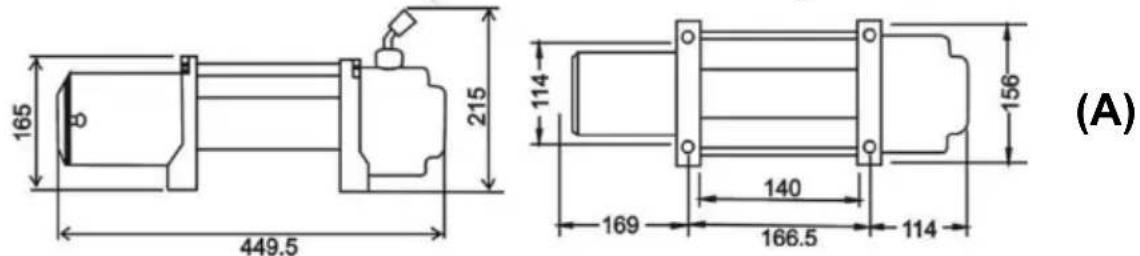

165 8 215 449.5 114 169 140 166.5 114 156 (A)

165 537 218 114 169 224 254 114 156 (B)

A is dimensions of 6000lbs, while B is dimensions of 10000lbs-13500lbs.

WARNING :

• Always choose a mounting location that is sufficiently strong to withstand the pulling capacity of your winch.
- Always complete the winch installation and attach the hook before installing the wiring.
- Never use bolts that are too long.

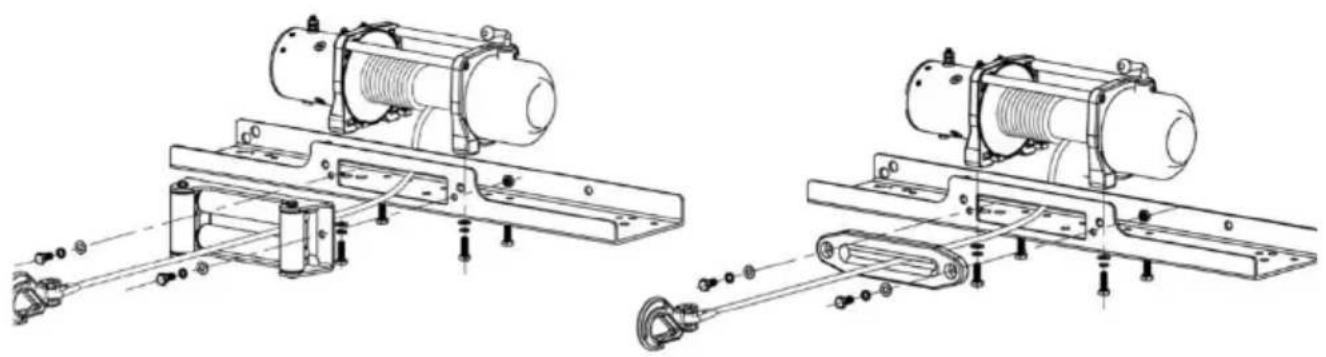

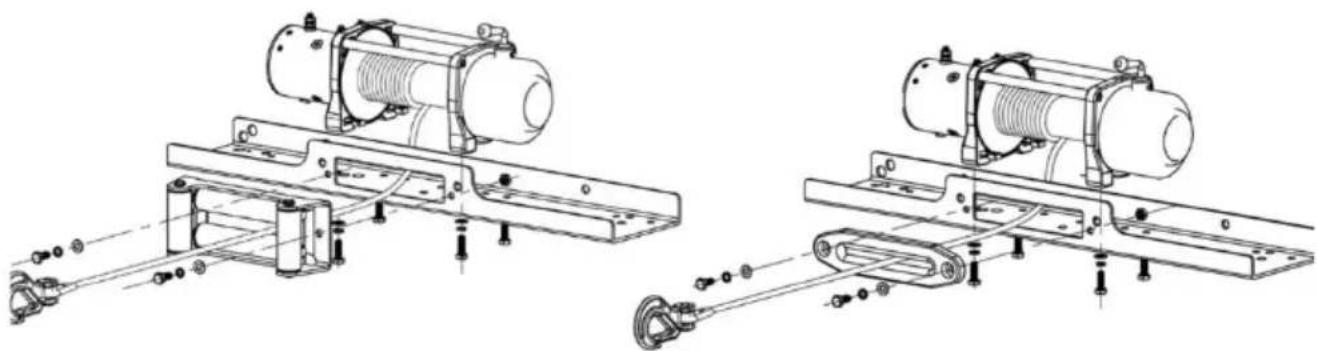

Front bumper(Mounting plate is not included in the winch configural customers should decide whether need to purchase mounting plate According to their own front bumpers' type.)

Technical line drawings of mechanical components with no visible text or symbols

(For winch with steel cable) (For winch with steel synthetic rope)

LUBRICATION INSTALLATION

All moving parts in the winch are permanently lubricated with high temperature lithium grease at the time of assembly. Under normal conditions factory lubrication will suffice. Lubricate cable periodically using light penetrating oil. Inspect for broken strands and replace if necessary. If the cable becomes worn or damaged it must be replaced.

CABLE INSTALLATION

Unwind the new cable by rolling it along the ground, to prevent kinking. Removed old cable and observe the manner in which it is attached to the flange.

ELECTRICAL CONNECTION

For normal self-recovery work, your existing electrical system is adequate. A fully charged battery and proper connections are essential. Run the vehicle engine during winching operations to keep battery charged.

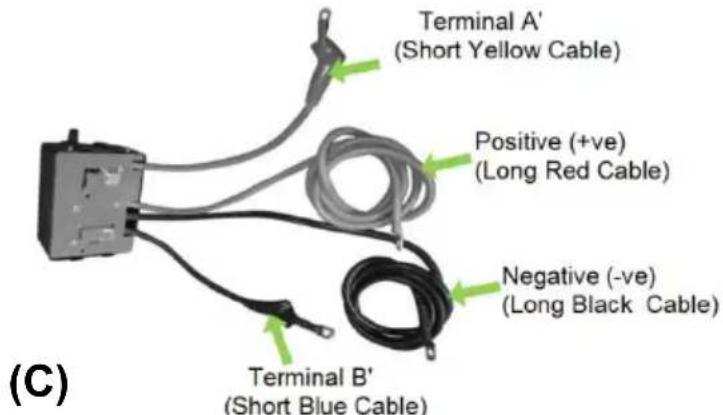

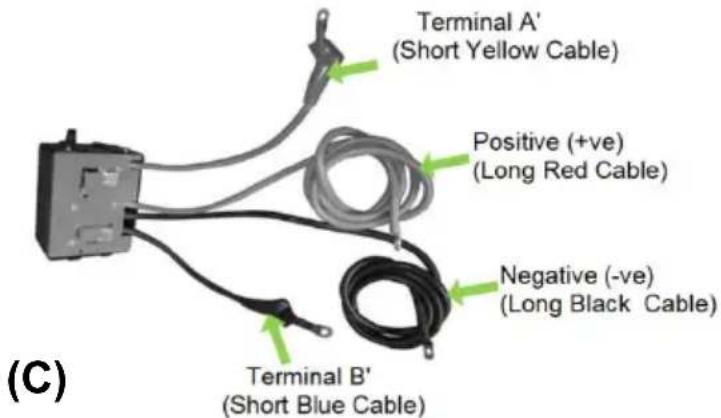

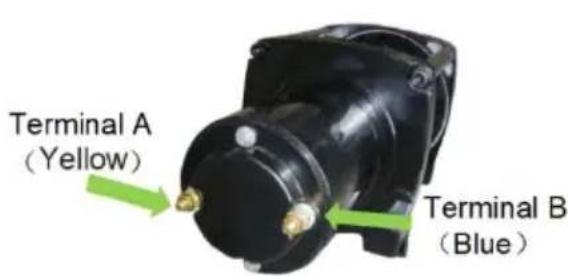

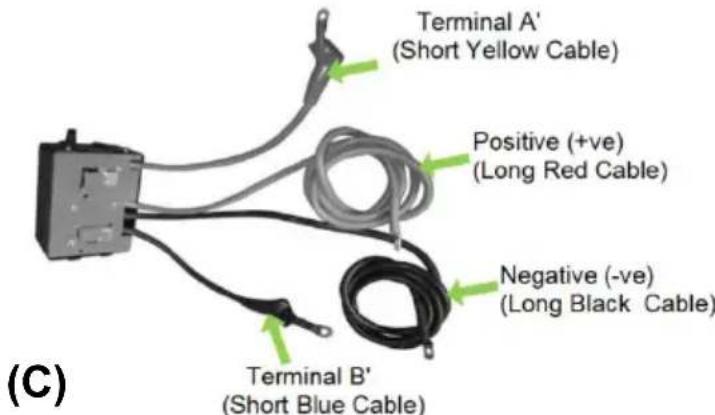

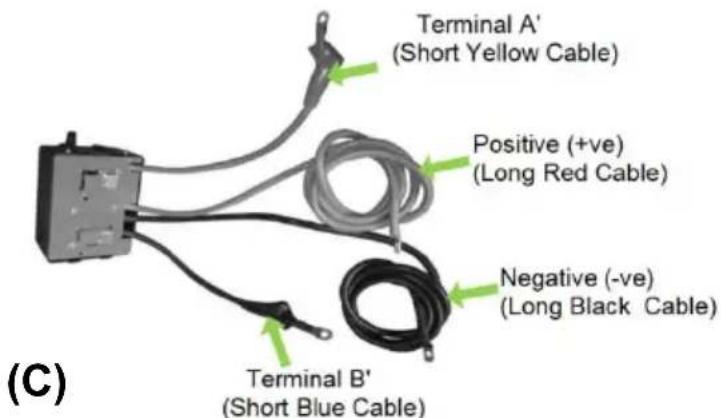

Pay close attention to proper electrical cable connection as follows (refer to Diagram1)

Pay close attention to proper electrical cable connection as follows ( C is dimensions of 6000lbs)

• Short Yellow cable (A') connecting to the yellow terminal (A) of the mo
• Short Blue Cable (B') connecting to the blue terminal (B) of the motor.
• Long black cable (1.8m), connecting to negative (-) terminal battery.
• Long red cable (1.8m), connecting to positive (+)terminal of battery.

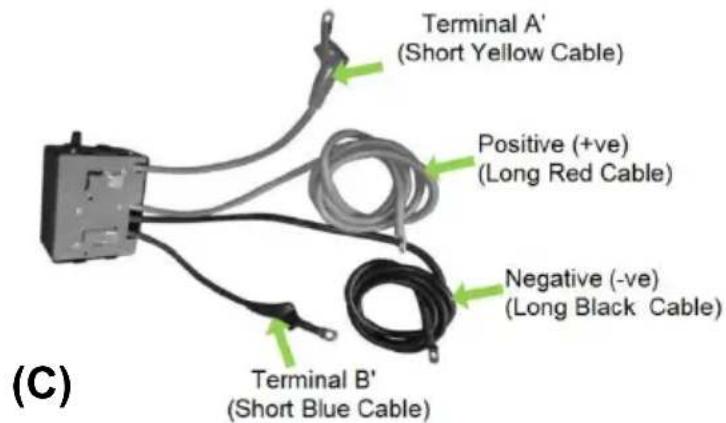

Terminal A (Yellow) Terminal B (Blue)

Terminal A' (Short Yellow Cable) Positive (+ve) (Long Red Cable) Negative (-ve) (Long Black Cable) Terminal B' (Short Blue Cable) (C)

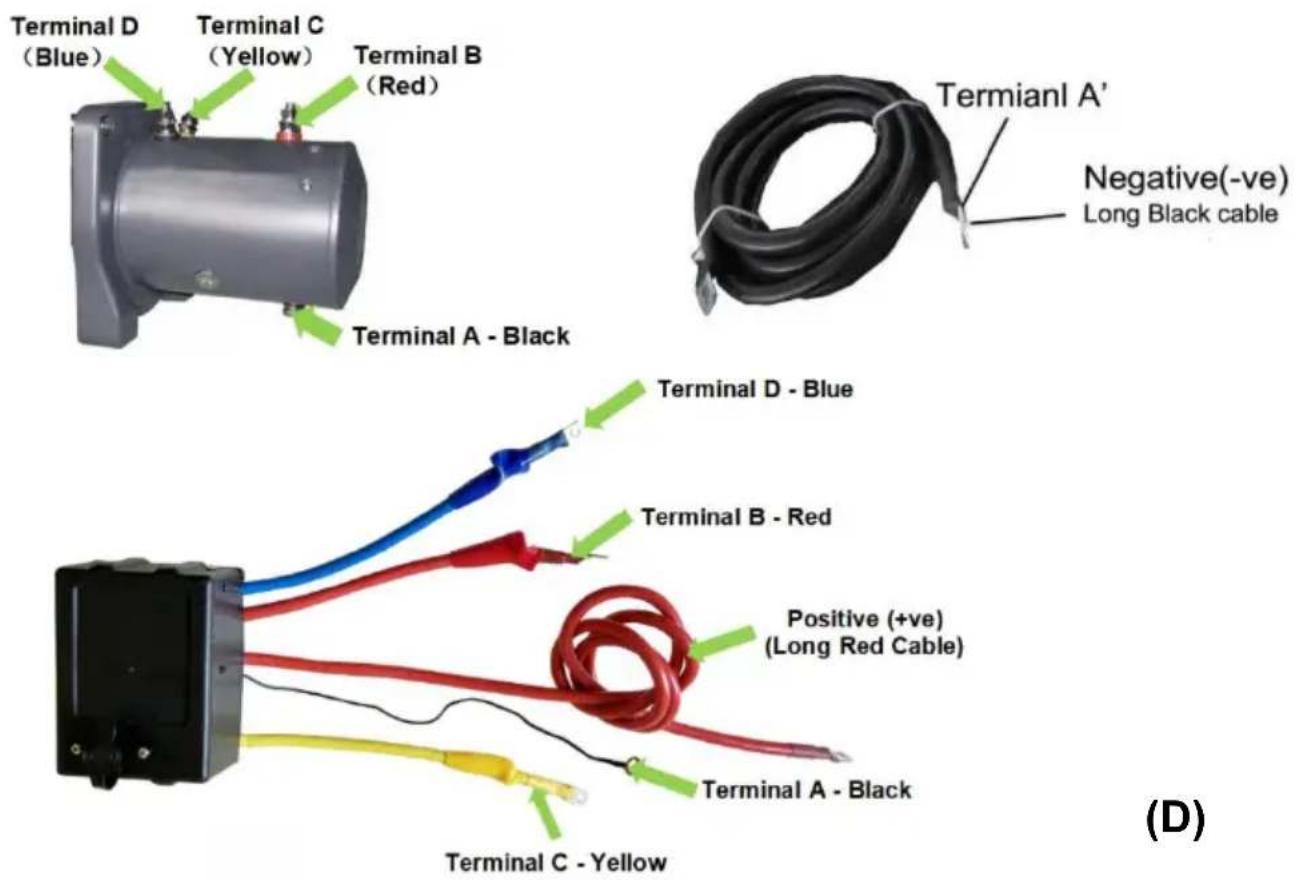

Pay close attention to proper electrical cable connection as follows ( D is dimensions of 10000lbs-18000lbs)

- Short red cable (B') connecting to the red terminal (B) of the motor.

• Short Yellow cable (C') connecting to the yellow terminal (C) of the motor.
• Short Blue Cable (D') connecting to the blue terminal (D) of the motor.
• Thin black cable(a') connecting to terminal (A) of the motor.
• Long black cable (1.8m), one terminal (A') connecting to the bottom terminal (A) of the motor, and the other terminal negative (-) connecting to negative (-) terminal of battery.
• Long red cable positive (+) connecting to positive (+) terminal of battery.

Terminal D (Blue) Terminal C (Yellow) Terminal B (Red) Terminal A - Black Termianl A' Negative(-ve) Long Black cable Terminal D - Blue Terminal B - Red Positive (+ve) (Long Red Cable) Terminal A - Black Terminal C - Yellow (D)

NOTE

• Your battery must be kept in good condition.
• Be sure battery cables are not drawn taught across any surfaces, which could possibly damage them
  • Corrosion on electrical connections will reduce performance or may cause a short
• Clean all connections especially in remote control switch and receptacle
  • In salty environments use a silicone sealer to protect from corrosion
• DO NOT ATTEMPT TO INSTALL WIRING WHEN THE BATTERY IS CONNECTED. Automotive batteries contain flammable and explosive gases. Wear eye protection during installation and remove all metal jewelry. Do no lean over battery while making connections.

- Do not connect winch to high-frequency power supply

WINCH OPERATION

SUGGESTION:

The best way to get acquainted with how your winch operates is to make a test runs before you actually need to use it. Plan your test in advance. Remember you can hear your winch as well as you can see it op Get to recognize the sound of a light steady pull, a heavy pull, and sounds caused by load jerking or shifting. Soon you will gain confidence operating your winch and its use will become second nature to you.

OPERATING:

1. Ensure the vehicle is secure by applying the parking brake or chocking the wheels.
2. Pull out the winch cable the desired length and connect to an anchor po

The winch clutch allows rapid uncoiling of the cable for hooking onto the loa anchor point. The shifter tab located on the gear housing of the winch opera the clutch as follows:

1. Pull and rotate the clutch lever CLOCKWISE to the “Disengaged” position shown in below figure. If there is a load on the wire rope, the clutch lever turn easily. DO NOT FORCE THE CLUTCHLEVER. Release tension on the w rope by jogging out some of the wire rope, then try releasing the clutch.
2. Pull out the wire rope and secure it to anchor or load.
3. Make sure there's at least five turns of wire rope or eight turns of synth rope left on the drum.
4. Re-engage the drum by rotating the clutch elver to the "ENGAGED" position
5. CAUTION: LEVER MUST BE IN THE ENGAGED POSITION AND LOCKED BEFORE WINCHING.

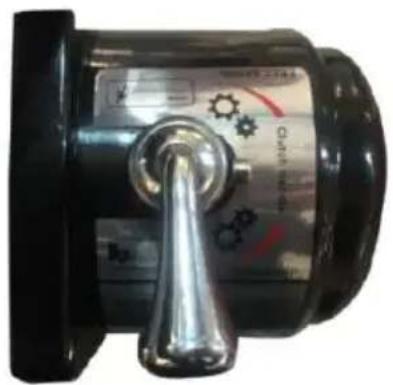

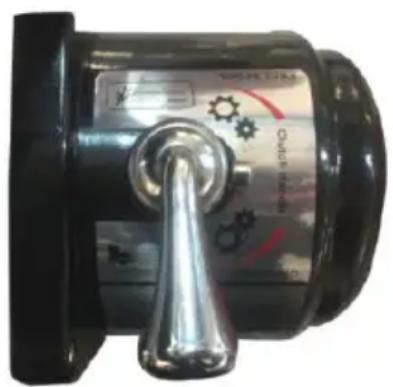

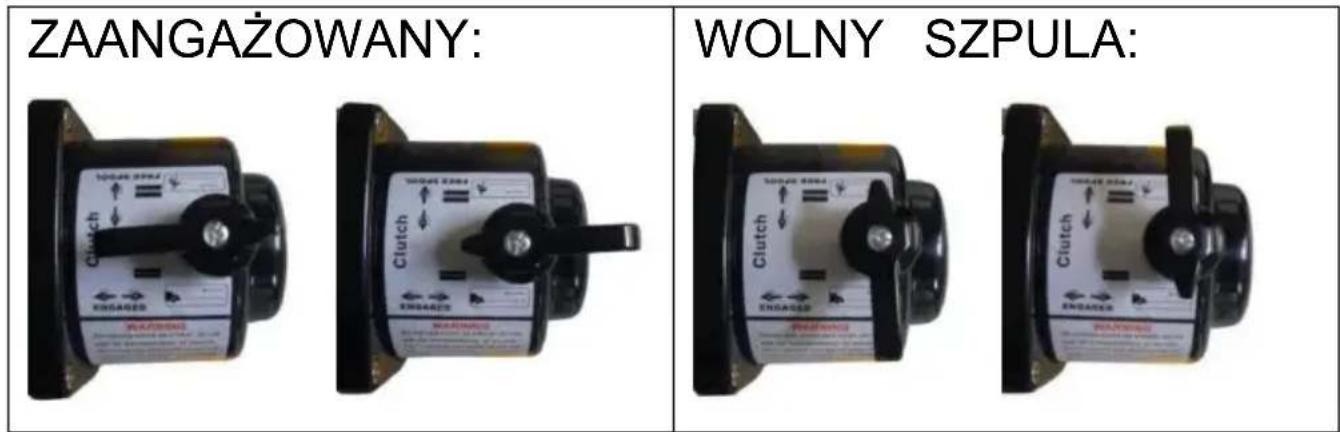

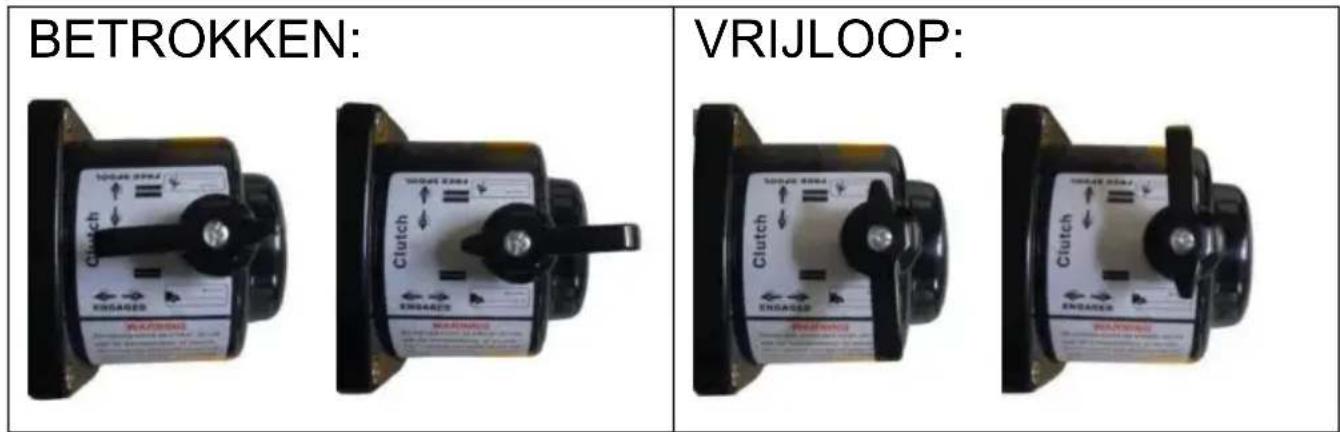

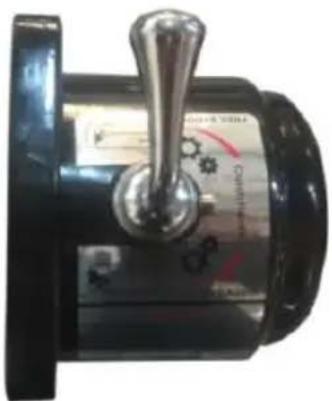

FREESPOOL:

Close-up of a mechanical lever handle with a metallic knob and control knob (no visible text or symbols)

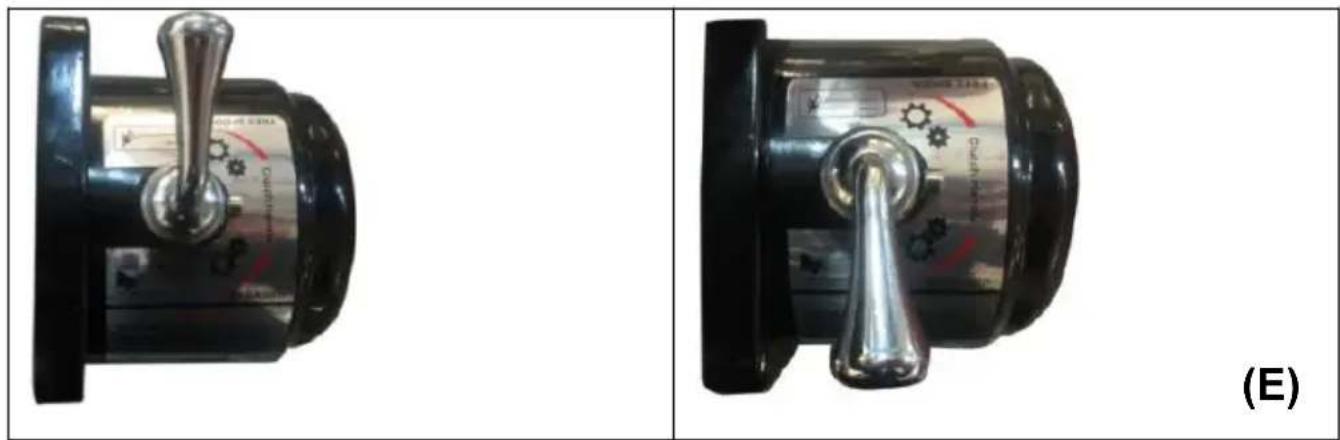

ENGAGED:

Close-up of a black industrial valve with a metallic handle and gear symbols (no readable text or labels)

(E)

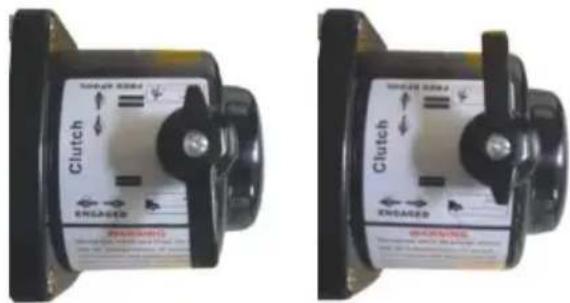

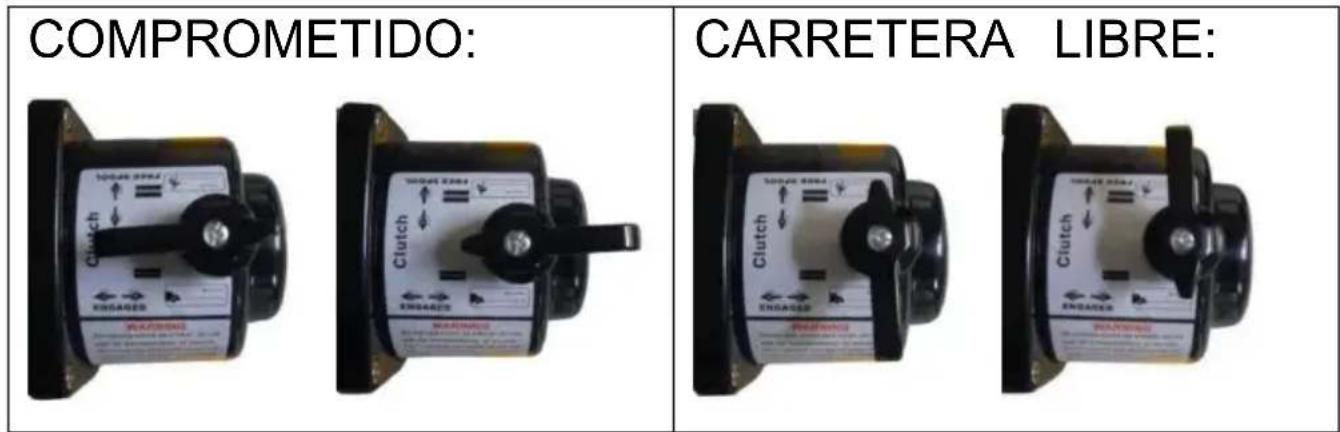

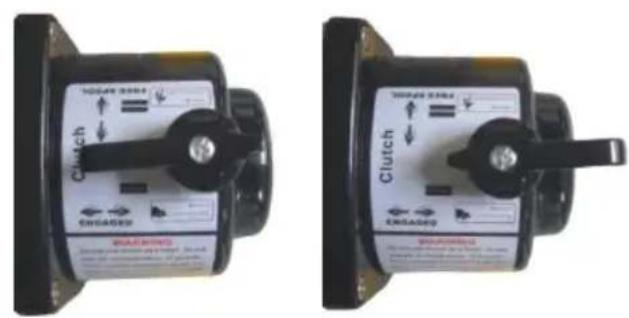

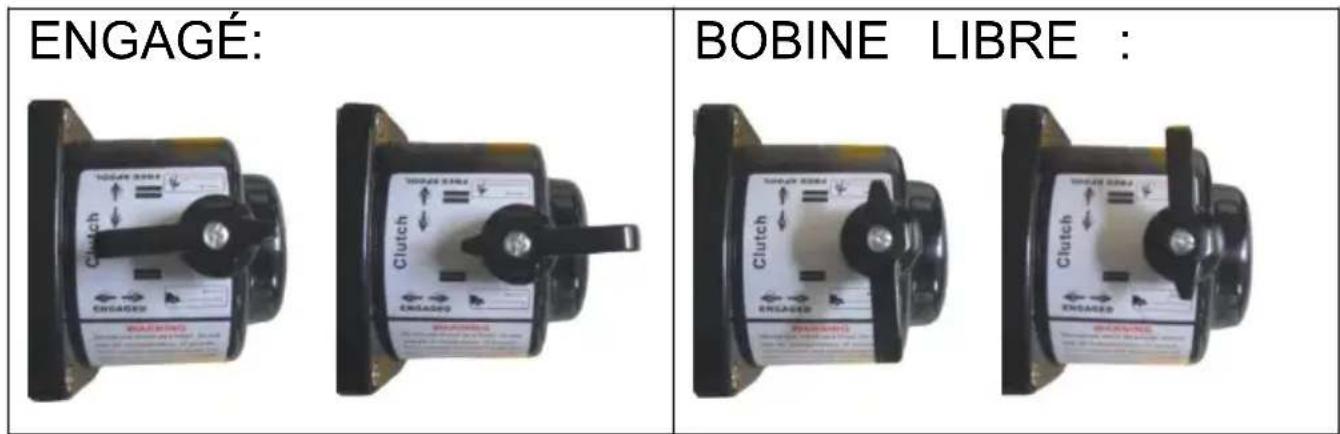

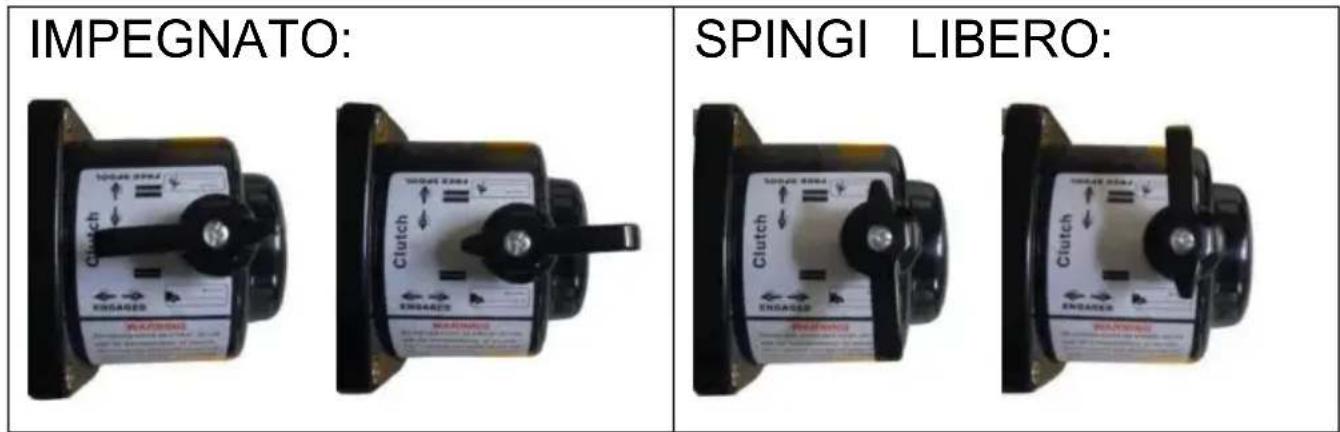

ENGAGED:

Two identical clutches with warning labels and indicator lights, shown side by side (no readable text beyond labels)

FREESPOOL:

Clutch ENGAGED CONTENTS CLutch ENGAGED CONTENTS

(F)

IMPORTANT NOTICE: The shifter tab could only be moved counterclockwise.

E has dimensions of 6000lbs/13500lbs, while F has dimensions of 18000lbss.

If you want to turn off the wireless remote controller, you need to press and hold the red on key for about 0.3 seconds, and the green signal light will t off and the remote control is out of work.

If you need to match the new wireless remote controller with the wireless receiver of the winch, when the wireless remote controller is turned on, press the OUT and IN together, at this time the green signal light will go into a flashing state. And power the wireless receiver at the the same time, them the matching is successfully paired!

Recheck all cable rigging before proceeding .

Plug in the winch hand control. It is recommended that the winching operation takes place from the driver's position to ensure safe operation. To commence winching operation, start vehicle engine, select neutral in transmission, maintain engine speed at idle.

Operate the hand control or the wireless remote control until the vehicle has been retrieved. Regularly check the winch to ensure cable is winding onto the drum evenly.

Note:

- Never winch with your vehicle in gear or in park, which would damage you vehicle's transmission.

- Never wrap the cable around the object and hook onto the cable itself. The can cause damage to the object being pulled, and kink or fray the cable.

• Keep hands, clothing, hair and jewelry clear of the drum area and cable v winching.
• Never use the winch if the cable is frayed, kinked or damaged.
• Never allow anyone to stand near the cable or in line with the cable beh winch while it is under power. If the cable should slip or

brake, it can suddenly whip back towards the winch, causing a hazard for anyone in the area. Always stand well to the side while winding.

- Don't leave the switch plugged in when winch is not in use.

CHECK THE WINCH CAREFULLY AND THOROUGHLY BEFORE OPERATING!

MAINTENANCE

It is highly recommended that the winch be used regularly (once a month). Simply power the cable out 15m, free spool 5m and then power back in. This will keep all components in good working condition so that the winch can be relied on when needed. Contact your authorized outlet for technical assistance and repairs.

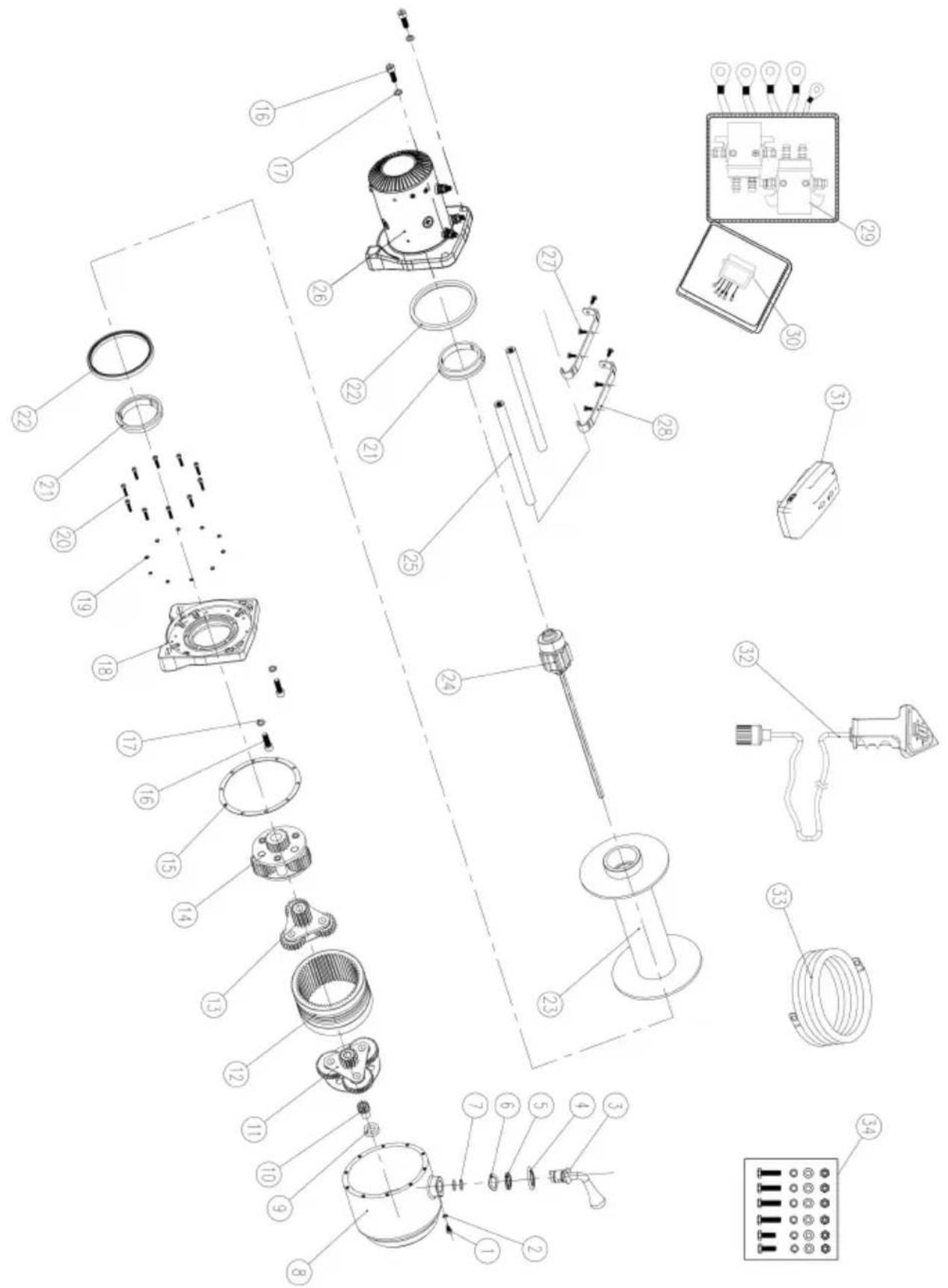

SPARE PARTS

A comprehensive range of spare parts is available.

Please kindly contact the distributor or the local retailer.

WINCHING CAPACITY

• Pulling capacity is reduced as the incline increases.
• Winch is not intended as a load securing device.

NOTE:

The safety precautions and instructions discussed in this manual can't cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors, which cannot be built into this product, but must be applied by the operator.

NOTE:

This winch must be mounted with the wire rope in the under wound direction

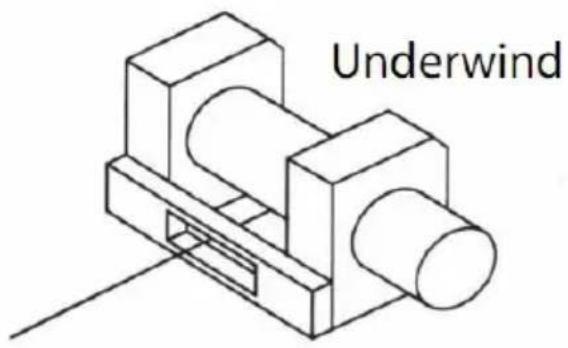

Underwind

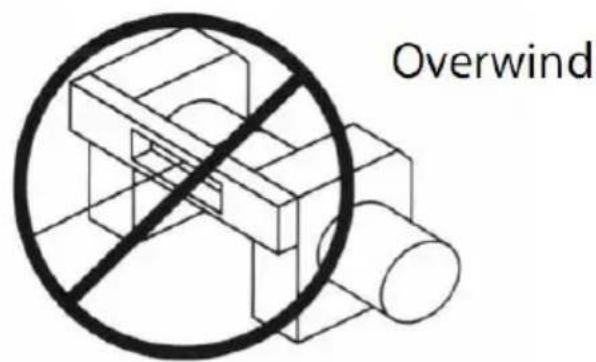

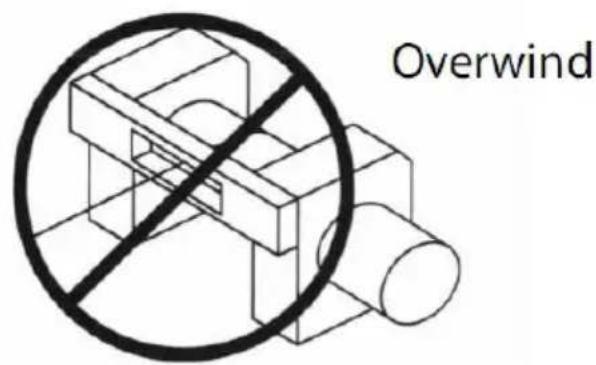

Overwind

NOTE:

The safety precautions and instructions discussed in this manual can't cover a possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors, which cannot be built in this product, but must be applied by the operator.

Maintenance

• Inspect all electrical components frequently to ensure clean and secure connections.
• This item is exposed to the elements; moisture can accumulate inside the when exposed to rain, pressure cleaners, steam cleaning, river crossings and common car wash. To prevent corrosion it is best practice to use the winch a month as a minimum even if to unwind a few metres and wind back in, generated will help to dissipate any condensation.
• Regularly check all bolts and fittings are tight and secure, these could work loose under hard working conditions
  • Under normal conditions the winch should not require servicing. If you use winch regularly you should consider a servicing schedule to maximise the life performance of the winch
• If the winch is fully submersed in water please ensure it is serviced at the appropriate interval before storage.

Ensure winch motor is clean and dry, renew grease in gearbox and other in using a quality bearing type grease.

• Check the winch cable before use for any signs of wear, if wear signs are apparent replace before use.
• Wind cable neatly on the drum, after each use of the winch the cable sh unspooled to the point where the cable lays neatly on the drum and respool under load.

FEATURES & SPECIFICS

Model SPEC.	S6000	S10000	S12000	SC13000	SEC16800T
Voltage	12V DC	12V DC	12V DC	12V DC	12V DC
Rated power	2.5HP	3HP	5.5HP	6.6HP	5.7HP
Gear ratio	195.8: 1	265: 1	265: 1	265: 1	312.4: 1
Length of wire	1.8m	1.8m	1.8m	1.8m	1.8m
Rope or Cable	Synthetic , 1/4 inch * 55ft	Synthetic , 7/20inch * 65f or steel 21/64inch*65ft	Synthetic 7/20inch * 75.5ft or steel 7/20inch*85ft	Synthetic 3/8inch * 80ft or steel 3/8inch*80ft	Steel , 7/16inch * 85ft
Mounting Bolt Pattern	166.4x114.3 mm	254x114.3mm	254x114.3mm	254x114.3mm	254x114.3mm
Rated line pul	6000lb	10000lb	12000lb	13500lb	18000lb

6000 LBS LINE PULL AND CABLE CAPACITY

Layer of cable		1	2	3
Rated line pull per layer	Lbs	6000	4200	3700
	Kgs	2721	1900	1678
Cumulative Cable capacity	Ft	14.7	29.5	55
	M	4.5	9.0	16.5

10000 LBS LINE PULL AND CABLE CAPACITY

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	10000	7930	6500	5600
	Kgs	4536	3596	2948	2540
Cumulative Cable capacity	Ft	17	38.7	64.6	65
	M	5.2	11.8	19.7	19.8

12000 LBS LINE PULL AND CABLE CAPACITY

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	12000	9210	8030	6900
	Kgs	5440	4170	3640	3125
Cumulative Cable capacity	Ft	17	41	72	85
	M	5.1	12.4	21.7	26

13500 LBS LINE PULL AND CABLE CAPACITY

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	13500	10500	9200	7120
	Kgs	6122	4762	4173	3229
Cumulative Cable capacity	Ft	15	34.6	58.6	80
	M	4.58	10.54	17.87	24

18000 LBS LINE PULL AND CABLE CAPACITY

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	18000	13779	11202	9530
	Kgs	8163	6250	5081	4321
Cumulative Cable capacity	Ft	16.64	37.78	63.40	85
	M	5.1	11.5	19.3	26

TROUBLESHOOTING

Symptoms	Possible Causes	Corrective Action
Motor will not operate or only in one direct	1.Switch inoperative2.Broken wires or bad connection3.Damaged motor	1.Replace switch2.Check for poor connections3.Replace or repair motor
Motor runs extremely hot	1.Long period of operation2.failed or removed overload3.Damaged motor	1.low to cool2.place or repair overload3.place or repair motor
Motor runs, but with insufficient power or line speed	1.Weak battery2.Battery to winch wire to long3.Poor battery connection4.Poor ground5.Damaged motor	1.Recharge or replace battery and check charging system2.Keep winch within distance allowed by lead wires3.check battery terminals for corrosion and clean as require4.check and clean connections5.place or repair motor
Winch runs backwards	1.tor wires reversed2.itch wires reversed3.battery switch installed incorrectly	1.heck wiring2.check wiring3.check battery connections
Motor runs but drum doesn’t turn	1.Clutch not engaged	1. Engage clutch
Winch coasts	1.Excessive load	1.Reduce load or double line
Motor operations but stops	1.Excessive load/overload	1.Allow to cool

6000-13500LB WINCH PARTS LIST

Item No.	Description	Qty	Item No.	Description	Qty
1	Hexagon screw	1	18	Gear box bracket	1
2	Spring washer	1	19	Spring washer	10
3	Clutch handle	1	20	Hexagon screw	10
4	Nut cap	1	21	Bearing bush	2
5	Cup gasket	1	22	Sealing washer	2
6	Spring washer	1	23	Durm assembly	1
7	O-ring	2	24	Brake assembly	1
8	Gear box housing	1	25	Tie bar	2
9	shaft sleeve	1	26	Motor assembly	1
10	sun gear	1	27	Cross Recess Head Scre	4
11	3rdPlanetary gear assy	1	28	Mounting bracket assembly for control box	2
12	Dual inner gear	1	29	Solenoid	2
13	2nd Planetary gear assy	1	30	Wireless remote receiver	1
14	1st Planetary gear assy	1	31	Wireless remote transmitter	1
15	Sealing washer	1	32	Wired remote control	1
16	Hexagon screw	4	33	Battery negative (-) cord	1
17	Spring washer	4	34	Screw kit installation	1

Exploded view diagram of a mechanical assembly with numbered components for identification

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be

discarded with normal domestic waste, but must be taken to a collection point recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

TREUIL ÉLECTRIQUE MANUEL D'UTILISATION

MODÈLE : S6000 / S10000 / S12000 / SC13000 / SEC16800T

MODÈLE : S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal helical structure and mounting base (no text or symbols)

Simple line drawing of a hand holding a tool with a spring scale (no text or symbols)

Simple line drawing of two hands holding a pen (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

Close-up of a black industrial valve with a metallic handle and control knob (no visible text or symbols)

ENGAGÉ:

Close-up of a black industrial valve with a metallic handle and gear symbols (no readable text or labels)

(E)

ENGAGÉ: BOBINE LIBRE :

( F )

Isometric line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Pure technical diagram showing a 3D mechanical assembly with a circle and diagonal line intersecting it, no text or symbols present.

NOTE:

Exploded view diagram of a mechanical assembly with numbered components for identification

Informations FCC :

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

ELEKTRISCHE WINDE BENUTZERHANDBUCH

MODELL: S6000 / S10000 / S12000 / SC13000 / SEC16800T

MODELL: S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal helical structure and mounting base (no text or symbols)

Simple line drawing of a hand using a tool to interact with a device (no text or symbols)

Simple line drawing of two hands holding a tool, no text or symbols present

Technical line drawing of two mechanical assembly components with mounting brackets and wiring (no text or symbols)

Isometric line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Unterwind

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Überdrehen

NOTIZ:

Exploded view diagram of a mechanical assembly with numbered parts for identification and assembly reference.

FCC-Informationen:

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

VERRICELLO ELETTRICO

MANUALE D'USO

MODELLO: S6000 / S10000 / S12000 / SC13000 / SEC16800T

VEVOR

Affordable, Reliable, Home Improvement.

MODELLO: S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal mesh structure (no text or symbols)

Simple line drawing of a hand holding a tool with a spring scale (no text or symbols)

Simple line drawing of two hands holding a pen (no text or symbols)

Front bumper(Mounting plate is not included in the winch configural customers should decide whether need to purchase mounting plate According to their own front bumpers' type.)

Technical line drawing of two mechanical assembly setups with no visible text or symbols

Terminal A (Yellow) Terminal B (Blue)

Terminal A' (Short Yellow Cable) Positive (+ve) (Long Red Cable) Negative (-ve) (Long Black Cable) Terminal B' (Short Blue Cable) (C)

Two industrial control switches with mechanical components, shown from different angles (no visible text or symbols)

IMPEGNATO: SPINGI LIBERO:

( F )

Underwind

Overwind

NOTA:

Exploded view diagram of a mechanical assembly with numbered components for identification

Informazioni FCC:

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Luogo, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable, Reliable, Home Improvement.

MODELO: S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal spring and housing (no text or symbols)

Simple line drawing of a hand holding a tool with a spring (no text or symbols)

Simple line drawing of two hands holding a pen (no text or symbols)

Front bumper(Mounting plate is not included in the winch configural customers should decide whether need to purchase mounting plate According to their own front bumpers' type.)

Technical line drawing of two mechanical assembly setups with no visible text or symbols

Terminal A (Yellow) Terminal B (Blue)

Terminal A' (Short Yellow Cable) Positive (+ve) (Long Red Cable) Negative (-ve) (Long Black Cable) Terminal B' (Short Blue Cable) (C)

Two industrial control switches with mechanical components, shown from different angles (no visible text or symbols)

COMPROMETIDO: CARRETERA LIBRE:

( F )

Underwind

Overwind

NOTA:

Exploded view diagram of a mechanical assembly with numbered components for identification

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

WYCIĄGARKA ELEKTRYCZNA INSTRUKCJA OBSŁUGI

MODELE: S6000 / S10000 / S12000 / SC13000 / SEC16800T

VEVOR

Affordable, Reliable, Home Improvement.

MODELE: S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal helical structure and mounting base (no text or symbols)

Simple line drawing of a hand holding a tool with a curved handle and bracket (no text or symbols)

Simple line drawing of two hands holding a pen (no text or symbols)

Front bumper(Mounting plate is not included in the winch configurat customers should decide whether need to purchase mounting plate According to their own front bumpers' type.)

Technical line drawing of two mechanical assembly components with mounting brackets and wiring (no text or symbols)

Terminal A (Yellow) Terminal B (Blue)

Terminal A' (Short Yellow Cable) Positive (+ve) (Long Red Cable) Negative (-ve) (Long Black Cable) Terminal B' (Short Blue Cable) (C)

WOLNY SZPULA:

ZAANGAŻOWANY:

Two industrial control switches with mechanical components, one showing a dial and the other a handle (no visible text or symbols)

ZAANGAŻOWANY: WOLNY SZPULA:

( F )

Exploded view diagram of a mechanical assembly with numbered components for identification

Informacje FCC:

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

ELEKTRISCHE LIER

GEBRUIKERSHANDLEIDING

MODEL: S6000 / S10000 / S12000 / SC13000 / SEC16800T

VEVOR

Affordable, Reliable, Home Improvement.

MODEL: S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal mesh structure (no text or symbols)

Simple line drawing of a hand holding a tool with a handle and spring (no text or symbols)

Simple line drawing of two hands holding a pen (no text or symbols)

Front bumper(Mounting plate is not included in the winch configural customers should decide whether need to purchase mounting plate According to their own front bumpers' type.)

Technical line drawings of mechanical components with no visible text or symbols

Terminal A (Yellow) Terminal B (Blue)

Terminal A' (Short Yellow Cable) Positive (+ve) (Long Red Cable) Negative (-ve) (Long Black Cable) Terminal B' (Short Blue Cable) (C)

Two industrial control switches with mechanical components, shown from different angles (no visible text or symbols)

BETROKKEN: VRIJLOOP:

( F )

Underwind

Overwind

OPMERKING:

Exploded view diagram of a mechanical assembly with numbered components for identification

FCC-informatie:

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

ELEKTRISK VINSCH

ANVÄNDARMANUAL

MODELL: S6000 / S10000 / S12000 / SC13000 / SEC16800T

VEVOR

Affordable, Reliable, Home Improvement.

MODELL: S6000 / S10000 / S12000 / SC13000 / SEC16800T

Technical line drawing of a mechanical device with internal spring and housing (no text or symbols)

Two hand-drawn diagrams showing a mechanical or electrical component being held, with no text or symbols present.

Front bumper(Mounting plate is not included in the winch configural customers should decide whether need to purchase mounting plate According to their own front bumpers' type.)

Technical line drawing of two mechanical assembly setups with no visible text or symbols

Terminal A (Yellow) Terminal B (Blue)

Terminal A' (Short Yellow Cable) Positive (+ve) (Long Red Cable) Negative (-ve) (Long Black Cable) Terminal B' (Short Blue Cable) (C)

Close-up of a black industrial valve with a metallic handle and control knob (no visible text or symbols)

ENGAGERAD:

Close-up of a mechanical lever with a metallic handle and gear symbols (no readable text or labels)

(E)

ENGAGERAD:

Crouch TOMATO, 2000 ENGADO PUBSIN/THA 100%

CLATCH ENGAGED WEATHERS

GRATISSPOOL:

CLUTCH SPRING STENTA ERRAGER WARNING

Blended Control Clutch ENGINEER WALMENICOL

( F )

VIKTIGT MEDDELANDE: Växelspakens fliken kunde endast flyttas moturs.

Underwind

Overwind

NOTERA:

Exploded view diagram of a mechanical assembly with numbered components for identification

FCC-information:

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
