Product Type	Winch Recovery Kit
Brand	Vevor
Model	JPJYGJB4J000Y9QTFV0
Shackle Material	Steel
Shackle Breaking Strength	4.75 T (44092 lb)
Strap Material	Polyester
Strap Dimensions	76.2 mm x 9.14 m (3 in x 30 ft)
Strap Breaking Capacity	30,000 lb
Included Accessories	2 D-ring shackles, 1 tow strap 30 ft, 1 canvas bag
Functions	Off-road vehicle recovery, towing
Safety	Do not use for lifting; use a damper; do not attach to a tow ball; maintain a safe distance of at least 1.5 times the strap length
Maintenance	Clean with warm water and mild detergent; dry completely before storage
Storage	Coil the strap after drying
Inspection	Check strap for nicks, cuts, dirt before and after each use
Replacement	Replace strap if damaged; replace shackles if pins are difficult to turn
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, ASTWOOD NSW 2122
Importer (United States)	Sanven Technology Ltd., Suite 250, 9166 Anah? (incomplete information)

Frequently Asked Questions - JPJYGJB4J000Y9QTFV0 Vevor

What is the breaking capacity of the tow strap?

The tow strap has a maximum breaking strength (MBS) of 30,000 pounds (approximately 13,607 kg).

Can I use this kit for lifting?

No, this recovery kit is not designed for lifting. It is exclusively intended for vehicle recovery in stuck situations.

How do I maintain the tow strap?

Clean the strap with warm water and a mild detergent, then let it dry completely before coiling for storage. Avoid contact with hot or sharp surfaces.

What safety distance should I maintain during use?

All persons must stand at least 1.5 times the length of the unstretched strap away from either vehicle, and never in the line of pull.

Can I join two tow straps?

It is not recommended to join multiple straps. If necessary, never use a metal object to connect them, as it could become a dangerous projectile if the strap breaks.

What should I do if the strap is damaged?

If the strap has nicks, cuts, abrasions, or is saturated with water, it must be replaced immediately. Do not use it in that condition.

Where should I attach the strap on my vehicle?

Attach the strap only to a dedicated recovery point on the vehicle, such as a tow ring or hitch receiver. Never attach it to a tow ball or tie-down point.

What additional safety equipment is recommended?

It is highly recommended to use a recovery damper (bag, blanket) draped over the strap to reduce the risk of rebound if the strap breaks.

How do I properly use the kit to recover a vehicle?

Line up the vehicles with a 2 to 3 meter slack. Accelerate gently to 10-12 mph. The stuck vehicle should be in first gear and assist after 3 seconds. If the attempt fails, reset the slack and slightly increase speed.

Can I use this kit if the strap is wet?

It is not recommended to use a strap saturated with water as its strength and elasticity are reduced. If wet, dry it completely before use.

USER MANUAL JPJYGJB4J000Y9QTFV0 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WINCH RECOVERY KIT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

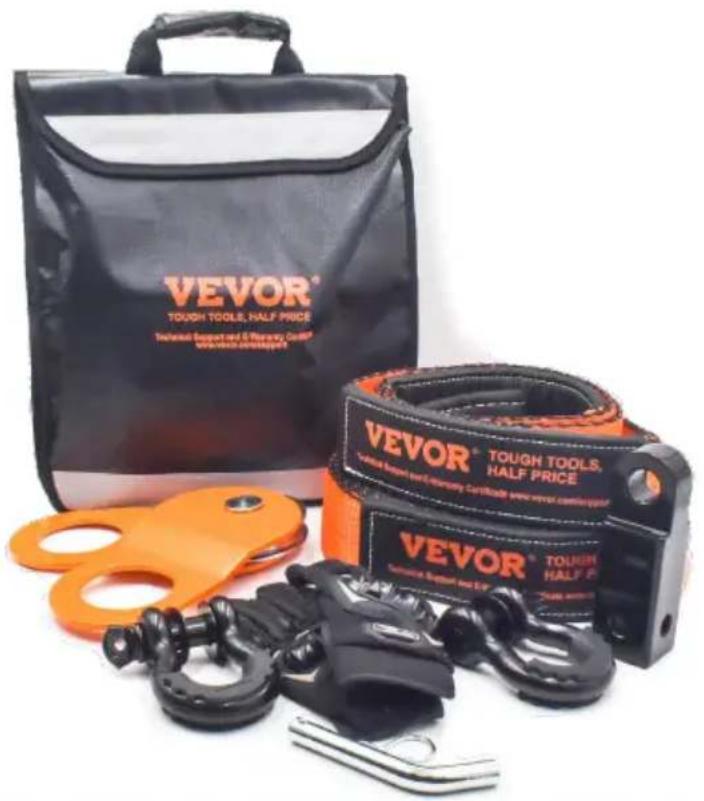

TECHNICAL SPECIFICATIONS

MODEL: JPJYGJB8J000SBO12V0

	Material	size	Breaking Strength Rating
Black D-Ring Shackles	steel	4.75T	44092lbs
Tow Strap	terylene	3in*30ft	30000lbs
Tow Strap	terylene	3in*8ft	30000lbs
Heavy Duty Snatch Block Pulley	steel	5T	22026lbs
Flag collection bag	PVC	/	/
Recovery Gloves	/	XL	/
Shackle Hitch Receiver	Q235	5T	22026lbs

MODEL: JPJYGJB5J0005FPT8V0

	Material	size	Breaking Strength Rating
Black D-Ring Shackles	steel	4.75T	44092lbs
Tow Strap	terylene	3in*30ft	30000lbs
Canvas Bundle Pocket	canvas	/	/
Shackle Hitch Receive	Q235	5T	22026lbs

	Material	size	Breaking Strength Rating
Black D-Ring Shackles	steel	4.75T	44092lbs
Tow Strap	terylene	3in*30ft	30000lbs
Canvas Bundle Pocket	canvas	/	/

IMPORTANT SAFEGUARDS

1. Always follow product instructions.
2. Never attempt to recover a vehicle without all the necessary equipment. Only use equipment that is properly rated for the particular situation. If in doubt, don't use it.
3. Never exceed the Max Breaking Strength (MBS) of the Recovery Tow Strap or the Working Load Limit (WLL) of shackles.
4. It is important to correctly attach the Recover Tow Strap to a vehicle. Only attach the Recover Tow Strap to a vehicle recovery point or device that is suitably rated for use with the Recover Tow Strap. A standard ball or vehicle tie-down point is not designed for this purpose and may result in the Recover Tow Strap or a vehicle component detaching from the vehicle and striking and seriously injuring or killing a person.
5. Incorrect use has previously resulted in serious injury and death.

KEY INFORMATION AND SAFETY RECOMMENDATIONS

1. The breaking strength of the Recover Tow Strap should be over 5 times the vehicle's Gross Vehicle Mass (GVM).
2. The Recover Tow Strap must be suited to the GVM of the lighter of the two vehicles used in the recovery process.

NOTE: If the GVM is not stated on the identification plate of a vehicle or its registration certificate, it should be available from the owner's handbook or from the vehicle manufacturer.

1. Consider completing a nationally recognized four-wheel-drive training course or contact a four-wheel-drive club for more comprehensive advice on the proper selection and use of your recovery equipment.
2. This designed Recover Tow Strap must not be used for lifting.
3. Ensure the Recover Tow Strap is not damaged and is in usable condition.
4. The Recover Tow Strap strength and stretch are reduced when the Recover Tow Strap is saturated with water.
5. Something like a recovery damper, heavy bag, or blanket must be draped over the Kinetic Recovery Rope during use to reduce any unintentional rebound of the Recover Tow Strap.
6. Only the drivers of the stranded and recovery vehicle should be in the vehicles. Nobody else should be in or on those vehicles.
7. While the Recover Tow Strap is being used, all bystanders must stay at least 1.5 times the length of the unstretched Recover Tow Strap away from either of the vehicles involved in the recovery process, and never position themselves within the path of the vehicles involved in the recovery.

SET UP THE RECOVERY

Assess the circumstances of the stranded vehicle. If it is bottomed out, clear under the vehicle body so it rests on its wheels.

The recovery vehicle should be placed in line with the stranded vehicle, more than 10 degrees off the vehicle line. The initial distance between them should be 2-3 meters less than the unstretched length of the Snatch Strap. Establish the point to which the stranded vehicle is to be recovered, and agree on a signal (radio, hand signal, or horn blast) to be given when that point is reached.

CONNECT THE RECOVER TOW STRAP

Carefully inspect the Recover Tow Strap. If the Recover Tow Strap is dirty, cut, or chafed, it will not perform properly and may break, causing damage or injury. A Recover Tow Strap must not be used in this condition. Roll the Recover Tow Strap out between the vehicles, and make sure there are no twists.

NOTE: Joining Recover Tow Straps should be avoided wherever possible, and NEVER use a metal object to join Recover Tow Straps. If the Recover Tow Strap breaks, the object can become a missile and is likely to cause damage or injury.

Check your vehicle handbook for recovery point locations, or use correctly fitted aftermarket recovery points.

DO NOT CONNECT TO A TOW BALL OR TIE DOWN POINT

Only use load-rated shackles. To correctly tighten shackle pins, screw the pin until it seats, then back off the pin about 1/2 to 1 turn.

Ensure the Recover Tow Strap does not contact hot surfaces or sharp edges.

MAKE THE RECOVERY

1. Check all connections and move bystanders to a safe distance (at

1.5 times the un-stretched Recover Tow Strap length) and to the side of the recovery operation. Never allow bystanders to remain in the line of recovery.

2. Gently accelerate, taking up the slack and proceeding at no faster

10-12mph, The stranded vehicle should be in 1st gear (or 2nd Low). The driver should assist the recovery by trying to drive out approximately seconds after the recovery vehicle commences to move.

3. If the vehicle is not recovered on the first attempt, check under

the stranded vehicle, again, for obstacles, reset the slack (about 2-3 m slack between the vehicles) and increase the speed of the recovery vehicle.

NOTE:

a) Recover Tow Strap requires rest periods between use to allow a return to their original length and capacity.

b) Excessive speed or continual jerking whilst using a Recover Tow Strap may result in damage to the recovery point, chassis and line of both vehicles.

4. When the stranded vehicle reaches the agreed point the driver of recovery vehicle should stop. 5. Where proper use of a Recover Tow Strap is unsuccessful, use appropriately sized recovery winch.

NOTE: Do not attempt to remove the Recover Tow Strap until both vehicles are stationary and secured.

GENERAL CARE AND MAINTENANCE

1. Check the full length of the Recover Tow Strap for nicks and cuts before and after use. If damaged, replace the Recover Tow Strap. 2. Never allow your Recover Tow Strap to contact sharp or hot surfaces, and remove any twists & kinks. 3. Foreign materials such as sand and grit can permanently damage Recover Tow Strap fibers. Clean your Recover Tow Strap with warm water and a mild detergent. 4. When thoroughly dry, coil your Recover Tow Strap for storage. 5. Inspect shackles for damage; if pins are hard to turn, it is likely the shackle has been over-stressed and therefore needs to be replaced. 6. Never use the rope as a lifting sling.
