Panic Exit Device User Manual

MODEL: UL600S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Panic Exit Device

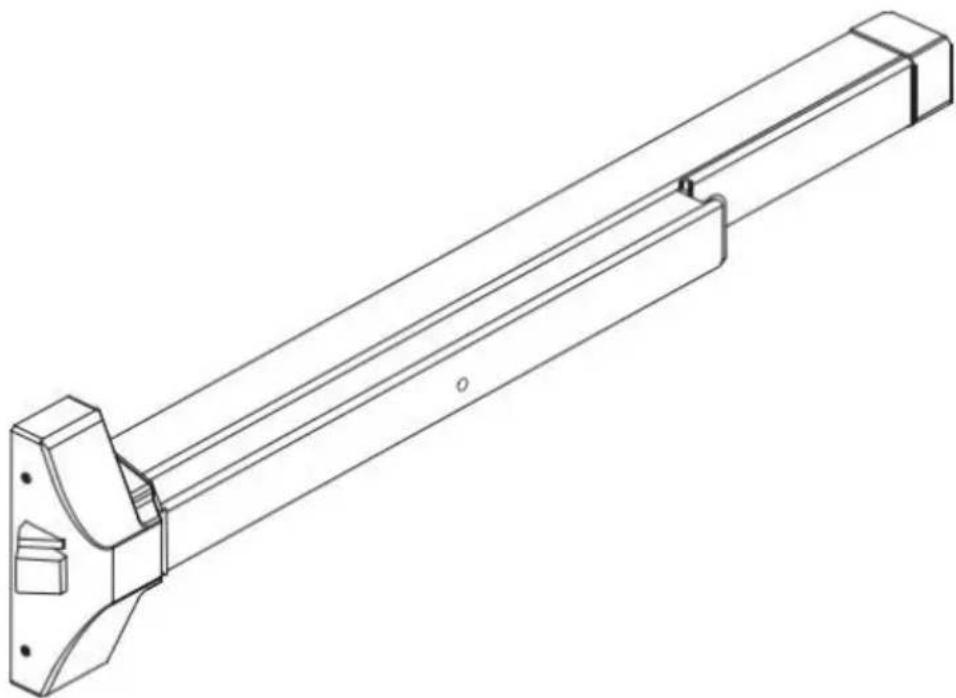

MODEL:UL600S

Technical line drawing of a mechanical lever or support structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

1. To extend the life of this panic device, lock the latch in the retra position when the door is in continuous use.

2. To Lock

Hold the actuating bar down. Turn the dogging device counterclockw with a dogging wrench.

1. To Unlock

Hold the actuating bar down. Turn the dogging device clockwise with dogging wrench.

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Keep assembly area clean and well lit.

3. Keep bystanders out of the area during assembly.

4. Do not assemble when tired or when under the influence of alcohol drugs or medication.

5. This product contains small parts. If swallowed, it will pose a chol hazard. Keep these small parts away from children when assembling! is not a toy. Not for use by children.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	UL600S
Product Spec	32"
Material	Stainless Steel 304
Suitable for Door	30"~36"
Suitable door thickness	1 37/64"~2 11/64"

STRUCTURE DIAGRAM

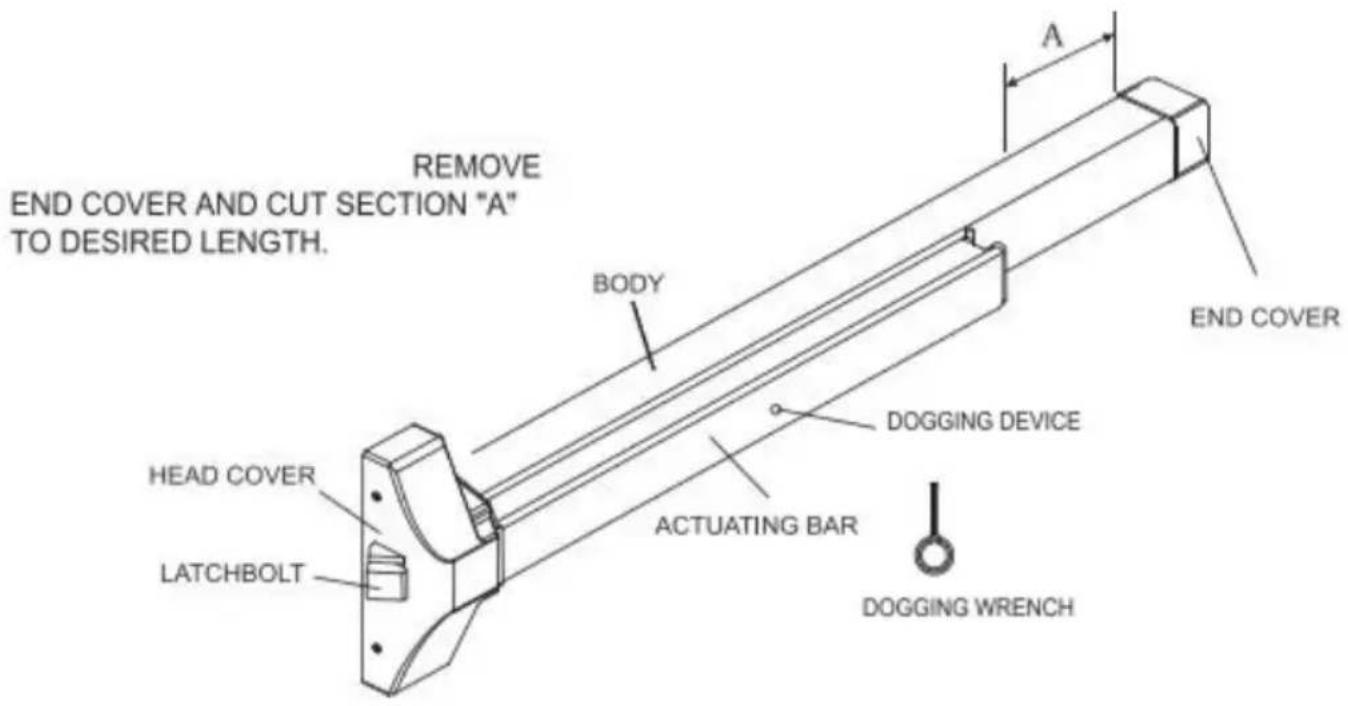

REMOVE END COVER AND CUT SECTION "A" TO DESIRED LENGTH. BODY END COVER DOGGING DEVICE ACTUATING BAR HEAD COVER LATCHBOLT DOGGING WRENCH

OPERATING INSTRUCTIONS

Step1: Installation distance determination.

DOOR 21/8"

Step2: Mark the corresponding holes on the door according to the dimensional drawing.

Note:"B" length should be measured from the center of cylinder hole to the body.

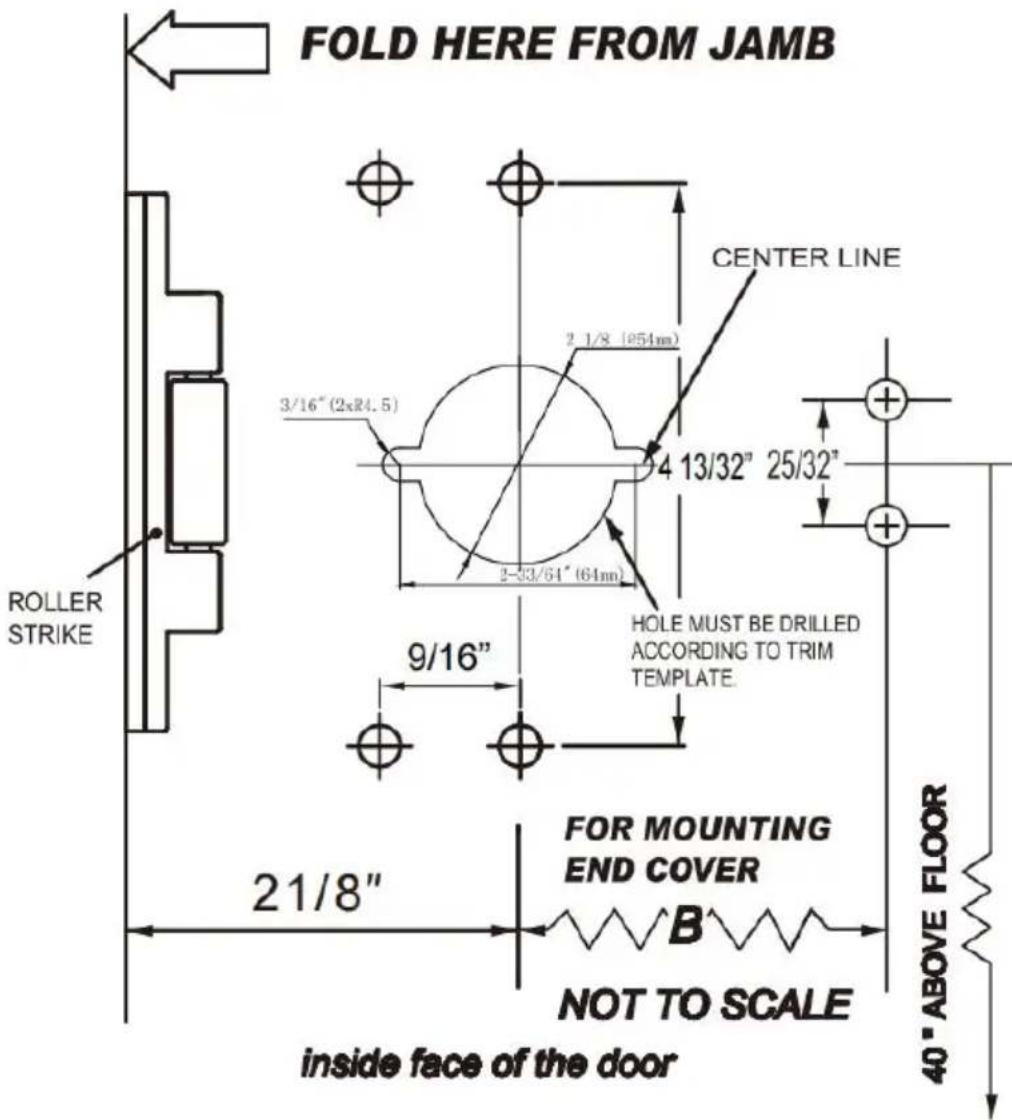

FOLD HERE FROM JAMB CENTER LINE 3/16" (2x24.5) 2 1/8 (954mm) 4 13/32" 25/32" 2-33/64" (64mm) HOLE MUST BE DRILLED ACCORDING TO TRIM TEMPLATE. 9/16" 21/8" FOR MOUNTING END COVER B NOT TO SCALE inside face of the door 40" ABOVE FLOOR

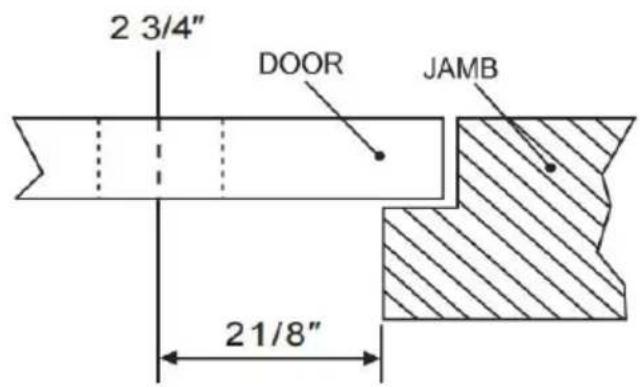

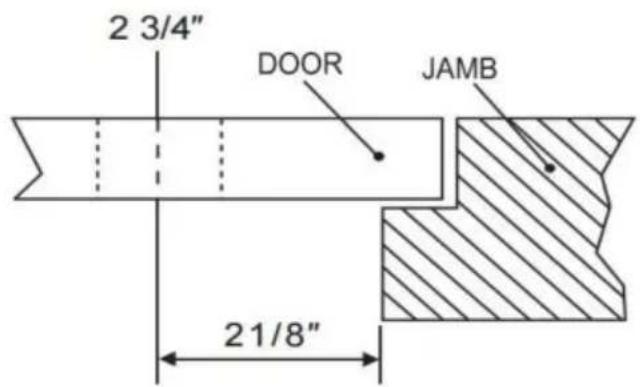

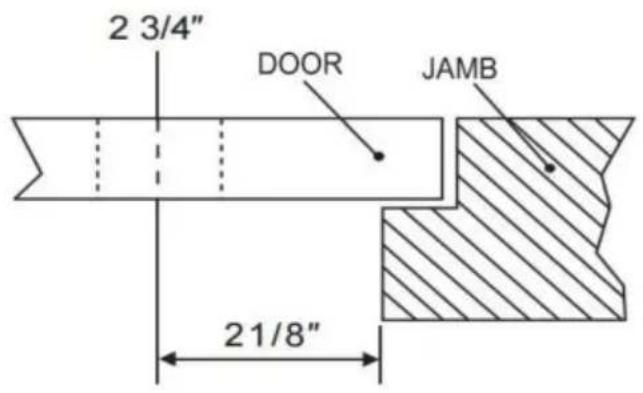

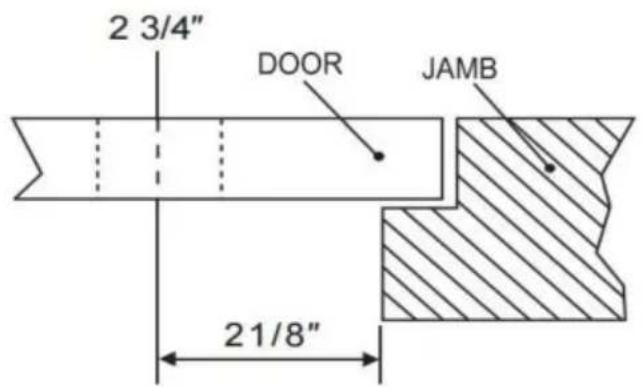

2 3/4" DOOR JAMB 21/8"

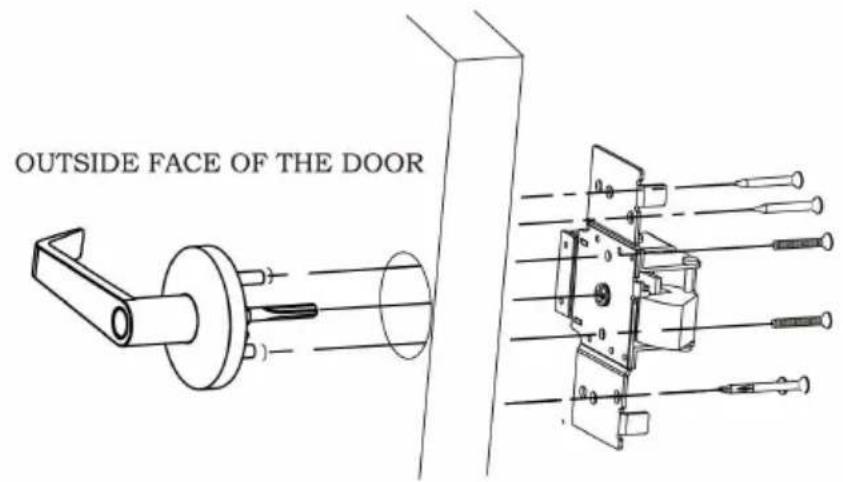

Step3: Insert the lever trim into the hole on the door. Keep the level horizontal. Tighten the screws.

OUTSIDE FACE OF THE DOOR

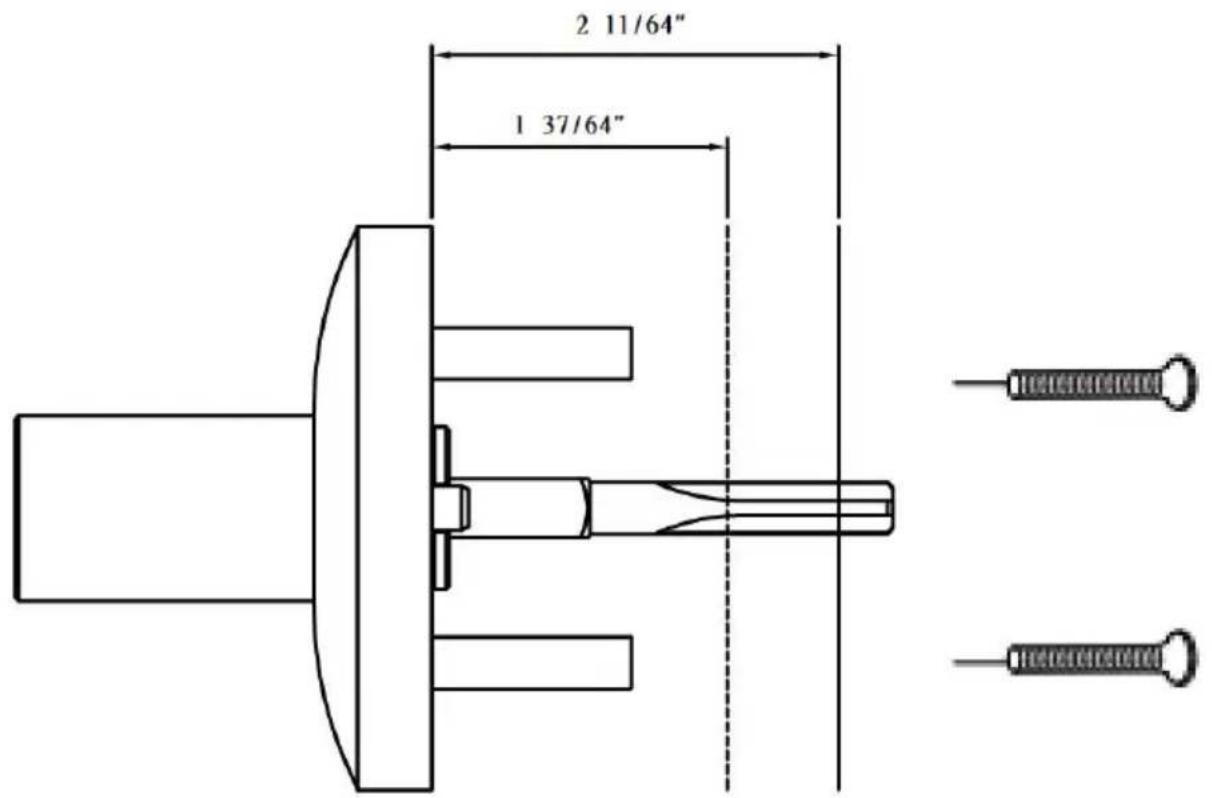

2 11/64" 1 37/64"

Step4: Remove the head cover and the screws on the end cover. All screw holes with the holes on the door. Tighten the screws on the the lining of end cover.

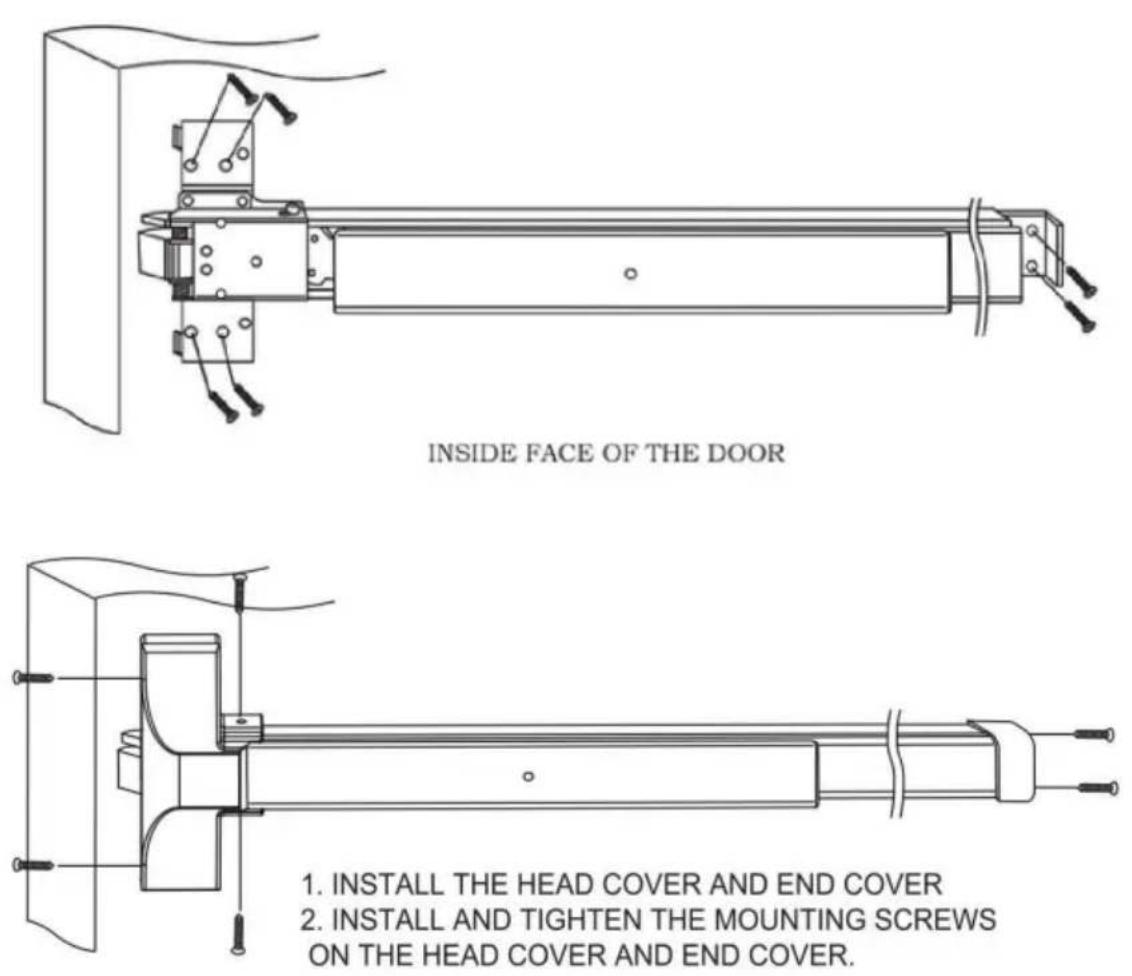

INSIDE FACE OF THE DOOR

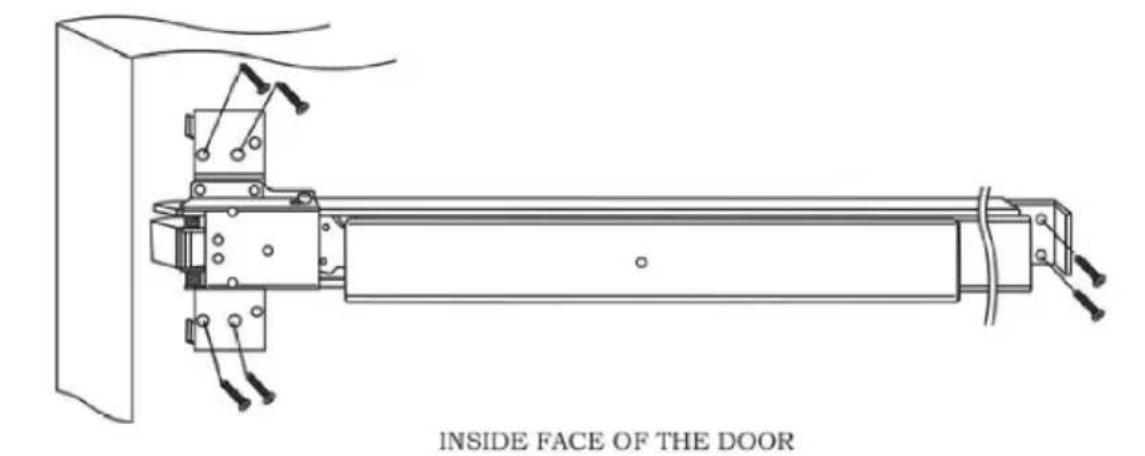

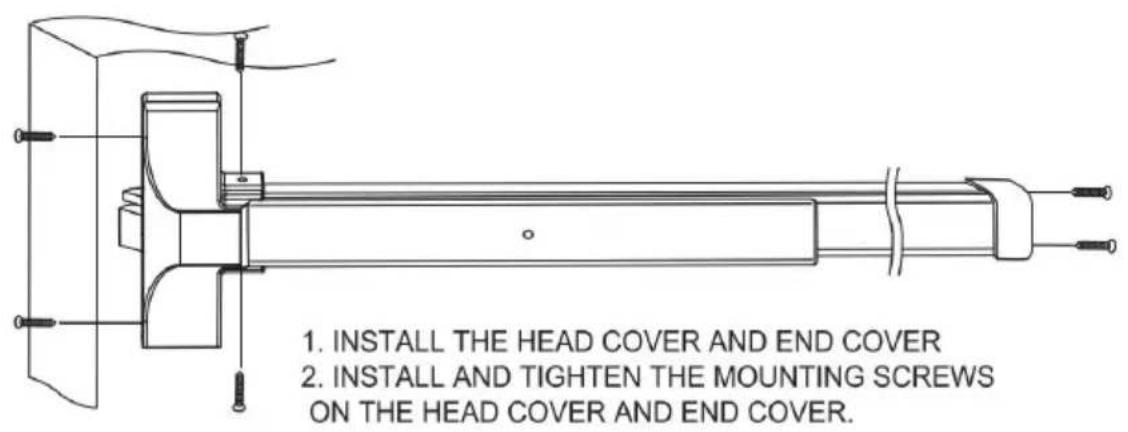

1. INSTALL THE HEAD COVER AND END COVER 2. INSTALL AND TIGHTEN THE MOUNTING SCREWS ON THE HEAD COVER AND END COVER.

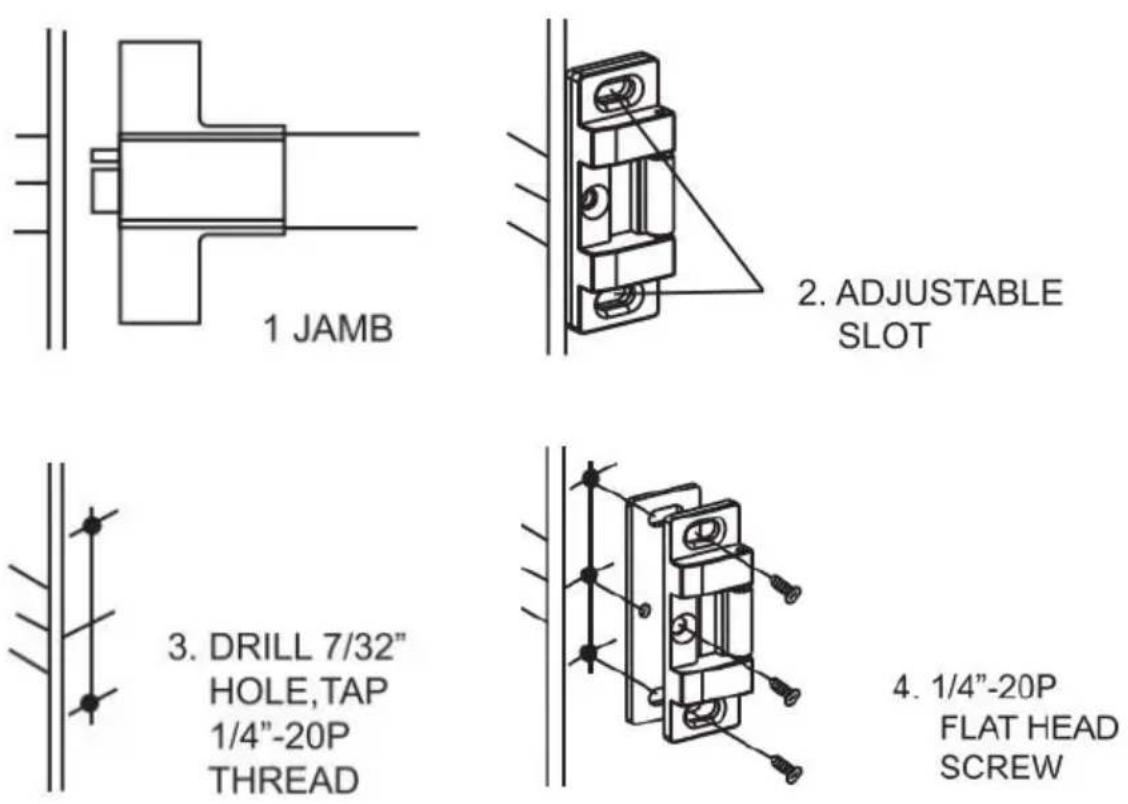

1. With the door in the closed position, mark the center line of latch door JAMB.

2. Place roller strike on door JAMB. Align the center of the roller strike the latch bolt center line mark on the JAMB. Then align the outside the roller strike with the outside edge of the door JAMB.

3. Mark the center of the 2 adjustable slotted holes and drill 7/32" pilo Tap pilot holes with 1/4"-20 threads and install machine screws. Or in

self-tapping machine screws or wood screws in pilot holes. Close the to check if the latch bolt extends properly. Adjust the roller strike if necessary.

1. With roller strike in final position. Drill a 7 /32" pilot hole for the mounting hole. Tap the pilot hole with 1/4-20 threads and install machi screws. Or install self -tapping machine screws or wood screws in pil holes.

MAINTENANCE

1. All maintenance, service, and repairs not discussed in the ma should only be performed by qualified service technicians.
2. Check the product regularly to prevent screws from loosening and off.
