USER MANUAL TC4502F Vevor

Affordable. Reliable. Home Improvement.

ROLLING GARDEN SEAT

MODEL:TC4502F

VEVOR

Affordable. Reliable. Home Improvement.

ROLLING GARDEN SEA

MODEL:TC4502F

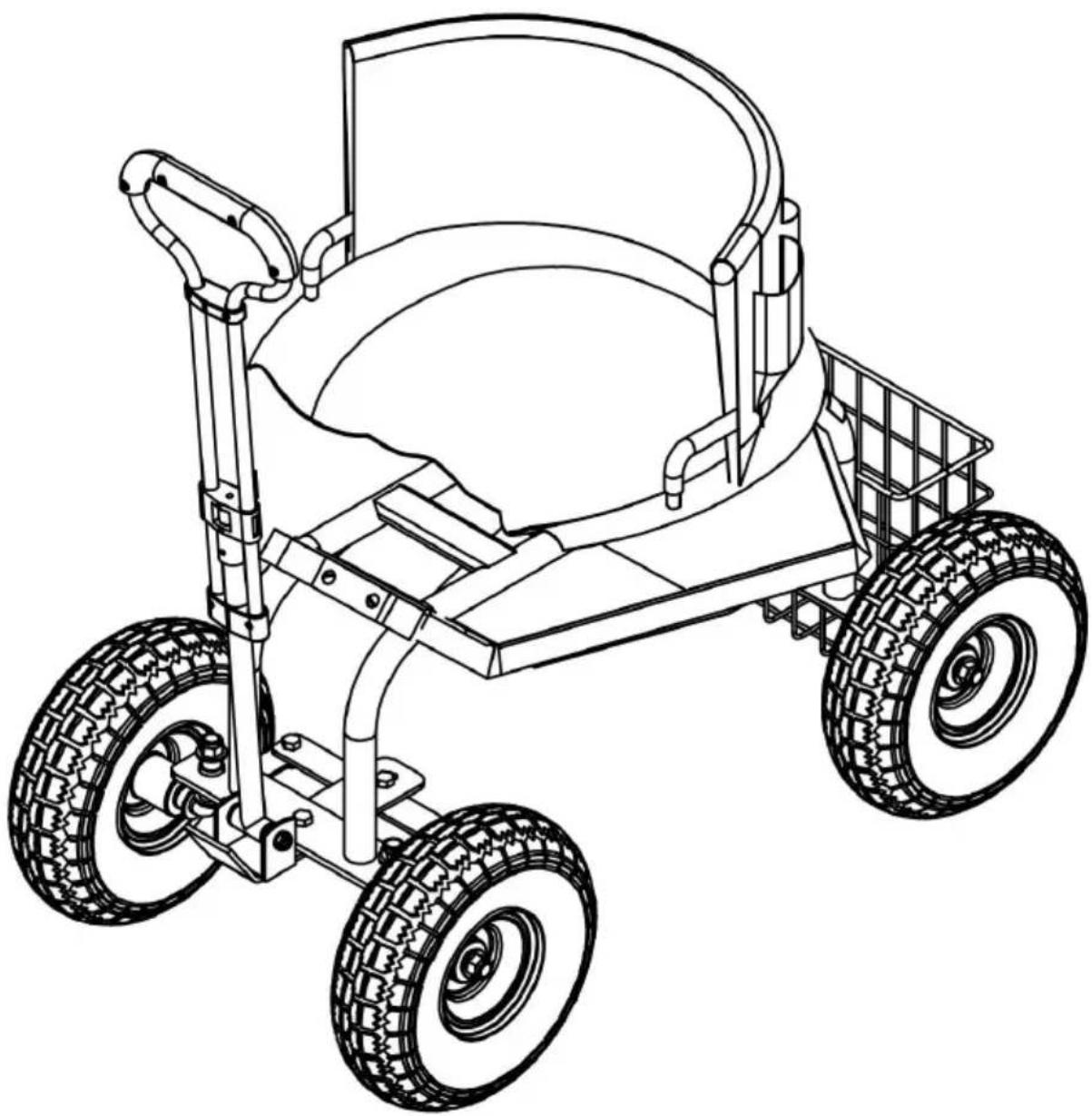

Line drawing of a four-wheeled vehicle chassis with visible wheels and structural components (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rolling Garden Seat
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

©

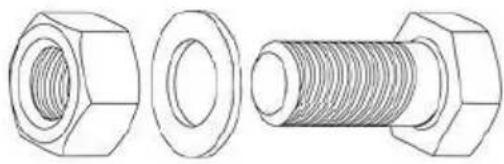

K	M6*30 Screw X6	L	M8*30 Screw X1
M	M8*20 Screw X3	N	20 Sleeve X2
P	M10*25 Screw X4	Q	Iron sheet X1
R	Iron sheet X1	S	M8*65 Screw X1
T	Curved round tube X1	U	Round tube X3
V	Handrail X2	W	Fabric backrest cushion X1
X	Fabric seat cushion X1	Y	M8*45 Screw X3
Z	M8*25 Screw X7

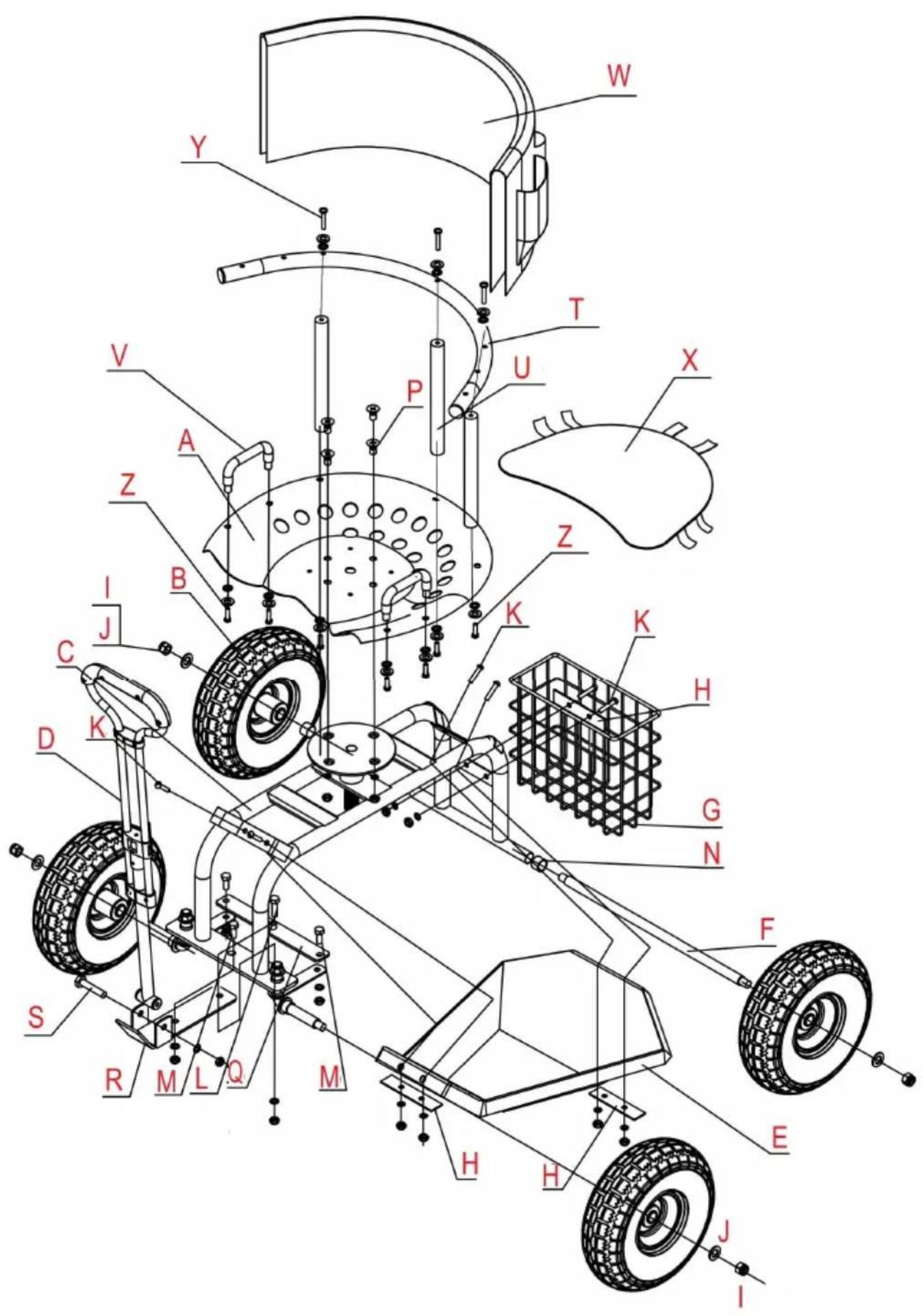

Technical diagram of a mechanical assembly with labeled parts, likely for vehicle maintenance or assembly instructions.

ASSEMBLY STEP

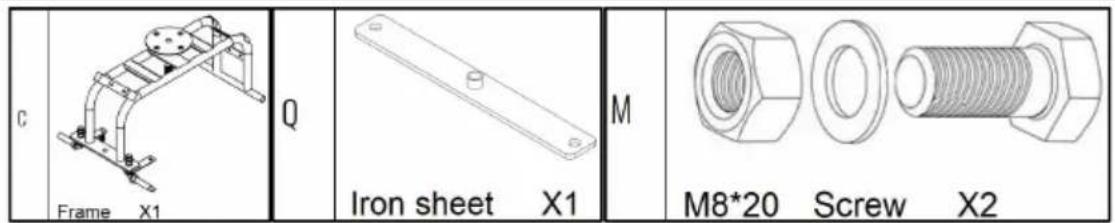

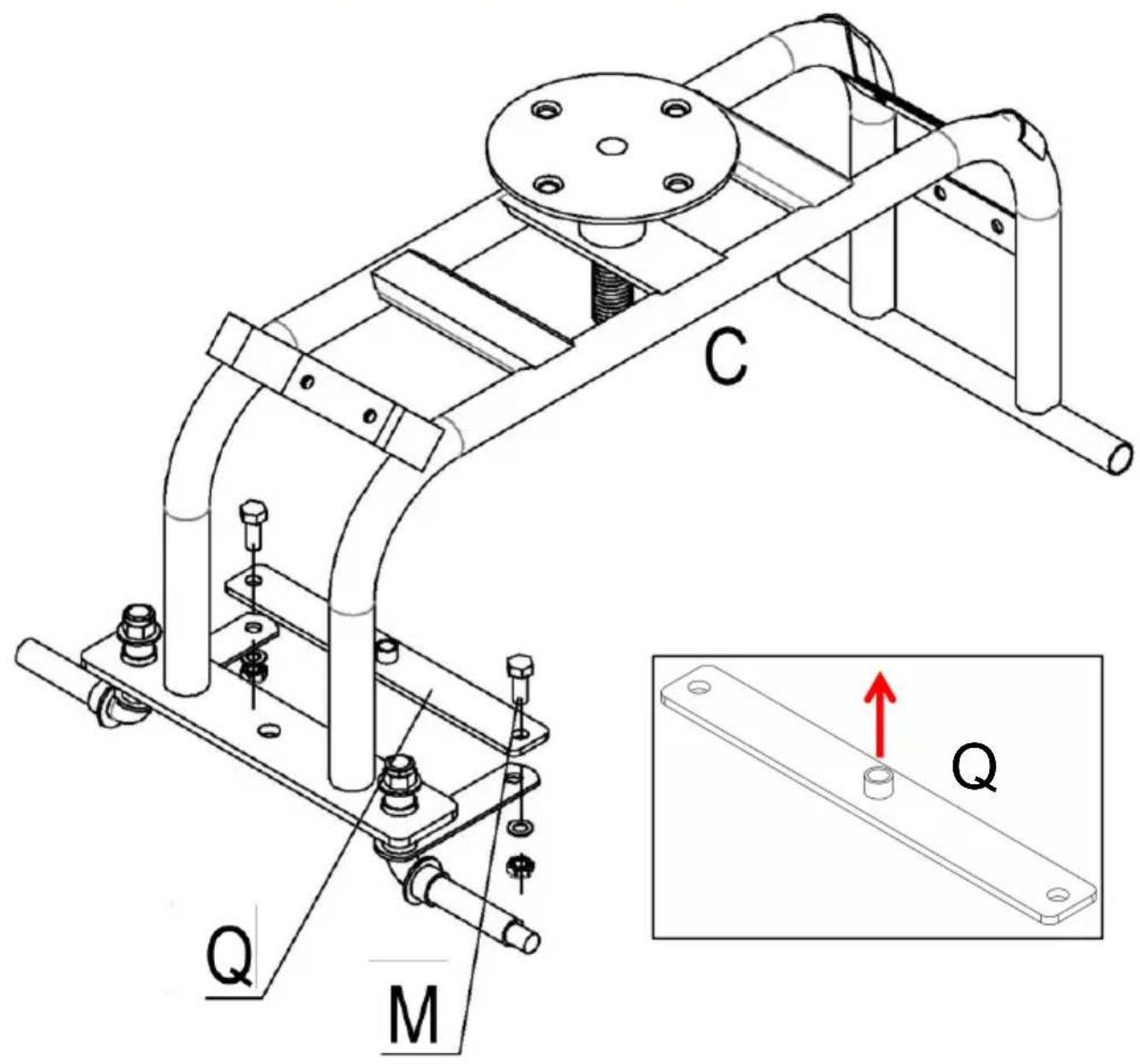

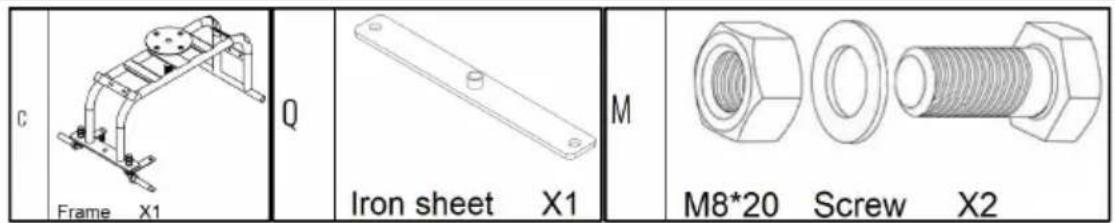

C Frame X1 Q Iron sheet X1 M M8*20 Screw X2

C Q M Q

1. Fix the Iron sheet(No.Q) onto the Frame(No.C) with two screw x2).
2. Note: The protruding part of the Iron sheet(No.Q) should face upwards.(Detailed diagram)

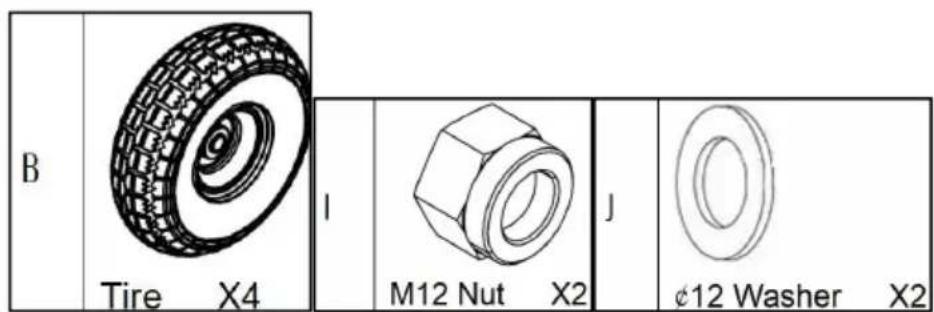

B Tire X4 I M12 Nut X2 J Ø12 Washer X2

I J B B I J

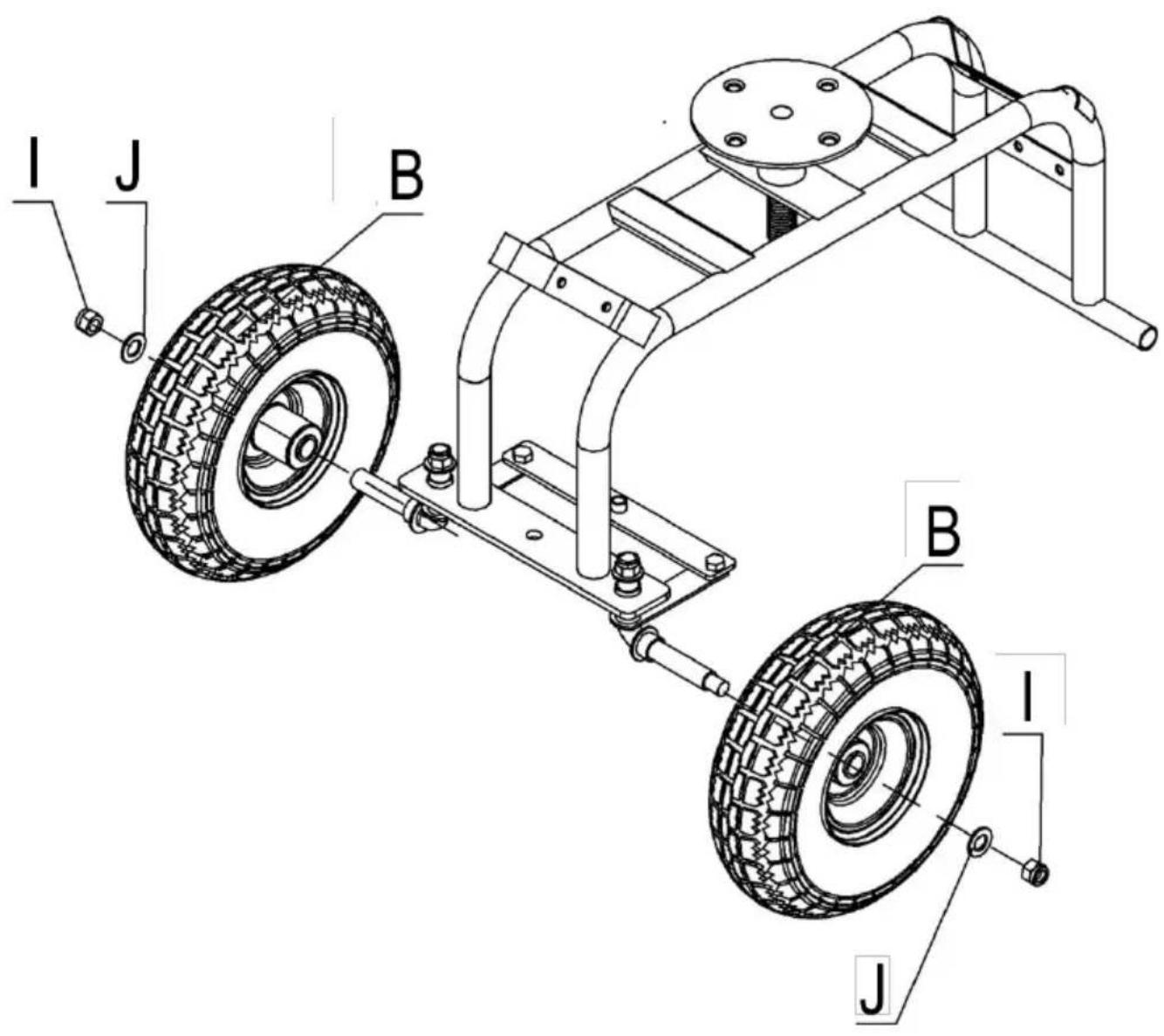

1. Install the wheels(No.B x2) onto the axles, then place two large washers(No.J x2) and secure them with two large nuts(No.I x2).
2. Note: Do not tighten the nuts completely; leave some space for wheels to rotate.
3. Note: The air inlets of the tires should face outwards.

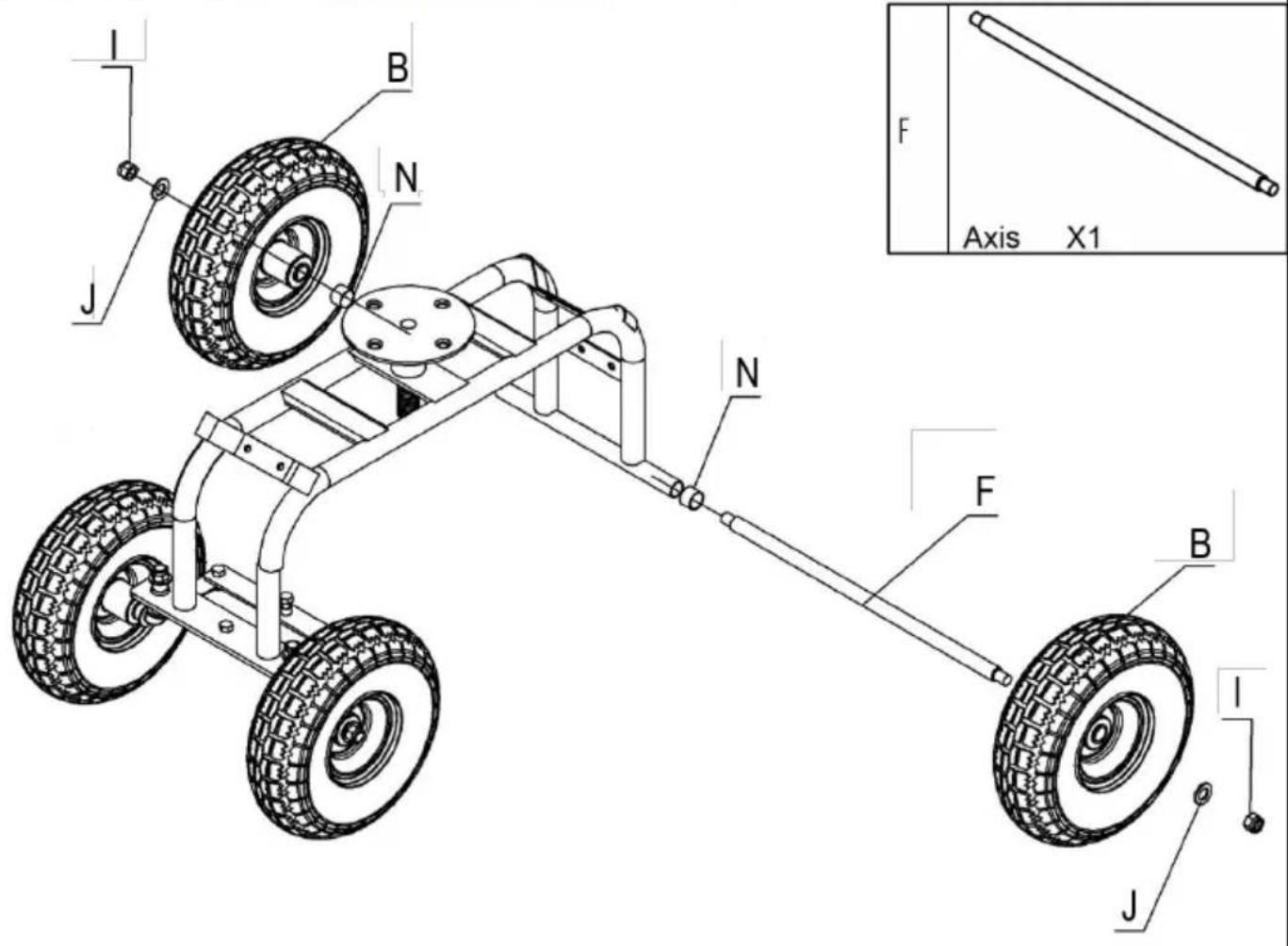

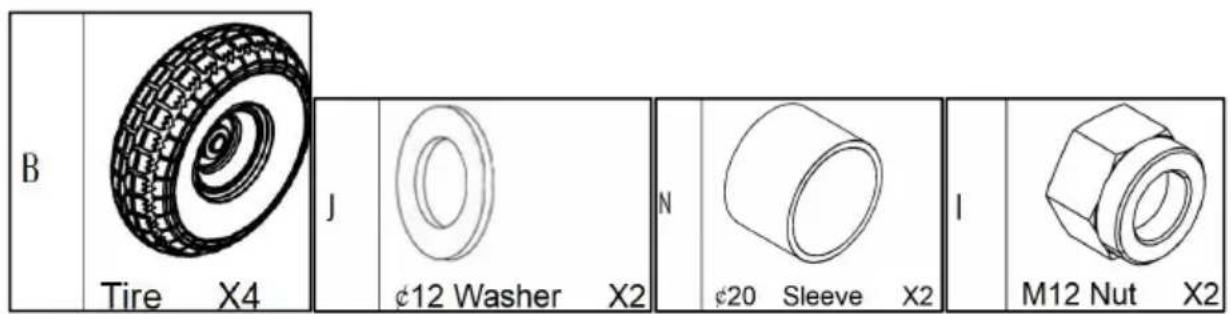

B Tire X4 J ¢12 Washer X2 N ¢20 Sleeve X2 I M12 Nut X2

I B N J N F Axis X1 F B I J

1. Install the axle(No.F) at the position of the rear wheels.
2. Place one bushing(No.N x2) at each end of the axle(No.F).
3. Install two pairs of wheels(No.B x2) one after another, then pu washers(No.J x2) and secure them with two large nuts(No.I x2).
4. Note: Do not tighten the nuts completely; ensure there is room wheels to rotate.
5. Note: The air inlets of the tires should face outwards.

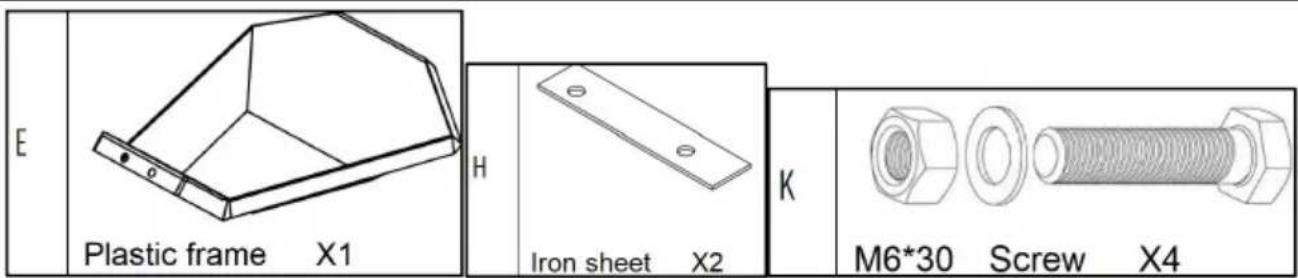

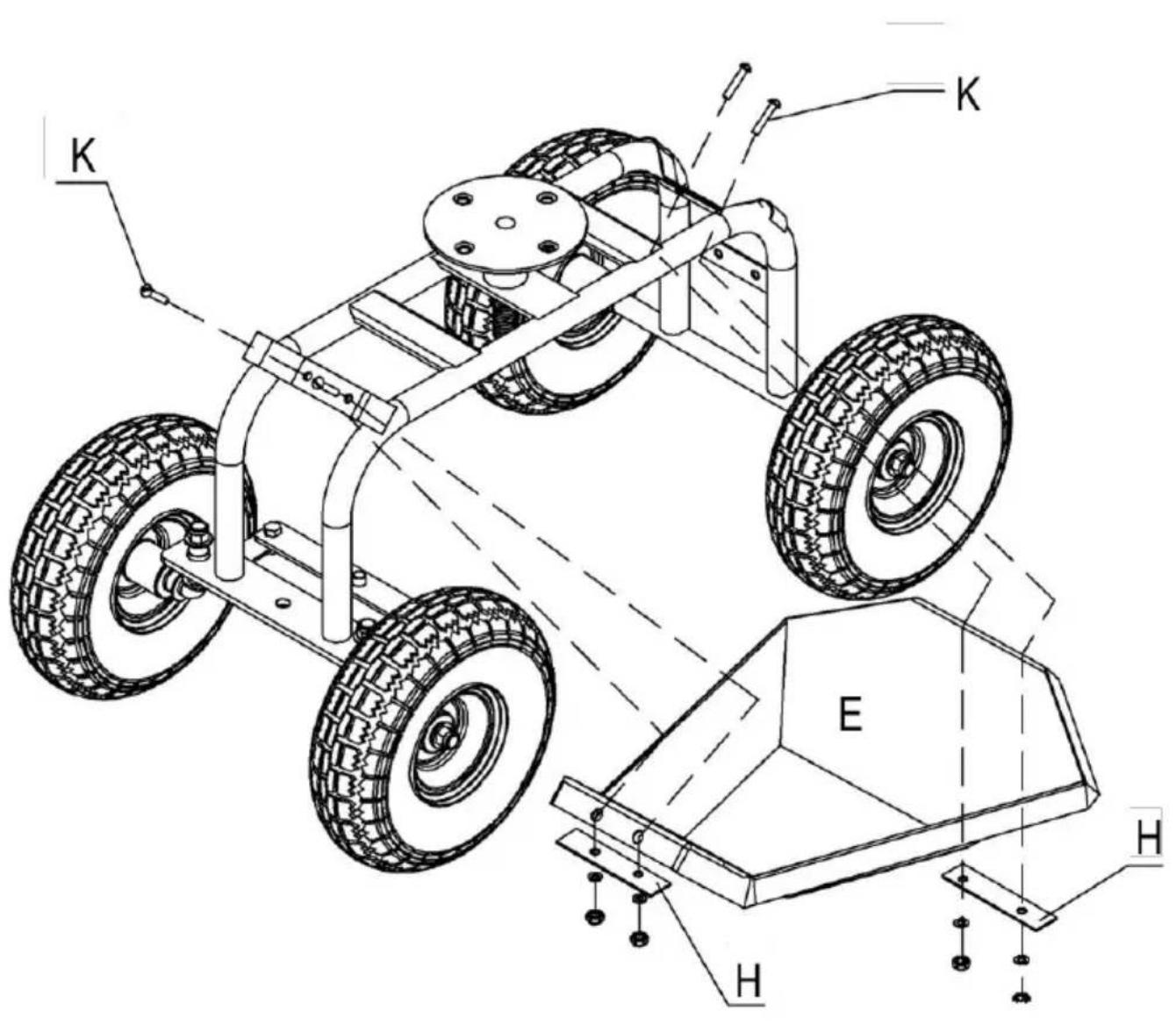

E Plastic frame X1 H Iron sheet X2 K M6*30 Screw X4

K E H H K

Place two metal shims(No.H x2) at the bottom of the plastic fran and secure them with four sets of screws and nuts(No.Kx4).

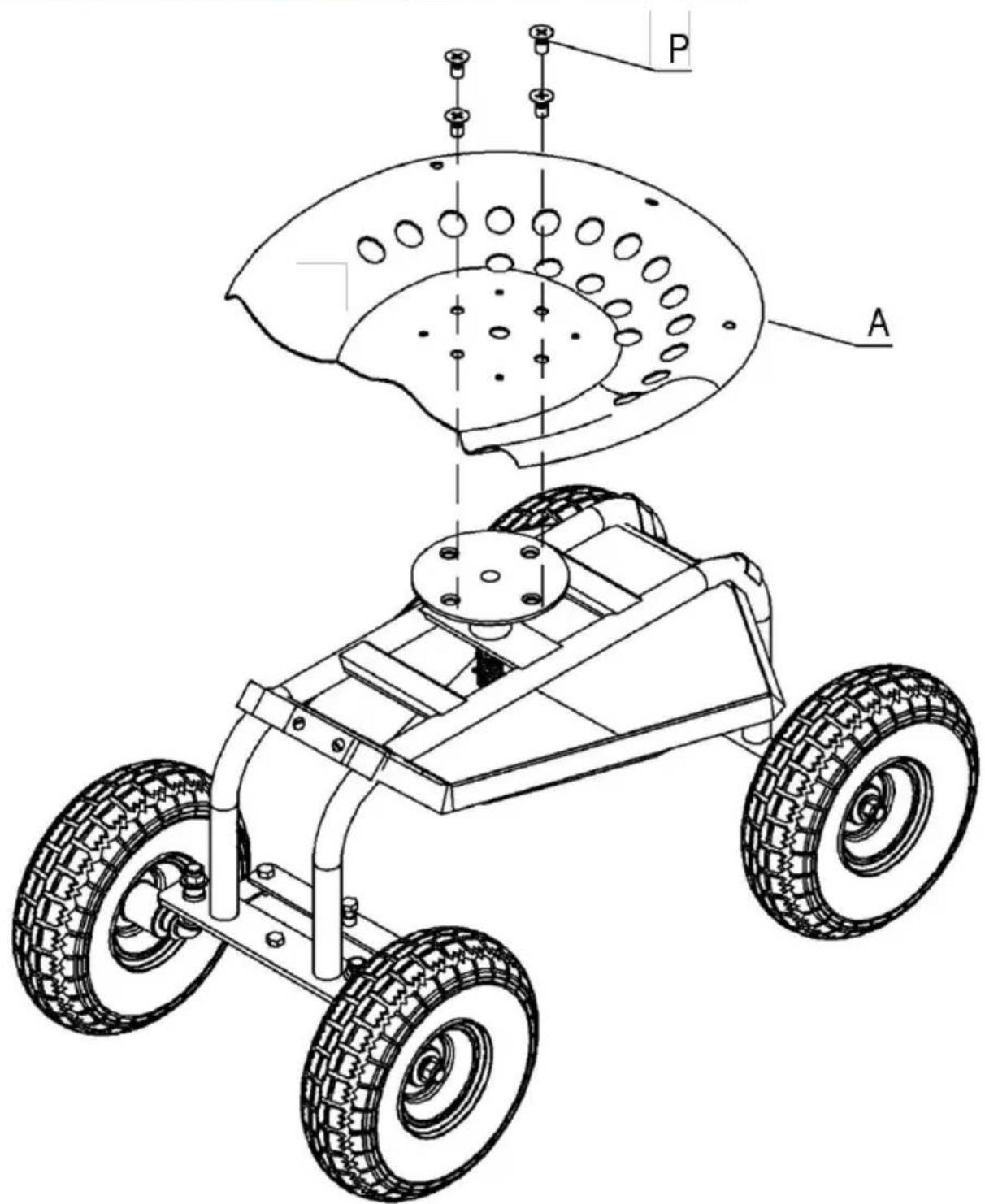

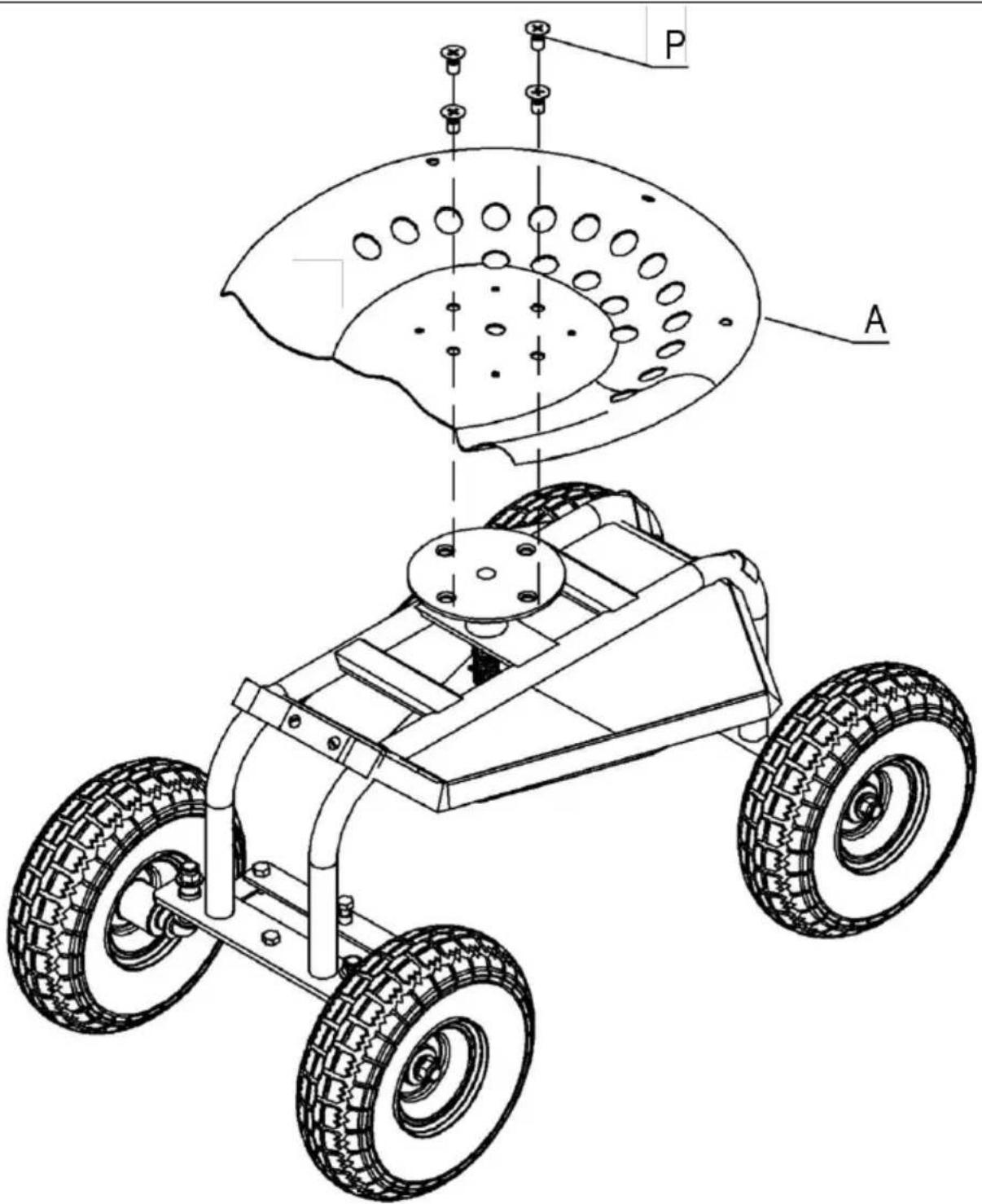

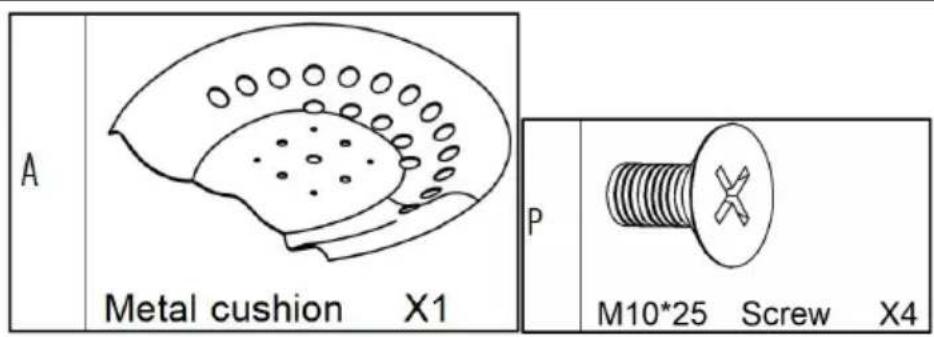

A Metal cushion X1 P M10*25 Screw X4

Technical diagram of a vehicle chassis with labeled components A and P, showing assembly parts and structural details.

Fix the metal seat(No.A) cushion onto the bracket(No.C) with four nuts(No.P x4).

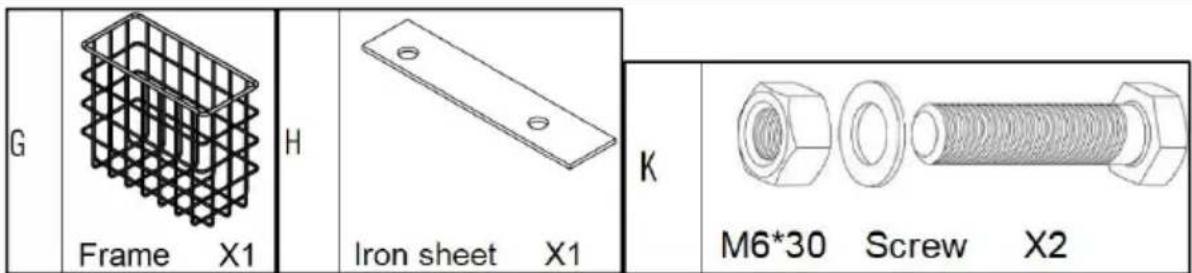

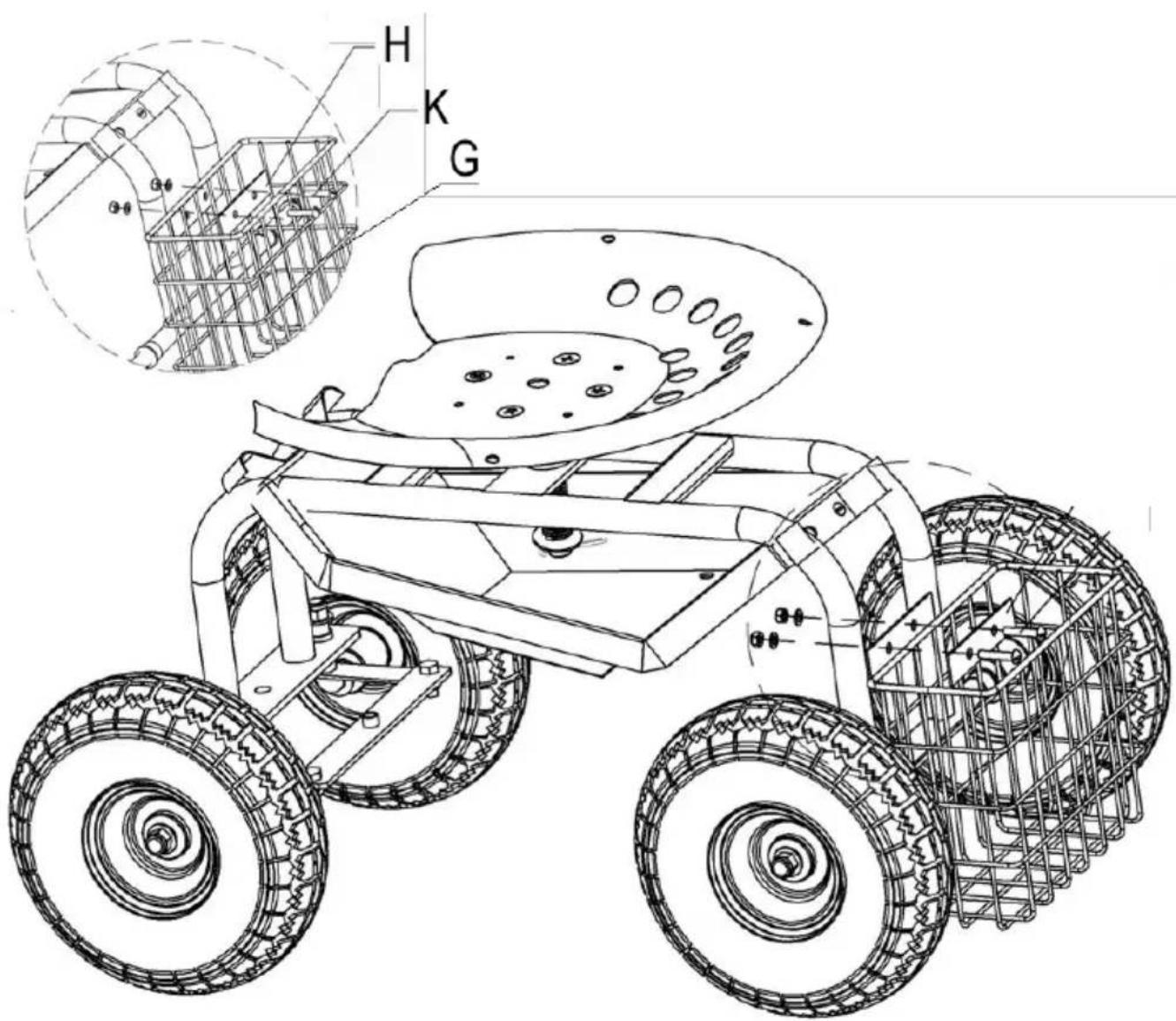

G Frame X1 H Iron sheet X1 K M6*30 Screw X2

Technical diagram of a tracked vehicle with labeled components H, K, G and structural details shown in the inset.

Fix the frame(No.G) onto the bracket with two screws(No.K x2). Place one piece of the metal sheet(No.H) on top of the Frame(N middle before fixing it.

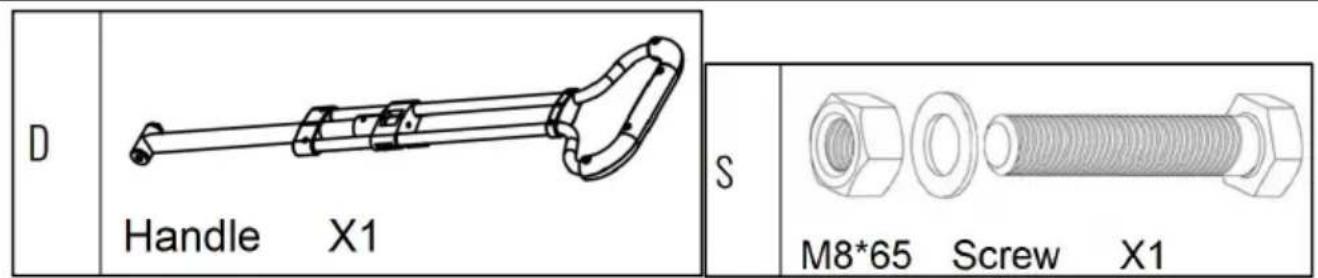

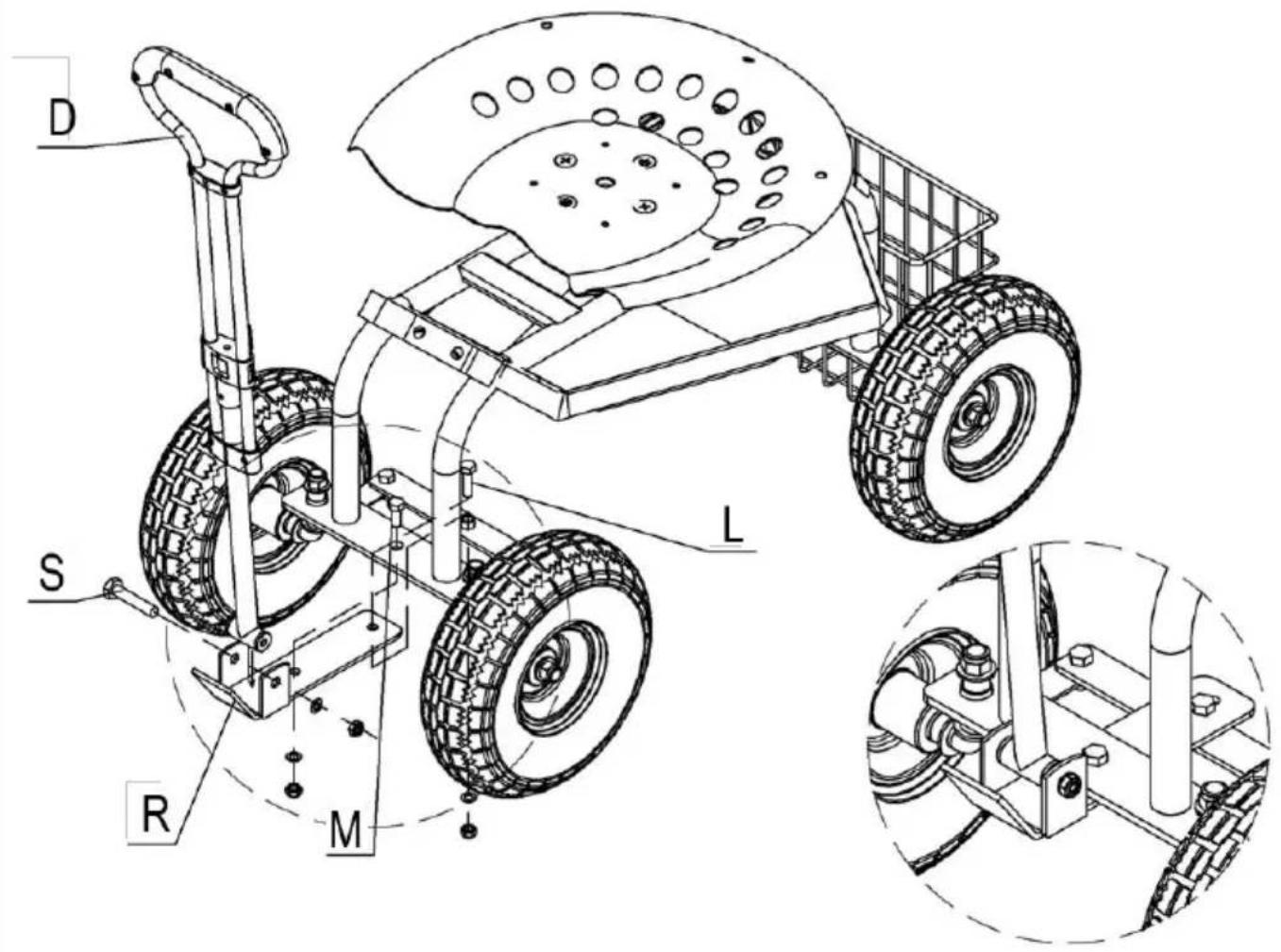

D Handle X1 S M8*65 Screw X1

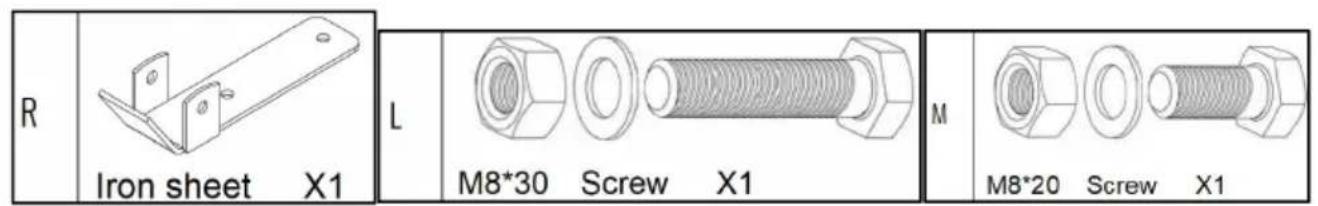

R Iron sheet X1 L M8*30 Screw X1 M M8*20 Screw X1

D S R M L

1. First, fix one piece of the metal sheet(No.R) onto the bracket successively with one screw(No.L) and one screw(No.M).
2. Then, fix the handle(No.D) onto the metal sheet(No.R) with on screw(No.S).

Note: The screw(No.L) and the screw(No.M) should be tightened, a little bit of play to ensure that the handle(No.D) can rotate sm

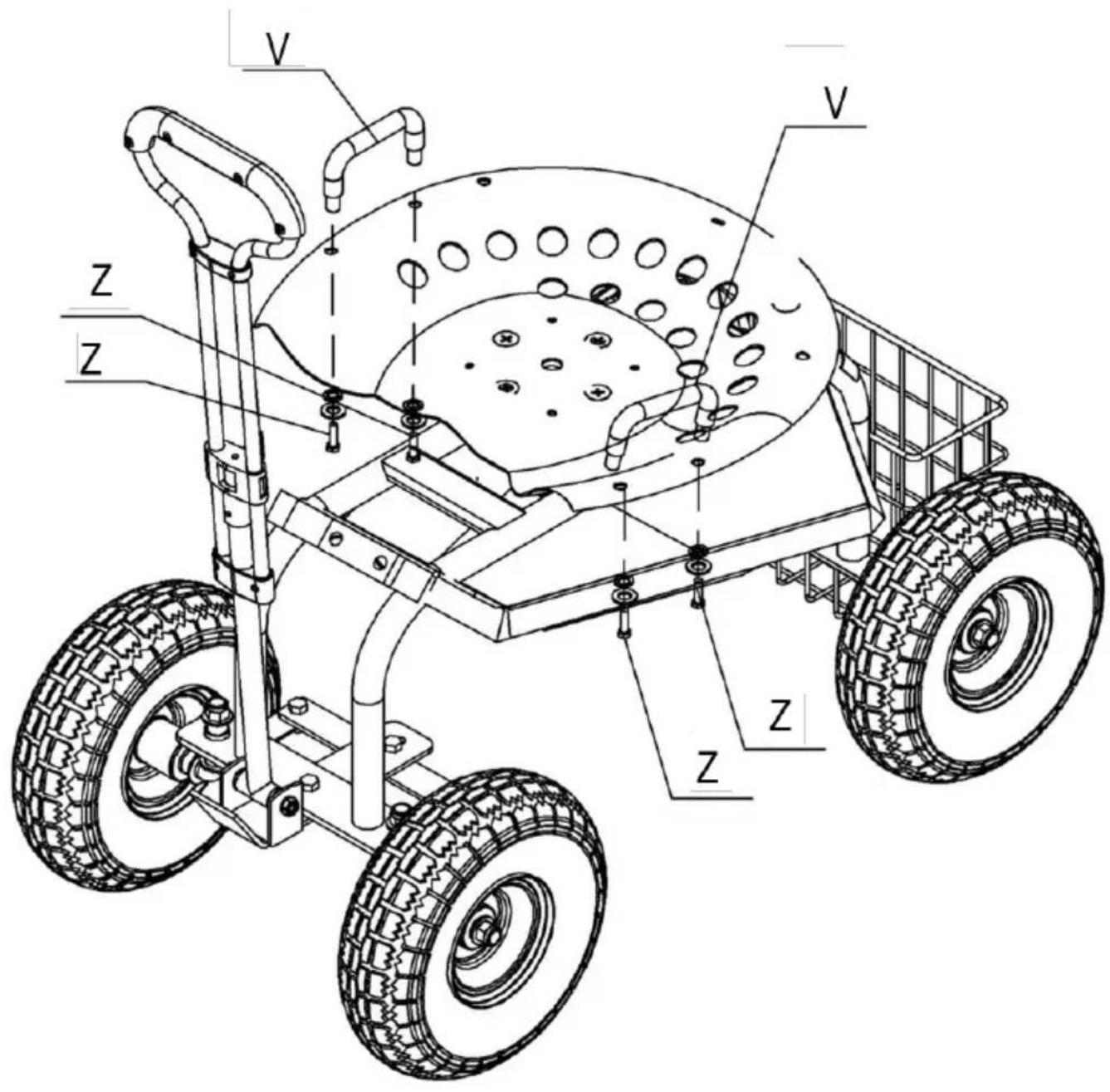

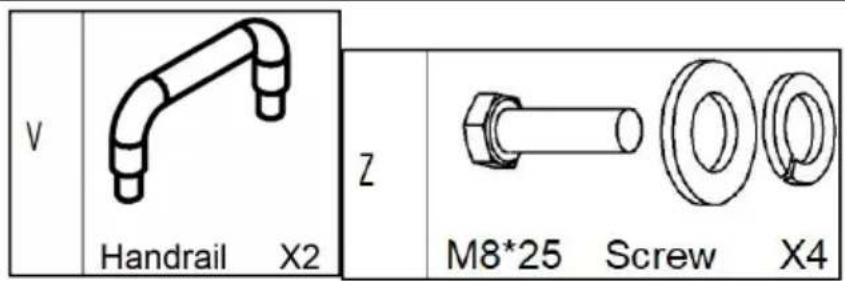

V Handrail X2 Z M8*25 Screw X4

Technical diagram of a four-wheeled vehicle with labeled components in English and Spanish

Lock two handrails(No.V x2) onto the metal seat cushion with four screws(No.Z x4).

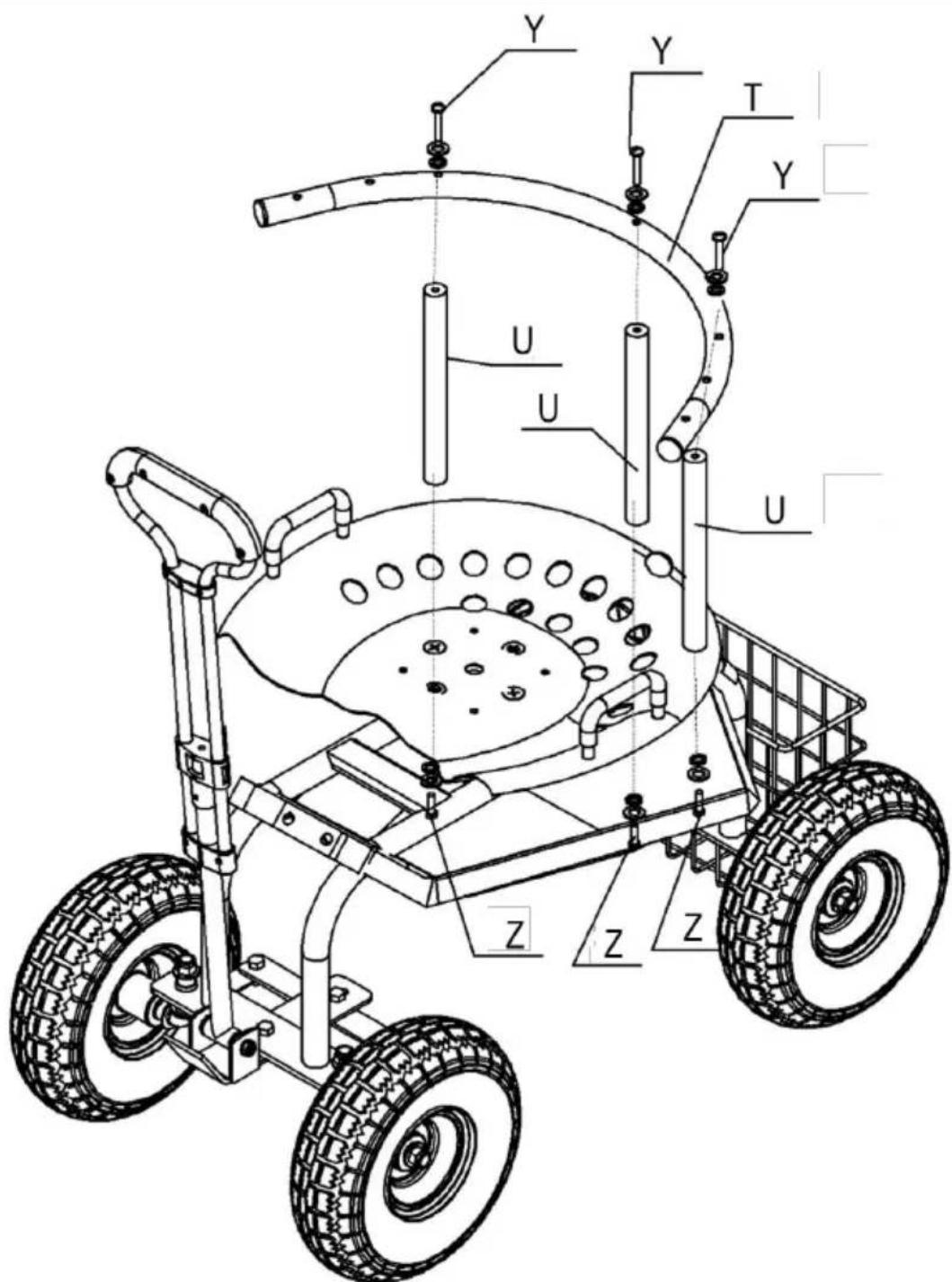

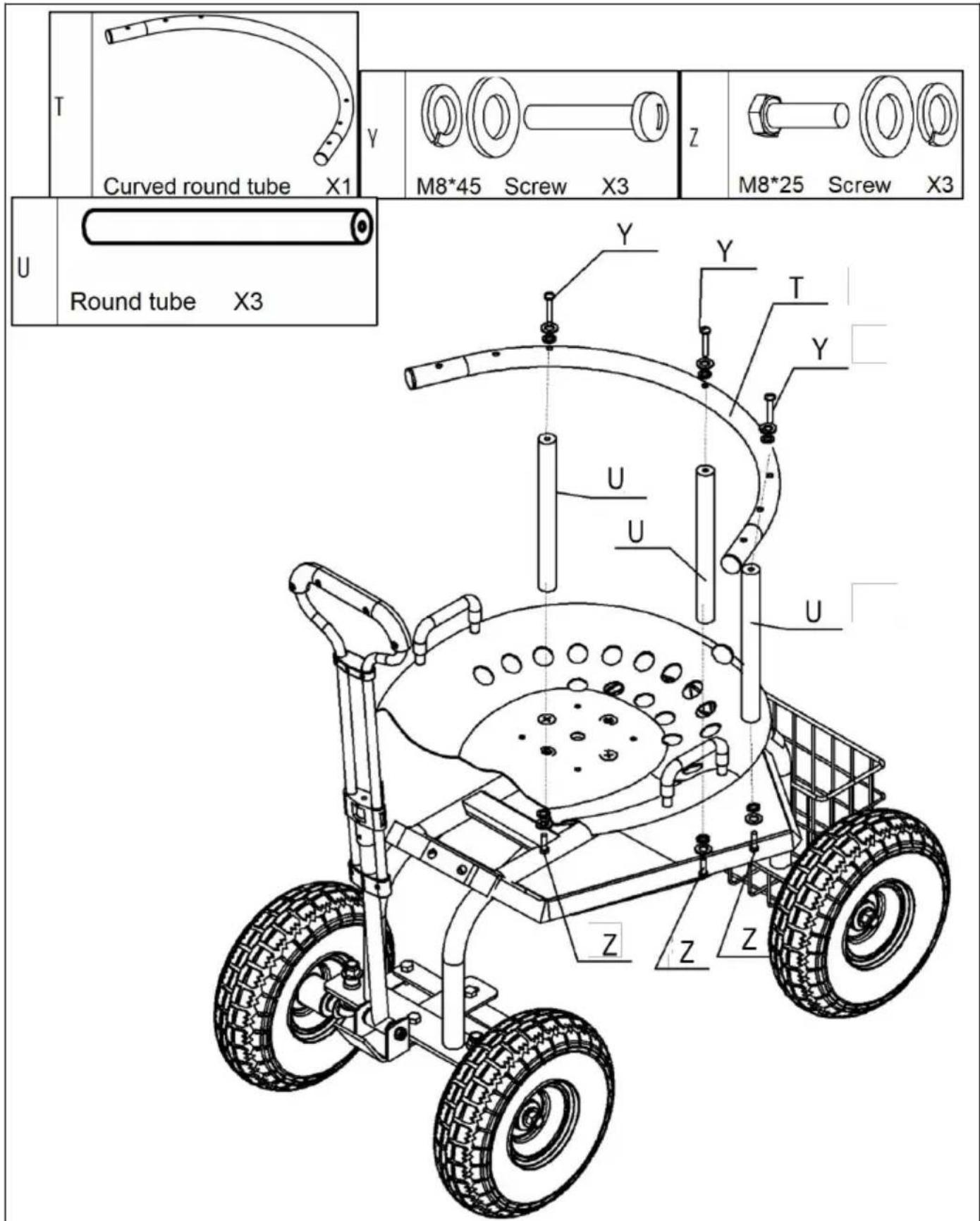

T Curved round tube X1 Y M8*45 Screw X3 Z M8*25 Screw X3 U Round tube X3 Y Y T Y U U Z Z Z

1. Lock three metal tubes(No.U x3) onto the metal seat cushion screws(No.Z x3).
2. Lock the Curved round tube(No.T) onto the three metal tubes(with three screws(No.Y x3).

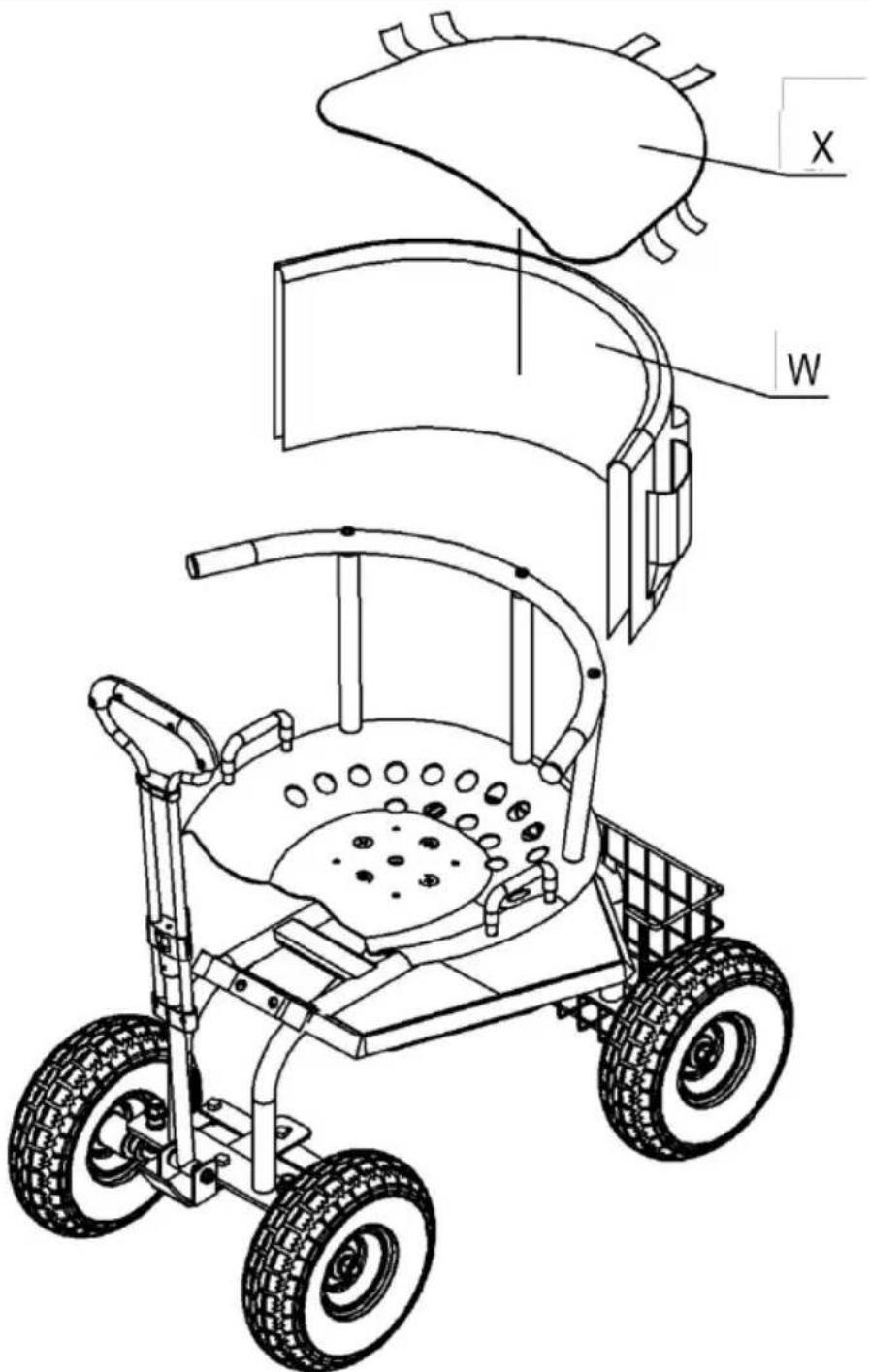

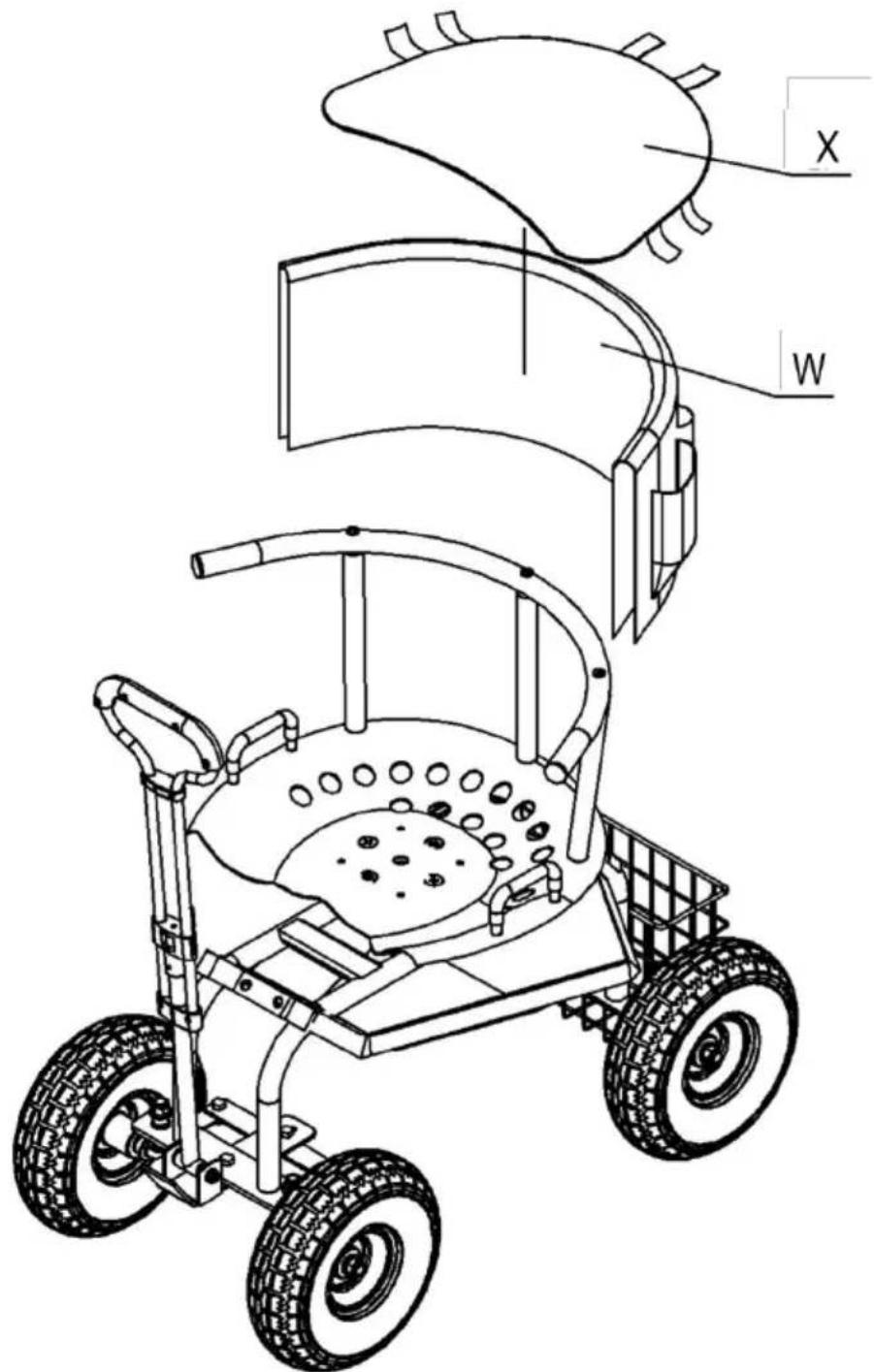

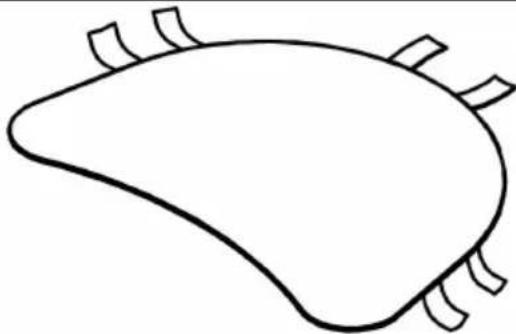

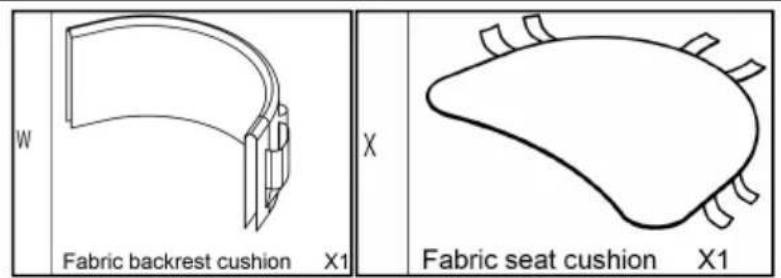

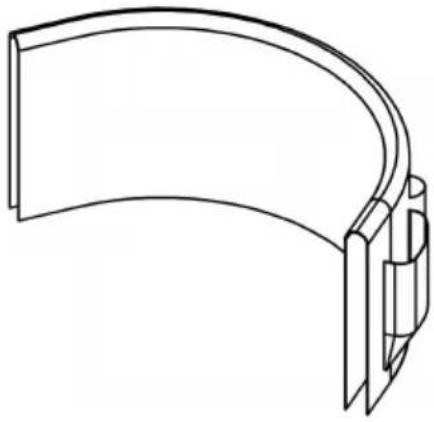

W Fabric backrest cushion X1 X Fabric seat cushion X1

Technical diagram of a mobile vehicle with labeled parts X and W, showing structural components and wiring layout.

1. Place the cloth seat cushion(No.X) on the metal seat cushion, fasten the Velcro properly.
2. Install the Fabric backrest cushion(No.W) on the Curved round tube(No.T), and fasten the Velcro properly.

PRODUCT PARAMETER

Model	TC4502F
Safe Loading Weight	400lb/181kg
The diameter of the wheel	10inch

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
