Name: YG19-914B-51
Brand: Vevor
Rating: 7 (94 reviews)

Find the device manual for free YG19-914B-51 Vevor in PDF.

📄 64 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product Type	Deck Baluster
Brand	Vevor
Model	YG19-914B-51
Material	Metallic Aluminum
Outer Diameter	3/4 inch
Length	36 inches
Height	48 inches
Number of Kits	51 pieces
Included Screws	M5×30 (102 pieces)
Plastic Connectors	102 pieces
Assembly	Requires two people
Required Tools (not included)	Phillips screwdriver, electric drill, circular saw, measuring tape
Intended Use	Outdoors, installation on horizontal rail
Safety	Wear safety glasses and gloves; keep children and pets away; do not climb; do not intentionally impact
Maintenance	Clean with a soft cloth and soapy water
Spare Parts	Screws and connectors included; other installation parts to be purchased separately
Technical Support	www.vevor.com/support
Repairability	Contact technical support for replacement parts
Manual	Available in multiple languages at notice-facile.com

Frequently Asked Questions - YG19-914B-51 Vevor

What are the dimensions of the YG19-914B-51 baluster?

The baluster has a length of 36 inches and a height of 48 inches, with an outer diameter of 3/4 inch.

What material is the baluster made of?

It is made of metallic aluminum, making it lightweight and weather-resistant.

How many screws and connectors are included with the kit?

The kit includes 102 M5×30 screws and 102 plastic connectors for installing 51 balusters.

What tools are required for assembly?

You will need a Phillips screwdriver, an electric drill, a circular saw, and a measuring tape. These tools are not included.

Can I install the baluster alone?

No, assembly requires two people for safety and ease of installation.

What safety precautions should be taken?

Wear safety glasses and work gloves. Keep children and pets away. Do not climb on the baluster and do not intentionally impact it.

How to maintain the baluster?

Clean it regularly with a soft cloth and soapy water to prevent deposits. Avoid abrasive products.

Where can I find spare parts?

Contact VEVOR technical support via www.vevor.com/support to obtain spare parts.

Is the baluster suitable for outdoor use?

Yes, it is designed for outdoor use, on a horizontal deck rail.

What is the height of the railing after installation?

The height of the railing is 48 inches (about 122 cm) for this model.

User questions about YG19-914B-51 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Garden furniture in PDF format for free! Find your manual YG19-914B-51 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YG19-914B-51 by Vevor.

USER MANUAL YG19-914B-51 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

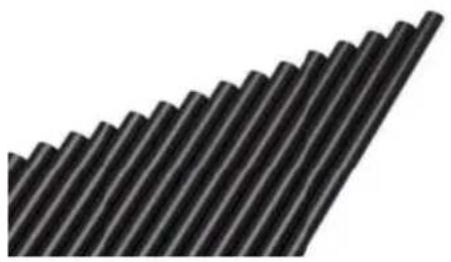

DECKING BALUSTER

MODEL:YG19-660B-101/YG19-914B-101/

YG19-813B-101/YG19-660B-51/

YG19-813B-51/YG19-914B-51

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:YG19-660B-101/YG19-914B-101/YG19-813B-101/YG19-660B-51/YG19-813B-51/YG19-914B-51

Close-up of a diagonal striped pattern resembling corrugated metal or fabric (no text or symbols)

Close-up of a black plastic component with a metallic screw head, enclosed in a circular frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

WARNING:

Do not allow children to climb on the unit.
Keep children and pets away during assembly.

SAFETY INSTRUCTIONS

Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
Please wear safety goggles and work gloves properly during assembly.
Do not try to assemble the product when feeling tired or when under the influence of alcohol, drugs, or medication.
Load bearing capacity and other product parameters apply to a properly and completely assembled product only. 5. Separate and count all parts and hardware.
Prepare the following tool: Philips Head Screwdriver.
If using power tools, please be careful to slow down and stop when needed.
Two people are required for assembly.
Follow the intended uses only.
The product is made of metal aluminum. After installation, please do not intentionally impact it to avoid damage to the wooden fence.

PARAMETER LIST

Model	Number of kits	Product outer diameter	Product length	railing height	M5*30 Screw	Plastic connector
YG19-66 0B-101	101pcs	∅3/4"	26inch	36inch	202pcs	202pcs
YG19-91 4B-101	101pcs	∅3/4"	36inch	48inch	202pcs	202pcs
YG19-813B-101	101pcs	∅3/4"	32inch	42inch	202pcs	202pcs
YG19-660B-51	51pcs	∅3/4"	26inch	36inch	102pcs	102pcs
YG19-813B-51	51pcs	∅3/4"	32inch	42inch	102pcs	102pcs
YG19-914B-51	51pcs	∅3/4"	36inch	48inch	102pcs	102pcs

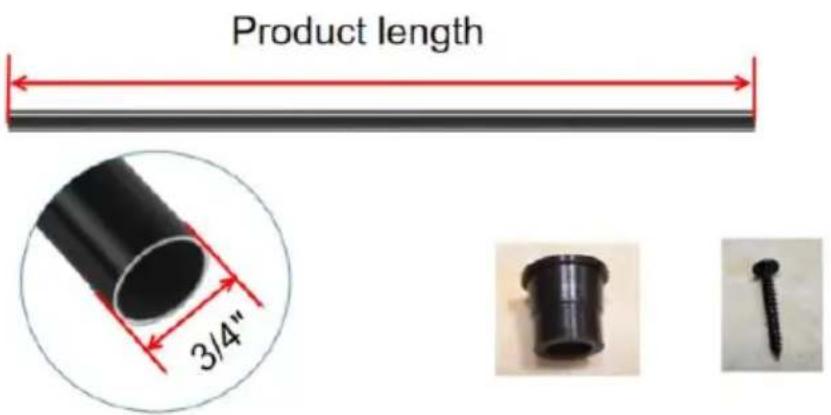

Each Decking Baluster requires 2 connectors and 2 screw mountings. The package only includes Decking Baluster, M5*30 Screw, and Plastic connector. Please purchase the other installation parts by yourself. Decking Baluster is applicable to installation on the horizontal rail.

Product length 3/4"

2pcs Plastic connector and 2pcs screws

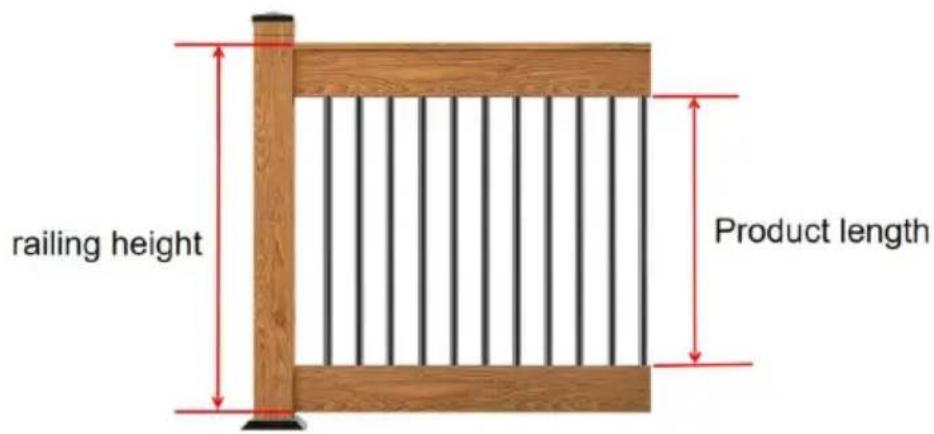

Railing height / Product length

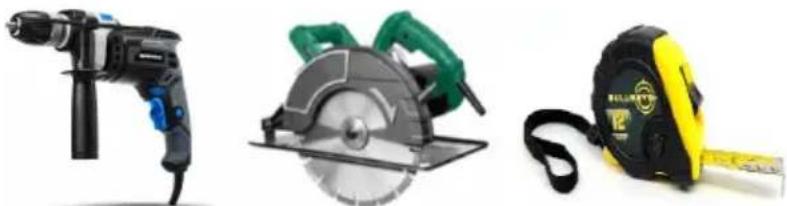

You need to prepare the electric drill, circular saw, and tape measure by yourself before installation.

Three industrial tools: a pushaxe, a circular cutter, and a tape measure (no text or symbols visible)

Installation Guide

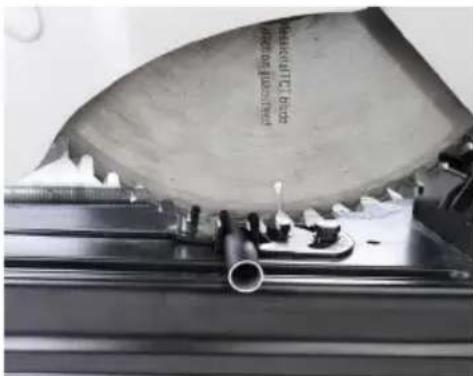

Process the Decking Baluster according to the height of the railing.

ABRICHIC BOD FOR THE INDUSTRIAL

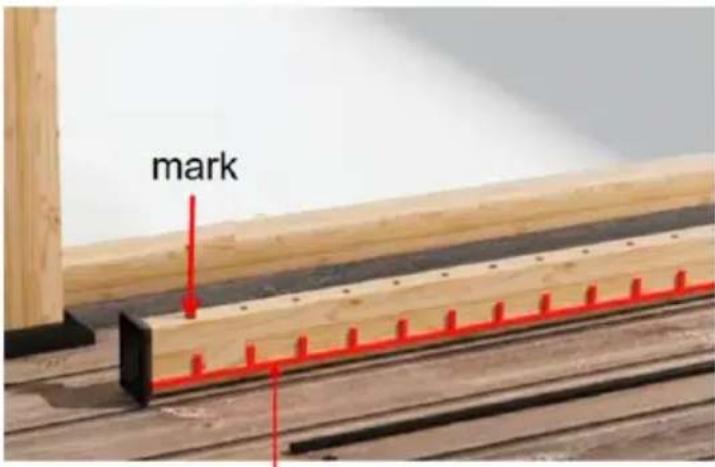

Draw the installation mark on the railing, the center distance of the markers is 4.5 inches, the marking distance between the top railing and bottom railing is the same;

Mark

Two markers are 4.5 inches apart

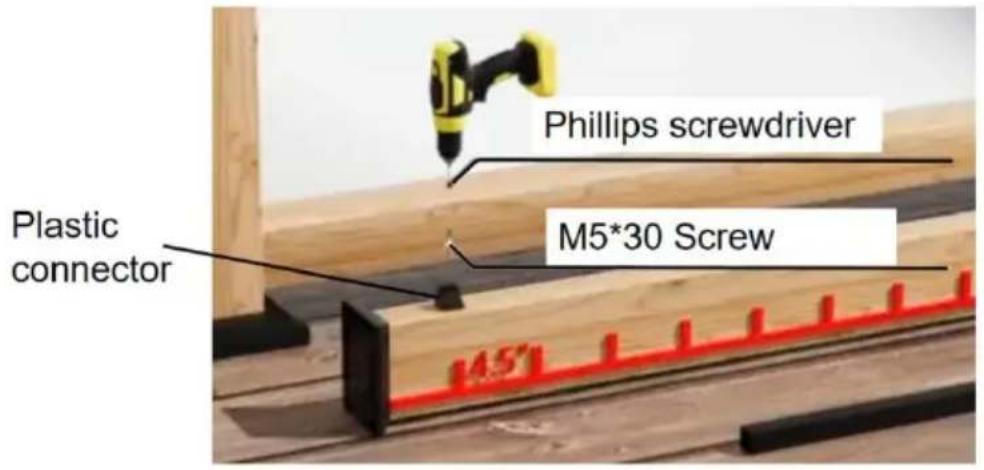

On the marked mark, screw the plastic connector to the railing.

Phillips screwdriver, M5*30 Screw, Plastic connector

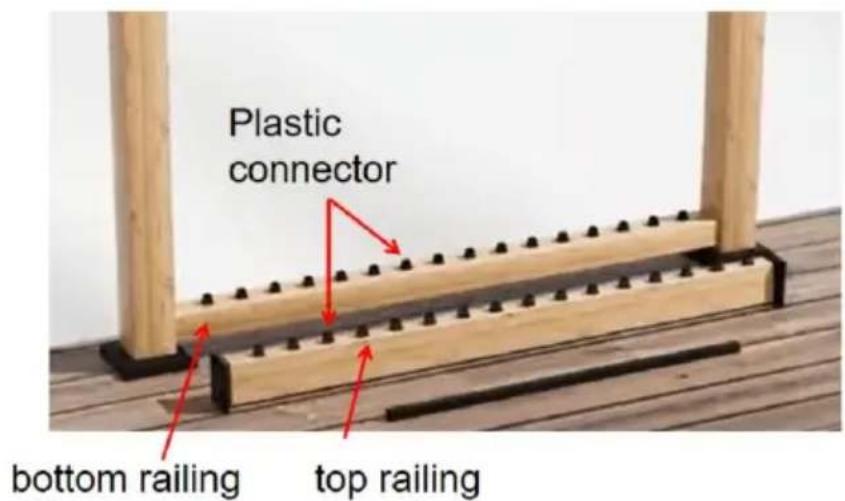

Install all connectors on the top and bottom rails

Plastic connector, bottom railing, top railing

Insert the inner hole of Decking Baluster into the plastic connector, insert the plastic connector of the top track into the inner hole of Decking Baluster

Two wooden deck railings with black vertical bars, one showing a red arrow indicating change (no text or symbols)

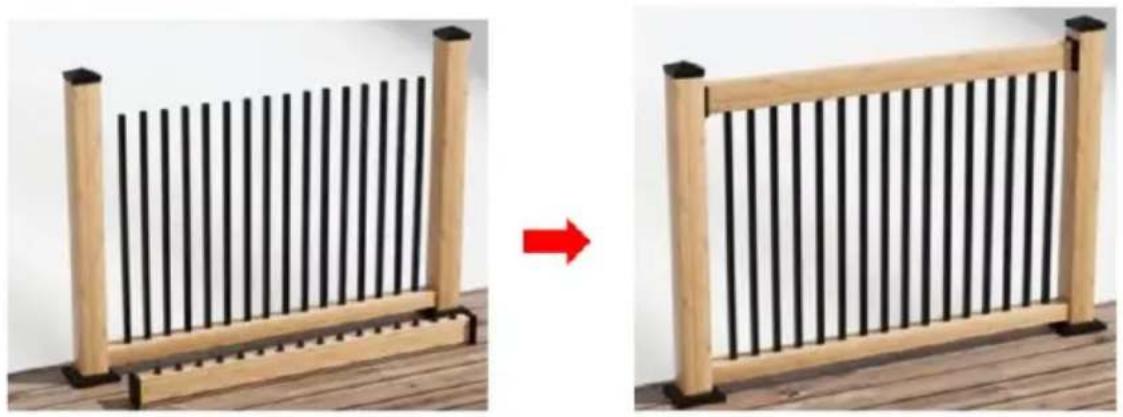

Fix the top railing to the left and right railing columns and complete installation; After installation, the two Decking Balusters are less than 4 inches apart

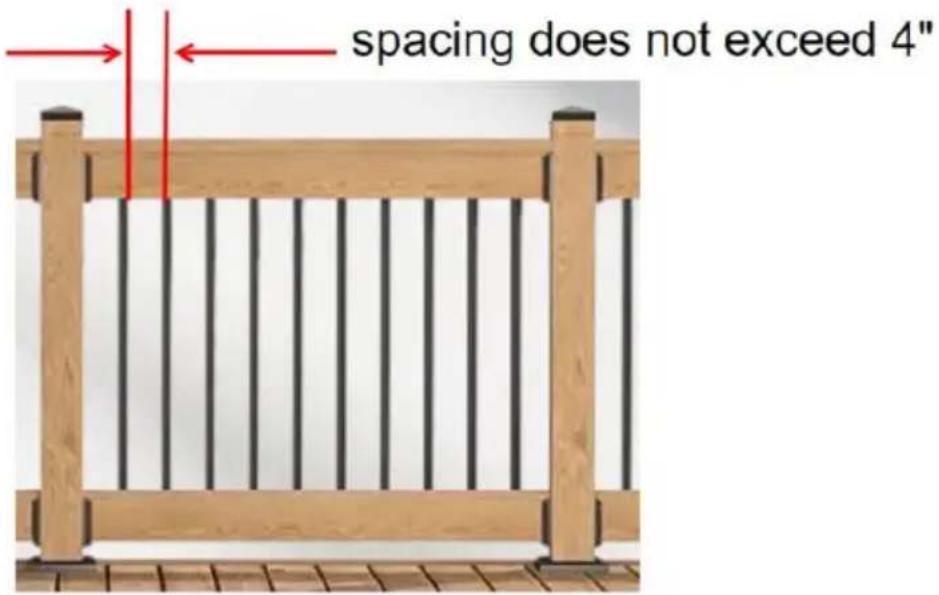

Spacing does not exceed 4"

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE
