Product Type	Outdoor Rocking Chair
Brand	Vevor
Model	WS-YY-09
Color	Black
Main Material	Steel
Maximum Load Capacity	181 kg (400 lb)
Dimensions (L × D × H)	870 × 710 × 1100 mm
Net Weight	16.7 kg
Packaging Type	1 piece per box
Tools Provided	Phillips screwdriver, Allen key
Assembly Required	Yes (follow instructions)
Intended Use	Outdoor, relaxation
Safety Precautions	Do not exceed load, check before use, avoid sudden movements
Maintenance	Check and tighten screws every 3 months
Cleaning	Damp cloth, avoid abrasive products
Spare Parts	Not available separately (contact support)
Warranty	Support via www.vevor.com/support
Technical Support	www.vevor.com/support
Repairability	Not evaluated (non-standard parts)

Frequently Asked Questions - WS-YY-09 Vevor

What are the dimensions of the WS-YY-09 chair?

The dimensions are 870 mm in length, 710 mm in depth, and 1100 mm in height.

What is the maximum supported weight?

The maximum load is 181 kg (400 lb).

What material is the chair made of?

It is made of steel in black color.

Is the chair weather-resistant?

Designed for outdoor use, but it is recommended to protect it from heavy rain and store it in winter.

How to assemble the chair?

Follow the steps in the manual. Use the provided tools (Phillips screwdriver and Allen key). Tighten all screws firmly.

What to do if a part is missing?

Contact technical support via www.vevor.com/support to get replacement parts.

How to clean the chair?

Use a damp cloth with soapy water. Avoid abrasive products that could scratch the paint.

Is there a warranty?

Yes, an electronic warranty certificate is available at www.vevor.com/support.

Can the chair be left outside all year?

It is designed for outdoor use, but prolonged exposure to weather can reduce its lifespan. Cover it or store it if possible.

What tools are needed for assembly?

The necessary tools are provided: a Phillips screwdriver (GG) and an Allen key (HH).

USER MANUAL WS-YY-09 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

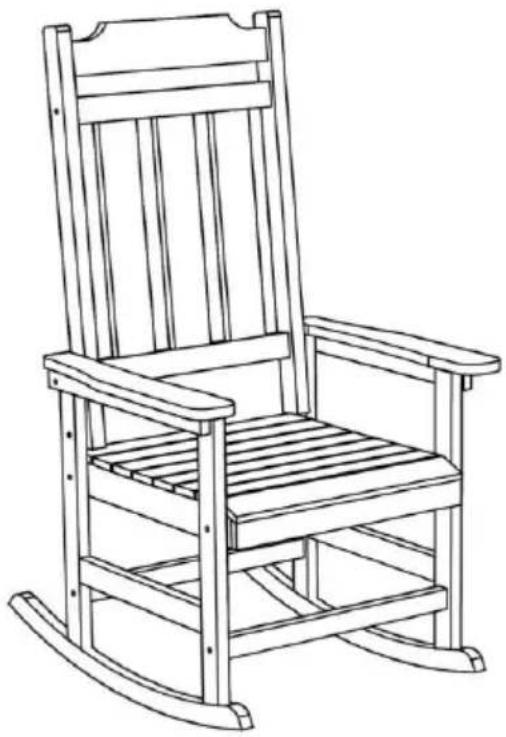

OUTDOOR ROCKING CHAIR

MODEL: WS-YY-09, WS-YY-10

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: WS-YY-09, WS-YY-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning - To reduce the risk of injury, user must read the instructions manual carefully.

PARAMETER LIST

Model	WS-YY-09	WS-YY-10
Color	Black
Material	HIPS
Maximum load bearing (lbs)	400
Product size (mm)	870*710*1100
Net weight (kg)	16.7	33.5
Packing	1 pcs/box	2 pcs/box

PART LIST

Model: WS-YY-09
No.	name	picture	Quantity
A	Back		1
B	Seat		1
C	Right Arm		1
D	Left Arm		1
E	Headrest Board		1
F	Side Support		1
G	Leg Frame		2
H	Bocker Bar		2
I	Leg Support		2
J	Seat Brace		1
AA	Screw (M4*35mm)		4
BB	Screw (M6*95mm)		4
CC	Bolt (M6*70mm)		2
DD	Bolt with nut (M6*70mr)		4
EE	Bolt with nut (M6*60mr)		2
FF	Bolt (M6*50mm)		10
GG	Phillips screwdriver		1
HH	Allen Wrench		1
	User manual		1
Model: WS-YY-10
No.	name	picture	Quantity
A	Back		1*2
B	Seat		1*2
C	Right Arm		1*2
D	Left Arm		1*2
E	Headrest Board		1*2
F	Side Support		1*2
G	Leg Frame		2*2
H	Bocker Bar		2*2
I	Leg Support		2*2
J	Seat Brace		1*2
AA	Screw (M4*35mm)		4*2
BB	Screw (M6*95mm)		4*2
CC	Bolt (M6*70mm)		2*2
DD	Bolt with nut (M6*70mr)		4*2
EE	Bolt with nut (M6*60mr)		2*2
FF	Bolt (M6*50mm)		10*2
GG	Phillips screwdriver		1*2
HH	Allen Wrench		1*2
	User manual	Outdoor Rocking Chair	1

SECURITY & WARNINGS

ASSEMBLY PRECAUTIONS

1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. Do not stand on the item or use it as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening legs.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

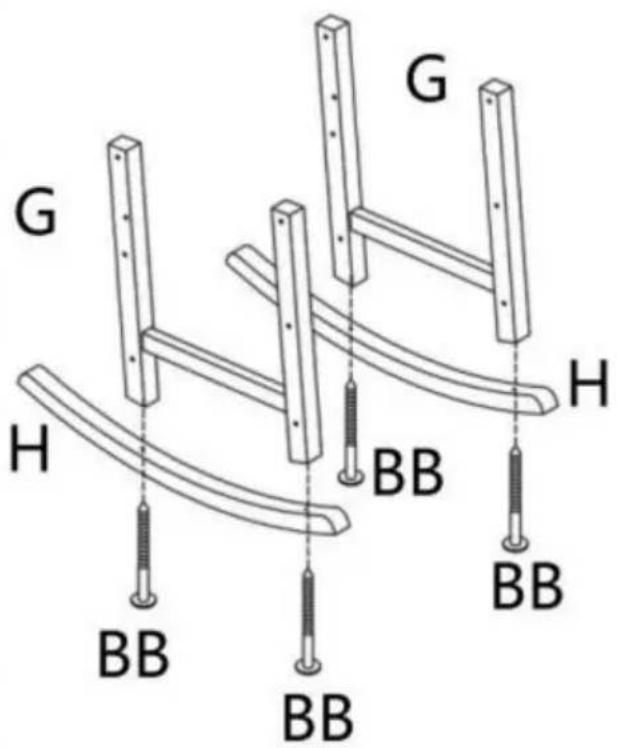

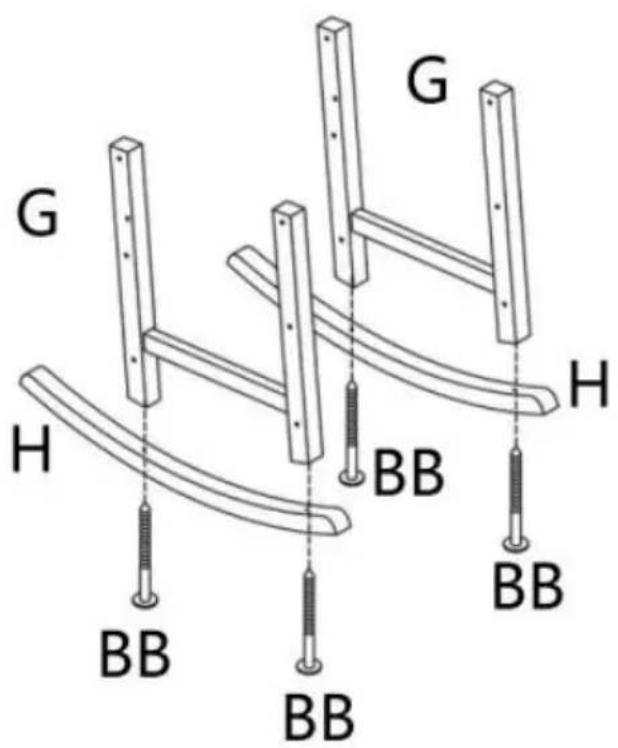

STEP 1

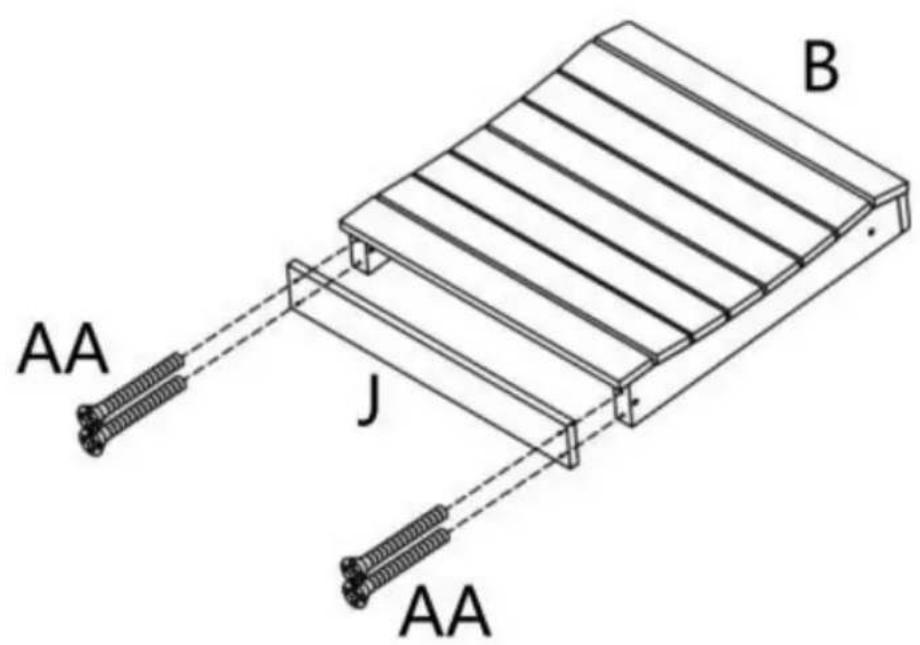

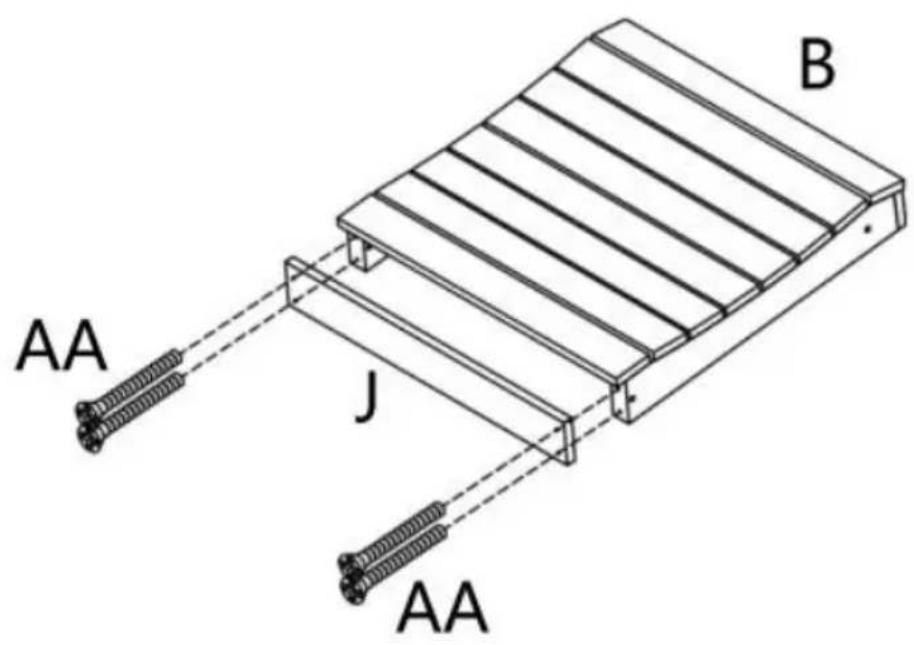

STEP 2

STEP 3

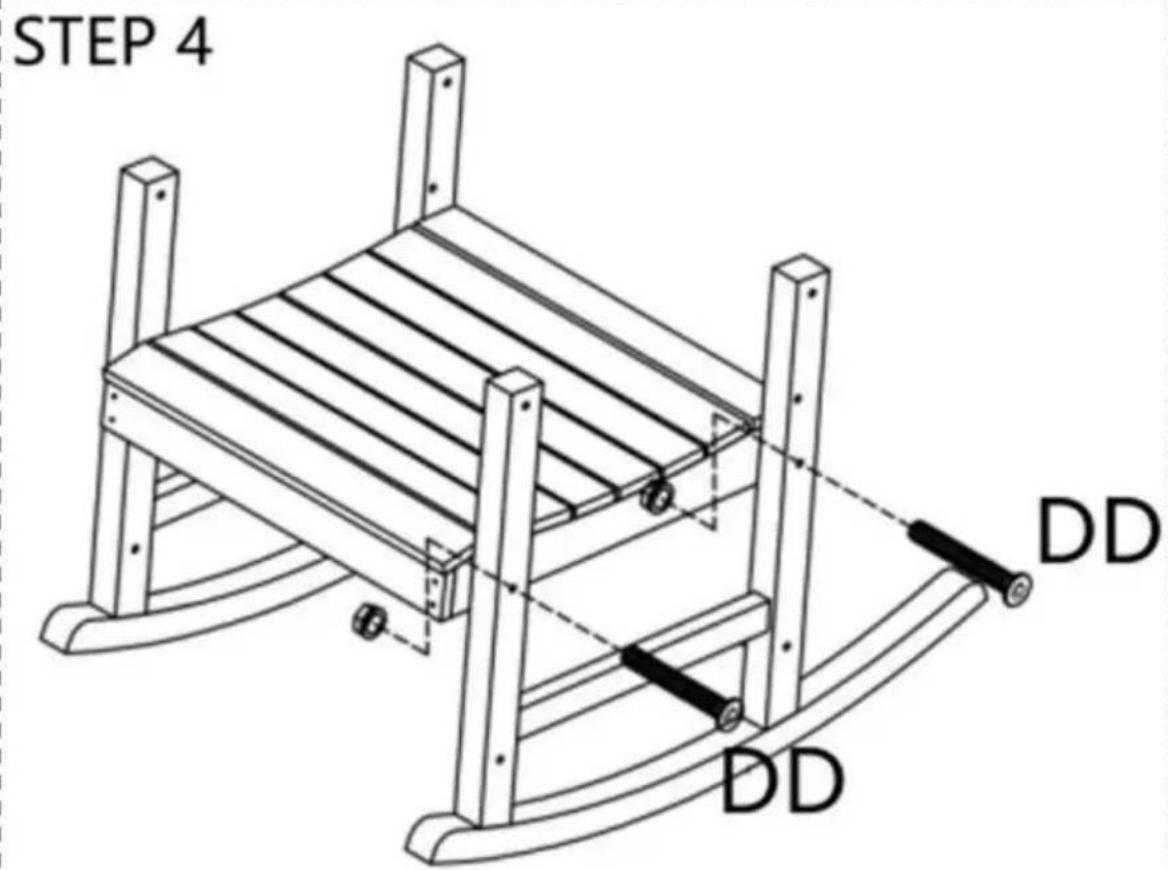

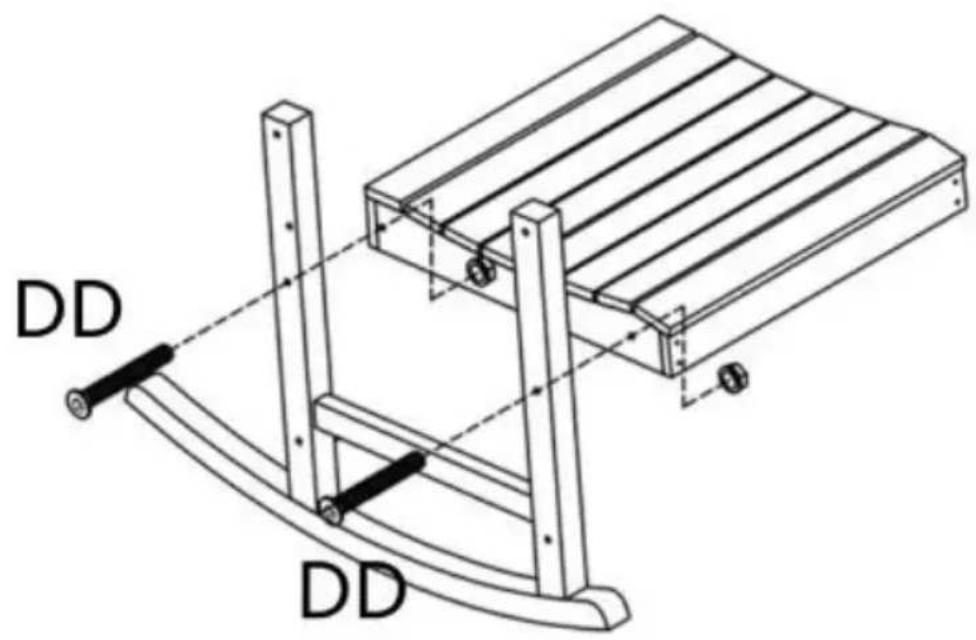

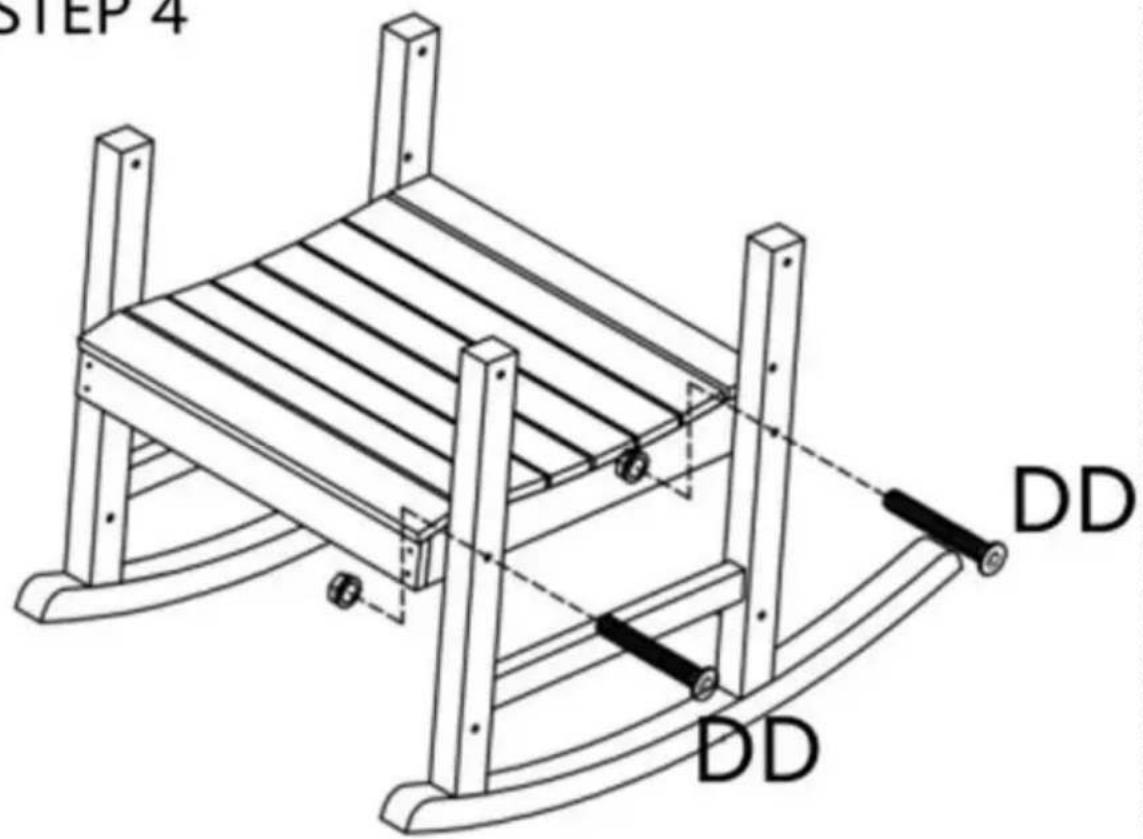

STEP 4

STEP 4

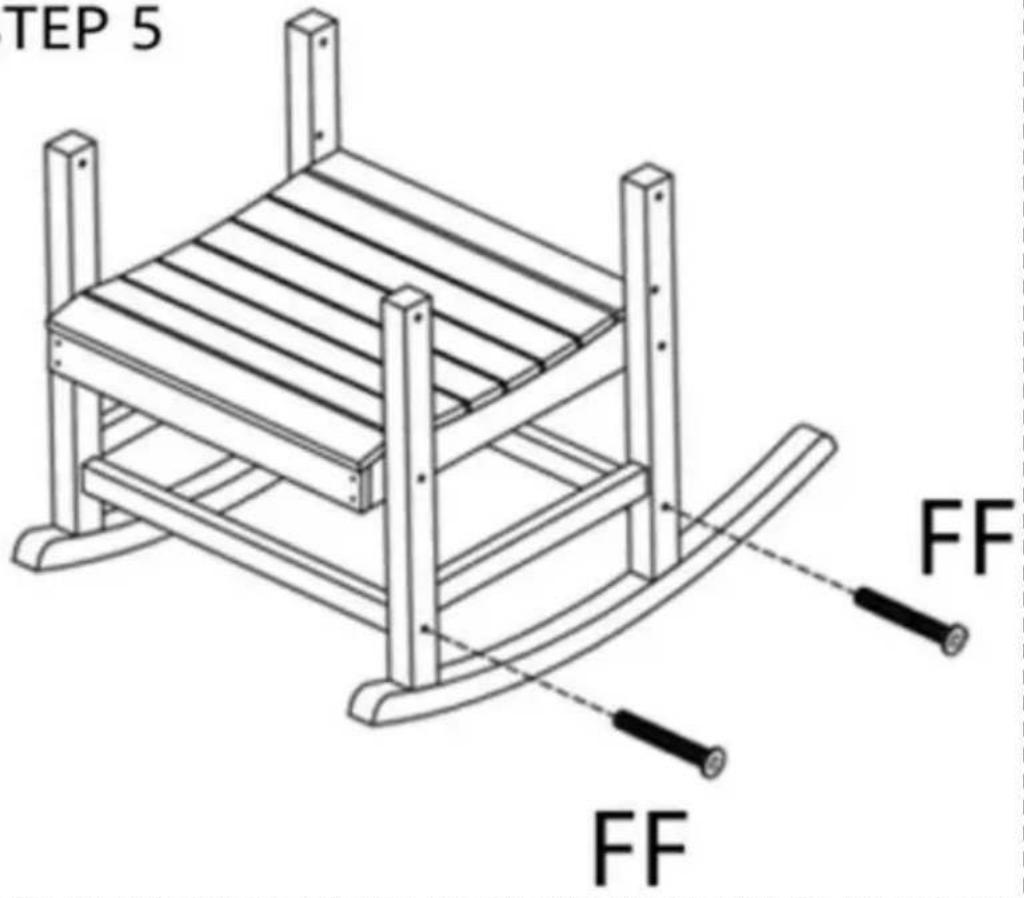

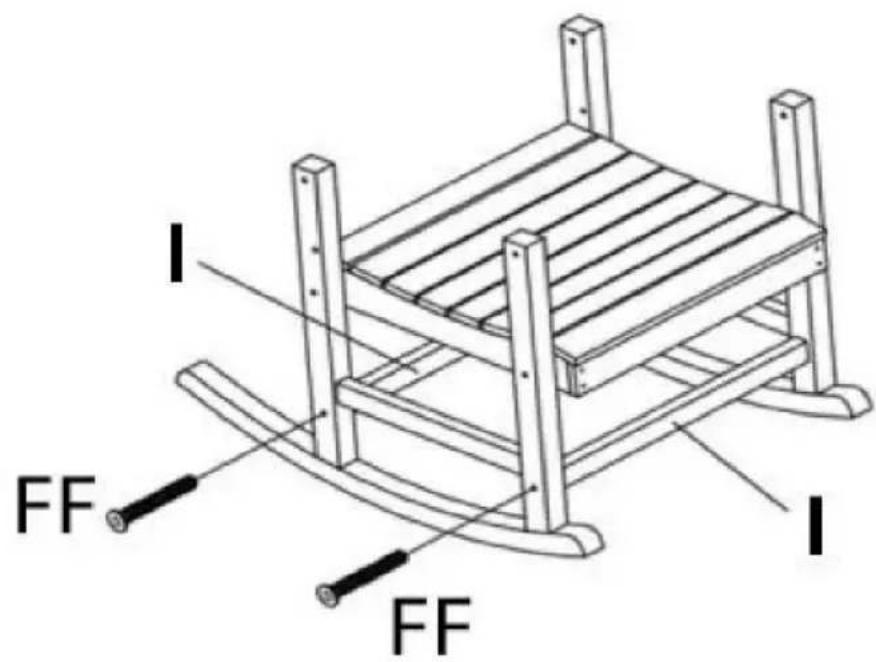

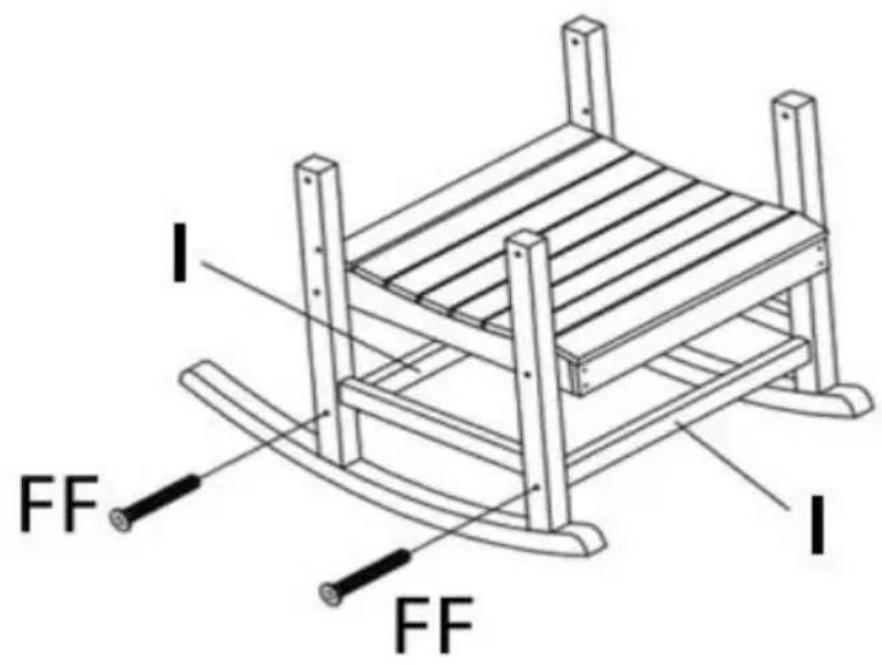

STEP 5

STEP 5

STEP 6

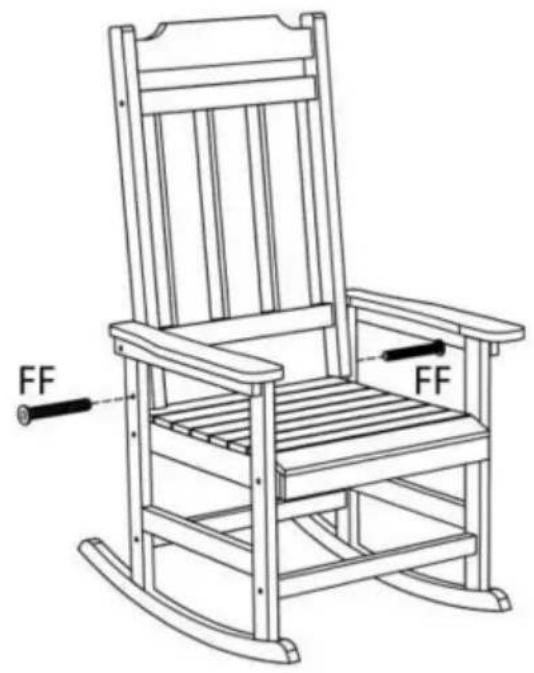

STEP 7

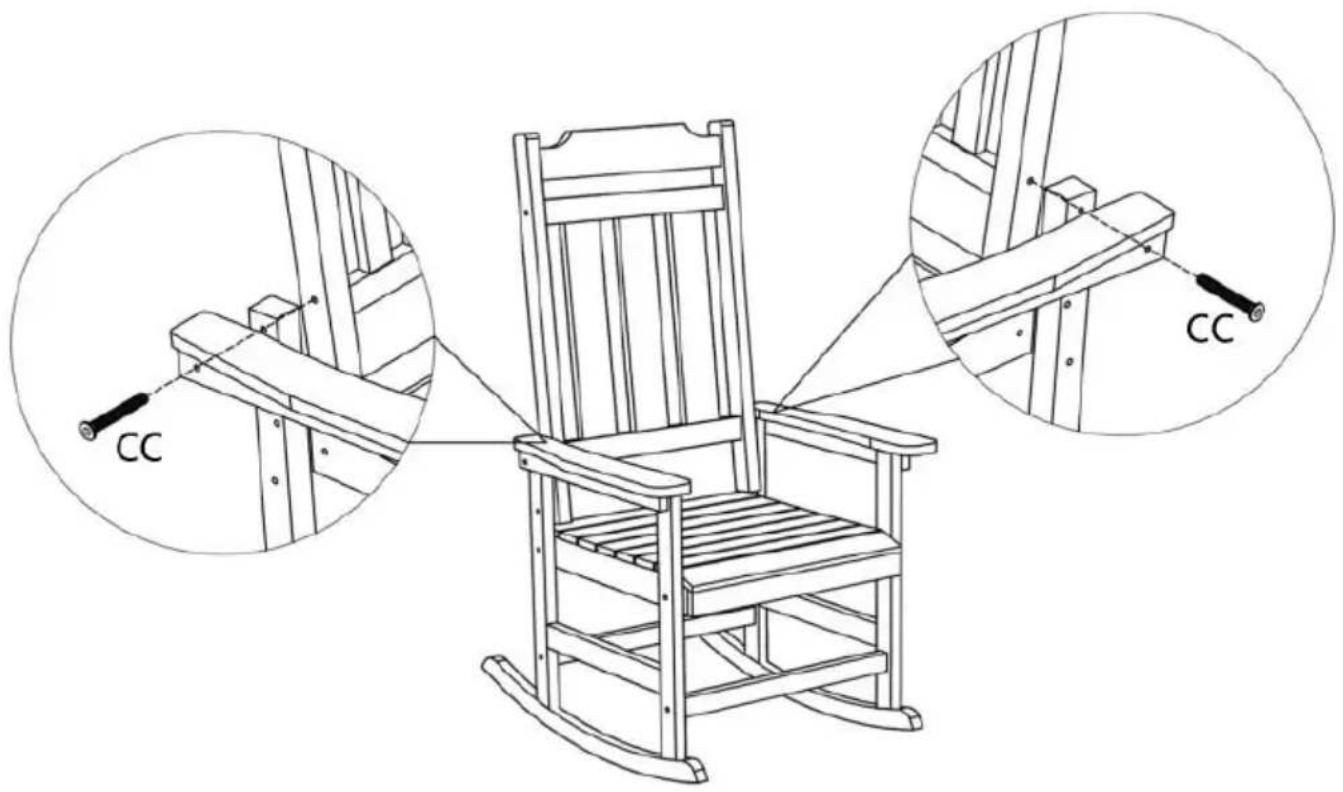

STEP 8
