TDGC2-2000VA - Voltage regulator Vevor - Free user manual and instructions

Product Type	Single-phase auto-transformer voltage regulator
Model	TDGC2-2000VA
Brand	Vevor
Output Capacity	2000 VA (2 KVA)
Input Voltage	120 V (North American market) or 230 V (European and Australian markets)
Output Voltage	0-130 V (120 V market) or 0-300 V (230 V market), continuously adjustable
Maximum Output Current	15 A (120 V) or 6.6 A (230 V)
Thermal Protection	Automatic shutdown at ~100 °C, automatic reset at ~85 °C
Overload Protection	Resettable circuit breaker with reset button
Fuse	Spare fuse included (4 pieces)
Adjustment	Rotary knob acting on a carbon brush
Applications	Chemical industry, metallurgy, machinery, instruments, scientific experiments, public installations, household appliances
Operating Conditions	Ambient temperature -15 to +40 °C, max altitude 1000 m, max relative humidity 90%, non-explosive and non-corrosive environment
Prohibition	Do not use two devices in parallel
Maintenance	Regularly check the carbon brush; clean contacts if necessary
Grounding	Connect the ground wire to the housing
Included Accessories	User manual, 4 spare fuses
Standards	Compliant with FCC Part 15; European WEEE directive 2012/19/EC

Frequently Asked Questions - TDGC2-2000VA Vevor

What is the input voltage of the TDGC2-2000VA regulator?

The input voltage depends on the market: 120 V for the North American market, 230 V for European and Australian markets. Check your device's label to confirm.

How to adjust the output voltage?

Turn the rotary knob to change the position of the carbon brush on the coil. This changes the turns ratio and adjusts the output voltage from 0 to the maximum value (130 V or 300 V depending on the model).

What to do if the regulator shuts down automatically during use?

Automatic shutdown may be due to internal overheating (thermal protection) or overload. Wait for the device to cool down (temperature below ~85 °C); the output will be restored automatically. If the problem persists, check that the load current does not exceed the rated current (15 A or 6.6 A).

Can I connect two regulators in parallel?

No, it is prohibited to use two or more devices in parallel. This could damage the regulators and create a safety hazard.

What is the overload protection?

The regulator is equipped with an overload protector (circuit breaker) that automatically cuts off the output in case of excessive current. To reset it, press the reset button after verifying that the load is not short-circuited and the rated current is not exceeded.

How to maintain the regulator?

Regularly check the condition of the carbon brush and contacts. Ensure the contact width does not exceed two wires. Clean the contact surfaces if necessary. Keep the device in a clean and dry environment.

What accessories are included with the device?

The package contains a user manual and four spare fuses. Make sure to keep them for future interventions.

Where should I install the regulator?

Install it in a dry, well-ventilated place, free from vibrations, explosive or corrosive gases, and dust. The ambient temperature should be between -15 and +40 °C, and the altitude should not exceed 1000 meters.

What to do if the fuse blows?

Unplug the device, remove the defective fuse, and replace it with a fuse of the same rating provided in the package. If the problem persists, check the load or contact after-sales service.

What is the warranty for this regulator?

The warranty is provided by Vevor. For more information, consult the electronic warranty certificate at www.vevor.com/support or contact the dealer.

USER MANUAL TDGC2-2000VA Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Contact Voltage Regulator Instruction Manual

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

	Warning-To reduce the risk of injury, user must read instructic manual carefully.
	This device complies with Part 15 of the FCC Rules. Operati subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any interfere received, including interference that may cause undesired opera
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of data on our product.

- Basic principle: The regulator is a self-coupling transformer whose circle ratio can be adjusted continually. Main axes act with the brush frame when the regulator brush recurs to the hand-wheel. The circle ratio can be changed continually when sliding with the grind surface of the coil, so that the output voltage adjusts from zero to max smoothly.

- Main structure: The product is a single-phase 0.5KVA~3KVA adjustable voltage structure. The coil on the upper surface has a certain wide smooth surface fixed on the FRP base, and the contact carbon brush is closely matched with the grinding surface under the action of spring stress. The hand wheel drives the carbon brush to regulate the voltage on the enameled wire grinding surface, and the standard product regulator is vertical with a safety ventilation cover on the outside.

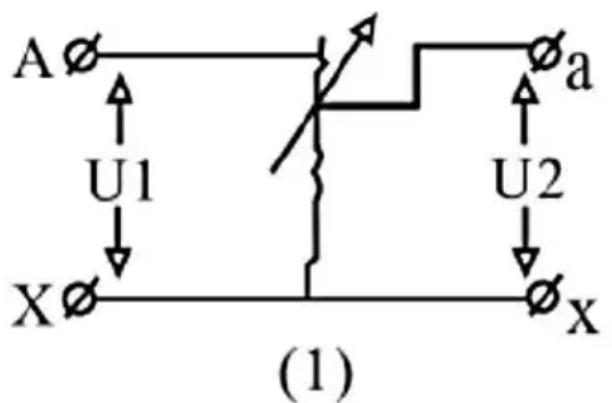

●The voltage regulator coil set is connected as shown in Figure 1.

1. U1 is the input voltage (V) 2. U2 is the output voltage (V) 3. X is the contact carbon brush

- The variable carbon brush is connected to the a-end of U2, and the output voltage of U2 becomes lower when the carbon brush moves to the X-end, and the output voltage of U2 becomes higher when the carbon brush moves to the a-end.

Warning: U1 is the power input and U2 is the power output, and the sets of terminals cannot be reversed, otherwise the equipment will be damaged.

Contact regulators do not lack fidelity in waves. Portable size, lightweight, high efficiency, convenience to use, reliability and durability in movement can be widely used in industries (such as the chemical industry, metallurgy, instrumentation, machine manufacture, light industry), scientific experiments, public facilities, and household appliances to achieve the aims of voltage regulation, temperature, light regulation, power control, etc.

SPECIFICATIONS

● North American market.

Model	output capacity (KVA)	Input voltage (V)	Output voltage (V)	Max.output current (A)
TDGC2-500VA	0.5	120	0-130	3.8
TDGC2-1000VA	1	120	0-130	7.6
TDGC2-2000VA	2	120	0-130	15
TDGC2-3000VA	3	120	0-130	23

Warning: The maximum current at the output must not exceed the maximum current indicated in the specification table, otherwise the device may be damaged.

● European and Australian markets.

Model	output capacity (KVA)	Input voltage (V)	Output voltage (V)	Max.output current (A)
TDGC2-500VA	0.5	230	0-300	1.6
TDGC2-1000VA	1	230	0-300	3.3
TDGC2-2000VA	2	230	0-300	6.6
TDGC2-3000VA	3	230	0-300	10

Warning: The maximum current at the output must not exceed the maximum current indicated in the specification table, otherwise the device may be damaged.

SERVICE CONDITIONS

● The average ambient temperature is +40 degrees Celsius to -15 degrees Celsius. ● The pressure regulator should not be installed more than 1000m above sea level, with 90% relative humidity of the air. ● The power supply voltage wave type is a sine wave. ● It should be used in an environment free of explosive and corrosive substances such as gas, smoke, chemical dirt, and dust discharge. ● The site of use should be free of severe vibration and water immersion. ● Two or more devices are not allowed to be used in parallel. ● When using under special conditions that do not meet the above conditions, please contact our customer service.

Note:

- This product has a built-in temperature protection switch. When the internal temperature of the machine exceeds about 100 degrees Celsius, the machine will automatically turn off the voltage output, and the output will be automatically restored when the internal temperature of the machine is lower than about 85 degrees Celsius.

- When the machine automatically shuts off the output during use, please check whether the current used has exceeded the rated current of the machine, otherwise the machine will always be in the cycle of auto shutdown and automatic start.

- Most of the machines are equipped with overload protectors. When it operates improperly, the overload protector will automatically jump out and turn off the voltage output. At this time, please check whether the load is short-circuited or seriously over-rated current, and after confirming that it is correct, you can press the reset button of the overload protector by hand and the equipment will restart working.

- In use, if the device suddenly stops working, and after resetting the overload protector and waiting for the temperature of the device to drop, the device still cannot work normally, at this time, please take out the

fuse of the device and replace the current fuse in the device with the attached one in the package.

CARE AND MAINTENANCE

● During normal operation, the regulator should be checked regularly with a charcoal brush and make sure that the brush and parts won't be more than the width of two wires. ● Connect the ground wire to the case of the device. When you're done using it, turn the hand wheel pointer to the "zero" position and cut power.

ACCESSORIES LIST

1. Operating instructions * 1
2. Current fuses * 4

Warning:

This equipment is high-voltage equipment. Do not attempt to disassemble it at any time to avoid danger. If the device cannot be restarted externally after a defect, please contact your dealer for assistance.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
