| Product Type | Voltage Regulator (Variable Autotransformer) |
| Brand | Vevor |
| Model | TDGC2-1000VA |
| Output Capacity | 1 KVA |
| Input Voltage | 120 V (North American model) / 230 V (European/Australian model) |
| Output Voltage | 0-130 V (120 V input) / 0-300 V (230 V input) |
| Maximum Output Current | 7.6 A (120 V input) / 3.3 A (230 V input) |
| Ambient Temperature Range | -15 °C to +40 °C |
| Maximum Installation Altitude | 1000 meters |
| Maximum Relative Humidity | 90% |
| Built-in Thermal Protection | Yes, triggers at ~100 °C, resets at ~85 °C |
| Overload Protection | Yes, with reset button |
| Spare Fuse Included | Yes, 4 fuses included |
| Grounding | Mandatory, ground wire must be connected to the housing |
| Voltage Adjustment | Continuous via knob, from 0 to maximum |
| Parallel Use Prohibited | Do not use two devices in parallel |
| Maintenance | Regularly check carbon brush and contacts |
| Accessories Included | User manual, 4 fuses |
| Warranty and Support | Electronic warranty certificate at www.vevor.com/support |
Frequently Asked Questions - TDGC2-1000VA Vevor
User questions about TDGC2-1000VA Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Voltage regulator in PDF format for free! Find your manual TDGC2-1000VA - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TDGC2-1000VA by Vevor.
USER MANUAL TDGC2-1000VA Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
Contact Voltage Regulator Instruction Manual
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
 | Warning-To reduce the risk of injury, user must read instructio manual carefully. |
 | This device complies with Part 15 of the FCC Rules. Operati subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any interfe received, including interference that may cause undesired opera |
 | This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.
- Basic principle: Regulator is a self-coupling transformer whose circle ra can be adjusted continually. Main axes act with brush frame when regulator brush recur to hand-wheel The circle ratio can be chang continually when slide with grind surface of coil so that output-volt adjust from zero to max smoothly.
- Main structure: The product is single-phase 0.5KVA\~3KVA Adjustable voltage structure. The coil on the upper surface has a certain wide smooth surface fixed on the FRP base, and the contact carbon bruclosely matched with the grinding surface under the action of spring stress. The hand wheel drive carbon brush regulates the voltage on enameled wire grinding surface, and the standard product regulator is vertical with a safety ventilation cover on the outside.

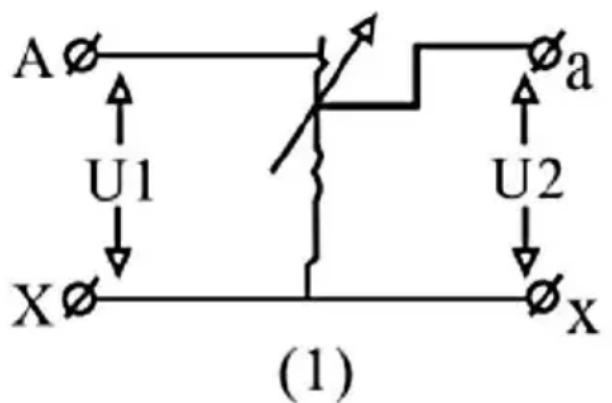

●The voltage regulator coil set is connected as shown in Figure 1.
1.U1 is the input voltage (V)
2.U2 is the output voltage (V)
3. ✗ is Contact the carbon brushes
- The variable carbon brush is connected to the a-end of U2, and the output voltage of U2 becomes lower when the carbon brush moves the X-end, and the output voltage of U2 becomes higher when the carbon brush moves to the a-end.
Warning: U1 is the power input and U2 is the power output, and sets of terminals cannot be reversed, otherwise the equipment will damaged.
PRODUCT FUNCTION AND USE
Contact regulators do not lack fidelity in waves. Portable size, lightwei high efficiency, convenience to use, reliability and durability in movement can be widely used in industries (such as the chemical industry ma metallurgy Instrument & appearance, machine manufacture, light-industrial) scientific experiments, public facilities, and household appliances to real the aims of voltage regulation, temperature, light regulation, power con etc.
SPECIFICATIONS
●North American market.
| Model | output capacity (KVA) | Input voltage (V) | Output voltage (V) | Max.output current (A) |
| TDGC2-500VA | 0.5 | 120 | 0-130 | 3.8 |
| TDGC2-1000VA | 1 | 120 | 0-130 | 7.6 |
| TDGC2-2000VA | 2 | 120 | 0-130 | 15 |
| TDGC2-3000VA | 3 | 120 | 0-130 | 23 |
Warning: The maximum current at the output must not exceed the maximum current indicated in the appeal table, otherwise the device v damaged.
●European and Australian markets.
| Model | output capacity (KVA) | Input voltage (V) | Output voltage (V) | Max.output current (A) |
| TDGC2-500VA | 0.5 | 230 | 0-300 | 1.6 |
| TDGC2-1000VA | 1 | 230 | 0-300 | 3.3 |
| TDGC2-2000VA | 2 | 230 | 0-300 | 6.6 |
| TDGC2-3000VA | 3 | 230 | 0-300 | 10 |
Warning: The maximum current at the output must not exceed the maximum current indicated in the appeal table, otherwise the device v damaged.
SERVICE CONDITIONS
●The average ambient temperature is +40 degrees Celsius to -15 degrees Celsius.
●The pressure regulator should not be installed more than 1000m above sea level, 90% relative humidity of the air.
●The power supply voltage wave type is a sine wave.
- It should be used in an environment free of explosive and corrosive substances such as gas, smoke, chemical dirt, and dust discharge.
●The site of use should be free of severe vibration and water immersion.
●Two or more devices are not allowed to be used in parallel.
- When using under special conditions that do not meet the above conditions, please contact our customer service.
Note:
- This product has a built-in temperature protection switch, when the internal temperature of the machine exceeds about 100 degrees Cel the machine will automatically turn off the voltage output, and the \ output will be automatically restored when the internal temperature of machine is lower than about 85 degrees Celsius.
- When the machine automatically shuts off the output during use, ple check whether the current used has exceeded the rated current of machine, otherwise the machine will always be in the cycle of auto shutdown and automatic start.
- Most of the machines are equipped with overload protectors, when it improperly, the overload protector will automatically jump out and turn the voltage output, at this time, please check whether the load is short-circuited, seriously over-rated current, and after confirming that it correct, you can press the reset button of the overload protector by and the equipment will restart working.
- In use, the device suddenly stops working, and the reset overload protector has waited for the temperature of the device to drop, and device still cannot work normally, at this time, please take out the
fuse of the device and replace the current fuse in the device with attached in the package.
CARE AND MAINTENANCE
●During normal operation, the regulator should be checked regularly with a charcoal brush and make sure that the brush and parts won't be more than the wide of two wires.
- Connect the ground wire to the case of the device. When you're doing using it, turn the hand wheel pointer to the "zero" position and cut power.
ACCESSORIES LIST
- Operating instructions * 1
- Current fuses * 4
Warning:
This equipment is a high-voltage equipment, do not attempt to disassemble this equipment at any time to avoid danger. After the defects, if the device cannot be restarted externally, please contact your dealer to deal with it.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
