USER MANUAL STB12A Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

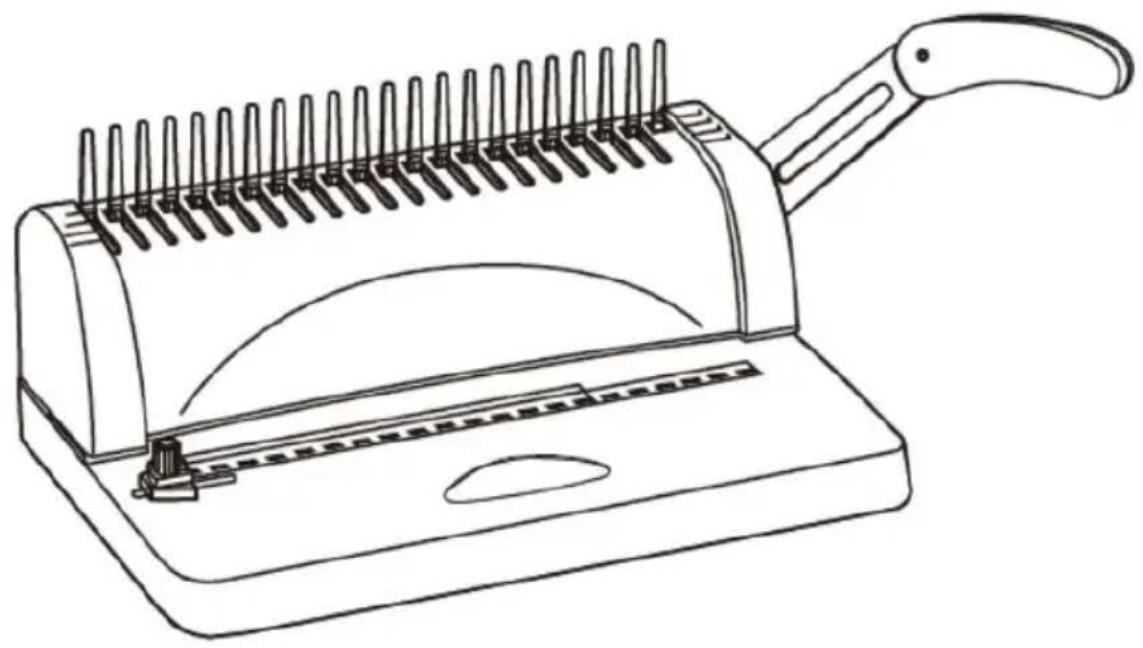

BINDING MACHINE
MODEL: STB12A
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: STB12A
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read instructions manual carefully.
WARMING & ATTENTIONS
Please do not let the child operate separately.
Take out the surplus parts from the packing box. Put the machin balanced and safe place to avoid falling off or causing any injury people or the machine.
Operate the machine strictly as per the manuals especially pay attention to the max Punching and binding capacity.
Please test the machine before you punch the official documents.
When punching the plastic covers, we suggest that the cover sho be clipped between two pieces of paper.
Please don't use the machine to punch hard materials such as m to avoid damage to the machine.
When clamping the plastic ring, pls don't put your fingers inside 1 area, otherwise, you will get hurt.
The machine is only dedicated to using plastic ring.
Please don't put the machine in wet places to avoid any liquid d inside.
For the first use, make a punch with blotting paper to suck up a lube from the blade.

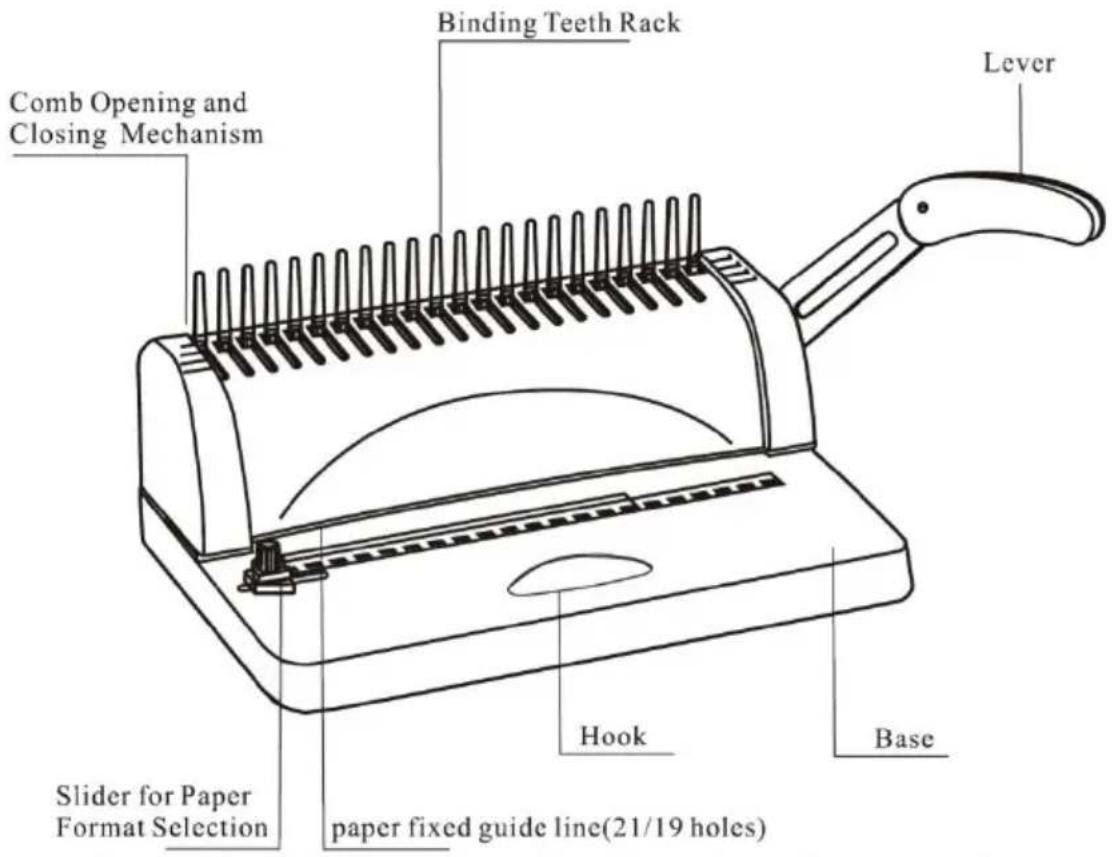

STRUCTURAL REPRESENTATION
| Punching Capacity: | 12 Sheets (A4 80g) |
| Binding Capacity: | 450 Sheets (A4) / 51mm plastic |
| Paper Margin: | 3/4/5 mm |
| Square Holes: | 21 holes |
| Square Hole Distance: | 14.3mm |
| Square Hole Size: | 3x8mm |
| Type of knife: | single knife |
| Paper Format: | A4 paper or smaller sizes |
| Machine Dimension: | 385*274*345mm |
| N.W.: | 3.5kg |
| Packing Dimension: | 440*190*330mm |
| G.W.: | 4kg |
PARTS LIST
| Parts Name | specification | Quantity |
| PVC comb strip | 3/8 inch black 21-rin | 100 pcs |
| Blotting paper | / | 1 pc |
| Instructions | / | 1 pc |
OPERATING GUIDE
Place the machine on a steady and even place before using!
For the first use, make a punch with blotting paper to suc excess lube from the blade

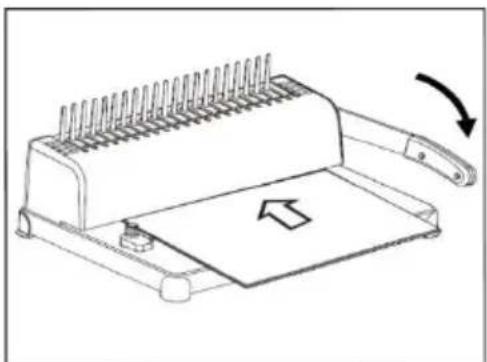

1. Punching Operation
◆ Move the slider for paper format to proper position according to the pap format of the document, and then in the document and press down the
◆ Punch the paper sheets needing bind

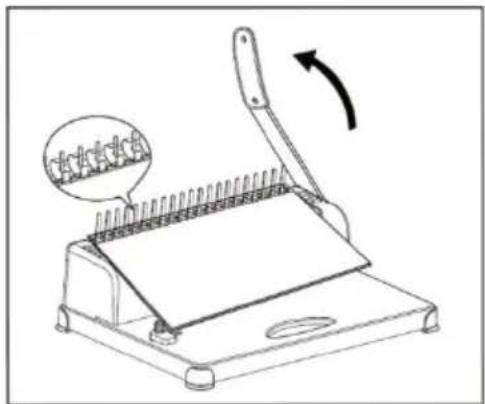

◆ Insert the punched sheets (cover she first) onto the comb.
◆ Put on the comb with opening on to press the lever backwards.
◆ Release the lever and take out the document. Done!
| Comb size (mm) | (inch) | Binding sheets | Comb size (mm) | (inch) | Binding sheets |
| 6 | 1/4" | 1-20 | 25 | 1 | 200-230 |
| 8 | 5/16" | 20-40 | 28 | 1-1/8 | 230-250 |
| 10 | 3/8" | 40-60 | 32 | 1-1/4 | 250-290 |
| 12 | 1/2" | 60-80 | 35 | 1-3/8 | 290-320 |
| 14 | 9/16" | 80-100 | 38 | 1-1/2 | 320-360 |
| 16 | 5/8" | 100-120 | 45 | 1-3/4 | 360-400 |
| 20 | 3/4" | 120-150 | 51 | 2 | 400-450 |
| 22 | 7/8" | 150-200 |
MAINTENANCE
Clean up the waste bin
The waste bin, which is located at the back of the machine, is dedi the waste of punching. The frequency of cleaning up the waste bin depends on the frequency you use the machine.
- Pull out the waste bin from the back of the machine
- Pour the waste into the rubbish bin.
- And insert the waste bin again.
Please clean up the waste bin frequently!
PROBLEMS & SOLUTIONS
| Problems | Reasons | Solutions |
| 1.The lever couldn't be pressed down when punching | Paper scraps or other hard materials stay inside the paper cutter | Clean up the rubbish with hardboard |
| Exceeding the punching capacity | Operate according to the manual | |
| 2.Slanting paper margin | The paper is lopsided when inserting | Take out the paper a put in again |
| Paper scraps or other hard materials stay inside the paper cutter | Clean up the rubbish with hardboard | |
| 3.Slanting plastic comb open | The binding mechanism distorted | Just the binding teeth on the rack |
| The comb opening hook distorted | Press opens the com opening mechanism and just the hook | |
| 4.Paper punching is not complete and it's hard to pull out the paper | Exceeding the max. Punching capacity | Lessen the punching thickness (follow the manual) |
| 5.Paper couldn't touch the rack who inserting | The paper is old with the side rolling up | Smooth the paper and insert again |
