USER MANUAL STD12B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BINDING MACHINE

MODEL: STD12B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: STD12B

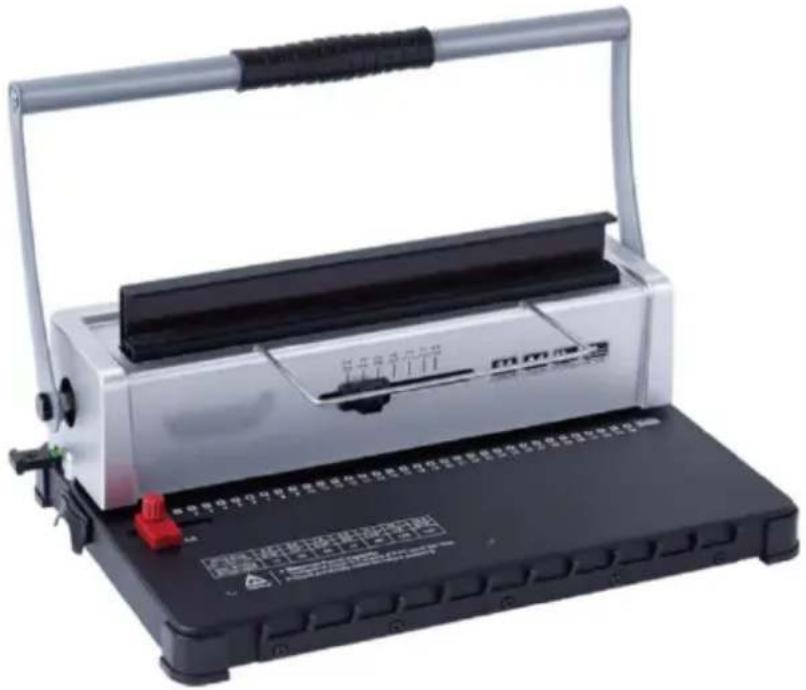

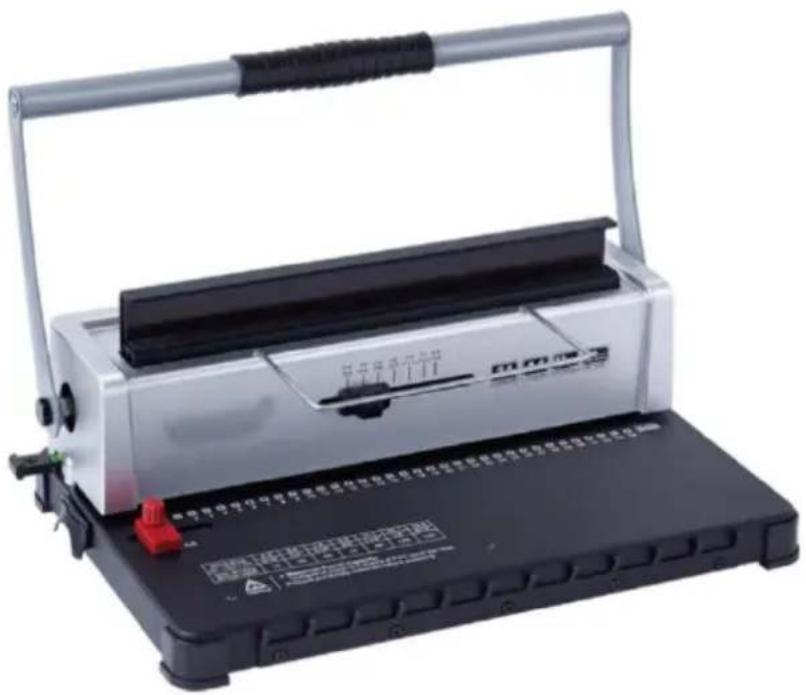

Exterior view of a silver filing press machine with black base and metal handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

WARMING & ATTENTIONS

Read this operation manual carefully before using.
Keep the machine separately from children.
Keep the machine away from fire and liquid.
Put the machine on a stable and safe place in order to prevent falling or causing any injury to people or the machine itself.
Test the machine with some scrap paper before formally punching binding, to make sure whether the position is correct to punch.
Take out the surplus parts from the packing box. Put the machin balanced and safe place to avoid falling off or causing any injury people or the machine.
Operate the machine strictly as per the manuals especially pay attention to the max Punching and binding capacity.
Please test the machine before you punch the official documents.
When punching the plastic covers, we suggest that the cover sho be clipped between two pieces of paper.
Please don't use the machine to punch hard materials such as m to avoid damage to the machine.
When clamping the plastic ring, please don't put your fingers inside this area, otherwise, you will get hurt.
Max punch capacity: 10-12 sheets (Paper Thickness: 80g(<20lb) paper) Note: If you use paper of other thickness, please reduce the paper according to the actual situation!
For the first use, make a punch with blotting paper to suck up excess lube from the blade

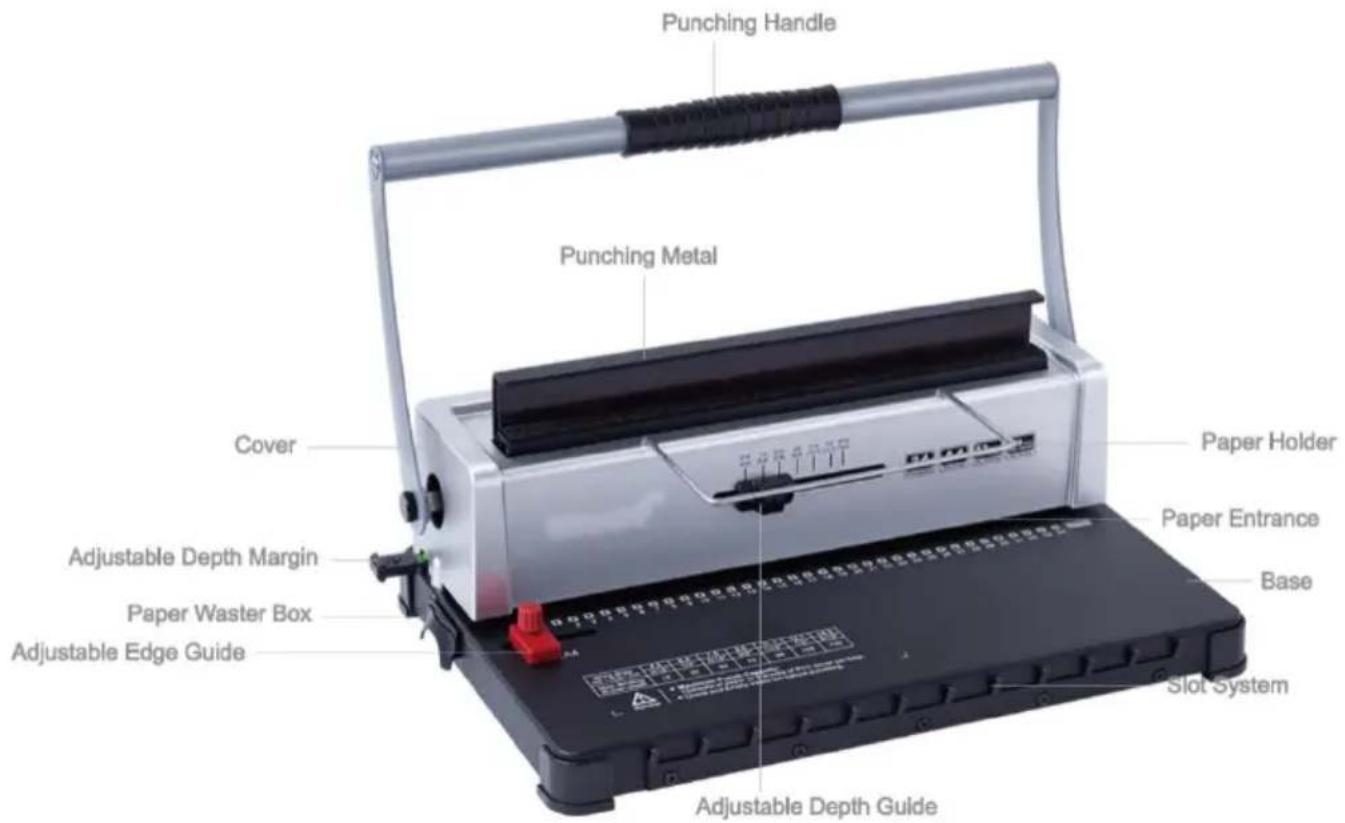

STRUCTURAL REPRESENTATION

Punching Handle Punching Metal Cover Adjustable Depth Margin Paper Waster Box Adjustable Edge Guide Paper Holder Paper Entrance Base Slot System Adjustable Depth Guide

TECHNICAL SPECIFICATIONS

Punching Capacity:	12 Sheets (A4 80g)
Binding Capacity:	120 Sheets (A4)
Paper Margin:	3/5/7 mm
Square Holes:	34 holes
Square Hole Distance	8.46mm
Square Hole Size	4x4mm
Type of knife	double knife
Paper Format:	A4 paper or smaller sizes
Machine Dimension:	370*245*260mm
N.W.:	4.9kg
Packing Dimension:	440*190*310mm
G.W.:	5.3kg

PARTS LIST

Parts Name	Quantity
Paper shelf	1 pc
Blotting paper	1 pc
Instructions	1 pc

OPERATING GUIDE

Place the machine on a steady and even place before using!

For the first use, make a punch with blotting paper to suck up lube from the blade.

1. Punching Operation

1

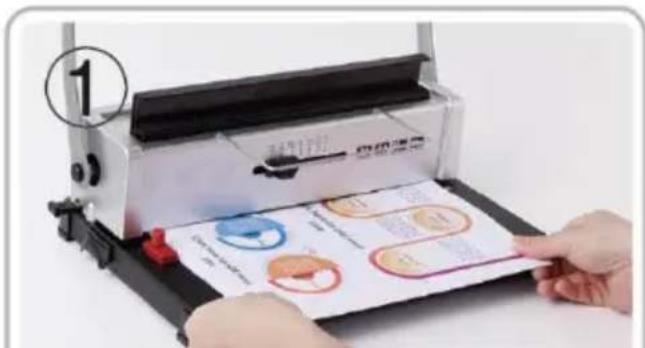

Depending on the size of the binding file, select the location of the binder and insert the file

② 2

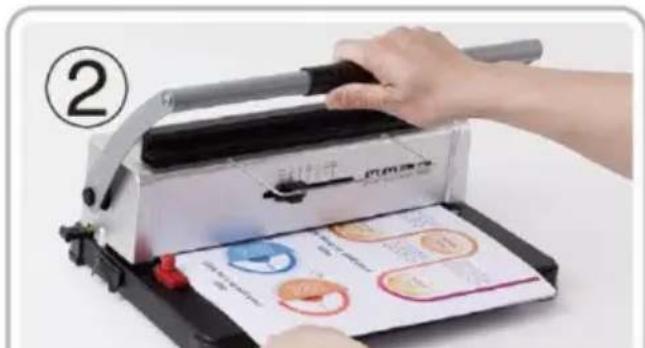

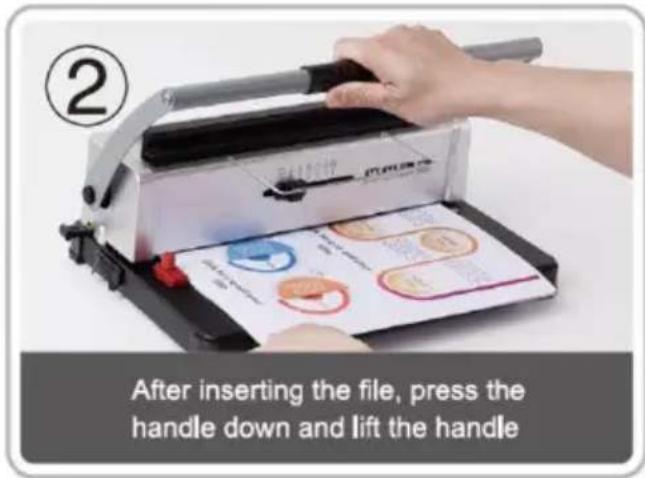

After inserting the file, press the handle down and lift the handle

2. Binding Operation

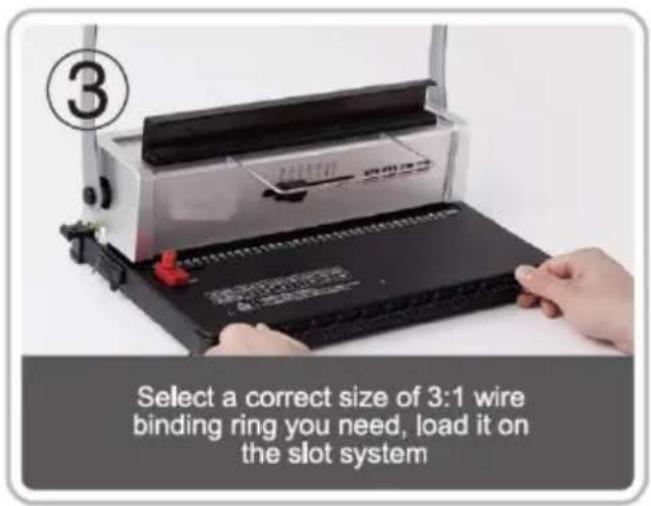

Select a correct size of 3:1 wire binding ring you need, load it on the slot system

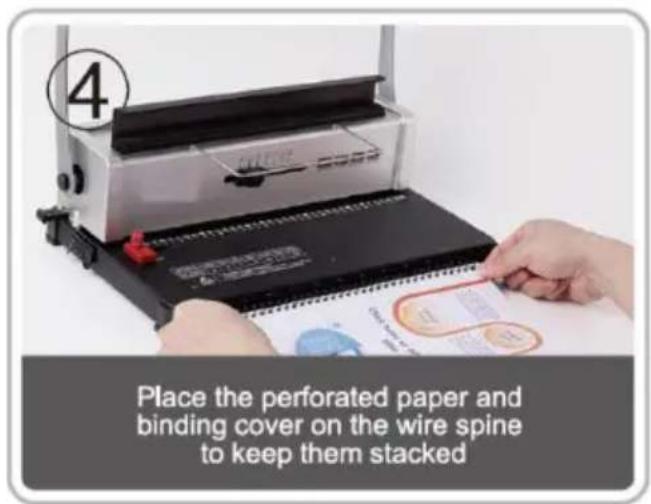

Place the perforated paper and binding cover on the wire spine to keep them stacked

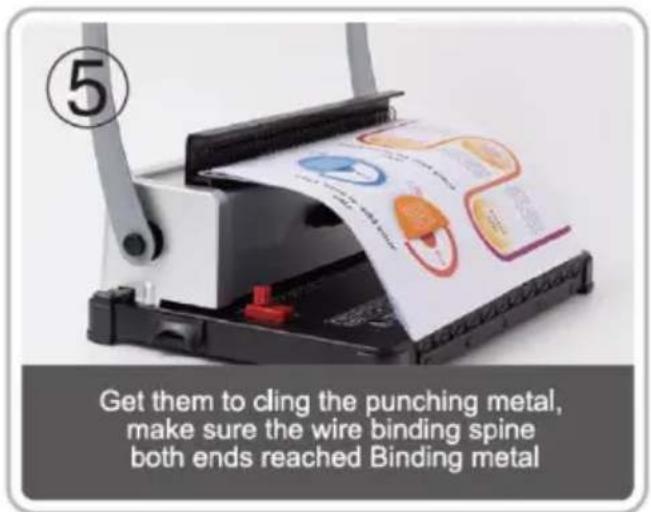

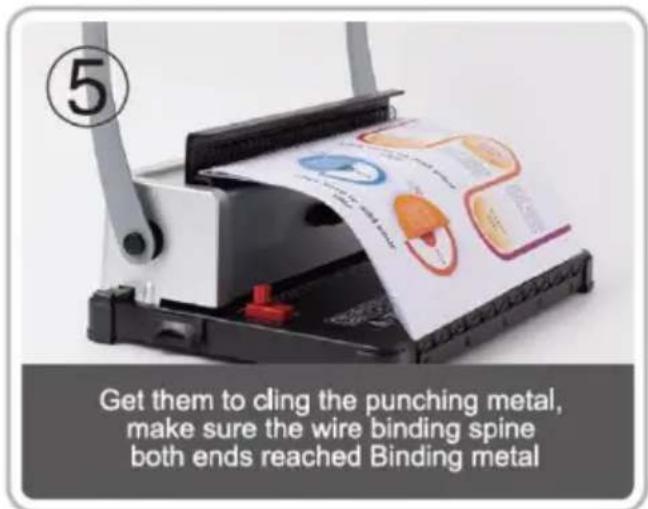

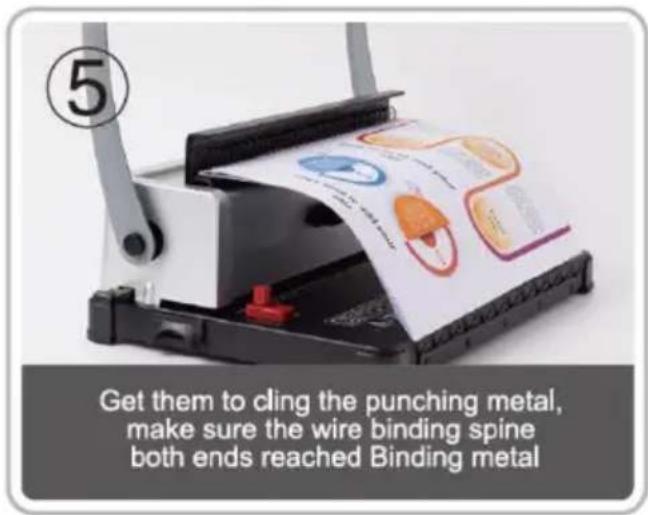

⑤ Get them to cling the punching metal, make sure the wire binding spine both ends reached Binding metal

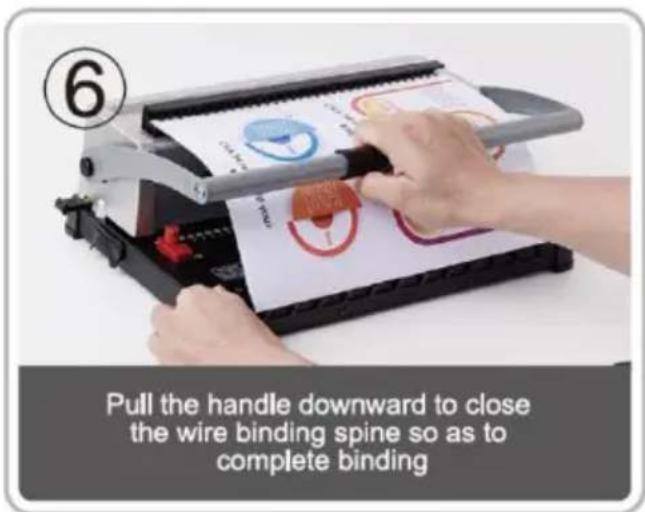

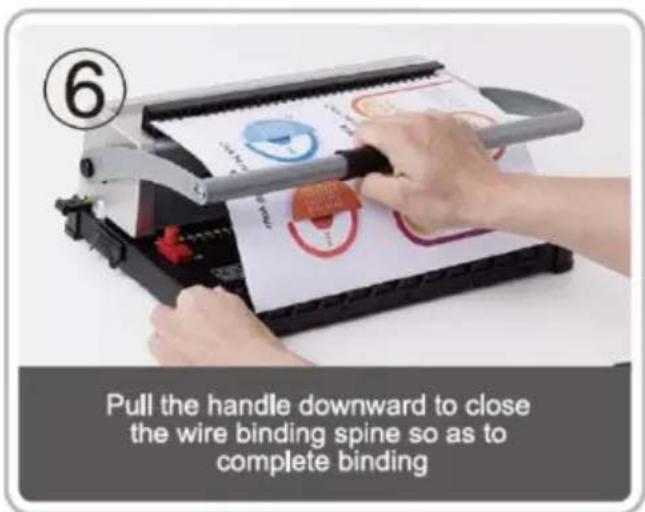

⑥ Pull the handle downward to close the wire binding spine so as to complete binding

◆ Choose the Iron hoop according to the thickness of the document. following form is for your reference to choose the proper Iron ho

Wire size (mm)	Wire size (inch)	Max.Binding sheets	Wire size (mm)	Wire size (inch)	Max.Binding sheets
4.8	3/16	15	11.1	7/16	95
6.4	1/4	30	12.7	1/2	105
7.9	3/8	75	14.3	9/16	120
9.5	3/8	75

3. Clean up the waste bin

◆ The waste bin, which is located at the back of the machine, is dedicated for the waste of punching. The frequency of cleaning up waste bin depends on the frequency you use the machine.

1. Pull out the waste bin from the back of the machine
2. Pour the waste into the rubbish bin.
3. And insert the waste bin again.

Please clean up the waste bin frequently!

PROBLEMS & SOLUTIONS

Problems	Reasons	Solutions
1. The handle couldn't be pressed down when punching	Paper scraps or other hard materials remain inside the punch slot	Clean up the foreign matte
	Exceeding the max. punching capacity or use the other thickness paper	Reduce the paper according to the actual situation
2. The paper margin is slanting	The paper is lopsided when inserting	Take out the paper and p in again
	Paper scraps or other hard materials remain inside the punch slot	Clean up the foreign matte
3. Paper punching is impenetrable or hard to pull out the paper	Exceeding the max. punching capacity or use the other thickness paper	Lessen the punching thickness or reduce the paper according to the actual situation (follow the manual)
4. Paper couldn't touch the rack when inserting	The paper is dilapidated with rolled-up paper edges	Smooth the paper and put in again

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

BINDMACHINE

MODEL: STD12B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: STD12B

Exterior view of a silver filing press machine with black base and handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARMING & ATTENTIONS

Depending on the size of the binding file, select the location of the binder and insert the file

② After inserting the file, press the handle down and lift the handle

2. Bindende bewerking

Select a correct size of 3:1 wire binding ring you need, load it on the slot system

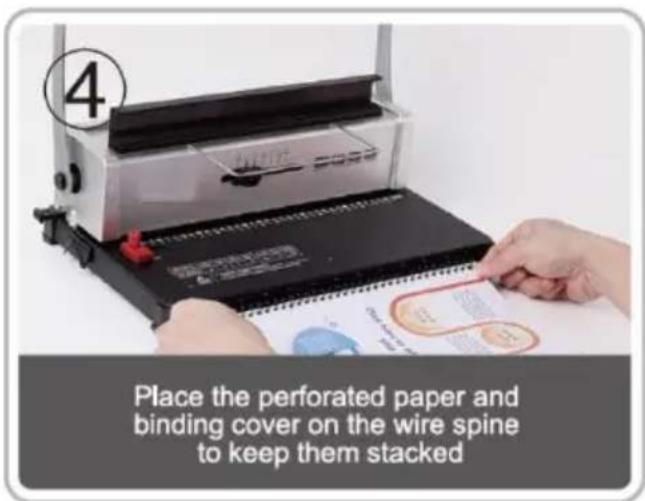

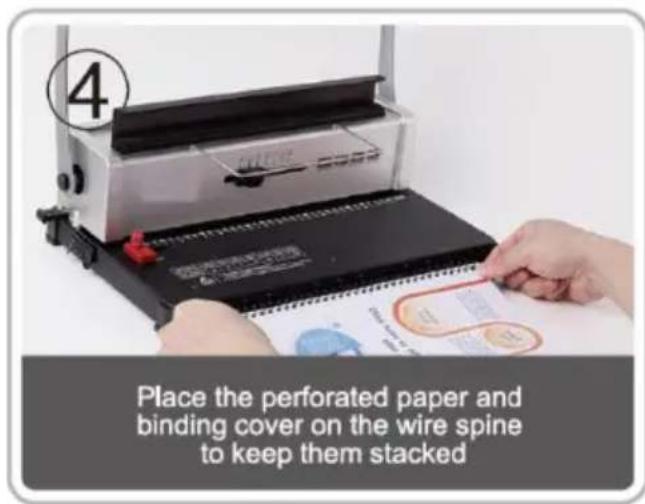

4 Place the perforated paper and binding cover on the wire spine to keep them stacked

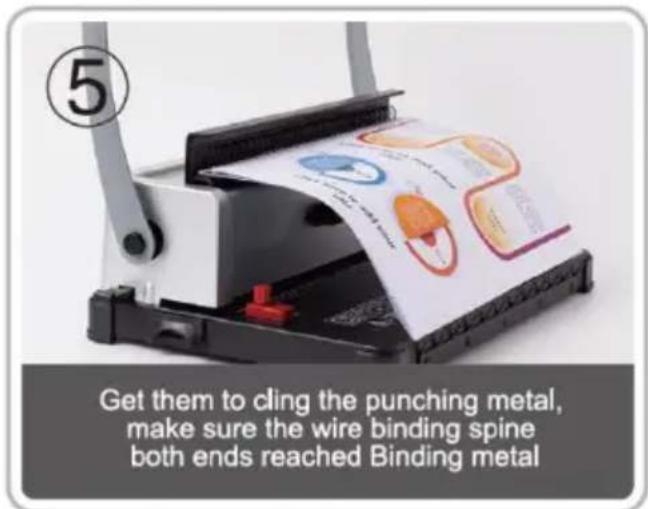

⑤ Get them to cling the punching metal, make sure the wire binding spine both ends reached Binding metal

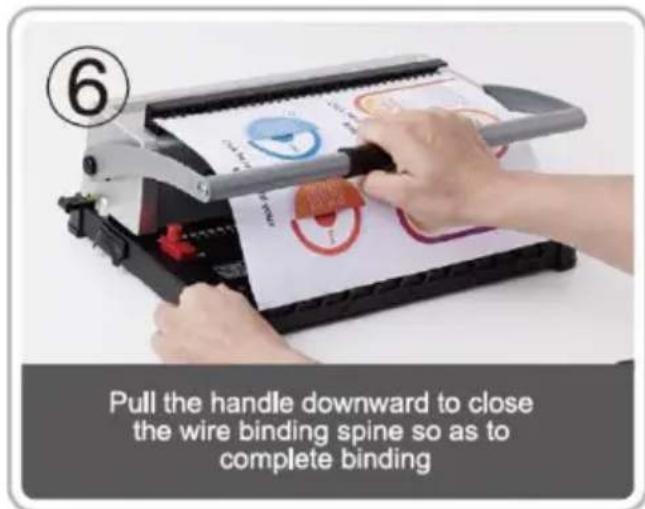

⑥ Pull the handle downward to close the wire binding spine so as to complete binding

PROBLEMS & SOLUTIONS

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: STD12B

Exterior view of a silver filing press machine with black base and handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARMING & ATTENTIONS

Depending on the size of the binding file, select the location of the binder and insert the file

2 After inserting the file, press the handle down and lift the handle

2. Bindande operation

Select a correct size of 3:1 wire binding ring you need, load it on the slot system

4 Place the perforated paper and binding cover on the wire spine to keep them stacked

⑤ Get them to cling the punching metal, make sure the wire binding spine both ends reached Binding metal

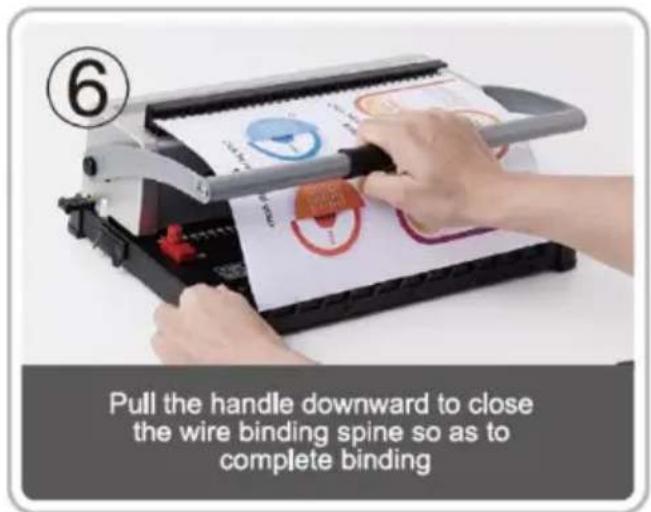

⑥ Pull the handle downward to close the wire binding spine so as to complete binding

PROBLEMS & SOLUTIONS

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: CODICE ARTICOLO: STD12B

Exterior view of a silver filing press machine with black base and handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARMING & ATTENTIONS

Person printing a printed document with colorful circular diagrams and a page, labeled with number 1 in the top-left corner.

Depending on the size of the binding file, select the location of the binder and insert the file

② 2

After inserting the file, press the handle down and lift the handle

Select a correct size of 3:1 wire binding ring you need, load it on the slot system

Place the perforated paper and binding cover on the wire spine to keep them stacked

⑤ Get them to cling the punching metal, make sure the wire binding spine both ends reached Binding metal

⑥ Pull the handle downward to close the wire binding spine so as to complete binding

PROBLEMS & SOLUTIONS

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: STD12B

Exterior view of a silver filing press machine with black base and handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARMING & ATTENTIONS

Depending on the size of the binding file, select the location of the binder and insert the file

② After inserting the file, press the handle down and lift the handle

Select a correct size of 3:1 wire binding ring you need, load it on the slot system

Place the perforated paper and binding cover on the wire spine to keep them stacked

⑤ Get them to cling the punching metal, make sure the wire binding spine both ends reached Binding metal

⑥ Pull the handle downward to close the wire binding spine so as to complete binding

PROBLEMS & SOLUTIONS

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: STD12B

Exterior view of a silver filing press machine with black base and handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARMING & ATTENTIONS

Depending on the size of the binding file, select the location of the binder and insert the file

② After inserting the file, press the handle down and lift the handle

2. Bindungsvorgang

Select a correct size of 3:1 wire binding ring you need, load it on the slot system

Place the perforated paper and binding cover on the wire spine to keep them stacked

⑤ Get them to cling the punching metal, make sure the wire binding spine both ends reached Binding metal

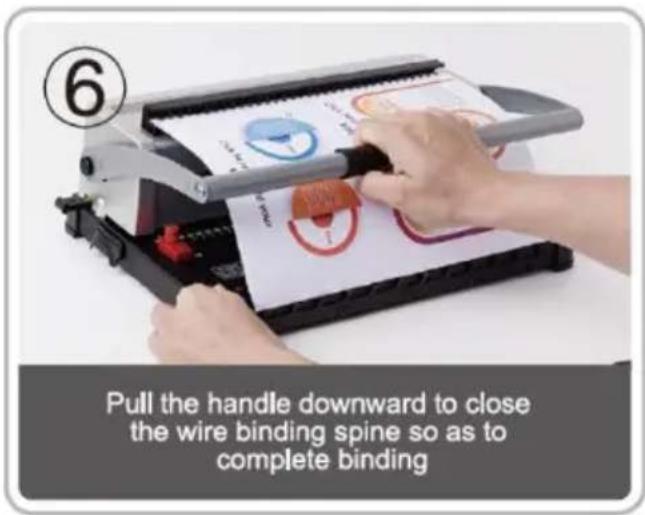

⑥ Pull the handle downward to close the wire binding spine so as to complete binding
