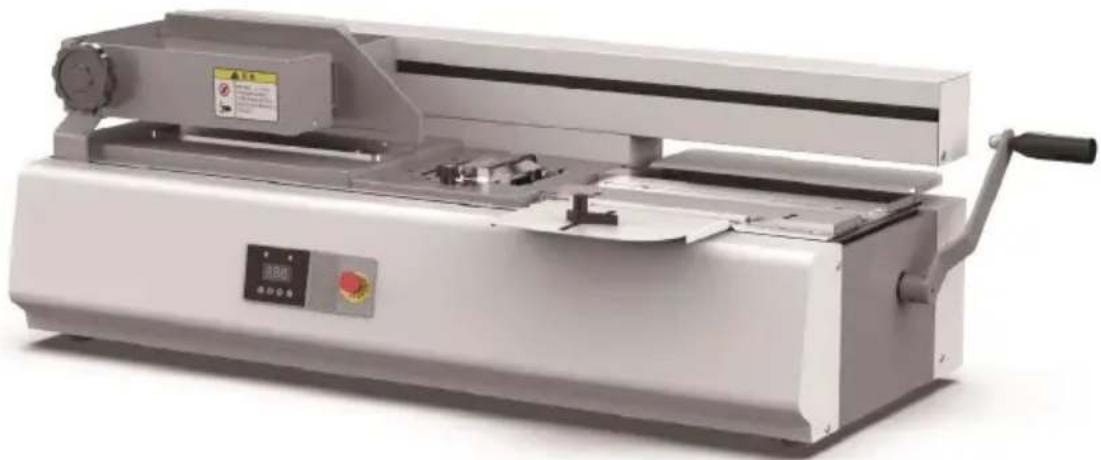

GLUE BINDER MACHINE USER MANUAL

MODEL:B40M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GLUE BINDER MACHINE

MODEL: B40M

Note: Each instrument is tested and adjusted before leaving the factory, there is hot melt glue residue at the glue outlet, which is a normal phenomenon.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel in contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CATALOG

I·Safety precautions. 3
II Equipment introduction 4
III Technical parameters. 4
IV Out-of-the-box inspection and installation 5
V Parameter settings. 6
VI Operations 7
VII·Routine Maintenance 9

Note:Please read this manual carefully first in order to realize and this kind machine,It will help you improve the work efficiency,brin into play the function of machine ,prolong service life of the ma

I、SAFETY PRECAUTIONS

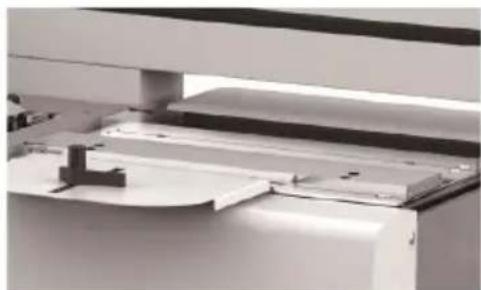

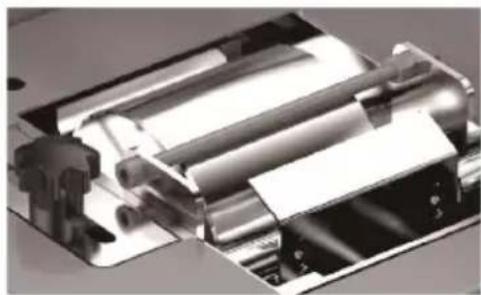

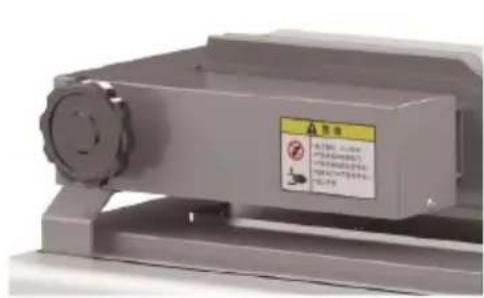

Use the machine carefully at any time. It is strictly forbidden to touch heated plastic box. Children are not allowed to enter the studio to ascalding and accidents. Do not place hands and other items on the track to avoid scalding and accidents. Please pay attention to the foll safety precautions in use and maintenance: stable placement, safe grounding, no overload, and correct use of power supply.

Place: the machine should be placed on dry, clean and stable ground the operation space should be suitable. It is strictly forbidden to place articles on the machine.

Power supply: please use a stable power supply with grounding according to the value specified on the name plate. Stability can cause machine to run abnormally.

Grounding: for safety, please use the power socket with grounding. No disassembly: it is forbidden to disassemble, refit and repair with permission. If there is a fault, please cut off the power supply and of the local dealer.Before installing,debugging and operating the machine, you must read the instructions.Master all operation requirements before use.

Cleaning and maintenance: cut off the power supply before cleaning maintaining the machine.

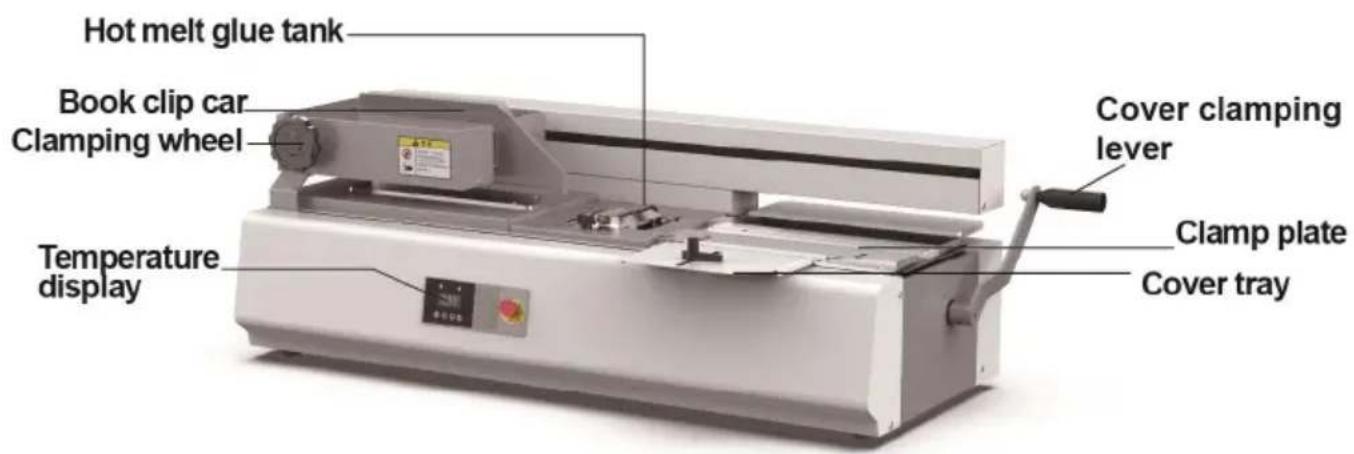

II、EQUIPMENT INTRODUCTION

II、EQUIPMENT INTRODUCTION

Item	B40M
Maximum Binding Length	320mm
Maximum Binding Thickness	40mm
Recommended Temperature Setting	140-170°C
Power Supply Characteristics	AC120V 60Hz	AC220V 50Hz
Total Power	600W
Product size	969*471*349 mm

Note: Due to technical improvements, actual parameters of the machine may vary. Thank you for your understanding!

IV、OUT-OF-THE-BOX INSPECTION AND INSTALLATION

1. Open the outer package, remove the four packing bolts in the box, place the machine on a solid and level ground.

Check the host and accessories:

(1) 1 host computer;
(2) 1 manual;
(3) Hot melt adhesive 200g;
(4) toolkit.

Suggestion: please keep the packing wooden case and plastic bag for second transportation.

1. When there is no problem after checking, you can enter the installation stage. Transport the machine to the pre-set workshop, pay attention to safety, smoothly transport the machine to the working room, place it on solid and flat ground, adjust the working position, and brake the caste brake.
   3.Power on. Connect the power plug of the machine to the power so correctly. Pay attention to whether the power of the wiring board matches the power of the machine, so as to avoid accidents and turn on the switch of the machine.
   4.Preheat. After turning on the power switch of the machine, the mac will automatically enter the preheating state. When the set temperature value is reached, it can enter the working state.

V、PARAMETER SETTINGS

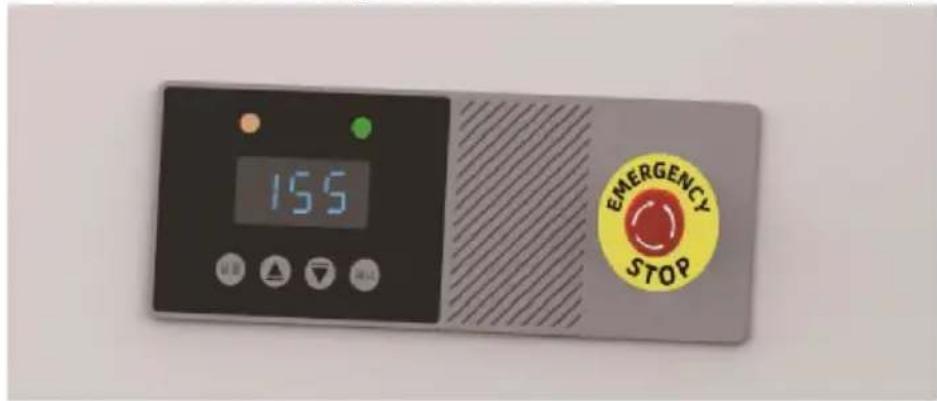

1. Connect the power, turn on the power switch, click on "Settings", a the temperature to 155^ C. Use "▲" and "▼" buttons to adjust heating temperature, then click "Confirm". The machine will start heating as shown in the figure below.

2. The red light above the digital tube indicates that the machine is up; when the green light is on, it means that the machine has react set temperature and can work normally.

3. Place the inner pages into the carriage and manually tighten the cap place the cover on the cover platform, aligning the top with the positive block, aligning the midpoint with the triangular mark, and aligning the side of the cover with the cover positioning gauge.

4.Emergency Stop Switch: When the emergency stop switch is turned

C

reached, the green indicator light will illuminate, indicating that the glu completely melted. At this point, the machine is ready for operation.

1. Manually move the carriage to the far right. Then, manually press the clamp lever to clamp the cover, and wait for about 3-5 seconds before releasing the lever.

Warning: Due to the slight odor emitted after the hot melt adheses melted, in order to maintain indoor air freshness, it is recommended to install an exhaust pipe to connect to the outdoors or to regulate ventilate the indoor air.

1. Daily Maintenance:

After the daily work is finished, the power switch should be turned o the main power supply should be disconnected. Clean any residual gl spilled on the surface around the glue tank.

Warning: Make sure to allow the temperature to cool down before performing any cleaning or maintenance tasks.

2. Monthly Maintenance:

After one month of use, in addition to regular daily and weekly maintenance, apply mechanical lubricating oil to all transmission parts, sprockets, chains, and check the tightening of various structural fasteners

This product complies with the provisions of the European Directive 2012/19/EC. The symbol marked with a crossed out wheelie bin indicates that this product requires separate recycling in the EU. The same is products and all accessories marked with this symbol. Products marked such must not be disposed of with normal household waste, but must taken to a collection point for the recycling of electrical and electronic

equipment.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
