USER MANUAL SP-N4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BUBBLE LEVEL

MODEL:SP-N4 /SP-C4/SP-N6/SP-C6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:SP-N4 /SP-C4/SP-N6/SP-C6

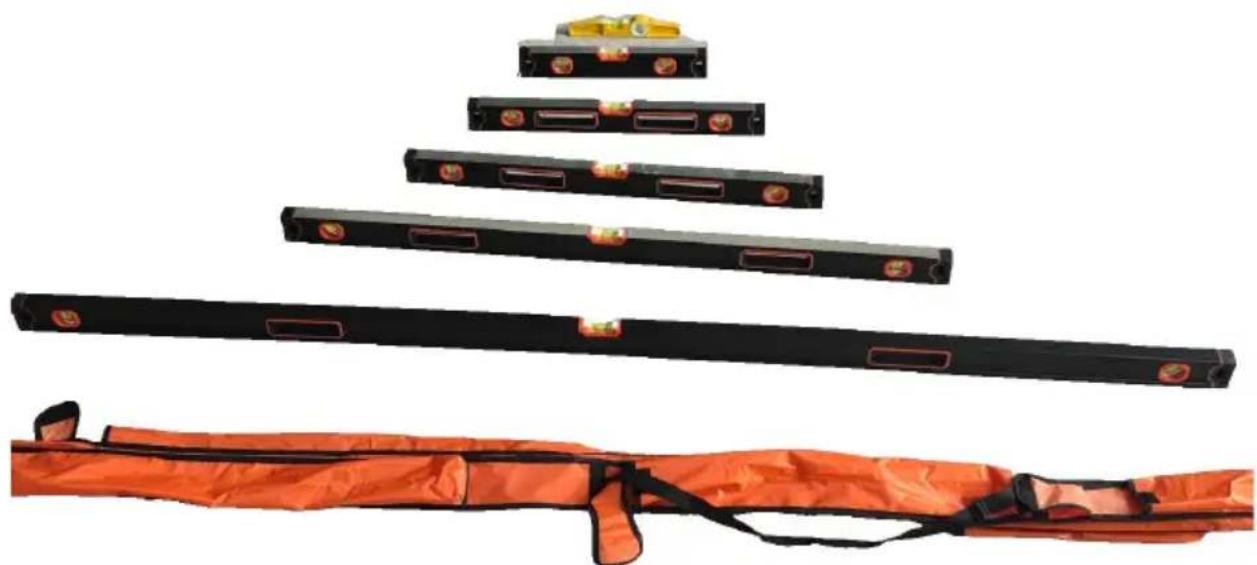

Exploded view of a mechanical device with orange banding and multiple black components, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Product use considerations

1. Bubble level is a precision instrument that cannot be removed, adjust and modify the instrument parts to avoid accuracy decline or damage.
2. Pay attention to protect the working face of the instrument to avoid scratches and scratches, otherwise it will affect the measurement result
3. Check regularly whether the level bubble installation is firm, and who the surface is clean and transparent.
4. Before measurement, wipe the measuring surface of the instrument, otherwise it will affect the measurement results.
5. Do not use instruments in vibration or unstable environments
6. Read until the bubble stabilizes
7. Bubble levels should not be used by children

PARAMETER LIST

Model	SP-N4	SP-C4	SP-N6	SP-C6
length specification	10inch×1pc16inch×1pc24inch×1pc48inch×1pc	10inch×1pc16inch×1pc24inch×1pc48inch×1pc	10inch×1pc16inch×1pc24inch×1pc32inch×1pc48inch×1pc78inch×1pc	10inch×1pc16inch×1pc24inch×1pc32inch×1pc48inch×1pc78inch×1pc
Magnetic specification	10inch	All instruments	10inch×1pc	All instruments
Level bubble accuracy	0.5mm/m

Note: Model SP-N4, SP-C4, SP-N6, and SP-C6 are all equipped with storage bags.

Specifications

The 10-inch bubble level length is 250 ~mm bottom working face with magnetism and measurable angles of 0 and 90 degrees.

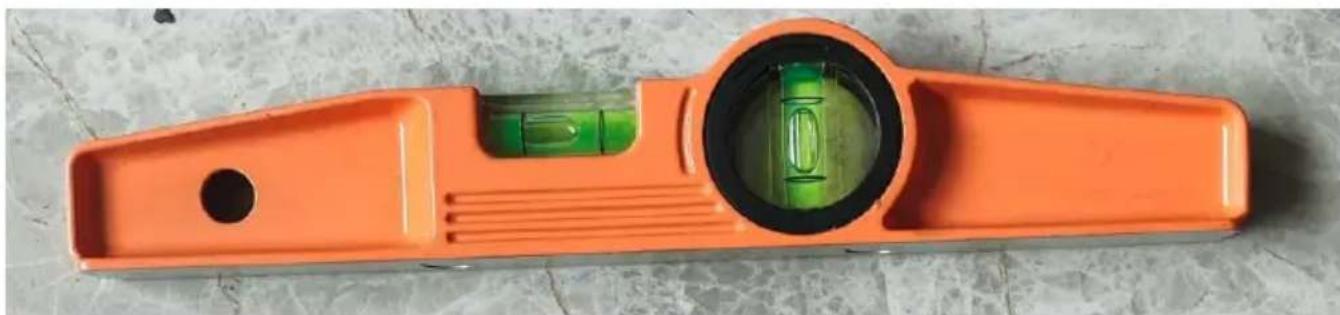

Orange plastic lever with green liquid level indicator on a concrete floor (no text or symbols visible)

The 16-inch bubble level is 400 ~mm long, with measurable angles of ( ) and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

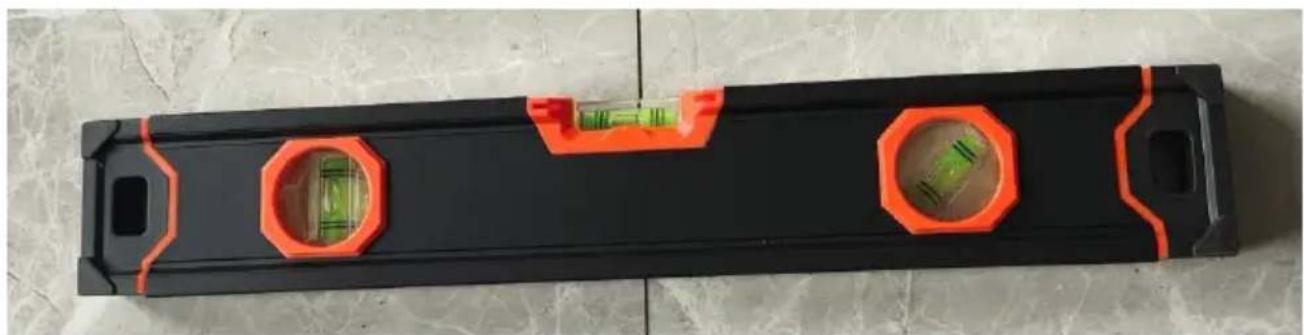

Top-down view of a black plastic tray with orange octagonal markers and green measurement markings, placed on a tiled floor (no text or symbols visible)

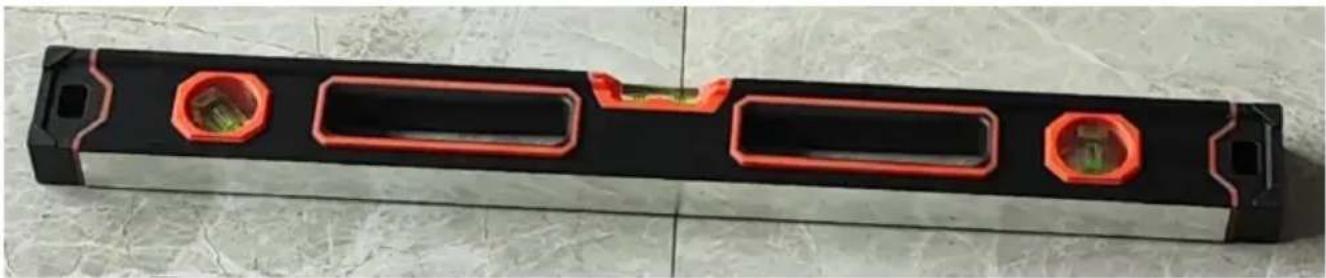

The 24-inch bubble level is 600 ~mm long, with measurable angles of (1 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

Black and red industrial measuring tool with orange circular components, placed on a tiled floor (no text or symbols visible)

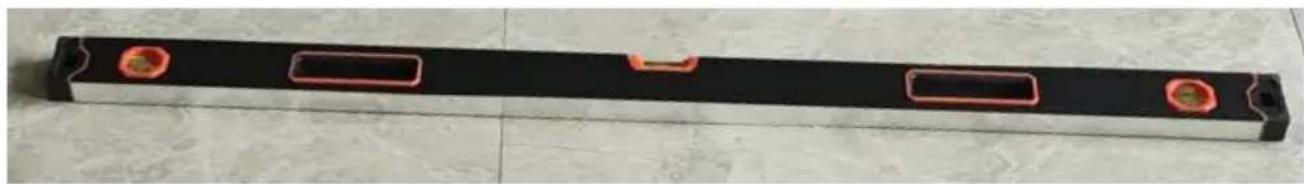

The 32-inch bubble level is 600 ~mm long, with measurable angles of (1 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

Black rectangular object with orange circular markings on a tiled floor, no visible text or symbols

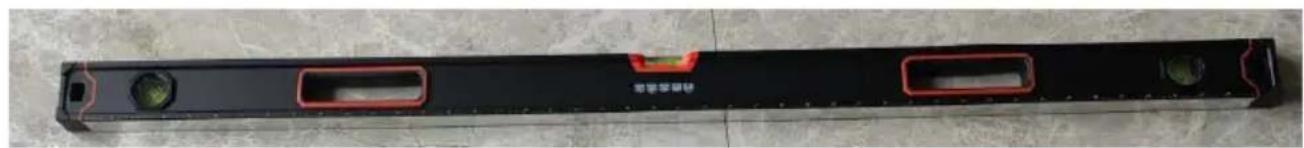

The 48-inch bubble level is 600 ~mm long, with measurable angles of (1) and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

Black metal optical scale with red measurement markings and green circular ports, placed on a concrete floor (no text or symbols visible)

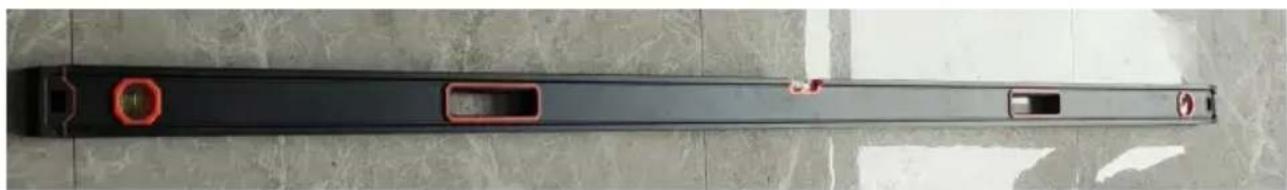

The 72-inch bubble level is 600 ~mm long, with measurable angles of (1 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

Exterior view of a black rectangular electronic component with red circular markers and a small inset showing a green indicator light (no text or symbols visible)

Direction For Use

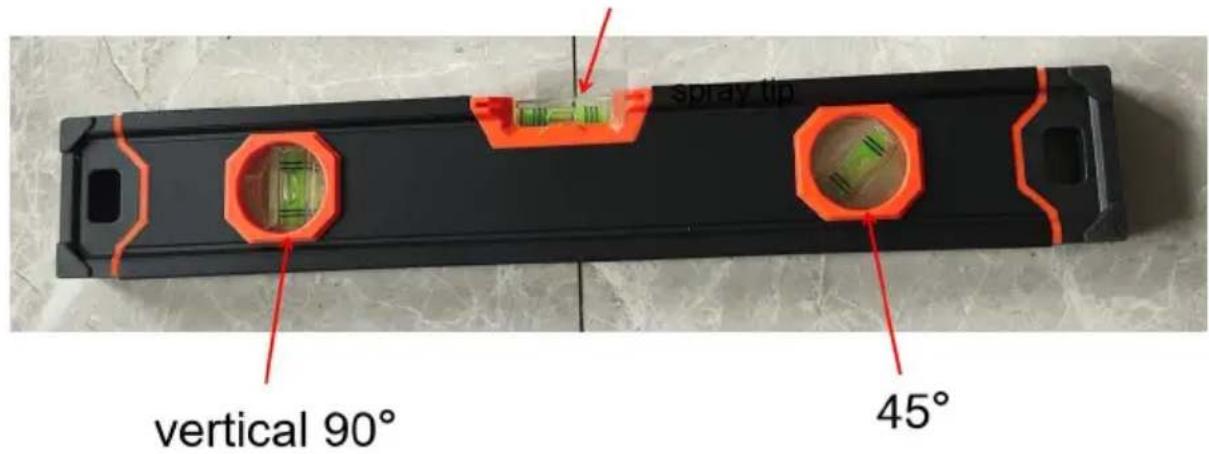

1. The diagram shows a horizontal bubble at all angles.

horizontal 0^

spray tip vertical 90° 45°

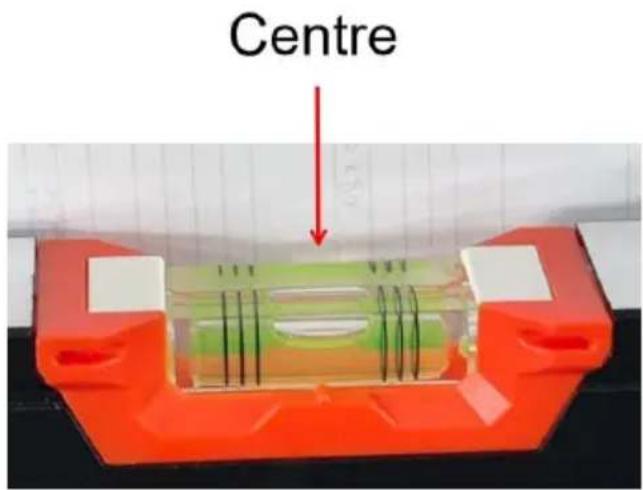

1. When the bubble is in the middle of the leveling bubble, it means that the plane of the measured object has reached the selected point of the leveling bubble, otherwise the plane of the object needs to be adjusted again.

Centre

1. Check your Spirit Level for Accuracy before the use. You can follow these steps

- Place the level on a flat surface.

• Make one mark at the end of the level.
• Make another mark along the side of the level, under the vial in the center.
  • Take a reading of the bubble's position.
• Rotate the level 180^ end-to-end and align the level with your marl

4. Use Spirit Levels

Find the horizontal, vertical, or 45 degrees vial on your level and no two lines. Your level probably has two small vials or liquid-filled tubes horizontal and vertical. You will use the horizontal vial to find the ho plane. You will notice that the vial has a bubble and two lines in the which are called guidelines.

• When you measure your horizontal object, and the bubble falls between the two guidelines, it is flat, even, or “level”. Another way of thinking this is that a level object is completely parallel to the horizon.
• If during your horizontal measurement, you find that the bubble is the left guideline, then your object's left side is higher than your right. Likewise, if the bubble is outside the right guideline, your right side is higher than your left.
• When you measure your vertical object, and the bubble falls between two guidelines, then it is completely vertical, or “plumb.” A plumb object perpendicular to the earth.
• If during your vertical measurement, you find that the bubble is out the top guideline, then your object's top side is bulging forward. Like the bubble is outside the bottom guideline, your object's bottom side forward.

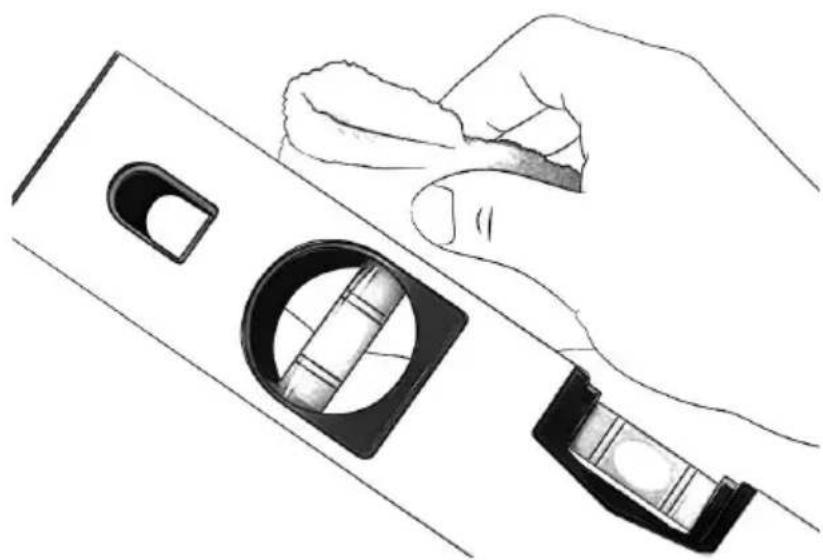

5. Clean both the level and the object prior to taking your reading

Dirt and debris can throw off the level, which can be sensitive. Just brushing a gloved hand across the level and object can be enough to ensure an accurate reading. If you use your level often, remove any accumulated dirt on its edges.

Illustration of a hand holding a small object with a curved handle and two circular components, no text or symbols present.

6.Position your level in the center of your object.

Your horizontal object might be a couple of bricks, a framed picture, or even the ground. Meanwhile, a vertical object could be a wall, ca doorframe, or fencepost. First, check whether the bubble is within the guidelines, to its right or left (horizontal) or the top or bottom (vertical). If your object is very wide or tall, you may find that an average-s level cannot give you an accurate reading on its own. In this case, easiest solution is to find a larger level. Consider investing in a level least 1 meter (3.3 feet) long for the most versatility. Another option is the level on top of a long or tall straightedge during your measurement.

center

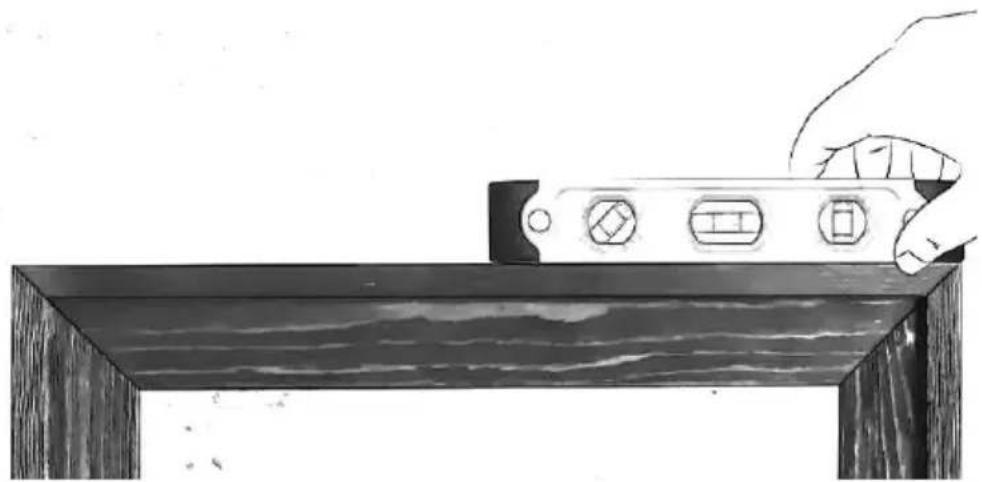

7. Double-check by moving the level away from the center.

Move the level to the right or left for horizontal readings or top or vertical readings. Sometimes, levels could be better made, damaged, or defective, which renders their readings inaccurate. You can always

double-check the reading by re-positioning the level on the object and ensuring the reading is the same.

Hand holding a metal scale with four square buttons on a wooden table (no text or symbols visible)

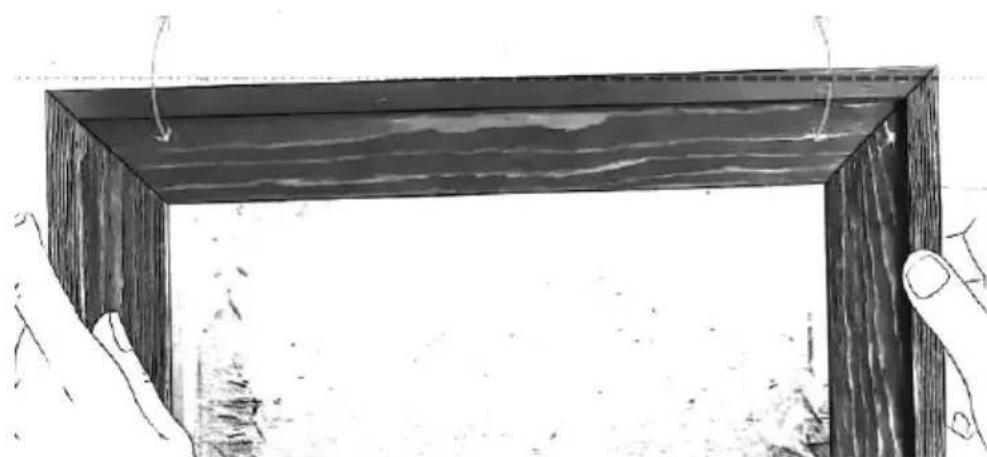

8. Take the appropriate action to level your object if necessary.

If you discover that your object is unlevel, you may level it. For exa your horizontal object is a couple of bricks, you can add more morta the brick that is resting lower. Or, if your vertical object is a cabinet may add a filler piece between the cabinet and the wall it rests on.

- In some cases, you may want an unlevel reading! For example, th be the case if you measure rain gutters or a patio on the horizontal which must have a slight slope to drain rain properly. Some levels h outer lines in the vial, which measure the 2-percent slope, or “grade,” necessary for these projects.

Simple line drawing of a wooden frame with two fingers extending outward (no text or symbols)

9.MAINTENANCE

The horizontal ruler is easily preserved. It can be hung somewhere fl a table or drawer without affecting its straightness and parallel. It is accessible to rust if it is light aluminum and magnesium grade. The horizontal ruler does not need to be oil during use. Storage is gently with a thin layer of ordinary industrial oil if not used for a long time

• Take another reading. If the level is accurate, the bubble will be in same position for both readings.
- To test the vertical vial, follow the same procedure against a flat surface.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exploded view of a basketball aiming tool with orange banding and multiple black target strips (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Orange plastic mechanical component with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with orange circular markings on a tiled floor (no text or symbols visible)

Black rectangular electronic component with red mounting holes and green indicator lights, placed on a tiled floor (no visible text or symbols)

Top-down view of a black rectangular electronic component with red circular markers and a small orange ring, placed on a tiled floor (no text or symbols visible)

Mode d'emploi

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Hand holding a tool on a wooden table with three measurement tools (no text or symbols visible)

Illustration of a wooden frame with hands holding it, showing wood grain and a small object on the right (no text or symbols)

9. ENTRETIEN La

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Exploded view of a basketball aiming tool with orange banding and multiple black sighters (no text or symbols visible)

Orange plastic mechanical part with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on a tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with red circular markers on a tiled floor (no text or symbols visible)

Black rectangular electronic component with red mounting holes and green indicator lights, placed on a tiled floor (no visible text or symbols)

Top-down view of a black rectangular electronic component with red circular markers and a small circular mark on the left side, placed on a tiled floor (no text or symbols visible)

Gebrauchsanweisung

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Hand holding a metal scale with three square buttons on a wooden surface (no text or symbols)

Illustration of a wooden frame with hands holding it, no text or symbols present

9. WARTUNG Das

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Exploded view of a basketball aiming tool with orange banding and multiple black sighters (no text or symbols visible)

Orange plastic mechanical part with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on a tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with orange circular markings on a tiled floor (no visible text or symbols)

Black rectangular electronic component with red mounting holes and green indicator lights, placed on a tiled floor (no visible text or symbols)

Top-down view of a black rectangular electronic component with red circular markers and a small inset showing a green indicator light (no text or symbols visible)

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Hand holding a tool on a wooden table with three measurement tools (no text or symbols visible)

Illustration of a wooden frame with hands holding it, showing wood grain and texture (no text or symbols)

9. MANUTENZIONE II

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Importato negli

USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Exploded view of a basketball aiming tool with orange banding and multiple black target strips (no text or symbols visible)

Orange plastic mechanical component with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with orange circular markings on a tiled floor (no text or symbols visible)

Black rectangular electronic component with red mounting holes and green spherical elements, placed on a tiled floor (no visible text or symbols)

Top-down view of a black electronic device with red circular markers and a small inset showing a green sensor or indicator (no text or symbols visible)

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Hand holding a tool on a wooden table with three measurement tools (no text or symbols visible)

Illustration of a wooden frame with hands holding it, no text or symbols present

9. MANTENIMIENTO

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

Exploded view of a basketball aiming tool with orange banding and multiple black sighters (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Orange plastic mechanical component with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with orange circular markings on a tiled floor (no text or symbols visible)

Black rectangular electronic device with red mounting holes and green indicator lights, placed on a tiled floor (no visible text or symbols)

Top-down view of a black rectangular electronic device with red circular markers and a small inset showing a green sensor or indicator (no text or symbols visible)

Sposób użycia

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Hand holding a tool on a wooden table with three measurement tools (no text or symbols visible)

Illustration of a wooden frame with hand gestures, showing interior and exterior views (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro

147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Exploded view of a mechanical device with orange band and black components, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Orange plastic mechanical component with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on a tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with orange circular markings on a tiled floor (no text or symbols visible)

Black rectangular electronic component with red mounting holes and green indicator lights, placed on a tiled floor (no visible text or symbols)

Top-down view of a black rectangular electronic device with red circular markers and a small inset showing a green sensor or indicator (no text or symbols visible)

Gebruiksaanwijzing

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Hand holding a tool on a wooden table with three square buttons, no text or symbols visible

Illustration of a wooden frame with hand gestures, showing interior and exterior views (no text or symbols)

9. ONDERHOUD De

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC-REP

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exploded view of a basketball aiming tool with orange banding and multiple black sighters (no text or symbols visible)

BEHÖVER HJÄLP? KONTAKTA OSS!

Orange plastic mechanical component with green liquid level indicator, placed on a concrete floor (no text or symbols visible)

Top-down view of a black plastic tray with orange octagonal enclosures and green measurement markings, placed on a tiled floor (no text or symbols visible)

Black and red industrial measuring tool with orange circular components on a tiled floor (no text or symbols visible)

Long black rectangular object with orange circular markings on a tiled floor (no text or symbols visible)

Black rectangular electronic component with red mounting holes and green indicator lights, placed on a tiled floor (no visible text or symbols)

Top-down view of a black rectangular electronic device with red circular markers and a small inset showing a green indicator light (no text or symbols visible)

Bruksanvisning

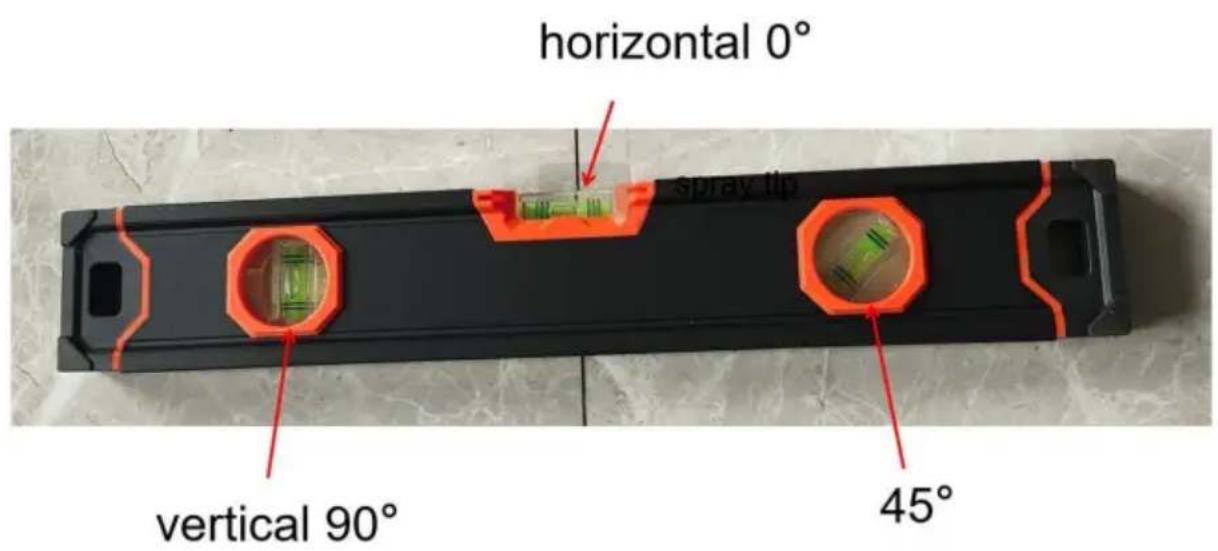

1. Diagrammet visar en horisontell bubbla i alla vinklar.
