Product Type	Ladder Leveler (Ladder Foot Stabilizer)
Brand	Vevor
Model	DX-4000
Maximum Load	250 kg (550 lbs)
Length Adjustment Range	25 cm (9.84 inches)
Material	Rugged Steel
Approximate Weight	2.5 kg
Dimensions (L x W x H)	30 x 10 x 5 cm
Usage	Indoor and outdoor, on uneven surfaces, roofs, stairs, construction materials
Assembly Required	Yes – installation of foot pads and supports
Included Parts	2 support rods, 2 foot pads, 8 M6x55 screws, 8 washers, 8 nuts
Warranty	Electronic warranty certificate available at www.vevor.com/support
Safety	Use only on firm surfaces; do not use on slippery surfaces
Maintenance	Clean with a dry cloth; regularly check the tightness of screws
Repairability	Spare parts available via Vevor support

Frequently Asked Questions - DX-4000 Vevor

How to assemble the DX-4000 ladder leveler?

Assembly involves attaching the foot pads to the support rods using the provided M6x55 screws, washers, and nuts. Then, install the assembly onto your ladder's rails. Refer to the manual for detailed diagrams.

What is the maximum load supported by the DX-4000?

The DX-4000 can support a maximum load of 250 kg (550 lbs). Never exceed this limit to ensure your safety.

On which surfaces can I use the ladder leveler?

It is designed for use on uneven surfaces, roofs, stairs, and construction materials. Use it only on firm surfaces; avoid slippery surfaces.

How to adjust the length of the DX-4000 feet?

The leveler legs can be lowered to compensate for unevenness. Loosen the screws, adjust to the desired length, then tighten firmly. The adjustment range is 25 cm (9.84 inches).

Can I use the DX-4000 on uneven ground?

Yes, that is its primary use. It allows you to stabilize the ladder on uneven terrain, providing a secure footing.

What to do if a part is missing from the package?

Contact Vevor customer service at www.vevor.com/support. Provide the model number and the missing part to get a replacement.

How to clean and maintain the ladder leveler?

Clean with a dry cloth after use. Regularly check the tightness of screws and the condition of the foot pads. Store in a dry place.

Is the DX-4000 compatible with all ladders?

It is designed to fit most standard ladders. Make sure your ladder's rails are compatible with the support rods provided.

Where to find the DX-4000 warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support. Keep a copy of your invoice to claim the warranty.

Can I use this tool on a sloped roof?

Yes, the DX-4000 is suitable for use on roofs. Make sure the surface is firm and the feet are properly adjusted to ensure stability.

USER MANUAL DX-4000 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

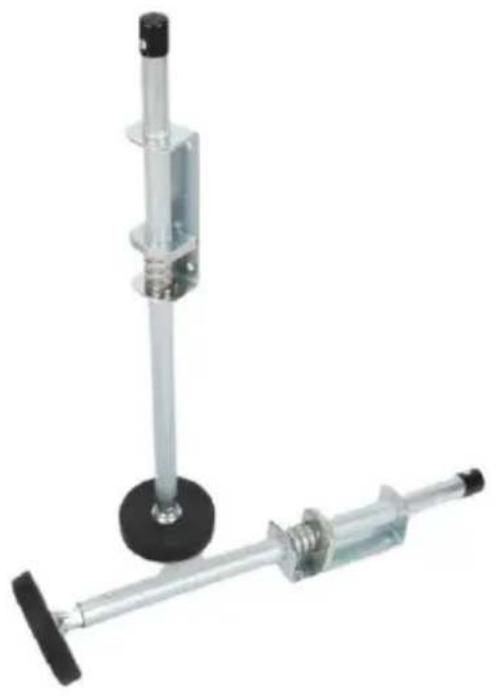

Ladder Leveler

MODEL: DX-4000 \ DX-5000

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DX-4000 \ DX-5000

Mechanical device with two transparent rods and a black base, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

• It works indoors and out, use it on uneven ground, roof tops, and building materials & ladders, ladder-accessories.
• For use only on firm surfaces.

Not intended for use on slippery surfaces.

Part List
No.	Name	Picture	QTY.
1	Support Rod Assembly		2
2	Foot Pad		2
3	Screw M6*55		8
4	Washer		8
5	Nut		8

Model	Max Load (lbs)	Adjusting Length (inch)
DX-4000	550	9.84
DX-5000	550	13.78

Product Assembly

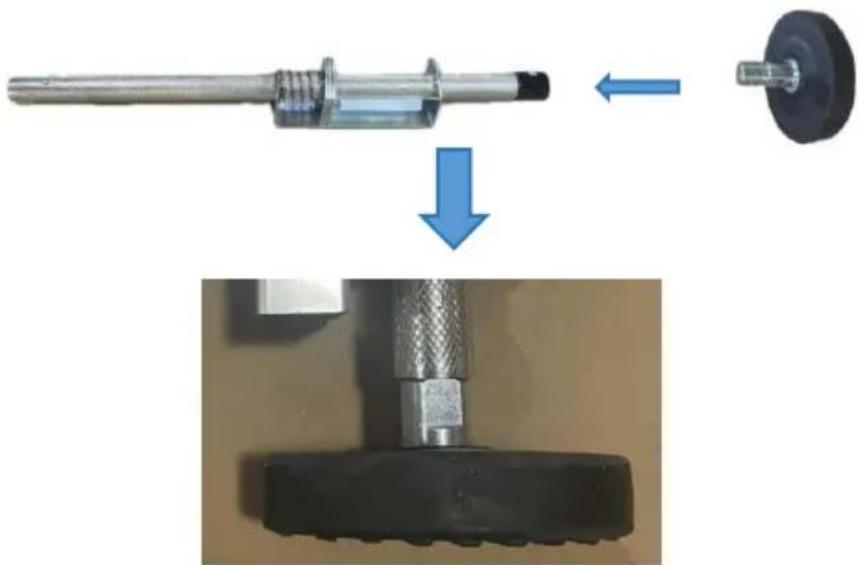

Step 1: Install foot pad.

Mechanical assembly diagram showing a shaft being inserted into a wheel, with a close-up view of the base component (no text or symbols)

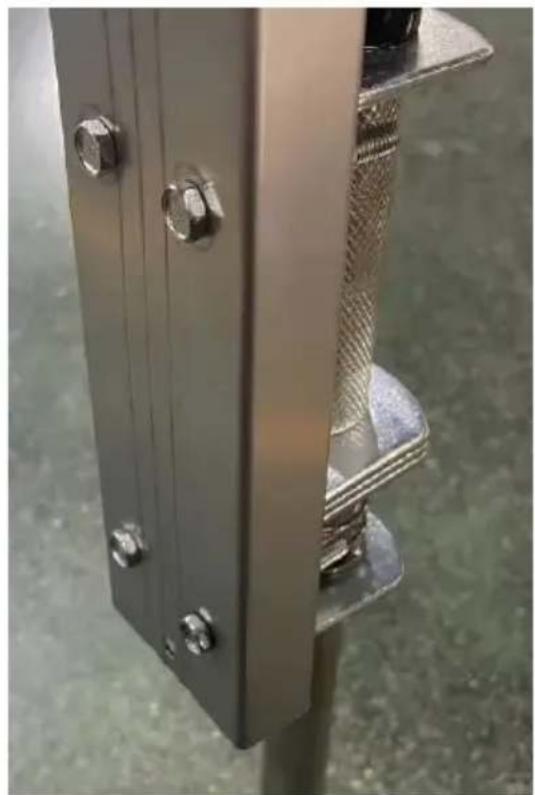

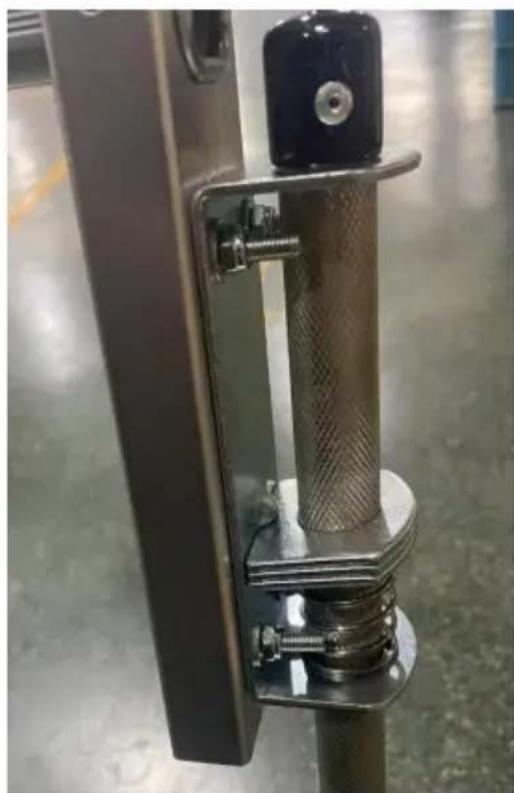

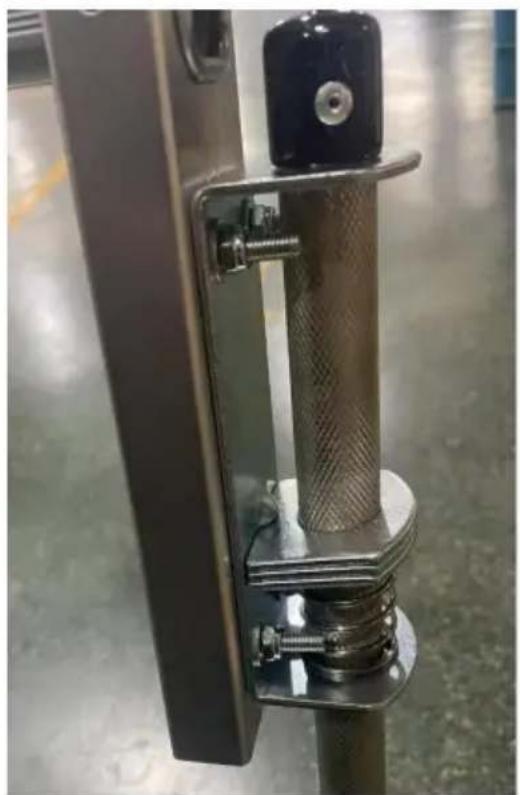

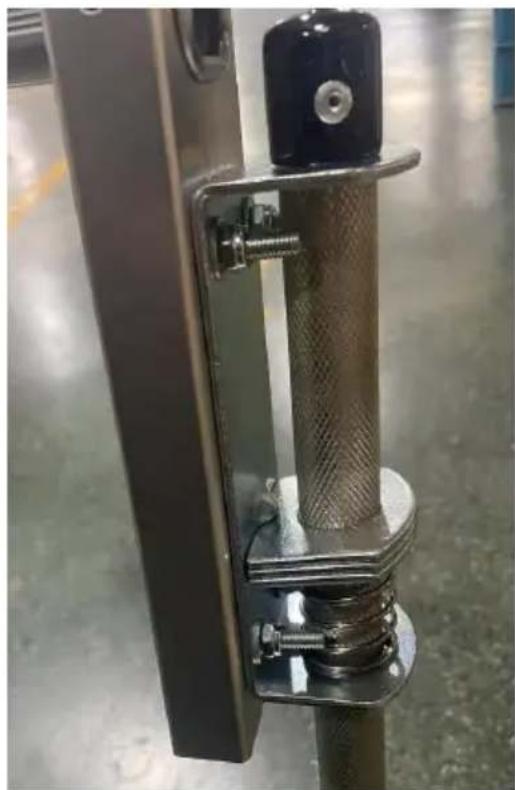

Step 2: Secure it to the ladder.

Close-up of a metallic structural component with bolts and a coiled spring (no text or symbols visible)

Close-up of a metallic mechanical assembly with threaded spring and mounting bracket (no visible text or symbols)

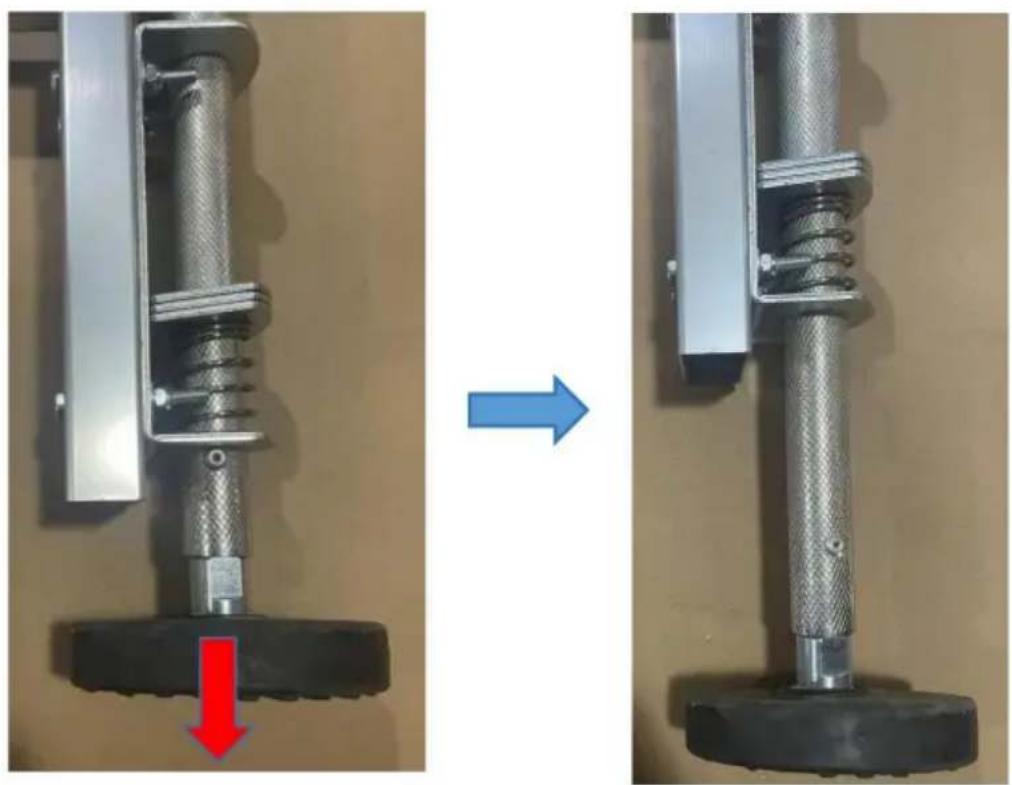

Adjusting Length

1. The legs can be pulled down.

Mechanical assembly diagram showing a spring-loaded component before and after disassembly, with red arrow indicating displacement (no text or symbols)

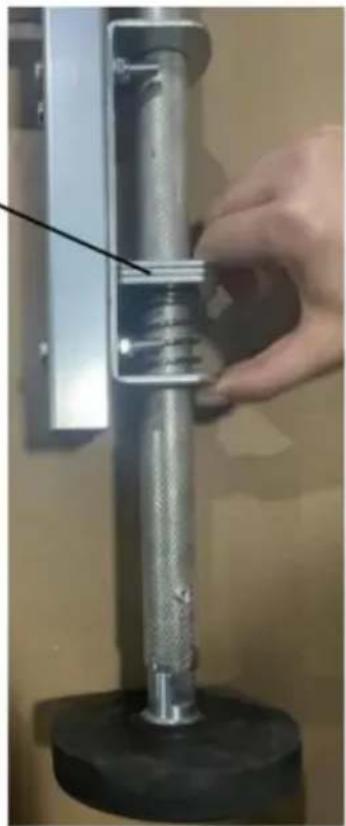

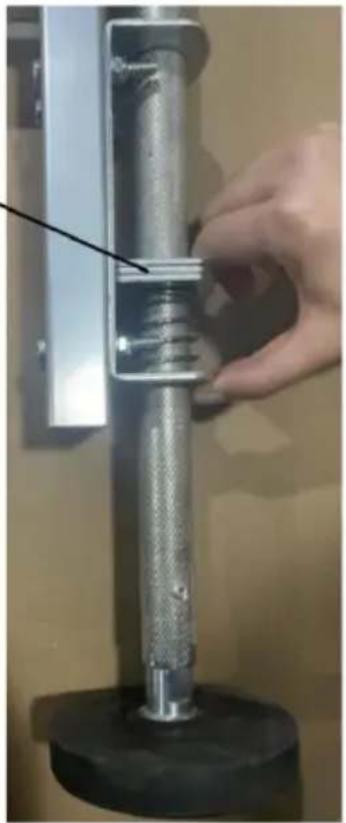

1. Adjust leg length by operating below.

Press flat here to adjust length.

Close-up of a hand adjusting a metallic cylindrical mechanical component with a black base (no visible text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
