Product Type	Magnetic Spirit Level
Brand	Vevor
Model	SP-C6
Included Lengths	10 inches (250 mm), 16 inches (400 mm), 24 inches (600 mm), 48 inches (1200 mm)
Accuracy	0.5 mm/m
Measurable Angles	0°, 45°, 90°
Magnetic Working Surface	Yes, bottom face (all levels of SP-C6 model)
Material	Aluminum and Magnesium
Total Set Weight	Approximately 2.5 kg
Power Supply	None (manual tool)
Main Functions	Measurement of horizontality, verticality, and 45° angle
Maintenance and Cleaning	Wipe with a dry, clean cloth. Do not use solvents. Store in a dry place.
Safety	Do not use by children. Avoid vibrating or unstable environments. Do not disassemble.
Spare Parts and Repairability	No detachable parts. In case of defect, contact technical support.
General Information	Electronic warranty available at www.vevor.com/support. Includes storage bag.
Usage	Professional and DIY
Precautions	Check accuracy before each use. Protect the working surface from scratches.

Frequently Asked Questions - SP-C6 Vevor

How to verify the accuracy of the Vevor SP-C6 spirit level?

Place the level on a flat surface, note the bubble position, then rotate it 180° and align it with the same marks. If the bubble is in the same position, the level is accurate. Repeat on a vertical surface for the vertical vial.

What angles can be measured with this level?

The level can measure angles of 0° (horizontal), 45°, and 90° (vertical). It has dedicated vials for each angle.

Is the SP-C6 level magnetic?

Yes, the SP-C6 model has a magnetic working surface on the bottom of all levels in the set. This allows it to be attached to metal surfaces.

How to clean the spirit level?

Wipe the level with a dry, clean cloth. Do not use solvents or abrasive products. Make sure the measuring surface is clean before each use.

What to do if the bubble does not stabilize?

Wait for the bubble to stabilize completely before reading the measurement. Avoid environments subject to vibrations or instability. If the problem persists, check if the level is damaged.

Can I use this level to measure a slope?

Some Vevor levels have 2% slope lines (standard slope for water drainage). Check if your level has these additional markings. Otherwise, use an inclinometer level.

How to store the spirit level?

Store the level flat in a dry place, away from impacts. Use the provided storage bag. A thin layer of industrial oil can be applied to the edges if the level is not used for a long time.

What is the product warranty?

Vevor offers an electronic warranty. For more information, visit www.vevor.com/support with your warranty certificate.

Is the level suitable for professional use?

Yes, the Vevor SP-C6 level is designed for professional and DIY use. Its accuracy of 0.5 mm/m and aluminum/magnesium construction make it reliable and durable.

What to do if the level is damaged?

In case of damage, do not attempt to repair it yourself. Contact technical support via www.vevor.com/support. Parts are not removable.

USER MANUAL SP-C6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BUBBLE LEVEL

MODEL:SP-N4 /SP-C4/SP-N6/SP-C6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Model:SP-N4 /SP-C4/SP-N6/SP-C6

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Product use considerations

1. Bubble level is a precision instrument that cannot be removed, adjusted, or modified. Avoid disassembling or altering the instrument parts to prevent accuracy decline or damage.
2. Pay attention to protect the working face of the instrument to avoid scratches and abrasions, otherwise it will affect the measurement result.
3. Check regularly whether the level bubble installation is firm, and whether the surface is clean and transparent.
4. Before measurement, wipe the measuring surface of the instrument, otherwise it will affect the measurement results.
5. Do not use instruments in vibration or unstable environments.
6. Read until the bubble stabilizes.
7. Bubble levels should not be used by children.

PARAMETER LIST

Model	SP-N4	SP-C4	SP-N6	SP-C6
length specification	10inch×1pc16inch×1pc24inch×1pc48inch×1pc	10inch×1pc16inch×1pc24inch×1pc48inch×1pc	10inch×1pc16inch×1pc24inch×1pc32inch×1pc48inch×1pc78inch×1pc	10inch×1pc16inch×1pc24inch×1pc32inch×1pc48inch×1pc78inch×1pc
Magnetic specification	10inch	All instruments	10inch×1pc	All instruments
Level bubble accuracy	0.5mm/m

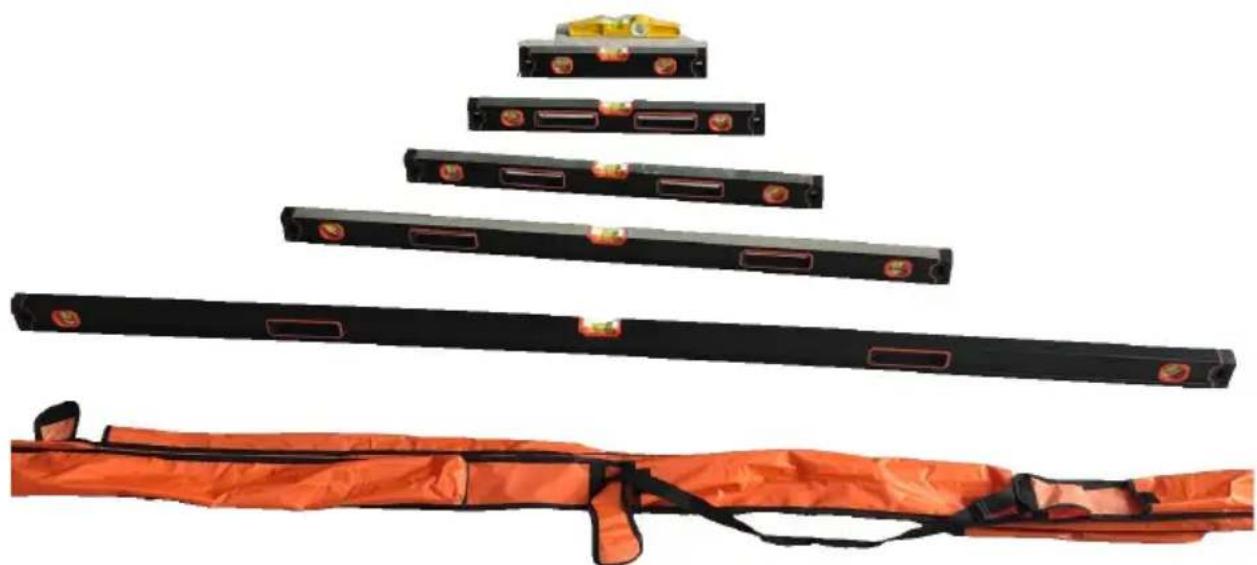

Note: Models SP-N4, SP-C4, SP-N6, and SP-C6 are all equipped with storage bags.

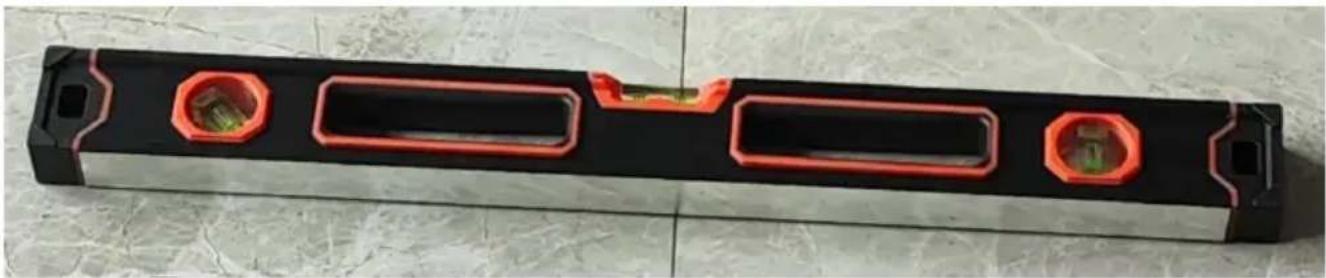

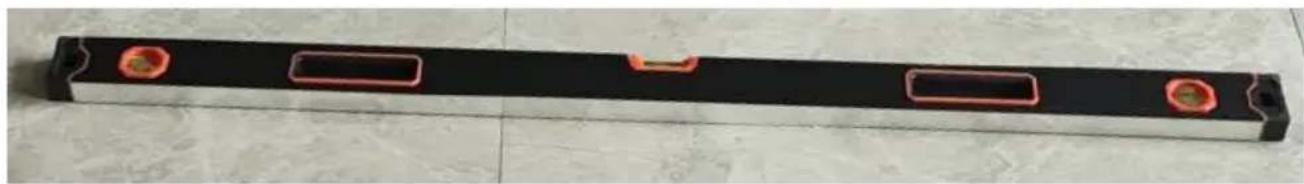

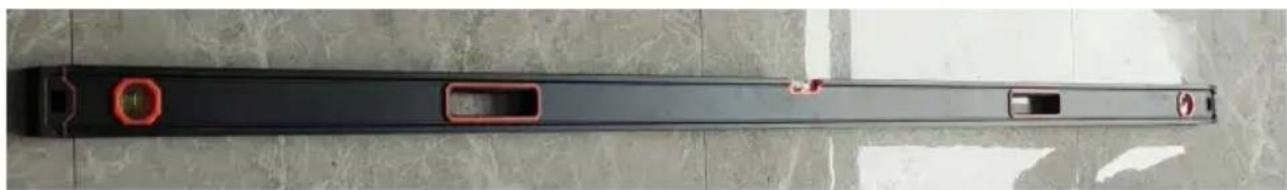

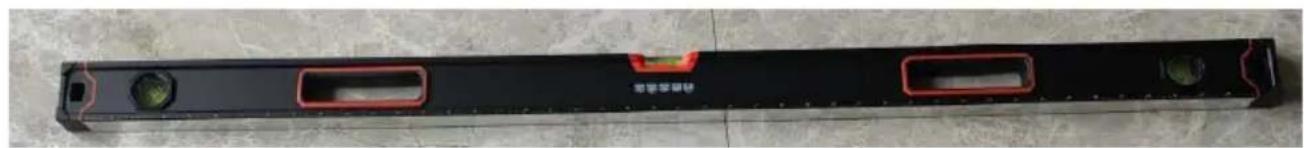

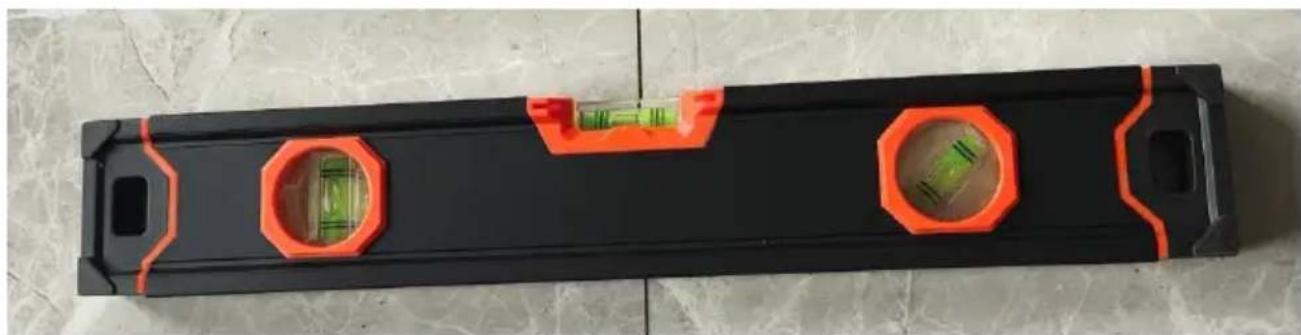

Specifications

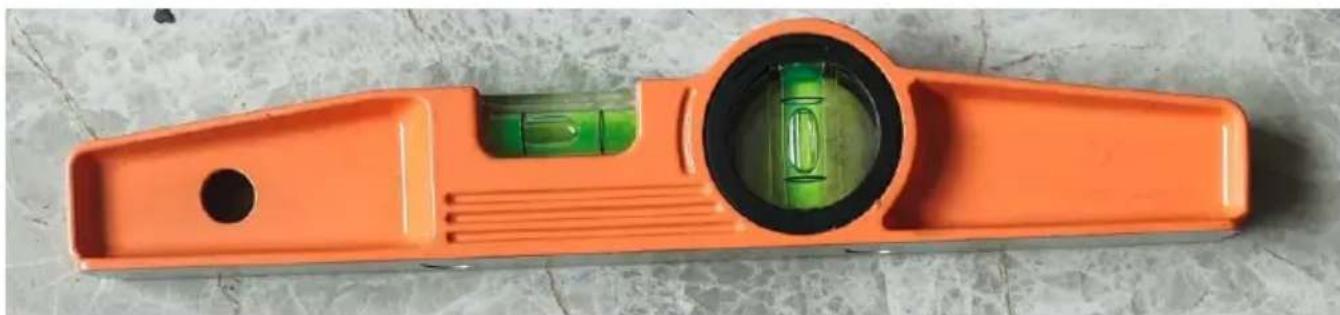

The 10-inch bubble level is 250 mm long with a magnetic bottom working face and measurable angles of 0 and 90 degrees.

The 16-inch bubble level is 400 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

The 24-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

The 32-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

The 48-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

The 72-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

Direction For Use

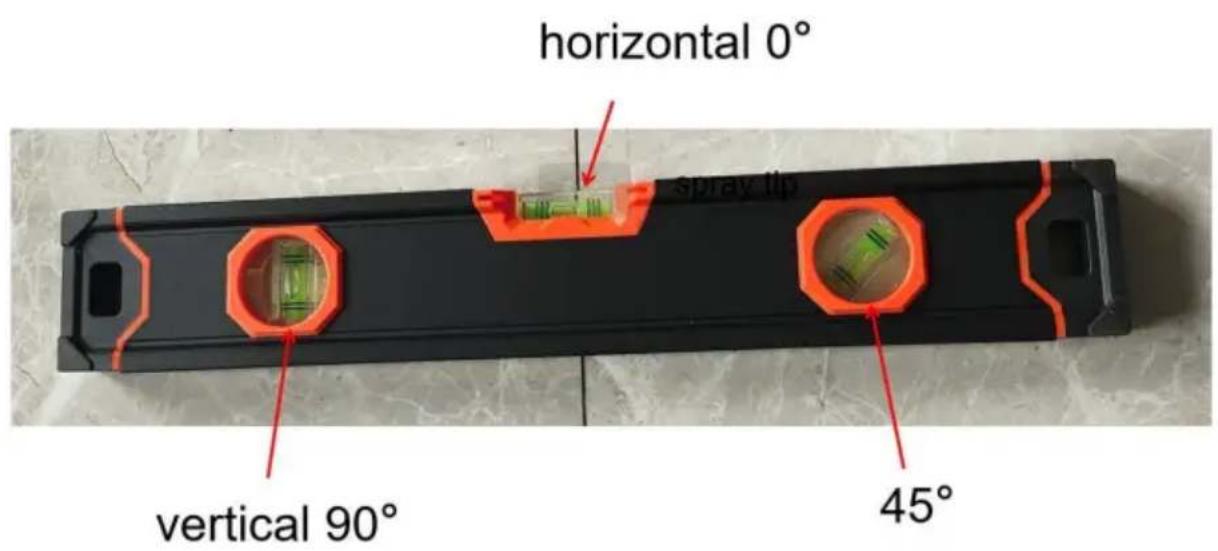

1. The diagram shows a horizontal bubble at all angles.

horizontal 0°

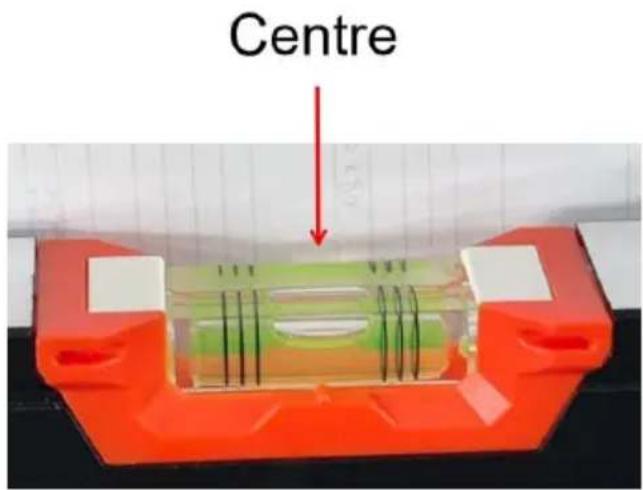

1. When the bubble is in the middle of the leveling bubble, it means that the plane of the measured object has reached the selected point of the leveling bubble; otherwise, the plane of the object needs to be adjusted again.

1. Check your spirit level for accuracy before use. You can follow these steps:

- Place the level on a flat surface.

• Make one mark at the end of the level.
• Make another mark along the side of the level, under the vial in the center. Take a reading of the bubble's position.
• Rotate the level 180 degrees end-to-end and align the level with your marks.

4. Use Spirit Levels

Find the horizontal, vertical, or 45-degree vial on your level and note the two lines. Your level probably has two small vials or liquid-filled tubes: horizontal and vertical. You will use the horizontal vial to find the horizontal plane. You will notice that the vial has a bubble and two lines, which are called guidelines.

• When you measure your horizontal object, and the bubble falls between the two guidelines, it is flat, even, or "level." Another way of thinking about this is that a level object is completely parallel to the horizon.
• If during your horizontal measurement, you find that the bubble is outside the left guideline, then your object's left side is higher than your right. Likewise, if the bubble is outside the right guideline, your right side is higher than your left.
• When you measure your vertical object, and the bubble falls between the two guidelines, then it is completely vertical, or "plumb." A plumb object is perpendicular to the earth.
• If during your vertical measurement, you find that the bubble is outside the top guideline, then your object's top side is bulging forward. Likewise, if the bubble is outside the bottom guideline, your object's bottom side is bulging forward.

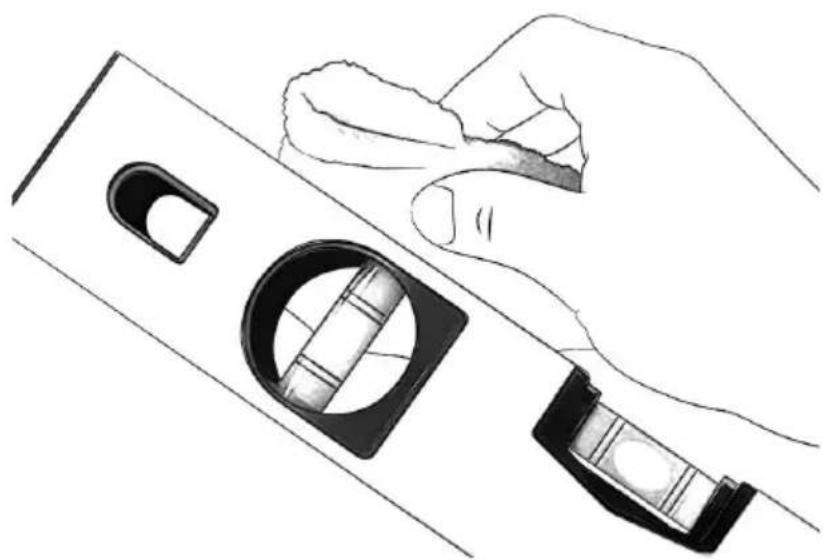

5. Clean both the level and the object prior to taking your reading.

Dirt and debris can throw off the level, which can be sensitive. Just brushing a gloved hand across the level and object can be enough to ensure an accurate reading. If you use your level often, remove any accumulated dirt on its edges.

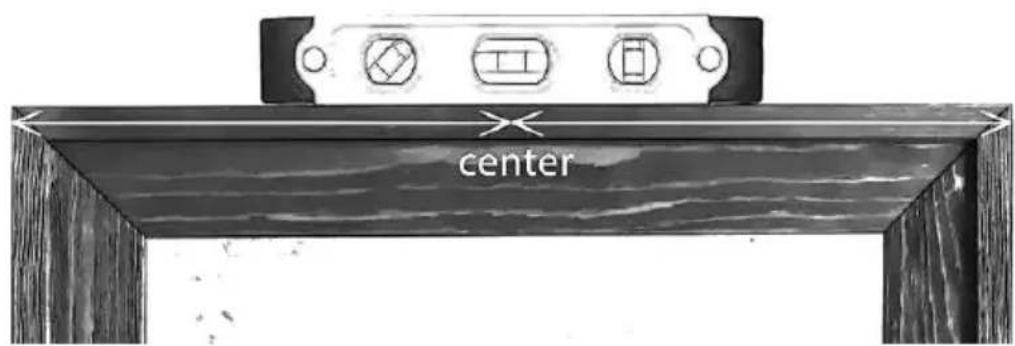

6. Position your level in the center of your object.

Your horizontal object might be a couple of bricks, a framed picture, or even the ground. Meanwhile, a vertical object could be a wall, a doorframe, or a fencepost. First, check whether the bubble is within the guidelines, to its right or left (horizontal) or the top or bottom (vertical). If your object is very wide or tall, you may find that an average-sized level cannot give you an accurate reading on its own. In this case, the easiest solution is to find a larger level. Consider investing in a level at least 1 meter (3.3 feet) long for the most versatility. Another option is to place the level on top of a long or tall straightedge during your measurement.

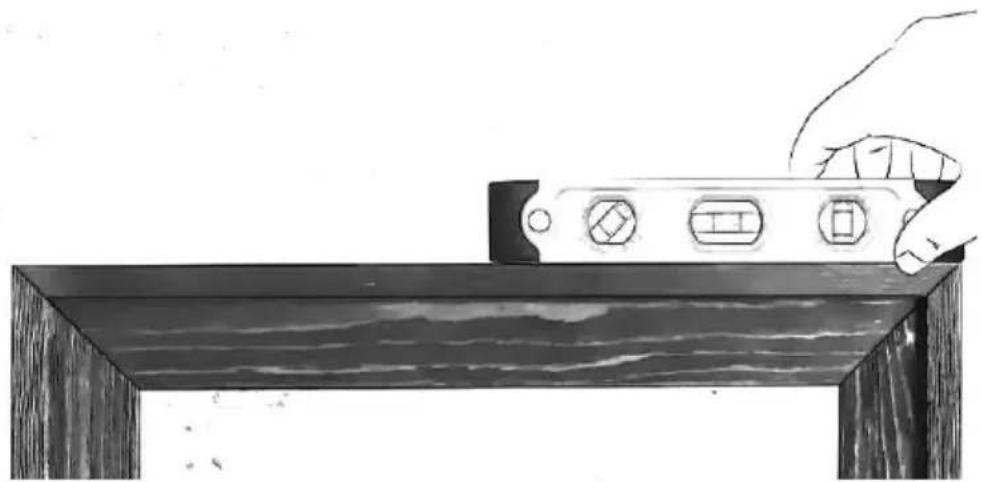

7. Double-check by moving the level away from the center.

Move the level to the right or left for horizontal readings or top or vertical readings. Sometimes, levels could be better made, damaged, defective, which renders their readings inaccurate. You can always

double-check the reading by re-positioning the level on the object and ensuring the reading is the same.

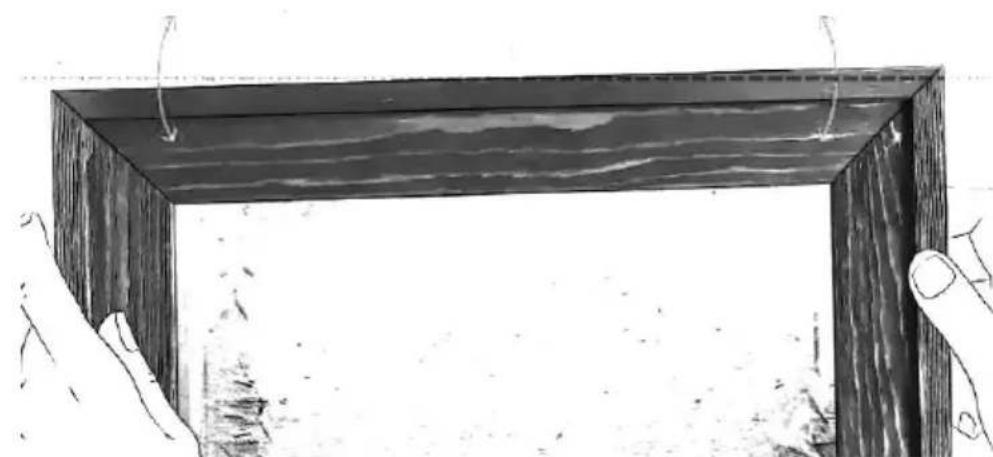

8. Take the appropriate action to level your object if necessary.

If you discover that your object is unlevel, you may level it. For example, if your horizontal object is a couple of bricks, you can add more mortar to the brick that is resting lower. Or, if your vertical object is a cabinet, you may add a filler piece between the cabinet and the wall it rests on.

- In some cases, you may want an unlevel reading! For example, this could be the case if you measure rain gutters or a patio on the horizontal, which must have a slight slope to drain rain properly. Some levels have outer lines in the vial, which measure the 2-percent slope, or “grade,” necessary for these projects.

9. MAINTENANCE

The horizontal ruler is easily preserved. It can be hung somewhere flat, on a table or drawer, without affecting its straightness and parallel. It is accessible to rust if it is light aluminum and magnesium grade. The horizontal ruler does not need to be oiled during use. Storage is gently with a thin layer of ordinary industrial oil if not used for a long time.

• Take another reading. If the level is accurate, the bubble will be in the same position for both readings. - To test the vertical vial, follow the same procedure against a flat surface.
