SP-N6 - Spirit level Vevor - Free user manual and instructions

Product Type	Spirit Level
Brand	Vevor
Model	SP-N6
Included Lengths	10 inches (250 mm), 16 inches (400 mm), 24 inches (600 mm), 32 inches (800 mm), 48 inches (1200 mm), 78 inches (1980 mm)
Accuracy	0.5 mm/m
Measurable Angles	0°, 45°, 90° (10 inches: 0° and 90° only)
Material	Lightweight aluminum and magnesium
Magnetic Base	No (SP-N6 model non-magnetic, SP-C4 and SP-C6 models are magnetic)
Power Supply	None (manual tool)
Main Functions	Measurement of horizontality, verticality and 45° angle
Maintenance	Clean with a dry cloth, avoid shocks and drops, store flat
Safety	Do not use by children, avoid vibrating or unstable environments
Spare Parts	Not available (sealed instrument, do not disassemble)
Included Accessories	Storage bag
Warranty	Technical support and electronic warranty certificate via www.vevor.com/support

Frequently Asked Questions - SP-N6 Vevor

How to check the accuracy of my spirit level?

Place the level on a flat surface and make a mark at its end. Take a reading of the bubble position, then rotate the level 180° and align it with your marks. If the bubble is in the same position, the level is accurate. For the vertical vial, repeat on a flat vertical surface.

How to use the level to measure a horizontal surface?

Place the level on the object to be measured. Observe the horizontal vial: if the bubble is between the two guide lines, the surface is level. If the bubble is to the left, the left side is higher; if it is to the right, the right side is higher.

What to do if the bubble is not centered during a measurement?

This means the surface is not level. Adjust the object accordingly: for example, add mortar under a lower brick or a shim under a cabinet. Check again after adjustment.

Is the SP-N6 level magnetic?

No, the SP-N6 model does not have a magnetic base. Only the SP-C4 and SP-C6 models are magnetic. Check the product label to confirm.

How to clean and maintain the spirit level?

Clean the level and the object before measurement to avoid debris. Use a dry or slightly damp cloth. After use, store it flat in its bag. Avoid shocks and extreme temperatures. No oil is needed, but a thin layer of industrial oil can be applied for long-term storage.

What angles can I measure with this level?

With lengths of 16 inches and above, you can measure angles of 0°, 45°, and 90°. The 10-inch level only allows 0° and 90°. Use the appropriate vial (horizontal, vertical, or 45°).

Is the level delivered with a case?

Yes, the SP-N6 model is delivered with a storage bag to protect the instrument and facilitate transport.

Can I use the level to measure slopes?

Yes, some levels have outer lines on the vial that indicate a 2% slope. For gutters or terraces, you can use these marks to achieve a slight incline. Otherwise, adjust manually until you get the desired slope.

What is the accuracy of the SP-N6 level?

The stated accuracy is 0.5 mm/m. This means at 1 meter, the maximum error is 0.5 mm.

How to properly store the spirit level?

Store the level flat on a stable surface, preferably in its storage bag. Avoid hanging it or placing it on edges. For long-term storage, apply a thin layer of industrial oil to prevent corrosion.

USER MANUAL SP-N6 Vevor

BUBBLE LEVEL

MODEL: SP-N4 / SP-C4 / SP-N6 / SP-C6

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

Model: SP-N4 / SP-C4 / SP-N6 / SP-C6

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Product Use Considerations

1. The bubble level is a precision instrument that cannot be removed, adjusted, or modified to avoid accuracy decline or damage. 2. Pay attention to protect the working face of the instrument to avoid scratches and abrasions; otherwise, it will affect the measurement results. 3. Check regularly whether the level bubble installation is firm and whether the surface is clean and transparent. 4. Before measurement, wipe the measuring surface of the instrument; otherwise, it will affect the measurement results. 5. Do not use the instrument in vibrating or unstable environments. 6. Read until the bubble stabilizes. 7. Bubble levels should not be used by children.

PARAMETER LIST

Model	SP-N4	SP-C4	SP-N6	SP-C6
length specification	10inch×1pc	10inch×1pc	10inch×1pc	10inch×1pc
	16inch×1pc	16inch×1pc	16inch×1pc	16inch×1pc
	24inch×1pc	24inch×1pc	24inch×1pc	24inch×1pc
	48inch×1pc	48inch×1pc	32inch×1pc	32inch×1pc
		48inch×1pc	48inch×1pc	48inch×1pc
		78inch×1pc	78inch×1pc	78inch×1pc
Magnetic specification	10inch	All instruments	10inch×1pc	All instruments
Level bubble accuracy	0.5mm/m

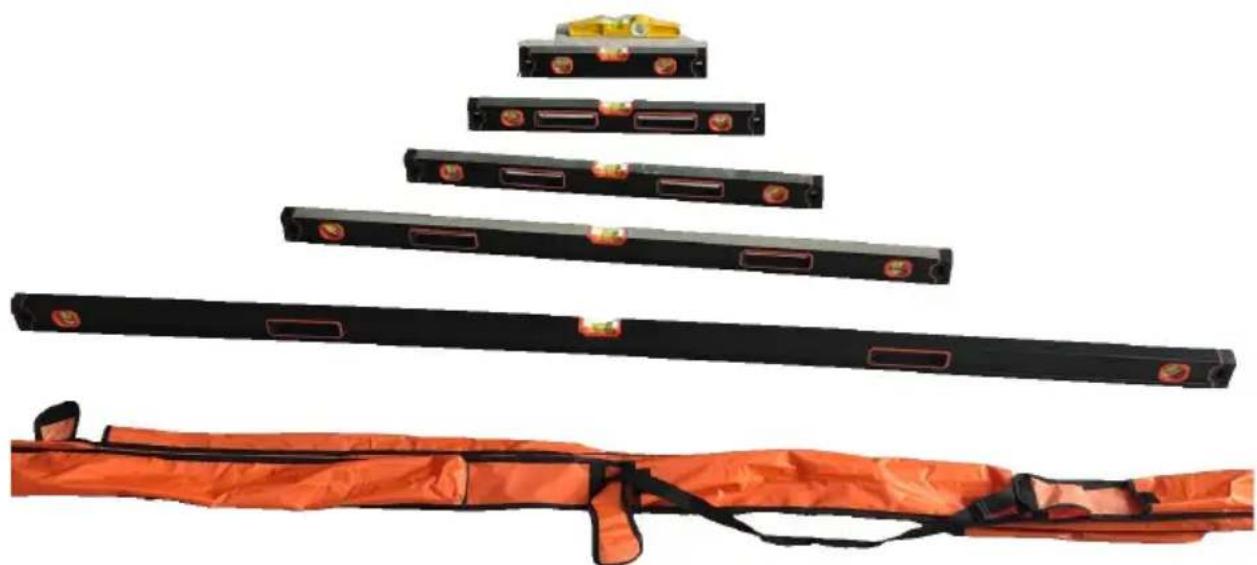

Note: Models SP-N4, SP-C4, SP-N6, and SP-C6 are all equipped with storage bags.

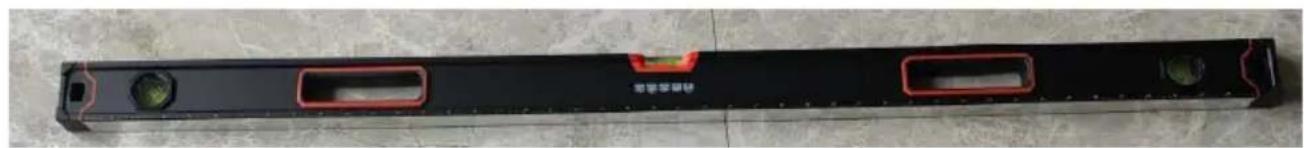

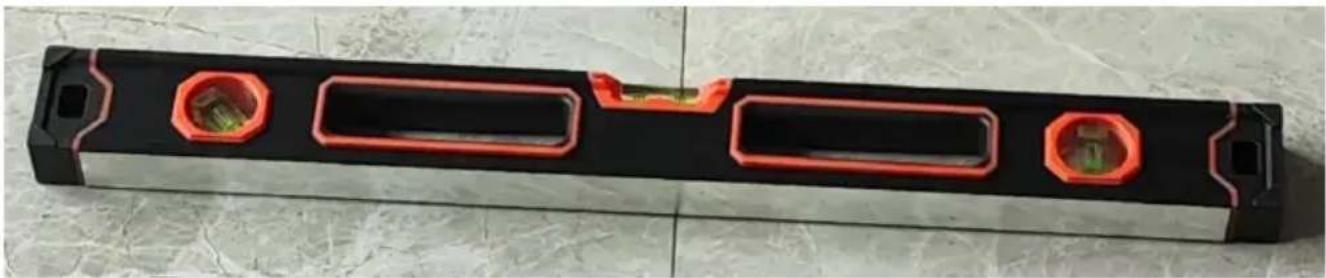

Specifications

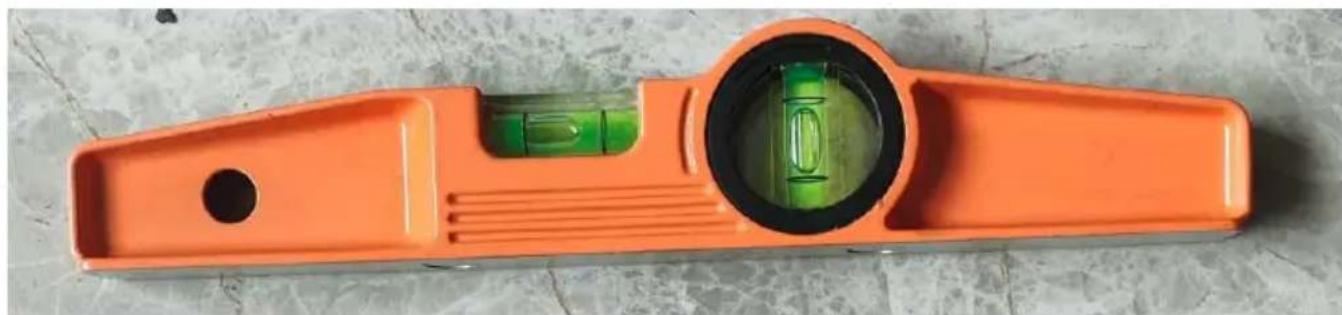

The 10-inch bubble level length is 250 mm, with a bottom working face with magnetism and measurable angles of 0 and 90 degrees.

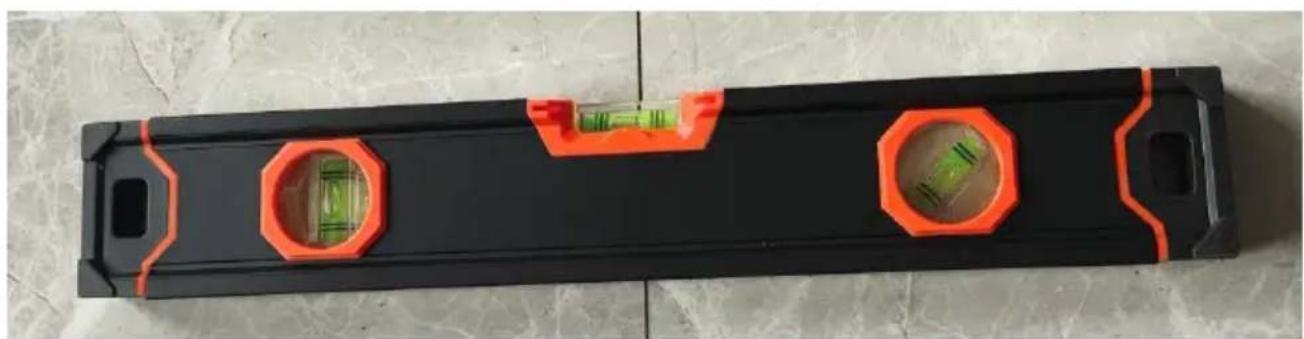

The 16-inch bubble level is 400 mm long, with measurable angles of 0 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

The 24-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

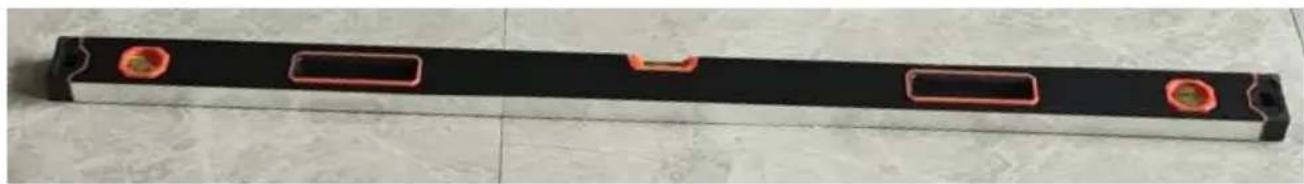

The 32-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

The 48-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

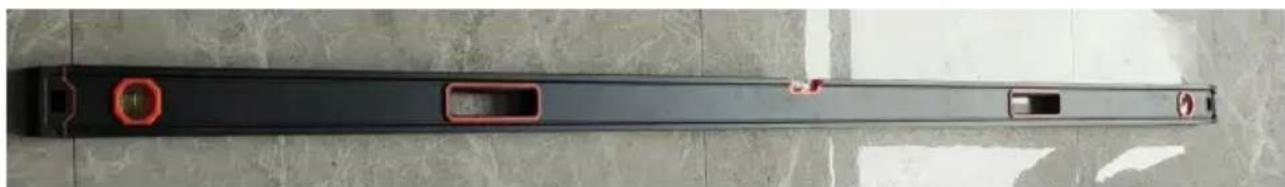

The 72-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy the model SP-C4 or SP-C6, the bottom face is magnetic, and the rest of the models are not magnetic.

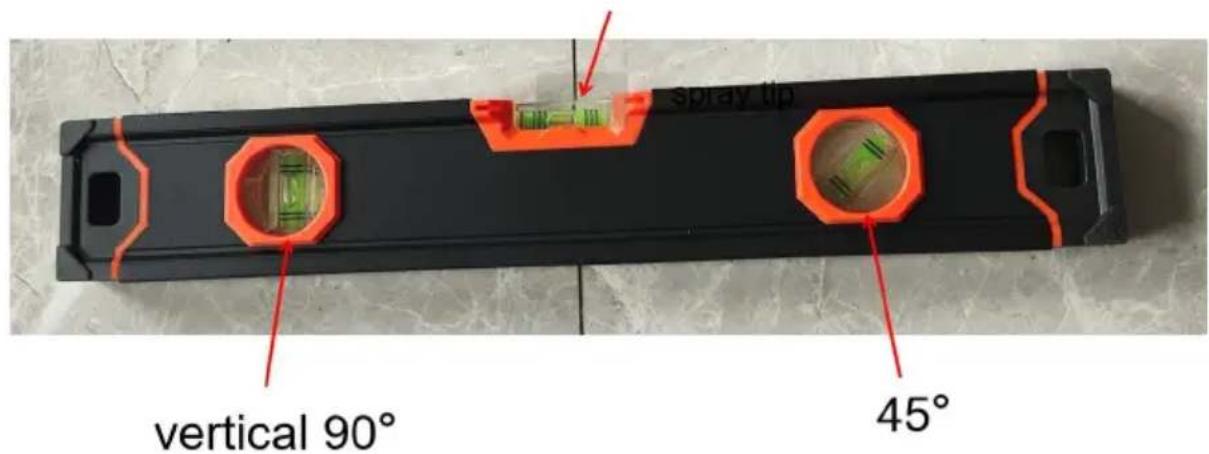

Direction For Use

1. The diagram shows a horizontal bubble at all angles.

horizontal 0°

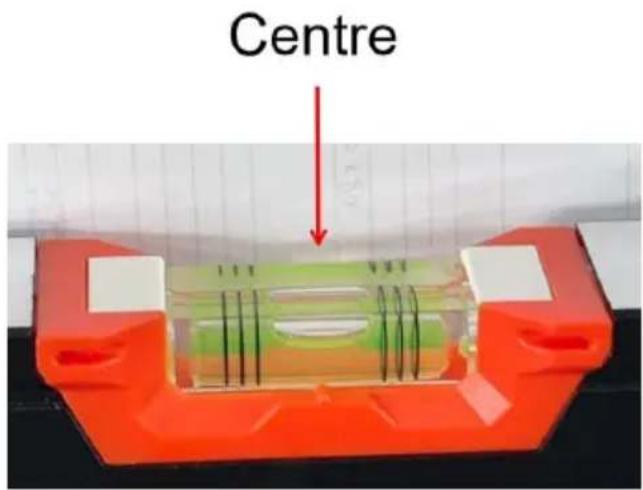

1. When the bubble is in the middle of the leveling bubble, it means that the plane of the measured object has reached the selected angle of the leveling bubble, otherwise the plane of the object needs to be adjusted again.

1. Check your Spirit Level for Accuracy before use. You can follow these steps:
2. Place the level on a flat surface.
3. Make one mark at the end of the level.
4. Make another mark along the side of the level, under the vial in the center.
5. Take a reading of the bubble's position.
6. Rotate the level 180 degrees end-to-end and align the level with your mark.

4. Use Spirit Levels

Find the horizontal, vertical, or 45-degree vial on your level and note the two lines. Your level probably has two small vials or liquid-filled tubes, one horizontal and one vertical. You will use the horizontal vial to find the horizontal plane. You will notice that the vial has a bubble and two lines, which are called guidelines.

• When you measure your horizontal object, and the bubble falls between the two guidelines, it is flat, even, or "level." Another way of thinking about this is that a level object is completely parallel to the horizon.
• If during your horizontal measurement, you find that the bubble is on the left guideline, then your object's left side is higher than your right. Likewise, if the bubble is outside the right guideline, your right side is higher than your left.
• When you measure your vertical object, and the bubble falls between two guidelines, then it is completely vertical, or "plumb." A plumb object is perpendicular to the earth.
• If during your vertical measurement, you find that the bubble is out the top guideline, then your object's top side is bulging forward. Likewise, if the bubble is outside the bottom guideline, your object's bottom side is bulging forward.

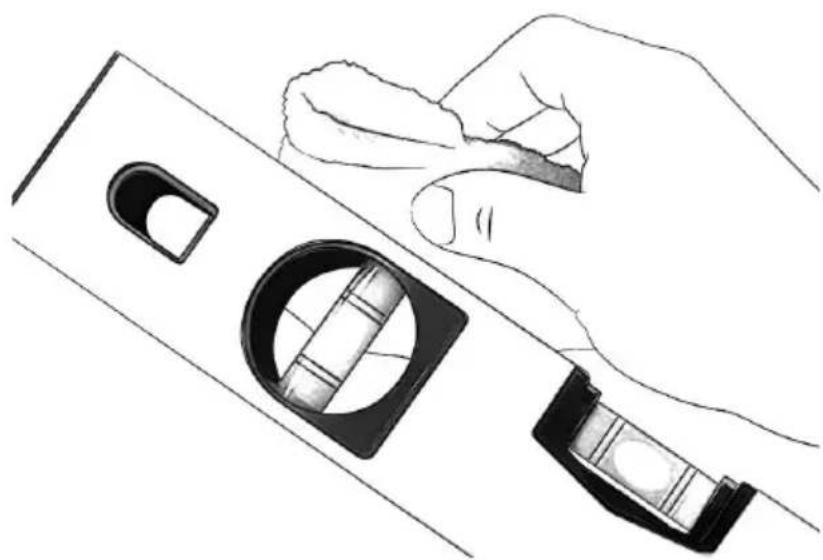

• Clean both the level and the object prior to taking your reading. Dirt and debris can throw off the level, which can be sensitive. Just brushing a gloved hand across the level and object can be enough to ensure an accurate reading. If you use your level often, remove any accumulated dirt on its edges.

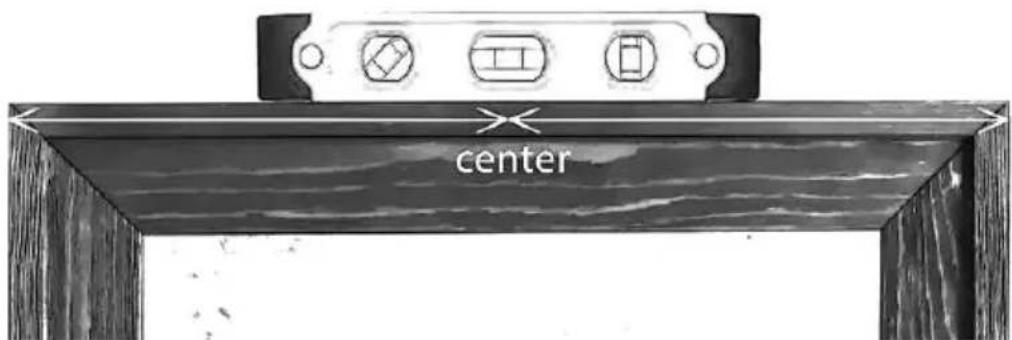

6. Position your level in the center of your object.

Your horizontal object might be a couple of bricks, a framed picture, or even the ground. Meanwhile, a vertical object could be a wall, a doorframe, or fencepost. First, check whether the bubble is within the guidelines, to its right or left (horizontal) or the top or bottom (vertical). If your object is very wide or tall, you may find that an average-sized level cannot give you an accurate reading on its own. In this case, the easiest solution is to find a larger level. Consider investing in a level at least 1 meter (3.3 feet) long for the most versatility. Another option is to place the level on top of a long or tall straightedge during your measurement.

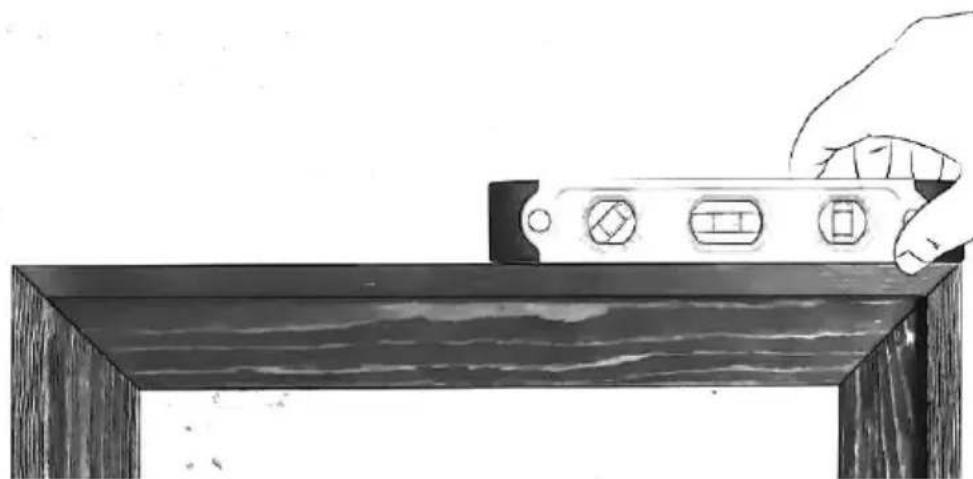

7. Double-check by moving the level away from the center.

Move the level to the right or left for horizontal readings, or top or bottom for vertical readings. Sometimes, levels could be poorly made, damaged, or defective, which renders their readings inaccurate. You can always

double-check the reading by re-positioning the level on the object and ensuring the reading is the same.

8. Take the appropriate action to level your object if necessary.

If you discover that your object is unlevel, you may level it. For example, if your horizontal object is a couple of bricks, you can add more mortar to the brick that is resting lower. Or, if your vertical object is a cabinet, you may add a filler piece between the cabinet and the wall it rests on.

• In some cases, you may want an unlevel reading! For example, this could be the case if you measure rain gutters or a patio on the horizontal, which must have a slight slope to drain rain properly. Some levels have outer lines in the vial, which measure the 2-percent slope, or "grade," necessary for these projects.

9. MAINTENANCE

The horizontal ruler is easily preserved. It can be hung somewhere flat or placed on a table or drawer without affecting its straightness and parallelism. It is susceptible to rust if it is light aluminum and magnesium grade. The horizontal ruler does not need to be oiled during use. For storage, gently apply a thin layer of ordinary industrial oil if not used for a long time.

• Take another reading. If the level is accurate, the bubble will be in the same position for both readings.
• To test the vertical vial, follow the same procedure against a flat surface.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

Technical Support and E-Warranty Certificate www.vevor.com/support
