SP-C4 - Spirit level Vevor - Free user manual and instructions

Product type	Magnetic spirit level
Brand	Vevor
Model	SP-C4
Included lengths	10 inches (254 mm), 24 inches (610 mm), 48 inches (1219 mm)
Accuracy	0.5 mm/m
Measurable angles	0°, 45°, 90° (on the 24 and 48 inch levels)
Lower working face	Magnetic (for all levels of the SP-C4 model)
Material	Aluminum alloy
Included accessories	Storage bag
Usage	Measuring horizontality, verticality, and 45° inclination
Maintenance	Clean with a dry cloth, avoid scratches
Storage	Store in the protective bag, away from moisture
Safety	Do not use by children, avoid impacts
Repairability	No repairable parts, do not disassemble
Warranty	Technical support at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Frequently Asked Questions - SP-C4 Vevor

How to check the accuracy of the spirit level?

Place the level on a flat surface, mark the ends, take a reading of the bubble, then rotate the level 180° and align it with the marks. If the bubble is in the same position, the level is accurate.

How to use the level to measure horizontality?

Place the level on the object and observe the horizontal vial. If the bubble is between the two guide lines, the object is level. If the bubble is to the left, the left side is higher; if to the right, the right side is higher.

How to use the level to measure verticality?

Place the level vertically on the object and observe the vertical vial. If the bubble is between the lines, the object is plumb. If the bubble is above the top line, the top is leaning forward; if below, the bottom is leaning.

Is the Vevor SP-C4 spirit level magnetic?

Yes, the SP-C4 model has a magnetic lower working face on all included levels (10", 24", and 48"), allowing it to stick to metal surfaces.

What are the measurable angles with this level?

The 24 and 48 inch levels can measure angles of 0° (horizontal), 45°, and 90° (vertical). The 10 inch level measures 0° and 90°.

How to clean and maintain the spirit level?

Clean the level with a soft, dry cloth. Avoid abrasive products. Store it in the provided protective bag to prevent scratches and impacts. Regularly check the cleanliness of the vials.

What to do if the bubble does not stabilize?

Make sure the measuring surface is clean and the level is correctly positioned. Avoid vibrating or unstable environments. Take the reading when the bubble has stabilized.

Can I use the level on non-flat surfaces?

No, the spirit level should be used on flat and stable surfaces to obtain accurate measurements. Dirt or irregularities can affect results.

How to store the level correctly?

Store the level flat in the included protective bag, in a dry place away from dust. Avoid placing heavy objects on it. If not used for a long time, apply a thin coat of industrial oil to prevent corrosion.

Where to find technical support and warranty?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support. You can also contact customer service through this site.

USER MANUAL SP-C4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BUBBLE LEVEL

MODEL:SP-N4 /SP-C4/SP-N6/SP-C6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Model:SP-N4 /SP-C4/SP-N6/SP-C6

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Product use considerations

1. Bubble level is a precision instrument that cannot be removed, adjusted, or modified. Do not adjust or modify the instrument parts to avoid accuracy decline or damage.
2. Pay attention to protect the working face of the instrument to avoid scratches and abrasions, otherwise it will affect the measurement result.
3. Check regularly whether the level bubble installation is firm, and whether the surface is clean and transparent.
4. Before measurement, wipe the measuring surface of the instrument, otherwise it will affect the measurement results.
5. Do not use instruments in vibration or unstable environments. Read until the bubble stabilizes.
6. Bubble levels should not be used by children.

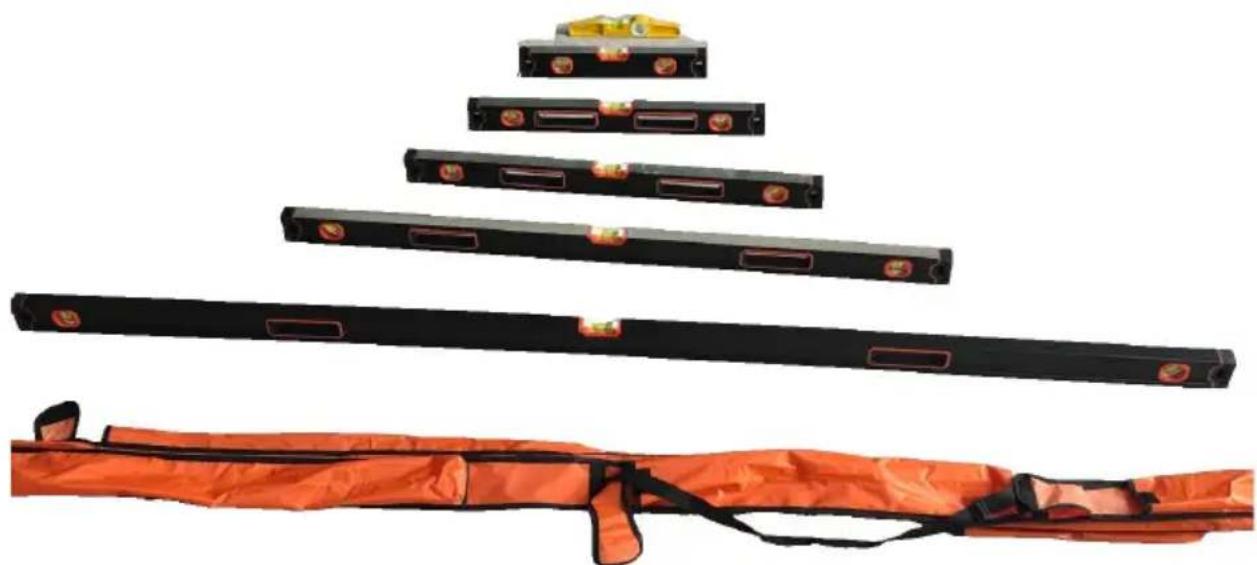

PARAMETER LIST

Model	SP-N4	SP-C4	SP-N6	SP-C6
length specification	10inch×1pc16inch×1pc24inch×1pc48inch×1pc	10inch×1pc16inch×1pc24inch×1pc48inch×1pc	10inch×1pc16inch×1pc24inch×1pc32inch×1pc48inch×1pc78inch×1pc	10inch×1pc16inch×1pc24inch×1pc32inch×1pc48inch×1pc78inch×1pc
Magnetic specification	10inch	All instruments	10inch×1pc	All instruments
Level bubble accuracy	0.5mm/m

Note: Models SP-N4, SP-C4, SP-N6, and SP-C6 are all equipped with storage bags.

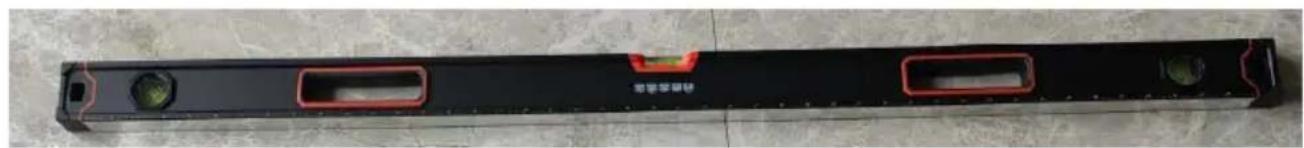

Specifications

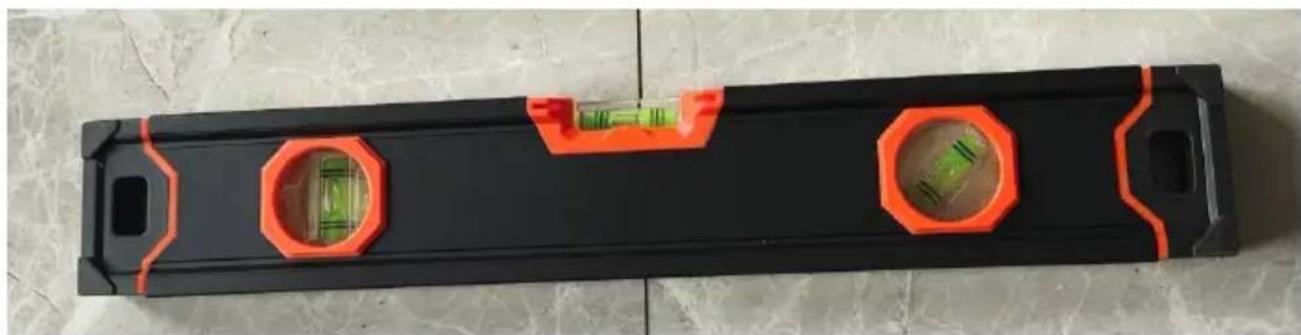

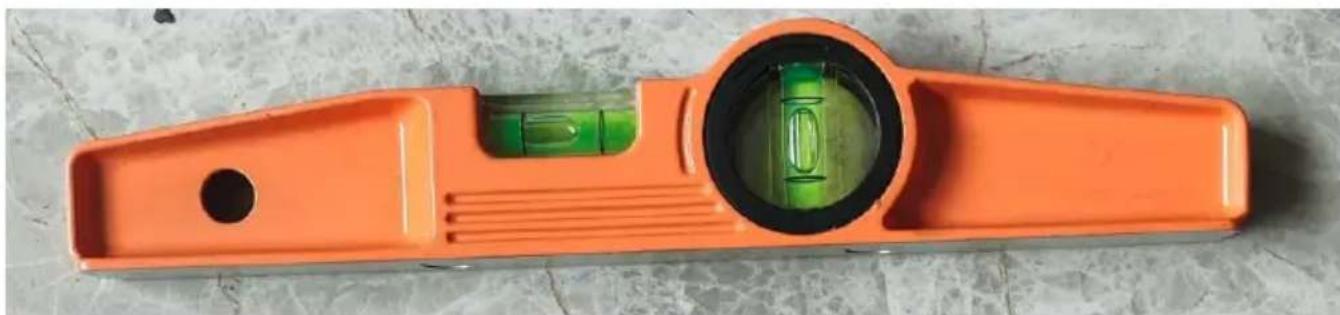

The 10-inch bubble level is 250 mm long with a magnetic bottom working face and measurable angles of 0 and 90 degrees.

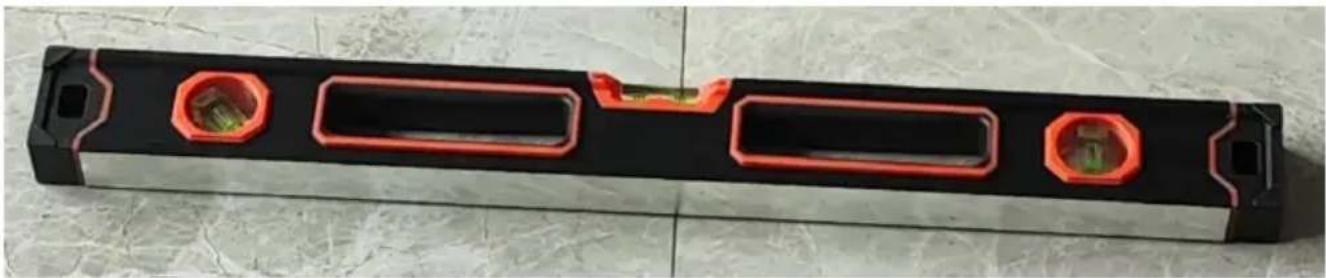

The 16-inch bubble level is 400 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

The 24-inch bubble level is 600 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

The 32-inch bubble level is 800 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

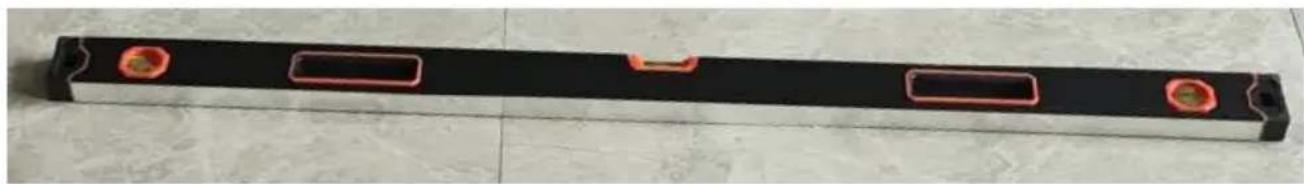

The 48-inch bubble level is 1200 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

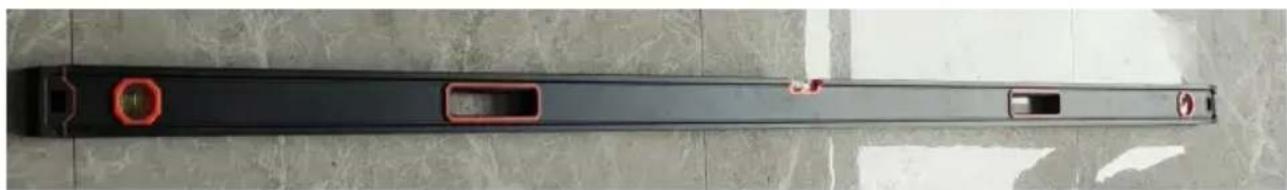

The 72-inch bubble level is 1800 mm long, with measurable angles of 0 and 90 degrees. If you buy model SP-C4 or SP-C6, the bottom face is magnetic; the rest of the models are not magnetic.

Direction For Use

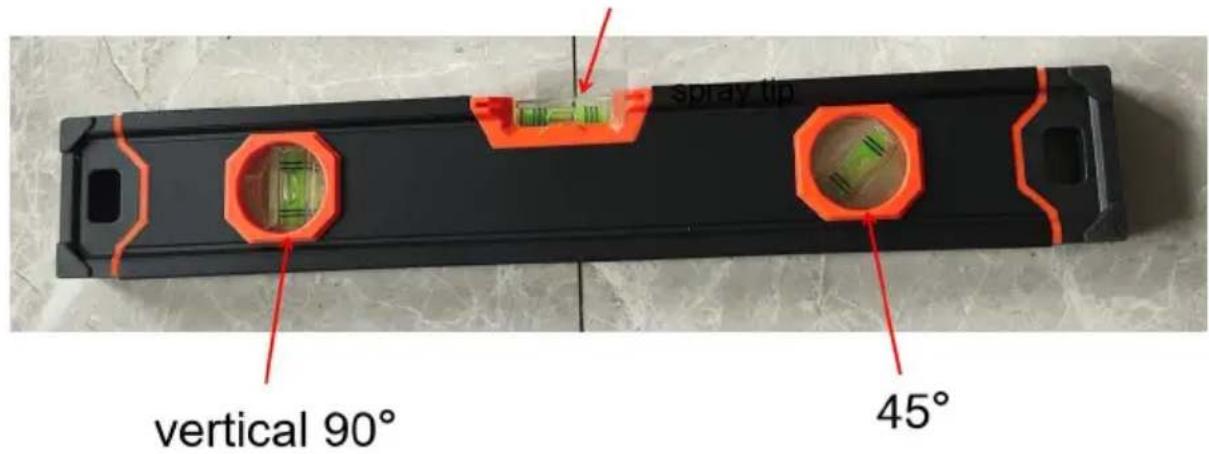

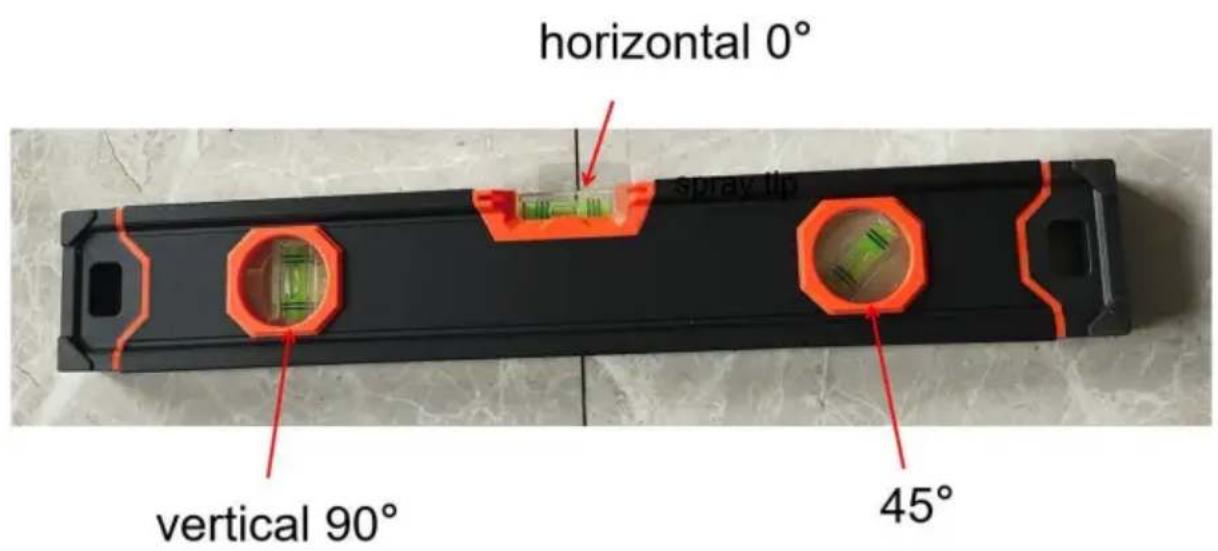

1. The diagram shows a horizontal bubble at all angles.

horizontal 0°

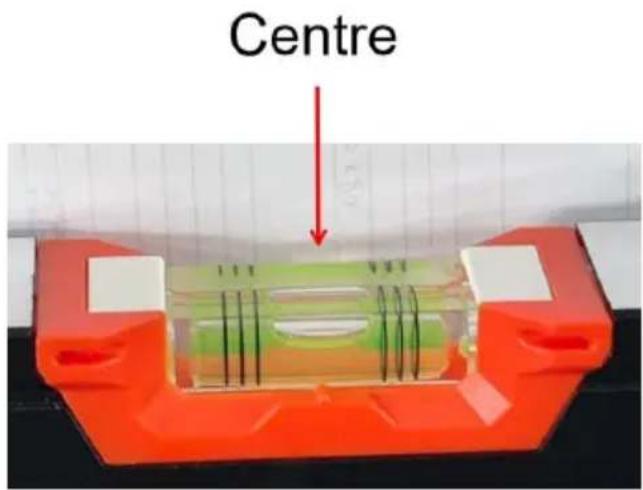

1. When the bubble is in the middle of the leveling bubble, it means that the plane of the measured object has reached the selected point of the leveling bubble; otherwise, the plane of the object needs to be adjusted again.

1. Check your Spirit Level for Accuracy before use. You can follow these steps:

- Place the level on a flat surface.

• Make one mark at the end of the level.
• Make another mark along the side of the level, under the vial in the center. • Take a reading of the bubble's position.
• Rotate the level 180° end-to-end and align the level with your mark.

4. Use Spirit Levels

Find the horizontal, vertical, or 45-degree vial on your level and note the two lines. Your level probably has two small vials or liquid-filled tubes for horizontal and vertical. You will use the horizontal vial to find the horizontal plane. You will notice that the vial has a bubble and two lines in the middle, which are called guidelines.

• When you measure your horizontal object, and the bubble falls between the two guidelines, it is flat, even, or “level.” Another way of thinking about this is that a level object is completely parallel to the horizon.
• If during your horizontal measurement, you find that the bubble is outside the left guideline, then your object's left side is higher than your right. Likewise, if the bubble is outside the right guideline, your right side is higher than your left.
• When you measure your vertical object, and the bubble falls between the two guidelines, then it is completely vertical, or “plumb.” A plumb object is perpendicular to the earth.
• If during your vertical measurement, you find that the bubble is outside the top guideline, then your object's top side is bulging forward. Likewise, if the bubble is outside the bottom guideline, your object's bottom side is bulging forward.

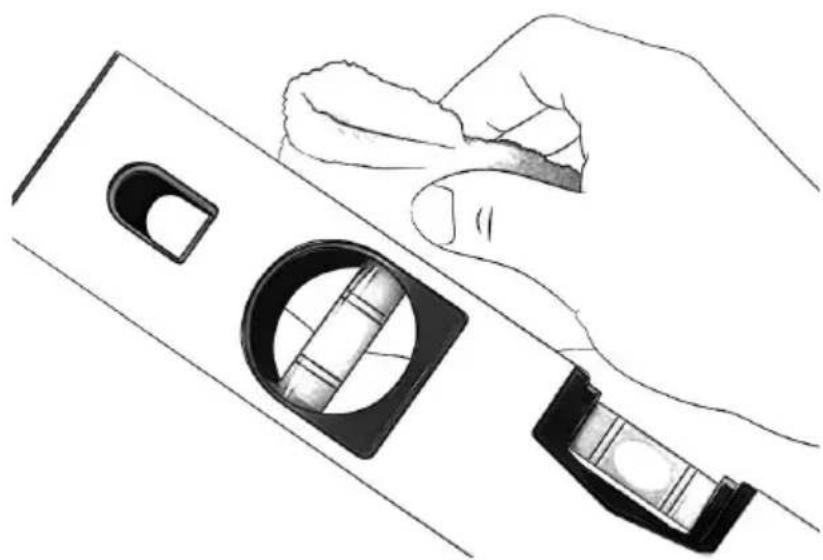

5. Clean both the level and the object prior to taking your reading.

Dirt and debris can throw off the level, which can be sensitive. Just brushing a gloved hand across the level and object can be enough to ensure an accurate reading. If you use your level often, remove any accumulated dirt on its edges.

6. Position your level in the center of your object.

Your horizontal object might be a couple of bricks, a framed picture, or even the ground. Meanwhile, a vertical object could be a wall, a doorframe, or fencepost. First, check whether the bubble is within the guidelines, to its right or left (horizontal) or the top or bottom (vertical). If your object is very wide or tall, you may find that an average-sized level cannot give you an accurate reading on its own. In this case, the easiest solution is to find a larger level. Consider investing in a level at least 1 meter (3.3 feet) long for the most versatility. Another option is to place the level on top of a long or tall straightedge during your measurement.

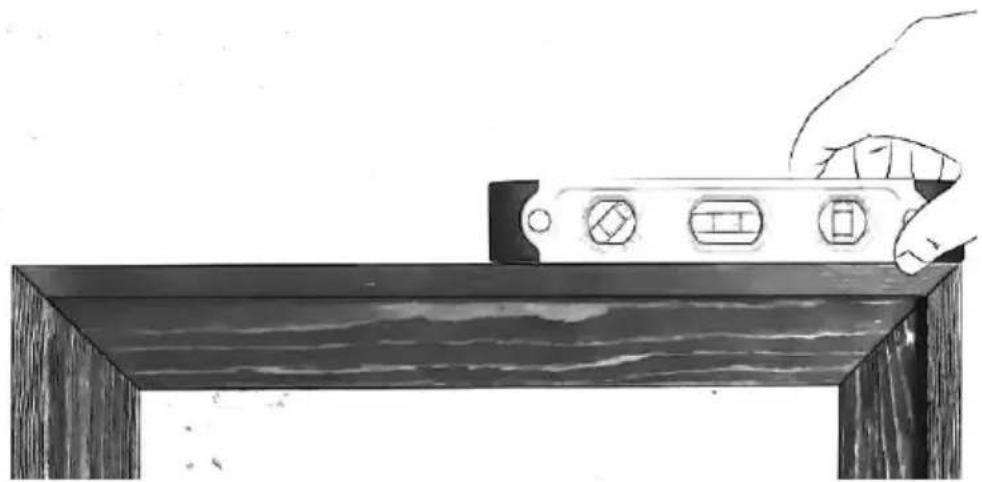

7. Double-check by moving the level away from the center.

Move the level to the right or left for horizontal readings, or top or vertical readings. Sometimes, levels could be poorly made, damaged, or defective, which renders their readings inaccurate. You can always

double-check the reading by re-positioning the level on the object and ensuring the reading is the same.

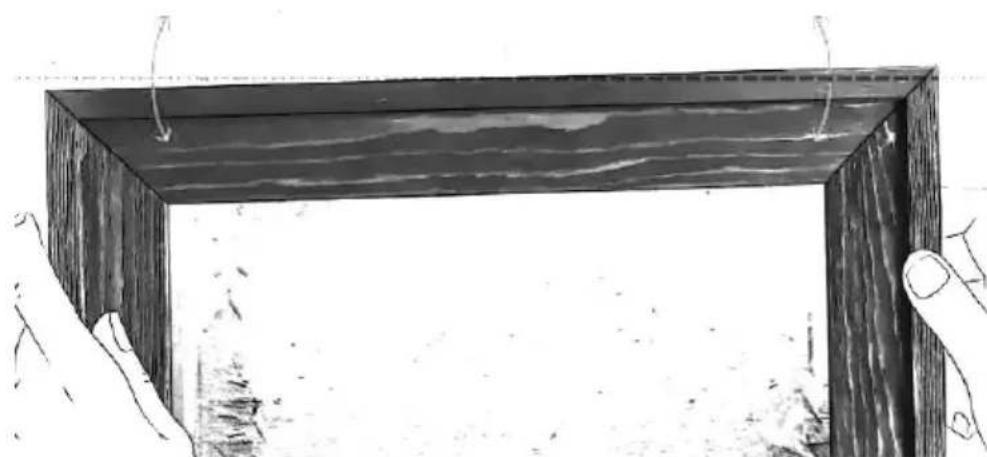

8. Take the appropriate action to level your object if necessary.

If you discover that your object is unlevel, you may level it. For example, if your horizontal object is a couple of bricks, you can add more mortar to the brick that is resting lower. Or, if your vertical object is a cabinet, you may add a filler piece between the cabinet and the wall it rests on.

- In some cases, you may want an unlevel reading! For example, this could be the case if you measure rain gutters or a patio on the horizontal, which must have a slight slope to drain rain properly. Some levels have outer lines in the vial, which measure the 2-percent slope, or "grade," necessary for these projects.

9. MAINTENANCE

The horizontal ruler is easily preserved. It can be hung somewhere flat, on a table or in a drawer, without affecting its straightness and parallelism. It is susceptible to rust if it is light aluminum and magnesium grade. The horizontal ruler does not need to be oiled during use. For storage, it is gently coated with a thin layer of ordinary industrial oil if not used for a long time.

• Take another reading. If the level is accurate, the bubble will be in the same position for both readings. - To test the vertical vial, follow the same procedure against a flat surface.
